Sony Super HAD CCDII Manuel utilisateur

Thank you for purchasing our product.

Please read this User’s Manual before

using the product. Change without Notice

WDR Tube Camera

User’s manual

SONY Super HAD CCDⅡ

Specification

Model typeA typeB

Pick up device 1/3" double-density CCD

Total Pixels NTSC:1028(H) x 508(V) / PAL:1028(H) x 596(V)

Effective Pixels NTSC:976 (H) x 494(V) / PAL:976 (H) x 582(V)

Resolution 700 TV lines

Synchronizing System 2:1 Internal

Scanning System NTSC: 525Lines/60Fields;PAL:625Lines/50Fields

S/N Ratio More than 52dB (AGC OFF, Weight on)

Electronic Shutter Auto 1 / 60 (1/50) ~1/100,000 sec

Min. Illumination 0.1Lux@ F1.0, Sense-up:

[email protected]

0.1Lux@ F1.6, Sense-up:

[email protected]

Video Output 1.0 Vp-p / 75 ohm

IR Distance 50M (36pcs IR LED : 18pcs Piranha / 18pcs Reflection)

IR Trigger 3.1lux / 3.7lux IR On / Off

WDR Function ON / OFF

AGC Auto

BLC WDR / BLC / OFF

White Balance Auto / Manual / Outdoor / Indoor / CRS

Lens Type Varifocal Lens: 6 ~ 50 mm / F1.6

IR Cut Auto

OSD Control Button / Control keyboard / Remote controller

1.SONY WDR (Wide Dynamic Range) Total Solution.

2.700 TV Lines High Resolution.

[email protected]; Sense-up: 0.001Lux@F1.0.

4.OSD Control by Button / Keyboard / Remote Controller.

5.RS485 Interface OSD Control by Pelco-D, Pelco-P.

6.Ideal for Backlight Environments.

7.2D/3D Noise Reduction & Sense Up (512x) Functions.

8.Shutter Mode (SCHEDULE / DAY&NIGHT).

9.Face Detection of up to 4 faces.

10.Privacy Mask 8 Zones Programmable.

11.Advanced Motion Detection Function.

12.Auto Zoom by face tracking or motion detection

13.Picture-Effect : Mirror / Flip / E-Zoom 1~16x.

14.Alarm relay out : NO + COM / NC + COM.

Face Detection 4 Face Detection

Motion Detection ON / OFF (24x16 Zones)

Picture-Effect Mirror / Flip / E-Zoom 1~16x

Auto-Zoom Optional Under auto face tracking or motion detection

Alarm relay out NO + COM / NC + COM

Privacy ON / OFF (8 Zones Programmable, Mosaic)

RS485 Protocol Pelco-D, Pelco-P

Power Source DC12V; DC12/AC24V DC12V; DC12/AC24V; AC110V~240V

Power Consumption

Standard :

DC12V ±10% / 1.5 A

Optional :

DC12V ±10% / 1.5 A ;

AC24V±10% / 1.5 A

Standard :

DC12V ±10% / 1.5 A / AC 24V

Optional :

DC12V ±10% / 1.5 A ; AC 110V~240V

Current 1.5A (Max)

Operating Temperature -10℃~ 50℃(14℉~ 122℉)

Storage Temperature -20℃~ 70℃(-4℉~ 158 ℉)

Dimension 100(W) x 203(H) x 222(D)mm 100(W) x 203(H) x 167(D)mm

Weight N.W./G.W.: 1.74kg / 2.15kg N.W./G.W.: 1.4kg / 1.85kg

Weatherproof IP67

Dimension

BEFORE ATTEMPTING TO HOOK UP AND OPERATE, PLEASE READ THIS

MANUAL.

CAUTIONS

(1) To reduce the risk of electric shock, do not remove cover(or back). No user

serviceable parts inside. Refer servicing to qualified service personnel.

(2) Never point the camera toward the sun and do not expose the lens directly

to sun or strong light as this may damage the pick-up device.

(3) Handle this camera with care. Avoid any shock or impact to the camera as

it contains sensitive parts which can be damaged by improper handling.

(4) Requires a proper operating environment this camera is designed for

indoor use. This allowable temperature range for operation of this camera

is between 14℉to 122℉and the allowable humidity is 85% maximum. If

the camera is to be placed in an extremely dusty location, a special

housing may be necessary to protect the camera and lens.

Please use suitable adapter DC12V ± 10 %,1A. Otherwise, this product will be damaged.

DIP Switcher

OSD MENU

Main Menu Tree

Main Menu

General

WB MODE

D/N MODE

Face / Motion

Mask Setup

Reset Camera

EXIT & SAVE

1. N/A

2. DN, day and night. On(auto)/off(day)

3. N/A

4. Reflection LED on/off switch

5. Piranha LED high/low power switch

6. Reflection LED high/low power switch

7. LED light

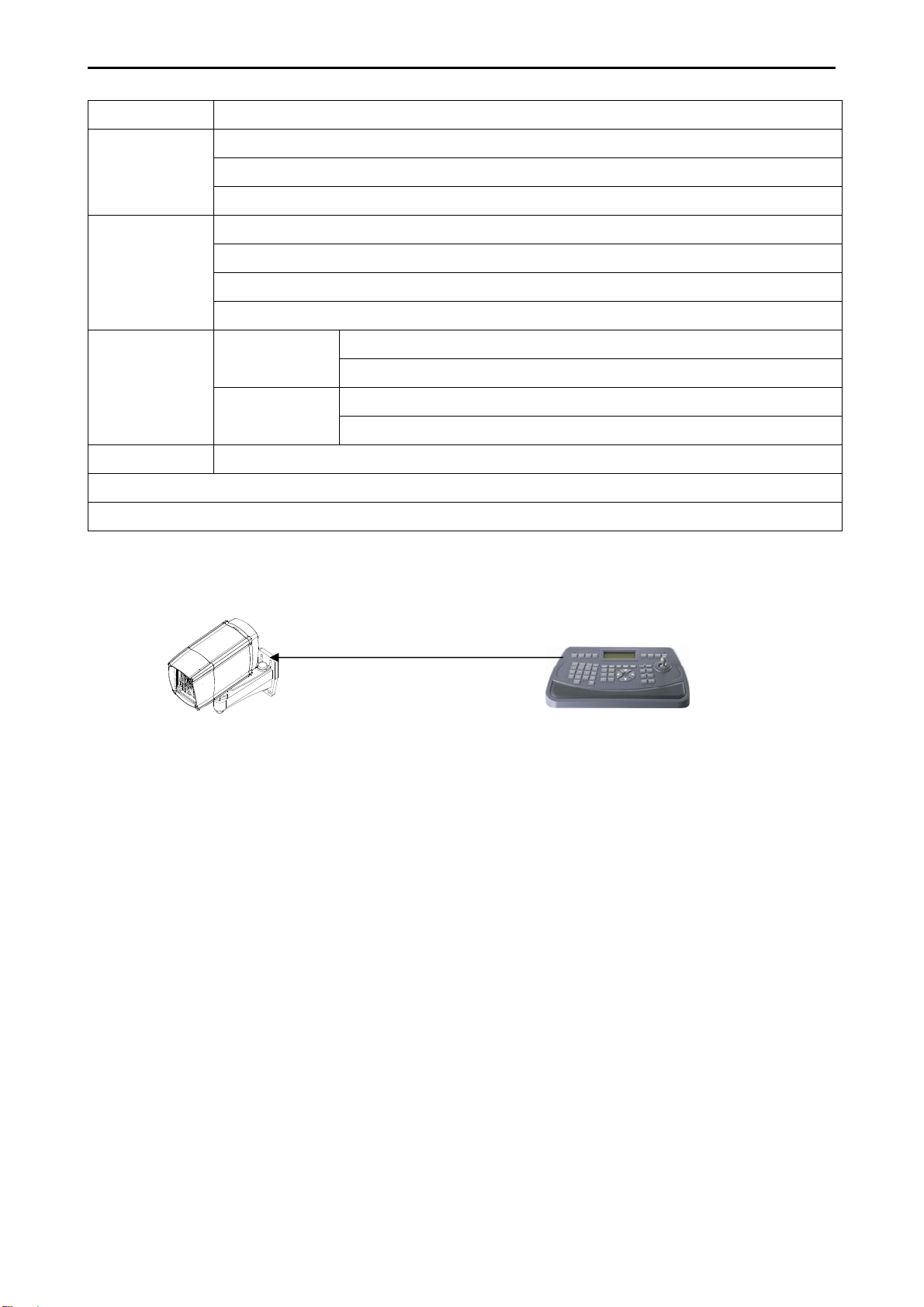

General

RS485 ID 1 ~ 254

Baud Rate 4800

9600

14400

Flip/Mirror

OFF

FLIP

MIRROR

ROTATE180

DNR 2D-NR ON

OFF

3D-NR ON

OFF

PTZ SPEED 1 ~ 15

RETURN

EXIT & SAVE

RS485 ID and baud rate depends on keyboard. Camera’s protocol Pelco P and D are embedded.

Image effect: Flip / Mirror / Rotate180

DNR (Digital noise reduce)

The image performance would be improved when the DNR mode on.

PTZ Speed, auto zoom speed under face or motion detect mode

Camera Keyboard

RS485

WDR/BLC Set

OFF DC LEVEL 80 ~ 240

SHUTTER 1/60~1/10000(PAL 1/50)

WDR WDR LEVEL L 50 ~ 250

WDR LEVEL S 10 ~ 250

L/S POINT 200 ~ 1200

BLC AUTO DC LEVEL 80 ~ 240

SHUTTER 1/60~1/10000(PAL 1/50)

BLC FIX

BLC Level 0 ~ 31

BLC Window

CENTER_LEFT

CENTER

CENTER_RIGHT

BOT_LEFT

BOT_CENTER

BOT_RIGHT

TOP_LEFT

TOP_CENTER

TOP_RIGHT

DC LEVEL 80 ~ 240

SHUTTER 1/60~1/10000(PAL 1/50)

DSS MAX OFF,1~20,40,60,80,100,200

AGC MAX 80 ~ 120

FLICKER ON

OFF

RETURN

EXIT & SAVE

WBMODE

User can adjust white balance effect, the function like asAuto Tracking White balance (ATW), Auto

White Balance adjust (AWB), Indoor or outdoor environment.

AUTO

Manual R Gain -5 ~ 5

B Gain -5 ~ 5

RETURN

EXIT & SAVE

Outdoor

Indoor

CRS

D/NMODE

EXT DELAY 1 ~ 10

RETURN

EXIT & SAVE

Face/Motion

DETECT

MODE

AUTO FACE FACE MODE SINGLE FACE(only one face zoom)

MULTI FACE(balance all face zoom)

RETURN

EXIT & SAVE

BY LABEL

LABEL1~4 SETUP

FACE

LABEL FRAME ON

OFF

LABEL COLOR

Red

Green

Blue

Pink

Yello

Cyan

Coffee

White

H Start 0 ~ 23

H End 0 ~ 23

V Start 0 ~ 15

V End 0 ~ 15

RETURN

EXIT & SAVE

Motion

LABEL FRAME ON

OFF

LABEL COLOR

Red

Green

Blue

Pink

Yello

Cyan

Coffee

White

H Start 0 ~ 23

H End 0 ~ 23

V Start 0 ~ 15

V End 0 ~ 15

RETURN

EXIT & SAVE

DISABLE

FR. AUTO OFF ON(frame window auto hide)

OFF(frame window off)

HOLD DELAY 1 ~ 5

RETURN

EXIT & SAVE

DISABLE

AUTO ZOOM ON

OFF

SENSITIVITY

MD THRESHOLD 0 ~ 20

FD THRESHOLD 0 ~ 40

RETURN

EXIT & SAVE

ALARM SETUP

MD ALARM ON

OFF

MD ALARM SET NORMAL OPEN

NORMAL CLOSE

FD ALARM ON

OFF

FD ALARM SET NORMAL OPEN

NORMAL CLOSE

NIGHT COLOR ON

OFF

RETURN

EXIT & SAVE

RETURN

EXIT & SAVE

Special Features

Detect mode:

Auto face:

There are two choices available:

-Single face which means just one frame will appear and the camera will track the face

within his field of view

-Multi face which means it can track up to 4 different face in the same windows

If auto zoom is enabled, it will make a digital zoom on the face

By label

User select an area and draw a frame which will be the detect label area 1 or maximum 4

area. Each label owns single detect mode, face or motion. Motion and face detect only

available on frame window of lens view.

Sensitivity

Motion or face threshold. Lower figure means detection is more sensitive.

Alarm setup

To active alarm relay when face or motion is detected. Can be set to normally open or

normally close. Example it can be connected to a buzzer or light for immediate action

Mask Setup

Mask1 ~ 8

MASK ON

OFF

Color Red

Green

Blue

Pink

Yellow

Cyan

Coffee

White

H START 0 ~ 500

H END 0 ~ 500

V START 0 ~ 280

V END 0 ~ 280

RETURN

EXIT & SAVE

Reset Camera

Back to factory default.

EXIT

Menu Quit.
