Sony SNC-CX600W Manuel

Network Camera

Easy Setting Manual

- Lighting up the white LED linked to the presence sensor

- Sounding an alarm linked to the presence sensor, etc.

(Voice Alert function)

- Recording video to a microSD card (Edge Storage function)

- Troubleshooting

The setting methods are described.

Settings are required to use these functions.

So make sure to read this manual.

Software Version 1.11.0

SNC-CX600W/CX600

Table of Contents

Introduction

－Connecting the camera with the computer via network

and checking the video

－Enter the administrator user name and password

－Changing the user name and password

1. Lighting up the white LED linked to the presence sensor

1-1. Changing the camera setting

Changing the light up time and brightness of the white LED

1-2. Checking the operation of the white LED

2. Sounding an alarm linked to the presence sensor, etc

（Voice Alert function）

2-1. Installing the SNC audio upload tool

2-2. Downloading the sample audio to a computer

2-3. Uploading the sample audio to the camera

2-4. Changing the setting of the camera (presence sensor link)

Setting the repeat number and volume of the audio

3. Recording a Video on microSD（Edge Storage function）

3-1. Preparing the microSD

3-1-1. When using a camera with software version 1.10.0 or earlier

3-1-2. When using a camera with software version 1.11.0 or later

3-2. Setting the clock on the camera

3-3. Changing the setting of the camera

3-3-1. When performing constant recording

3-3-2. When performing event recording

3-3-2-1. Setting a single event recording (presence sensor link)

3-3-2-2. Setting a multiple event recording

（presence sensor /Motion detection link）

3-4. Playing back/saving/deleting the recorded video

4. Trobleshooting

4-1. To forcefully light up the white LED

4-1-1. When using a camera with software version 1.10.0 or earlier

4-1-2. When using a camera with software version 1.11.0 or later

4-2. To confirm the response of the presence sensor

4-3. To record audio when recording a video

4-4. Unsure of administrator user name and/or password

4-5. How to confirm the software version of the camera

4-6. To restore the video stopped on the browser

－Connecting the camera with the computer via network

and checking the video

Perform the following settings in accordance with the Quick Start

Guide.

1. Prepare the camera.

2. Connect the camera with the computer via network.

3. Download the installer of "SNC toolbox" from the following URL,

and install it on the computer.

URL：http://www.sony.net/ipela/snc

For details on installation and usage, refer to the Application Guide.

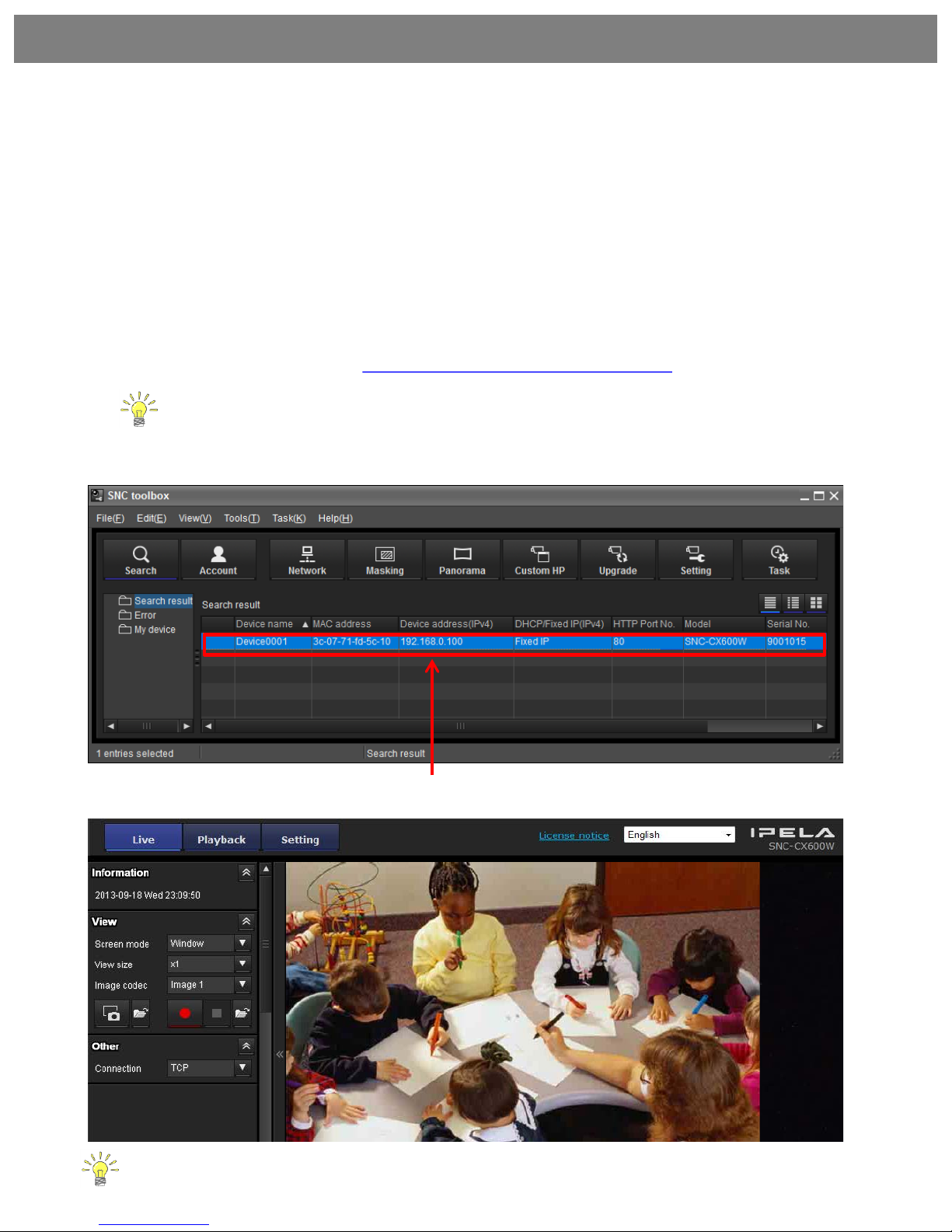

4. Start up “SNC toolbox” and double-click the model in the list.

5. Confirm the video via the web browser.

Double-click

For detail, refer to the Quick Start Guide (included) for the CX600W,

or “Connection” in the Installation Manual (included) for the CX600.

Introduction

－Enter the administrator user name and password

Enter the administrator user name and the password,

which are required for performing camera settings, etc.

1. Click Setting in the main menu.

2. Enter the administrator user name and password.

Read the “Initializing this unit” in the Quick Start Guide or

“Basic Operations of the Administrator Menu” in the User Guide

for initial setting of the administrator user name and password.

Click

Enter

－Changing the user name and password

Make sure to change the administrator user name and password

from the factory setting to secure the security.

1. Click Security.

2. Enter new user name and password in the [Administrator] field of User

and click OK.

3. Enter the changed administrator user name and password.

Enter the changed administrator

user name and password

Enter new

user name

and password

Click

◆This is a function to light up the white LED when the presence sensor

has reacted in the dark environment.

1-1. Changing the camera setting

1. Click Setting in the main menu.

2. Enter the administrator user name and password.

1. Lighting up the white LED linked to the

presence sensor

Presence sensor is a sensor that will detect the change in infrared

emitted from human, animal, and other sources.

If you have forgotten the administrator user name or password,

refer to “4-4. Unsure of administrator user name

and/or password.”

Click

Enter

3. Click Action output.

4. Set [White LED] to [Presence sensor] in Execution Condition, and click OK.

Setting is completed if the setting for [White LED] is changed to

[Presence sensor] after clicking OK.

Click

Select

[Presence

sensor]

Changing the light up time and brightness of

the white LED

The light up time ([Duration]) and brightness ([Illuminator level]* :6←1)

can be set in White LED in Action output.

* It is displayed as [Maximum strength] for the software version 1.10.0 or earlier.

[Duration] is the duration time after the presence sensor has

stopped reacting.

It will continue to light up while the presence sensor is reacting.

Reacting

Light On

Not reacting

Light Off

Duration

Presence sensor

White LED

Caution

●[Illuminator level] can be set in 6 steps of 1 to 6. It will be brighter with

larger values.

Illuminator level

Dark Bright

1 6

Click after

setting

Set the

Duration

Set the

Illuminator

level

1-2. Checking the operation of the white LED

Confirm that the presence sensor is linked with the white LED. When using

a camera with software version 1.11.0 or later, skip “2.” in the following procedure.

1. Using a handkerchief, etc., so the lens is not touched with hands directly, cover

the lens section of the camera completely so the light will not get in. (If the

room can be darkened, darken the room without performing procedure 1.)

2. Cover the presence sensor section of the camera.

3. After approximately 5 seconds, remove the hand covering the presence

sensor and wave your hand in front of the presence sensor and then

confirm that the white LED lights up taking care not to look at

the white LED directly.

Lens

Presence sensor Cover the lens section of the camera

Cover the presence

sensor section of the

camera

Do not look directly

Wave hand

◆This is the function to sound an alarm from the speaker on the camera

when specific conditions are met.

- Conditions that can be set are as follows.

・Camera tampering detection

・Motion detection

・VMF (Video Motion Filter)

・Face detection

・Network disconnection

・Presence sensor

2-1. Installing the SNC audio upload tool

"SNC audio upload tool" is used to upload the audio file to a camera.

1. Access to the following URL via the Internet.

URL：http://www.sony.net/ipela/snc

2. Download the "SNC audio upload tool" zip file from Utility & Software.

3. Extract the downloaded zip file by right clicking, and start up the exe file.

4. Read the description regarding the agreement if there is one,

and click [Agree] to continue.

5. Change the installation destination if necessary, and start the installation

after the final confirmation.

Installation of "SNC audio upload tool" is completed once the completion

window is displayed.

2-2. Downloading the sample audio to a computer

It is necessary to download the sample audio from the Internet to use

the Voice Alert function.

１. Access to the following URL via the Internet.

URL：http://www.sony.net/ipela/snc

２. Click the sample audio to acquire and save it in a desired location

on the computer.

The downloaded audio file (vof file) can be listened only with "SNC audio

upload tool".

Refer to the step 2 in “2-3. Uploading the sample audio to the camera”

for the listening method.

2. Sounding an alarm linked to

the presence sensor, etc. (Voice Alert function)

Caution
