Sony XA-V7W Mode d’emploi

3-243-056-22(1)

XAV-7W

Media Center/

Receiver

Installation/Connections

安裝連接

Notice to dealers and installers

Please return this manual to the customer after the installation is completed.

經銷商和安裝者請注意

請在安裝完成後把本手冊交還給用戶。

Unit is designed for negative ground

12 V DC systems only

The unit cannot be used in trucks or other cars

with 24 V systems. Otherwise, there is a risk of fire

and damage.

Do not disassemble or remodel the

unit

This can cause electric shock, personal injury or

fire. Do not connect any other system’s power

supply cord to this unit’s power supply cord

directly. If you are in any doubt about the safe

installation of this unit, please consult your nearest

Sony dealer.

Do not install in locations which

interfere with airbag operation

Otherwise there is a risk of accidents and injury.

Use only the specified fuse

When replacing the fuse, be sure to use only a fuse

of the same rating (ampere rating). Otherwise

there is a risk of fire.

Do not block ventilation

If the unit is placed under the floor carpet, floor

mat, or otherwise covered, the ventilation

openings and heat sink cannot provide sufficient

cooling, leading to overheating and the risk of fire

or serious accidents.

Cautions

•Do not get the wires under a screw, or caught in

moving parts (e.g. seat railing).

•Before making connections, turn the car ignition

off to avoid short circuits.

•Connect the yellow and red power input leads

only after all other leads have been connected.

•Run all ground wires to a common ground

point.

•Be sure to insulate any loose unconnected wires

with electrical tape for safety.

Notes on the power supply cord (yellow)

•When connecting this unit in combination with

other stereo components, the connected car

circuit’s rating must be higher than the sum of

each component’s fuse.

•When no car circuits are rated high enough,

connect the unit directly to the battery.

Precautions On safety

Comply with the Traffic Laws in your country.

Table of Contents

Precautions .................................................................................................................... 2

Parts List ........................................................................................................................ 4

1Installing the Main Unit .......................................................................................... 5

Before installation................................................................................................................. 5

Installation procedure..........................................................................................................7

Installing the connection box XA-114................................................................................ 9

Hooking up the connection box ......................................................................................... 9

2Main Unit Connections.......................................................................................... 10

Connection Example ................................................................................................... 11

Connecting Information ............................................................................................. 13

Using the tap ....................................................................................................................... 13

Connecting the parking cord ............................................................................................ 13

3Car Systems Connections ...................................................................................... 14

4After Installation and Connections ...................................................................... 16

Removing the Front Panel Plate ................................................................................ 17

12 3

4*1 56

78 9

q; qa qs

Parts List

The numbers in the list are keyed to those in the instructions.

×2

*1Packed while being fixed to the main unit.

*2Use this to replace the fuse or dismount the unit.

Refer to the Operating Instructions for details.

CAUTION

Handle the bracket

q; carefully to avoid

injuring your fingers.

×2

2.5 m

×4

qd qf qg *2

Installation angle

The unit should be installed within an

angle of 25 degrees from horizontal. If

this angle is exceeded, the monitor may

not open up or retract properly.

Note

Keep the units and connection cables

apart.

The Media Center main unit and the

connection box 1should not be in close

proximity.

1Installing the Main Unit

Before installation

This unit is designed to be completely safe, but if not installed

correctly, it can cause accidents. Be sure to verify the following

points before installation.

Install the main unit to the in-dash location, and the connection

box under the navigator’s seat, etc.

• If the monitor in the opened position is close to a air-

conditioning outlet, the outlet should be closed.

•Install the unit so that the monitor when opened up will not

block access to the hazard switch or other important controls.

• Do not install the unit (monitor) in locations which may be

subject to excessively low or high temperatures. (Otherwise the

unit may be deformed and the LCD may be damaged.)

Exposure to direct sunlight can also lead to high temperatures

and should be avoided.

Selecting the installation location

1Set the ignition key to OFF or remove it.

2Place the units in their intended mounting

locations to check the cable length and monitor

installation conditions.

Frequency select switch

The AM (FM) tuning interval is factory-set to the 9 k (50 k)

position. If the frequency allocation system of your country is

based on 10 kHz (200 kHz) interval, set the switch on the bottom

of the unit to the 10 k (200 k) position before making connections.

FM 200k AM 10k

FM 50k AM 9k

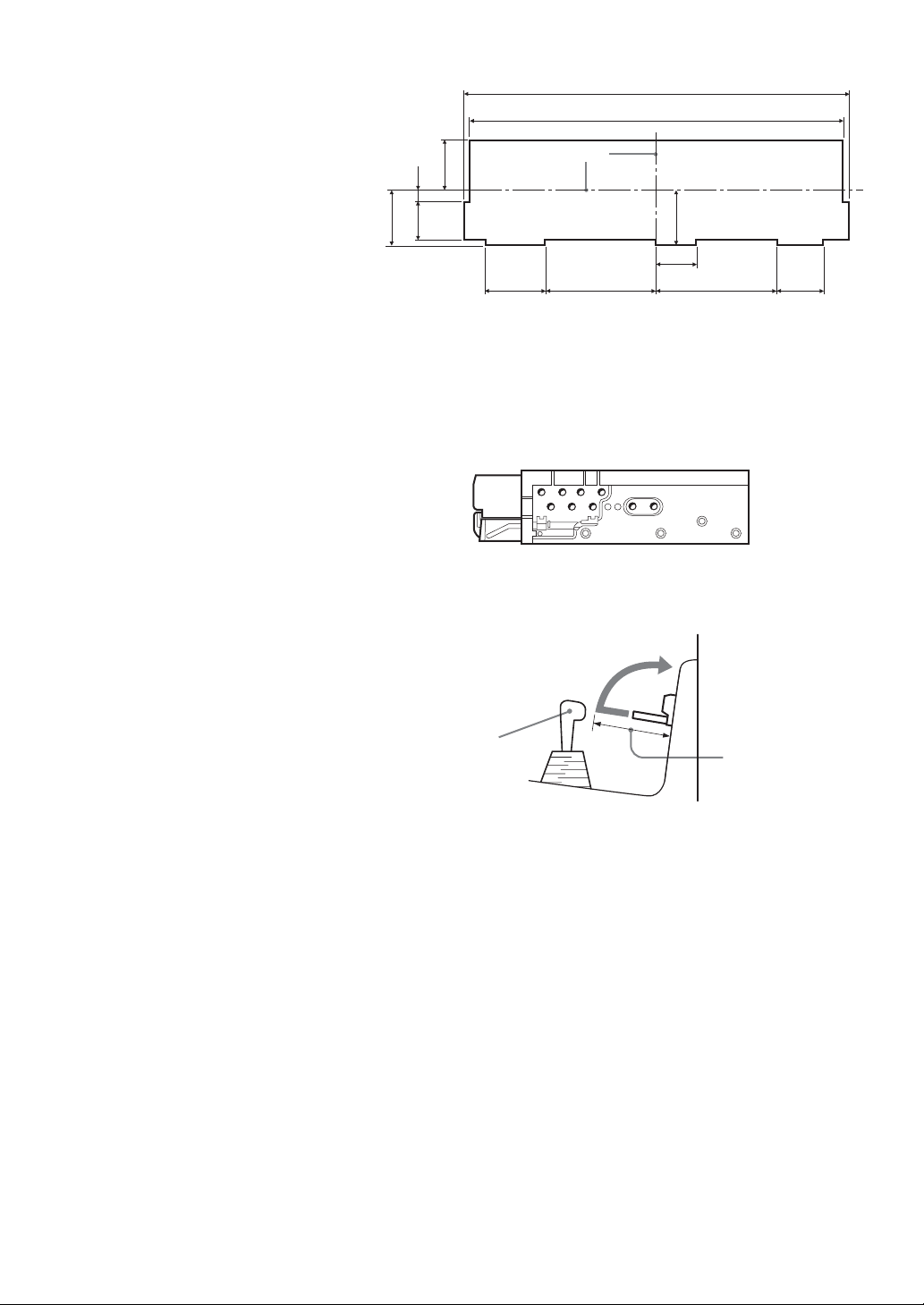

Cluster panel dimensions

25.5

17.3 6.2

22.5

33.6 44.7 55.7 20.6

171

175.4

Installation procedure precautions

•Perform the installation carefully. Dropping the unit or

otherwise subjecting it to strong impact or force may deform

the chassis, resulting in failure of the monitor loading

mechanism or other defects.

T/N

T/N T/N

TT TN

•To allow for proper opening and closing of the monitor, there

must be a clearance of at least 147 mm between the closest

position of the shift lever and the mounting surface for the unit.

•In some cases, the shift lever may touch the monitor when

moved to a certain position. Make sure that there is no

obstruction to driving operations.

•When installing this unit together with other car audio

equipment (single DIN slot size) in a stacked configuration,

install the Media Center main unit on top.

Shift lever At least 147 mm

from mounting

surface

Note

If the installation dimensions shown at

right are not observed, the monitor may

not open up smoothly. If this happens,

check the installation once more and

modify the cluster panel where the

dimension requirements are not met. For

some car models, a separately available

mounting kit may be required.

(For details, please consult your dealer.)

Center line

Unit: mm

Installation procedure

Mounting example

When installing this unit, be sure to close the monitor of the unit.

If the monitor is opened while installing and given too much

force, it may cause a malfunction.

Bend these claws outward

for a tight fit, if necessary.

Dashboard

182 mm

53 mm

Fire wall

Nissan cars

Align the brackets of the factory-installed car stereo with the

mounting holes marked “N” on the side of the Media Center

main unit, and use the supplied pan-head screws 6to fasten the

brackets.

*Be sure to use only the supplied pan-head screws 6for

installation. If any other screws are used, make sure they

conform to the requirements shown below.

Using longer screws can cause internal damage to the unit.

5 mm

6 mm

Damage can also occur if the screws are used directly on the

unit without the brackets of the factory-installed car stereo.

Screws of factory-

installed car stereo

bracket

Bracket of

factory-installed

car stereo

Toyota cars (illustration shows an example for a Toyota car)

Align the brackets of the factory-installed car stereo with the

mounting holes marked “T” on the side of the Media Center main

unit, and use the supplied screws to fasten the brackets. For

Toyota cars, the supplied screws 6should be used.

Note

•Do not press the front panel buttons of

the unit during installation and do not

apply strong force.

•Do not place any objects on top of the

unit.

When removing front panel plate

Front panel

plate 4

Do not throw away the front panel plate,

since it will be needed when you change

the car you install the unit.

For details, see “Removing the Front

Panel Plate”. (page 17).

Screws of factory-

installed car stereo

bracket

Bracket of

factory-installed

car stereo

XAV-7W

CSX-V58MP

(optional)

XAV-7W

CSX-V58MP

(optional)

Note

•Ensure that the mounting surface is

clean.

•Do not install the connection box

- in locations subject to high

temperatures

-in locations subject to direct sunlight,

warm air from heater outlets, or

other locations that can get hot.

•When attaching the hook-and-loop

fastener to the bottom of the connection

box, do not cover the model name plate

in the center.

Hook-and-loop

fastener 8Hook-and-loop

fastener 8

On installation surface

Installing the connection box XA-114

Cut off the required length of hook-and-loop fastener 8and fix

the connection box 1on the carpet or similar.

Use of connectors

Insert until the connector clicks into

place. To remove, press here and pull out.

Main unit/connection

box interconnect 3

To Media Center main unit

Hooking up the connection box

Refer also to the section “3Car Systems Connections” (page 14 -

15).

Insert 3until a click is heard.

Refer also to the section “3Car Systems Connections” (page 14 -

15).

Insert 2and 3until a click is heard.

2Main Unit Connections

Use of connectors

Insert until the connector clicks into

place. To remove, press here and pull

out.

To connection

box

Main unit/

connection box

interconnect 3

Power supply leads 2

(for main unit)

Insert until the connector clicks into

place. To remove, press here and pull

out.

Autres manuels pour XA-V7W

Table des matières

Autres manuels Sony Récepteur

Sony

Sony STR-W777 Manuel utilisateur

Sony

Sony STR-DN1010 - Multi Channel Av Receiver Manuel utilisateur

Sony

Sony ICF-SW100 Manuel utilisateur

Sony

Sony STR-DG520 Manuel utilisateur

Sony

Sony STR-DH720HP Manuel utilisateur

Sony

Sony DWR-R02D Manuel utilisateur

Sony

Sony FA-WRR1 Manuel utilisateur

Sony

Sony XDR-S100CD Manuel utilisateur

Sony

Sony STR-ZA810ES Manuel utilisateur

Sony

Sony STR-DN1010 - Multi Channel Av Receiver Manuel utilisateur

Sony

Sony CRF-1 Manuel utilisateur

Sony

Sony ICF-SW100E Manuel utilisateur

Sony

Sony STR-D911 Manuel utilisateur

Sony

Sony STR-ZA3100ES Manuel utilisateur

Sony

Sony 3-289-204-12(1) Manuel utilisateur

Sony

Sony STR-DN1070 Manuel utilisateur

Sony

Sony SS-TS500 Manuel utilisateur

Sony

Sony DWT-B30/H Manuel utilisateur

Sony

Sony STR-DG600 - Multi Channel Av Receiver Manuel utilisateur

Sony

Sony STR-DA5200ES - Fm Stereo/fm-am Receiver Manuel utilisateur

Sony

Sony STR-DA3400ES Manuel d'installation et d'exploitation

Sony

Sony STR-DH590 Manuel utilisateur

Sony

Sony HCD-F3MD Manuel utilisateur

Sony

Sony STR-DA3300ES - Multi Channel Av Receiver Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
