Sony MSAC-SR1 Manuel utilisateur

1-EN

MSAC-SR1

Operating Instructions

Before operating the unit, please read this manual

thoroughly, and retain it for future reference.

Руководство по эксплуатации

Перед эксплуатацией аппарата рекомендуется

внимательно изучить настоящее руководство и

сохранить его у себя для дальнейших справок.

3-866-727-12(1)

1999 by Sony Corporation

Serial Port Adaptor

for MEMORY STICK

2-EN

WARNING

To prevent fire or shock hazard, do not expose the unit to

rain or moisture.

NOTICE FOR THE CUSTOMERS IN THE UNITED

KINGDOM

A moulded plug complying with BS 1363 is fitted to this equipment

for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP

fuse approved by ASTA or BSI to BS 1362, (i.e., marked with 2or

@mark) must be used.

If the plug supplied with this equipment has a detachable fuse

cover, be sure to attach the fuse cover after you change the fuse.

Never use the plug without the fuse cover. If you should lose the

fuse cover, please contact your nearest Sony service station.

For the customers in Germany

Directive: EMC Directive 89/336/EEC.

92/31/EEC

This equipment complies with the EMC regulations when

used under the following circumstances:

• Residential area

• Business district

• Light-industry district

(This equipment complies with the EMC standard regulations

EN55022 Class B.)

3-EN

Table of contents

Overview .......................................................................... 4

Checking supplied accessories ........................................ 5

Identifying the parts ....................................................... 6

Connections ...................................................................... 7

Connecting to the PC ....................................................... 7

Operation ......................................................................... 8

Inserting the “Memory Stick”......................................... 8

Removing the “Memory Stick” ...................................... 9

Troubleshooting ............................................................. 10

Specifications ................................................................. 11

4-EN

The MSAC-SR1 Serial Port Adaptor for “Memory

Stick” is available for the Handycam.

The MSAC-SR1 allows you to transfer pictures that

have been recorded on “Memory Stick” with your

Handycam to a PC. Moreover, using the supplied

software “PictureGear 3.2Lite” you can manage

these pictures.

“Memory Stick” is the trademark of Sony

Corporation.

Other corporation and product names are registered

trademarks of each respective corporation.

Note

The “Memory Stick”

recorded with the

DCR-TRV900

Handycam cannot

be used with this

unit.

Overview

5-EN

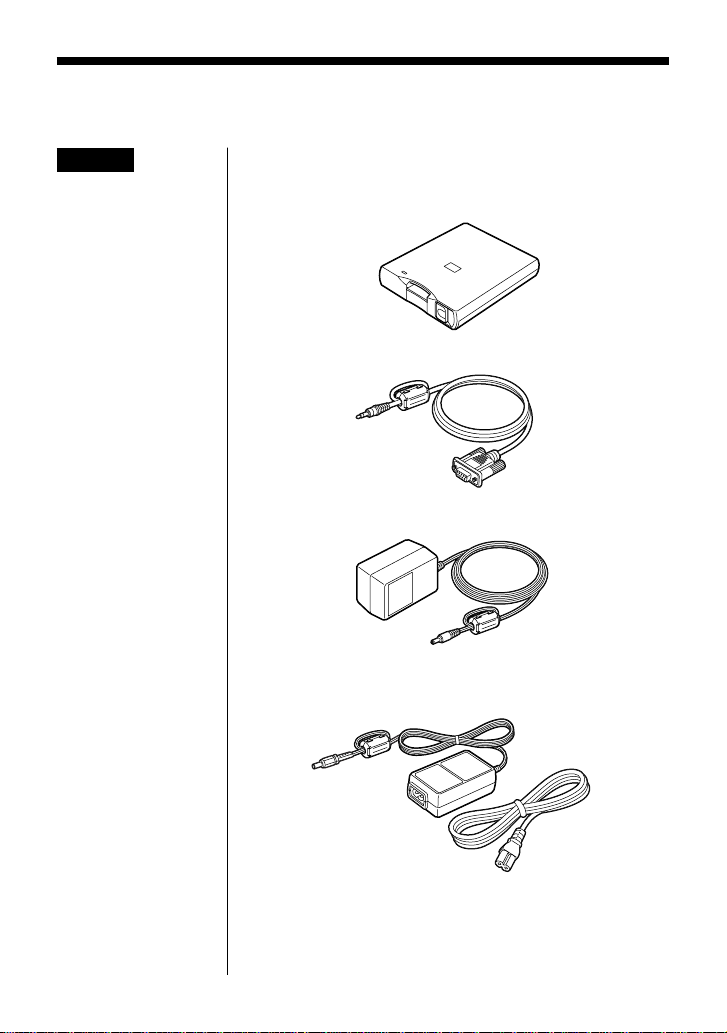

Checking supplied

accessories

Check that the following accessories are supplied

with the MSAC-SR1.

•MSAC-SR1

•Serial cable

•AC power adaptor

- AC-PT1

- AC-PW1

Notes

• The supplied

serial cable can

only be used for

the MSAC-SR1

and cannot be

used to connect

other equipment

(digital video

camera, etc.).

• This unit comes

with the AC-PT1

or AC-PW1 AC

power adaptor.

6-EN

Identifying the parts

Front Rear

1Processing lamp

Indicates the MSAC-SR1 operating status. The

lamp lights when writing or reading the

“Memory Stick” data, or when transferring data

between the “Memory Stick” and PC.

2“Memory Stick” slot

Insert the “Memory Stick”.

3Eject button

Press to remove the “Memory Stick”.

4DC jack

Connect the supplied AC power adaptor.

5DIGITAL IN/OUT jack

Connect to the PC using the supplied serial

cable.

12345

7-EN

To transfer pictures recorded on the “Memory

Stick” with your Handycam to a PC, the software

must be installed, and the MSAC-SR1 must be

connected to the PC beforehand.

For details about software installation, refer to the

operating instructions supplied with the

“PictureGear 3.2Lite” software.

Connecting to the PC

Connect the MSAC-SR1 to the PC as follows.

(1)Connect the cable.

Connect the DIGITAL IN/OUT jack on the

MSAC-SR1 to the serial port of the PC using the

supplied serial cable.

(2)Connect the AC power adaptor.

Insert the AC power adaptor connector into the

DC jack on the MSAC-SR1 and plug the AC

power adaptor into an AC outlet.

Connections

Note

Ensure the shape of

serial port

connector.

Serial cable

Rear of the

MSAC-SR1

DC IN jack

To an AC

outlet

AC power adaptor

AC-PW1

DIGITAL

IN/OUT jack

To the

serial

port

Note

A socket outlet

should be as close as

possible to the unit

and easily

accessible.

AC power adaptor

AC-PT1

To an AC

outlet

8-EN

Inserting the “Memory Stick”

Insert the “Memory Stick” into the MSAC-SR1 as

shown below.

Position with the Sony label side up and insert in

the direction of the 9mark.

Operation

Note

When inserting,

make sure that the

positioning and

direction of the

“Memory Stick” are

correct. Failure to do

so may resulting

damage to the

“Memory Stick” or

the MSAC-SR1.

9-EN

Removing the “Memory Stick”

Make sure that the processing lamp goes off, and

press the eject button. The “Memory Stick” ejects.

Press the eject button.

Note

The processing lamp

lights while data is

transferred between

the “Memory Stick”

and the PC. While

transferring data, do

not remove the

“Memory Stick”.

Doing so may

damage the data.

Precautions

• If the AC power adaptor or the serial cable is

disconnected while transferring data between the

“Memory Stick” and the PC or while displaying a

picture on the PC, data transfer will be stopped.

If the AC power adaptor becomes unplugged, exit the

PictureGear 3.2Lite software, remove the “Memory

Stick” and re-plug in the AC power adaptor. Then,

restart the software and perform the transferring

procedure.

If the serial cable is disconnected, exit the PictureGear

3.2Lite software, unplug the AC power adaptor, connect

the serial cable firmly and then re-plug in the AC power

adaptor. After that, restart the software and perform the

transferring procedure again.

• If data transfer still cannot be performed successfully,

disconnect and reconnect the serial cable connector on

the MSAC-SR1 or unplug and re-plug in the AC power

adaptor.

Processing lamp

10-EN

If any problems occur while using the MSAC-SR1,

use the following table for troubleshooting. Also,

refer to the operating instructions supplied with

your Handycam if necessary. Should the difficulty

persist, contact your Sony dealer.

An error occurs during “Memory Stick” data

transfer.

mMake sure that the MSAC-SR1 and the PC are

connected correctly with the supplied serial

cable.

mMake sure that no other software is being

executed via the same serial port on the PC.

mIf the software which transfers the “Memory

Stick” data is accidentally terminated, data

transfer between the MSAC-SR1 and the PC may

not be correctly performed. If this happens,

disconnect and reconnect the serial cable.

The picture data cannot be read from the

“Memory Stick”.

mThe “Memory Stick” data cannot be transferred

when 2 or more software applications are

executed simultaneously. While the “Memory

Stick” data is being transferred, do not execute

any other software until the software being

operated has been exited.

A connection error occurs.

mCheck the serial cable setting (COM1 or COM2)

on the PC and ensure that both the software and

serial cable settings are the same. For details,

refer to the operating instructions supplied with

the PictureGear 3.2Lite.

Troubleshooting
