Sony HKC-WL50 Manuel utilisateur

INSTALLATION MANUAL

1st Edition

WIRELESS TRANSMISSION ADAPTOR

HKC-WL50

利用条件:　

① 本情報はソニー製品の販売、設置、設定、使用の目的でのみご利用ください。かかる目的以外での利用を禁止します。

② 著作者の事前の書面による許可なく、本情報の全部または一部の複写、複製、転載、改変、翻訳、送信等を禁止します。

情報改訂:

本情報は、当社の裁量により、予告なく変更されることがあります。ご使用される場合、本情報が最新の情報であることを確認のうえ、

ご使用ください。

Conditions of Use:

(1) Please use this information only for the purpose of sales, installation, configuration, and use of Sony products. Using this information

for any purpose other than the purpose described foregoing is forbidden.

(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the prior

written permission of the author.

Revision of Information:

This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date before

using it.

警告

このマニュアルは，サービス専用です。

お客様が，このマニュアルに記載された設置や保守，点検，修理などを行うと感電や火災，

人身事故につながることがあります。

危険をさけるため，サービストレーニングを受けた技術者のみご使用ください。

WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so. Refer all servicing to

qualified service personnel.

WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung

dazu besitzen.

AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin

de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les

réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

Table of Contents

Section 1 Installation...................................................................................................................................................................2

1-1. Components.........................................................................................................................................................................2

1-2. Overview of Installation.......................................................................................................................................................3

1-2-1. Installing HKC-CN50 to the Camera Body.....................................................................................................................3

1-2-2. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body ............................................................................3

1-2-3. Installing HKC-WL50 (Battery Adaptor Assembly) to the Camera Body .........................................................................4

1-3. Installation Procedures .........................................................................................................................................................5

1-3-1. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body ............................................................................5

1-3-2. Installing HKC-WL50 (Battery Adaptor Assembly) to the Camera Body .......................................................................19

1-4. Arranging Harness when Removing the HKC-WL50 (Outside Panel Assembly)...................................................................23

Revision History ..........................................................................................................................................................................24

Section 1

Installation

Purpose of this manual

This manual is an installation manual of HKC-WL50. Intended for use by system and service engineers, this manual describes

information on installation of HKC-WL50.

Related manual

Besides this installation manual, the following manual is available for HKC-WL50.

If you need these manuals, please contact your local Sony Sales Office/Service Center.

• HDC3500 Service Manual (available on request)

This manual describes information on the maintenance and component-based service of the unit.

• HKC-CN50 Installation Manual (available on request)

This manual describes the information on installing HKC-CN50/FB30/FB50/TR37.

1-1. Components

• Outside panel assembly: 1pc

• Battery adaptor assembly: 1pc

• Screws: 4pcs

• Lock bracket: 1pc

• Hinge plate: 1pc

• Nut: 1pc

• Antenna cushion: 1pc

• Operating Instructions: 1pc

• Rating label: 1pc

• Harness (DC-OUT-POWER): 1pc

1-2. Overview of Installation

1-2-1. Installing HKC-CN50 to the Camera Body

• If CN-4044 board (HKC-CN50) is not installed to the camera body, install CN-4044 board first to begin with the following

procedures.

• For details of this installation, refer to “Installation manual HKC-CN50”.

1-2-2. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body

For details on the installation procedure, refer to “1-3-1. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body”.

Note

Outline of installation procedure

(1) Open the outside panel.

(2) Disconnect the two harnesses and the two

FPCs with connector.

(3) Remove the outside panel.

(4) Install the CN-4044 board (HKC-CN50) to

the camera body.

(5) Install the outside panel.

(6) Close the outside panel.

CN-4044 board

(HKC-CN50)

Outside panel

Camera body

Note

Outline of installation procedure

HKC-WL50 (outside panel assembly)

(1) Install the wireless unit to the HKC-WL50 (outside panel

assembly).

(2) Remove the outside panel.

(3) Remove the inside panel.

(4) Change the orientation of the DC IN connector.

(5) Replace the harness (DC-OUT) with the harness

(DC-OUT-POWER).

(6) Install the inside panel.

(7) Install the HKC-WL50 (outside panel assembly).

Outside panel

Camera body

1-2-3. Installing HKC-WL50 (Battery Adaptor Assembly) to the Camera Body

For details on the installation procedure, refer to “1-3-2. Installing HKC-WL50 (BatteryAdaptor Assembly) to the Camera Body”.

Note

Outline of installation procedure

Camera body

(1) Install the hinge plate and the lock bracket to the camera

body.

(2) Install the HKC-WL50 (Battery adaptor assembly).

(3) Attach the rating label on the camera body.

HKC-WL50

(battery adaptor assembly)

1-3. Installation Procedures

1-3-1. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body

1. Push the two buttons and open the cover of HKC-WL50 (outside panel assembly).

2. Secure the wireless unit using the mounting holes shown in the figure.

Use screws that meet the following conditions.

• Thread diameter: M2

• Depth of mounting hole: Max. 3 mm

Button

HKC-WL50 (outside panel assembly)

Cover

Button

Note

Mounting holes

3. Remove the three screws, and then remove the antenna bracket.

4. Install the transmission antenna and the receiving antenna to the antenna bracket.

To install the transmission antenna, use the nut supplied with HKC-WL50.

5. Attach the antenna cushion.

• Align the antenna cushion with the reference line shown in the figure below.

• Remove portion Aof the antenna cushion, if necessary.

PSW3 x 6

Antenna bracket

Note

Antenna bracket

Receiving antenna

Antenna

bracket

Nut

(Supplied with HKC-WL50)

Antenna cushion

Antenna cushion attachment position

Transmission antenna

Antenna cushion

Reference line

PortionA

6. Attach the antenna bracket with the three screws.

• When attaching the antenna bracket, match the two bosses with the two holes.

7. Attach the antenna cushion to the outside panel.

8. Close the cover.

Confirm that the cover has locked.

Note

PSW3 x 6

Bosses

Holes

Antenna bracket

Antenna cushion

Outside panel

Note

To prevent damage in the unit, turn off the power and disconnect the power cord or remove the battery before starting the

following work.

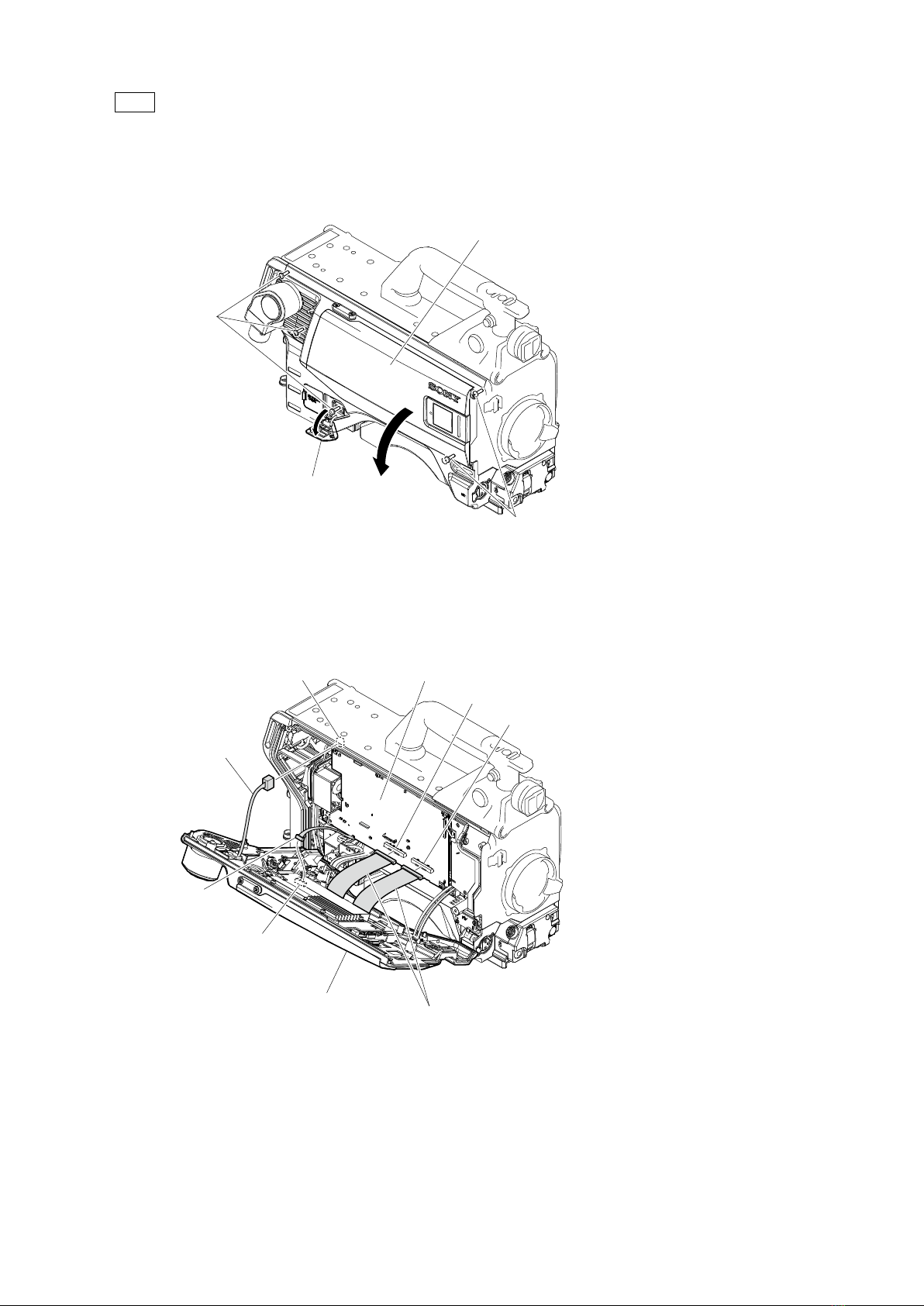

9. Open the DC OUT lid (860) in the direction of the arrow A.

10. Loosen the five screws with stopper to open the outside panel assembly in the direction of arrow B.

11. Disconnect the harness from the connector (CN102) on the PS-943 board.

12. Disconnect the two FPCs with connector (DPR-SDI) from the two connectors (CN200, CN201) on the DPR-390 board.

13. Disconnect the harness from the connector (CN001) on the TX-164 board.

Note

DC OUT lid (860)

Outside panel assembly

B3 x 10

(Screws with stopper)

B3 x 10

(Screws with stopper)

CN201

DPR-390 board

CN200

Harness

Outside panel assembly

CN001

(TX-164 board)

CN102

(PS-943 board)

FPCs with connector (DPR-SDI)
