Sony CSX-V58MP Manuel utilisateur

Model Name Using Similar Mechanism NEW

CD Drive Mechanism Type MG-383KA-121//K

Optical Pick-up Name KSS-720A

E Model

SYSTEM UP VCD/MP3 PLAYER

System Compact disc digital audio

system

Signal format system NTSC/PAL switchable

Frequency response 20 – 20,000 Hz

Wow and flutter Below the measurable limit

Signal-to-noise ratio 85 dB

Outputs Audio outputs (left/right)

Video output

BUS control output

Power requirement 12 V DC car battery

(negative ground)

Current drain 0.9 A (during disc playback)

1.8 A (during loading or ejecting

a disc)

Operating temperature –10 °C to +55 °C

Dimensions Approx. 178 ×50 ×172 mm

(w/h/d)

Mounting Dimensions Approx. 178 ×50 ×154 mm

(w/h/d)

Mass Approx. 1.3 kg

Supplied accessories Parts for installation and

connections (1 set)

Design and specifications are subject to change without notice .

SPECIFICATIONS

• The CD section have no adjustments.

Sony Corporation

e Vehicle Company

Published by Sony Engineering Corporation

9-874-103-02

2002K0400-1

SERVICE MANUAL

CSX-V58MP

Ver 1.1 2002. 11

•Sony BUS system compatible VCD/MP3

Player.

•MP3 file playback (recorded in the ISO9660

level 1 or 2 format, or Joliet or Romeo in the

expansion format or in Multi Session)

•CD-R/CD-RW which can have a session

added can be played.

•Discs recorded in Multi Session (CD-Extra,

Mixed mode CD, etc.) can be played,

depending on the recording method.

Features

CSX-V58MP

SERVICE NOTES

If the optical pick-up block is defective, please replace the whole

optical pick-up block.

Never turn the semi-fixed resistor located at the side of optical

pick-up block.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK

OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic

breakdown because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic breakdown and also use

the procedure in the printed matter which is included in the repair

parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on

the disc reflective surface by the objective lens in the optical pick-

up block. Therefore, when checking the laser diode emission, ob-

serve from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

optical pick-up bloc

semi-fixed resistor

TEST DISCS

This set can playback CD-R and CD-ROM discs. The following

test discs should be used to check the capability:

CD-R test disc TCD-R082LMT (Part No. J-2501-063-1)

CD-RW test disc TCD-W082L (Part No. J-2501-063-2)

Notes on CD-R/CD-RW discs

•You can play CD-Rs (recordable CDs)/CD-RWs (rewritable CDs)

designed for audio use on this unit.

Look for these marks to distinguish CD-Rs/CD-RWs for audio

use.

These marks denote that a disc is not for audio use.

•Some CD-Rs/CD-RWs (depending on the equipment used for

its recording or the condition of the disc) may not play on this

unit.

•You cannot play a CD-R/a CD-RW that is not finalized∗.

∗A process necessary for a recorded CD-R/CD-RW disc to be

played on the audio CD player.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE

WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE

PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.

CSX-V58MP

MAIN BOARD CNP701

SERVO BOARD CN519

J-2502-011-1

EXTENSION CABLE AND SERVICE POSITION

Whenrepairing or servicingthis set,connect the jig(extensioncable)

as shown below.

•Connect the MAIN board (CNP701) and the SERVO board

(CN519) with the extension cable (Part No. J-2502-011-1).

TABLE OF CONTENTS

1. GENERAL............................................................................ 5

2. DISASSEMBLY

2-1. Front Panel Assy ................................................................. 7

2-2. CD Mechanism Block ......................................................... 8

2-3. Main Board ......................................................................... 8

2-4. Chassis (T) Sub Assy .......................................................... 9

2-5. Lever Section....................................................................... 9

2-6. Servo Board....................................................................... 10

2-7. Shaft Roller Assy, Load SW Board................................... 10

2-8. Floating Block Assy .......................................................... 11

2-9. Optical Pick-up Block ....................................................... 11

3. DIAGRAMS

3-1. IC Pin Descriptions ........................................................... 12

3-2. Circuit Boards Location .................................................... 19

3-3. Block Diagram –CD Section–........................................... 20

3-4. Block Diagram –MPEG Section– ..................................... 21

3-5. Block Diagram –Main Section–........................................ 22

3-6. Printed Wiring Board –CD Mechanism Section (1/2)– .... 24

3-7. Printed Wiring Boards –CD Mechanism Section (2/2)–... 25

3-8. Schematic Diagram –CD Mechanism Section (1/3)– ....... 26

3-9. Schematic Diagram –CD Mechanism Section (2/3)– ....... 27

3-10. Schematic Diagram –CD Mechanism Section (3/3)– ....... 28

3-11. Printed Wiring Board –Main Section– .............................. 29

3-12. Schematic Diagram –Main Section–................................. 30

3-13. Printed Wiring Board –Control Section– .......................... 31

3-14. Schematic Diagram –Control Section– ............................. 31

3-15. IC Block Diagrams............................................................ 32

4. EXPLODEDVIEWS

4-1. Chassis Section ................................................................. 34

4-2. CD Mechanism Section (1) ............................................... 35

4-3. CD Mechanism Section (2) ............................................... 36

4-4. CD Mechanism Section (3) ............................................... 37

5. ELECTRICAL PARTS LIST......................................... 38

CSX-V58MP

SECTION 1

GENERAL This section is extracted

from instruction manual.

Location of controls and indication lights

CSX-V58MP

1PAUSE indication

lights up while the unit is pausing a disc.

2DISC IN indication

lights up when a disc is in the unit.

3VCD indication

lights up when a Video CD is in the unit.

4MP3 indication

lights up when the disc in the unit contains

MP3 files.

5CD indication

lights up when an audio CD is in the unit.

6PAUSE (X) button

To pause disc playback.

7NTSC/PAL select switch (located on the

bottom of the unit)

This unit conforms to the NTSC/PAL colour

system by setting the select switch to NTSC

or PAL. The TV colour system of this unit is

factory-set to the NTSC position. See

“NTSC/PAL select switch”in the

Installation/Connections manual.

8EJECT (Z) button

To eject a disc from the unit.

Tip

This unit must be connected to an optional Sony

master unit with BUS control functions, such as the

recommended Media Center/Receiver XAV-7W.

CSX-V58MP

Connections

Cautions

•This unit is designed for negative earth 12 V

DC operation only.

•Do not get the wires under a screw, or caught

in moving parts (e.g., seat railing).

•Before making connections, turn the car

ignition off to avoid short circuits.

•Read carefully the Installation/Connections

manual supplied with both this unit and

optional units, before making connections.

•Be sure to insulate any loose unconnected

wires with electrical tape for safety.

•For your safety, the monitor connected to the

VIDEO OUT of this unit can only be viewed

when the car is stopped and the parking brake

is applied.

Be sure to connect the parking brake cord 8

(light green) to the car’s parking brake switch

cord.

Parts Iist (1)

The numbers in the list are keyed to those in the

instructions.

The supplied tool qs is necessary for removing

the unit. For details, refer to “Removing the

unit”in the supplied operating instructions.

Caution

Handle the bracket 1carefully to avoid injuring

your fingers.

TOP

Connection example (2)

This unit must be connected to an optional Sony

master unit with BUS control functions, such as

Media Center/Receiver XAV-7W.

To use the unit with:

— an optional Media Center/Receiver XAV-7W

connected (A).

— an optional monitor and an optional Sony

BUS compatible master unit connected (B).

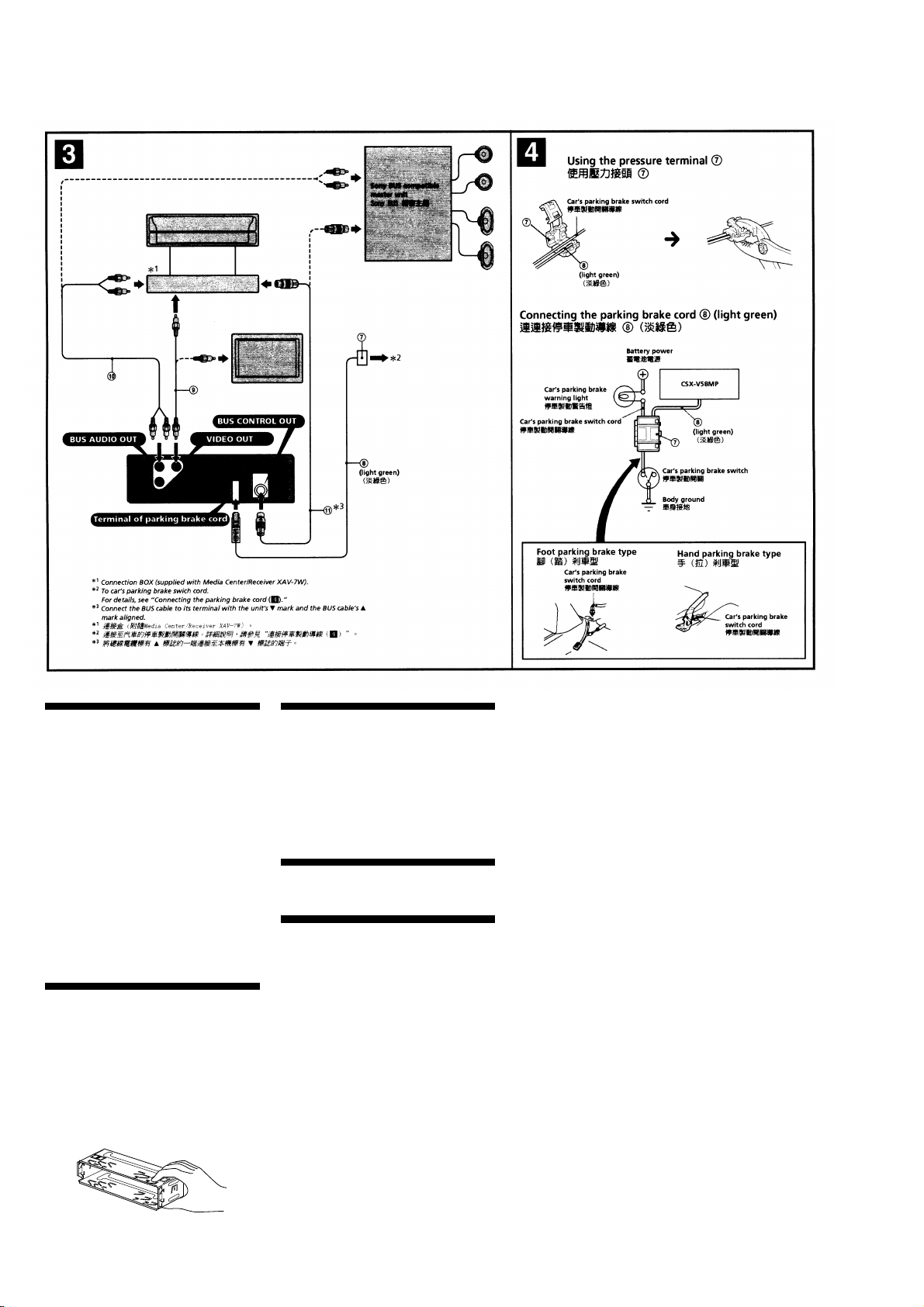

Connection diagram (3)

Connecting the parking brake

cord (4)

Be sure to connect the parking brake cord 8

(light green) to the car’s parking brake switch

cord, whose mounting position depends on your

car. Please consult your car dealer or your

nearest Sony dealer for further details.

Using the pressure terminal

Clasp the end of the parking brake cord 8(light

green) and the car’s parking brake switch cord

with the pressure terminal 7.

Note

If the car’s parking brake switch cord is too thin,

connect the parking brake cord

(light green) to

the car’s parking brake switch cord directly without

using the pressure terminal

CSX-V58MP

SECTION 2

DISASSEMBLY

Note : This equipment can be removed using the following procedure.

Note : Follow the disassembly procedure in the numerical order given.

2-1. FRONT PANEL ASSY

(Page 7)

2-2. CD MECHANISM BLOCK

(Page 8)

2-4. CHASSIS (T) SUB ASSY

(Page 9)

2-5. LEVER SECTION

(Page 9)

2-7. SHAFT ROLLER ASSY,

LOAD SW BOARD

(Page 10)

2-8. FLOATING BLOCK ASSY

(Page 11)

2-9. OPTICAL PICK-UP BLOCK

(Page 11)

SET

2-6. SERVO BOARD

(Page 10)

2-3. MAIN BOARD

(Page 8)

cla

flexible flat cable (8P)

front panel assy

claw

PTT 2.6x6

CSX-V58MP

2-2. CD MECHANISM BLOCK

2-3. MAIN BOARD

PTT 2.6x6

PTT 2.6x

bracket (CD)

PTT 2.6x6

CD mechanism block

CNP701

PTT 2.6x8

PTT 2.6x6

screw (+BTT)

screws (+BTT)

back chassis

PTT 2.6x8

MAIN board

CSX-V58MP

2-5. LEVER SECTION

2-4. CHASSIS (T) SUB ASSY

chassis (T) sub assy

P 2x3

special screws

heat sink (CD)

P 2x3

Unsolder the

lead wires.

black

red

white

claws

IN SELF SW board

lever (L)

tension spring (LR)

lever (R)

guide (disc)

special screw

CSX-V58MP

2-6. SERVO BOARD

2-7. SHAFT ROLLER ASSY, LOAD SW BOARD

special screw

CN517

Removal the solders.

P 2x3

LO motor sub assy

(M903)

SERVO board

CN518

Unsolder the

lead wires.

yellow

black

Fig. 1

tension spring (RA)

arm (roller)

retaining ring (RA)

shaft retainer (roller)

shaft roller assy

special screw

LOAD SW board

retaining ring

(RA) arm arm

washer washer shaft retainer

(roller)

shaft retainer (roller)

Autres manuels pour CSX-V58MP

Table des matières

Autres manuels Sony Lecteur MP3

Sony

Sony NW-E95 - Network Walkman Manuel utilisateur

Sony

Sony Walkman NWD-B103 Guide de démarrage rapide

Sony

Sony Walkman NWZ-S636F Manuel utilisateur

Sony

Sony Walkman NW-WS625 Manuel utilisateur

Sony

Sony NW-ZX300A Manuel utilisateur

Sony

Sony Walkman NWZ-B133 Mode d'emploi

Sony

Sony NW-HD5 Operating Instructions (English) Manuel utilisateur

Sony

Sony NWZ-B133F - 1gb Digital Music Player Manuel utilisateur

Sony

Sony Walkman NWZ-E474 Manuel utilisateur

Sony

Sony WALKMAN NW-WM1Z Manuel utilisateur

Sony

Sony NW-ZX100 Manuel utilisateur

Sony

Sony Walkman NWZ-W262 Manuel utilisateur

Sony

Sony NWZ-A728PNKBB Manuel d'utilisation et d'entretien

Sony

Sony Walkman NWZ-A815 Manuel utilisateur

Sony

Sony NWZ-S738FBNC - 8gb Walkman Video Mp3 Player Manuel utilisateur

Sony

Sony NW-E3 - Digital Music Player Manuel utilisateur

Sony

Sony Walkman NW-HD1 Manuel utilisateur

Sony

Sony Walkman NW-MS77DR Manuel utilisateur

Sony

Sony NW-E103 - Network Walkman Guide de démarrage rapide

Sony

Sony NW-E405 - Network Walkman Player Guide de démarrage rapide

Sony

Sony HW-HD5 Manuel utilisateur

Sony

Sony NWZ-E463RED Manuel utilisateur

Sony

Sony Walkman NWZ-S763 Manuel d'instructions et de sécurité

Sony

Sony Walkman NW-E002 Manuel utilisateur

Manuels Lecteur MP3 populaires d'autres marques

Blaupunkt

Blaupunkt Compact Drive MP3 Manuel utilisateur

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuel utilisateur

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuel utilisateur

Naxa

Naxa NMV-173NX Manuel utilisateur

Philips

Philips PSA250 Manuel utilisateur

Zipy

Zipy go! Waving Manuel utilisateur

Sylvania

Sylvania SMPK4068 Manuel utilisateur

Irradio

Irradio RF-42UC Manuel utilisateur

NABAIJI

NABAIJI SWIM MUSIC 100 Manuel utilisateur

Laser

Laser MP3-A9-4GB Manuel utilisateur

Samsung

Samsung YP-T7F Manuel utilisateur

Savant

Savant SMS-1001-00 Guide de référence rapide

Trevi

Trevi XP 71 BT Manuel utilisateur

AGPtek

AGPtek C2 Manuel utilisateur

MobiBlu

MobiBlu DAH-1500i Manuel utilisateur

Denver

Denver MPS-201 Manuel utilisateur

Steren

Steren MP3-002 Manuel utilisateur

Kenwood

Kenwood M1GD50 Manuel utilisateur
