Mobile Monitor

2-645-712-31 (1)

Wichtig!

Bitte nehmen Sie sich etwas Zeit, um den Geräte-Pass

vollständig auszufüllen. Dieser befindet sich auf der

hinteren Umschlagseite dieser Bedienungsanleitung.

For installation and connections, see the supplied Installation/Connections manual.

Zur Installation und zum Anschluss siehe die mitgelieferte Installations-/Anschlussanleitung.

En ce qui concerne l’installation et les connexions, consulter le manuel d’Installation/

Connexions fourni.

Per l’installazione e i collegamenti, fare riferimento al manuale “Installazione/Collegamenti” in

dotazione.

Zie voor het monteren en aansluiten van het apparaat de bijgeleverde handleiding “Installatie/

Aansluitingen”.

Disposal of Old Electrical & Electronic

Equipment (Applicable in the

European Union and other European

countries with separate collection

systems)

This symbol on the product or on its

packaging indicates that this product

shall not be treated as household waste.

Instead it shall be handed over to the

applicable collection point for the

recycling of electrical and electronic

equipment. By ensuring this product is

disposed of correctly, you will help

prevent potential negative

consequences for the environment and

human health, which could otherwise

be caused by inappropriate waste

handling of this product. The recycling

of materials will help to conserve

natural resources. For more detailed

information about recycling of this

product, please contact your local city

office, your household waste disposal

service or the shop where you

purchased the product.

Hereby, Sony, declares that this

XVM-F65WL is in compliance with the

essential requirements and other

relevant provisions of Directive 1999/5/

EC.

Welcome!

Thank you for purchasing the Sony

Mobile Monitor.

•Built-in 2.4 GHz Wireless AV receiver.

•Rechargeable battery provided for the

remote use.

•PAL or NTSC colour system

compatible.

•Full, Wide and Zoom screen modes

available, in addition to the normal

screen mode.

•The low reflection liquid crystal panel

reduces the glare from outside lighting

sources.

•Adjustable brightness control,

according to lighting conditions

•Backlight dimmer control produces

sharp contrast image, free from

reversed or blurred colours.

•2Audio/Video inputs and 1 Audio/

Video output are provided for

connecting a video player, video

game, and an additional monitor.

•Built-in infrared transmitter for

cordless headphones.

Table of contents

Welcome! .............................................................................................................................. 2

Precautions........................................................................................................................... 4

Location of controls ............................................................................................................6

Operation

Selecting the input source.................................................................................................. 8

Setting the screen mode ..................................................................................................... 9

Changing the menu settings ........................................................................................... 10

Using the rechargeable battery ....................................................................................... 12

Additional Information

Maintenance ...................................................................................................................... 15

Specifications ..................................................................................................................... 17

Troubleshooting ................................................................................................................ 18

Precautions

To avoid the risk of serious injury or accident, read the following precautions before

installing and operating the unit.

On safety

Comply with your local traffic rules and regulations.

•While driving

- The driver must not watch or operate the monitor. It may lead to distraction and

cause an accident.

-The driver must not use the headphones. It may lead to distraction and cause an

accident.

Park the car in a safe place when the driver watch and operate the monitor, or use

headphones.

Watching video pictures*

The video pictures appear only after you park the car and set

the parking brake.

When the car starts moving, the video pictures automatically

disappear after displaying the following caution.

Do not operate equipment connected to the monitor or watch

the monitor while driving.

The caution above appears only when the monitor is

connected to the installation cradle.

*When “NAVI” is selected for the input source, the video pictures appear regardless of

whether or not the car is moving.

•After installing

-Take care not to bump your head against the unit when getting up from the back

seat.

-Take extra care not to wind the wire of the headphones around your neck

avoiding injury or suffocation in the event of a sudden movement of the vehicle.

-Keep small articles out of the reach of children.

-Do not leave the monitor under direct sunlight for a long period of time.

DRIVE MODE

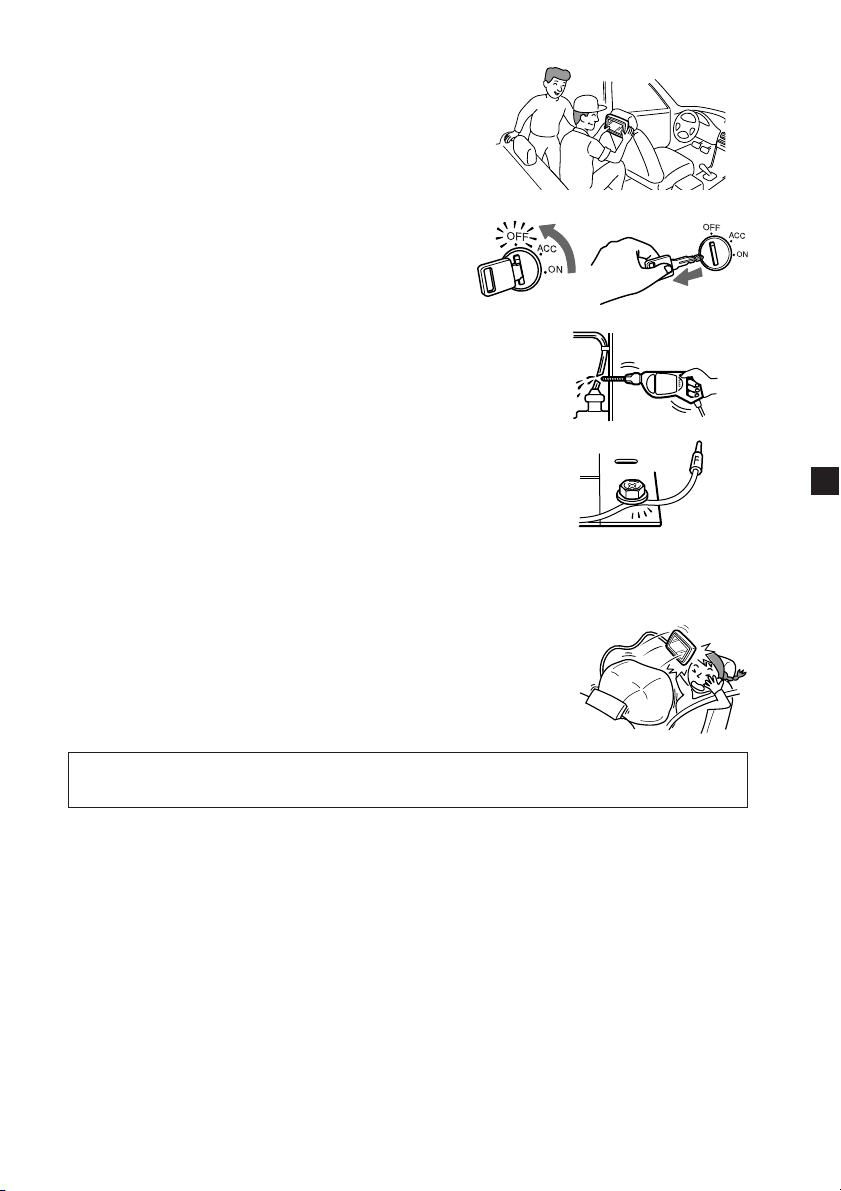

On installation

•Installing this unit requires technical expertise.

This unit should be installed by a qualified

technician or service personnel.

• If you try to install this unit by yourself, do it

properly, referring to the installation and wiring

diagrams in this operating manual. Improper

installation may result in fire or electric shock.

• Before installation, be sure to turn the ignition

switch to the OFF position or take the key out.

Installing this unit with the ignition on may

cause battery drain or a short circuit.

• Do not damage any pipes, tubes, the fuel tank or

electric wiring when installing this unit. This can cause

a fire. If you drill a hole in car panels, make sure that

any hidden car parts will not be damaged.

• Do not use any nuts or bolts for safety devices such as

steering linkage, fuel supply or braking systems. This

can cause a fire or an accident.

• Take care to prevent cords and wires from getting

tangled or crimped in the moving portion of a seat rail.

Where to install

Before installing this unit, please check your local traffic rules and regulations.

Do not install this unit where:

-It will obstruct the driver’s view.

-It will obstruct the operation of the airbag system.

-It will obstruct the operation of the vehicle, especially

the steering wheel, shift lever, or brake pedal.

-Adriver or passengers may injure themselves when

getting into or out of the car.

If you have any questions or problems concerning your unit that are not covered

in this manual, please consult your nearest Sony dealer.

7 8

643

Location of controls

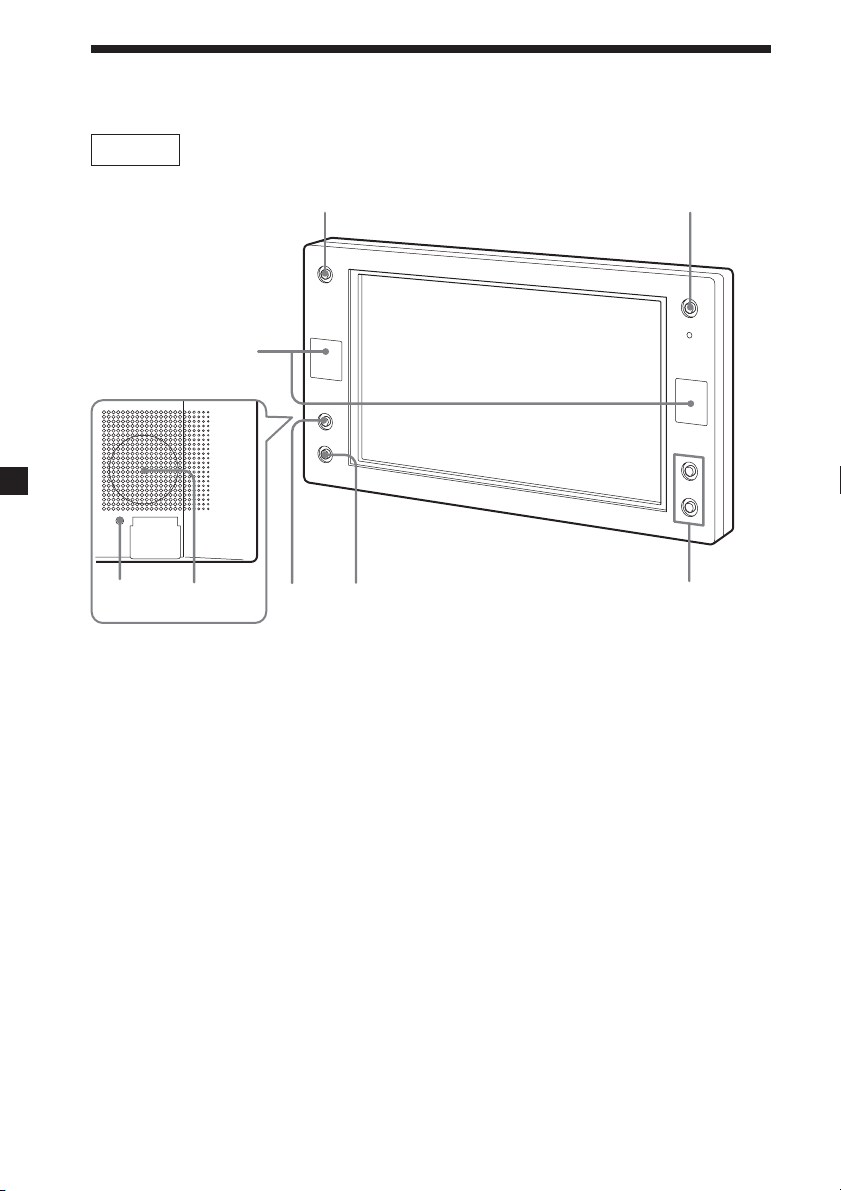

Monitor

*If interference occurs while using several cordless headphones

If several monitors are installed and used simultaneously, interference may occur.

1INPUT button

Press to select the input source.

2Receptor for the card remote

commander/Transmitter for the

cordless headphones*

3MENU button

Press to make various settings.

4DIMMER button

Press to switch the dimmer on/off.

(When it is set to On, the display

darkens.)

5POWER (on/off) button

Press to turn on/off the monitor.

6VOLUME +/– buttons

Press to turn up or down the volume

(The default volume level is 25.) or

to select the item during menu

operation.

7RESET button

8Monaural speaker

Tip

Refer to “Replacing the lithium battery” for details on how to replace the batteries (page 16).

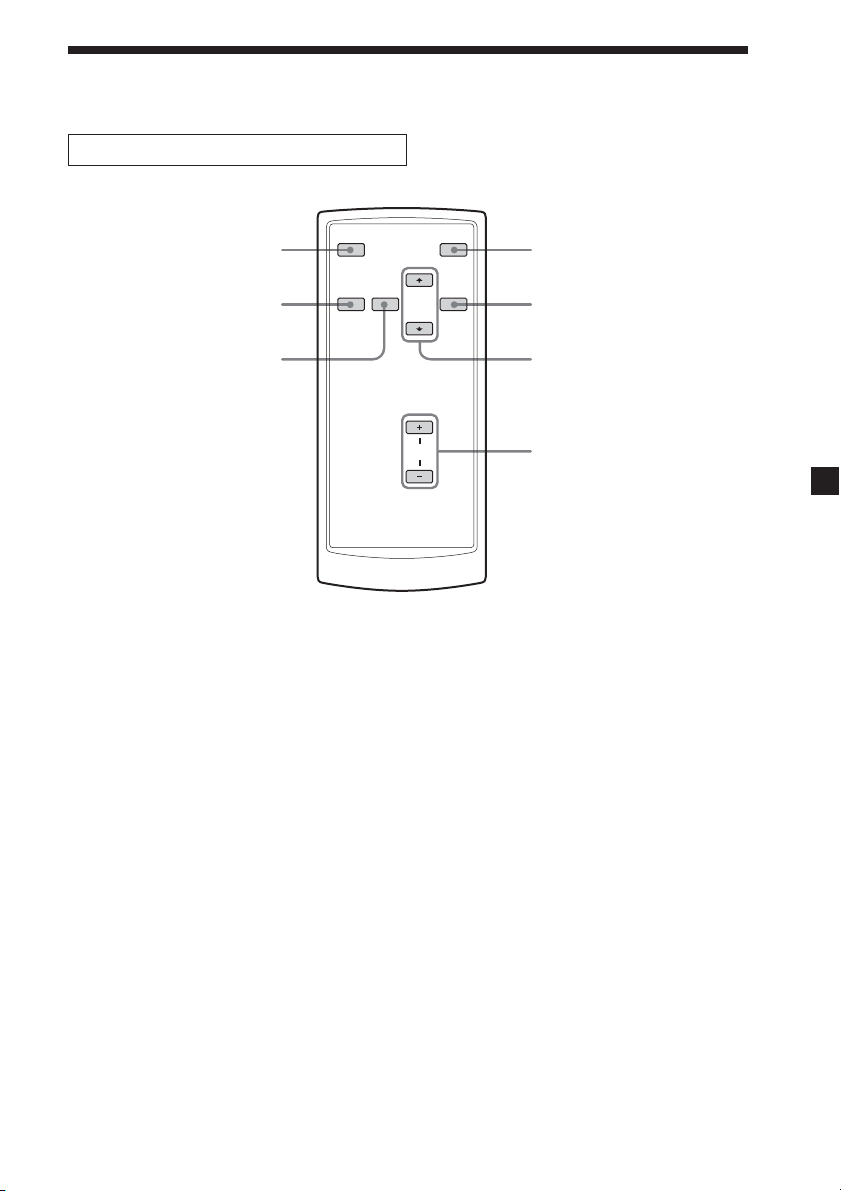

Card remote commander RM-X709

1ATT button

Press to quickly attenuate the

volume.

To restore the previous volume

level, press (ATT) again or (VOL)

+/–.

2INPUT button

Press to select the input source.

3MENU button

Press to select the menu settings.

4|/1(power) button

5MODE button

Press to change the screen mode.

6M/mbuttons

Press to select the desired item.

7VOL (volume) +/– buttons

Press to adjust the volume of the

monitor.

MODEMENU

INPUT

ATT `/1

VOL

`/1

V/v

INPUT

MODEMENU

INPUT

ATT `/1

VOL

VOLUME

＋/−

POWERINPUT

Operation

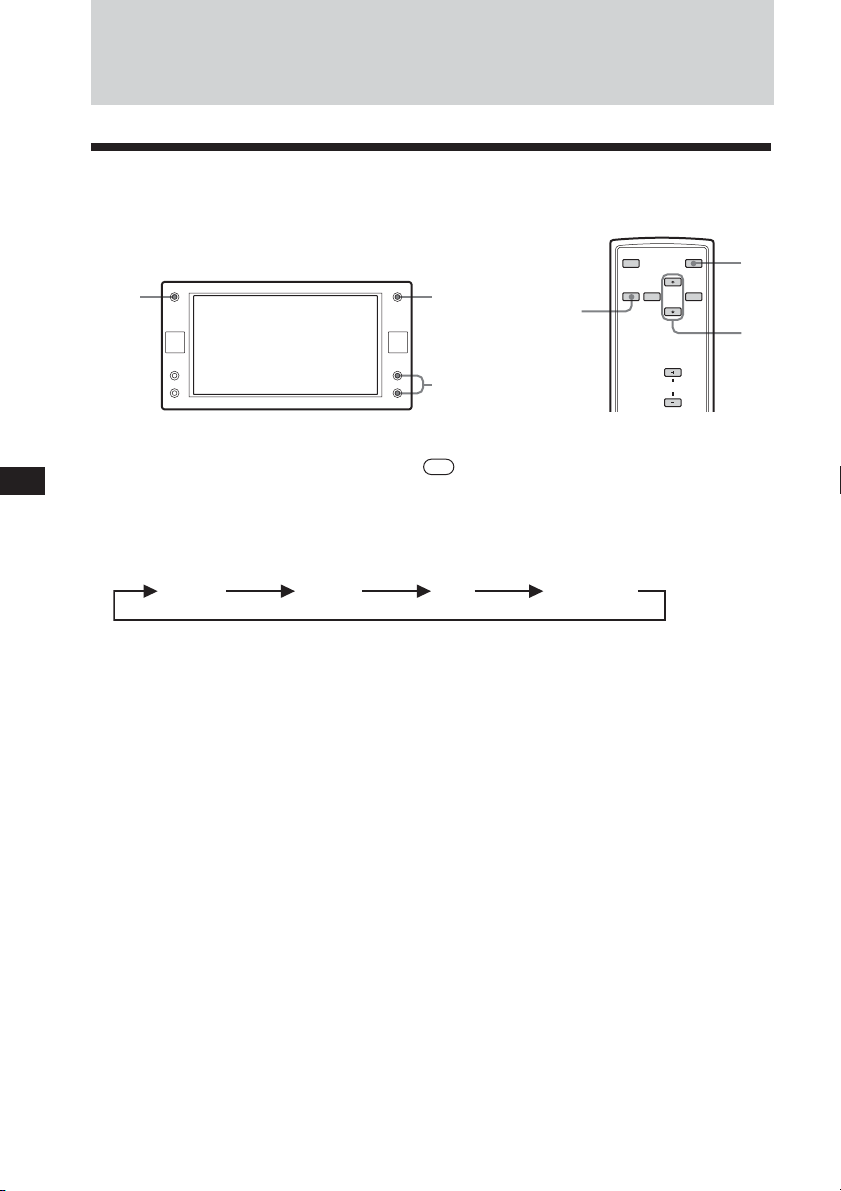

Selecting the input source

You can select the input source.

1Press (POWER).

On the card remote commander, press

{/1

The power is turned on.

2Press (INPUT) to select the desired input source.

Each time you press (INPUT), the indication changes in the following sequence:

VIDEO 1 VIDEO 2 NAVI RECEIVER*

To select the connected navigation system

Press (INPUT) repeatedly to select “NAVI”.

Note

If you use the monitor with the rechargeable battery (MV-100BAT), the monitor

automatically enters into the receiver mode when turned on. The (INPUT) button is

deactivated and the input source is fixed to the receiver mode. See “Using the

rechargeable battery” (page 12).

*Note on wireless transmission (Receiver mode)

Simultaneous use with other 2.4 GHz equipment may cause image interference or audio

noise. This is not a malfunction, but a result of equipment sharing the same operating

frequency.

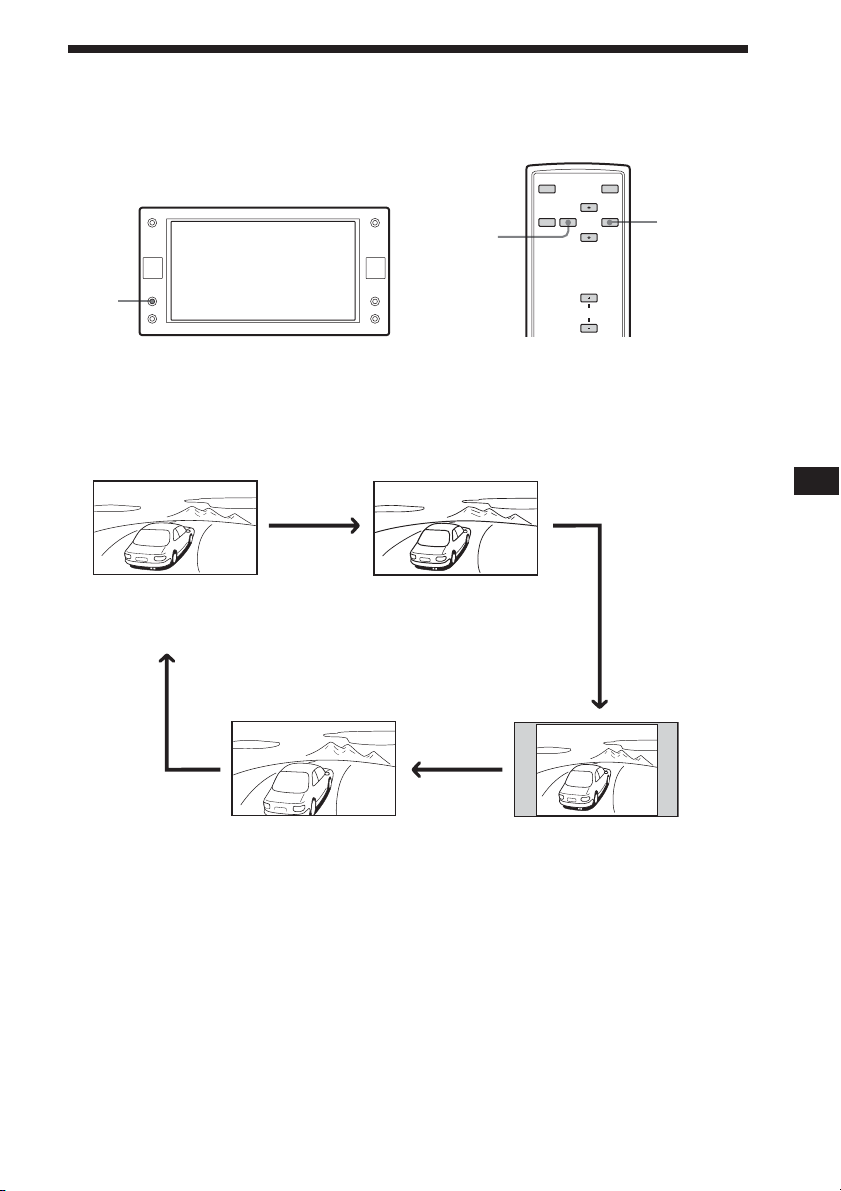

Setting the screen mode

In addition to the full mode, wide, normal and zoom modes are also available.

Press (MODE) repeatedly.

The current mode is displayed on the screen first.

Each time the button is pressed, the screen mode swiches in the following

sequence:

You can also set the screen mode in the menu setting (page 10).

Tip

Images may appear coarse-grained when viewed in the zoom mode.

Zoom

Full

Full Wide

Wide

Normal

An image with an aspect ratio

of 4 to 3.

Zoom

An image with an aspect ratio of 4

to 3 enlarged to the left and right

edges of the screen, with the

overflowing parts (top and bottom)

cut off to fill the screen.

Full (regular image)

An image with an aspect ratio

of 4 to 3 enlarged to the left

and right edges of the screen.

Wide

An image with an aspect ratio of

4 to 3, with only the left and

right sides of the image being

enlarged to fill the screen.

MENU MODE

MODEMENU

INPUT

ATT `/1

VOL

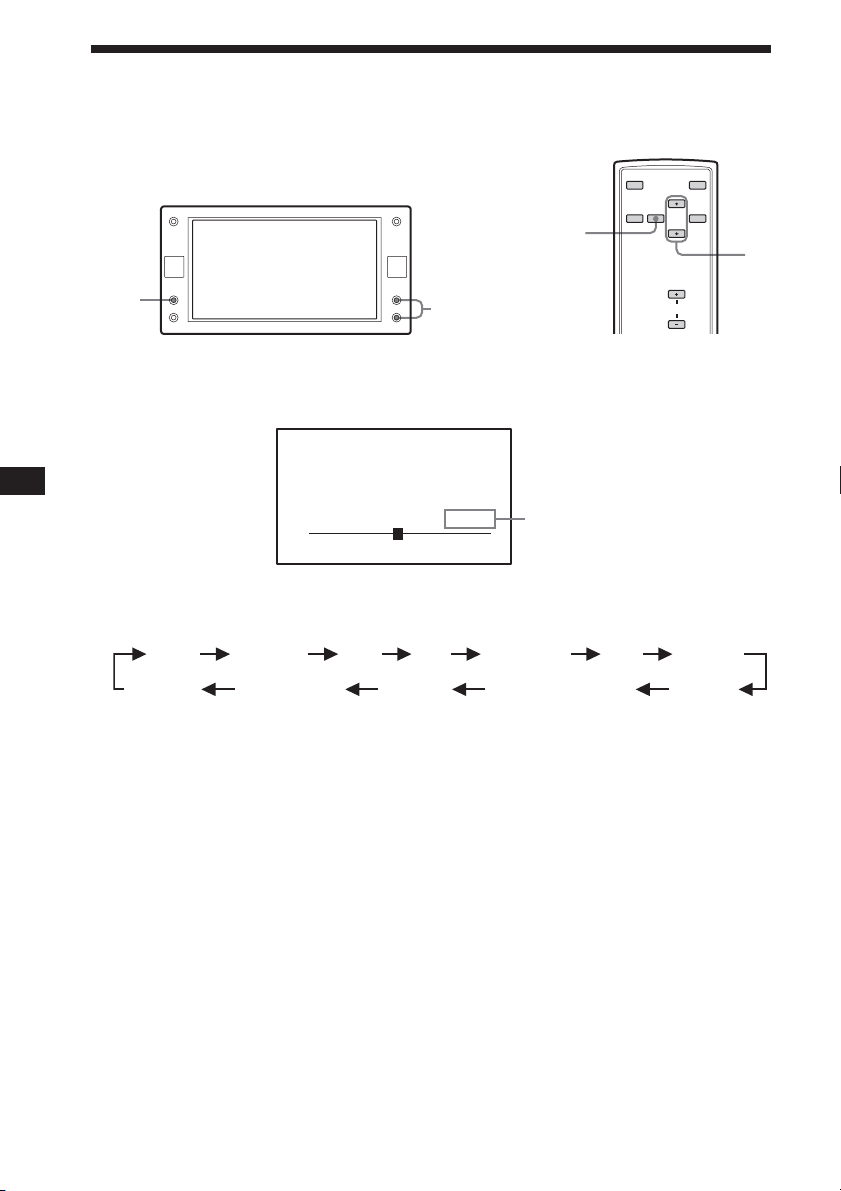

Changing the menu settings

You can adjust the display settings manually if the display is hard to see from the

position where you are seated.

1Press (MENU).

The “Picture” screen appears.

Each time you press (MENU), the setting screen changes in the following

sequence:

Picture Brightness Color Video Adjust Mode

Menu Off Receiver

Cordless Headphones

Speaker

Blue BackHue*

Select NTSC or

PAL System

*Appears only when the NTSC colour system is selected.

2Press Mor m((VOLUME) (+) or (–) on the monitor) to adjust to the desired

setting.

See the next page for the setting options.

Picture 32

Press

+/-

or MENU.

The setting value of the

item selected appears in this

area.

VOLUME

＋/−

MODEMENU

INPUT

ATT `/1

VOL

V/v

Autres manuels pour XVM-F65WL

Table des matières

Langues :

Autres manuels Sony Moniteur

Sony

Sony Trinitron HMD-A200 Manuel utilisateur

Sony

Sony FWD-S42E1 Manuel utilisateur

Sony

Sony SSM-121 Manuel utilisateur

Sony

Sony FWD-42PX2 Manuel utilisateur

Sony

Sony Trinitron CPD-E530 Manuel utilisateur

Sony

Sony StylePro SDM-S51R Manuel utilisateur

Sony

Sony Trinitron PVM-8041Q Manuel utilisateur

Sony

Sony Trinitron CPD-210GS Manuel utilisateur

Sony

Sony IPELA PCS-TL30 Manuel utilisateur

Sony

Sony Trinitron CPD-E200 Manuel utilisateur

Sony

Sony FD Trinitron CPD-G500 Manuel utilisateur

Sony

Sony BVM-D20F1U, BVM-D20F1E, BVM-D20F1A, BVM-D24E1WU, BVM-D24E1WE, BVM-D24E1WA, BVM-D32E1WU, BVM-D32E1WE,... Manuel utilisateur

Sony

Sony Trinitron GDM-F500 Manuel utilisateur

Sony

Sony LiveView mn800 Manuel utilisateur

Sony

Sony SDM-X75FB Manuel utilisateur

Sony

Sony Trinitron CPD-1302 Manuel utilisateur

Sony

Sony FW-98BZ50L Manuel utilisateur

Sony

Sony JumboTron LDU-1530S Manuel utilisateur

Sony

Sony MFM-HT75W Manuel utilisateur

Sony

Sony FWD-S55H2 Manuel utilisateur

Sony

Sony CPD-520GS - 21" CRT Display Manuel utilisateur

Sony

Sony XVM-R75 Manuel utilisateur

Sony

Sony Trinitron PVM-2130QM Manuel utilisateur

Sony

Sony SDM-S74 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
