Sony SSM-Q177 Manuel utilisateur

1998 by Sony Corporation

3-709-445-11(1)

Operating Instructions Page 4

Mode d’emploi Page 18

Manual de instrucciones Página 34

SSM-Q177

Black andWhite

Quad Monitor

English

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

Owner’s Record

The model and serial numbers are located at the rear.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your

Sony dealer regarding this product.

Model No. SSM-Q177 Serial No.

This symbol is intended to alert the user

to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

This symbol is intended to alert the user

to the presence of important operating

and maintenance (servicing) instructions

in the literature accompanying the

appliance.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE

THIS POLARIZED AC PLUG WITH AN EXTENSION

CORD, RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED

TO PREVENT BLADE EXPOSURE.

This unit is not intended to be used with computer

work stations.

English

CAUTION:

These potential hazards shall be considered common

to most rack installation.

1) Elevated Operating AmbientTemperature

After installed, the operating temperature may be

greater than room ambient.Consideration shall be

given to the environment temperature compatible

within the Manufacturer’s specified limit of Ambient

Temperature of 0°C – +35°C (32°F – 95°F).

2) Reduced Air Flow

After installed, the amount of air flow required for safe

operation of this equipment shall not be

compromised.

3) Circuit Overloading

Before installing, refer to rated current on this

equipment and make sure that no overloading to the

supply circuit on the rack.

Please confirm the rated current described on this

Operating Instructions.

4) Providing Protective Earth

When this product is installed in a rack and supplied

power from an outlet on the rack, please confirm that

the outlet is provided with a reliable protective earth

connection.

5) Prevention against achieving hazardous condition

due to uneven mechanical loading

When this product is in a rack, please make sure that

the rack does not achieve hazardous condition due to

uneven mechanical loading.

For the customers in the U.S.A.

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to Part 15

of the FCC Rules.These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause

harmful interference in which case the user will be

required to correct the interference at his own expense.

You are cautioned that any changes or modifications not

expressly approved in this manual could void your

authority to operate this equipment.

Table of Contens

Table of Contents

Features .....................................................................4

Precautions................................................................5

Location and Function of Controls .........................6

Front Panel ........................................................6

Rear Panel .........................................................8

Connections ............................................................10

Connecting a Video Camera or a VCR ...........10

MENU Operation......................................................11

Setting procedure ............................................11

Setting MENU.................................................11

Alarm Function ...............................................15

Specifications..........................................................16

Features

• Quad display enables you to simultaneously monitor input

from 4 cameras on one screen.

• Sequential Switcher function enables you to monitor

pictures from each of the 4 cameras one by one on the

screen, or to stop the picture at a particular camera, using

the unit as a high resolution black and white surveillance

monitor.

• Alarm function informs you of anomalies with a buzzer

and flashing alarm sign and switches the picture to the one

from the camera that detected the anomaly.

• In Quad mode, Freeze function enables you to stop the

picture of a selected channel. When replaying on the

VCR, Freeze function enables you to stop the picture

displayed on the screen.

• On-Screen Menu function enables you to set channel, date,

time, and alarm on the screen.

• When the picture or characters on the screen are cut off by

the side end of the screen, you can correct for it by using

the Horizontal Hold (H. Hold) function (on the front

control panel) that shifts and adjusts the picture

horizontally.

• You can set up the unit on a 19 inches rack using Rack

Mount Bracket (RMM-171), which is available as an

optional accessory.

Precautions

Safety

• The unit operates on 120 V AC, 50/60 Hz.

• Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by qualified personnel

before operating it any further.

• Unplug the unit from the wall outlet if it is not going to be

used for several days or more. To disconnect the cord, pull

it out by the plug. Never pull the cord itself.

• Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that may block

the ventilation holes.

• Height and vertical linearity controls located at the rear

panel are for special adjustments by qualified personnel

only.

Installation

• Do not install the unit in an extremely hot or humid place

or in a place subject to excessive dust or mechanical

vibration.

• The unit is not designed to be waterproof. Exposure to rain

or water may damage the unit.

Cleaning

Clean the unit with a lightly damp soft cloth. Use a mild

household detergent. Never use strong solvents such as

thinner or benzine as they might damage the finish of the

unit.

If you have any question or problem concerning your unit

that is not covered in this manual, please consult your

nearest Sony dealer.

Location and Function of Controls

Front Panel

6POWER switch

and indicator

AUTO

SWITCHER

QUAD

CHANNEL 4SET UP

(ENTER)

321

FREEZE

8CHANNEL

select button 9SETUP

(ENTER)

button

7AUTO

SWITCHER/

QUAD select

button

5CONTRAST control

4BRIGHT (brightness) control

3V-HOLD (vertical hold) control

2H-HOLD (horizontal hold) control

1INPUT select switch

Keep this switch released (øCAMERA) to monitor the

signal from the CAMERA IN connector.

Depress this switch (ØVCR) to monitor the signal from the

VCR IN connector.

2H-HOLD (horizontal hold) control

When the picture has slanting horizontal bars, turn the H-

HOLD control in either direction until a stationary picture is

obtained.

3V-HOLD (vertical hold) control

When the picture rolls up or down on the screen, turn the V-

HOLD control until a single stationary picture is obtained.

4BRIGHT (brightness) control

Turn clockwise for a brighter picture and counterclockwise

for a darker picture.

5CONTRAST control

Turn clockwise to increase picture contrast and

counterclockwise to decrease it.

6POWER switch and indicator

To turn on the monitor, depress this switch. The green

indicator lights up.

To turn off the monitor, press the switch again.

7AUTO SWITCHER / QUAD select button

Press this button to choose AUTO SWITCHER mode or

QUAD mode.

8CHANNEL select button

If you have chosen AUTO SWITCHER mode above, the

screen shows pictures from each of the cameras, one at a

time in sequence starting from CH1, and repeats the

sequence over and over. To stop the sequence at a particular

channel, press the button for that channel, the sequence will

stop and the picture stays. To restart the sequence, press the

button again.

If you have chosen QUAD mode, the screen shows

4 channels at the same time. If you press a CHANNEL

button, the channel you have selected shows a FREEZE

picture.

9SET UP (ENTER) button

Press this button to go to MAIN MENU display. To proceed

to SUB MENU or to select an item, press the same button.

CH1

GND

CH2 CH3 CH4

CAMERA IN

CH1 CH2 CH3 CH4 OUT TRG

IN OUT

ALARM

VCR IN VIDEO OUT

VCR OUT

Rear Panel

1CAMERA IN (BNC) connector

To see a picture from a camera, connect to a video output

connector of a black and white video camera and keep the

INPUT select switch released on the front panel to select

CAMERA.

2VCR IN (BNC) connector

To see a replay on the VCR, connect to a video output

connector of a VCR and press the INPUT select switch on

the front panel to select VCR.

To see a FREEZE picture (still picture), press either of the

four CHANNEL select buttons on the front panel during a

replay. Press the button again to exit FREEZE picture.

3VIDEO OUT (BNC) connector

Connect to a video input connector (VCR or another

device’s video input connector). Outputs a picture that is

currently on the screen selected by operating the AUTO

SWITCHER / QUAD button.

4VCR OUT (BNC) connector

Connect to a video input connector. Outputs quad display

only.

Location and Function of Controls

1CAMERA IN

(BNC) connector 2VCR IN (BNC)

connector

VIDEO

OUT (BNC)

connector

5ALARM connector 4

VCR OUT

(BNC)

connector

Notes

• When the display shows freeze picture in Quad mode,

VCR OUT (BNC) connector will also output freeze

picture.

• When playing back on the VCR (when the INPUT select

switch is down), VCR OUT (BNC) connector outputs

nothing.

5ALARM connector

IN ALARM mode starts by short-circuiting between

connectors of each channel. Connect to external sensors

such as infrared sensors or door sensors. Each of the

connectors corresponds to No. 1, 2, 3, and 4 of the

CAMERA IN connectors respectively. The monitor

display switches to a picture from the camera that has

sent the alarm signal.

OUT During the ALARM mode, the output voltage is

LOW (0V).

Trigger OUT When the ALARM mode is activated,

starts an output at LOW (0V) for 100ms, then switches

to HIGH (5V) output.

Other functions

If there is no incoming video signal for a channel before and

after turning on the main power, the channel will show

flashing “NO VIDEO” display on a black background.

If an incoming video signal stops after the main power is

turned on, the screen will display the last video input in a

FREEZE picture with the flashing “NO VIDEO” display.

After a while, the display stops flashing.

To exit FREEZE picture, reestablish signal input or turn off

the monitor and restart.

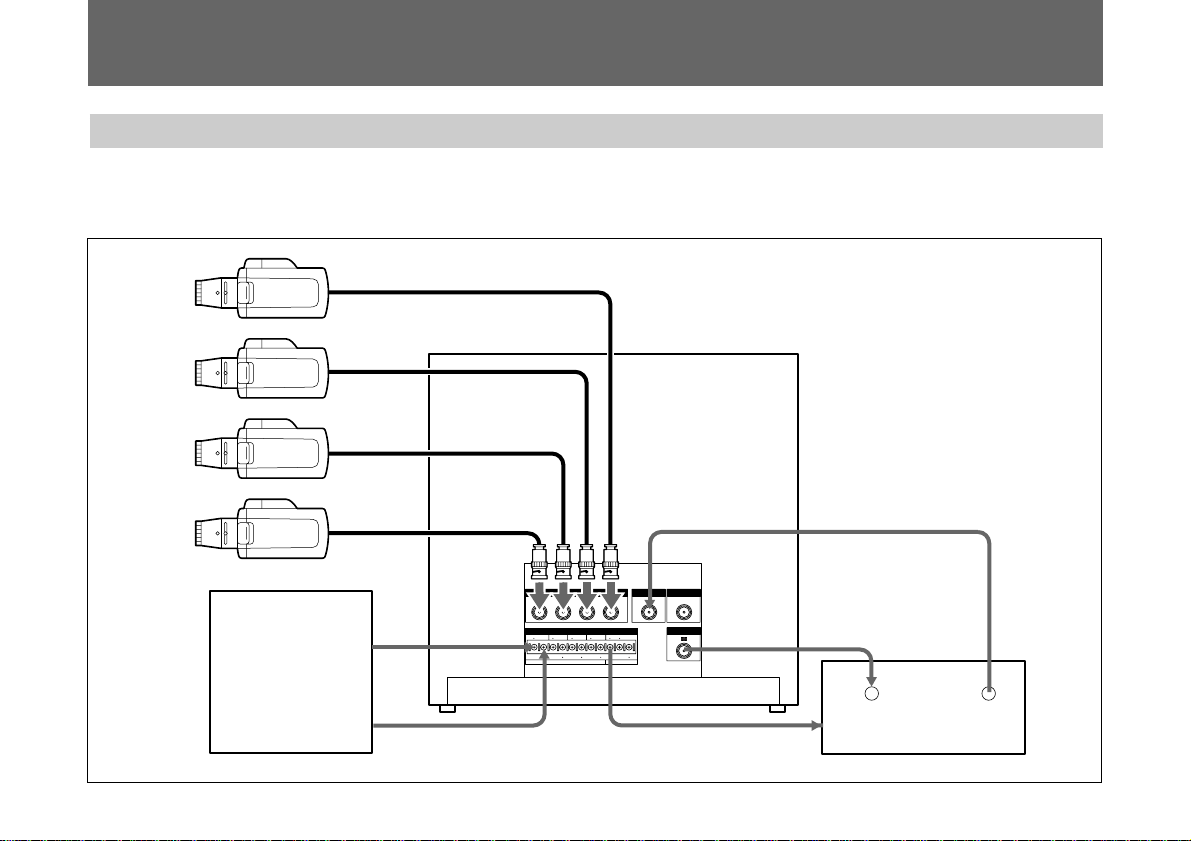

Connections

Connecting a Video Camera or a VCR

Connect the VCR connector to the video output of a video

camera or a VCR.

GND

CH1 CH2 CH3 CH4 OUT TRG

IN OUT

ALARM

CH1 CH2 CH3 CH4

CANERA IN VCR IN VIDEO OUT

VCR OUT

Camera 4 Camera connection 4

Camera 3

Camera

connection 3

Camera 2

Camera

connection 2

Camera 1

Camera

connection 1

Infrared sensor

or Door sensor

VCR IN

VCR OUT

to ALARM IN

connector

VCR OUT,

etc.

VCR IN,

etc.

VCR

Autres manuels pour SSM-Q177

Table des matières

Langues :

Autres manuels Sony Moniteur

Sony

Sony FWD-40LX2F Operating Instructions (Base... Manuel utilisateur

Sony

Sony Trinitron CPD-210GS Manuel utilisateur

Sony

Sony Multiscan SDM-N50R Manuel utilisateur

Sony

Sony PFM-42X1 (English: pg.58-108) / Manual de instrucciones / Mode... Manuel utilisateur

Sony

Sony Trinitron CPD-110EST Manuel utilisateur

Sony

Sony LMD-1530W Manuel utilisateur

Sony

Sony Trinitron CPD-15SX1 Manuel utilisateur

Sony

Sony Trinitron BVM-D32E1WA Manuel utilisateur

Sony

Sony LMD-2735MD Manuel utilisateur

Sony

Sony LMDDM30 Manuel utilisateur

Sony

Sony SDM-X53 Operating Instructions (primary... Manuel utilisateur

Sony

Sony BVMF170A Manuel utilisateur

Sony

Sony BVM-F250 Manuel utilisateur

Sony

Sony Multiscan GDM-2036S Manuel utilisateur

Sony

Sony SDM-E96D Manuel utilisateur

Sony

Sony Trinitron CPD-E220 Manuel utilisateur

Sony

Sony Multiscan GDM-400PS Manuel utilisateur

Sony

Sony FWD-50PX3 - 50" Plasma Panel Manuel utilisateur

Sony

Sony Trinitron HMD-A230 Manuel utilisateur

Sony

Sony BVM-F170 Manuel utilisateur

Sony

Sony HR Trinitron PVM-D14L5J Manuel utilisateur

Sony

Sony CPD-520GS - 21" CRT Display Manuel utilisateur

Sony

Sony XVM-H6 Manuel utilisateur

Sony

Sony Multiscan CPD-G220R/L Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
