Sony KDL-22EX550 Manuel utilisateur

SERVICE MANUAL

Version Date Subject

1.0 3/2012 Original manual issue.

2.0 9/2012 Correction of part number for SCREW (+PSW)(M3x6). (P.19, P.35, P.36, P.52)

LCD Digital Color TV

9-888-481-02

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

ORIGINAL MANUAL ISSUE DATE: 3/2012 AZ3F CHASSIS

Segment: P-2A

KDL-22EX553/KDL-26EX553/KDL-32EX653(AEP/UK/IT)

Following S/N Range is for (BCN)

1,000,001-1,950,000

SERVICE MANUAL

LCD Digital Color TV

AZ3F CHASSIS

Segment: P-2A

9-888-481-02

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 3

MODEL LIST

MODEL COLOR COMMANDER DEST.

KDL-32EX650 Black RM-ED050 AEP

KDL-32EX653 Black RM-ED050 AEP

Black RM-ED050 UK

Black RM-ED050 IT

KDL-32EX655 Black RM-ED050 AEP

MODEL COLOR COMMANDER DEST.

KDL-22EX550 Black RM-ED050 AEP

KDL-22EX553 Black RM-ED050 AEP

White RM-ED050 AEP

Black RM-ED050 UK

White RM-ED050 UK

Black RM-ED050 IT

White RM-ED050 IT

KDL-22EX555 Black RM-ED050 AEP

KDL-26EX550 Black RM-ED050 AEP

White RM-ED050 AEP

KDL-26EX553 Black RM-ED050 AEP

White RM-ED050 AEP

Black RM-ED050 UK

White RM-ED050 UK

Black RM-ED050 IT

White RM-ED050 IT

KDL-26EX555 Black RM-ED050 AEP

White RM-ED050 AEP

Serial number range 1,300,001 ~ 1,400,000 are B2B models.

Its commercial name is FWD-32EX650P.

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 4

WARNINGS AND CAUTIONS -ENGLISH

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

WARNING!!

An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.

The chassis of this receiver is directly connected to the ac power line.

CARRYING THE TV

Be sure to follow these guidelines to protect your property and avoid causing serious injury.

• Carry the TV with an adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damages.

SAFETY-RELATED COMPONENT WARNING!!

Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony

parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.

Follow these procedures whenever critical components are replaced or improper operation is suspected.

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 5

WARNINGS AND CAUTIONS - FRENCH

ATTENTION!!

Ces instructions de service sont à l’usage du personnel de service qualifi é seulement.

Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.

WARNING!!

Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est

directement raccordé à l’alimentation du secteur.

POUR TRANSPORTER LE TÉLÉVISEUR

Tenez compte de ce qui suit pendant l’installation du téléviseur :

• Débranchez tous les câbles avant de transporter le téléviseur.

• Transportez le téléviseur avec le nombre de personnes approprié ; un téléviseur de grande taille doit être transporté par au moins deux personnes.

• Lors du transport du téléviseur, l’emplacement des mains est très important pour votre sécurité, ainsi que pour éviter de causer des dommages.

ALERTE!!

Afi n d’eviter tout risque d’electrocution provenant d’un chassis sous tension, un transformateur d’isolement doit etre utilise lors de tout depannage. Le chassis de ce recepteur est

directement raccorde a l’alimentation du secteur.

ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du

fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages

de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de

composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 6

WARNINGS AND CAUTIONS

USE CAUTION WHEN HANDLING THE LCD PANEL

When repairing the LCD panel, be sure you are grounded by using a wrist band.

When repairing the LCD panel on the wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.

1) Do not press on the panel or frame edge to avoid the risk of electric shock.

2) Do not scratch or press on the panel with any sharp objects.

3) Do not leave the module in high temperatures or in areas of high humidity for an extended period of time.

4) Do not expose the LCD panel to direct sunlight.

5) Avoid contact with water. It may cause a short circuit within the module.

6) Disconnect the AC power when replacing the backlight (CCFL) or inverter circuit. (High voltage occurs at the inverter circuit at 650Vrms.)

7) Always clean the LCD panel with a soft cloth material.

8) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.

9) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).

10) It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 7

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 8

SAFETY CHECK-OUT

Leakage Test

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed

metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’

instructions to use these instructions.

2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The

“limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale.

The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all

battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).

How to Find a Good Earth Ground

A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also

at earth ground.

If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance

between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.

If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot

side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the

lamp should light at normal brilliance if the screw is at ground potential (see Figure B).

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 9

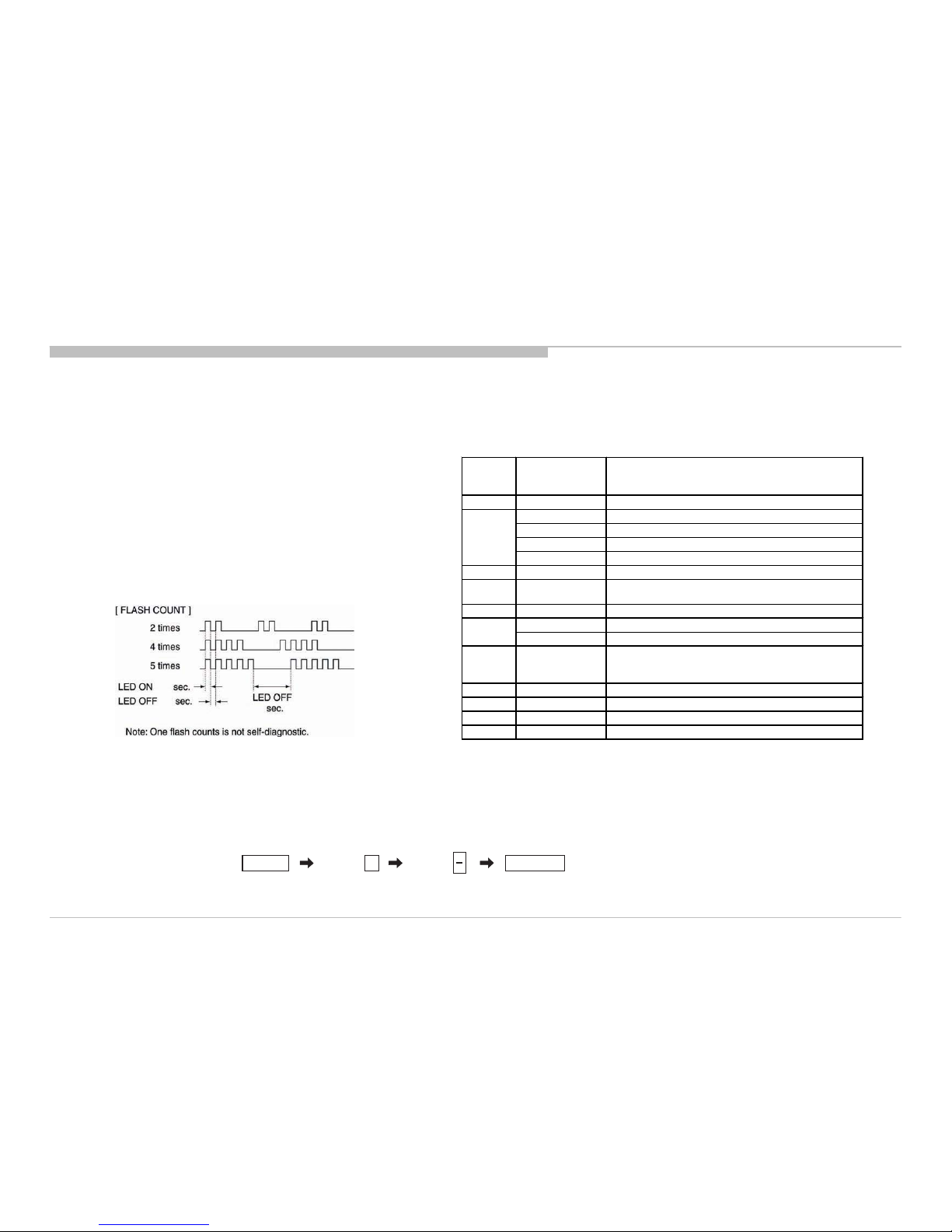

SELF DIAGNOSIS FUNCTION

DIAGNOSTIC TEST INDICATORS

When an error occurs, the STANDBY LED will flash a set number of times to

indicate the possible cause of the problem.

If there is more than one error, the LED will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen.

If the screen displays a “0”, no error has occurred .

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED will automatically begin to flash.

The number of times the LED flashes translates to a probable source of the problem.

A definition of the STANDBY LED flash indicators is listed in the instruction manual for the user’s knowledge and reference.

If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these

problems occur.

0.5

0.5 3

DISPLAY OF STANDBY LED FLASH COUNT

SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is possible to bring up past occurrences of failure for

confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

*: Note that this differs from entering the service mode (volume +)

DISPLAY TV POWERChannel Volume

STBY LED

Fla s h t im e

Service menu Item

name

(Screeen Display)

Diagnostic Item Description

2 MAIN_POWE Main 12 V failure

DC_ALERT Main 5.0/3.3/1.2 V failure

AUD_PROT Audio amp. protection

HDMI_EQ HDMI equalizer/switch I2C NACK

TU_DEMOD Tuner or demodulator I2C NACK

4 - Not used

5P_ID_ERR Panel ID EEPROM I2C NACK (Also panel power failure is a

suspect)

6 BACKLITE Backlight failure

TEMP_ERR Over temperature protection

TEMP_ERR Temp. sensor I2C NACK

Software Error (Also the main board’s memory or Wi-Fi

module is a suspect)

9 - Not used

10 - Not used

11 - Not used

12 - Not used

KDL-22/26EX550,553,555,32EX650,653,655(AEP/UK/IT) 10

SELFCHECK

000RESERVEDŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

002MAIN_POWEŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

003DC_ALERTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

003AUD_PROTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

003HDMI_EQŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

003TU_DEMODŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

004VLEDŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

004LD_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

005HFR_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

005TCON_ERR1108231325ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 01

005P_ID_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

006BACKLITEŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

007TEMP_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

007FAN_ERRŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

010EMITTERŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

101VPC_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

102MEPS_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

103HOST_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

104STBY_WDTŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ ŞŞŞŞŞŞŞŞŞŞ 00

0081Ş00671Ş00088

SELF DIAGNOSIS FUNCTION

[SELF DIAGNOSTIC SAMPLE SCREEN DISPLAY]

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen.

After you have completed the repairs, clear the result display to “0”.

Clearing the Self Check Diagnostic List

1. Error history and Error count : Press the Channel 8 => Channel 0 .

2. Panel operation time : Press the Channel 7 => Channel 0 .

Exiting the Self-diagnostic screen

To exit the Self Diagnostic screen, turn off the power to the TV by pressing the POWER button on the remote or the POWER button on the TV.

Error count (00-99)

Error history (Last failure time beforehand) *1

Error history (Failure time before last) *1

Error history (The last failure time) *1

Item name

STBY LED flash time

Total operation time by hour (MAX:65535)

Boot count (MAX:65535)

Panel operation time by hour (MAX:65535)

CPU Watch-dog timer

*1 : Format of error history

YYMMDDhhmm (in UTC)

Example:1108231325 -> Aug 23 13:25 2011 UTC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Téléviseur LCD

Sony

Sony KDL-46EX700 - Bravia Ex Series Lcd... Guide de l'utilisateur

Sony

Sony Bravia KDL-46VE5 Manuel utilisateur

Sony

Sony KLV-26S400A - 26" Multi-System HDTV LCD TV Manuel utilisateur

Sony

Sony KDL-26S3000, KDL-32SL130, KDL-32S3000, KDL-40SL130, KDL-40S3000,... Manuel utilisateur

Sony

Sony Bravia KDL-46BX450 Instructions d'utilisation

Sony

Sony WEGA KLV S15G10 Manuel utilisateur

Sony

Sony BRAVIA KDL-40EX620 Manuel utilisateur

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Manuel utilisateur

Sony

Sony KDL-32N4000 - 32" Class Bravia N Series Lcd... Manuel utilisateur

Sony

Sony KDL-32EX717 Manuel utilisateur

Sony

Sony WEGA KLV 21SR2 Guide de démarrage rapide

Sony

Sony BRAVIA KDL-46BX421 Manuel utilisateur

Sony

Sony BRAVIA KDL-46S5100 Manuel utilisateur

Sony

Sony BRAVIA KDL-46Z4100/S Guide de l'utilisateur

Sony

Sony BRAVIA KDL-26M4000 Manuel utilisateur

Sony

Sony BRAVIA KDL-32BX330 Manuel utilisateur

Sony

Sony Bravia KDL-52EX707 Manuel utilisateur

Sony

Sony BRAVIA KDL-46XBR2 Manuel utilisateur

Sony

Sony Bravia KLV-S32A10E Manuel utilisateur

Sony

Sony KDL-40VL160 - 40" Bravia Vl Series Lcd Tv Manuel utilisateur

Sony

Sony KV-DW36K9H Manuel utilisateur

Sony

Sony BRAVIA KDL-40W4500 Manuel utilisateur

Sony

Sony BRAVIA KDL-40XBR3 Manuel utilisateur

Sony

Sony BRAVIA L SERIES KDL-26L5000 Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur

Philips

Philips 40PFL7705D Manuel utilisateur
