SERVICE MANUAL

Version Date Subject

1.0 04/2015 Original manual issue.

2.0 05/2015 Part Information Addition due to KDL-55W800C, 805C model addition

(P. 20~24, P. 76, P. 77, P. 84~92)

LCD TV

9-888-172-A2

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

ORIGINAL MANUAL ISSUE DATE: 04/2015 GN1G CHASSIS

Segment: XM-A

SERVICE MANUAL

LCD TV

GN1G CHASSIS

Segment: XM-A

9-888-172-A2

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C 3

MODEL LIST

MODEL COLOR COMMANDER DEST.

KDL-50W800C Silver RMT-TX100U (LA1)

Black RMT-TX100U (UC2)

US, CND

KDL-50W805C Silver RMT-TX100B (BR6)

BRAZIL

(CR1)

COSTA RICA

(LA8)

CHILE, PERU,

VENEZUELA

(AR4)

ARGENTINA

KDL-50W807C Silver RMT-TX100B (CO1)

COLOMBIA

KDL-50W809C Silver RMT-TX100B (ECU)

ECUADOR

MODEL COLOR COMMANDER DEST.

KDL-55W800C Silver RMT-TX100U (LA1)

Black RMT-TX100U (UC2)

US, CND

KDL-55W805C Silver RMT-TX100B (BR6)

BRAZIL

(LA8)

CHILE, PERU,

VENEZUELA

WARNINGS AND CAUTIONS - ENGLISH

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

WARNING!!

An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.

The chassis of this receiver is directly connected to the ac power line.

CARRYING THE TV

Be sure to follow these guidelines to protect your property and avoid causing serious injury.

• Carry the TV with an adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damages.

SAFETY-RELATED COMPONENT WARNING!!

Components identified by shading and mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony

parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.

Follow these procedures whenever critical components are replaced or improper operation is suspected.

CAUTION ABOUT THE LITHIUM BATTERY

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Outer case broken battery should not contact to water.

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

WARNINGS AND CAUTIONS - FRENCH

ATTENTION!!

Ces instructions de service sont à l’usage du personnel de service qualifi é seulement.

Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.

WARNING!!

Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est

directement raccordé à l’alimentation du secteur.

POUR TRANSPORTER LE TÉLÉVISEUR

Tenez compte de ce qui suit pendant l’installation du téléviseur :

• Débranchez tous les câbles avant de transporter le téléviseur.

• Transportez le téléviseur avec le nombre de personnes approprié ; un téléviseur de grande taille doit être transporté par au moins deux personnes.

• Lors du transport du téléviseur, l’emplacement des mains est très important pour votre sécurité, ainsi que pour éviter de causer des dommages.

ALERTE!!

Afi n d’eviter tout risque d’electrocution provenant d’un chassis sous tension, un transformateur d’isolement doit etre utilise lors de tout depannage. Le chassis de ce recepteur est

directement raccorde a l’alimentation du secteur.

ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

Les composants identifi es par une trame et par une marque sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite

du fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les

reglages de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de

composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.

AVERTISSEMENT CONCERNANT LA BATTERIE AU LITHIUM

• Il existe un risque d’explosion si la batterie n’est pas correctement remplacée. Utilisez uniquement un type de batterie similaire ou équivalent.

• Lorsqu’il est endommagé, le boîtier externe de la batterie ne doit pas entrer en contact avec l’eau.

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

WARNINGS AND CAUTIONS

USE CAUTION WHEN HANDLING THE LCD PANEL

When repairing the LCD panel, be sure you are grounded by using a wrist band.

When repairing the LCD panel on the wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.

1) Do not press on the panel or frame edge to avoid the risk of electric shock.

2) Do not scratch or press on the panel with any sharp objects.

3) Do not leave the module in high temperatures or in areas of high humidity for an extended period of time.

4) Do not expose the LCD panel to direct sunlight.

5) Avoid contact with water. It may cause a short circuit within the module.

6) Disconnect the AC power when replacing the backlight (CCFL) or inverter circuit. (High voltage occurs at the inverter circuit at 650Vrms.)

7) Always clean the LCD panel with a soft cloth material.

8) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.

9) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).

10) It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

SAFETY CHECK-OUT

Leakage Test

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed

metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’

instructions to use these instructions.

2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The

“limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale.

The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all

battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).

How to Find a Good Earth Ground

A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also

at earth ground.

If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance

between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.

If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot

side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the

lamp should light at normal brilliance if the screw is at ground potential (see Figure B).

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

SAFETY CHECK-OUT

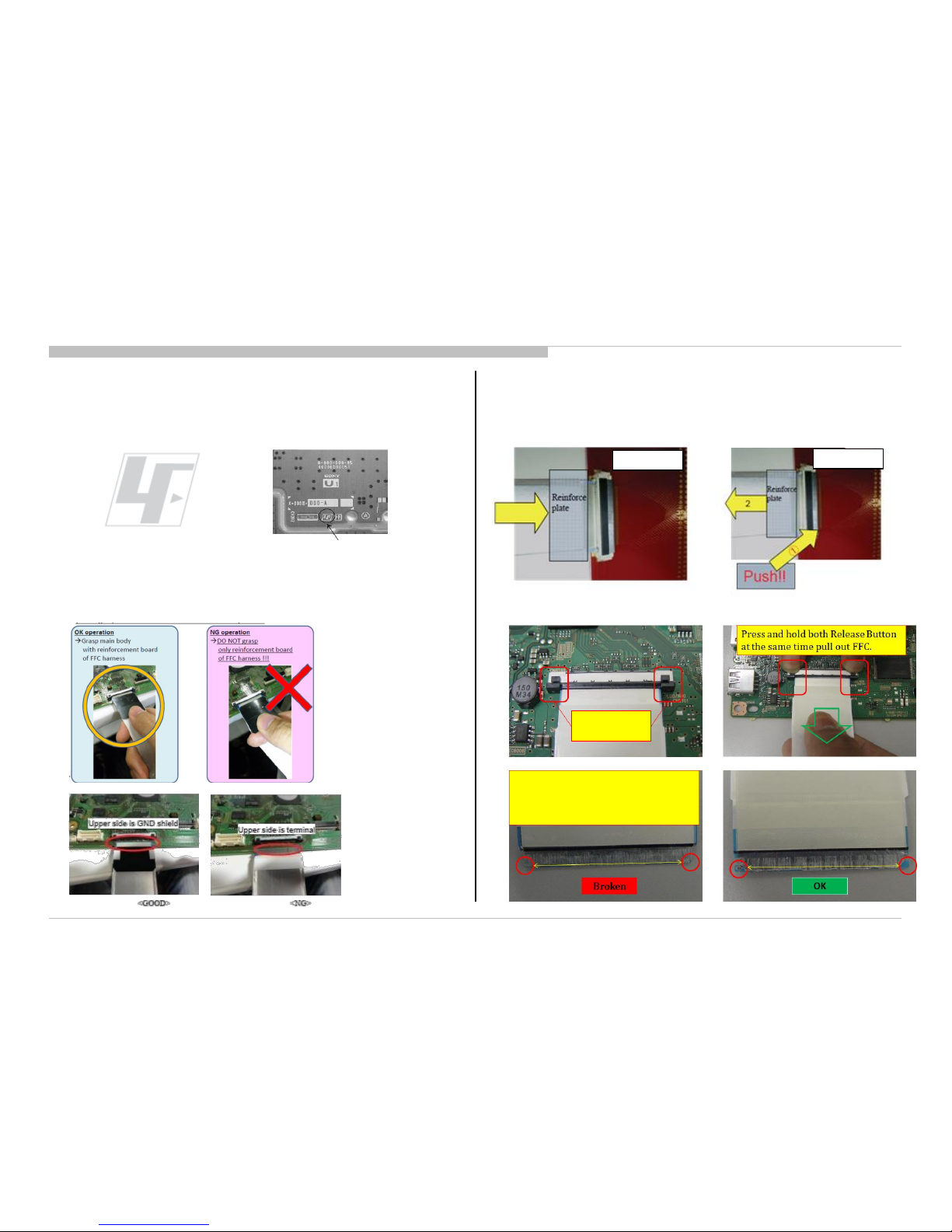

Lead Free Information

The circuit boards used in these models have been processed using Lead Free

Solder. The boards are identified by the LF logo located close to the board

designation.

Handling the FLEXIBLE FLAT CABLE (FFC)

When you insert / pull out FFC, please grasp a reinforcement board and main

body of FFC

Figure 4: LF Logo Figure 5: LF logo on circuit board

Please hold reinforcement board and plunge

it to depths. Please pull out FFC while pushing the

button of both ends at the same time.

< Insertion> <Pull out>

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

Main board Main board

Release Button

of Connector

FFC connector broken if pull out FFC without

press and hold both Release Button of

connector. Symptom 5X blinking will be

appear due to improperly seated.

OUTLINE OF SELF DIAGNOSIS FUNCTION

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED will automatically begin to flash.

The number of times the LED flashes translates to a probable source of the problem.

A definition of the STANDBY LED flash indicators is listed in the instruction manual for the user’s knowledge and reference.

If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these

problems occur.

SELF DIAGNOSIS FUNCTION

ABOUT ILLUMINAITION LED

KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

Status

White

Center

LED

Side RGB LED

Side Amber

LED Remarks

Power Off

( by power saving switch off and *1) Off Off Off

*1 power switch off (by side key)

Power On White Off Off

STBY/i.LINK STBY/PC STBY

( by remote control off only ) Off Off Off

Picture Off White looping White one shot

Off

Device Connection White Cyan one shot Off

Power ON Animation White White one shot

Off

Sleep Timer/On Timer/Reminder/REC

Timer/Photo Frame

( Power On ) White Amber

One shot

> Lit*2

Off *2 One Shot is only user action.

On Timer/Reminder/REC Timer

( Deep Standby ) Off Off Amber

After 5 minutes, side amber LED

Self Diagnosis Off Red

Blinking Off The number of LED blinking

indicates cause of failure

( refer to

Led Error / Triage chart

)

Aging mode White Green Blinking Off Blinking:0.5sec On / 0.5sec Off

Software Updating white blinking white blinking off

Software Updating finish White Blue lit off

Test Reset White white blinking Amber

blinking

Error of panel ID White Green /Amber

Blinking Off Blinking:0.5sec On / 0.5sec Off

REC (SCART REC & HDD REC/LIVE

PAUSE) [AEP/J only] White Red(Pink)

One shot

> Lit*2

Off *2 One Shot is only user action.

ePOP/

Shop Illumination White Cyan loop Off One shot Center White when

feature change
