Dismantling information for use

by professional recyclers

LCD TV

9-888-783-41

Model

：

KD-75ZH8

KD-85ZH8

ORIGINAL MANUAL ISSUE DATE: 2021.02

Conditions of Use:

(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any

purpose other than the purpose described foregoing is forbidden.

(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part

without the prior written permission of the author.

Revision of Information:

This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-

to-date before using it.Sony Home Entertainment & Sound Products Inc.

© 2021.02

MODEL LISTS

MODEL REMOTE DESTINATION

KD-75ZH8 RMF-TX611E CEI, UKA

KD-85ZH8 RMF-TX611E CEI, UKA

REMOTE

3

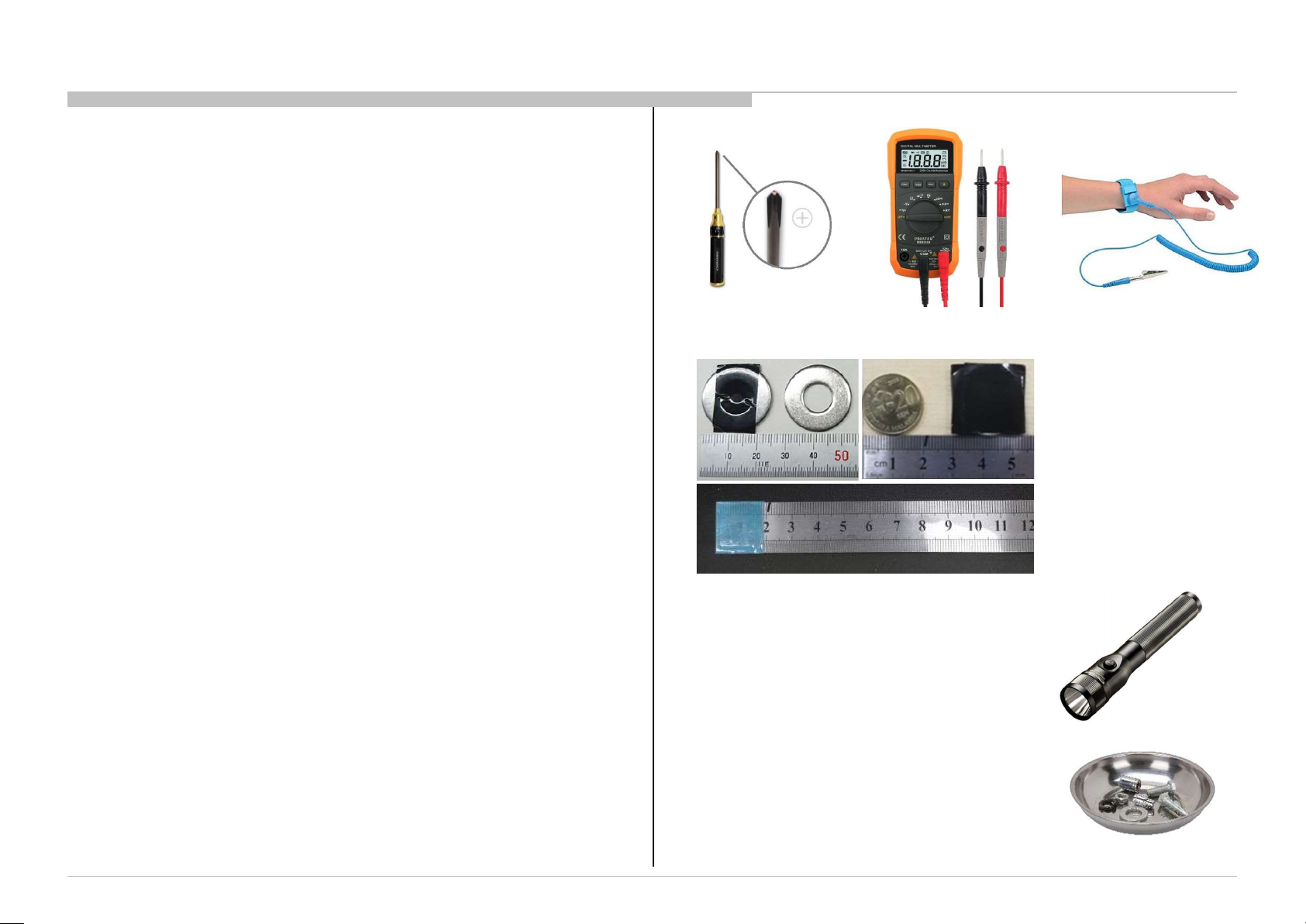

TOOLS & EQUIPMENTS

1 LIST OF ITEMS TO BRING

1. Screwdriver (e.g. #2 Phillips Screwdriver)

2. Multimeter

3. ESD Wrist Straps

4. Metal Washer (Flat) or Coin (for remove Rear Cover)

5. Ruler (for remove Rear Cover)

2 OPTIONAL EQUIPMENT

1. Screwdriver (e.g. #0 Phillips Screwdriver)

2. Parts Tray for loose screws and small items

3. Flashlight

For Surface Mounted Parts/Connectors;

Hot-Air Type soldering Iron is needed.

Thickness: approx. 1.5mm

Diameter: 20~25mm

(wrap in tape (L=50mm))

Plastic or Metal Ruler

(In case of Metal ruler, wrap

in tape (L=50mm) for prevent

scratches)

4

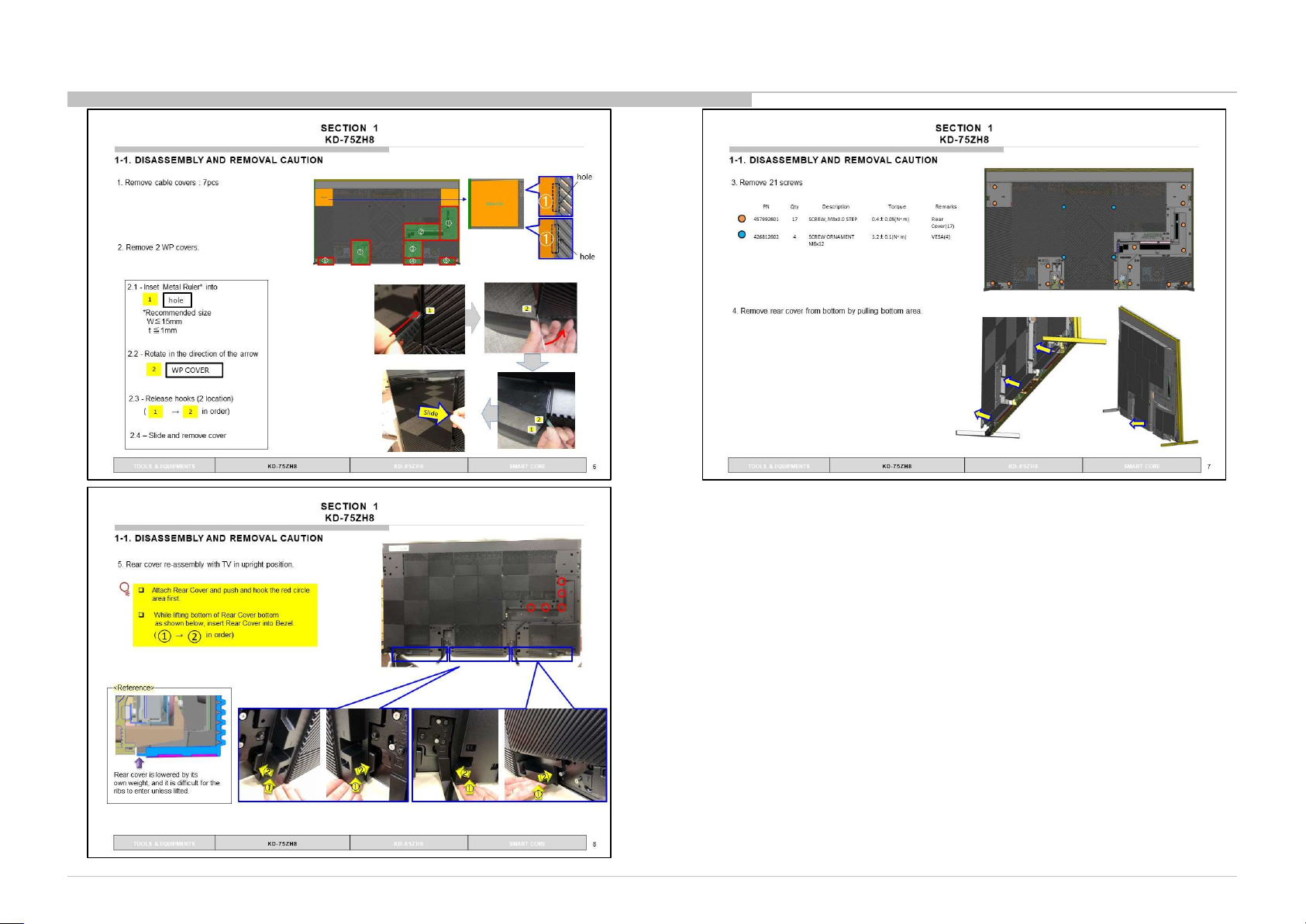

DISSASSEMBLY AND REMOVAL CAUTION 75”

5

(*) Parts are not stocked since they are seldom required for routine service.

Some delays should be anticipated when ordering these components.

Picture provided in this section might have slight difference from the actual sets.

The reference number beside the part indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

• and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are

repaired and/or replaced.

!

12

3

4

5

8

10

11

6

7

1

2

12

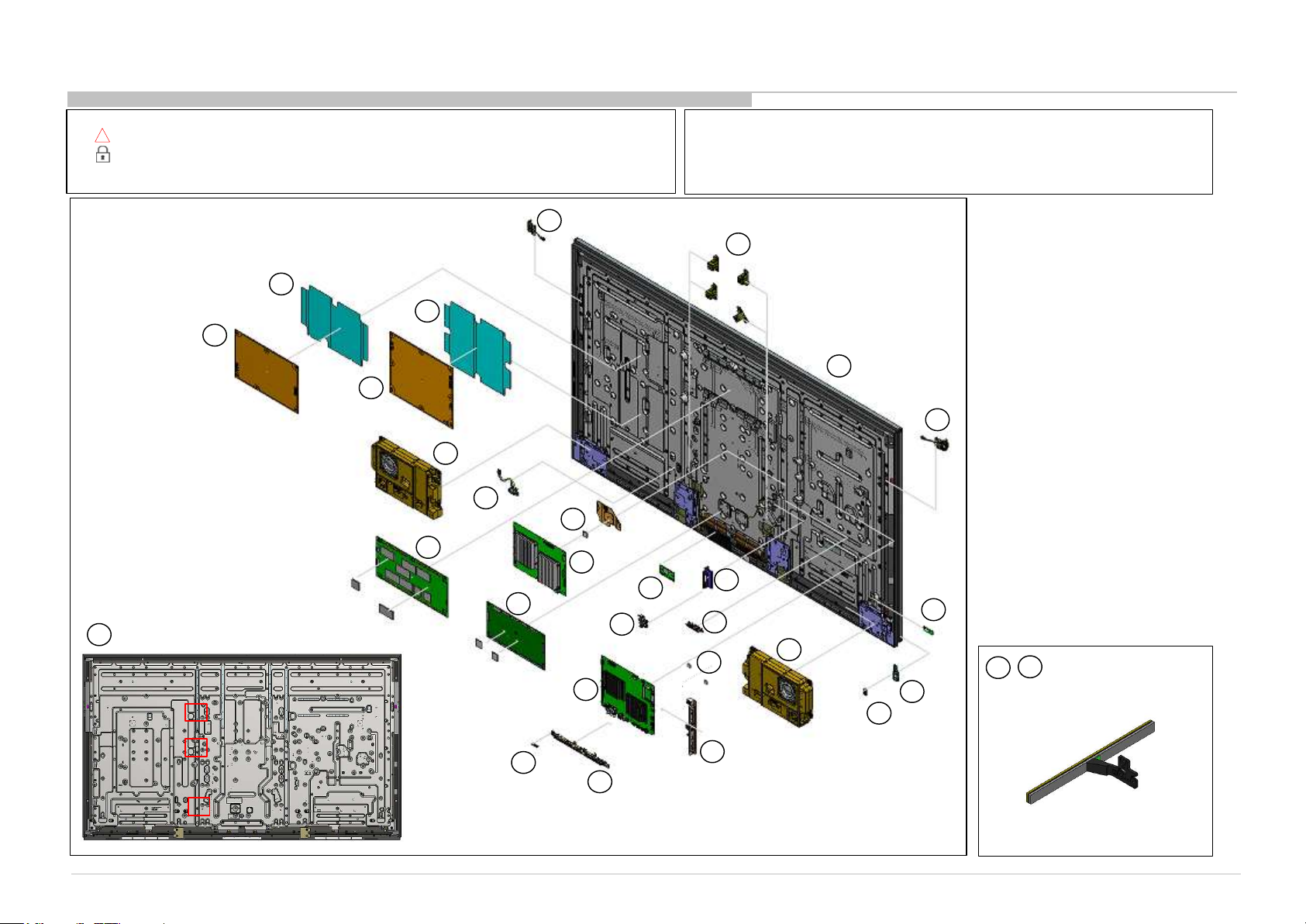

1-4. EXPLODED VIEW AND

PART LIST

9

EXPLODED VIEW AND PART LIST 75”

1

2

3

4

5

6

7

8

9

10

11

12

14

14

15

16

13

18

19

20

21

22

24

25

26

27

*

Only on limited region / country /

TV model

Stand

6

(*) Parts are not stocked since they are seldom required for routine service.

Some delays should be anticipated when ordering these components.

Picture provided in this section might have slight difference from the actual sets.

The reference number beside the part indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

• and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are

repaired and/or replaced.

!

28 29

1-4. EXPLODED VIEW AND

PART LIST

17

23

EXPLODED VIEW AND PART LIST 75”

7

REF. NO PART NO. DESCRIPTION REMARKS

11-007-210-11 HARNESS ASSY (SP) CN9005(B)-SP-PZSP-

CN9002(B)(1)

21-912-989-11 CONNECTOR ASSY 2P CN6504(PSU)-CN6502(PSU)-CN6501(PSU)-

CN6503(PSU)(1)

31-007-207-11 CONNECTOR ASSY 6P (KEY) CN1203(B)-KEY-

TSA(1)

41-007-211-11 CONNECTOR ASSY 16P CN6403(PSU)-

J101(TCON)(1)

51-007-208-11 CONNECTOR ASSY 28P (PWR1) CN6401(PSU)-CN800(B)-

CN5601(ONT)(1)

61-007-209-11 CONNECTOR ASSY 28P (PWR2) CN6402(PSU)-CN6601(PSU)-CN1000(LD)-

CN1001(LD)(1)

71-007-504-11 FLEXIBLE FLAT CABLE 14P CN9409(B)-

CN5400(ONT)(1)

81-007-169-11 FLEXIBLE FLAT CABLE 20P/25P CN4801(B)-CN1201(B)-H-

BT(1)

91-007-171-11 FLEXIBLE FLAT CABLE 30P CN8200(B)-

CN1002(LD)(1)

10 1-007-172-11 FLEXIBLE FLAT CABLE 41P(B-ONT) CN9200(B)-

CN2401(ONT)(1)

11 1-007-173-11 FLEXIBLE FLAT CABLE 51P(BONT) CN9201(B)-

CN2400(ONT)(1)

12 1-007-174-11 FLEXIBLE FLAT CABLE 51P (OT1) CN2600(ONT)-

J102(TCON)(1)

13 1-007-175-11 FLEXIBLE FLAT CABLE 51P (OT2) CN2601(ONT)-

J103(TCON)(1)

14 1-007-176-11 FLEXIBLE FLAT CABLE 51P (OT3) CN4600(ONT)-

J104(TCON)(1)

15 1-007-177-11 FLEXIBLE FLAT CABLE 51P (OT4) CN4601(ONT)-

J105(TCON)(1)

1

8

7

5

2

4

6

3

9

10

11

15

14

13 12

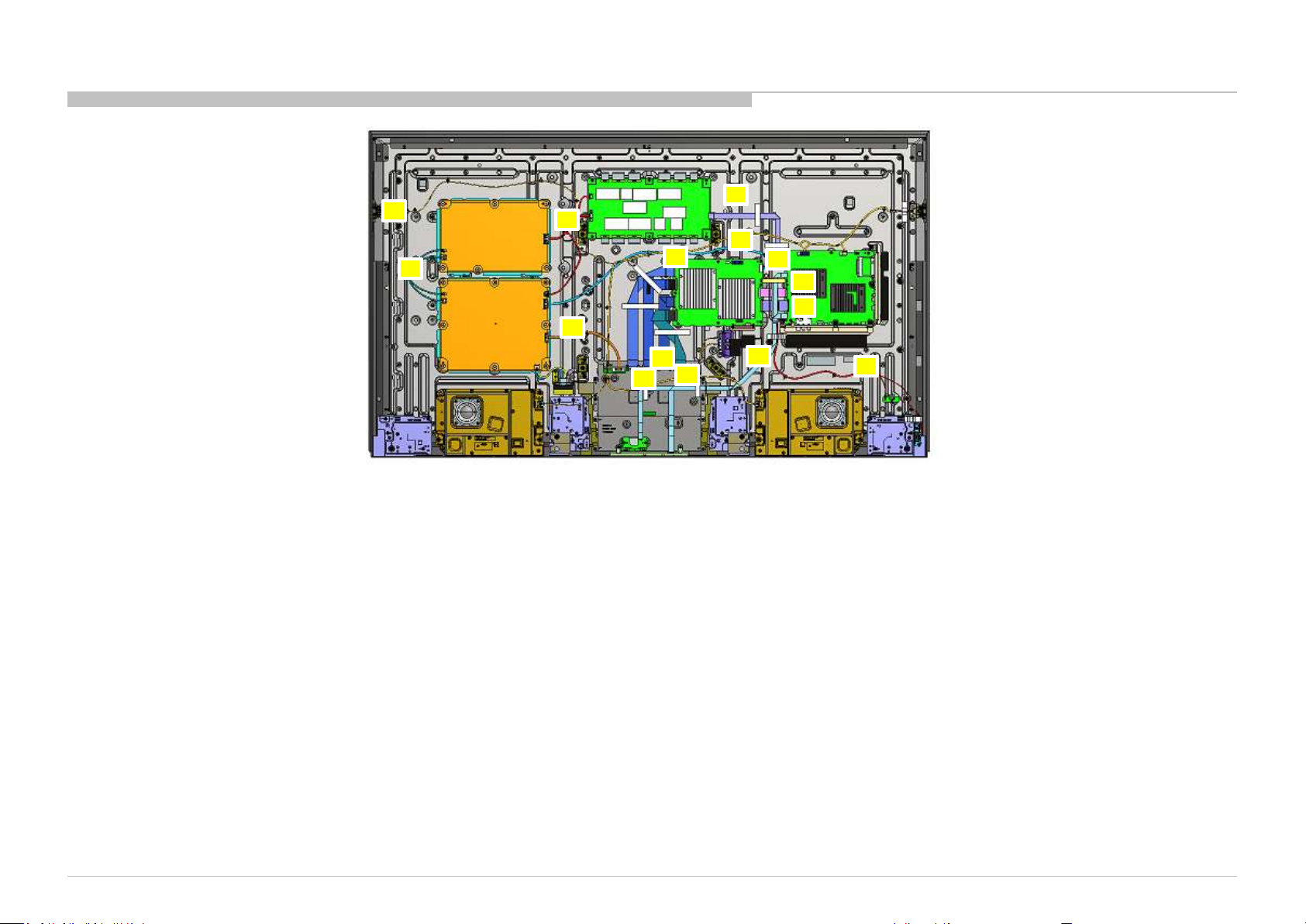

HARNESS/CABLES 75”

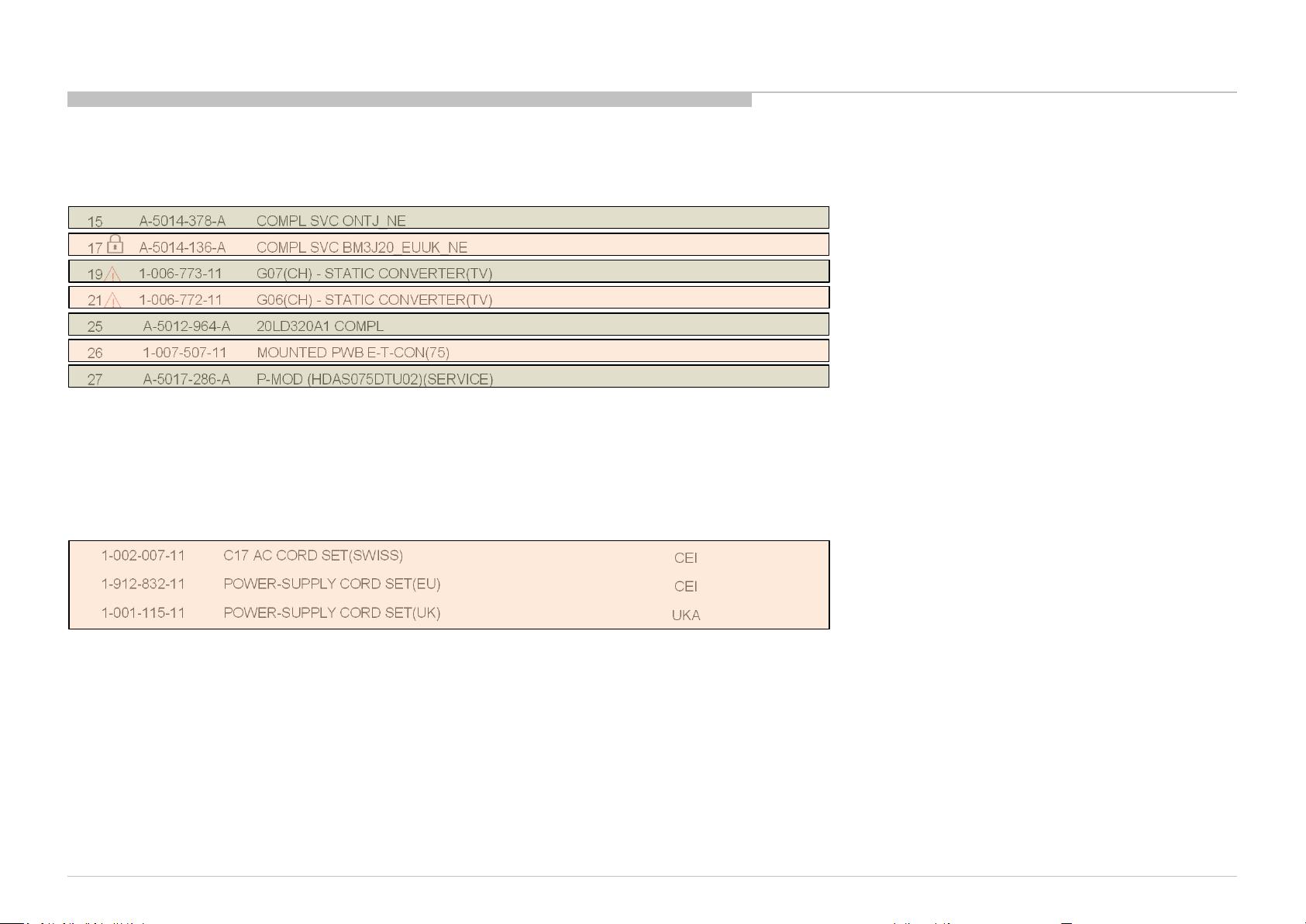

REF. NO PART NO. DESCRIPTION REM ARKS

15 A-5014-378-A COMPL SVC ONTJ_NE

17 A-5014-136-A COMPL SVC BM3J20_EUUK_NE

19 1-006-773-11 G07(CH) - STATIC CONVERTER(TV)

21 1-006-772-11 G06(CH) - STATIC CONVERTER(TV)

25 A-5012-964-A 20LD320A1 COMPL

26 1-007-507-11 MOUNTED PWB E-T-CON(75)

27 A-5017-286-A P-MOD (HDAS075DTU02)(SERVICE)

SET PART LIST

8

!

!

PARTS LIST 75”

Printed Circuit Board, incl. capacitors

Printed Circuit Board, incl. capacitors

Internal Power Supply

Internal Power Supply

Liquid Crystal Display

Printed Circuit Board, incl. capacitors

Printed Circuit Board, incl. capacitors

OTHER PARTS

PART NO. DESCRIPTION REM ARKS

1-002-007-11 C17 AC CORD SET(SWISS) CEI

1-912-832-11 POWER-SUPPLY CORD SET(EU) CEI

1-001-115-11 POWER-SUPPLY CORD SET(UK) UKA

Cable

9

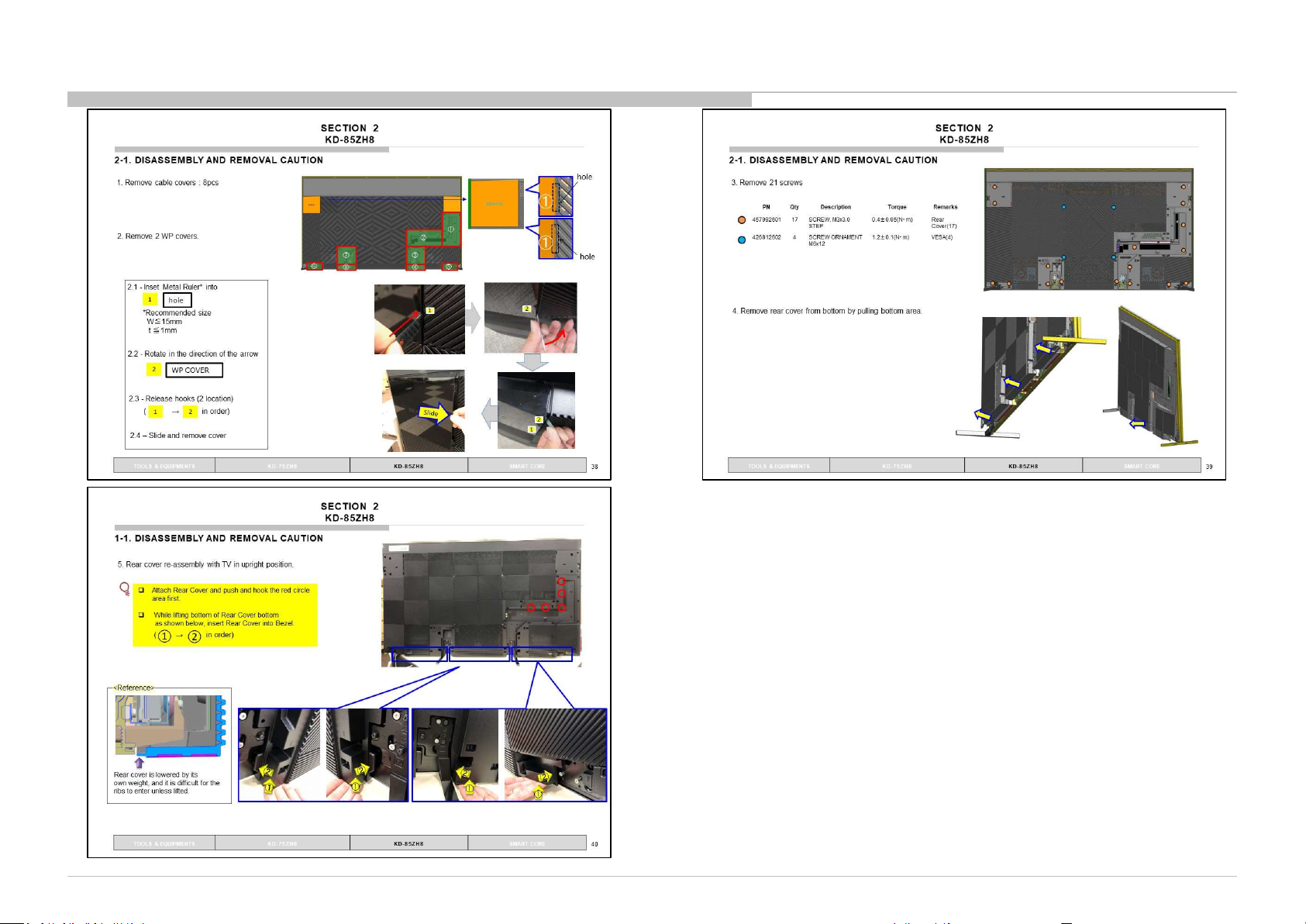

DISSASSEMBLY AND REMOVAL CAUTION 85”

*

Only on limited region / country /

TV model

10

(*) Parts are not stocked since they are seldom required for routine service.

Some delays should be anticipated when ordering these components.

Picture provided in this section might have slight difference from the actual sets.

The reference number beside the part indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

• and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are

repaired and/or replaced.

!

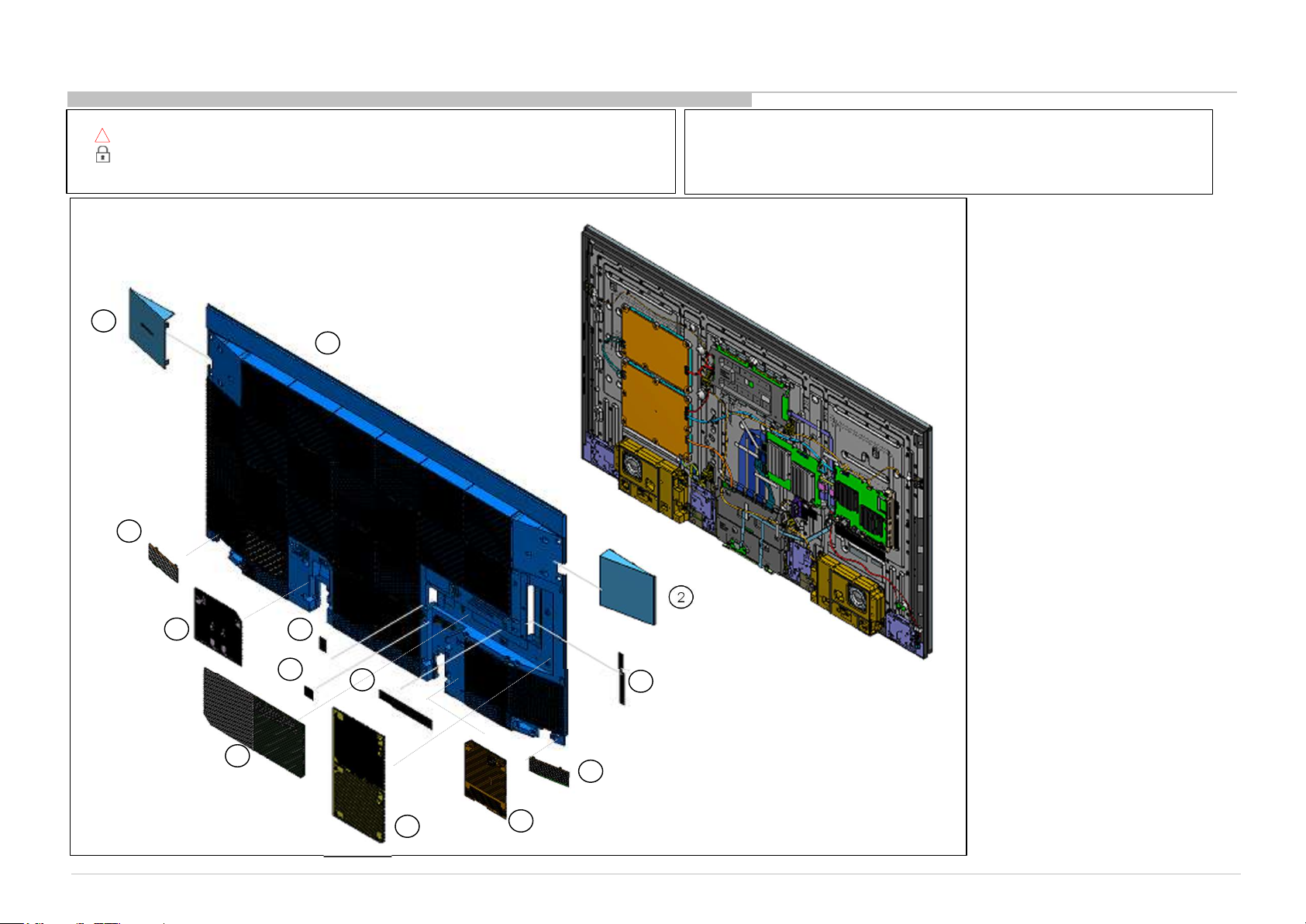

2-4. EXPLODED VIEW AND

PART LIST

12

12

8

9

9

11

3

4

56

7

1

2

10

10

*

*

EXPLODED VIEWS 85”
