Sony VGN-N SERIES Instructions d'installation

Rev 1.01.100906 SONY CONFIDENTIAL 1

VGN-N SERIES

VGN-N Series

Disassemble Instruction

Rev 1.01.100906 SONY CONFIDENTIAL 2

Safety Precautions

In order to prevent harm to both yourself and the unit, ALWAYS disconnect all peripherals and

cables, and unplug the AC Adapter before performing any repairs on the unit. Shoes with non-

conductive rubber soles should be worn to minimize the chance of shock or injury.

ESD Protection

The components of the VGN-N Series are susceptible to damage caused by ESD (electrostatic

discharge). Always follow proper grounding procedures and utilize appropriate equipment such as

a wrist grounding strap and anti-static mat when performing any repairs on the unit. If a properly

grounded wrist strap is not available, touch an unpainted metal surface of the computer chassis to

discharge static electricity. This should be done periodically during the repair to discharge any

static charge that has been accumulated. When removing a component from the system, be sure to

place it on an anti-static mat.

Cosmetic Care

Always protect both the unit and the repair surface from scratches, dings, dents, and other cosmetic

damage by placing a protective mat between the unit and the repair surface. Never place an LCD

face-down on an unprotected surface.

VGN-N Series – Preliminary Considerations

Disassemble Instruction

Rev 1.01.100906 SONY CONFIDENTIAL 3

VGN-N Series – Flow Chart

Disassemble Instruction

VGN-NXX

BATTERY

MEMORY

ODD

KEYBOARD

PALMREST

TOUCHPAD

LCD ASSY BEZEL INVERTER LCD PANEL

HDD

MB CPU FAN CPU

VGA THERMAL

RJ11/RJ45

DC JACK

BATTERY COVER

SPEAKER

Rev 1.01.100906 SONY CONFIDENTIAL 4

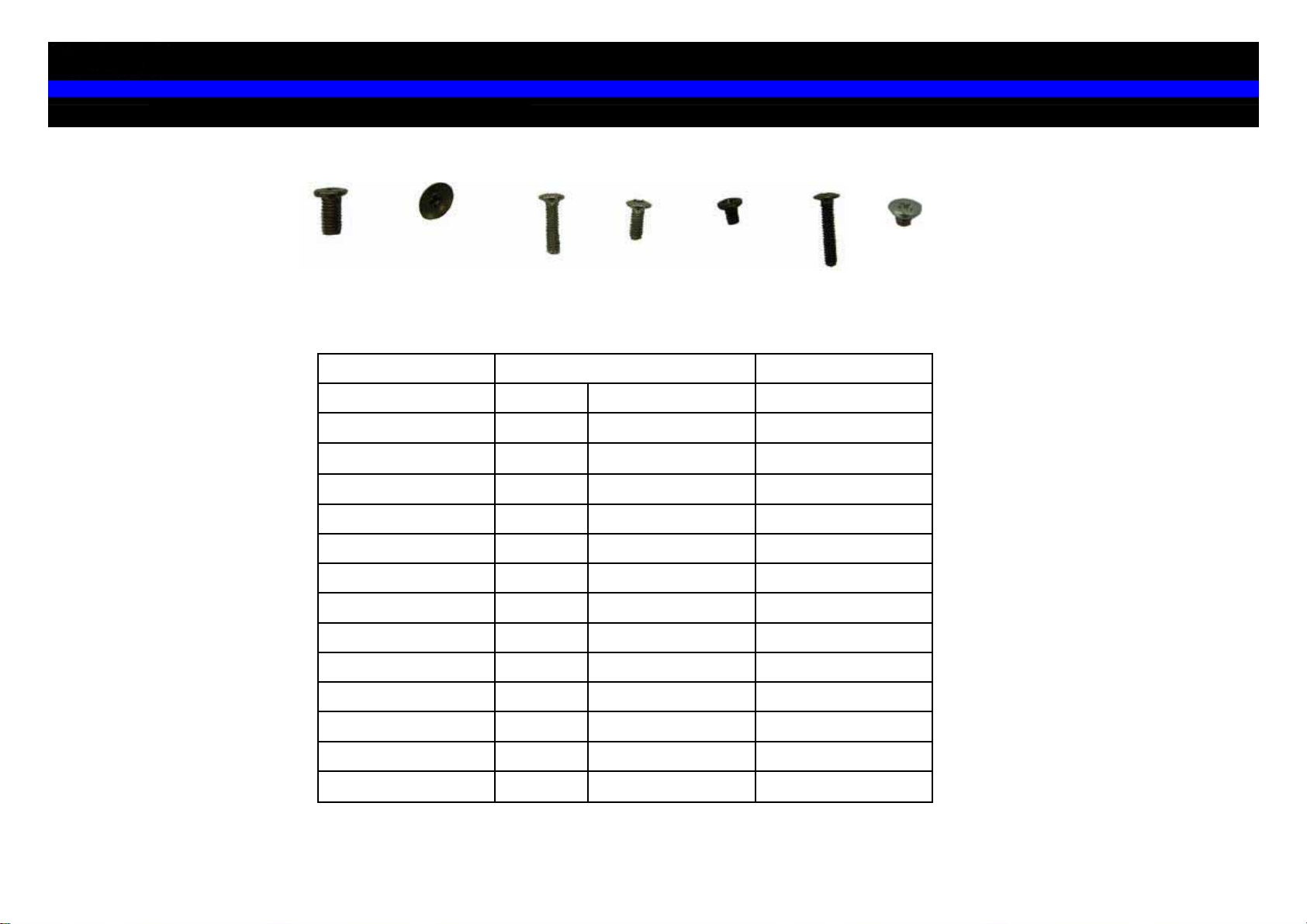

VGN-N Series - Screws

Disassemble Instruction

T2*L3

M2*L5

M2*L7

M2*L10

M3*L6

M2*L10

M2*L1.8

M2*L3

M2*L7

1B2BATTERY COVER

4B10SPEAKER

4B4LCD BEZEL

2B4VGA THERMAL

3B3MOTHERBOARD

4B4CPU FAN

2B9HDD

6B1HINGE

1B9PALMREST

3B2BOTTOM

Amount

Screw model

ODD

BOTTOM

KEYBOARD

Station

B1 B2 B3 B4 B7 B9 B10

Screw needed for Disassembly

Rev 1.01.100906 SONY CONFIDENTIAL 5

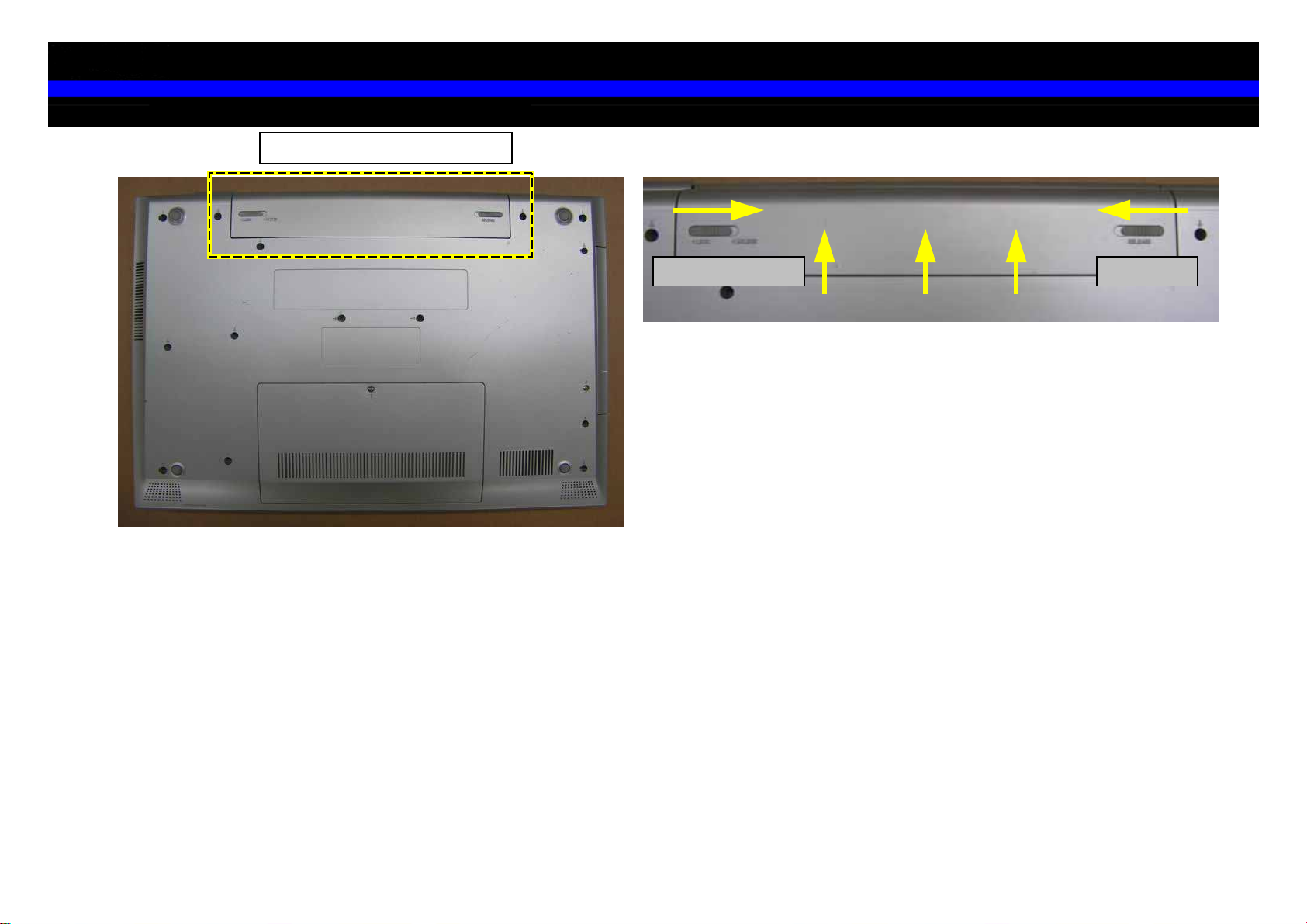

1) OVERVIEW-BACK

PRESS THE UNLOCK TAB AND THE RELEASE TAB TOWARDS THE CENTER OF

THE BATTERY. SLIDE THE BATTERY AWAY THE SYSTEM.

LOCK / UNLOCK RELEASE

VGN-N Series - Battery Removal

Disassemble Instruction

Rev 1.01.100906 SONY CONFIDENTIAL 6

VGC-LS1 Series – Battery Removal

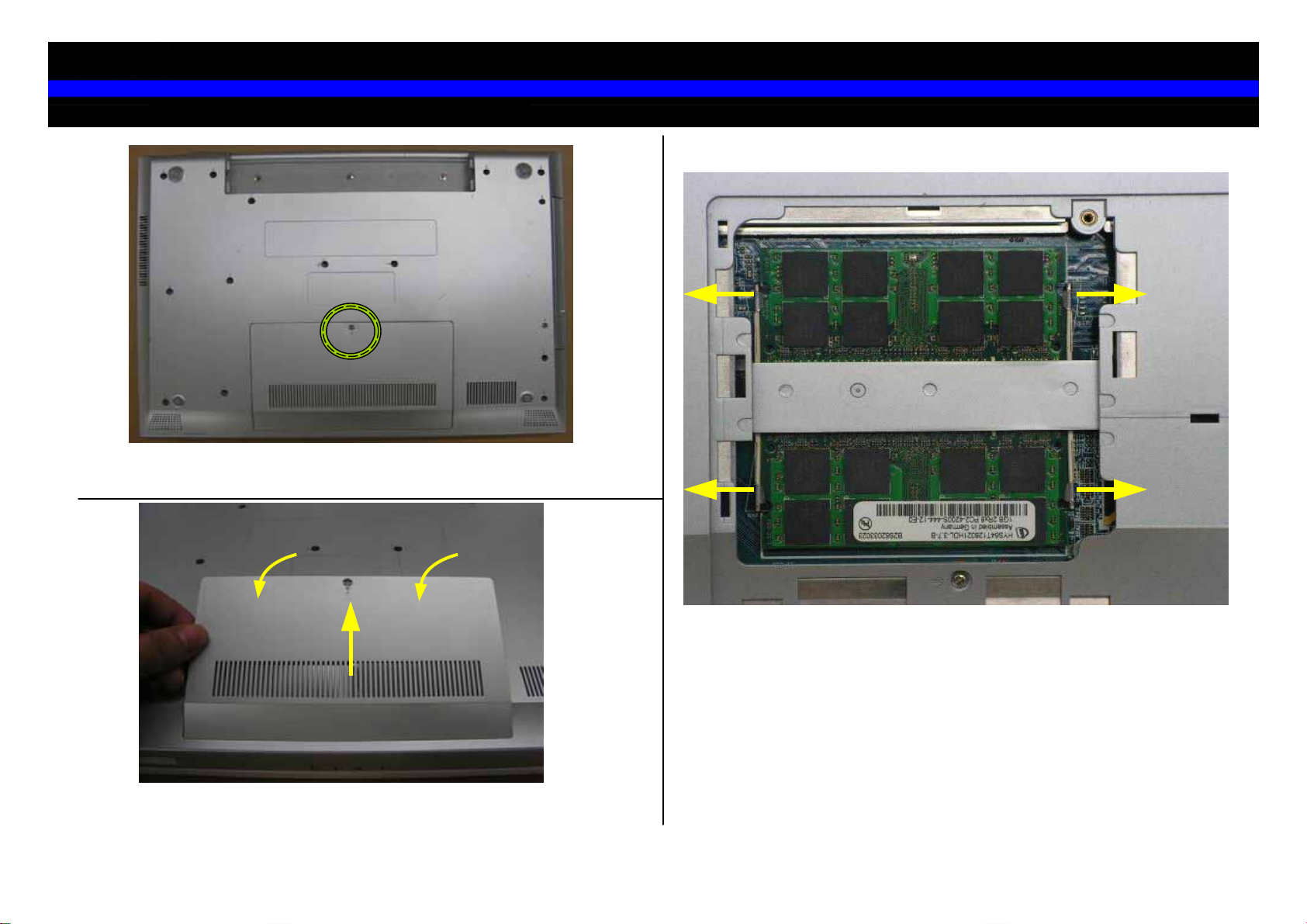

LOOSEN ONE RETAINED SCREW

ROTATE THE RAM DOOR FROM THE UPPER EDGE AND LIFT UP

REMOVE EACH RAM MODULE BY RELEASING THE CLIPS AND LIFTING THE

RAM FROM THE SOCKET

VGN-N Series - Memory Removal

Disassemble Instruction

Rev 1.01.100906 SONY CONFIDENTIAL 7

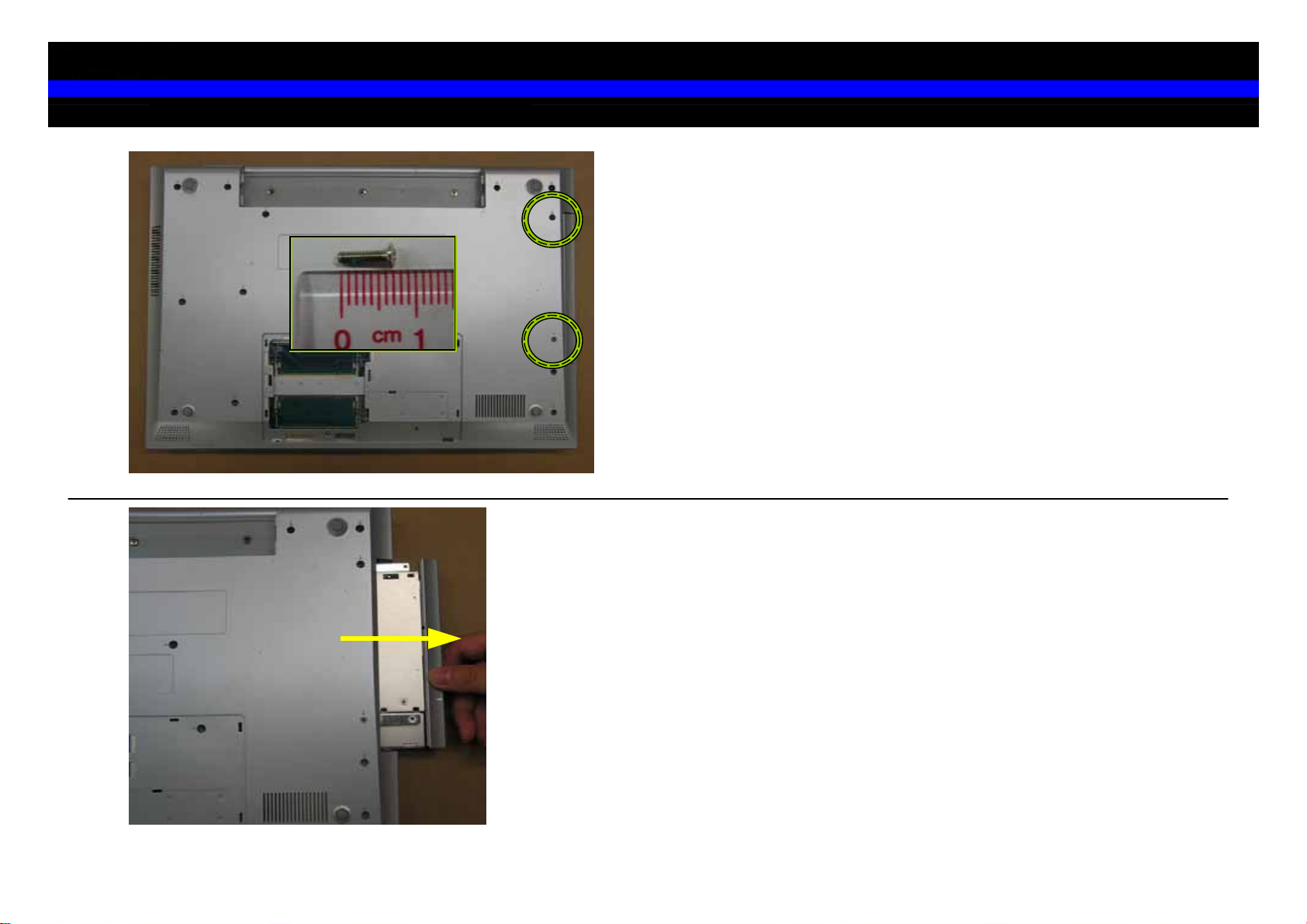

REMOVE TWO SCREWS

SLIDE THE OPTICAL DRIVE OUT OF THE SYSTEM

VGN-N Series - Optical Drive Removal

Disassemble Instruction

Rev 1.01.100906 SONY CONFIDENTIAL 8

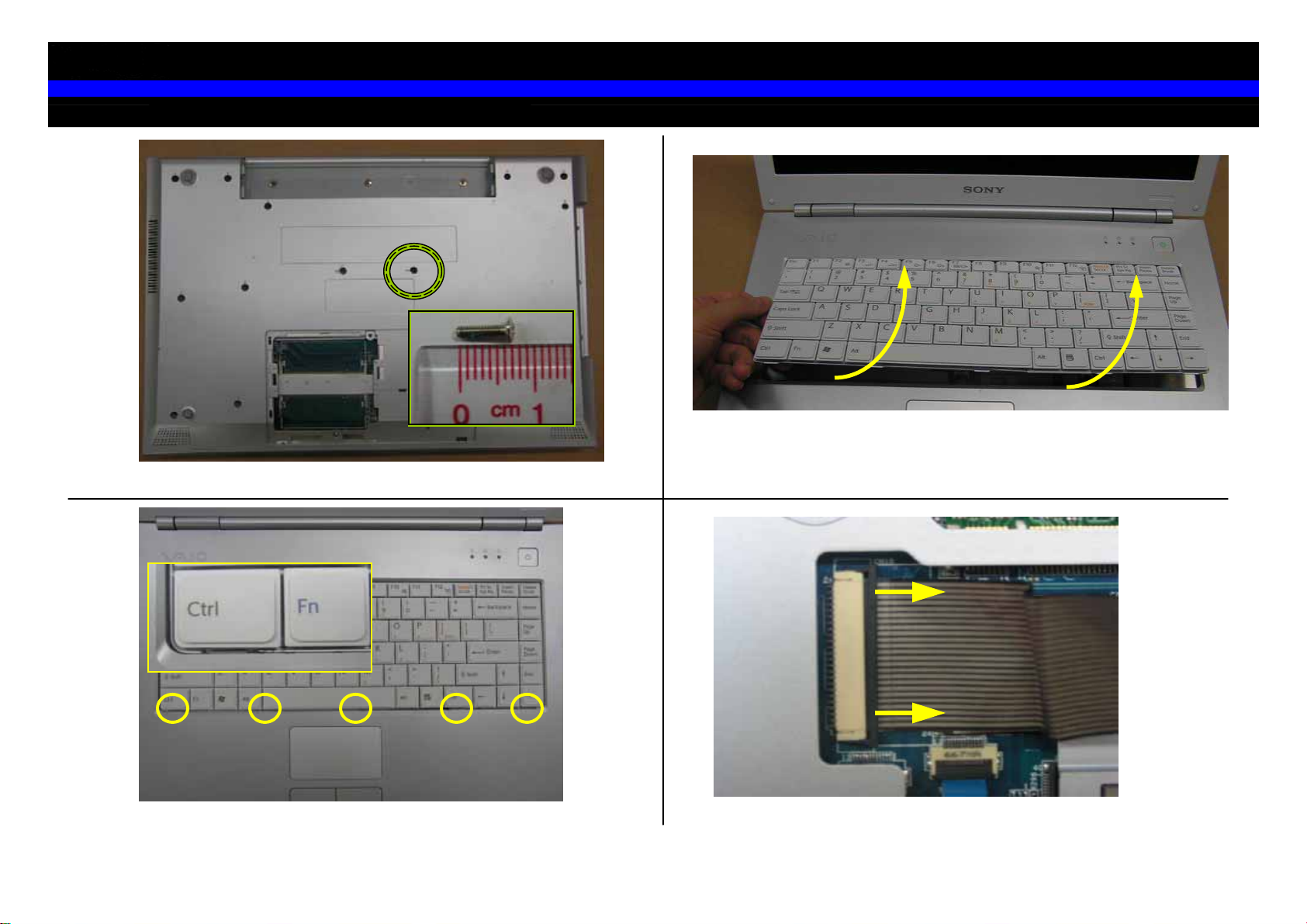

REMOVE ONE SCREW

RELEASE FIVE TABS FROM THE BOTTOM OF THE KEYBOARD

ROTATE THE KEYBOARD FROM THE BOTTOM TO REMOVE

DISCONNECT THE KEYBOARD CABLE

VGN-N Series - Keyboard Removal

Disassemble Instruction

Rev 1.01.100906 SONY CONFIDENTIAL 9

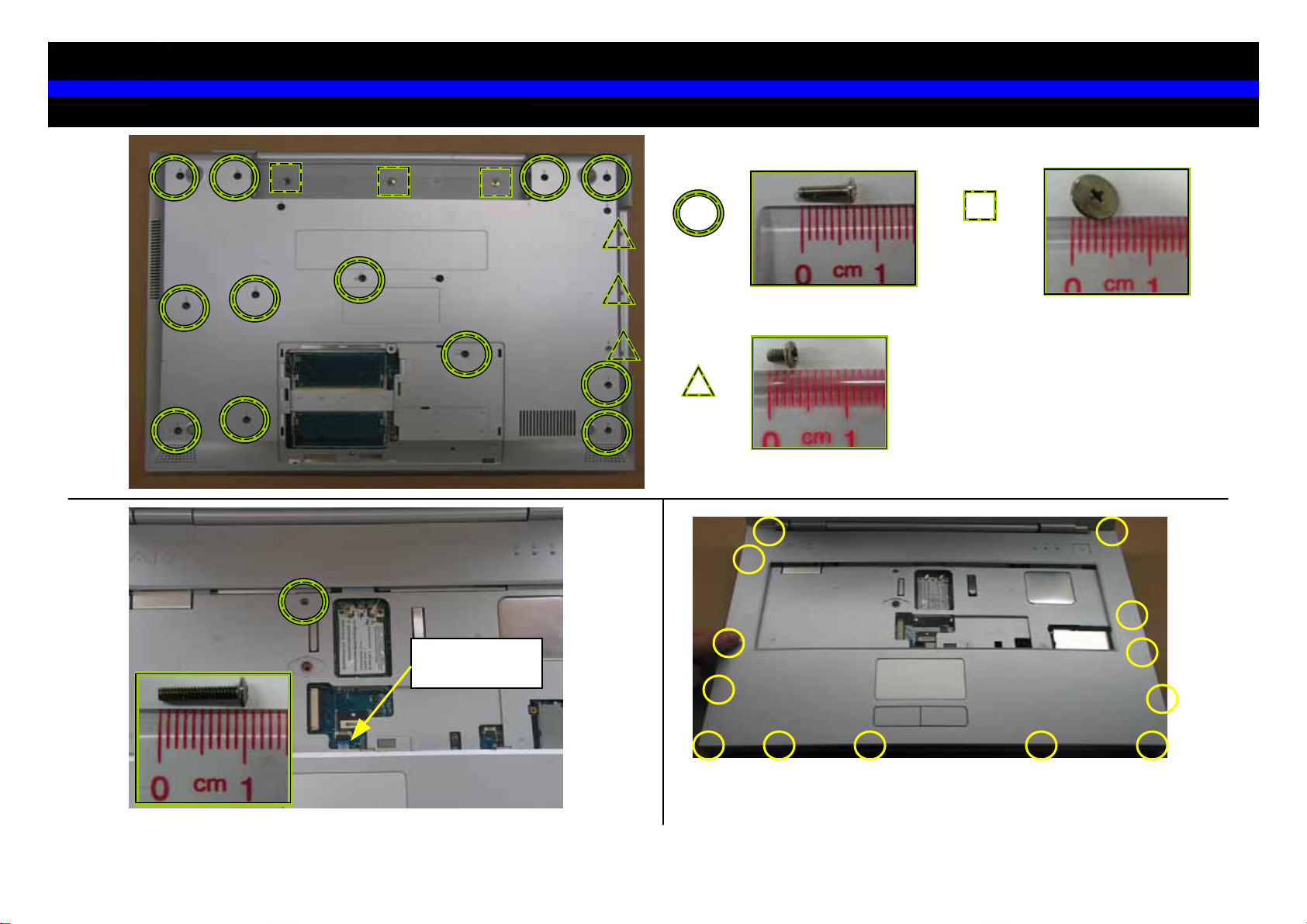

REMOVE EIGHTEEN SCREWS FROM THE PALMREST. NOTE THERE

ARE THREE DIFFERENT LENGTHS

DISCONNECT THE TOUCHPAD CABLE. REMOVE ONE SCREW

LIFT THE PALMREST FROM THE FRONT EDGE. GENTLY

RELEASING THE DETENTS

TOUCHPAD

CABLE

VGN-N Series - Palmrest Removal

Disassemble Instruction

B3 B2

Rev 1.01.100906 SONY CONFIDENTIAL 10

VGC-LS1 Series – Battery Removal

OVERVIEW-BACK

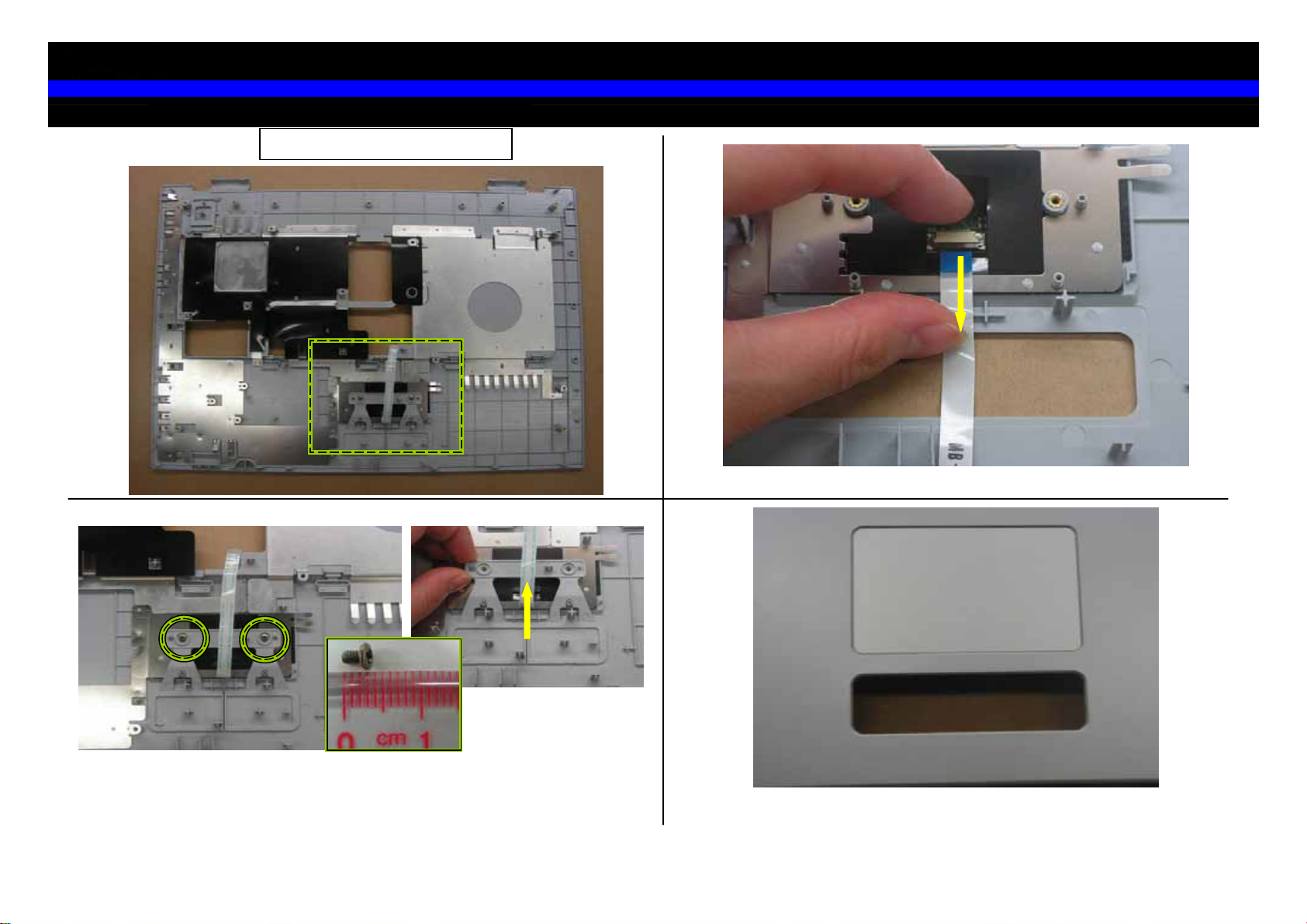

REMOVE TWO SCREWS. LIFT THE TOUCHPAD BUTTONS

FROM THE TOP EDGE

DISCONNECT THE TOUCHPAD CABLE

THE TOUCHPAD IS AFFIXED TO THE PALMREST WITH DOUBLE-

SIDED ADHESIVE

VGN-N Series - Touchpad Removal

Disassemble Instruction
