Sony VGN-FE Series Manuel utilisateur

Table of contents

Section

Title

Page

1 Disassembly Procedures Outline

Fixture for disassembly 2

2 Disassembly components

Disassembly battery 4

Disassembly RAM 4

Disassembly HDD 5

Disassembly keyboard 6

Disassembly ODD 6

Disassembly K/B cover 6

Disassembly LCD ASSY 7

Disassembly Bottom 10

Disassembly Thermal VGA 10

Disassembly ASSY Thermal CPU 11

Disassembly CPU 11

Disassembly W-LAN moudle 12

Disassembly Motherboard 12

Disassembly PWBA touchpad 12

VGN-FExx series Disassemble Instruction

Fixture needed for Disassembly

SIZE QTY POSITION

M2*L1.8 3 KB COVER

M2xL2 2 ODD

M2*L3 8 LCD bracket

M2*L3 2 LCD ANTENNA

M2*L3 2 CAMERA BOARD

M2xL3 2 PWBA TOUCHPAD

M2xL3 3 REINFORCEMENT L

M2xL3 1 Speaker

M2xL3 4 KEYBOARD

M2xL3 1 BLUETOOTH CABEL

M2xL3 2 EXPRESS CARD

M2xL3 2 PCMCIA SOCKET

M2xL3 2 MODEM CARD

M2xL5 4 Speaker

M2xL5 2 MOTHERBOARD

M2xL5 1 BLUETOOTH PWBA

SHIELDING

M2xL5 4 LCD BEZEL

M2xL5 4 THERMAL MODULE

M2xL5 4 LCD BRACKET

M2xL5 6 LCD HOUSING

VGN-FExx series Disassemble Instruction

Fixture needed for Disassembly

VGN-FExx series Disassemble Instruction

SIZE QTY POSITION

M2xL5 2 PCcard slot (inside)

M2xL5 4 LCD HOUSING

M2xL7 4 THERMAL SINK VGA/NB

M2xL7 4 ODD

M2xL7 13 ASSY CABINET BOTTOM

M2xL7 1 BOTTOM

M2*L7 2 PCMCIA SOCKET

M2*L10 1 RAM DOOR

M2*L10 2 HDD BRACKET

M3xL3 4 HDD BRACKET

M3xL6 2 ASSY LCD

M3*L5 2 BOTTOM

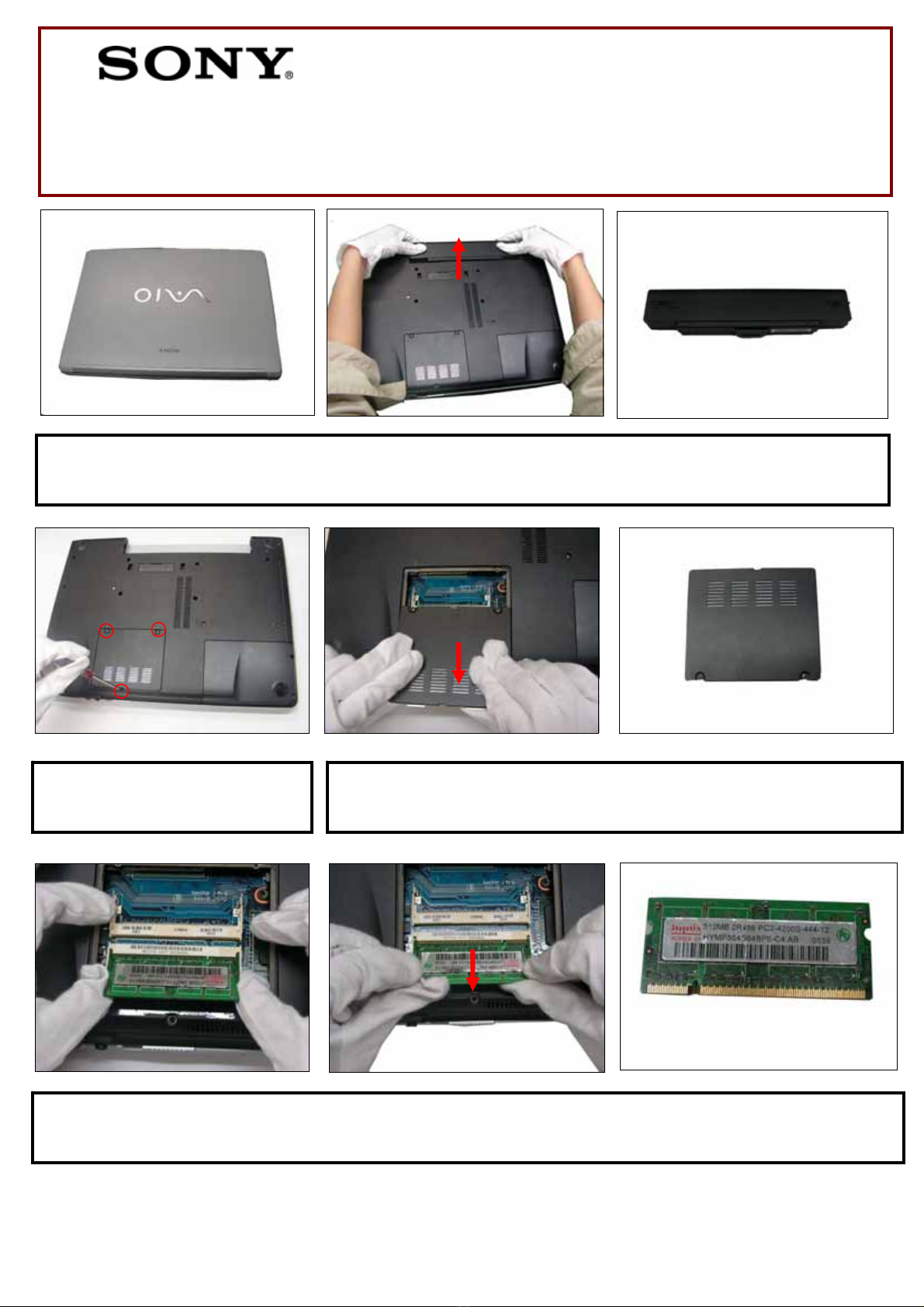

Step 2. Using a screwdriver, remove the

marked screw.

Step 3. Remove memory access door in the direction of the arrow and set aside.

Step 1.To prevent any kind of cosmetic damages and scratches; place your PC upside on top of a soft surface.

Remove the battery in the direction of the arrow and set aside.

Step 4. Unlock the memory socket, remove it in the direction of the arrow and set aside.

VGN-FExx series Disassemble instructions

1. Remove the battery

2. Disassemble the RAM door and RAM

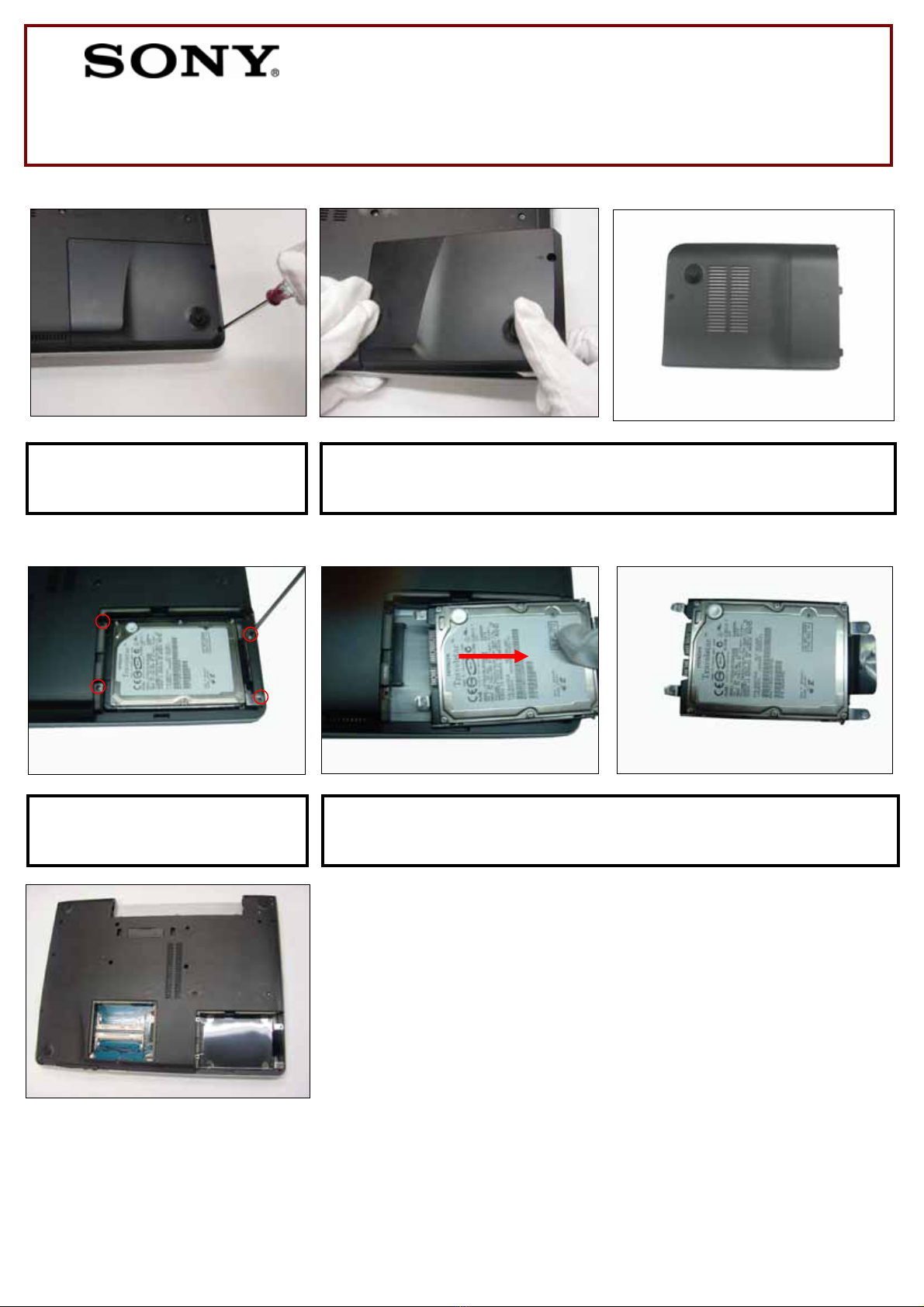

VGN-FExx series Disassemble instructions

Disassemble the HDD door and HDD

Step 5. Using a screwdriver, remove the

screw .

Step 6. Remove hard drive access door and set aside.

Step 7. Using a screwdriver remove the

marked screw.

Step 8. Gently pull out HDD in the direction of the arrow and set aside.

Step 9. Using a screwdriver, remove the

marked screw.

Step 10. Remove the ODD in the direction of arrow and set aside.

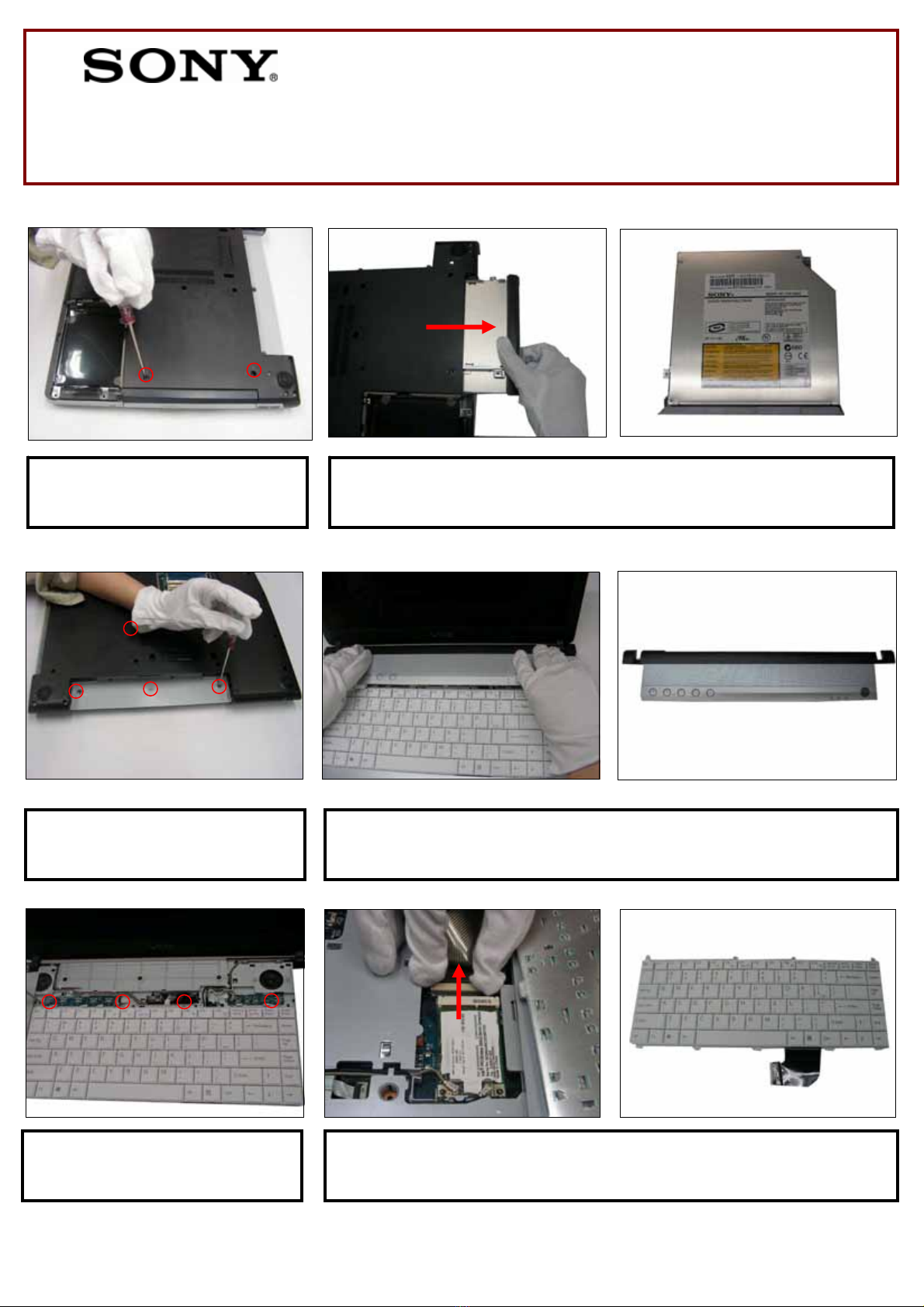

VGN-FExx series Disassemble instructions

1. Disassemble ODD

2. Disassemble the K/B cover and

keyboard

Step 12. Remove the K/B cover and set aside.

Step 14. Remove the keyboard data cable in the direction of arrow and set aside.

Step 11. Using a screwdriver, remove the

marked screw.

Step 13. Using a screwdriver remove the

marked screw.

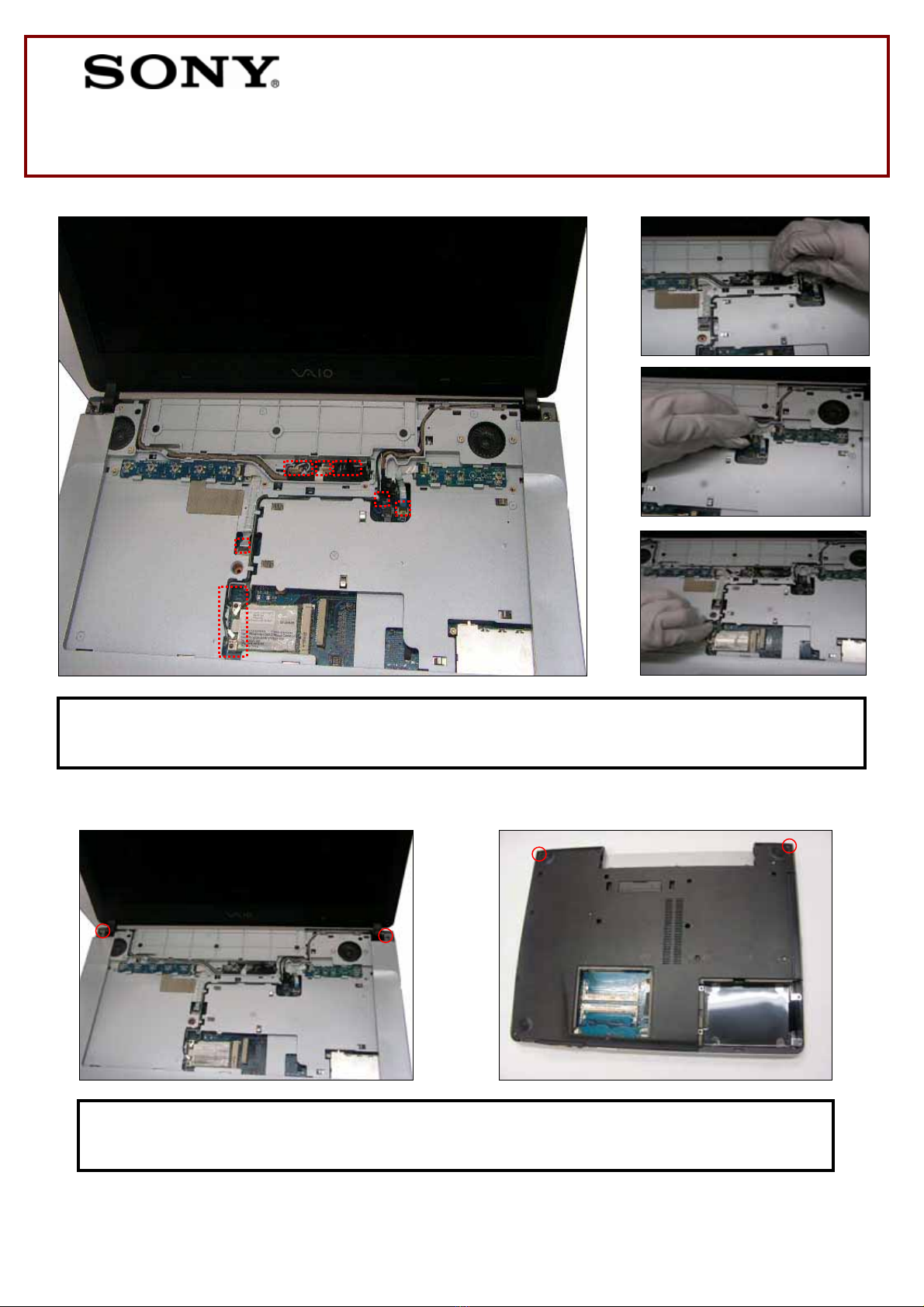

Step 15.Gently pull out the marked cable.

Step 16. Using a screwdriver, remove the marked screw.

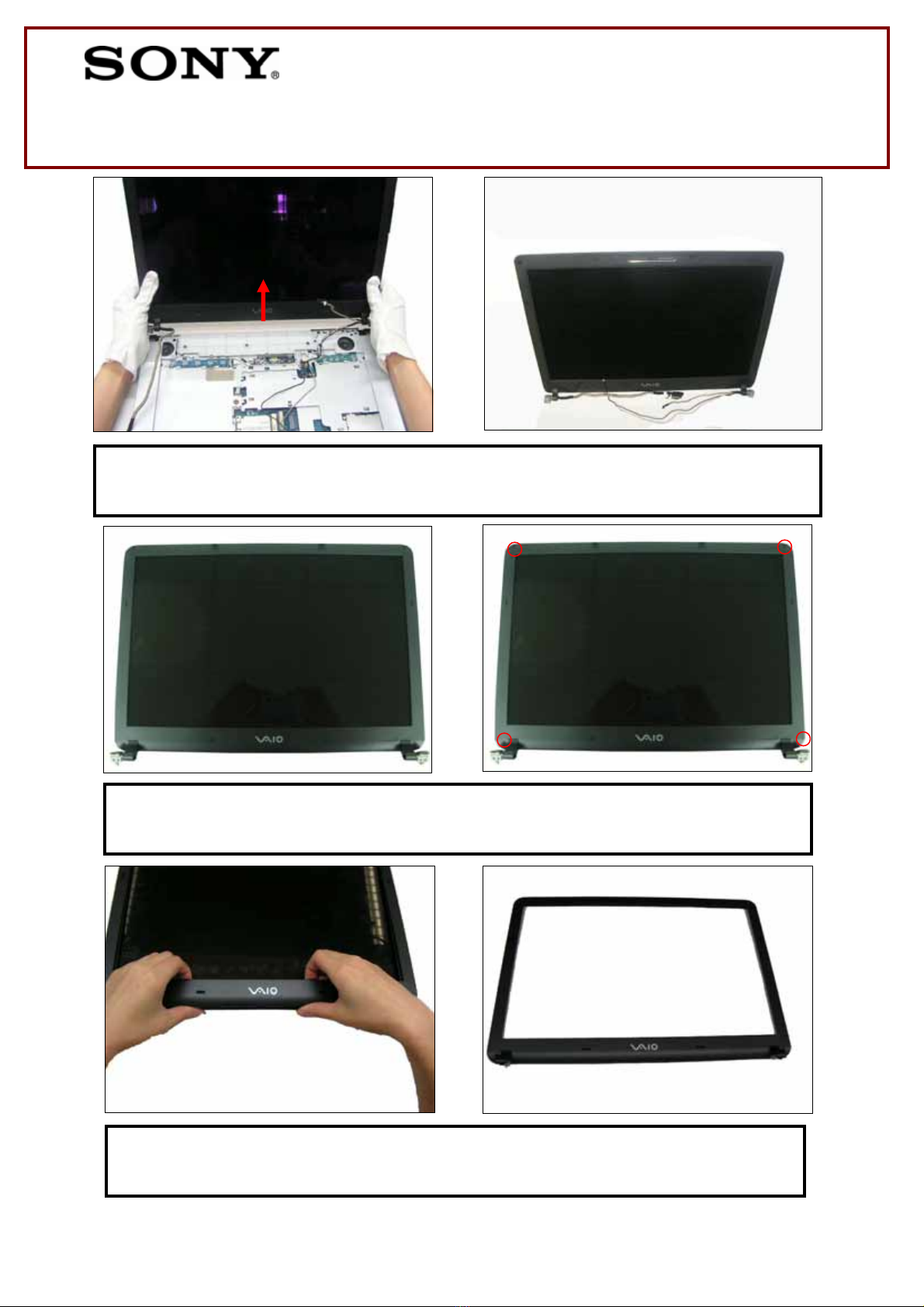

VGN-FExx series Disassemble instructions

Disassemble the LCD ASSY

Step 17. Gently remove the LCD in the direction of arrow and set aside.

Step 18.Gently remove the LCD rubber round and use a screwdriver to remove the marked screw.

Step 19. Gently scratch the LCD bezel.

VGN-FExx series Disassemble instructions

Disassemble the LCD ASSY

VGN-FExx series Disassemble instructions

Disassemble the LCD ASSY

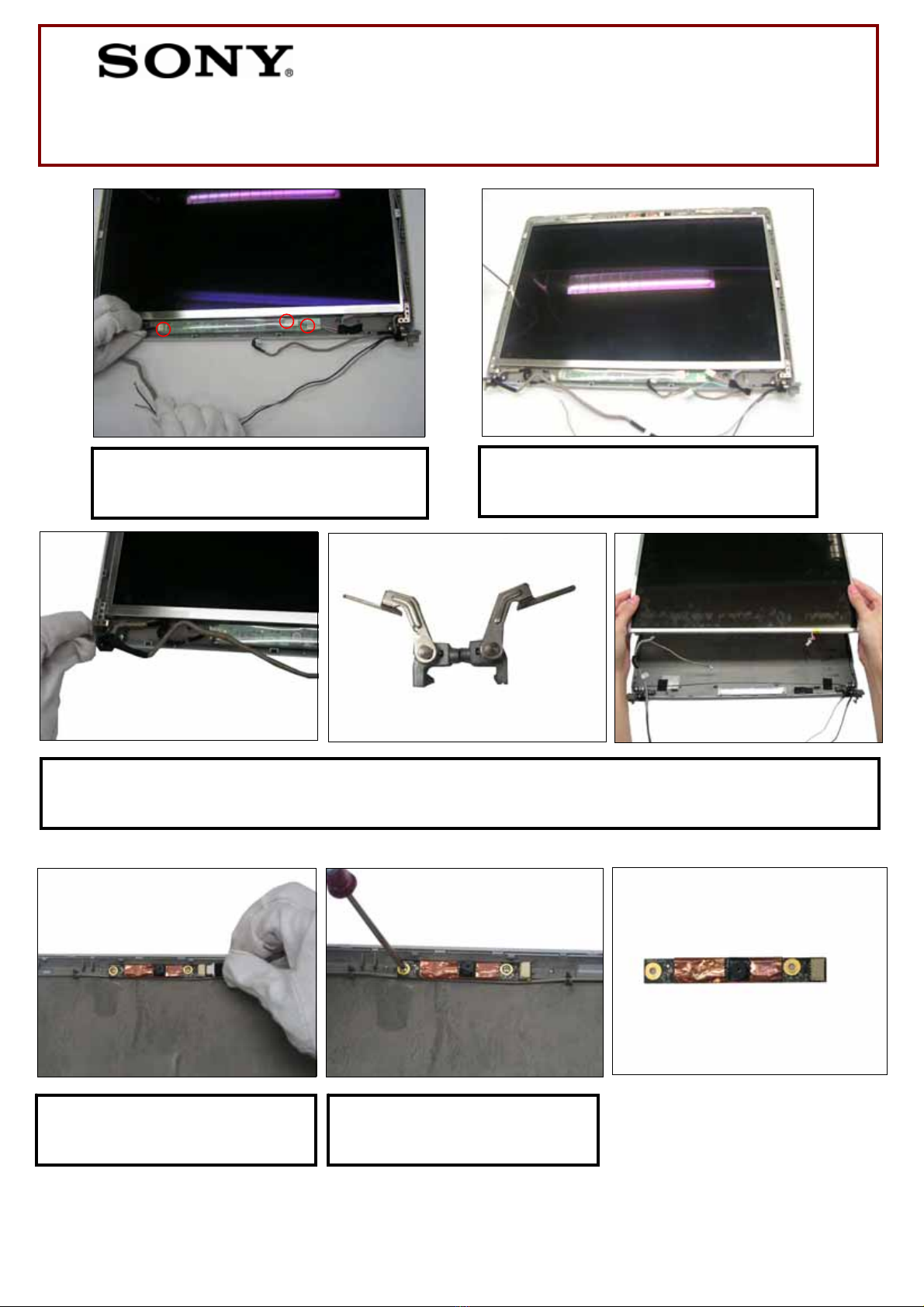

Step 21.Using a screwdriver, remove the screw.

Step 20.Gently pull out the connecter of the

inverter as shown.

Step 22. Gently remove the Hinge and LCD panel.

Step 23. Gently pull out the cable. Step 24.Using a screwdriver, remove

the marked screw.

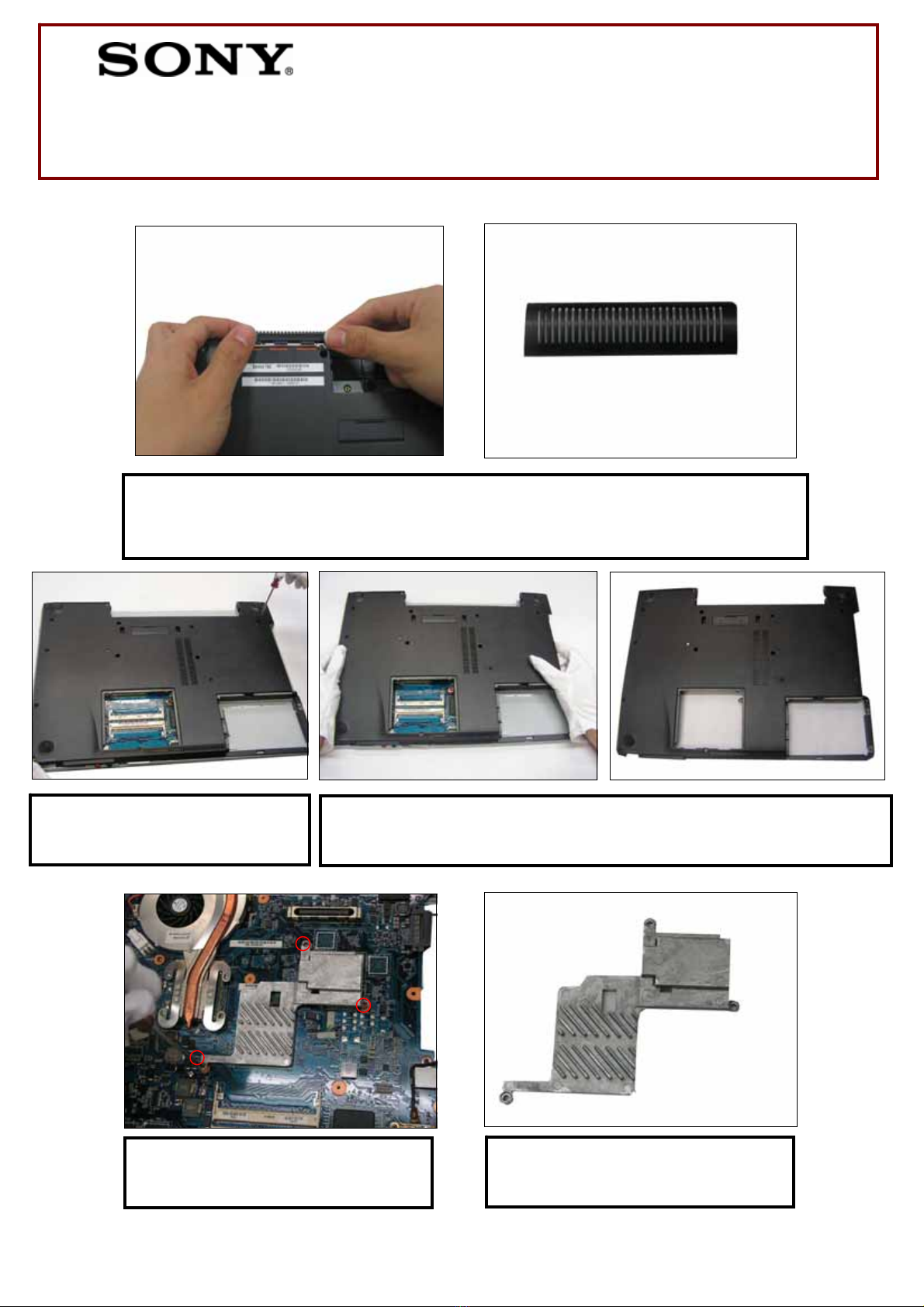

Step 27. Gently remove the bottom and set aside.

Step 26. Using a screwdriver remove the

screw.

Step 25. Remove the cover thermal outlet in the direction of arrow and set aside.

VGN-FExx series Disassemble instructions

1. Disassemble the BOTTOM

2. Disassemble the ASSY Thermal VGA

Step 28. Using a screwdriver, remove the

screw.

Step 29. Gently remove the bottom and set

aside.
