Sony VAIO VGN-S170 CTO Manuel utilisateur

Welcome

Congratulations on your purchase of this Sony VAIO®computer, and welcome to the online VAIO®Computer User Guide.

This user guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to

preinstalled software programs.

In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this

main window.

View the Electronic Flyer, which provides updates and supplemental information about your computer.

Go to the Sony Computing Support Web site to view the VAIO®Computer Specifications, which list your computer's

hardware specifications and preinstalled software information.

For Sony software information, click Start and select Welcome to VAIO life.

Page 1

Ergonomics and Caring for Your Computer

This section provides information on how to safely use your Sony computer.

Page 2

Applying Ergonomics

Your computer is a portable device and can be used in a variety of environments. Whenever possible, you should apply the

following ergonomic considerations:

Position of your computer —Place the computer directly in front of you as you work. Keep your forearms

horizontal, with your wrists in a neutral, comfortable position while using the keyboard, touch pad, or external

mouse. Let your upper arms hang naturally at your sides. Take breaks during sessions with your computer.

Excessive use of the computer may strain muscles or tendons.

Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your

feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid

slouching forward or leaning far backward.

Viewing angle of the computer's display —Tilt the display to find the best viewing angle. Also try adjusting the

brightness setting of the display. Following these suggestions can reduce eye strain and muscle fatigue.

Lighting —Choose a location where windows and lights do not create glare or reflection on the display. Use indirect

lighting to avoid bright spots on the display. You can purchase accessories for your display that help reduce glare.

Proper lighting adds to your comfort and work effectiveness.

Placement of an external display —When using an external display, set the display at a comfortable viewing

distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Page 3

Storing Your Computer

Do not use or store your computer in a location subject to:

Heat sources, such as radiators or air ducts

Direct sunlight

Excessive dust

Moisture or rain

Mechanical vibration or shock

Strong magnets or speakers that are not magnetically shielded

Ambient temperature higher than 95ºF (35ºC) or less than 40ºF (5ºC)

High humidity

Do not place electronic equipment near your computer. When running, the computer's electromagnetic field may

cause other electronic equipment in close proximity to malfunction.

Provide adequate air circulation to prevent internal heat buildup. Do not place your computer on porous surfaces

such as rugs or blankets, or near materials such as curtains or draperies that may block ventilation. Leave a space

of at least 8 inches (20 cm) behind the back of the computer.

If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer.

In this case, allow at least one hour before turning on your computer. If any problems occur, unplug your computer,

and contact your Sony Service Center.

The computer uses high-frequency radio signals and may interfere with radio or TV reception. Should this occur,

move the computer a suitable distance away from the radio or TV.

Do not drop the computer or place heavy objects on top of the computer.

Page 4

Using Cables and Connections

Use only specified peripheral equipment and interface cables.

Do not use cut or damaged connection cables.

If the telephone company makes a service call to your home or office and determines that your computer is

responsible for a problem, the telephone company may bill you for the service call. Also, if you do not disconnect

your computer when it is adversely affecting a telephone line, the telephone company has the right to disconnect

your service until you correct the problem.

Page 5

Cleaning Your Computer

Clean the computer with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use

any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish

of your computer. You can use canned compressed air specifically for computers to remove dust.

If a solid object falls onto the computer or a liquid leaks into the computer, immediately turn off and unplug the

computer. It is best to have the computer checked by qualified personnel before you use it again.

Avoid rubbing the LCD screen as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen or

canned compressed air.

Always disconnect the power cord before cleaning the computer.

Page 6

Handling the LCD Screen

Direct sunlight can damage the LCD. Be careful when using the computer near a window.

Do not scratch the LCD or exert pressure on it. This can cause a malfunction.

Using the computer in low temperature conditions may produce a residual image on the screen. This is not a

malfunction. When the computer returns to normal temperature, the screen returns to normal.

The screen becomes warm during operation. This is normal and does not indicate a malfunction.

The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/or bright

points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing

process and does not indicate a malfunction.

Page 7

Locating Controls and Ports

Congratulations on your purchase of the Sony®VAIO®computer. Sony has combined leading-edge technology in audio,

video, computing, and communications to provide state-of-the-art personal computing.

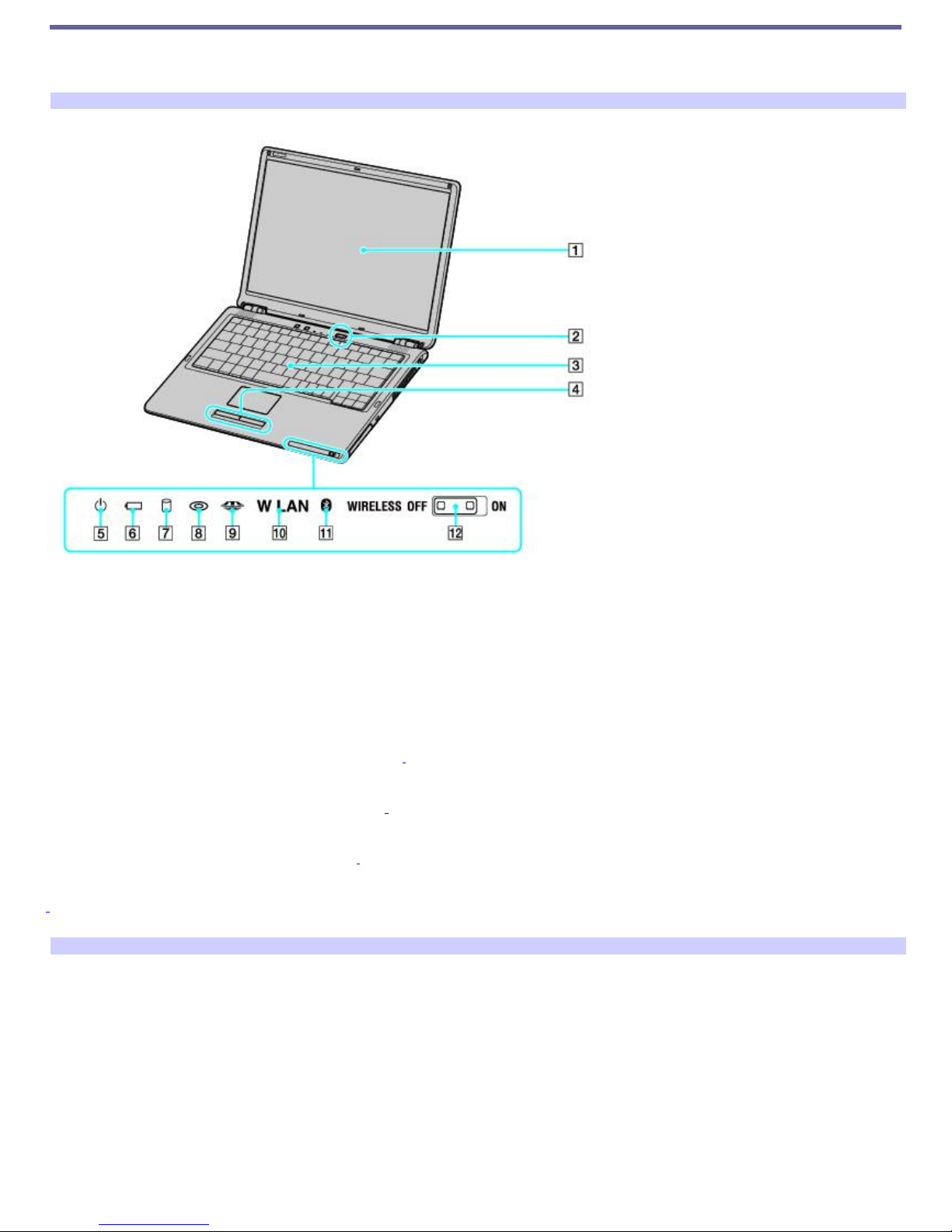

Front

1Computer screen (LCD) 7Hard disk drive indicator

2Power button 8Optical drive indicator

3Keyboard 9Memory Stick®media indicator

4Left and right buttons 10 Wireless LAN indicator1

5Power indicator 11 Bluetooth®indicator1

6Battery indicator 12 Wireless switch1

1Wireless LAN and Bluetooth capabilities are available on selected models only.

Front

Page 8

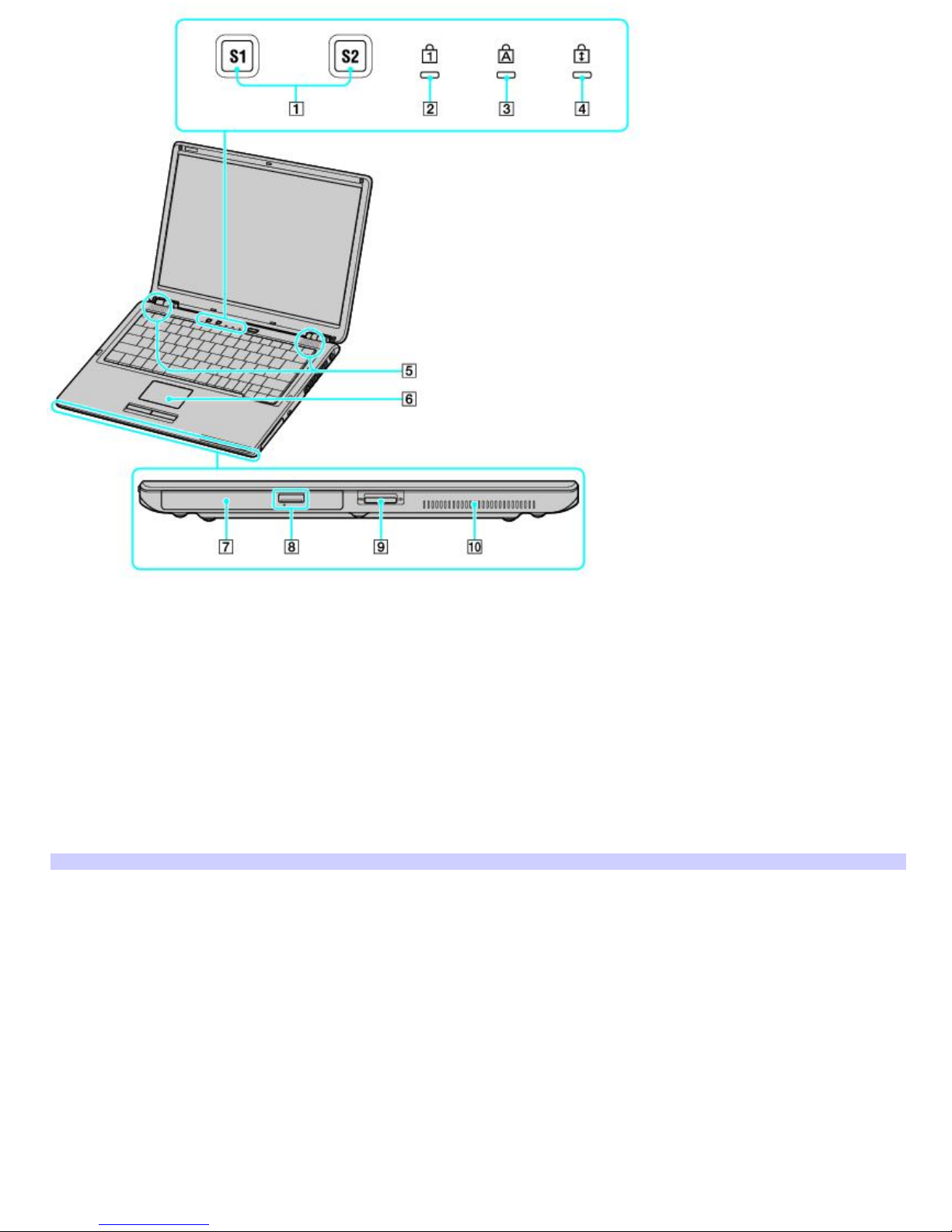

1S1 and S2 programmable buttons 6Touch pad

2Num lock indicator 7Optical drive

3Caps lock indicator 8Optical drive eject button

and manual eject hole

4Scroll lock indicator 9Memory Stick®media slot

5Speakers 10 Air vent

Left

Page 9

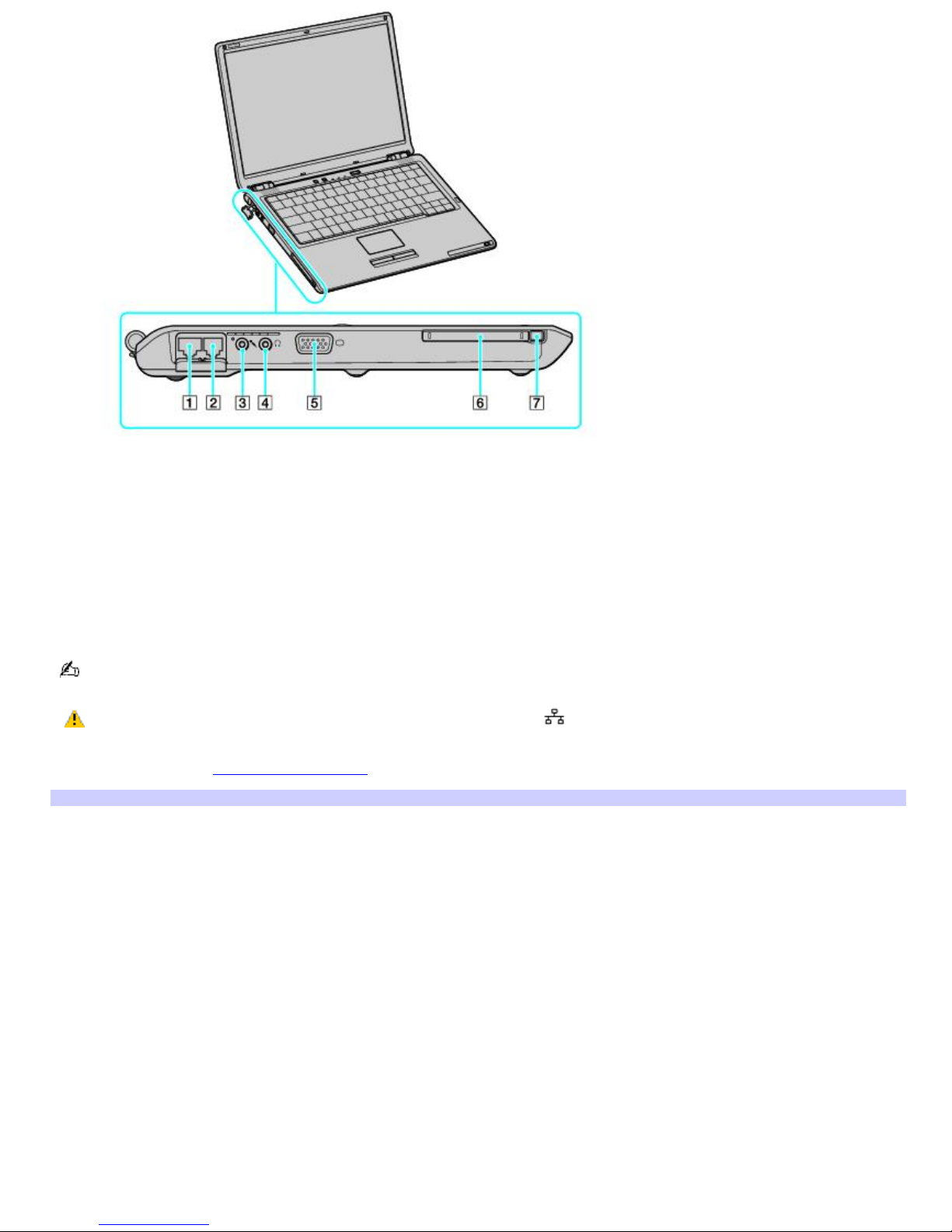

1Network (Ethernet) port 5Monitor (VGA) port

2Modem jack 6PC Card slot

3Microphone jack 7PC Card eject button

4 Headphone jack

Gently pull the protective tab away from the computer to find the Ethernet port and modem jack.

Only connect 10BASE-T or 100BASE-TX cables to the Network (Ethernet) port. Do not connect any

other type of network cable or any telephone line to this port. Connecting cables other than those listed above may

result in an electric current overload and could cause a malfunction, excessive heat, or fire in the port. To connect the

unit to a network, see Network Connections or contact your network administrator.

Right

Page 10
