VGN-FWxx Series Hard Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N 994657100 Rev. A 1/2

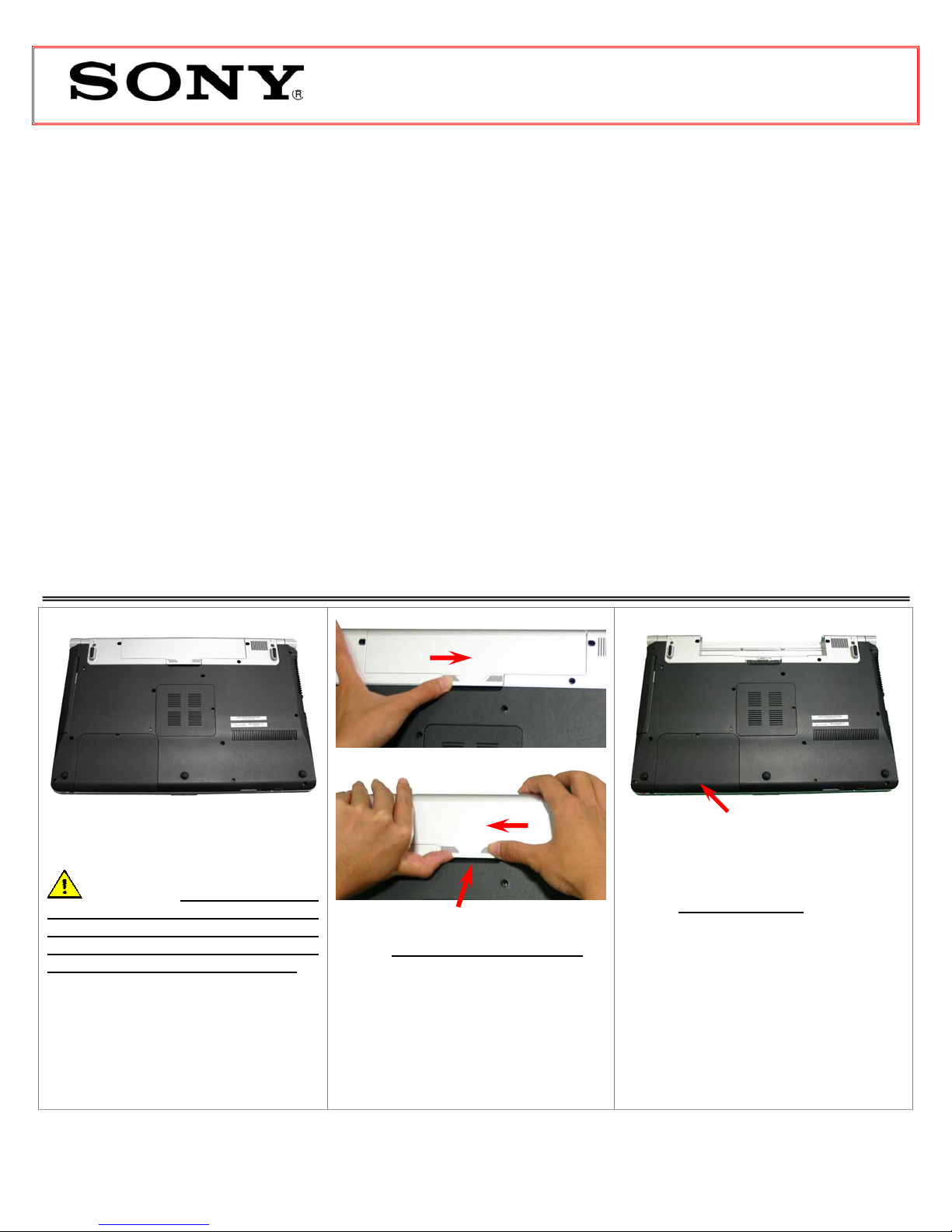

Step 1. Prepare the Computer.

CAUTION: Make sure the

computer is turned off, the lid is

closed, and the AC Adapter is

disconnected. Failure to do so can

result in damage to the computer.

Place the computer upside down on a

protected surface with the front edge

facing you.

Step 2. Remove the Battery Pack.

1. Slide the left battery tab to the

unlock position.

2. With your right thumb, slide the

right battery tab in the release

direction and hold.

3. Remove the battery by lifting the

side where the arrow is pointing.

(HDD Removal) Step 3-8

Step 2. Locate HDD Bay.

Position the computer with the HDD Bay

facing you as shown in the picture.

These easy instructions are intended to guide you through the replacement process. If you need additional

help, please call 1-866-651-7669 for technical support from 9:00 am to 11:00 pm EST.

9To avoid electric shock, please make sure product is turned off and AC Adaptor is disconnected

from the power source. Remove jewelry before you begin work to avoid scratching the surface of

your notebook computer.*

9Place your notebook computer on a clean, stable and covered surface to avoid damage to the

computer’s case.*

9Follow the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, away from exposed circuitry when possible.

oDo not walk around excessively as this promotes static build-up.

9The appearance of the electronic components shown in the illustrations may be different from the

components shipped. This slight difference does not affect the accuracy of these instructions.

* Sony is not responsible for any loss of data associated with your computer or any dama

e caused by incorrect handlin

the computer under these procedures. The terms of your Sony limited warranty continue to apply.

IMPORTANT!

PLEASE READ BEFORE YOU START

Lift to remove

Push left tab in the unlock position

HDD Bay

VGN-FWxx Series Hard Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N 994657100 Rev. A 2/2

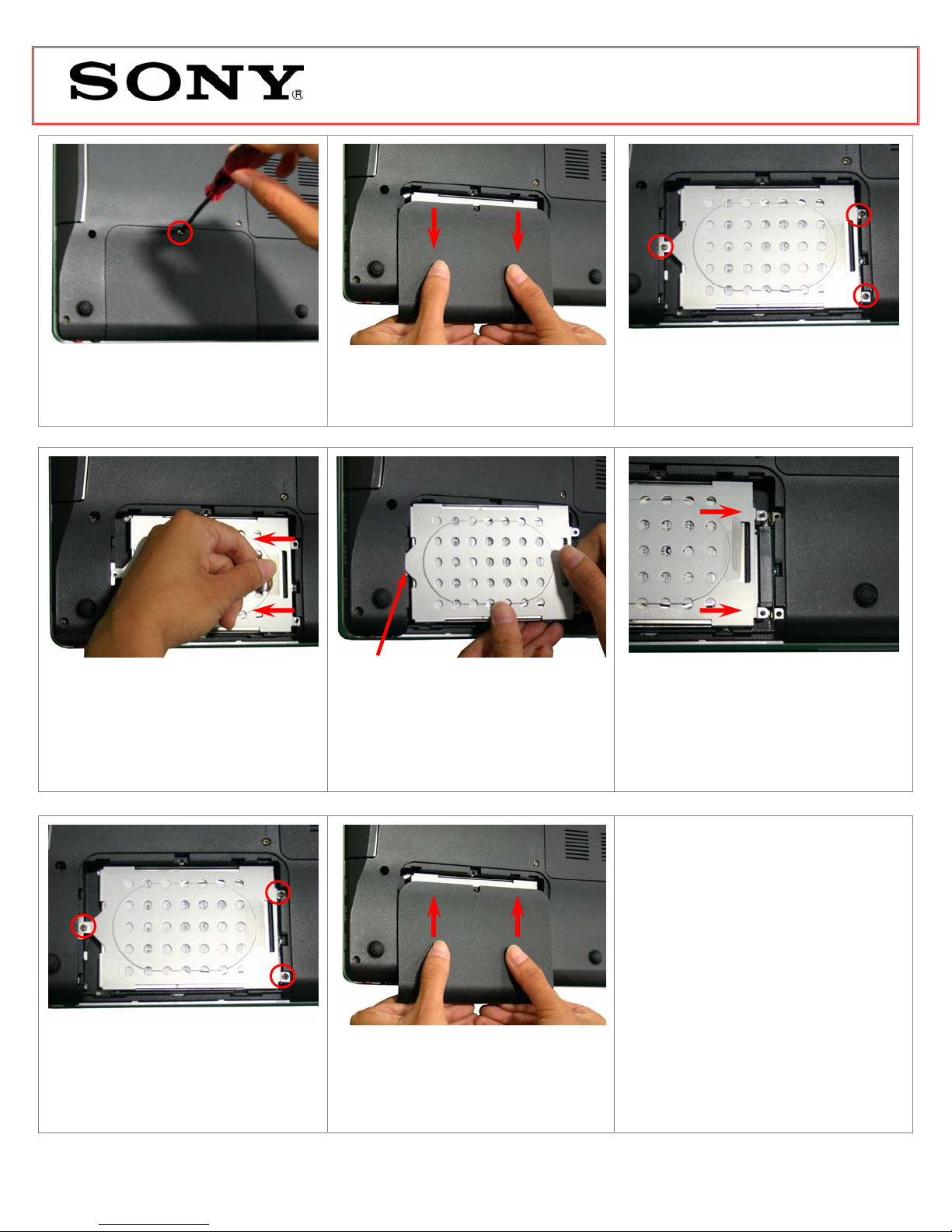

Step 5. Using the enclosed magnetic

screwdriver, remove the one (1) screw

securing the HDD Bay Access door.

Step 6. Carefully remove the HDD Bay

Access door by sliding it in the direction

shown in the picture.

Step 7. Locate the three (3) screws securing

the HDD assembly and remove them

accordingly.

Step 8. To detach the old HDD from the

connector, slowly pull the clear plastic tab

in the direction shown. Some force may be

needed to unlock the HDD from the

connector.

(HDD Reinstallation) Steps 9-12

Step 9. Carefully remove the old HDD

assembly from the drive bay and replace

with new one. Start by inserting the tab in

the slot indicated by the arrow.

Step 10. Attach the HDD to the Connector.

Move the HDD assembly in the direction

shown to attach the new drive to the

connector.

Step 13. Reinstall the battery pack and

reconnect the AC Adaptor.

Power on your computer and continue with

the recovery process by following the

instructions described on the back of the

recovery disk’s case.

Return the old HDD to Sony following the

included shipping instructions.

Step 11. Re-install the three (3) screws

holding the HDD assembly in place.

Step 12. Re-attach the HDD access cover

by sliding it in the direction shown in the

picture. Secure the HDD Bay access door

with the one (1) screw that was previously

removed.

Insert HDD Housing Tab in Slot
