Sony PS one Series Manuel utilisateur

Notice

No re-produced or transferred required except permission by Sony Computer

Entertainment Inc.

No commercial use and rental required.

Revisions

This manual compiled by 2nd edition of SCPH-100’s Design data.

Design and specifications will be subject to change without notice.

So, the latest versions of Service Manual, Technical Memo and SCEI. Service Promotion

Dept.’s Home Page “PS SERVICE PLAZA” should be used together with this manual.

PS SERVICE PLAZA web site: http://svc.scei.sony.co.jp/

– 2 – – 3 –

1. SPECIFICATIONS ........................................................................................ 1-1

2. EXPLODEDVIEW

2-1. Main Block..................................................................................................... 2-1

3. BLOCK DIAGRAMS

3-1. Overall Block Diagram .................................................................................. 3-1

4. DIAGRAMS

4-1. Printed Wiring Board (PM-41 (-21/-31) Board) ............................................ 4-1

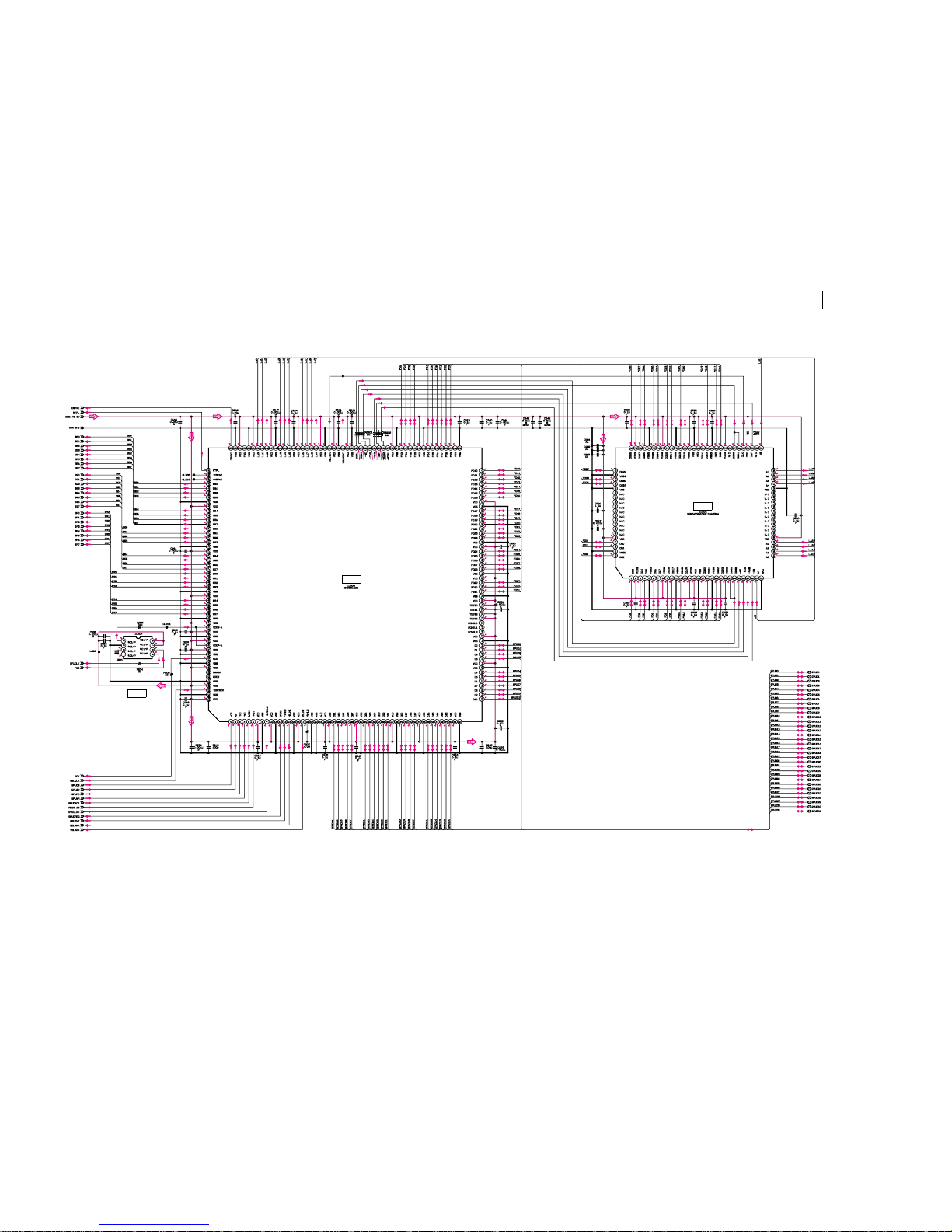

4-2. Schematic Diagram (PM-41 (-21/-31) Board (1/6)) ...................................... 4-3

4-3. Schematic Diagram (PM-41 (-21/-31) Board (2/6)) ...................................... 4-5

4-4. Schematic Diagram (PM-41 (-21/-31) Board (3/6)) ...................................... 4-7

4-5. Schematic Diagram (PM-41 (-21/-31) Board (4/6)) ...................................... 4-9

4-6. Schematic Diagram (PM-41 (-21/-31) Board (5/6)) .................................... 4-11

4-7. Schematic Diagram (PM-41 (-21/-31) Board (6/6)) .................................... 4-13

5. ELECTRICAL PARTS LIST

• PM-41 Board......................................................................................................... 5-1

Reproduction prohibited

TABLE OF CONTENTS

Reproduction prohibited

1-1

SECTION 1

SPECIFICATIONS

General

Power requirements

DC IN 7.5 V

Power consumption

9 W

Dimensions

193 ×36 ×143 mm (w/h/d)

Mass

550 g

Operating Temperature

5°C - 35°C

Laser diode properties

•Material : GaAlAs

•Wavelength : l=780 nm

•Emission duration : Continuous

•Laser output : Less than 44.6 µW

(measured at a distance of 200 mm

from the lens surface on the optical

pick-up block)

Inputs/outputs on the front

Controller ports (2)

MEMORYCARD slots (2)

Outputs on the rear

AV MULTI OUTconnector (1)

AC power adaptor

Power requirements

100 VAC, 50/60 Hz

Output voltage and current

7.5 V, 2.0A max.

Dimensions

50 ×27 ×78 mm (w/h/d)

Mass

160 g

SCPH-100

Supplied accessories

AC Adaptor (1)

AV Cable

(integrated audio/video) (1)

Analog Controller

(DUALSHOCKTM) (1)

Instruction Manual (1)

Design and specifications are subject to

change without notice.

General

Power requirements

DC IN 7.5 V

Power consumption

9 W

Dimensions

193 ×38 ×144 mm (w/h/d)

(75/8 ×1 1/2 ×53/4 inches)

Mass

560 g (1 lb 3 oz)

Operating Temperature

41°F - 95°F (5°C - 35°C)

Laser diode properties

•Material : GaAlAs

•Wavelength : l=780 nm

•Emission duration : Continuous

•Laser output : Less than 44.6 µW

(measured at a distance of 200 mm

from the lens surface on the optical

pick-up block)

Inputs/outputs on the front

Controller ports (2)

MEMORYCARD slots (2)

Outputs on the rear

AV MULTI OUT connector (1)

Supplied accessories

AC Adaptor (1)

AV Cable

(integrated audio/video) (1)

Analog Controller

(DUALSHOCKTM) (1)

Instruction Manual (1)

SCPH-101

Design and specifications are subject to

change without notice.

General

Power requirements

DC IN 7.5 V

Power consumption

9 W

Dimensions

193 ×38 ×144 mm (w/h/d)

Mass

560 g

Operating Temperature

41°F - 95°F (5°C - 35°C)

Laser diode properties

•Material : GaAlAs

•Wavelength : l=780 nm

•Emission duration : Continuous

•Laser output : Less than 44.6 µW

(measured at a distance of 200 mm

from the lens surface on the optical

pick-up block)

Inputs/outputs on the front

Controller ports (2)

MEMORYCARD slots (2)

Outputs on the rear

AV MULTI OUT connector (1)

Supplied accessories

AC Adaptor (1)

AV Cable

(integrated audio/video) (1)

Analog Controller

(DUALSHOCKTM) (1)

Instruction Manual (1)

SCPH-102

Design and specifications are subject to

change without notice.

Reproduction prohibited Reproduction prohibited

2-1 2-2

SECTION 2

EXPLODED VIEW

NOTE:

•The mechanical parts with no reference

number in the exploded views are not supplied.

•-XX and -X mean standardized parts, so

they may have some difference from the

original one.

•Accessories and packing materials are given in

the last of this parts list.

NOTE:

•SC Classification :

S : Stocked parts U : Unsupplied parts

O : Ordered parts

2-1. MAIN BLOCK

The components identified by

mark 0or dotted line with mark.

0are critical for safety.

Replace only with part number

specified.

Les composants identifiés par une

marque 0sont critiques pour

la sécurité.

Ne les remplacer que par une piéce

portant le numéro spécifié.

CAUTION

Use of controls or adjustments or performance of

procedures other than those specified herein may

result in hazardous rediation exposure.

The components identified by

mark 0or dotted line with mark.

0are critical for safety.

Replace only with part number

specified.

Les composants identifiés par une

marque 0sont critiques pour la

sécurité.

Nelesremplacerqueparunepiéce

portant le numéro spécifié.

SC Ref. No. Part No. Description Remark

O A-shield X-3950-906-1 SHIELD (A) ASSY

O B-shield 3-063-429-01 SHIELD (B)

S0BAM 8-820-135-01 DEVICE, OPTICAL KSM-440BAM/C1NP

S INSU 3-965-376-11 INSULATOR

O Lower X-3950-801-1 CABINET (LOWER) ASSY (101)

O Lower X-3950-806-1 CABINET (LOWER) ASSY (102)

O PM 1-954-377-31 HARNESS (PM-86)

O0PM-41 A-6713-768-A PM-41 BOARD, COMPLETE (101)

O0PM-41 A-6713-776-A PM-41 BOARD, COMPLETE (102)

O Upper X-3950-800-1 CABINET (UPPER) ASSY (101)

O Upper X-3950-904-1 CABINET (UPPER) ASSY (102)

O Void 3-065-630-01 TAPE (B), VOID (101)

O Void 3-065-656-01 TAPE (C), VOID (102)

O 2.6X16 3-063-705-01 SCREW (2.6X16), TAPPING

2.6X16

Lower

Void

B-shield

PM-41

A-shield

BAM

INSU

INSU INSU

Upper

Reproduction prohibited

THIS NOTE IS COMMON FOR PRINTEDWIRING

BOARDS AND SCHEMATIC DIAGRAMS.

Note on PrintedWiring Boards :

•Through hole is omitted.

•b: Pattern on the side which is seen.

•Chip parts.

Note on Schematic Diagram :

•Caution when replacing chip parts.

New parts must be attached after removal of chip.

Be careful not to heat the minus side of tantalum capacitor,

because it is damaged by the heat.

•All capacitors are in µF unless otherwise noted. pF : µµF 50 WV

or less are not indicated except for electrolytics and tantalums.

•All resistors are in Ωand 1/16 W or less unless otherwise

specified.

•Chip resistor are 1/10 W or 1/16 W unless otherwise noted.

kΩ: 1000 Ω, MΩ: 1000 kΩ.

•A: B+ Line. *

•J: IN/OUT direction of (+, –) B LINE. *

•Circled numbers refer to waveforms. *

* Indicated by the color red.

Note : Note :

The components Les composants identifies par

identified by mark 0or une marque 0sont critiques

dotted line with mark 0pour la securite.

are critical for safety. Ne les remplacer que par une

Replace only with part piece portant le numero specifie.

number specified.

3-1 3-2

SECTION 3

BLOCK DIAGRAMS

3-1. OVERALL BLOCK DIAGRAM

MOT7.5V

CTR7.5V

AUD5V, VID5V, DIG5V

SER3.5V

DIG3.3V

CTR3.3V

J001

CN102

17PIN

CN101

17PIN

DC JACK

7.5V IN

EIAJ

TYPE-3

X'TAL IC204

PLL

IC103

CPU

IC106

DRAM

16Mbit

IC201

SG-RAM

IC203

GPU

IC405

AUDIO AMP

IC102

BOOT ROM

4Mbit

IC502

VDAC

RGB ENCODER

NTSC

14.318182MHz

PAL

17.73447MHz

67.7376MHz

32 32

SUB BUS

NTSC

53.693175MHz

PAL

53.203425MHz

MAIN BUS

NTSC

3.58MHz

PAL

4.43MHz

IC304

MECHA-CON

IC732

CD DSP

+DIGITAL SERVO

+CDROM DECODER

+SPU

IC310

4Mbit

DRAM

CN701

4PIN

IC722

MOTOR DRIVER IC723

RF AMP

CN502

MULTI

OUT

CN702

16PIN

PM-41 BOARD

IC601

5V REGULATOR

IC602

3.5V REGULATOR

IC607

3.5V REGULATOR

(-31)

DIG3.3V

CTR3.3V

IC606

3.5V REGULATOR

(-21)

Reproduction prohibited

4-1. PRINTEDWIRING BOARD (PM-41 (-21/-31) BOARD)

4-1

SECTION 4

DIAGRAMS

4-2

IC732 IC310

IC102

IC201

IC103

CN102 CN101

IC106

IC722

IC304

IC203

CN502

AV MULTI OUT

J001

DC IN 7.5V

D003

( )

S001

I/ / RESET

Q003

C605

L601

PS606

PS004

PS601

PS603

C607

R009

D002

R011

C618

L604

C316

C658

C768

C702

C622

C631

R606

C664

R661

D601

C621

C627

C694 IC607

C693

C692

R001

R663

R666

R696

C662

R665

C606

C642

C663

C317

R430

L401 C404

R338

C319

C406

R640

C501

R205 C234

C241

R204

ET101

C306

R342

R341

R340

C701

C654

C325

R501

C250

FB102

C111

C137

C138

R115

R641

C105

C106 C134 RB121

RB120

RB126

FB120

R138

R132

R133

R135

C131

C109

C139

FB121

C124

R154

R136

FB122

FB119

FB123

FB117

C118

C146

FB704

FB703

FB701

FB702

C740

C741

C762

R745

C737

R739

C738

R712

C729

C715

C728

C725

C726

R793

R770

R710

C714

R740

R733

R738

R775

C720

R727

R732

C743

R717

L701

R642

ET102

C749

C733

C724

C704

R703

C745

C236 C238

C222

C408

C524

FB502

FB503

FB402

C529

C530

FB401

C212

R542

C249

C214

C216

C220

R215 C226 C225

C227 C224 C221 C223

C315

FB602

R014

R015

C639

C600

C637

C657

IC601

Q002

R010

R013

C666

C602

C601

C660

IC405

C423

R425

C326

L304

R701

R429

C508

C551

R529

R527

D503

C502

C211

D510

D511

C550

C243

C228

C242

C219

RB202 RB201

C248

C519

FB501

Q505

R541

R528 C445

C409

RB501RB502

C424

R426

C407

X201

C208

C235

L203

IC204

C240

C210

C209

R206

IC502

C239

C144 C112 C133

RB125

C104 C655

C653

C113

C122

R134

FB118

C152

CN701

C776

CN702

R746

C763

R748

C742

Q701

R750

C739

R749

R747

C705

R705

R704

C703

C706

R774

R714

R783

C761

C709 R706

C774

C744

R702 R723

R734

C736

IC723

C731

R795

R741

R769

FB710

C747

FB124

D104

R137

D103

S301

R150

L104

D101

C130

RB123

RB122

RB124

C101

(CD DOOR OPEN/CLOSE DET)

C108

C129 C136

C132

C116

R725

C115

C114

R207

C145

R902

R901

R104

C110

R107

C245

C218

C217 C215

C213

C244

C247

R543

C620

C102

C775 C767

C773

C150

C151

C140

PS600 FB001

D004

1-679-335- 21

(21)

(31)

C327

R691

R692R693

R694

C690

IC606

R681

C665

L602

L603

C009

C010

C008

R664

R662

R695

R668

C696

R667

FB601

R012

IC002

C697

C656

C617

IC602

C641

C635

C609

C659 C608

L607

L606

L608

L106

C648

C647

FB003

52 40

116

3217

148

14 26

2011

169

IC003

PM-41 BOARD

52 1

37 48 1

1324

100

105

156

208

157

104

157 208

105

156

52 1

105 156

208

157

104

SLED

MOTOR

SPINDLE

MOTOR

OPTICAL

DEVICE

2345678910111213

11 1

12 2

Q602

916

(-31)

(-21)

(102)

(101)

Reproduction prohibited

4-3 4-4

IC102

BOOT ROM

4MBIT

IC103

CPU

IC106

DRAM

16MBIT

PM-41(-21/-31) BOARD (1/6)

MSM534031E-40GS-KPR2

MSM534031E-41GS-KPR2

IC102 (101)

(102)

3.4

0.4

2.6

0.7

0.8

3.4

0.7

0.8

3.4

0.6

0.7

2.9

2.8

2.5

3.1

3.4

0.9

3.4

3.5

0.4

0.6

3.5

0.6

0.7

0.4

0.8

3.5

0.7

0.4

0.9

0.5

3.4

0.8

1.4

2.5

0.6

3.5

1.7

0.4

0.6

0.7

0.6

3.4

0.4

0.8

0.7

0.4

0.9

0.5

0.7

3.4

0.6

0.8

0.9

0.7

0.8

2.6

0.4

3.4

3.5

3.4

1.4

0.8

2.5

3.1

2.5

2.8

3.4

0.9

3.3

3.4

2.8

1.9

3.4

2.1

3.4

1.9

3.4

3.2

3.4

2.8

3.4

2.6

0.3

1.9

3.4

2.3

2.9

3.4

2.9

3.5

0.7

3.4

4-2. SCHEMATIC DIAGRAM (PM-41 (-21/-31) BOARD (1/6))

Reproduction prohibited

4-5 4-6

PM-41(-21/-31) BOARD (2/6)

IC201

SG-RAM

IC203

GPU

IC204

PLL

IC204

CY2081SL-500T

CY2081SL-509T

X201

14.318182MHz

17.73447MHz

(NTSC)

(PAL)

(NTSC)

(PAL)

0.9

3.4

0.9

0.5

0.4

0.9

3.4

0.9

0.5

0.4

1.4

3.4

1.6

0.9

2.2

3.4

1.7

3.4

1.7

3.4

2.1

3.4

1.8

1.3

1.6

3.4

1.9

3.4

3.3

3.4

0.9

3.4

2.6

3.4

1.9

3.4

3.3

3.4

3.2

3.3

3.4

3.3

3.4

3.1

3.4

3.1

3.4

1.8

3.4

1.4

3.4

2.9

3.4

3.1

2.9

3.4

3.3

3.4

3.2

3.4

1.8

2.9

3.4

3.2

3.1

3.4

1.5

1.7

3.4

1.8

1.9

1.7

3.4

1.4

1.7

2.4

1.4

3.4

1.8

3.4

1.8

3.4

2.9

3.2

3.1

3.4

3.1

3.4

3.2

3.4

1.8

3.2

3.4

3.1

3.3

3.1

3.4

3.2

3.1

3.4

3.1

3.4

1.8

2.9

3.4

3.3

3.4

3.3

3.4

1.9

1.0

3.3

1.7

1.4

1.9

3.4

1.5

1.8

1.7

3.4

3.1

3.4

3.1

3.3

3.4

3.1

3.4

3.2

3.4

2.9

1.8

3.4

2.4

3.4

3.2

2.9

3.4

4-3. SCHEMATIC DIAGRAM (PM-41 (-21/-31) BOARD (2/6))

Reproduction prohibited

4-7 4-8

4-4. SCHEMATIC DIAGRAM (PM-41 (-21/-31) BOARD (3/6))

PM-41(-21/-31) BOARD (3/6)

IC304

MECHANISM

CONTROL

IC310

4M BIT

DRAM

CD DOOR

OPEN/CLOSE

DET

IC304

MC68HC05G6-SC430944PBEB1

MC68HC05G6-SC430943PBEB1

*(101)

(102)

3.4

3.3

2.9

3.4

3.1

3.4

3.3

3.4

1.8

2.1

1.1

1.3

0.9

0.8

1.3

0.9

0.8

2.1

0.8

0.2

2.7

0.3

0.4

3.3

2.1

3.4

2.8

3.3

3.4

3.1

3.3

3.1

1.3

1.7

4.9

1.7

3.3

1.5

0.8

1.4

4.9

0.8

0.9

4.9

0.9

Reproduction prohibited

4-9 4-10

PM-41(-21/-31) BOARD (4/6)

IC405

AUDIO AMP

AV MULTI OUT

IC502

VDAC+

RGB ENCODER

Q505

SWITCH

*(101)

(102)

0.8

0.5

0.4

1.4

1.6

0.9

2.2

1.7

3.2

3.4

0.9

0.4

0.9

4.4

3.44

4.4

2.6

2.2

1.7

1.3

0.8

0.5

2.5

2.4

2.5

3.4

2.4

4-5. SCHEMATIC DIAGRAM (PM-41 (-21/-31) BOARD (4/6))

Autres manuels pour PS one Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Console de jeux

Sony

Sony PlayStation PSP-3006 Manuel utilisateur

Sony

Sony SCPH-50008 Manuel utilisateur

Sony

Sony PlayStation 3 (Uncharted: Drake's Fortune Limited Edition... Manuel utilisateur

Sony

Sony SCPH-50004 SS Manuel utilisateur

Sony

Sony SCPH-75002 Manuel utilisateur

Sony

Sony 98007 - 3 Game Console Manuel d'installation et d'exploitation

Sony

Sony PlayStation Portable 3001 Instructions d'installation

Sony

Sony PlayStation Portable PSP-2001 Manuel utilisateur

Sony

Sony Play Station 4 Manuel utilisateur

Sony

Sony PS2 Manuel utilisateur

Sony

Sony Playstation 3 CECHL04 Instructions d'installation

Sony

Sony PlayStation 4 CUH-1215B Manuel utilisateur

Sony

Sony CUH-2116A Manuel utilisateur

Sony

Sony PLAYSTATION PSP-3002 Instructions d'installation

Sony

Sony PlayStation 5 Manuel utilisateur

Sony

Sony 40GB Playstation 3 3-275-579-51 Manuel utilisateur

Sony

Sony 97003 - 2 Game Console Manuel utilisateur

Sony

Sony PS4 CUH-1106A A20 Manuel d'installation et d'exploitation

Sony

Sony PlayStation 5 Manuel d'installation et d'exploitation

Sony

Sony PS3 CECH-4308 Series Manuel utilisateur

Sony

Sony PlayStation 3 (Uncharted: Drake's Fortune Limited Edition... Instructions d'installation

Sony

Sony PlayStation Vita Manuel utilisateur

Sony

Sony CUH-7015B Manuel d'installation et d'exploitation

Sony

Sony PSX DESR-5000 Manuel technique

Manuels Console de jeux populaires d'autres marques

Atari

Atari 2600 Manuel utilisateur

PLAYNETIC

PLAYNETIC GameNetic Manuel utilisateur

Nintendo

Nintendo Starlight Fun Center Manuel utilisateur

Saitek

Saitek Alchemist Plus Manuel utilisateur

Sears

Sears Tele-Games 637.99743 Manuel utilisateur

AYANEO

AYANEO 2 Manuel utilisateur

Mattel

Mattel My Meebas N2214 Manuel utilisateur

Entex

Entex PacMan2 Manuel utilisateur

Sega

Sega 32X Manuel utilisateur

Saitek

Saitek Cougar Manuel utilisateur

View-Master

View-Master Interactive Vision Schéma de câblage

Excalibur

Excalibur ABC Wide 333 Manuel utilisateur

Microsoft

Microsoft XBOX Manuel du propriétaire

LEXIBOOK

LEXIBOOK JL2700 Manuel utilisateur

BeoPlay

BeoPlay A1 Manuel utilisateur

Nintendo

Nintendo VS.-Pak Manuel utilisateur

Nintendo

Nintendo Game Boy Advance Manuel du propriétaire

Excalibur

Excalibur king Arthur 915-3 Manuel utilisateur
