Sony 80GB Playstation 3 4-107-608-11 Manuel utilisateur

Quick Reference

Aide-mémoire

Referencia rápida

4-107-608-11(1)

CECHK01

About the PS3™ system documentation

The PS3™ system documentation includes the following:

• Safety and Support

Before using the product, carefully read this document ﬁrst. It contains safety information

related to use of the PS3™ system, troubleshooting, speciﬁcations and other information.

• Quick Reference (this document)

This document contains information on setting up the PS3™ system, preparing for use and

basic hardware operations.

• User's Guide (http://manuals.playstation.net/document/)

This online document is accessed through the Internet and contains detailed information

related to the use of the PS3™ system software ( page 29).

Friends

Chatting and exchanging messages

PLAYSTATION®Network

Using PLAYSTATION®Network services

Network

Connecting to the Internet

Game

Playing games

Video

Playing video

Music

Playing music


Displaying images

Settings

Adjusting PS3™ system settings

Users

Selecting users to log in to the PS3™

system

Check that you have all of the following items. If any items are missing, contact

SCEA Consumer Services at 1-800-345-7669.

sPLAYSTATION®3 system

sDUALSHOCK®3 wireless controller

sPrinted materials

sAC power cord

sAV cable

sUSB cable

Home menu

Category

Item

Using "XMB" (XrossMediaBar)

The PS3™ system includes a user interface called “XMB”

(XrossMediaBar). The main screen for “XMB” is called the

“home menu”.

Select a category using the or

button.

Select an item using the or

button.

Press the button to conﬁrm the

selected item.

button: Displays the options menu/control panel

Selecting an icon and pressing the

button will display the options menu.

Icons Options menu

Pressing the button during content

playback will display the control panel.

Control panel

button:

Cancels an operation

Directional buttons:

Used to select on-screen categories/items

PS button:

Displays the home menu

Turns the system on/off

button:

Conﬁrms the selected item

Getting started

Part names

System front

Disc slot

Power button

PS family logo

Can be rotated to match the

position of the system

Eject button

HDD access indicator

WLAN access indicator

USB connectors

System rear

AC IN connector

AV MULTI OUT connector

DIGITAL OUT (OPTICAL) connector

MAIN POWER switch

HDMI OUT connector

Vent

LAN connector

Notice

Do not place the system in an area subject to excessive

dust or cigarette smoke. Dust build-up or cigarette

smoke residue on the internal components (such as the

lens) may cause the system to malfunction.

Hint

The system can be set in a horizontal or vertical position.

Set as shown in the diagram at right when setting in the

vertical position.

Caution

• Do not use the system in a closed cabinet or other locations where heat

may build up. Doing so may cause the system to overheat and may lead to

ﬁre, injury or malfunction.

• If the system's internal temperature becomes elevated, the power indicator

will ﬂash alternately in red and green. In this case, turn off the system

(page 16) and leave it unused for a while. After the system cools down,

move it to a location with good ventilation, and then resume use.

DUALSHOCK®3 wireless controller

SELECT button

USB connector

L2 button

L1 button

Directional

buttons

Left stick/

L3 button*

START button

R2 button

R1 button

button

Right stick/

R3 button*

PS button

Port indicators

* The L3 and R3 buttons function when the sticks are pressed.

Hint

For details on the wireless controller, see "Using the wireless controller"

(page 17).

Notice

Some PlayStation®and PlayStation®2 peripherals such as the analog

controller (DUALSHOCK®) and analog controller (DUALSHOCK®2) are not

compatible with the PS3™ system. For details, visit

http://www.us.playstation.com.

Getting started

Part names

Getting started

Setting up the PS3™ system

Step 1: Connect to a TV

Video output on the PS3™ system

The PS3™ system can output two types of resolution: HD and SD. Refer to the instruction manual

for the TV in use to check which video mode is supported.

*1This number indicates the number of scan lines. Note that "i" stands for "interlace" and "p" stands for

"progressive". Using progressive results in high-quality video with minimal ﬂickering.

*2The video output setting on the system will display as "Standard (NTSC)".

HD (High Deﬁnition) SD (Standard Deﬁnition)

Video mode *11080p 1080i 720p 480p 480i *2

Aspect ratio 16:9 16:9 16:9 16:9

4:3 16:9

4:3

Screens showing the difference in resolution

HD screen SD screen

Procedure ﬂow for setting up the

system

Step 3: Connect an Ethernet

cable. Page 10

Step 4: Connect the AC power

cord. Page 11

Step 2: Connect digital audio

devices. Page 9

Step 5: Perform initial setup of

the system software.

Page 11

Step 1: Connect to a TV.

Page 6

Getting started

Setting up the PS3™ system

Video output cable types

The resolution displayed on the TV varies depending on the input connectors on the TV and the type of cable in use. Select a cable to match

the TV in use.

Cable type Input connector on the TV Supported video modes *1

HDMI cable

(sold separately) HDMI IN connector

1080p / 1080i / 720p / 480p

Component AV cable

(sold separately)

Component VIDEO IN

connector

YLRPR/CRPB/CB

COMPONENT VIDEO IN AUDIO IN

1080p / 1080i / 720p / 480p / 480i*2

S VIDEO cable

(sold separately)

S VIDEO IN connector

S VIDEO L

AUDIO

480i*2

AV cable

(supplied)

VIDEO IN connector

(composite)

VIDEO L

AUDIO

480i*2

*1Depending on the type of TV or content to be played, some video modes may not be supported.

If a device that is not compatible with the HDCP (High-bandwidth Digital Content Protection) standard is connected to the system using an HDMI cable, video

and/or audio cannot be output from the system.

Copyright-protected Blu-ray video discs can only be output at 1080p using an HDMI cable connected to a device that is compatible with the HDCP (High-

bandwidth Digital Content Protection) standard.

*2The video output setting on the system will display as "Standard (NTSC)".

Getting started

Setting up the PS3™ system

Connection methods

Caution

• Do not plug the AC power cord for the system into an electrical outlet until

you have made all other connections. Make sure the TV or other

component is unplugged from the electrical outlet prior to connecting it to

the system.

• Any TV or component connected to the system must be functioning

properly and free of defects. If a TV or component connected to the

system is faulty or defective, it may cause damage to the TV or

component, or to the system itself. As with all electrical products,

connection to faulty or defective components, or the failure to connect to a

properly wired outlet, may cause sparking and pose a ﬁre hazard.

• The socket-outlet shall be installed near the equipment and shall be easily

accessible.

Connecting to a TV using an HDMI cable

Connect the system to the TV using an HDMI cable (sold separately).

An HDMI cable can output both video and audio and enables you to

enjoy digital-quality video and audio with minimal loss of picture

quality.

HDMI IN connector

HDMI cable

(sold separately)

HDMI OUT connector

Connecting with other types of cables

Connect cables other than the HDMI cable to the AV MULTI OUT

connector on the system.

VIDEO

AUD IO

VIDEO IN connector

AV cable (supplied)

AV MULTI OUT connector

Example: When using the supplied AV cable

Hint

If you change the type of cable used to connect the system, video may not be

displayed. If this happens, turn off the system and then turn it on again by

touching the power button on the system front for at least ﬁve seconds (until the

system beeps twice). The video output setting will then be reset to the standard

resolution.

Step 2: Connect digital audio devices

You can connect audio devices that support digital audio output,

such as an AV receiver for home entertainment use.

Hint

When connecting a digital audio device to the system, go to (Settings)

(Sound Settings) "Audio Output Settings", and then adjust the settings as

necessary for the audio device.

Audio output on the PS3™ system

The supported channels may vary depending on the output

connector to be used.

PS3™ system output connectors Channels that can be used for output

2 Ch. 5.1 Ch. 7.1 Ch.

AV MULTI OUT connector  

Digital out (optical) connector  

HDMI OUT connector 

* A device compatible with Linear PCM 7.1 Ch. is required to output 7.1 Ch.

audio from the HDMI OUT connector.

Connecting with an optical digital cable

Audio will be output from the optical digital cable. Video will be output

from the video output cable.

Optical digital cable for audio

(sold separately)

Digital audio device

such as an AV receiver

Video output cable

for the TV in use

( page 7)

Hint

Normally, audio cannot be output simultaneously from multiple output

connectors. For example, if your PS3™ system is connected to a TV via an

HDMI cable and to an audio device via an optical digital cable and “Digital Out

(Optical)” is set under “Audio Output Settings”, audio will no longer be output

from the TV and will only be output from the audio device.

Getting started

Setting up the PS3™ system

Getting started

Setting up the PS3™ system

Connecting with an HDMI cable

Both audio and video will be output from the HDMI cable. You can

output the TV picture via an audio device.

HDMI cable (sold separately)

Digital audio device such

as an AV receiver

HDMI cable

(sold separately)

Hints

• If your TV is not equipped with an HDMI input connector, use a video output

cable of the correct type for your TV ( page 7) to connect it to the PS3™

system directly.

• If a device is connected to the PS3™ system via an HDMI cable, do not turn

off the device while the system is turned on (power indicator is lit solid

green). Doing so may cause sound distortions or produce abnormal sounds.

Step 3: Connect an Ethernet cable

Using a commercially available Ethernet cable, you can connect the

system to the Internet. For details on network settings, see "Adjusting

network settings" ( page 24).

Caution

The system supports 10BASE-T, 100BASE-TX and 1000BASE-T networks.

Do not connect a standard telephone line or other types of cords or cables

that are not compatible with the system directly to the LAN connector on the

system, as this may cause heat build-up, ﬁre or malfunction.

LAN connector

Commercially available

Ethernet cable

LAN access indicator

Hint

You can connect to the Internet without using an Ethernet cable. For details,

see "Using a wireless connection" ( page 25).

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Console de jeux

Sony

Sony PlayStation 2 SCPH-70001 Manuel utilisateur

Sony

Sony SCPH-39004 Manuel utilisateur

Sony

Sony 80GB Playstation 3 4-117-133-41 Manuel utilisateur

Sony

Sony PlayStation Vita Manuel utilisateur

Sony

Sony PS4 FORTNITE PRO Manuel d'installation et d'exploitation

Sony

Sony PSVita PCH-1101 Manuel d'installation et d'exploitation

Sony

Sony SCPH-50008 Manuel utilisateur

Sony

Sony SCPH-75004 Manuel utilisateur

Sony

Sony PlayStation Classic Manuel utilisateur

Sony

Sony PlayStation Playstation 3 Manuel

Sony

Sony PlayStation SCPH-9002 B Manuel utilisateur

Sony

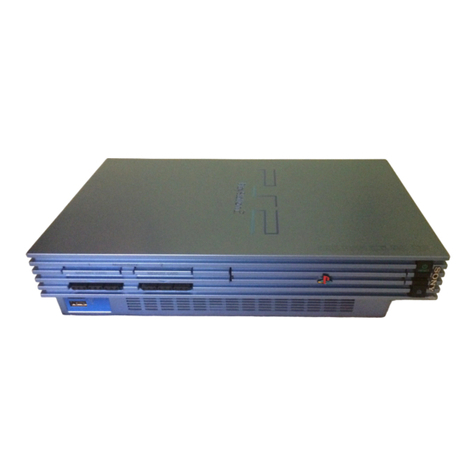

Sony SCPH-50004 SS Manuel utilisateur

Sony

Sony Playstation 3 PS3 Instructions d'installation

Sony

Sony PS4 CUH-1116A Manuel utilisateur

Sony

Sony PlayStation 4 Manuel utilisateur

Sony

Sony PlayStation 4 VR Manuel utilisateur

Sony

Sony PS4 CUH-1108A Manuel d'installation et d'exploitation

Sony

Sony PSVITA Manuel utilisateur

Sony

Sony PlayStation Portable PSP-1004 Manuel utilisateur

Sony

Sony PS4 CUH-1208A Manuel d'installation et d'exploitation

Sony

Sony CUH-7208B Manuel d'installation et d'exploitation

Sony

Sony SCPH-35003 GT Manuel utilisateur

Sony

Sony PLAYSTATION VR Manuel utilisateur

Sony

Sony 40GB Playstation 3 3-275-579-51 Manuel utilisateur

Manuels Console de jeux populaires d'autres marques

Atari

Atari 2600 Manuel utilisateur

PLAYNETIC

PLAYNETIC GameNetic Manuel utilisateur

Nintendo

Nintendo Starlight Fun Center Manuel utilisateur

Saitek

Saitek Alchemist Plus Manuel utilisateur

Sears

Sears Tele-Games 637.99743 Manuel utilisateur

AYANEO

AYANEO 2 Manuel utilisateur

Mattel

Mattel My Meebas N2214 Manuel utilisateur

Entex

Entex PacMan2 Manuel utilisateur

Sega

Sega 32X Manuel utilisateur

Saitek

Saitek Cougar Manuel utilisateur

View-Master

View-Master Interactive Vision Schéma de câblage

Excalibur

Excalibur ABC Wide 333 Manuel utilisateur

Microsoft

Microsoft XBOX Manuel du propriétaire

LEXIBOOK

LEXIBOOK JL2700 Manuel utilisateur

BeoPlay

BeoPlay A1 Manuel utilisateur

Nintendo

Nintendo VS.-Pak Manuel utilisateur

Nintendo

Nintendo Game Boy Advance Manuel du propriétaire

Excalibur

Excalibur king Arthur 915-3 Manuel utilisateur
