SERVICE MANUAL

DVP-PR30/PR50P/PR60P

RMT-D187A/RMT-D189A/RMT-D187P/RMT-D189P

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

For Schematic Diagram

• Refer to page 4-9 to 4-12 for printed wiring board of MV-64/65 board.

• Refer to page 4-3 to 4-4 for waveform

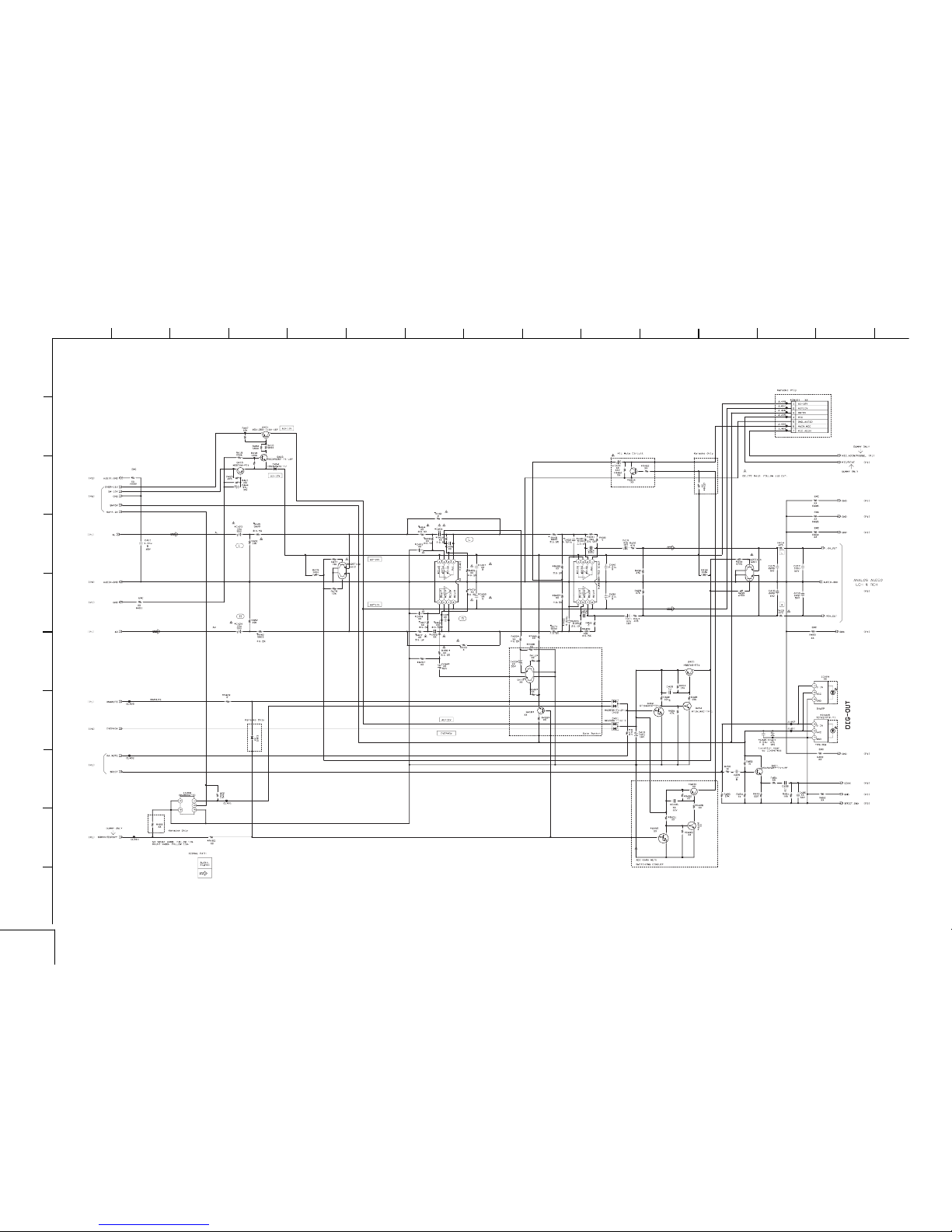

MV-64/65 BOARD (1/7)

(DVP-PR30/PR50P/PR60P)

SYSTEM

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

SYSTEM

MV-64/65 (1/7)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

For Schematic Diagram

• Refer to page 4-9 to 4-12 for printed wiring board of MV-64/65 board.

• Refer to page 4-3 to 4-4 for waveform

MV-64/65 BOARD (2/7)

(DVP-PR30/PR50P/PR60P)

DRIVE

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

DRIVE

MV-64/65 (2/7)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

For Schematic Diagram

• Refer to page 4-9 to 4-10 for printed wiring board of MV-64 board.

• Refer to page 4-3 to 4-4 for waveform

MV-64 BOARD (3/7)

(DVP-PR50P/PR60P)

VIDEO

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

VIDEO

MV-64 (3/7)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

For Schematic Diagram

• Refer to page 4-11 to 4-12 for printed wiring board of MV-65 board.

• Refer to page 4-3 to 4-4 for waveform

MV-65 BOARD (4/7)

(DVP-PR30)

VIDEO

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

VIDEO

MV-65 (4/7)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

For Schematic Diagram

• Refer to page 4-9 to 4-10 for printed wiring board of MV-64 board.

• Refer to page 4-3 to 4-4 for waveform

MV-64 BOARD (5/7)

(DVP-PR50P/PR60P)

AUDIO

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

AUDIO

MV-64 (5/7)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

For Schematic Diagram

• Refer to page 4-11 to 4-12 for printed wiring board of MV-65 board.

• Refer to page 4-3 to 4-4 for waveform

MV-65 BOARD (6/7)

(DVP-PR30)

AUDIO

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

AUDIO

MV-65 (6/7)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

The components identified by

mark or dotted line with mark

are critical for safety.

Replace only with part number

specified.

POWER

MV-64/65 (7/7)

For Schematic Diagram

• Refer to page 4-9 to 4-12 for printed wiring board of MV-64/65 board.

• Refer to page 4-3 to 4-4 for waveform

MV-64/65 BOARD (7/7)

(DVP-PR30/PR50P/PR60P)

POWER

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:REC/PB MODE

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

The components identified by

mark or dotted line with mark

are critical for safety.

Replace only with part number

specified.

For Schematic Diagram

• Refer to page 4-39 to 4-40 for printed wiring board of Power board.

POWER BOARD

POWER SUPPLY (SRV2151WW)

(DVP-PR30/PR50P/PR60P:EXCEPT MX)

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:PB MODE

MARKED:MOUNT TABLE

TO CN501

MV-64 BOARD

(DVP-PR30/PR50P: EXCEPT MX/PR60P)

(SEE PAGE 4-25 to 4-26)

EVER-10V

POWER SW

P-CONT

GND

SW+5V

SW+3.3V

EVER+5V

EVER+11V

MTR GND

SW+8V

POWER BOARD

POWER BLOCK (SRV2151WW)

212 13

98765

43 14 15

DVP-PR30/PR50P/PR60P

The components identified by

mark or dotted line with mark

are critical for safety.

Replace only with part number

specified.

For Schematic Diagram

• Refer to page 4-43 to 4-44 for printed wiring board of Power board.

POWER BOARD

POWER SUPPLY (SRV2152UC)

(DVP-PR50P: MX)

-REF.NO.:1000 SERIES-

XX MARK:NO MOUNT

NO MARK:PB MODE

MARKED:MOUNT TABLE

TO CN501

MV-65 BOARD

(DVP-PR50P: MX ONLY)

(SEE PAGE 4-25 to 4-26)

EVER-10V

POWER SW

P-CONT

GND

SW+5V

SW+3.3V

EVER+5V

EVER+11V

MTR GND

SW+8V

POWER BOARD

POWER BLOCK (SRV2152UC)
