Welcome
Thank you for purchasing your Sony VAIO®computer! Your new computer is a superb blend of high technology and
easy-to-use functionality. The information provided here is designed to help you to become familiar with the hardware and
software applications included with your system.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
View the VAIO®Computer Specifications, which lists your computer's hardware specifications and preinstalled
software information.
Page 1
Getting Started
Congratulations on your purchase of the Sony VAIO®computer! Your new, high-performance, multimedia computer combines
state-of-the-art computer functionality with the latest audio, video and information technology features.
Unpacking your Computer
Planning An Ergonomic Work Space
Page 2
Unpacking your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, see the online Specifications sheet.
Computer and supplied accessories
Giga Pocket Personal Video Recorder accessories
Handling the system unit
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Page 3
Start also provides resources for technical support, safety guidelines and owner's information.
Microsoft®Windows®XP Guide —Explains how to use the basic features of the latest Windows operating system.
Online Documentation
VAIO®Computer User Guide —Contains information on the hardware and preinstalled software applications
included with your system.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide.
Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. To view this online information:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide.
3. Click the Welcome link. The Welcome page displays in the right-side frame.
4. Locate the link in the text, "View the VAIO®Computer Specifications..."
Hard Disk Drive Recovery
Your computer is equipped with a utility program that enables you to recover your computer's operating system and
preinstalled software. For more information about hard disk drive recovery:
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery utility to recover
your computer's operating system and preinstalled software.
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO Recovery Options.
Other
Software Library containing the Microsoft software license agreement and Sony end-user license agreement.
Page 4
Planning An Ergonomic Work Space
Before you set up your new computer, find the best location for your new computer and plan your work space. There are
several ergonomic factors to consider when you arrange your work space:
Stable work surface —Use a stable work surface large enough to support the computer and other peripheral
equipment.
Ventilation —Leave at least eight inches of space on both sides of your computer and at least 5 inches of clearance
for the back.
Placement of the mouse and other input devices —Place your computer, mouse, or other input devices so that
your arms and hands are in a relaxed, comfortable position. The computer's keyboard should be directly in front of
you. Keep your wrists in a relaxed position when you are using the keyboard—not angled up or down. Position the
mouse at the same level as the keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it.
Take breaks during sessions with your computer. Excessive use of the mouse or a joystick may strain muscles or
tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture—avoid
slouching forward or leaning far backward.
Viewing angle of the display —Position the unit so that the display is 18 to 26 inches directly in front of you, with
the top of the screen at or a little below eye level. Use the display's tilting feature to find the best position. You can
reduce eye strain and muscle fatigue by placing the display in the proper position.
Lighting —Choose a location where windows and lights do not create glare and reflection on the display. Use
indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help
reduce glare. Proper lighting adds to your comfort and work effectiveness.
Page 5
Locating Controls And Ports
This section is intended to familiarize you with the controls, ports and jacks that are available on your computer. To view
the specific hardware configuration for your system, see the online specifications sheet.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
About the Front Panel
About the Side Panels
Page 6
About the Front Panel
The front panel of your VAIO®computer is equipped with built-in stereo speakers and indicator lights. You can access the
front panel of your VAIO®computer by lowering the keyboard. When the keyboard is not in use, you can fold it up and use
the additional TV, channel, and volume controls.
Handling the System Unit

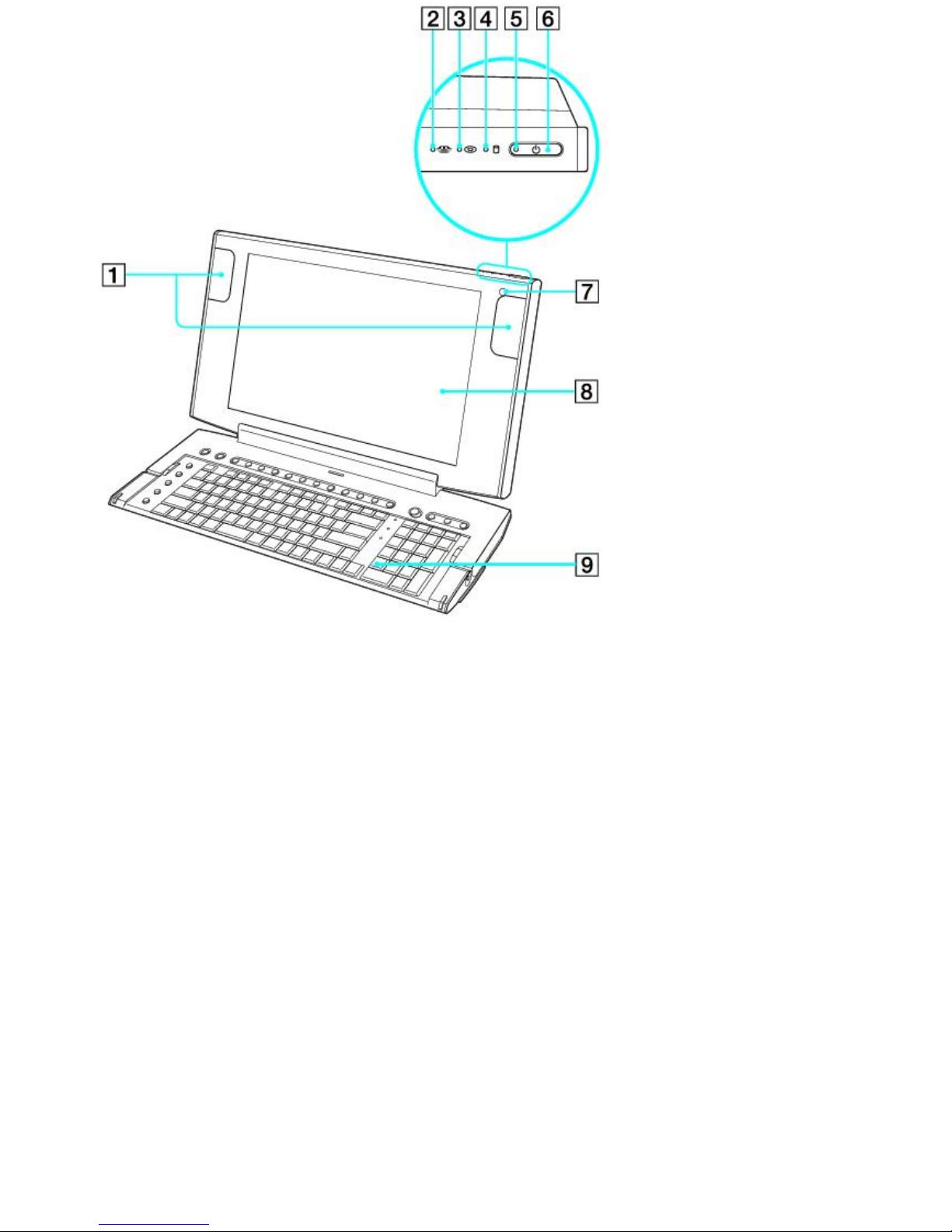

Front panel (Keyboard open)
Page 7
1Stereo speakers (built-in)
The stereo speakers provide sound for software, audio and video CDs.
2Memory Stick®media access indicator
Light is amber when the Memory Stick media slot is in use.
3DVD-RW combo drive access indicator
Light is amber while reading and writing data from and to the combo drive.
4Hard disk drive access indicator
Light is amber while reading and writing data from and to the hard disk.
5Power indicator
Light is green while the power is on and amber when the computer is in Stand by mode.
6Power button
Turns the computer on and off. Page 8
7Infrared receiver
Communicates with the remote control (supplied), to turn on TV, change TV channels, and raise or lower volume.
8Liquid Crystal Display (LCD) screen
The attached LCD screen provides on-screen visual output to your computer's functional capabilities.
9Keyboard with Shortcut keys (S keys)
The attached keyboard uses a standard key arrangement, along with programmable function keys that launch specific
applications.
Front panel (Keyboard folded)
1TV On button
Press to start the Giga Pocket Video Recorder software.
2Channel +/-
Press to change the channel, when TV programming is displayed.
3Volume +/-
Press to increase or decrease computer speaker volume.
Page 9
About the Side Panels
The side panels of your computer contain the connections for supplied and optional accessories. The icons on the side
panels help to locate and identify the connections on your computer.
Right panel
1S-video In jack
Connection for an S-video cable (optional).
Composite video In jack
Connection for a digital video or stereo A/V dubbing cable (optional).
2DVD-RW drive
Reads data from compatible CD or DVD media. Writes data to a
DVD-RW, DVD-R, CD-RW, or CD-R media.
3DVD-RW drive eject button
Ejects a disc from the drive.
4Composite audio L In jack
Connection for an audio or stereo dubbing cable (optional).
Composite audio R In jack
Connection for an audio or stereo dubbing cable (optional).
5Line In jack Page 10
