SERVICE MANUAL
SPECIFICATIONS
General
Frequency control Crystal-controlled PLL
Operation mode FM, duplex
Operation channel 25 channels
Supplied accessories AC power adaptorAC-T56 (1)
Telephone line cord (1)
Rechargeable battery pack BP-T16 (1)
Directories (2 sheets)
Handset
Power source Rechargeable battery pack BP-T16
Battery life Standby: Approx. 14 days
Talk: Approx. 6 hours
Dimensions Approx. 58 ×194 ×47 mm (w/h/d), antenna
excluded
Antenna: Approx. 110 mm
Mass Approx. 220 g, battery included
Base unit
Power source DC 9V from AC power adaptor
Battery charging time Approx. 12 hours
Dimensions Approx. 132 ×56 ×220 mm (w/h/d), antenna
excluded
Antenna: Approx. 310 mm
Mass Approx. 310 g
Design and specifications are subject to change without notice.
SPP-114
E Model
CORDLESS TELEPHONE
MICROFILM
Handset
Base unit
2
TABLE OF CONTENTS
1. GENERAL
Setting up the phone ................................................................ 3
Making and receiving calls...................................................... 4
Speed dialing ........................................................................... 4
Resetting the digital security code........................................... 5
Paging ...................................................................................... 5
2. DISASSEMBLY
2-1. Cabinet (Lower) (Base Unit)............................................... 6
2-2. Cabinet (Rear) (Handset) .................................................... 6
3.TEST MODE
Base Unit Section .................................................................... 7
Handset Section ....................................................................... 9
4. ELECTRICAL ADJUSTMENTS
Base Unit Section .................................................................. 12
Handset Section ..................................................................... 14
5. DIAGRAMS
5-1. IC Pin Descriptions ...........................................................16
5-2. Block Diagram –Base Unit Section– ................................ 18
5-3. Block Diagram –Handset Section– ................................... 19
5-4. Printed Wiring Board –Base Unit Section– ...................... 20
5-5. Schematic Diagram –Base Unit Section– .........................21
5-6. Printed Wiring Board –Handset Section– ......................... 22
5-7. Schematic Diagram –Handset Section– ............................23
6. EXPLODED VIEWS
6-1. Base Unit Section .............................................................. 24
6-2. Handset Section................................................................. 25
7. ELECTRICAL PARTS LIST ........................................ 26
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE
WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
3
SECTION 1
GENERAL This section is extracted
from instruction manual.
4
5
6
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. CABINET (LOWER) (BASE UNIT)
2-2. CABINET (REAR) (HANDSET)
1
P 3x10
2
P 3x10
4
cabinet (lower
)
3
connector
1
battery case lid assy
2
BTP 2.6x10
4
cabinet (rear
)
3
claws
7
TP47
TP106
IC501
IC101 TP61
TP62
TP63
TP66
TP67
TP65
TP46
TP64
– base main board (conductor side) –
SECTION 3
TEST MODE
BASE UNIT SECTION
MANUAL TEST MODE
Set the Test Mode:
1. Set the DIAL MODE switch to “P” (pulse).
2. While pressing the HANDSET LOCATOR key, insert theAC
adaptor (Reset start).
3. With the HANDSET LOCATOR key, still held down, switch
the DIAL MODE switch “P” (pulse) n“T” (tone) n
“P” (pulse).
4. When the HANDSET LOCATOR key is released, test mode
starts.
5. Firstly, “0” will be dialled out at 10 pps. Then “1”, “4”, “8”
and “#” will be sent out by DTMF.
6. Set to TX ON. Goes to external line state in 1 CH.
Release the Test Mode:
1. Pull out the AC adaptor or turn off the power.
MACHINETEST MODE
Set the Test Mode:
1. With one of the CH setting terminals in “H” input state,cause
Reset of Power ON. Equipment enters machine test mode.
2. Setting of CH according to logic input with CH setting
terminal.
3. ON/OFF of TX is according to the input logic of the DIAL
MODE terminal.
Release the Test Mode:
1. Pull out the AC adaptor or turn off the power.
2. Remove the short plug and turn on the power again.
8
29 28 27
TEST1 TEST2 TEST3 Operation with CHARGE LED Operation with TX ON
(TP67) (TP66) (TP65)
L L L If RSSI (H) is detected : Light ON If RSSI (H) is detected : Light ON
L L H If RSSI (L) is detected : Light ON If RSSI (L) is detected : Light ON
L H L If TX LOCK is detected : Light OFF If TX LOCK is detected : Light OFF
L H H If RX LOCK is detected : Light OFF If RX LOCK is detected : Light OFF
H L L BEEP output
H L H ID CODE output
H H L If RING is detected : Light ON If RING is detected : Light ON
H H H If HANDSET LOCATOR key is input : Light ON If HANDSET LOCATOR key is input : Light ON
Channel Setting:
During startup in machine test mode, make the following channel
settings by loading the terminal input data.
23 24 25 26 TX frequency RX frequency
M1 M2 M3 M4 (MHz) (MHz)
(TP61) (TP62) (TP63) (TP64)
CH1 H L L L 43.720 48.760
CH2 L H L L 43.740 48.840
CH3 H H L L 43.820 48.860
CH4 L L H L 43.840 48.920
CH5 43.920 49.020
CH6 43.960 49.080
CH7 44.120 49.100
CH8 44.160 49.160
CH9 44.180 49.200
CH10 44.200 49.240
CH11 44.320 49.280
CH12 44.360 49.360
CH13 44.400 49.400
CH14 H L H L 44.460 49.460
CH15 L H H L 44.480 49.500
CH16 H H H L 46.610 49.670
CH17 L L L H 46.630 49.845
CH18 46.670 49.860
CH19 46.710 49.770
CH20 46.730 49.875
CH21 46.770 49.830
CH22 46.830 49.890
CH23 H L L H 46.870 49.930
CH24 L H L H 46.930 49.990
CH25 H H L H 46.970 49.970
TEST1 L L H H 43.780 48.800
TEST2 H L H H 43.890 48.970
TEST3 L H H H 46.800 49.910
TEST4 H H H H 46.900 49.950
Machine Test Mode Input / Output:
1. Input (Input ports for other than main tasks)
Pin Name Pin No. Function Logic
M1 (TP61) 23
M2 (TP62) 24 Setting the CH (channel) Refer to channel setting
M3 (TP63) 25
M4 (TP64) 26
DIAL MODE 17 Setting the TX ON/OFF TONE : open, PULSE : short
(TP47)
HANDSET LOCATOR Manual : Channel increment Incrementing of channels in order from 1 to 25.
(TP46) 16 Machine : Dial data “5” is output to Key input with “L” input.
DTMF/DP exchange The first time there is output of “5” with DTMF.
Pin No.
Channel
2. Output (Output ports for other than main tasks)
Pin Name Pin No. Function H Logic L Logic
CHARGE DET (TP21) 18 State in section 1. Input Refer to section 1. Input
9
IC501
IC101
TP35TP36
TP55 TP33
TP44
TP43 TP14 TP13
TP16 TP15
TP17

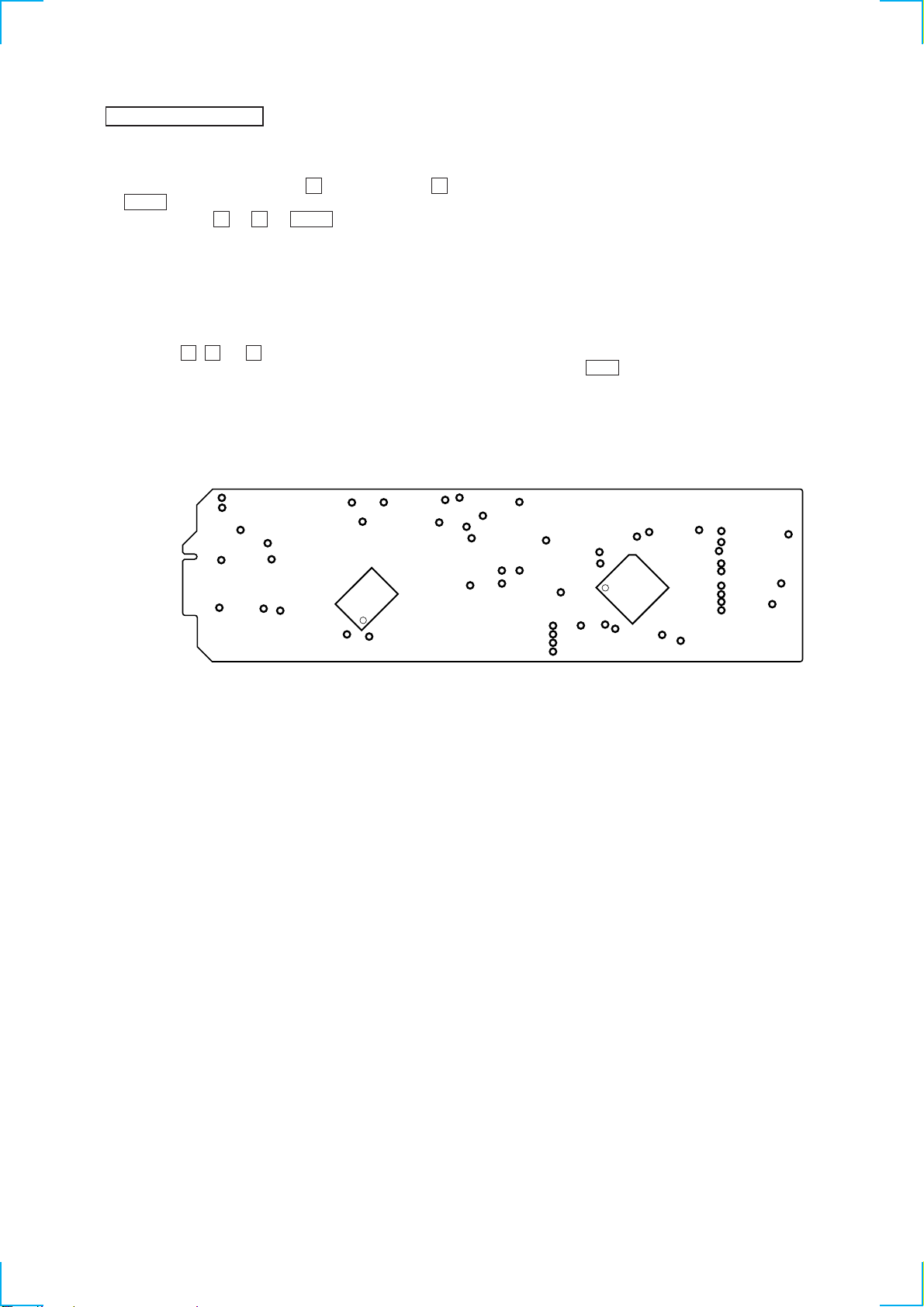

– hand main board (side B) –
HANDSET SECTION
MANUAL TEST MODE
Set the Test Mode:
1. Enter the test mode by pressing 0 key while pressing 1 and
TALK keys when in idle condition.
(Key operation 0 n1 nTALK )
2. The RINGER will ring for 500 msec. when the test mode is
started.
3. Measurement mode of consumption current. (42# state)
4. Use key input to carry out the various settings.
5. Use port inputs to set output from LED terminals.
Release the Test Mode:
1. Press the 0 , 0 and # keys.
2. Turn off the power. (Remove the battery and replace them.)
MACHINE TEST MODE
Set the Test Mode:
1. When power on reset is applied while a “H” (high) is input the
TEST SW (TP43) terminal (IC501 $º pin), the RING (Level
H, 500 msec.) sounds.
2. Following that, at timing in which the TEST SW terminal has
“H” (high) input, there is output of “L” (low) by the CH
(channel) setting control terminal. Then there is PLL setting to
the CH which was read to with the CH setting terminal
according to that “L” (low) output.
3. Set the TX setting to TX OFF.
4. The channel is set by voice not by data.
5. Use port inputs to set output from LED terminals.
Release the Test Mode:
1. Press the OFF key.
2. Remove the short plug and turn on the power.
10
Channel Setting:
During startup in machine test mode, make the following channel
settings by loading the terminal input data.
34 33 32 31 29 TX frequency RX frequency
ROW5 ROW4 ROW3 ROW2 ROW1 (MHz) (MHz)
(TP13) (TP14) (TP15) (TP16) (TP17)
CH1 H L L L L 48.760 43.720
CH2 H L L L H 48.840 43.740
CH3 H L L H L 48.860 43.820
CH4 H L L H H 48.920 43.840
CH5 H L H L L 49.020 43.920
CH6 H L H L H 49.080 43.960
CH7 H L H H L 49.100 44.120
CH8 H L H H H 49.160 44.160
CH9 H H L L L 49.200 44.180
CH10 H H L L H 49.240 44.200
CH11 H H L H L 49.280 44.320
CH12 H H L H H 49.360 44.360
CH13 H H H L L 49.400 44.400
CH14 H H H L H 49.460 44.460
CH15 H H H H L 49.500 44.480
CH16 L L H H L 49.670 46.610
CH17 L L H H H 49.845 46.630
CH18 L H L L L 49.860 46.670
CH19 L H L L H 49.770 46.710
CH20 L H L H L 49.875 46.730
CH21 L H L H H 49.830 46.770
CH22 L H H L L 49.890 46.830
CH23 L H H L H 49.930 46.870
CH24 L H H H L 49.990 46.930
CH25 L HHHH 49.970 46.970
TEST1 L L L H L 48.800 43.780
TEST2 L L L H H 48.970 43.890
TEST3 L L H L L 49.910 46.800
TEST4 L L H L H 49.950 46.900
Machine Test Mode Input / Output:
1. Input (Input ports for other than main tasks)
Pin Name Pin No. Function Logic
ROW1 (TP17) 29
ROW2 (TP16) 31
ROW3 (TP15) 32 Setting the CH (channel) Refer to channel setting
ROW4 (TP14) 33
ROW5 (TP13) 34
TEST CH (TP33) 1 Control terminal for setting the CH (channel) H : OFF, L : ON
TEST SW (TP43) 40 Start up of the test mode H : Start, L : Not start
TEST ACK (TP44) 44 During the test mode, causes start of intermittent H : Intermittent start
operation with external input.
2. Output (Output ports for other than main tasks)
Pin Name Pin No. Function H Logic L Logic
TALK LED (TP35) 48 Various input/output monitor output No detection Detection
(default : RSSI (H) detection).
KEY LED (TP55) 2 During test mode : All light lit. However, does No light Light
not include measurment of consumption current.
Pin No.
Channel
Table des matières
Autres manuels Sony Téléphone sans fil
Sony
Sony SPP-ID400 Manuel utilisateur
Sony
Sony SPP-A9171 - Cordless Telephone With Answering... Manuel utilisateur
Sony
Sony SPP-S9101 - Cordless Telephone Manuel utilisateur
Sony
Sony SPP-M937 Mode d’emploi
Sony
Sony SPP-SS961 - Cordless Telephone Manuel utilisateur
Sony
Sony SPP-H273 Marketing Manuel utilisateur
Sony
Sony SPP-SS950 Manuel utilisateur
Sony
Sony SPP-A400 - Cordless Telephone With Answering... Manuel utilisateur
Sony
Sony SPP-IM982 - 900mhz Cordless Telephone Manuel utilisateur
Sony
Sony SPP-SS960 - Cordless 900 Mhz Telephone Manuel utilisateur
Sony
Sony SPP-SS961 - Cordless Telephone Manuel utilisateur
Sony
Sony SPP-ID975 - Cordless Telephone Manuel utilisateur
Sony
Sony SPP-A2770 - 2.4ghz Cordless Telephone Manuel utilisateur
Sony
Sony SPP-M920 Primary Manuel utilisateur
Sony
Sony SPP-S9001 - Cordless Telephone Manuel utilisateur
Sony
Sony SPP-ID976 Manuel utilisateur
Sony
Sony SPP-SS964 Manuel utilisateur
Sony
Sony SPP-M920 Primary Manuel utilisateur
Sony
Sony SPP-ID300 Manuel utilisateur
Sony
Sony SPP-A974 Manuel utilisateur
