Quick Start Guide

LocationFree® Base Station LF-V30

For more details about this product, please refer to the

LocationFree® Base Station Operating Instructions on the

supplied CD-ROM.

This product is available for use in the U.S. and Canada only.

Sony LF-V30 3-273-933-11(1)

Customer Support Information

For Sony Online Registration:

www.sony.com/productregistration

The Sony Online Registration is also available by selecting [Start Menu][All Programs][Sony LocationFree

Player][Sony LocationFree Product Registration] on your PC.

For technical support:

Please go to the web site and select your model.

www.sony.com/lfxsupport

We welcome your comments and suggestions on LocationFree®. Please feel free to send email to LocationFree®

Customer Support Center:

LocationFreeSuppor[email protected].com

For more details about LocationFree® go to:

www.sony.com/locationfree

Sony LF-V30 3-273-933-11(1)

Table of Contents

Customer Support Information............................................................. 2

Table of Contents........................................................................................ 3

Package Contents....................................................................................... 4

Set up the LocationFree® Base Station with a Wireless Router

... 5

Connect Video Device(s).......................................................................... 6

Plug in the Power Cord............................................................................. 8

Connect your PC to a Router.................................................................. 9

Position your PC near the Base Station ............................................10

Let’s Start the Setup Wizard!.................................................................11

Other Client, PSP®(PlayStation®Portable) .......................................13

Troubleshooting .......................................................................................14

Sony LF-V30 3-273-933-11(1)

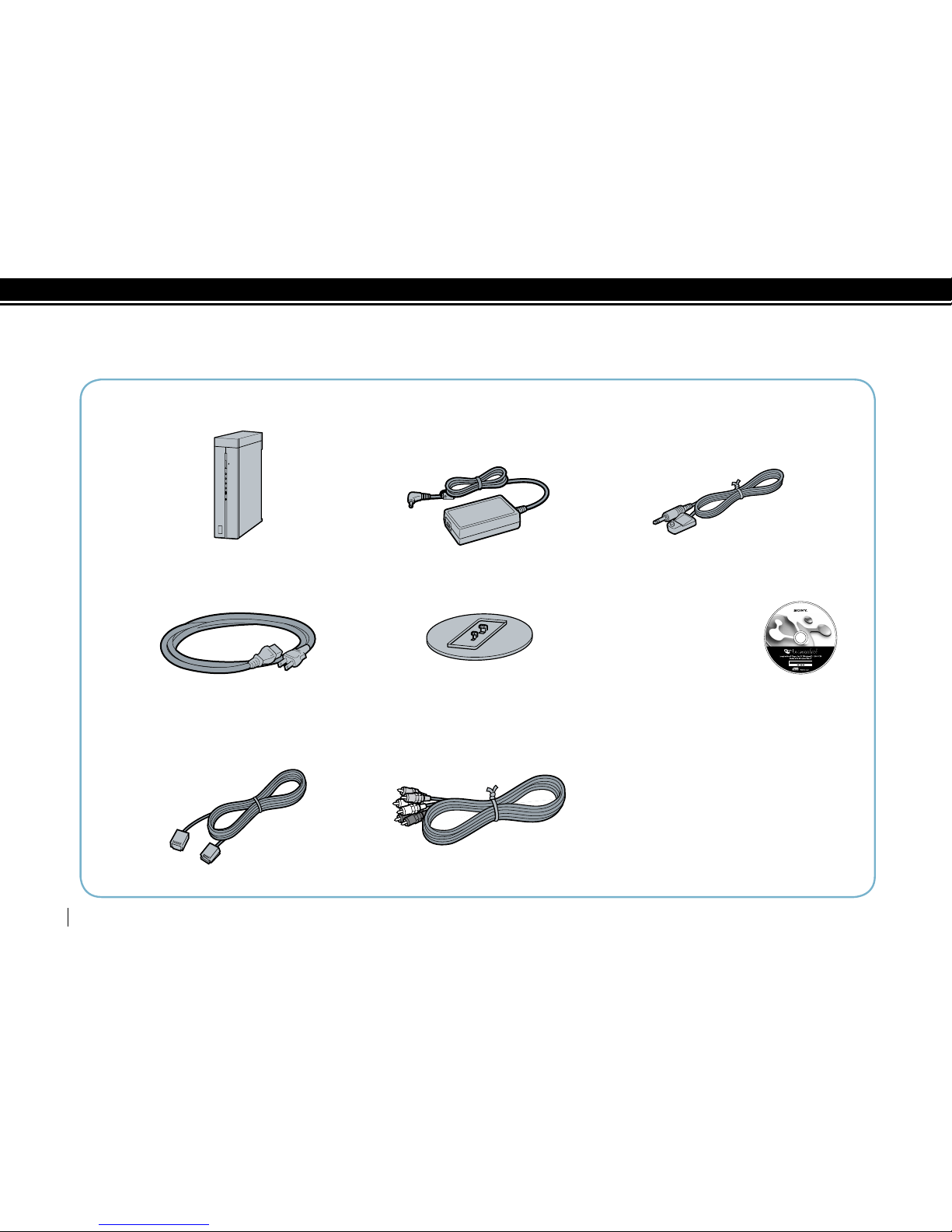

LF-V30 LocationFree® Base Station AC-LX1B AC adapter (Ferrite core attached) IR Blaster

With the IR Blaster, you can control the video

devices remotely on the LocationFree® Player

using the on-screen remote control feature.

Power cord LocationFree® Base Station stand LocationFree® Player software CD-ROM

LocationFree® Player

software LFA-PC30*

* One serial key for

LocationFree® Player

(supplied) is printed on

the envelope in which

the CD-ROM is enclosed.



Base Station Operating Instructions (PDF file)

License (text file)

LAN cable AV cable QSG (Quick Start Guide: This document)

(device registration information included)

Warranty card

Important Notice

Important Safeguards

Dynamic DNS terms of Use Agreement

Important Notice to VAIO® Customers

Package Contents

Sony LF-V30 3-273-933-11(1)

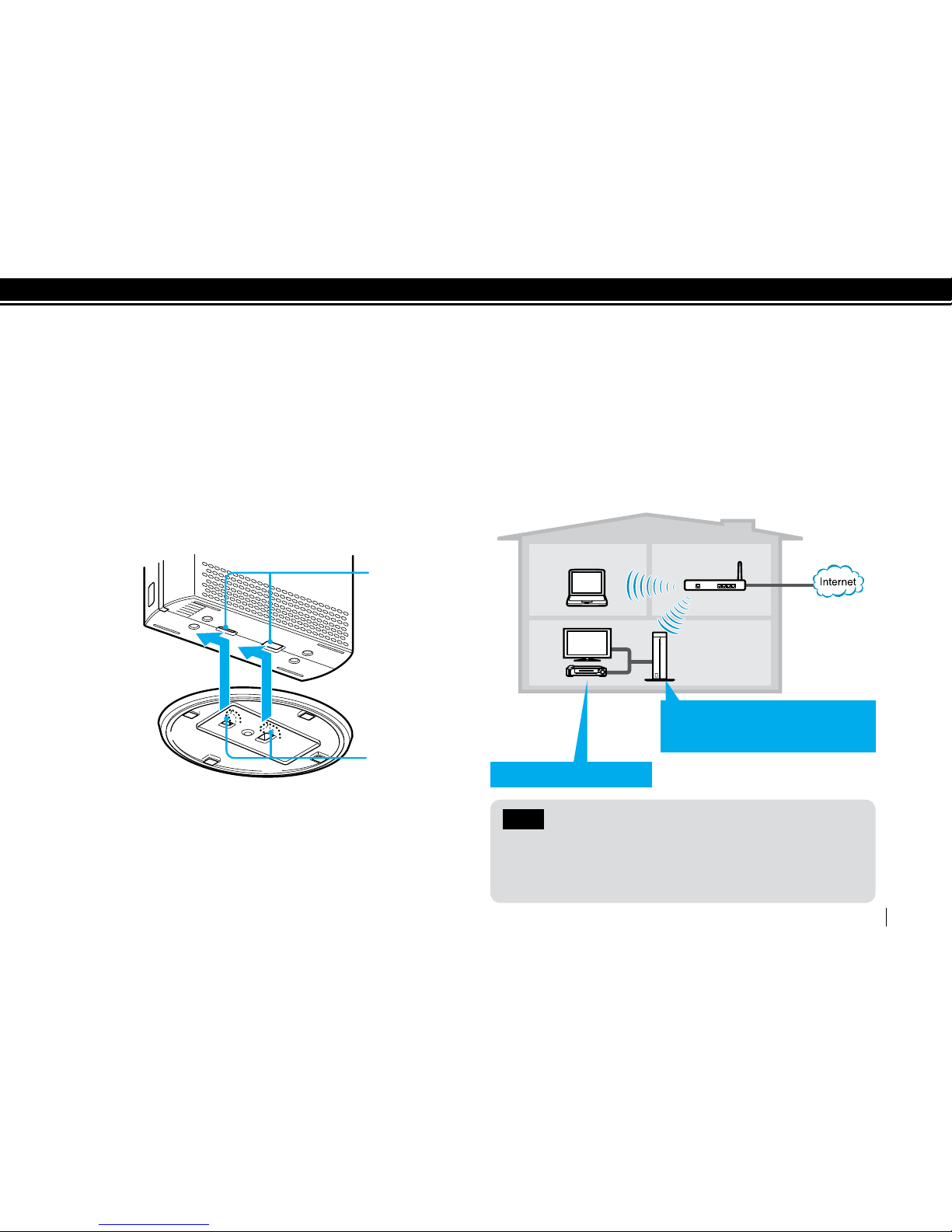

Attach the stand.

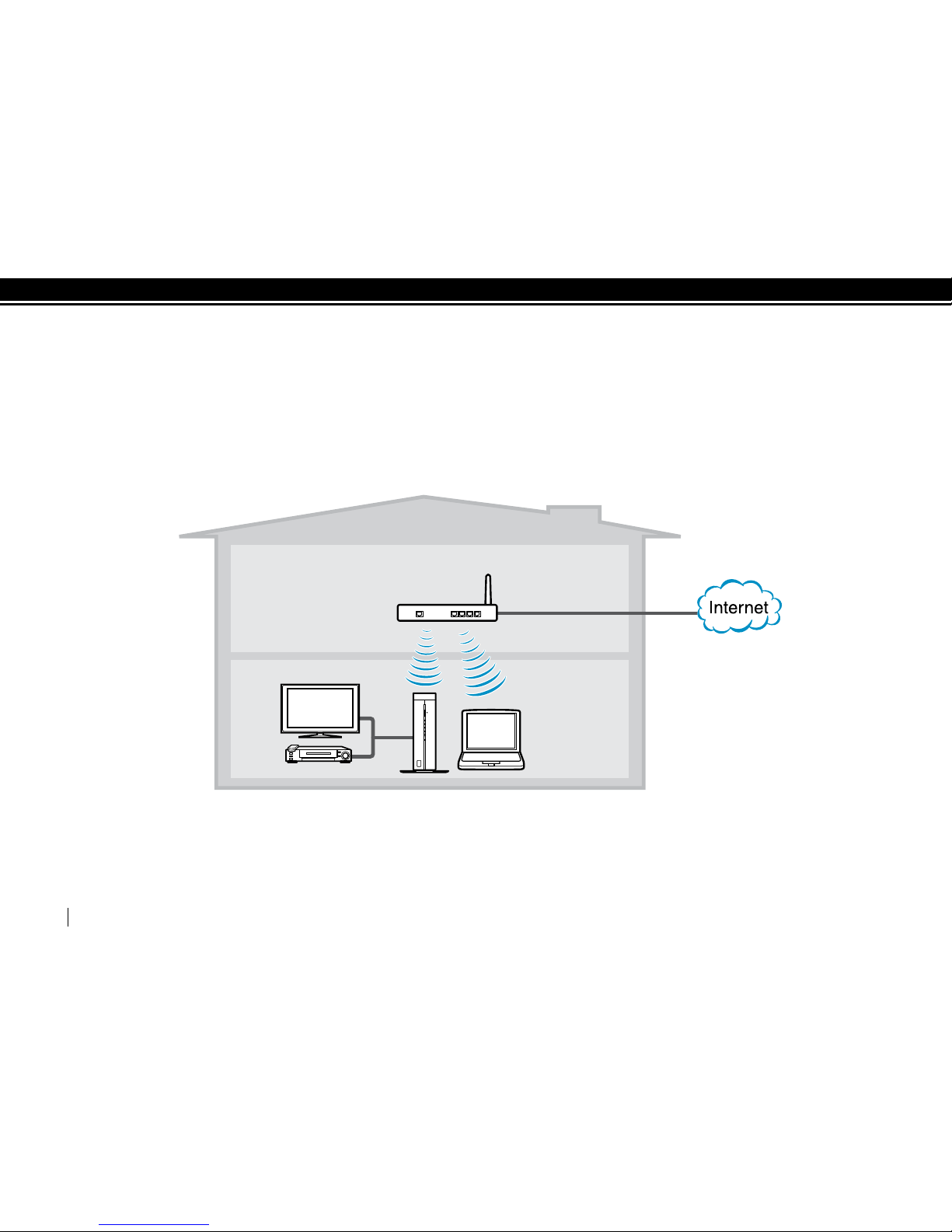

Set up the LocationFree® Base Station with a

Wireless Router

This is the setup flow for Microsoft® Windows Vista® users. For Windows® XP PC users, please skip to Page 12.

Position the Base Station near your video

device(s).

Holes

Claws

Stand

Bring the Base Station LF-V30

close to your video devices.

DVR, set-top box, etc.

Note

For Windows® XP/desktop PC users, be sure to connect the

Base Station to a router with the LAN cable temporarily

(page 12).

Sony LF-V30 3-273-933-11(1)

After you complete these settings, please turn on the video device(s).

Video device

IR BLASTER port 1 or 2

Both ports are available.

Plug in the IR Blaster to

configure the on-screen

remote control. Make sure

the video device also has a

remote control.

IR Blaster

Tip

Orient the infrared

transmitter on the end

of the IR Blaster so that

it faces the infrared

receiver(s) on your

DVR, DVD and set-top

box.

IR Blaster

Remote control

infrared transmitter

Remote control

infrared receiver

Video input

Video Output

: Audio/video signal flow

Connect Video Device(s)

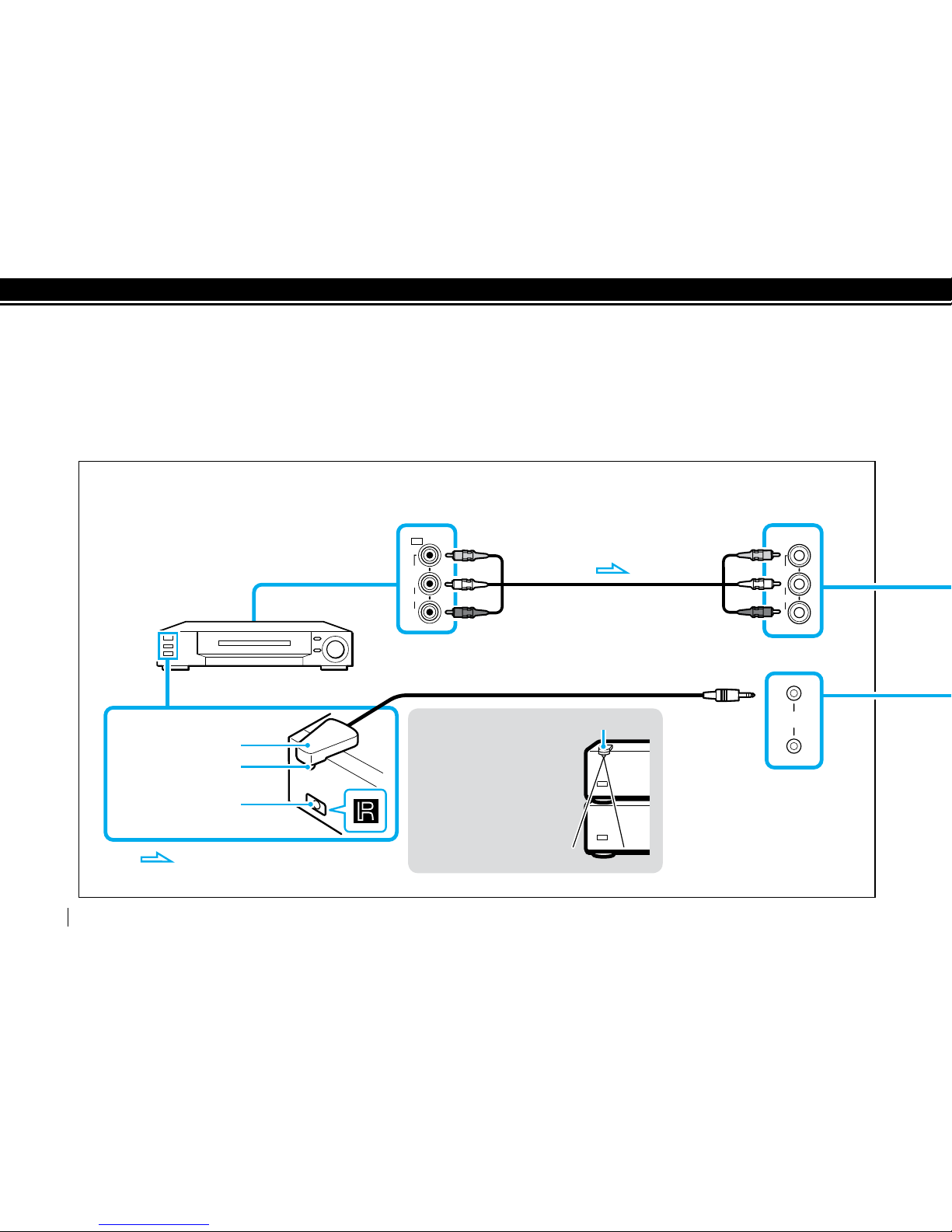

Connect video devices (e.g. DVR, set-top box) to the Base Station.

BLASTER

LAN

VIDEO 1

WLAN

CLIENT

ININ

OUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

DC IN 12V

OUT

VIDEO 2

(VIDEO/COMPONENT)

VIDEO 2

(VIDEO/COMPONENT)

S VIDEOS VIDEO

VIDEO

AUDIO

OUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

BLASTER

Sony LF-V30 3-273-933-11(1)

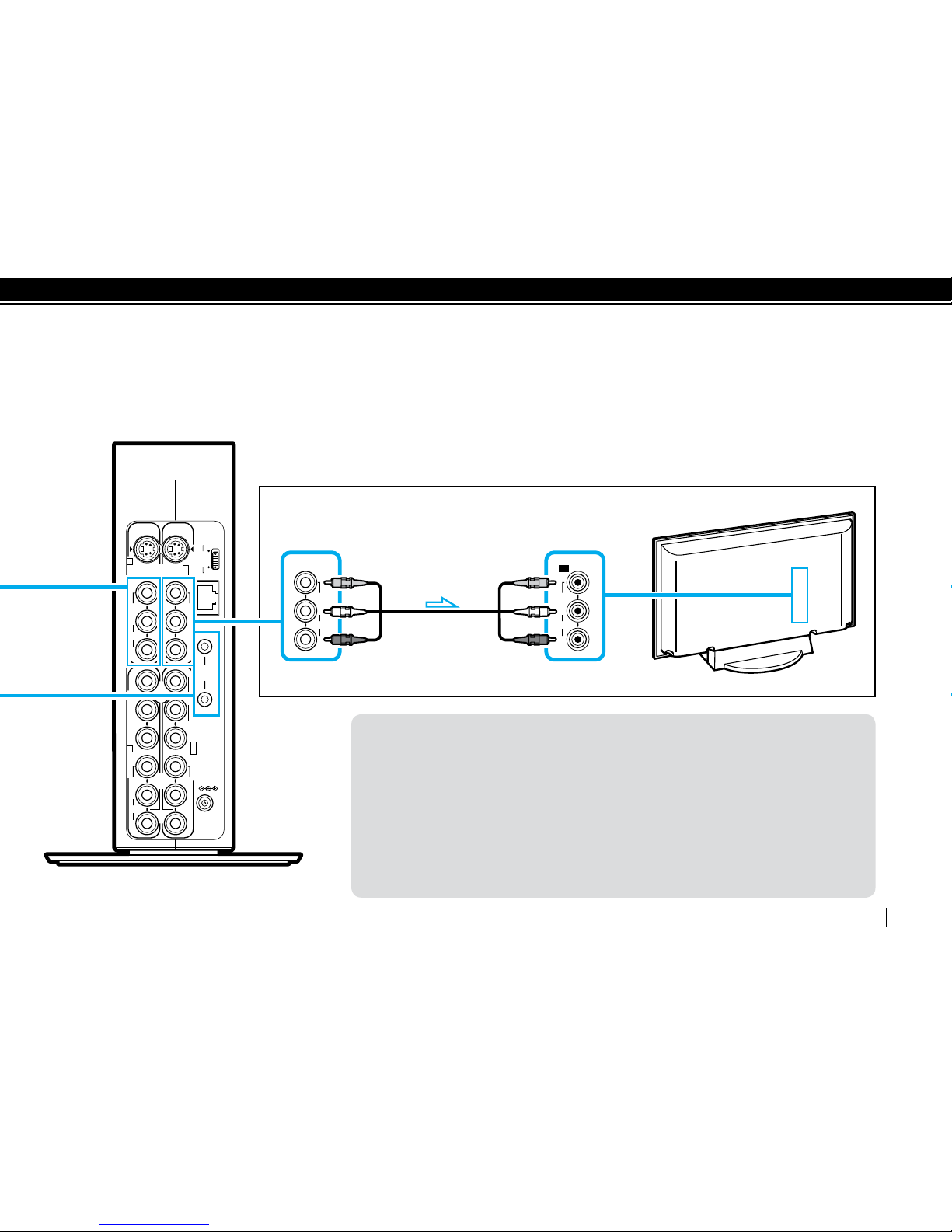

Connect DVR/DVD/set-top box with the Base Station.

Rear panel of the Base Station

Video Output Video Input TV, etc.

BLASTER

LAN

VIDEO 1

WLAN

CLIENT

ININ

OUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

DC IN 12V

OUT

VIDEO 2

(VIDEO/COMPONENT)

VIDEO 2

(VIDEO/COMPONENT)

S VIDEOS VIDEO

VIDEO

AUDIO

OUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

BLASTER

Tips

If the video device is equipped with component video jacks, connect to

COMPONENT of VIDEO 2 IN to receive better picture quality. Be sure to connect

audio cables together with component cables to receive audio.

If the video device is equipped with an S-Video jack, connect to S VIDEO of VIDEO

1 IN to receive better picture quality than video jack.

If the video device has single video output, connect your TV to the VIDEO 1 OUT

or VIDEO 2 OUT terminal which the video device is connected to.

Have your remote control ready for the on-screen remote setup at a later stage.

Sony LF-V30 3-273-933-11(1)

WIRELESS

NETWORK

SETUP

MODE

NET AV

RESET

The POWER

LED will light in

green

Front panel of

the Base Station

BLASTER

LAN

VIDEO 1

WLAN

CLIENT

ININ

OUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

AUDIO

DC IN 12V

OUT

VIDEO 2

(VIDEO/COMPONENT)

VIDEO 2

(VIDEO/COMPONENT)

S VIDEOS VIDEO

DC IN 12V

WLAN

CLIENT

Power cord (supplied)

AC adapter (supplied)

Rear Panel of

the Base Station

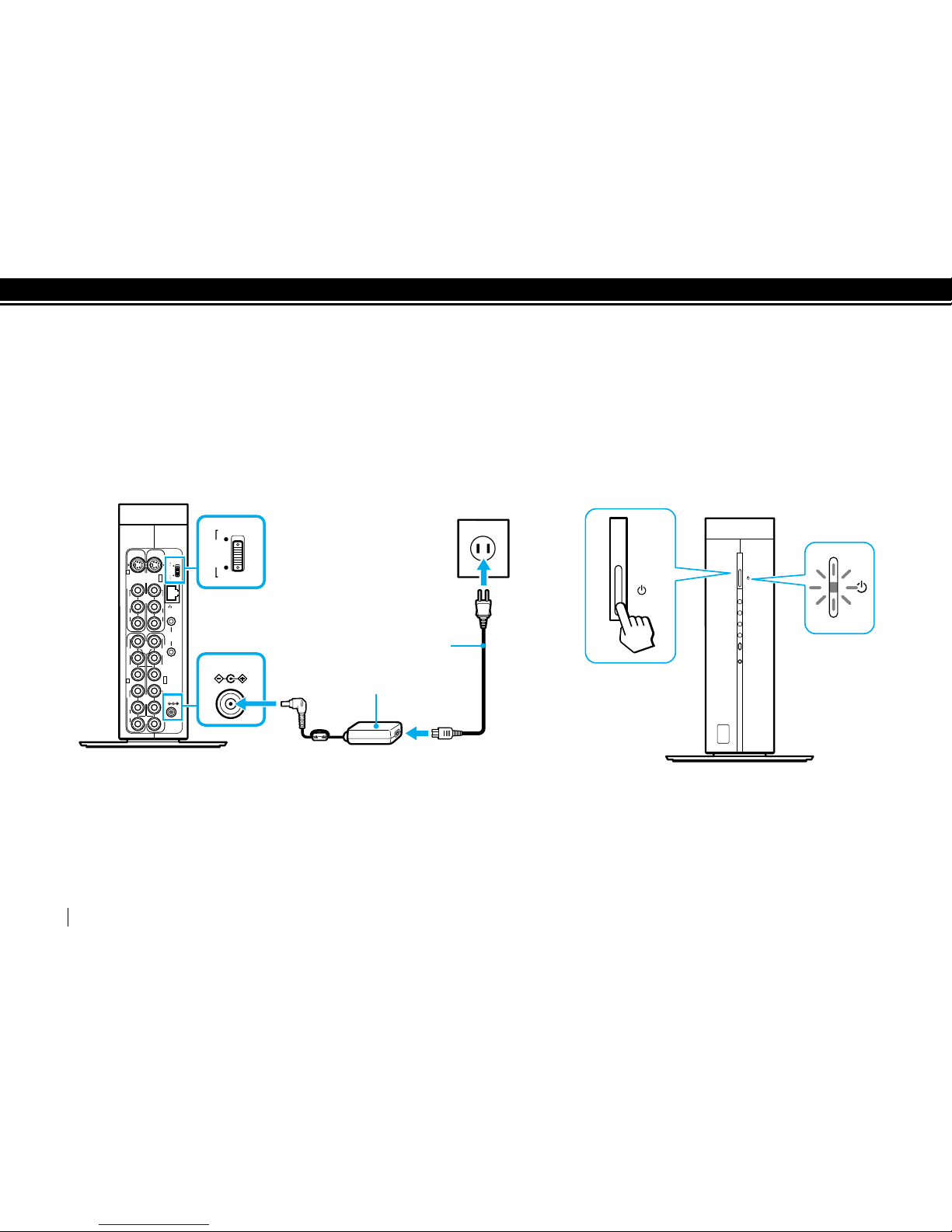

Plug in the Power Cord

Plug in the power cord.

Be sure to have the WLAN switch set to AP.

Turn the POWER on.

Sony LF-V30 3-273-933-11(1)

Connect your PC to a Router

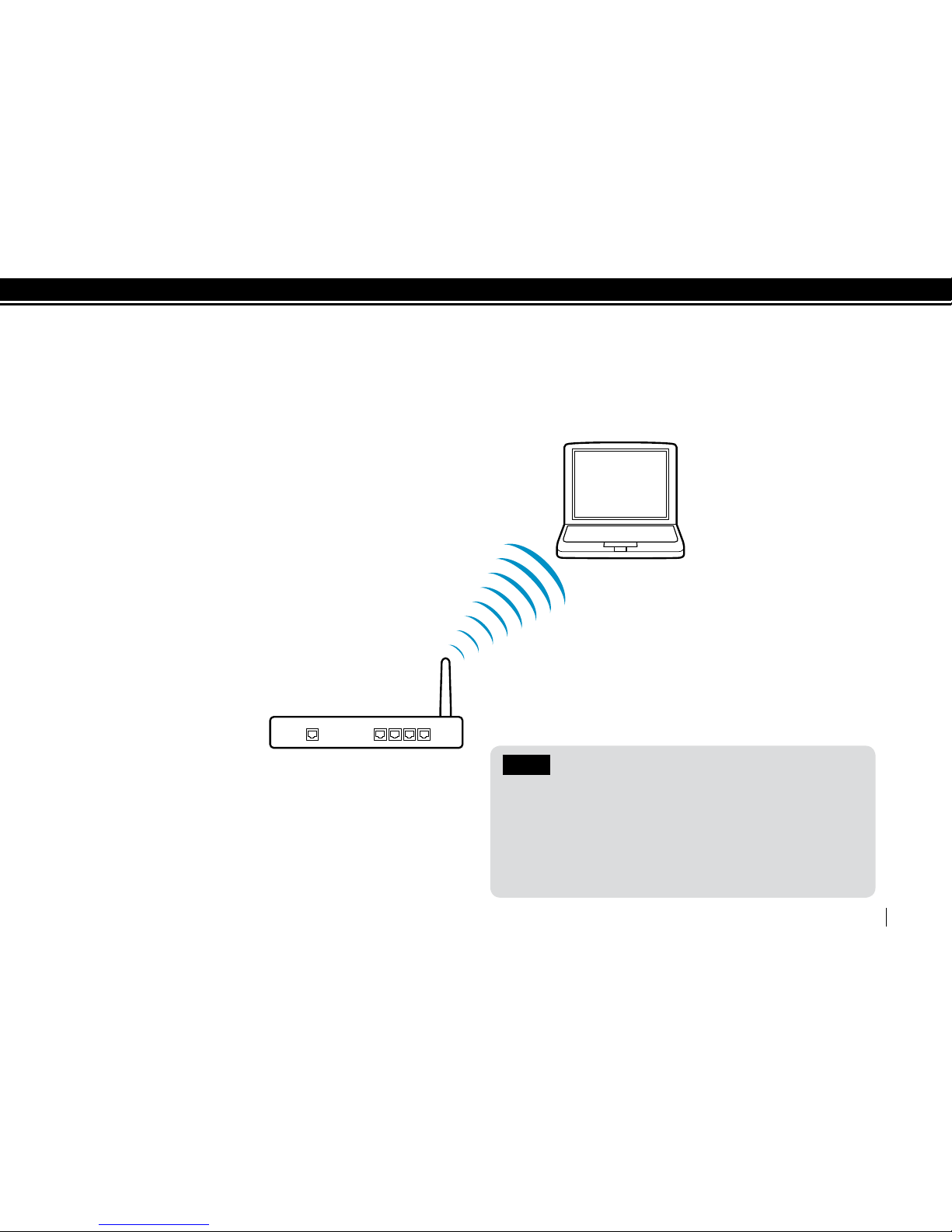

Connect your PC to the Router.

Wireless router

Notes

If your PC is already connected to your router, please skip

this step.

Please prepare your router SSID and encryption key (as

needed).

For details about setup or registration of your router, refer

to your router’s operating Instructions.

Sony LF-V30 3-273-933-11(1)

Position your PC near the Base Station

After connecting your PC to the router, position the PC near the Base Station.
