Welcome!

Welcome to the world of the MiniDisc!

Here are some of the capabilities and

features you’ll discover with the new

MiniDisc Recorder.

•Recording MD Walkman in an ultra-

compact body — Almost as small as a

playback-only MD Walkman; easy to

carry in your pocket or bag.

•Ultra-light body (MZ-R90) —

Magnesium lid for extra lightness.

•Ultra-compact body (MZ-R91) —

Fashionable design and colors.

•Low power consumption design — Less

drain and the longer service life for the

rechargeable battery.

•9-letter, backlit LCD remote control

with editing capabilities — You can now

label tracks and discs, change track

sequence, etc., with the easy-to-operate

stick remote control.

•Simultaneous labeling feature — No

more waiting for the recording to end;

you can label tracks and discs while the

MD is being recorded.

•Phrase bank function — Phrases that

you often use in track or disc names can

be stored in the recorder’s memory and

retrieved whenever you need them.

•Copying CD text — If you use a CD text

connecting cord (not supplied) to

connect a Joint Text-compatible

portable CD player to the recorder, CD

text data (such as track and disc names)

on the CD that is compatible to CD-

TEXT display will be recorded

automatically during recording.

•Shock-resistant memory — Offsets up

to 40 seconds of optical read errors.

•High-fidelity recording — Low-noise,

low-distortion, high-fidelity recording

through the optical digital input jack.

IN NO EVENT SHALL SELLER BE

LIABLE FOR ANY DIRECT,

INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF

ANY NATURE, OR LOSSES OR

EXPENSES RESULTING FROM

ANY DEFECTIVE PRODUCT OR

THE USE OF ANY PRODUCT.

WARNING

3-GB

•Digital synchro-recording — When

recording from a digital equipment with

optical output, the recorder

automatically starts and pauses

recording in sync with operation on the

digital source.

•Digital REC level control.

•Long-time recording with monaural

sound — You can record up to 160

minutes (when using 80 minutes

recordable MD) on a disc using

monaural recording.

•Date and time stamp function — The

built-in clock automatically records the

date and time whenever you make a

recording.

•Digital AGC (Auto Gain Control) —

Automatic recording level adjustment

without sacrificing superb digital sound.

This manual is for models MZ-

R90 and MZ-R91.

The MZ-R90 appears in the instructions

for illustration purposes. Though they

differ in appearance, the models share the

same functions and are operated in the

same way.

For detailed specifications, see page 49.

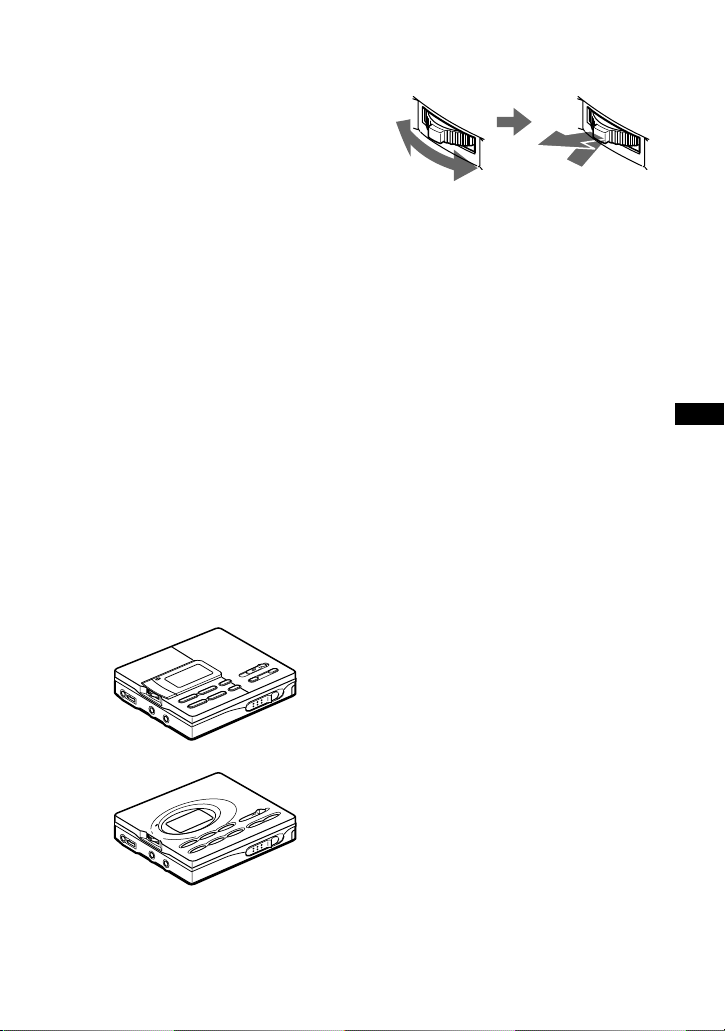

How to use the jog lever.

The jog lever can be used to perform

various operations during playback,

recording, and editing, as well as when

the recorder is stopped. Flip the jog lever

to select an item in the display. Then press

the jog lever to enter your selection.

About the i/LINE OUT jack on

the recorder.

The parameter (“AUDIO OUT”) for the

i/LINE OUT jack must be set to

“HeadPhone” if you want to connect

headphones other than the supplied set, or

to “LINE OUT” if you want to connect

another component to the recorder

through a line cable. There is no need to

make this when using the supplied

headphones with remote control since it is

done automatically.

To set the “AUDIO OUT” parameter for

the i/LINE OUT jack, do the following

procedure:

1Press the jog lever, flip until “AUDIO

OUT” flashes in the display, and then press

the lever again.

2Flip the jog lever until “HeadPhone” or

“LINE OUT” flashes in the display.

3Press the jog lever when the item you want

to select is flashing.

Notes

•When the “AUDIO OUT” parameter is set to

“LINE OUT”, the VOL +/– buttons and the

Mega Bass function become inoperative. To

make them operative, set the “AUDIO OUT”

parameter to “HeadPhone”.

•The “AUDIO OUT” parameter is

automatically set to “HeadPhone” when you

turn off the power.

MZ-R90

MZ-R91

Flip to select Push to enter

4-GB

Table of contents

Recording an MD right away! ........................... 6

Playing an MD right away! ................................9

Various ways of recording .............................. 12

Two ways of connecting to a sound source ..........................................12

Recording with digital (optical) input (optical cable required) ............13

To start/stop recording in sync with the source player

(Synchro-recording) ........................................................................14

Recording from a microphone ..............................................................15

Recording in monaural for double the normal recording time .............15

Adjusting the recording level manually (Manual recording) ................16

Checking the remaining time or the recording position .......................17

On the recorder ...............................................................................17

On the remote control .....................................................................19

Setting the clock to stamp the recorded time ........................................20

Copying CD text information while recording (Joint Text) ................21

Various ways of playback .............................. 23

Selecting a track directly .......................................................................23

Playing tracks repeatedly ......................................................................23

On the recorder ...............................................................................23

On the remote control .....................................................................24

Emphasizing bass (DIGITAL MEGA BASS) ......................................25

Protecting your hearing (AVLS) ...........................................................25

Checking the remaining time or the playing position ...........................26

On the recorder ...............................................................................26

On the remote control .....................................................................27

Locking the controls (HOLD) ...............................................................27

Connecting to a stereo system (LINE OUT) ........................................28

5-GB

Editing recorded tracks .................................. 29

Erasing tracks ....................................................................................... 29

To erase a track .............................................................................. 29

To erase the whole disc .................................................................. 29

Adding a track mark ............................................................................. 30

Erasing a track mark ............................................................................ 31

Moving recorded tracks ....................................................................... 31

On the recorder .............................................................................. 31

On the remote control .................................................................... 32

Labeling recordings .............................................................................. 32

On the recorder .............................................................................. 32

On the remote control .................................................................... 34

Storing phrases frequently used in labeling (Phrase Bank) ................. 35

On the recorder ............................................................................. 35

On the remote control .................................................................... 37

Power sources ................................................ 39

Charging the nickel metal hydride rechargeable battery ..................... 39

Using on a nickel metal hydride rechargeable battery ......................... 40

Using dry battery .................................................................................. 40

Additional information .................................... 41

Precautions ........................................................................................... 41

Troubleshooting ................................................................................... 43

System limitations ................................................................................ 45

Messages .............................................................................................. 46

Specifications ....................................................................................... 49

What is an MD? ................................................................................... 50

Looking at the controls ........................................................................ 52

6-GB

Recording an MD right away!

The sound will be sent from the connected equipment as analog signal

but will be recorded digitally on the disc. To record from a digital

source, see “Recording with digital (optical) input (optical cable

required)” (page 13). To record from an MD, see “Note on digital

recording” (page 42).

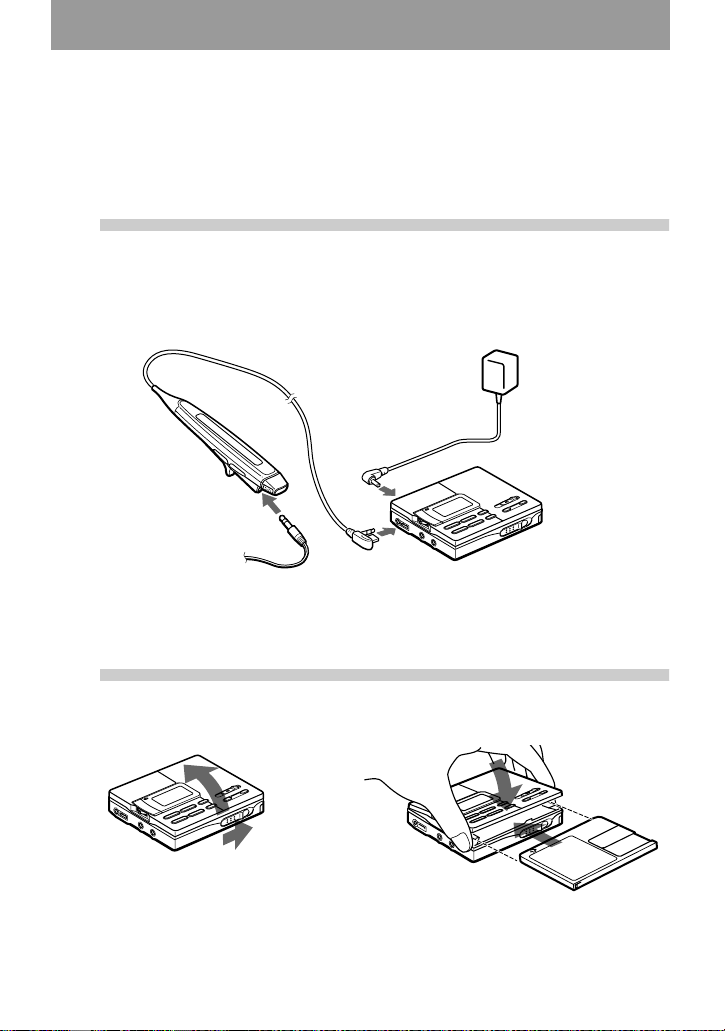

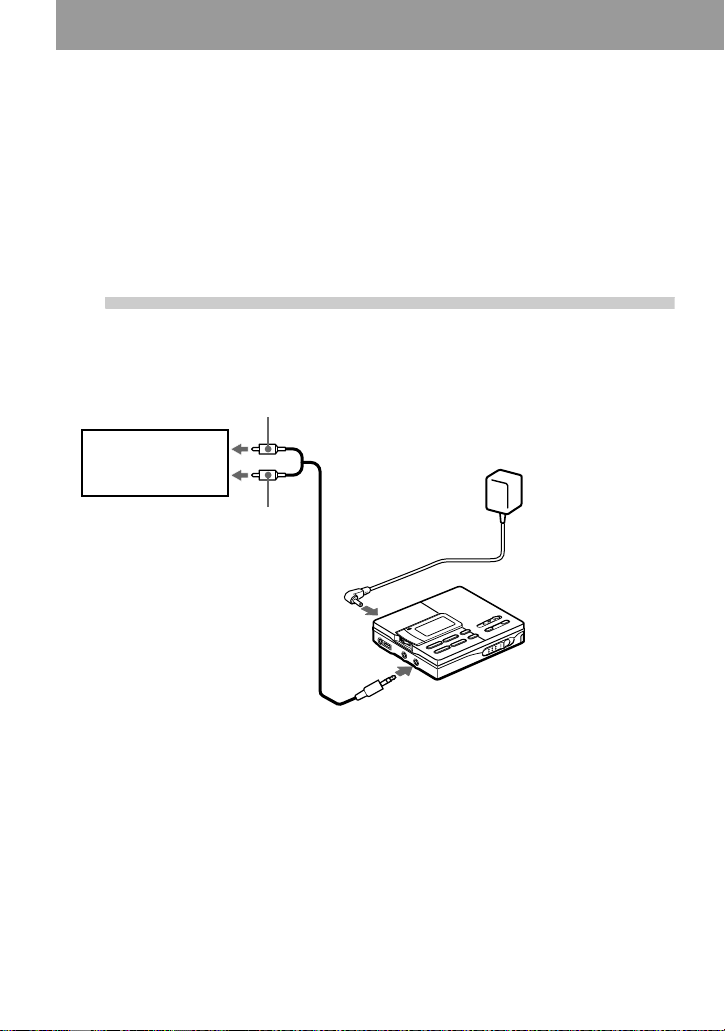

Make connections.

(Insert the cables

firmly and completely into the appropriate jacks.)

∗Use the connecting cords

without an attenuator. To

connect to a portable CD player

having a stereo mini-jack, use

the RK-G136 connecting cord

(not supplied).

CD player,

cassette recorder,

etc. (source)

to LINE OUT

R (red)

L (white)

Line cable

(RK-G129, not supplied)* to a wall outlet

AC power adaptor

(supplied)

to LINE IN (OPTICAL)

DC IN 3V

7-GB

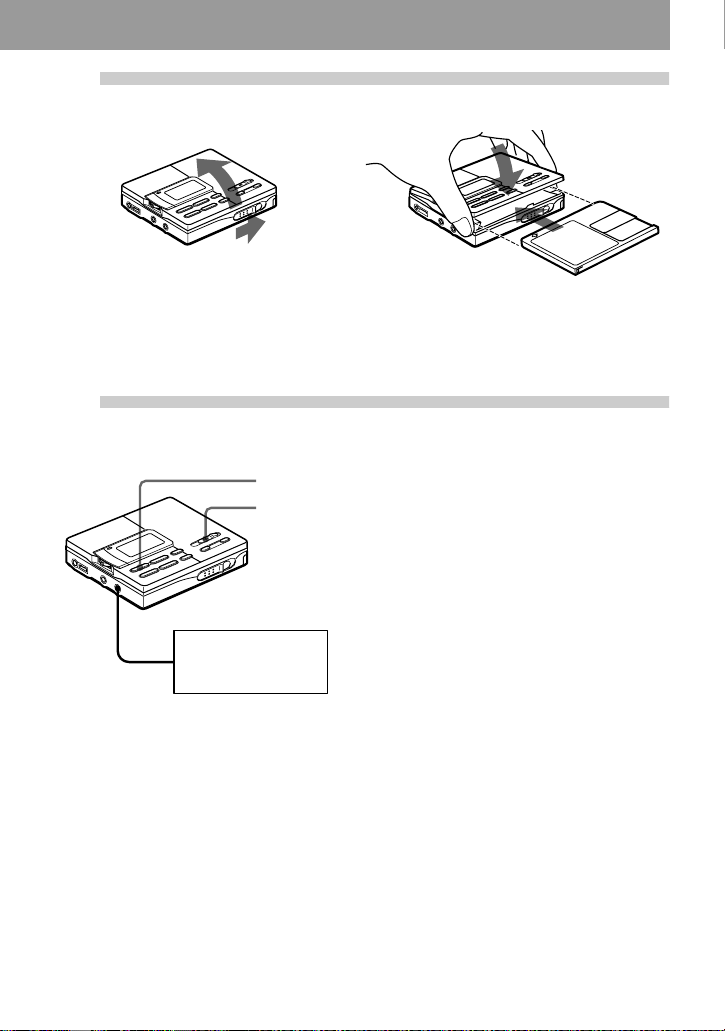

Insert a recordable MD.

1Slide OPEN to open the lid. 2Insert a recordable MD with the label

side facing up, and press the lid down

to close.

Record an MD.

1Slide REC to the right.

“REC” lights up and recording starts.

2Play the CD or tape you want to record.

To stop recording, press x.

After you press x, the recorder will

automatically turn off in about 10 seconds

(when using batteries) or about 5 minutes

(when using AC power adaptor).

Notes

•“Data Save” or “TOC Edit” flashes while data

of the recording (the track’s start and end

points, etc.) is being recorded. Do not move or

jog the recorder or disconnect the power

source while the indication is flashing in the

display.

•The lid does not open until “TOC Edit”

disappears in the display.

REC

CD player, cassette

recorder, etc.

(source)

8-GB

If the recording does not start

•Make sure the recorder is not locked

(page 27).

•Make sure the MD is not record-protected

(page 42).

•Premastered MDs cannot be recorded over.

For models supplied with the AC plug

adaptor

If the AC power adaptor does not fit the wall

outlet, use the AC plug adaptor.

Note

If the power supply is disrupted (i.e. the battery

is removed or becomes exhausted or the AC

power adaptor is disconnected) during a

recording or editing operation, or while “TOC

Edit” appears in the display, then it will not be

possible to open the lid until power is restored.

•The level of the recorded sound is adjusted

automatically.

•You can monitor the sound during recording.

Connect the supplied headphones with remote

control to i/LINE OUT and adjust the

volume by pressing VOL +/–. This does not

affect the recording level.

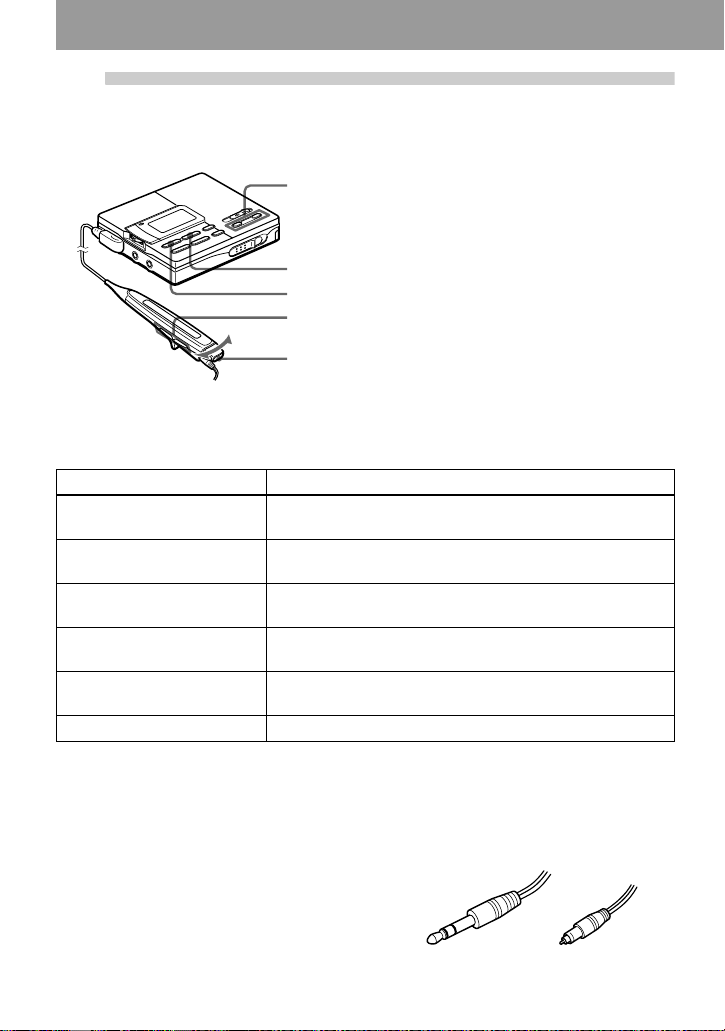

To Press

Record from the end of the previous

recording

END SEARCH and slide REC.

Record partway through the previous

recording

N, >or .to find the start point of

recording and press xto stop. Then slide

REC.

Pause X1)

Press Xagain to resume recording.

1) A track mark is added at the point where you press Xagain to resume recording while pausing; thus

the remainder of the track will be counted as a new track.

Remove the MD xand open the lid.2) (The lid does not open

while “TOC Edit” flashing in the display.)

2) Once you open the lid, the point to start recording will change to the beginning of the first track. Check

the point to start recording on the display.

9-GB

Playing an MD right away!

To use the recorder on a rechargeable battery or dry batteries, see

“Power sources” (page 39).

Make connections.

(Insert the cables

firmly and completely into the appropriate jacks.)

Insert an MD.

1Slide OPEN to open the lid. 2Insert an MD with the label side facing

up, and press the lid down to close.

Headphones with

a remote control

(supplied)

to i/LINE OUT

to DC IN 3V

to a wall outlet

AC power adaptor

(supplied)

10-GB

Play an MD.

1Press N(Press the control towards

N•>on the remote control).

A short beep sounds in the headphones

when you operate on the remote control.

2Press VOL +/– to adjust the volume.

The volume will be shown in the

display.

To stop play, press x.

A long beep sounds in the headphones when

you operate on the remote control.

Playback starts from the point you last stopped

playing.

After you press x, the recorder will

automatically turn off in about 10 seconds

(when using batteries) or about 5 minutes

(when using AC power adaptor).

If the play does not start

Make sure the recorder is not locked (page 27).

When using optional headphones

•Use only headphones with stereo mini plugs.

You cannot use headphones with micro plugs.

VOL +/–

To Press (Beeps in the headphones)

Find the beginning of the

current track

.once (Press the control towards .on the remote

control). (Three short beeps)

Find the beginning of the

next track

>once (Press the control towards N•>on the

remote control). (Two short beeps)

Pause X(Continuous short beeps)

Press Xagain to resume play.

Go backwards while

playing1)

keep pressing .(Press and hold the control towards

.on the remote control)

Go forward while playing1) keep pressing >(Press and hold the control towards

N•>on the remote control)

Remove the MD xand open the lid.2)

1) To go backward or forward quickly without listening, press Xand keep pressing .or >(press

and hold the control towards .or N•>on the remote control).

2) Once you open the lid, the point to start play will change to the beginning of the first track.

Stereo mini plug Micro plug

Autres manuels pour MD Walkman MZ-R91

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Lecteur CD

Sony

Sony CDX-F5705X - Fm/am Compact Disc Player Guide produit

Sony

Sony D-E400 Manuel utilisateur

Sony

Sony CDP-X339ES Manuel utilisateur

Sony

Sony D-SJ01 - Sports Discman Manuel utilisateur

Sony

Sony CDP-C500 Manuel utilisateur

Sony

Sony CDX-828 - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-GT30RN Manuel utilisateur

Sony

Sony CDX-GT315C Manuel utilisateur

Sony

Sony CFD-ZW700 - Cd Radio Cassette-corder Manuel utilisateur

Sony

Sony CDP-M333ES - Es 400 Disc Cd Changer Guide de l'utilisateur

Sony

Sony CDX-530RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-C5850 - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony Walkman D-NE820LS Manuel utilisateur

Sony

Sony CFD-ZW750 - Cd Radio Cassette-corder Manuel utilisateur

Sony

Sony CFD-V20 Manuel utilisateur

Sony

Sony CDP-CX400 - Compact Disc Player Manuel utilisateur

Sony

Sony CDX-GT510 - Fm-am Compact Disc Player Manuel utilisateur

Sony

Sony CDP-M400CS Operating Instructions ... Manuel utilisateur

Sony

Sony CDX-GT620UI Manuel utilisateur

Sony

Sony CDP-CX350 - 300 Disc Cd Changer Manuel utilisateur

Sony

Sony Discman D-E446CK Manuel utilisateur

Sony

Sony CD Walkman D-EJ100 Manuel utilisateur

Sony

Sony DVP-SR510P Manuel utilisateur

Sony

Sony DVP-FX811K - Portable Cd/dvd Player Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur

Pioneer

Pioneer CLD-D790 Manuel utilisateur
