Sony CDX-C7OOOX Guide produit

S ON"_ 3-o,3.278.,,_,_

FM/AM

CompactDisc

Player

Installation/Connections

CDX-C7OOOX

CDX-C5OOOX

CDX-C5005

Parts list

The numbers in the list are keyed to those

in the instructions.

if) @

® @ @

×2 x4

® @

Caution

Cautionary notice for handling the bracket

®.

Handle the bracket carefully to avoid

injuring your fingers.

Connections

Cautions

• This unit is designed for negative earth 12 V DC

operation only.

• Be careful not to pinch any wires between the

screw and the body of the car, or this unit, or

between any moving parts such as the seat

railing, etc.

• Connect the yellow and red power input leads

only after all other leads have been connected.

• Be sure to connect the red power input lead to

the positive 12 V power terminal which is

energized when the ignition key is in the

accessory position.

•Run all ground wires to acommon earth

surface.

•Connect the yellow cord to a free car circuit

rated higher than the unit's fuse rating, lfyou

connect this unit in series with other stereo

components, the car circuit they are connected to

must be rated higher than the sum of the

individual component's fuse rating. If there are

no car circuitS rated as high as the unit's fuse

rating, connect the unit directly to the battery. If

no car circuits are available for connecting this

unit. connect the unit to a car circuit rated higher

than the unit's fuse rating in such a way that if

the unit blows its fuse, no other circuits will be

cut off.

• The use of optical instruments with this product

will increase eye hazard.

Warning when installing in a car

without ACC (accessory) position

on the ignition key switch

Be sure to press (_ on the unit for two

seconds to turn off the clock display after

turning off the engine,

When you press _ only momentarily, the

clock display does not turn off and this causes

battery wear.

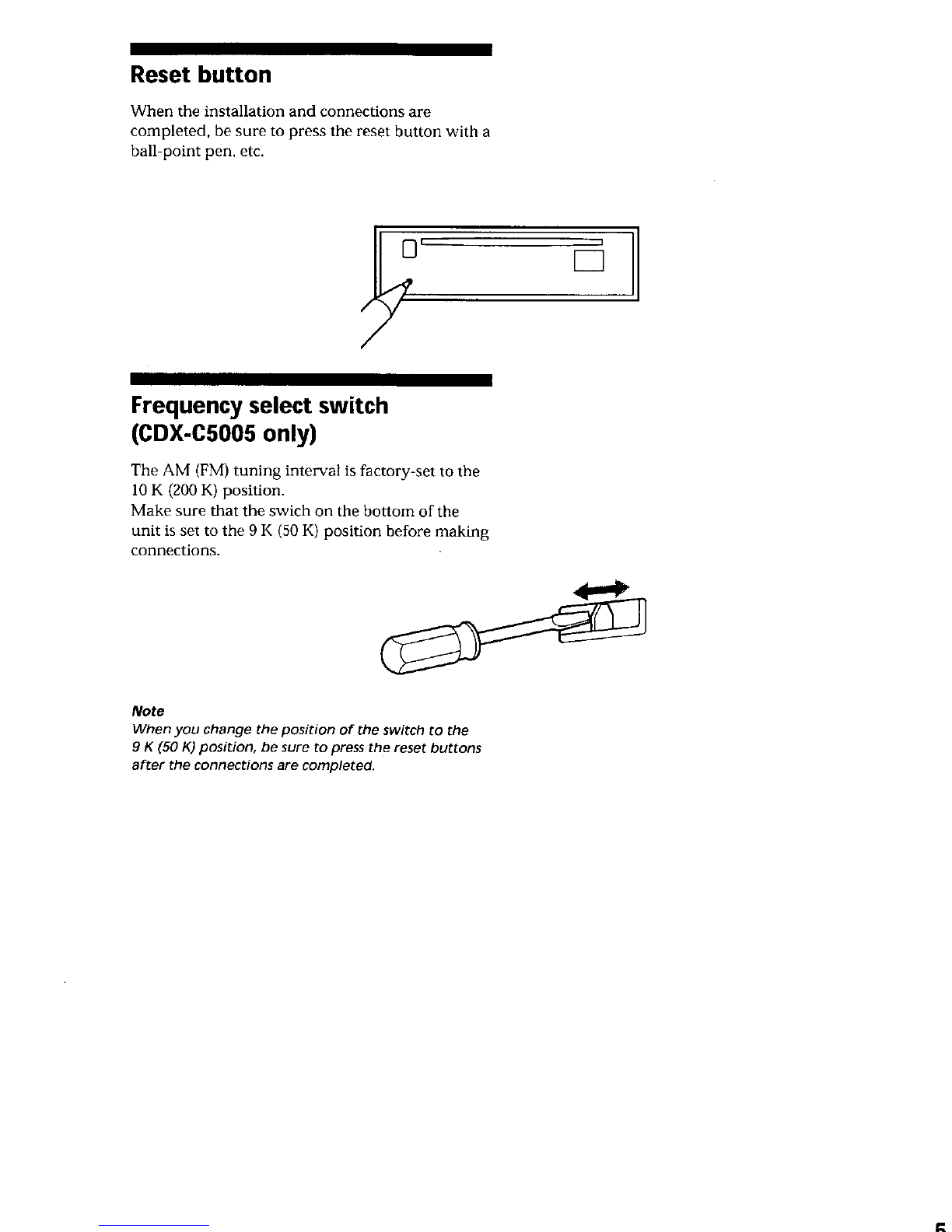

Reset button

When the installation and connections are

completed, be sure to press the reset button with a

ball-point pen. etc.

Frequency select switch

(CDX.C5005only)

The AM (FM) tuning interval is factory-set to the

10 K (200 K) position.

Make sure that the swich on the bottom of the

unit is set to the 9 K (50 K) position before making

connections.

Note

When you change the position of the switch to the

9 K (50 K) position, be sure to press the reset buttons

after the connections are completed.

Connection diagram

Equipment used in illustrations

(not supplied)

OFront speaker

Haut-parleurs avant

Power amplifier

Amplificateur de

puissance

Rearspeaker

Haut-parleurs arriere CD/MD changer

Changeur de CD/MD

Active subwoofer

Subwoofer actif

"IV monitor

Moniteur de

la t_le_vision

Note

For connecting two or more CD/MD changers, the

source selector XA-C30 (optional) is necessary

Notes

•For connecting two or more CD/MD changers, the

source selector XA-C30 (optional) is necessary.

•Be sure to connect the earth cord before

connecting the amplifier.

• If you connect an optional power amplifier and

do not use the built-in amplifier, the beep sound

will be deactivated.

Connection example

Front speakers

Haut-parleur avant

RCA pin cord (not supplied)

Cordon _broche RCA (non fourni)

Rear speakers

Haut-parleur arribre

RCA pin cord (not supplied)

Cordon bbroche RCA (non fourni)

CDX-C70OOXonly !

CDX.C70OOXseulement I

from car antenna

de rantenne de la voiture Bluelwhite striped

To AMP REMOTE IN of an optional

power ampfifier

This connection isonly t_oramplifiers.

Connecting any other system may

damage the unit

AMP REM Max. supply current 0.3 A

Courant max. fourni 0.3 A

Left

Gauche

White

Blanc

Black-striped

Light

Bleu ci

Blue

Bleu

Max, s

Coura

diedwithXA-C30

FourniavecleXA-C30

SuppliedwiththeCD/MDchanger

Fourniaveclechangeur de CD/MD

Insert with the cord upwards.

Insdrez avec le cable vers le haut.

Rotary commander RM-X4S (not supplied)

Satellite de commande RM-X4S (non fourni)

Fuse (10 A)

Fusible (10 A)

Light blue

Bleu ciel

Blue

Bleu

Max. supply current 0.1 A

Courant max. foumi 0,1 A ANT REM

to the interface cable of a car telephone

ATT vers le cordon de liaison d'un t(_l_phone de voiture

to the power antenna control lead or power supply lead of antenna

booster amplifier

Notes

•It is not necessary to connect this lead if there is no power antenna or

antenna booster, or with a manually-operated telescopic antenna.

•When your car has a built-in FM/AM antenna in the rear/side glass, see

"Notes on the control and power supply leads."

to the +12 V power terminal which is energized in the accessory

position of the ignition key switch q

Left

Gauche

Frontspeake_

Haut-parleurs avant

Right

Droit

Le_

Gauche

Rearspeakers

Haut-parleu_ arribre

Right

Droit

White

Blanc

Black-striped

Noir raye

Gray

Gris

Black-striped

Noir raye

Green

Vert

Black-striped

Noir raye

Purple

Mauve

Black-striped

Noir raye

Red

Rouge

Yellow

Jaune

Black

Noir

Notes on the control and power supply leads

•The power antenna contro! lead (blue) suppfies + 12 V DC when you turn on the tuner.

•When your car has built-in FM/AM antenna in the rear/side glass, it is necessary to connect the power antenna

control lead (blue) or the accessory power input lead (red) to the power terminal of the existing antenna booster.

For details, consult your dealer.

•A power antenna without relay box cannot be used with this unit.

Memory hold connection

When the yellow power input lead is connected, power will always be supplied to the memory circuit even when

the ignition key is turned off.

Notes on speaker connection

• Before connecting the speakers, turn the unit oF_

• Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities. Otherwise, the

speakers may be damaged.

• Do not connect the terminals of the speaker system to the car chassis, and do not connect the terminals of the

right speaker with those of the left speaker.

• Do not attempt to connect the speakers in parallel.

•Do not connect any active speakers (with built-in amplifiers) to the speaker terminal5 of the unit. Doing so may

damage the active speakers. Therefore, be sure to connect passive speakers to these terminals.
