Welcome !

Thank you for purchasing the Sony Compact

Disc Player. This unit lets you enjoy a variety

of features.

Table of Contents

Location of controls ................................................. 3

Getting Started

Resetting the unit ................................................ 4

Setting the clock .................................................. 4

CD Player

Listening to a CD ................................................ 5

Playing a CD in various modes ........................ 5

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM) ................... 6

Memorizing only the desired stations ............. 6

Receiving the memorized stations.................... 6

Other Functions

Adjusting the sound characteristics ................. 7

Turning on the clock display

— Power Select Function .............................. 7

Changing the sound and beep sound .............. 8

Additional Information

Precautions........................................................... 8

Maintenance......................................................... 9

Dismounting the unit ....................................... 10

Specifications ..................................................... 11

Troubleshooting guide ..................................... 12

Location of controls

Refer to the pages for details.

1SEEK/AMS (seek/Automatic Music

Sensor/manual search) control 5, 7

2MODE (band select) button 6

3SOURCE (source select) button 5, 6

4Dial (volume/bass/treble/left-right/

front-rear control) 4, 7

5SOUND button 4, 7, 8

6Display window

7SENS/BTM (sensitivity adjust/Best

Tuning Memory) button 6, 7

86(eject) button 5

9DSPL (display mode change/time set)

button 4, 5, 7

0Reset button 4

!¡ OFF button 5, 7

!™ Frequency select switch (located on the

bottom of the unit)

See “Frequency select switch” in the

Installation/Connections manual.

!£ During radio reception:

Number buttons 6

During CD playback:

(1) REPEAT button 5

(2) SHUF button 5

!¢ D-BASS control 8

REPEAT

SEEK/AMS

SOUND

OFF

SENS DSPL

123456

D - BASS

OFF

123

MODE

SHUF

BTM

SOURCE

CDX-3500

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ballpoint pen.

Notes

• Pressing the reset button will erase the clock

setting and some memorized programme and

memory functions.

• When you connect the power supply cord to the

unit or reset the unit, wait for about 10 seconds

before you insert a disc. If you insert a disc within

these 10 seconds, the unit will not be reset, and

you will have to press the reset button again.

Reset button

Setting the clock

The clock has a 12-hour digital indication.

Example: To set the clock to 10:08

1Press (DSPL) during operation.

If the POWER SELECT function is set to

“ON,” go to step 2. If it is set to “OFF,” set

to “ON” (page 7).

2Press (DSPL) for two seconds.

The hour indication flashes.

1Set the hour.

2Press (SOUND).

The minute indication flashes.

3Set the minute.

3Press (DSPL).

The clock is starts.

Note

If the car has no accessory position on the ignition

key switch, the clock cannot be set unless the

power is turned on. Set the clock after you have

turned on the radio, or started CD playback.

To go forward

To go backward

To go forward

To go backward

SOURCE

Elapsed playing time

To locate succeeding

tracks

To locate preceding

tracks

To search backward

To search forward

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS

control up or down and release for each

track you want to skip.

Locating a specific point in a track

— Manual Search

During playback, push the SEEK/AMS

control up or down and hold for about

two seconds. Release when you have

found the desired point.

Note

If “ ” or “ ” appears in the

display, you have reached the beginning or the

end of the disc and you cannot go any further.

Playing a CD in various

modes

Playing tracks repeatedly

— Repeat Play

Press (1) during playback.

“REP” appears in the display.

When the current track is over, it will play

again from the beginning.

To return to normal mode, press again.

Playing tracks in random order

— Shuffle Play

Press (2) during playback.

“SHUF” appears in the display.

To return to normal mode, press again.

SEEK/AMS

CD Player

Listening to a CD

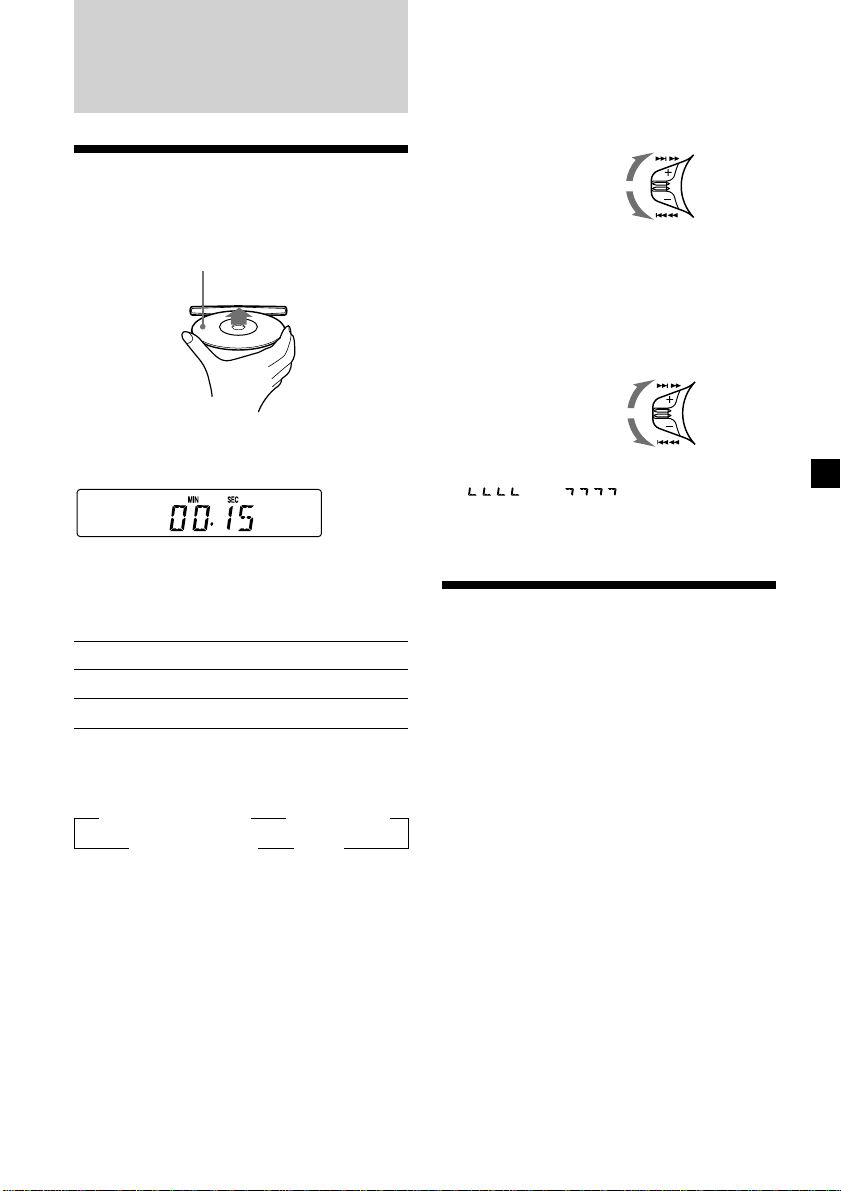

Insert a CD.

Playback starts automatically.

If a CD is already inserted, press (SOURCE)

repeatedly until “CD” appears to start

playback.

Note

To play back an 8 cm CD, use the optional Sony

compact disc single adapter (CSA-8).

To Press

Stop playback 6or (OFF)

Eject the CD 6

Changing the display item

Each time you press (DSPL) during CD

playback, the item changes as follows:

zElapsed playing time zTrack number

MOTION DISPLAY*ZClock Z

*All the above items are scrolled in the display

one by one in order.

Label side up

”FM I ” FM II ”FM III ”AM

Radio

Memorizing stations

automatically

— Best Tuning Memory (BTM)

This unit selects the stations with the strongest

signals and memorizes them in the order of

their frequencies. You can store up to 6 stations

on each band (FM I, FM II, FM III, and AM).

Caution

When tuning in stations while driving, use

Best Tuning Memory to prevent accidents.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the mode

changes as follows:

CD ˜TUNER

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the band

changes as follows:

3Press (SENS/BTM) for two seconds.

The unit stores stations in the order of their

frequencies on the number buttons.

A beep sounds when the setting is stored.

Notes

•The unit does not store stations with weak

signals. If only a few stations can be received,

some number buttons will retain their former

setting.

•When a number is indicated in the display, the

unit starts storing stations from the one currently

displayed.

•If a CD is not in the unit, only the tuner band

appears even if you press (SOURCE).

Memorizing only the

desired stations

You can store up to 6 stations on each band (a

total of 18 for FM I, FM II, and FM III, and 6 for

AM) in the order of your choice.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Push the SEEK/AMS control up or down

to tune in the station that you want to

store on the number button.

4Press and hold the desired number

button ((1) to (6)) until “MEM” appears.

The number button indication appears in

the display.

Note

If you try to store another station on the same

number button, the previously stored station will

be erased.

Receiving the memorized

stations

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press the number button ((1) to (6)) on

which the desired station is stored.

Other Functions

Adjusting the sound

characteristics

You can adjust the bass, treble, balance, and

fader. You can store the bass and treble levels.

1Select the item you want to adjust by

pressing (SOUND) repeatedly.

BAS (bass) nTRE (treble) n

BAL (left-right) nFAD (front-rear) n

VOL (volume)

2Adjust the selected item by rotating the

dial.

Adjust within three seconds after selecting

the item. (After three seconds, the dial

function reverts to volume control.)

Turning on the clock

display — Power Select Function

Only for cars with an accessory position on the

ignition key switch

To turn the Power Select Function ON

Press (OFF) while pressing (SOUND).

The Power Select Function ties the clock

display power to the accessory position on

the ignition key switch.

To avoid battery wear, the clock is not

displayed while the unit is initializing.

If you cannot tune in a preset

station

Push and release the SEEK/AMS control

up or down to search for the station

(automatic tuning).

Scanning stops when the unit receives a

station. Push the SEEK/AMS control up or

down repeatedly until the desired station is

received.

Note

If the automatic tuning stops too frequently, press

(SENS/BTM) repeatedly until “LCL” (local seek

mode) is displayed. Only the stations with

relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want

to listen to push the SEEK/AMS control up or down

and hold until the desired frequency appears

(manual tuning).

If FM stereo reception is poor

— Monaural Mode

Press (SENS/BTM) repeatedly until

“MONO” appears.

The sound improves, but becomes

monaural (“ST” disappears).

To return to normal mode, press again until

“MONO” disappears.

Changing the display item

Each time you press (DSPL), the item changes

as follows:

zFrequency zClock

MOTION DISPLAY*Z

*All the above items are scrolled in the display

one by one in order.

Changing the sound and

beep sound

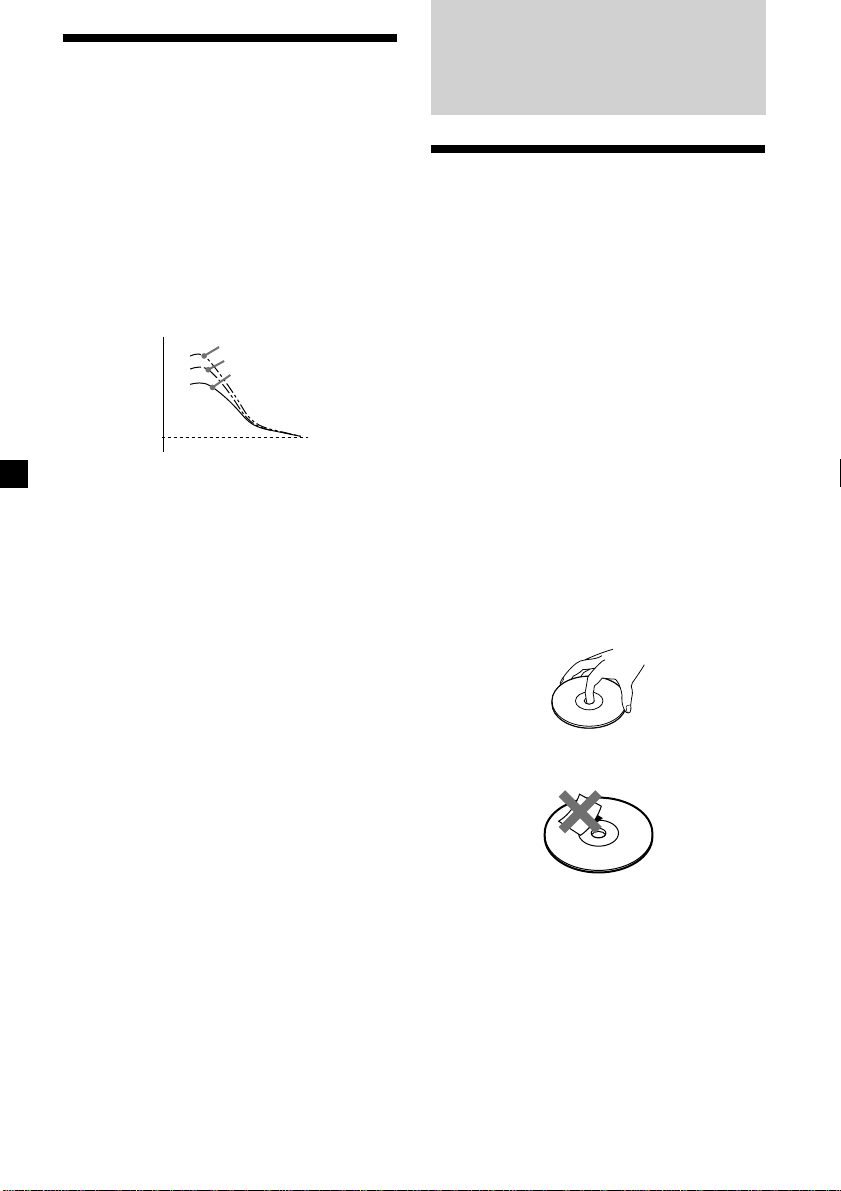

Boosting the bass sound — D-bass

You can enjoy a clear and powerful bass

sound.

The D-bass function boosts the low frequency

signal with a sharper curve than conventional

bass boost.

You can hear the bass line more clearly even

while the vocal remains at the same volume.

You can emphasize and adjust the bass sound

easily with the D-BASS control. This is similar

in effect to an optional subwoofer system.

Level

Frequency (Hz)

Adjusting the bass curve

Turn the D-BASS control to adjust the

bass level (1, 2, or 3).

“D-BASS” appears in the display.

To cancel, turn the control to OFF.

Note

If the bass sound becomes distorted, adjust the

D-BASS control or volume.

Cancel the beep sound

Press (6) while pressing (SOUND).

To obtain the beep sound again, press these

buttons again.

Note

If you connect an optional power amplifier and do

not use the built-in amplifier, the beep sound will

be deactivated.

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Additional

Information

Precautions

• If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

• If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

• If no sound comes from the speakers of a

two-speaker system, set the fader control to

the centre position.

•If your car is equipped with a power aerial, it

will extend automatically while the unit is

operating.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

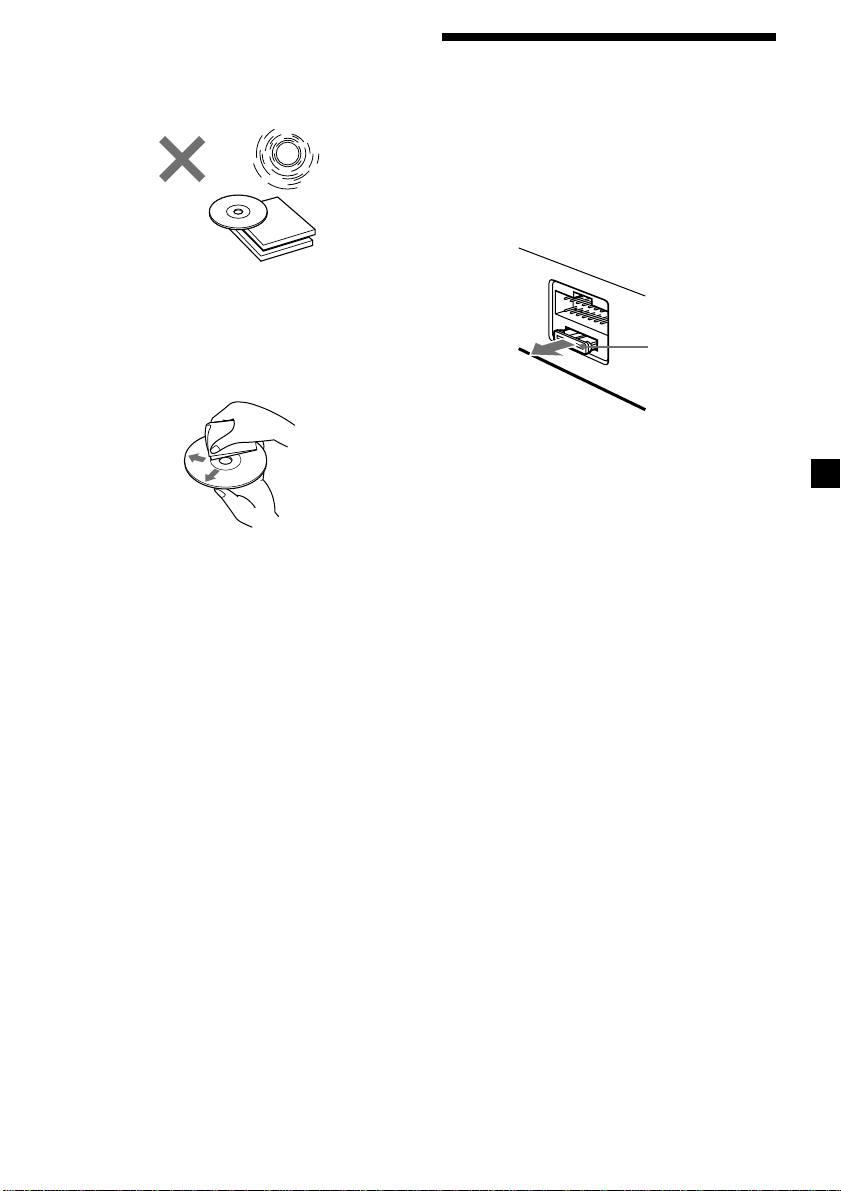

Notes on handling CDs

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc by its edge. To keep the

disc clean, do not touch the surface.

Do not stick paper or tape on the labelled

surface.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in temperature

inside the car.

Before playing, clean the discs with an optional

cleaning cloth. Wipe each disc from the centre

out.

Do not use solvents such as benzine, thinner,

commercially available cleaners, or antistatic

spray intended for analog discs.

Notes on moisture condensation

On a rainy day or in a very damp area,

moisture may condense on the lenses inside

the CD player. Should this occur, the unit will

not operate properly. In this case, remove the

disc and wait for about an hour until the

moisture evaporates.

When you play 8 cm CDs

Use the optional Sony compact disc single

adapter (CSA-8) to protect the CD player from

damage.

Fuse (10 A)

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one

matching the amperage rating stated on the

original fuse. If the fuse blows, check the

power connection and replace the fuse. If the

fuse blows again after replacement, there may

be an internal malfunction. In such a case,

consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating

exceeding the one supplied with the unit as

this could damage the unit.

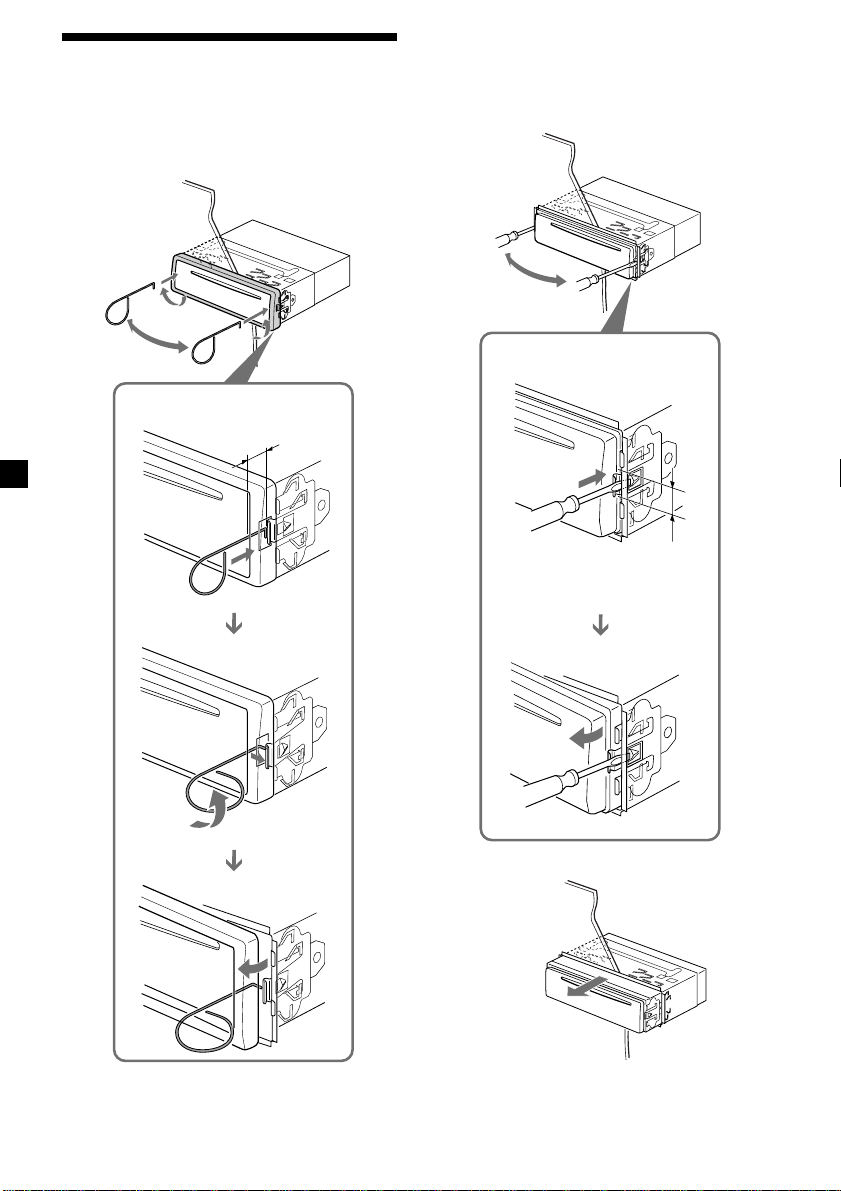

Dismounting the unit

1Insert the supplied tool between the unit

and the frame, and rotate 90° to release

the hidden mounting spring. Repeat on

the opposite side and remove the frame.

2Insert a flathead screwdriver between

the bracket and mounting spring. Gently

pry the spring toward the unit while

pulling the unit out a little. Repeat on

the opposite side and remove the unit.

90°

10 mm

4 mm

Table des matières

Langues :

Autres manuels Sony Lecteur CD

Sony

Sony CDP-62OES Manuel utilisateur

Sony

Sony D-FJ787 Marketing Manuel utilisateur

Sony

Sony D-NE005 - CD Walkman Manuel utilisateur

Sony

Sony CDX-424RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony CFD ZW755 - Portable CD / Cassette Manuel utilisateur

Sony

Sony CFD-E75 Marketing Manuel utilisateur

Sony

Sony CDX-C7050X Product Guide Manuel utilisateur

Sony

Sony CDX-GT255 Manuel utilisateur

Sony

Sony CDP-XE800 Manuel utilisateur

Sony

Sony CDP-C705 Manuel utilisateur

Sony

Sony CDX-4000X - Fm/am Compact Disc Player Guide produit

Sony

Sony Walkman D-192CK Manuel utilisateur

Sony

Sony CDX-C8050X - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CFD-V15 - Cd Radio Cassette-corder Manuel utilisateur

Sony

Sony CFD-E70L Manuel utilisateur

Sony

Sony CD Walkman D-NE509 Manuel utilisateur

Sony

Sony Discman D-F411 Manuel utilisateur

Sony

Sony CDP-CX400 - Compact Disc Player Manuel utilisateur

Sony

Sony CDX-705 - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-R88 Manuel utilisateur

Sony

Sony CFD G505 - Xplod Boombox Manuel utilisateur

Sony

Sony CDP-CE575 - Disc Carousel Manuel utilisateur

Sony

Sony Walkman D-E225 Manuel utilisateur

Sony

Sony CFD-E55 Operating Instructions (primary... Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur

Pioneer

Pioneer CLD-D790 Manuel utilisateur
