SON'S,

FM/AM

Compact Disc

Player

Installation/Connections

CDX- 1200

Sony Corporation @2000

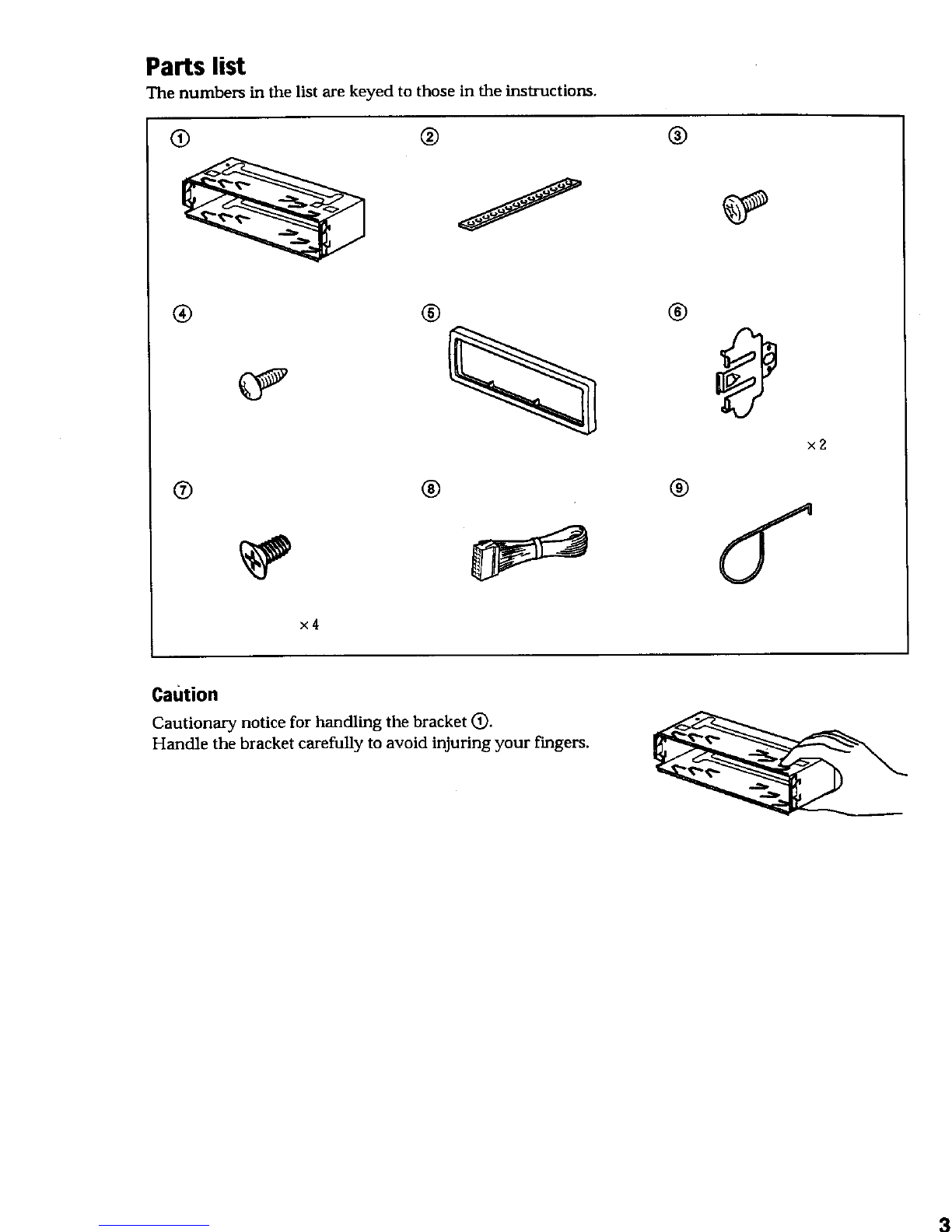

Parts list

The numbers in the list are keyed to those in the instructions.

0 @ ®

® ® ®

®®

Caution

Cautionary notice for handling the bracket O.

Handle the bracket carefully to avoid injuring your fingers.

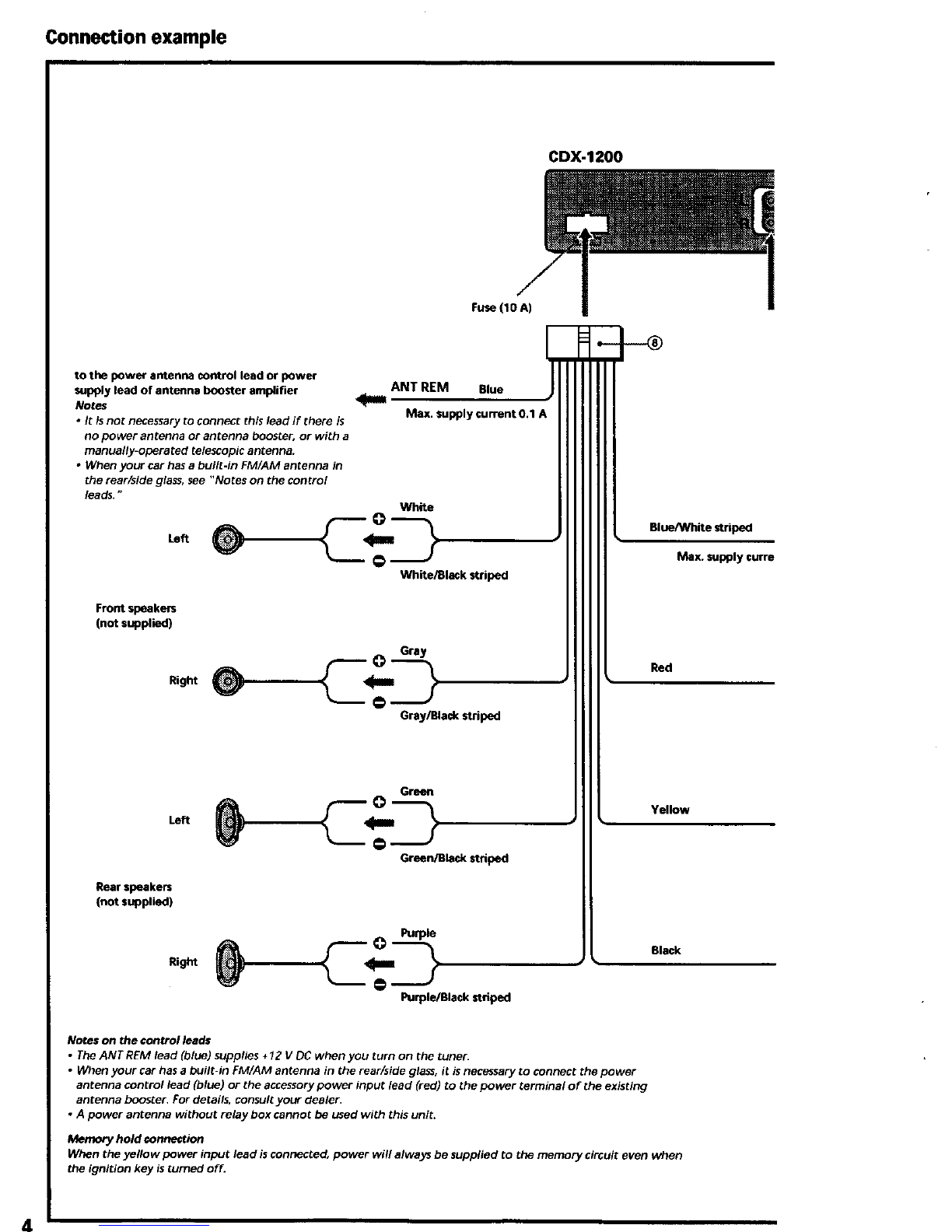

Connection example

CDX-1200

to the power antenna control lead or power

supply lead of antenna booster amplifier

Notes

•It isnot necessary to connect this lead if there is

no power antenna or antenna booster, or with a

manually-operated telescopic antenna.

• When your car has a built-in FM/AM antenna in

the rear/side glass, see "Notes on the control

leads."

Left

Front speakers

(not supplied)

Right

Left

Bear speakers

(not supplied)

Right

Fuse(lo A)

ANT REM Blue

Max. supply current 0.1 A

White

White/Black striped

Gray

Gray/Black striped

Green

C+D

Gr_B_ck _d_

0Purple

C- D

Purple/Black stdped

Blue/White striped

Max. supply curre

Red

Yellow

Black

Nntes on the control leads

•The ANT REM lead (blue) supplies ÷ 12 V DC when you turn on the tuner.

•When your car has a built-in FM/AM antenna in the rear/side glass, it is necessary to connect the power

antenna control lead (blue) or the accessory power input lead (red) to the power terminal oF the existing

antenna booster. For details, consult your dealer,

•A power antenna without relay box cannot be used with this unit.

Memory hold connection

When the yellow power input lead is connected, power will always be supplied to the memory circuit even when

the ignition key is turned off.

1200

from car antenna

Rear speakers

(not supplied)

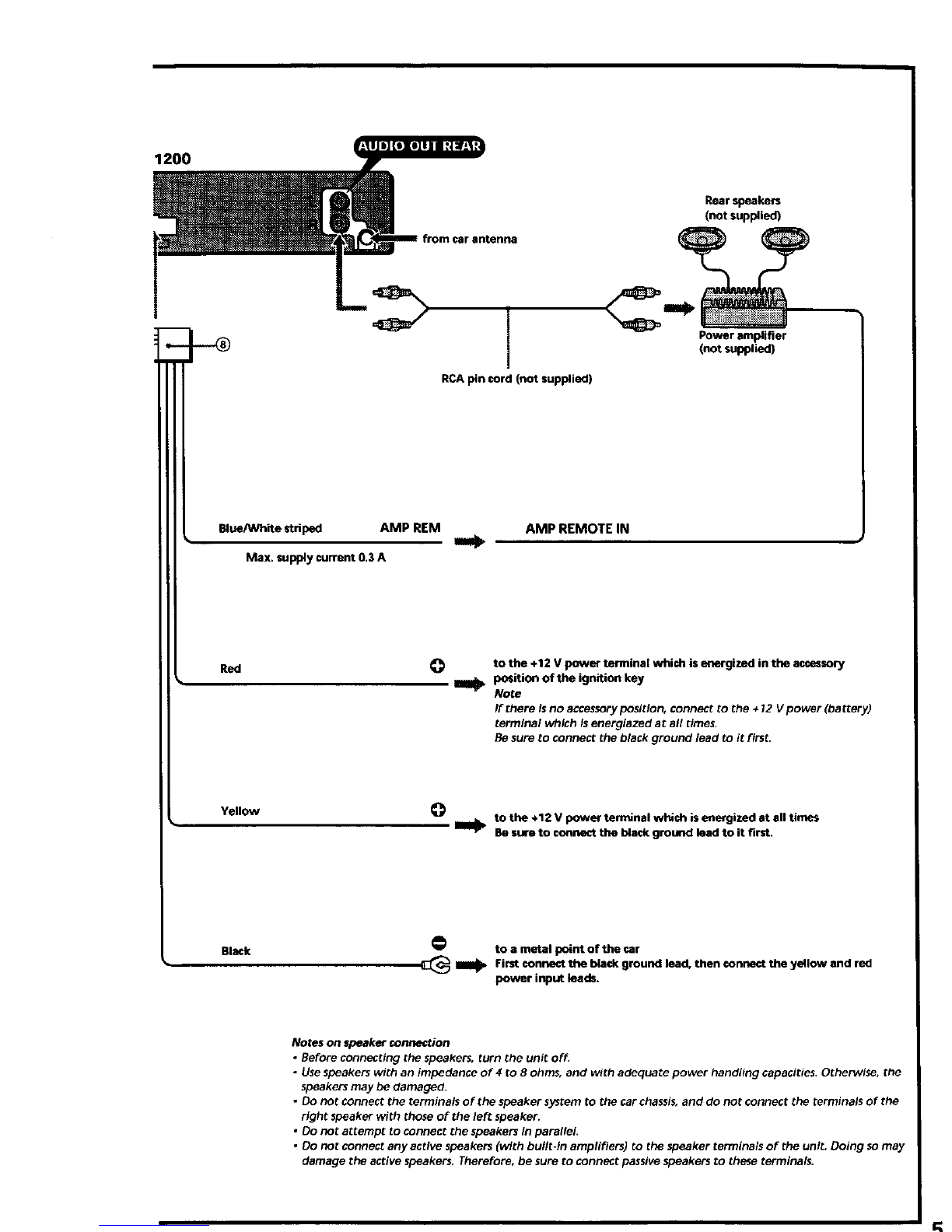

e_Wite striped AMP REM

Max. supply current 0.3 A

RCApin cord (not supplied)

Power amplifier

(not supplied)

AMP REMOTE IN

m4,

Red 0to the +12 V power terminal which isenergized in the accessory

mposition of the ignition key

Note

If there isno accessoryposition, connect to the +12 Vpower (bat[ery)

terminal which Isenerglazed at all times.

Be sure to connect [he black ground lead to it first.

Yellow Oto the +12 V power terminal which isenergized at all times

Be sure to connect the black ground lead to it first.

mack to a metal point of the car

_IIIII1_ First connect the black ground lead, then connect the yellow and red

power input leads.

Notes on speaker €onnection

•Before connecting the speakers, turn the unit of_

•Usespeakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities. Otherwise, the

speakers may be damaged.

.Do not connect the terminals of the speaker system to the car chassis,and do not connect the terminals of the

right speaker with those of the left speaker.

•Do not attempt to connect the speakers in parallel,

•Do not connec_any active speakers (with built-in amplifiers) to the speaker terminals of the unlt. Doing somay

damage the active speakers. Therefore, be sure to connect passivespeakers to these terminals.

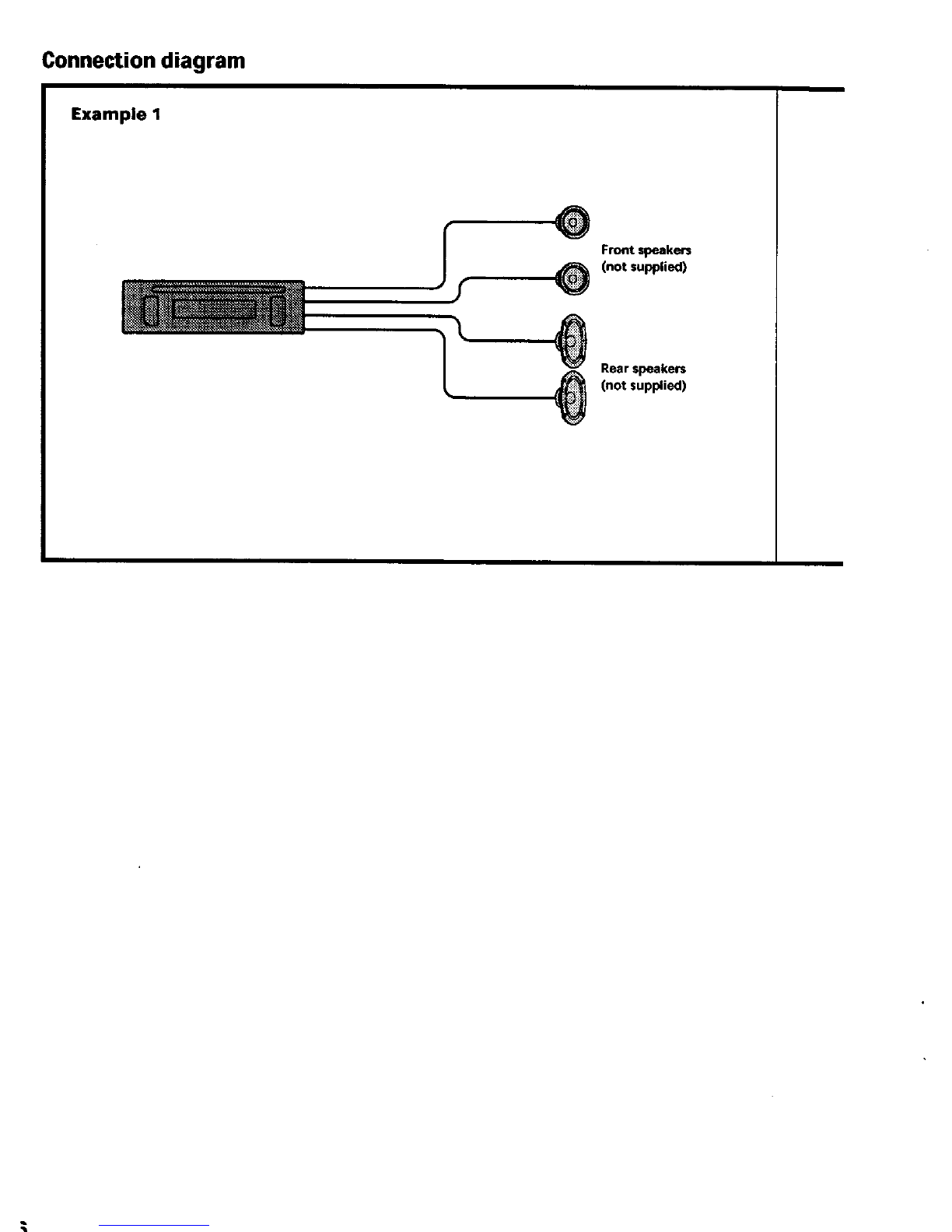

Connection diagram

Example 1

Front speakers

(not supplied)

Rear speakers

(not supplied)

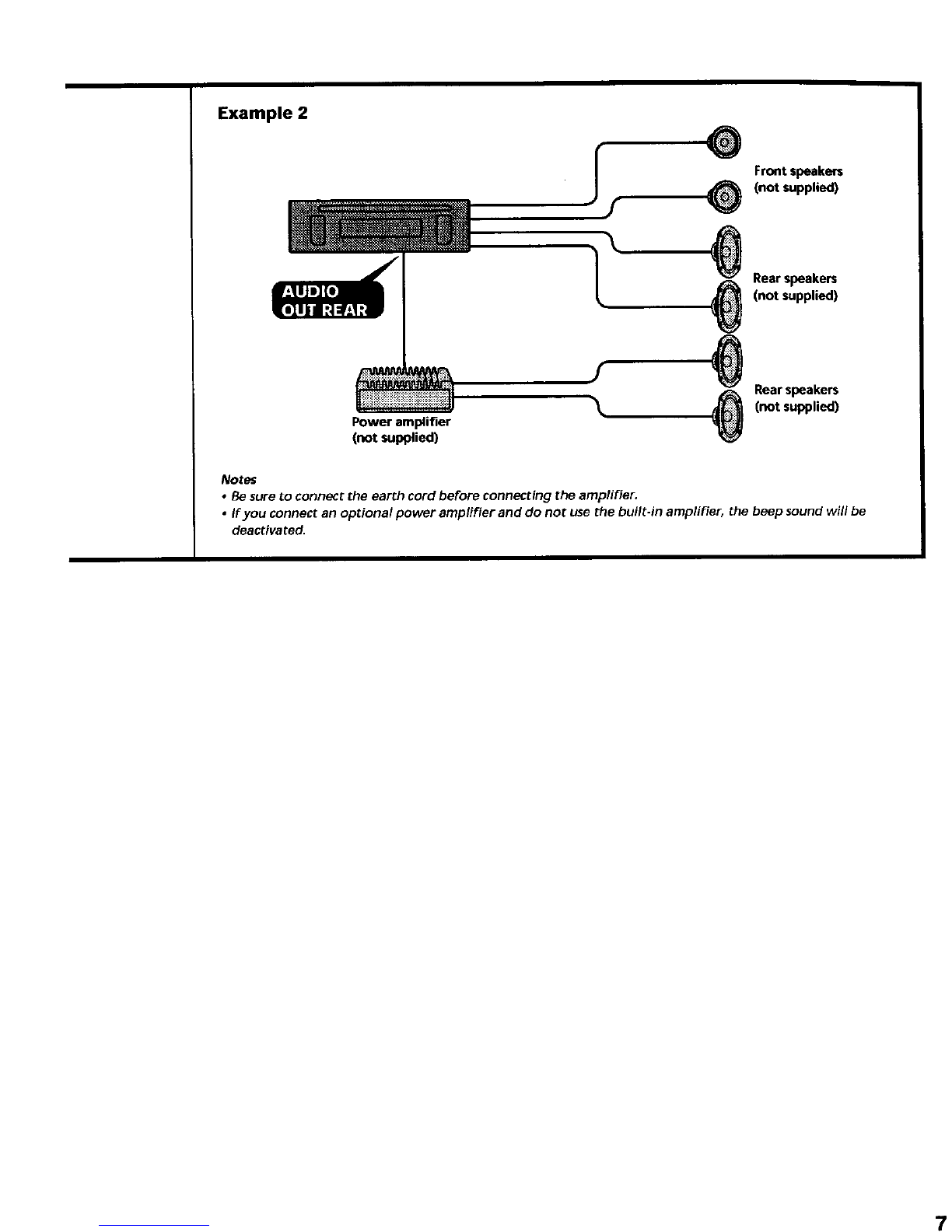

Example 2

Frontspeakers

(not supplied)

Rearspeakers

(not supplied)

Power amplifier

(not supplied)

/Rear speakers

(not Supplied)

Notes

•Be sure _o connect the earth cord before connecting the amplifier.

• If you connect an optional power ampfifier and do not use the built-in amplifier, the beep sound will be

deactivated.

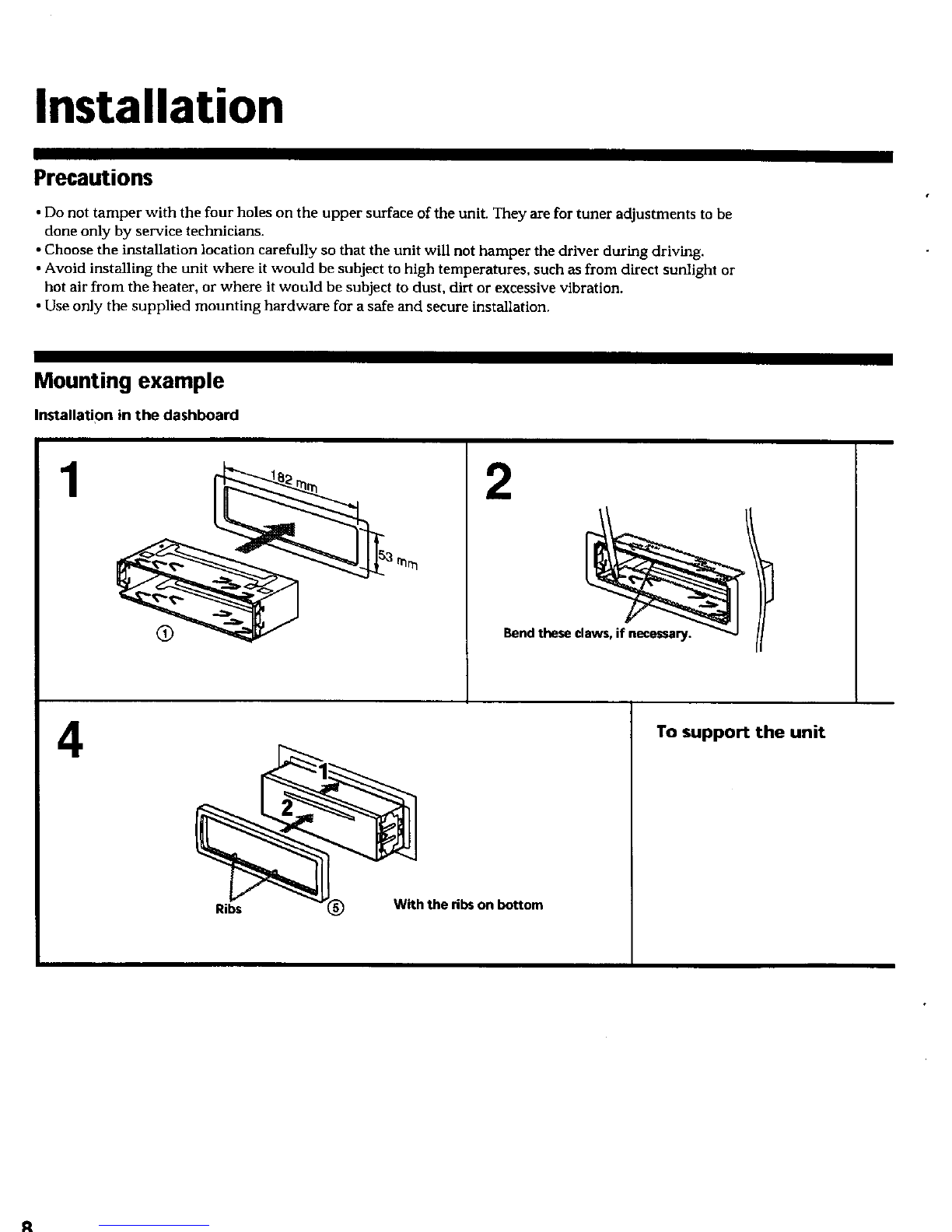

Installation

Precautions

• Do not tamper with the four holes on the upper surface of the unit. They are for tuner adjustments to be

done only by service technicians.

• Choose the installation location carefully so that the unit will not hamper the driver during driving.

• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or

hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

• Use only the supplied mounting hardware for a safe and secure installation.

Mounting example

Installation in the dashboard

Bend these claws, if necessary.

Ribs With the ribs on bottom

To support the unit

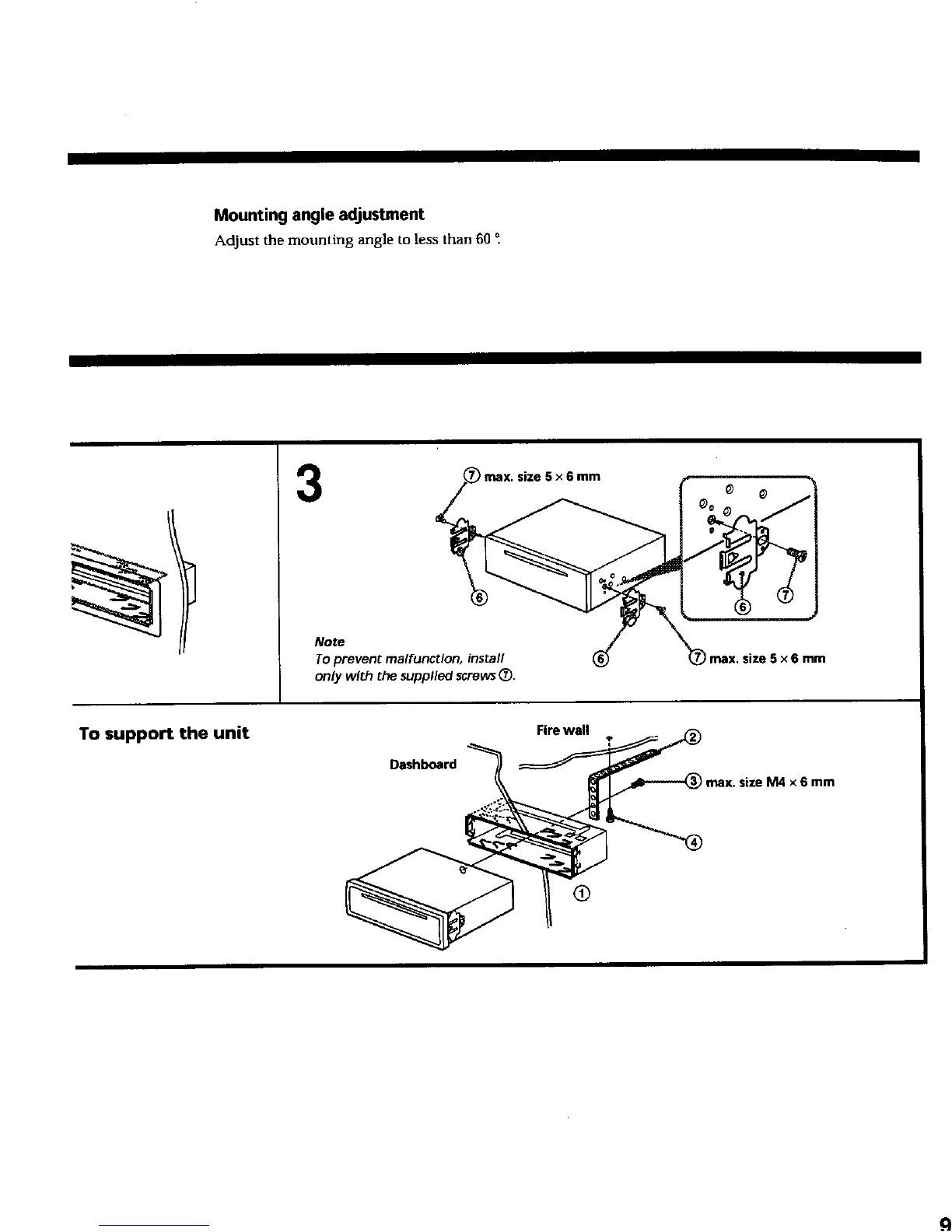

Mounting angle adjustment

Adjust the mounting angle to less than 60

Note

Toprevent malfunction, install (_

only with the supplied screws0.

e ..

_( )max, size5×6mm

To support the unit

Dashboard

Fire wall

) max. size M4 ×6 mm

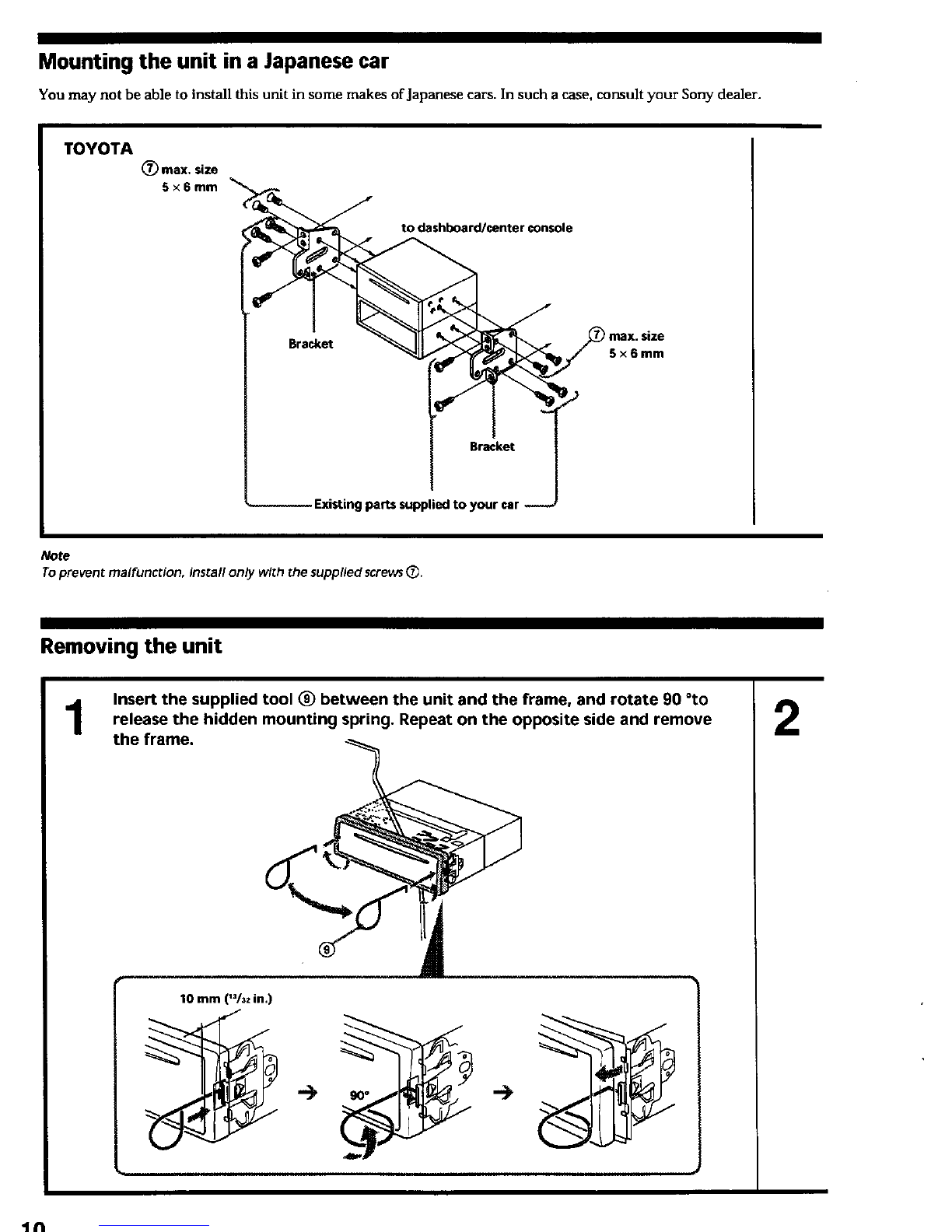

Mounting the unit in a Japanese car

You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.

TOYOTA (_) max, size /i,er o,eSx mm

_ _ rex. size

Bracket

Existing parts supplied to your car

Note

To prevent malfunction, install only with the supplied screws 0.

Removing the unit

Insert the supplied tool (_) between the unit and the frame, and rotate 90 °to

release the hidden mounting spring. Repeat on the opposite side and remove

the frame. 2
