Owner’s Record

The model and serial numbers are located on the top side of the drive. Record these

numbers in the spaces provided below. Refer to them whenever you call upon your sales

representative regarding this product.

Model No. __________________ Serial No. ___________________

WARNING

To prevent fire or shock hazard, do not expose the unit

to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

CAUTION

The use of optical instruments with this product will increase eye hazard.

The use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

This unit uses CD-ROM discs with the following mark.

When you use this unit as an audio CD player, use

compact discs with the following mark.

This label is located on

the top of the drive.

DieserAufkleber

befindet sich an der

Oberseite des Gehäuses.

CAUTION INVISIBLE LASER RADIATION WHEN OPEN.DO NOT

STARE INTO BEAM ORVIEW DIRECTLY WITH OPTICAL

INSTRUMENTS.

VORSICHT UNSICHTBARE LASERSTRAHLUNG,WENN ABDECKUNG

GEÖFFNET. NICHT IN DEN STRAHL BLICKEN, AUCH

NICHT MIT OPTISCHEN INSTRUMENTEN.

ADVARSEL USYNLIG LASERSTRÅLING VED ÅBNING SE IKKE IND I

STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

ADVARSEL USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. STIRR

IKKE INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE

INSTRUMENTER.

VARNING OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR

ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ

STRALEN MED OPTISKA INSTRUMENT.

VARO! AVATTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE. ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ

KATSO SITÄ OPTISEN LAITTEEN LÄPI.

Get user manuals: See SafeManuals.com

INFORMATION

You are cautioned that any changes or modifications not expressly approved in this

manual could void your warranty covering this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

This CD-ROM Drive Unit is classified as a CLASS 1

LASER PRODUCT.

The CLASS 1 LASER PRODUCT label is located

on the top of the drive.

Bei diesem CD-ROM-Laufwerk CDU711 handelt es

sich um ein Laser-Produkt der Klasse 1.

Ein entsprechenderAufkleber mit der Beschriftung

LASER KLASSE 1 PRODUKT befindet sich auf der

Oberseite des Geräts.

Diese Ausrüstung erfüllt die Europäischen EMC-Bestimmungen für die Verwendung in

folgender/folgenden Umgebung(en):

• Wohngegenden

• Gewerbegebiete

• Leichtindustriegebiete

(Diese Ausrüstung erfüllt die Bestimmungen der Norm EN55022, Klasse B.)

CLASS 1

LASER PRODUCT

LASER KLASSE 1

PRODUKT

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

Get user manuals: See SafeManuals.com

Trademarks

• MS-DOS is a registered trademark of Microsoft Corporation.

• IBM PC, PC/XT, and PC/AT are registered trademarks of International Business

Machines Corporation.

• HPVectra is a registered trademark of the Hewlett-Packard Company.

• Molex is a registered trademark of Molex, Inc.

• AMP is a registered trademark ofAMP, Inc.

Get user manuals: See SafeManuals.com

Contents

Introduction 6

Features.............................................................................................. 6

Software Requirement ........................................................................ 7

Example of System Setup .................................................................. 7

Location and Function of Parts and Controls 8

Front Panel ......................................................................................... 8

Rear Panel .......................................................................................... 9

Precautions 10

Installing the Drive inYour Computer 11

Preparation ....................................................................................... 11

Setting the Jumpers.......................................................................... 12

Opening the Computer ..................................................................... 13

Preparing a Space for the Drive ....................................................... 14

Mounting the Drive ........................................................................... 15

Connecting the Drive ........................................................................ 16

Mounting the Host Adapter ............................................................... 18

Reassembling the Computer ............................................................ 19

Installing the Software Driver 20

How to Install .................................................................................... 20

Operating the Drive 21

Starting the Drive.............................................................................. 21

Ejecting the Disc ............................................................................... 23

How to Use the Disc Locks............................................................... 24

Specifications 26

Get user manuals: See SafeManuals.com

6Introduction

Introduction

Features

TheCDU711isaninternalCD-R OM(CompactDiscRead-Onl y

Memor y)driveunitdesignedf orusewithanIBMPC, HP Vectra, or

compatib lecomputer .Itcanreadasm uchas540Mb ytesofdigital

datastoredinasingleCD-ROMdisc.

TheCDU711hasthef ollowingf eatures:

General

•5

inchhalf-heightdriveformfactor.

• 256-kbytebuffermemoryATA-PIcompliant(SFF-8020)

• AudioCDlikedrawerloadingofadiscwithoutusingacaddy.

• Powerloadingandpowerejectofadisc.Thedisccanalsobe

ejectedmanually.

• Housedinanairtightframecasing.

Supported disc formats

• ReadsdatafromCD-ROM,CD-ROMXA,CD-IandCD-IReady

formatdiscs,andfromCD-EXTRAandCDTEXTdiscs.

• ReadsdatafromCD-BRIDGEformatdiscsincludingPHOTO-

CD.

• ReadsstandardCD-DigitalAudioencodeddiscs.

• ReadsVideoCDdiscs.

Performance

• Supportsquadruple,8timesandMax.32timesspeedoperations

withrealtimeerrorcorrection.

• Fastaccesstimeensuringreliablehigh-speeddataaccess.

Audio

• Outputs16-bitdigitalaudiodataovertheATAinterface.

• Equippedwithaudiolineoutputandheadphonesjackforaudio

CDplayback.

Note:

TheCDU711isnotequippedwithanADPCMaudiocir cuitr y

requiredtosupportCD-ROMXAandCD-Icompatibleaudio

modes.Inaddition,theunitdoesnotsupporttheCD-Igraphic

decodingfunction;ithastobeprovidedbythesystem.

Get user manuals: See SafeManuals.com

7Introduction

Software Requirement

ToaccessdataonCD-R OMdiscs, theappr opriatede vicedriverand

MSCDEX(suppliedwiththehostadapter)mustbeinstalledinyour

computerwhentheOSisMS-DOS/Windo ws3.1. Seetheman ual

thatcomeswiththehostadapterfordetails.

TheapplicationsoftwareyouneedforusingthedataonaCD-ROM

discdependsonthetypeandf ormatofthetar getdata. Seethe

manualsuppliedwithyourCD-ROMdiscforinstructions.

Example of System Setup

TousetheCD-R OMdriveunit, thef ollo wingcomponentsare

required:

• Computer(IBMPC,PC/XT,PC/AT,HPVectra,orequivalent)

• IDEhostadapter(ATAcompliant)

• Floppydiskdrive

• IDEinterfacecable(40 ≤40pinflatcable)

• Software(Devicedriver,Utilities)

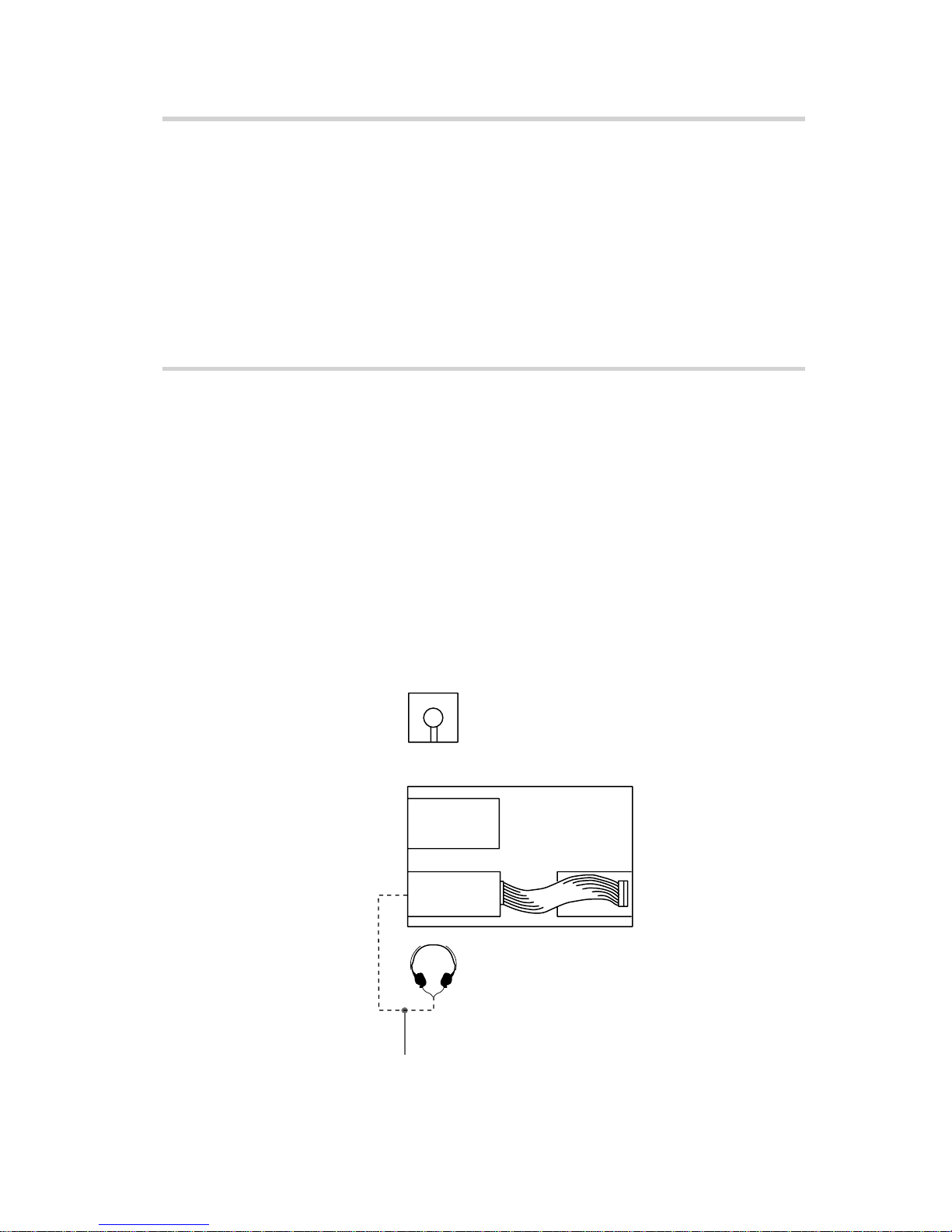

Thefollowingisanexampleofsystemsetup.

Software

Host computer

Floppy disk

drive

CD-ROM

Drive

Host adapter

Audio cable

Get user manuals: See SafeManuals.com

8Location and Function of Parts and Controls

Location and Function of Parts and Controls

Front Panel

34 56

1Disc drawer

AcceptsaCD-ROMdisconitstray.

2Headphones jack

Acceptsastereoheadphonesset.Analogaudiosignalsare

output.

3Volume control

Controlsthevolumelevelofsoundoutputfromtheheadphones

jack 2.

4Busy indicator

Thisamberindicatorlightsorflashestoindicateoneofthe

followingunitconditions.

•Steadylit: TOC(tableofcontents)read,seekdataread,

oraudioplaybackinprogress.

•Flashing: Drawerinmotion.

5Emergency eject hole

Usedtoopenthediscdrawermanuallywhenneithertheeject

button 6norasoftwarecommandworks.Insertapointed

object,suchasapaperclip,intothisholeandpush.

6Eject button

Opensandclosesthediscdrawer.

Get user manuals: See SafeManuals.com

Rear Panel

12345

1Unused

2ANALOG AUDIO connector

Outputsanalogaudiosignals.

3Configuration Jumpers

Seepage12fordetails.

4INTERFACE CONNECTOR (IDE bus)

ConnecttoIDEhostadapterusingaconnectingcable.

5DC INPUT (power-in) connector

Connecttothepowersupplyofthehostcomputer.

Location and Function of Parts and Controls

Pin 1

Get user manuals: See SafeManuals.com

10 Precautions

Precautions

■Installation

• Avoidplacingthedriveinalocationsubjectto:

– highhumidity

– hightemperature

– excessivedust

– mechanicalvibration

– directsunlight

• Donotforcethepowercable.Itiskeyedtoprotectthedrive.

■Operation

• Donotmovethedrivewhenitisinuse.Doingsomaycausedata

erroranddamagetheopticalpick-up.

• Avoidexposingthedrivetosuddenchangesintemperatureas

condensationmayformonthelensinsidethedrive.Shouldthe

surroundingtemperaturesuddenlyrisewhilethedriveisturned

on,stopusingthedriveandleavethepoweronatleastonehour

beforeoperatingitorturningitoff.Operatingthedrive

immediatelyafterasuddenincreaseintemperaturemayresultina

malfunction.

■Transportation

• Closethediscdrawerbeforemovingthedrive.

• Keeptheoriginalpackingmaterials.Whenyouneedtoshipthe

drivetoanotherlocation,repackingitinitsoriginalcontainerwill

helpyoutransportitsafely.
