Welcome!

Thank you for purchasing the Sony Cassette

Car Stereo. This unit lets you enjoy a variety of

features by using a rotary remote.

Additional Information

Precautions........................................................... 9

Maintenance....................................................... 10

Dismounting the unit ....................................... 11

The rotary remote labels .................................. 11

Location of controls .......................................... 12

Specifications ..................................................... 13

Troubleshooting guide ..................................... 14

Index ................................................................... 15

Table of contents

Getting Started

Resetting the unit ................................................ 4

Detaching the front panel .................................. 4

Setting the clock .................................................. 5

Cassette Player

Listening to a tape ............................................... 5

Playing a tape in various modes ....................... 6

Radio

Memorising stations automatically

— Best Tuning Memory (BTM) ................... 7

Memorising only the desired stations.............. 7

Receiving the Memorised stations.................... 7

Other Functions

Adjusting the sound characteristics ................. 8

Muting the sound................................................ 8

Changing the sound and beep tone ................. 8

Attaching the front panel

Attach part Aof the front panel to part Bof

the unit as illustrated and push until it clicks.

Notes

•Make sure the front panel is the right way up when

attaching it to the unit as it cannot be attached upside

down.

•Do not press the front panel hard against the unit when

attaching it to the unit. It can easily be attached by

pressing it lightly against the unit.

•When you carry the front panel with you, put it in the

supplied front panel case.

•Do not press hard or give excessive pressure to the

display windows of the front panel.

•Do not expose the front panel to direct sunlight, heat

sources such as hot air ducts or leave it in a humid place.

Never leave it on the dashboard etc. of a car parked in

direct sunlight where there may be a considerable rise in

temperature inside the car.

Caution alarm

If you turn the ignition key to the OFF position

without removing the front panel, the caution

alarm will beep for a few seconds (only when

the POWER SELECT switch is set to the A

position).

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ballpoint pen.

Note

Pressing the reset button will erase all the Memorised

programme and memory functions.

Detaching the front panel

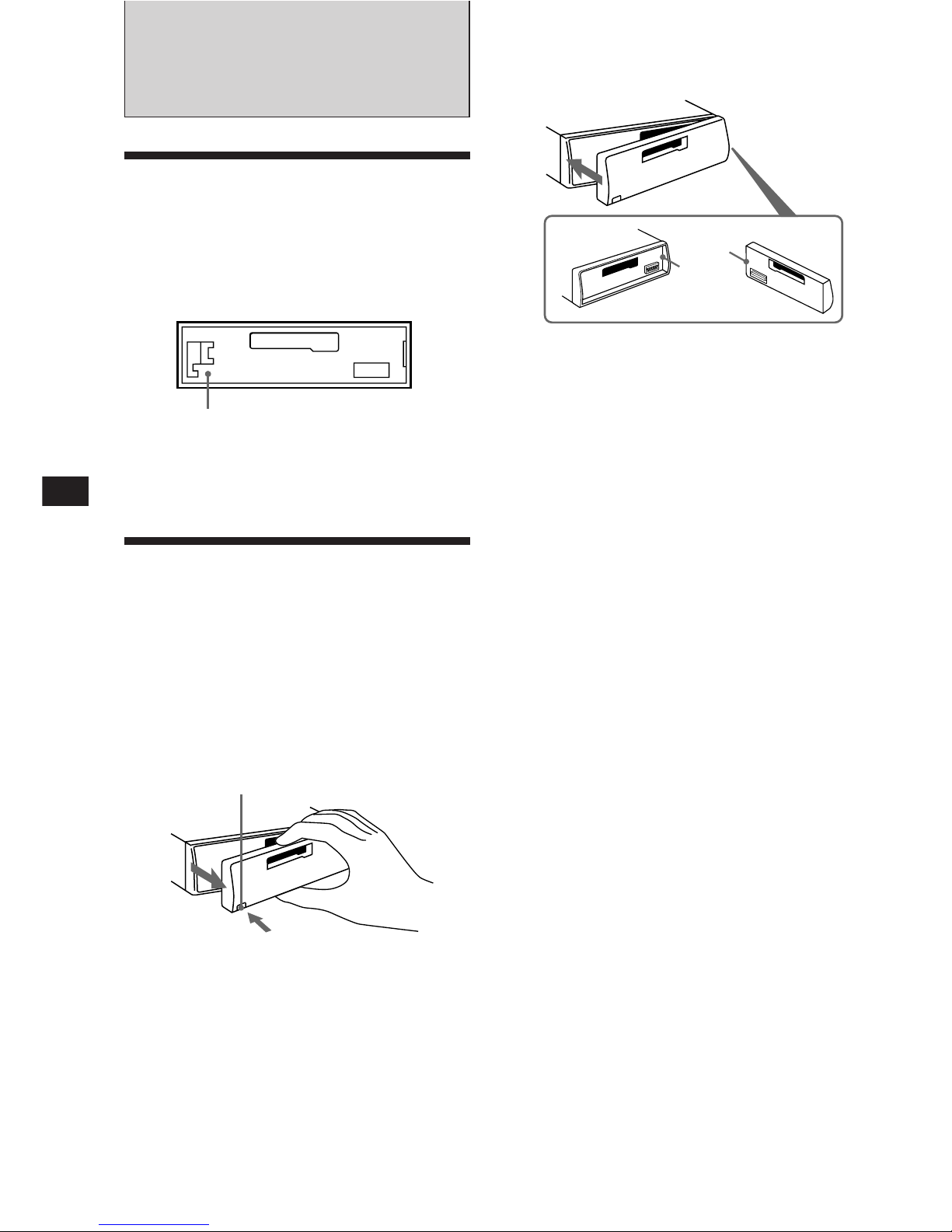

The front panel of this unit can be detached to

prevent the unit from being stolen.

1Press (OFF).

2Press (RELEASE) to open up the front

panel, and detach the panel by pulling it

towards you.

Notes

• Be sure not to drop the panel when detaching it from the

unit.

• If you press (RELEASE) to detach the panel while the

unit is still turned on, the power will automatically turn

off to protect the speakers from being damaged.

Reset button

(RELEASE)

Setting the clock

The clock has a 24-hour digital indication.

For example, setting it to 10:08

1Press (OFF) or (DSPL) during operation.

2Press (DSPL) for two seconds.

1Set the hour digits.

2Press (SEL) momentarily.

3Set the minute digits.

3Press (DSPL) momentarily.

Note

If the POWER SELECT switch on the top of the unit is set

to the Bposition, the clock cannot be set unless the power

is turned on. Set the clock after you have turned on the

radio.

The hour digit flashes.

To go backward

To go forward

The minutes digits flashes.

To go backward

To go forward

The clock starts.

Getting Started/Cassette Player

Cassette Player

Listening to a tape

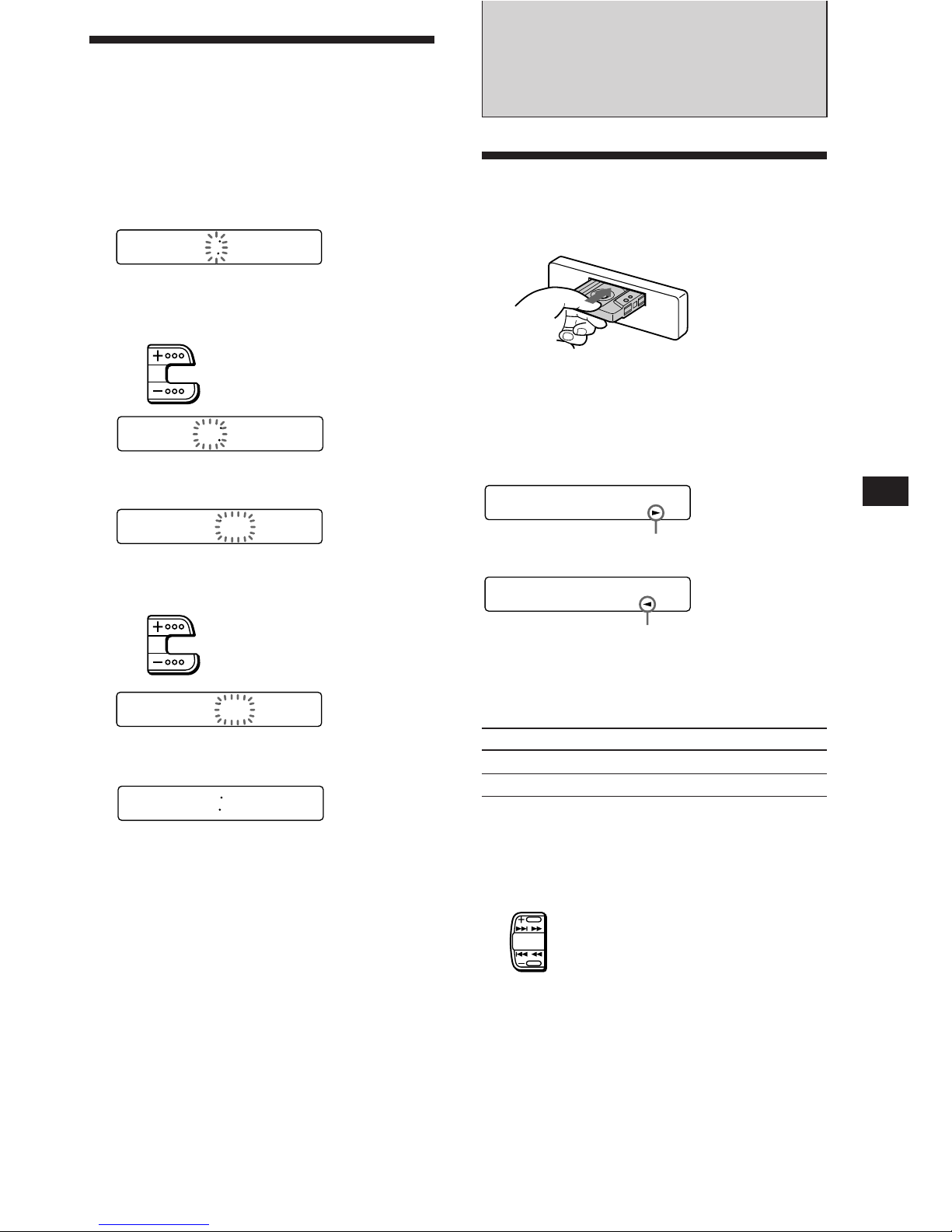

Insert a cassette.

Playback will start automatically.

If a cassette is already inserted, press

(SOURCE) repeatedly until “TAPE” is

displayed.

The side facing up is being played.

The side facing down is being played.

Tip

To change the tape transport direction, press (MODE)

(*) during tape playback.

Fast-winding the tape

During playback, press either side of

(SEEK/AMS) for two seconds.

To start playback during fast-forwarding or

rewinding, press (MODE) (*).

Press

(OFF)

Stop playback

Eject the cassette

Fast-forward

Rewind

100



1000



1000



1008



1008



TAPE



TAPE



SEEK

AMS

SEEK

AMS

To locate the succeeding tracks

To locate the preceding tracks

Switching to the radio while fast-

winding a tape

— Automatic Tuner Activation (ATA)

Press (5) during playback.

“ATA” appears on the display.

When fast-forwarding or rewinding with

(SEEK/AMS) for two seconds, the tuner will

turn on automatically.

To cancel this function, press (5).

Skipping blanks during tape

playback — Blank skip

Press (6) during playback.

“BL.SKIP” appears on the display.

Blanks longer than eight seconds will

automatically be skipped during tape

playback.

To cancel this function, press (6).

Playing a CrO2or metal tape

Press (4) when you want to listen to a

CrO2(TYPE II) or metal (TYPE IV) tape.

“MTL” appears on the display.

To cancel this function, press (4).

Locating the beginning of a track

— Automatic Music Sensor (AMS)

You can skip up to nine tracks at one time.

During playback, press either side of

(SEEK/AMS) momentarily.

Note

The AMS function may not work when :

• the blanks between tracks are shorter than 4 seconds

• there is noise between tracks

• there are long sections of low volume or quiet sections.

Changing the displayed items

Each time you press (DSPL) momentarilly

during tape playback, the displayed item

changes as follows:

zTape playback zClock zFrequency*

* While the ATA function is activated.

Playing a tape in various

modes

Searching for the desired track

— Intro scan

Press (1) during playback.

“INTRO” appears on the display.

The first 10 seconds of all the tracks are played.

When you find the desired track, press again.

The unit returns to the normal playback mode.

Playing tracks repeatedly

— Repeat play

Press (2) during playback.

“REP” appears on the display.

When the current played track is over, it will

be played again from the beginning.

To cancel this mode, press again.

Cassette Player/Radio

Memorising only the

desired stations

Up to 6 stations on each band (FM1, FM2, FM3,

MW and LW) can be stored on the preset

number buttons in the order of your choice.

Therefore, 18 FM stations can be Memorised.

If you try to store another station on the same

preset number button, the previously stored

station will be erased.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press (SEEK/AMS) to search for the

station you wish to store on a preset

number button.

4Press the desired preset number button

((1) to (6)) for two seconds.

The number of the selected preset number

button appears on the display.

Receiving the Memorised

stations

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press the preset number button ((1) to

(6)) momentarily on which the desired

station is stored.

Radio

Memorising stations

automatically

— Best Tuning Memory (BTM)

This function selects from the currently

received band the stations with the strongest

signals and Memorises them in order of their

frequency.

PREVENTING ACCIDENTS!

When tuning in while driving, use the

automatic tuning instead of manual tuning.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the source

changes as follows:

TAPE ˜TUNER

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the band

changes as follows:

FM1 nFM2 nFM3 nMW nLW

3Press (BTM) for two seconds.

Notes

• The unit will not store stations with weak signals on the

preset number buttons. If there are only a few stations

received, some preset number buttons will remain empty.

• When there is a preset number indicated on the display,

the unit will store stations on all preset number buttons

from the one currently displayed.

Changing the displayed items

Each time you press (DSPL), the display

changes between the frequency and the clock.

If you cannot tune in a preset

station

Press either side of (SEEK/AMS)

momentarily to search for the station

(automatic tuning).

Scanning stops when a station is received.

Press either side of the button repeatedly

until the desired station is received.

Note

If the automatic tuning stops too frequently, press

(LCL) to lights up “LCL” on the display (local seek mode).

Only the stations with relatively strong signals can be

tuned in.

Tip

If you know the frequency, press and hold either side of

(SEEK/AMS) until the desired station is received (manual

tuning).

Other Functions

Adjusting the sound

characteristics

1Select the item you want to adjust by

pressing (SEL) repeatedly.

VOL (volume) nBAS (bass) nTRE

(treble) nBAL (balance) nFAD (fader)

2Adjust the selected item by pressing

either (+) or (–).

Adjust within three seconds after selecting.

(After three seconds the button will again

serve as the volume control button.)

Muting the sound

Press (MUTE).

The “MUTE” indication flashes.

To restore the previous volume level, press

again.

Changing the sound and

beep tone

Boosting the bass sound — D-Bass

To enjoy clear and powerful bass sound, you

can boost only the low frequency signal with a

sharp curve. This is the effect you get when

use an optional subwoofer system.

For example, you can hear the bass line more

clearly even if the vocal sound is the same

volume. You can emphasize and adjust the

bass sound easily with the D-BASS control.

Additional

Information

Precautions

•If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

•If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

•If no sound comes from the speakers of a

2-speaker system, set the fader control to the

center position.

•When the tape is played back for a long

period, the cassette may become warm

because of the built-in power amplifier.

However, this is not a sign of malfunction.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

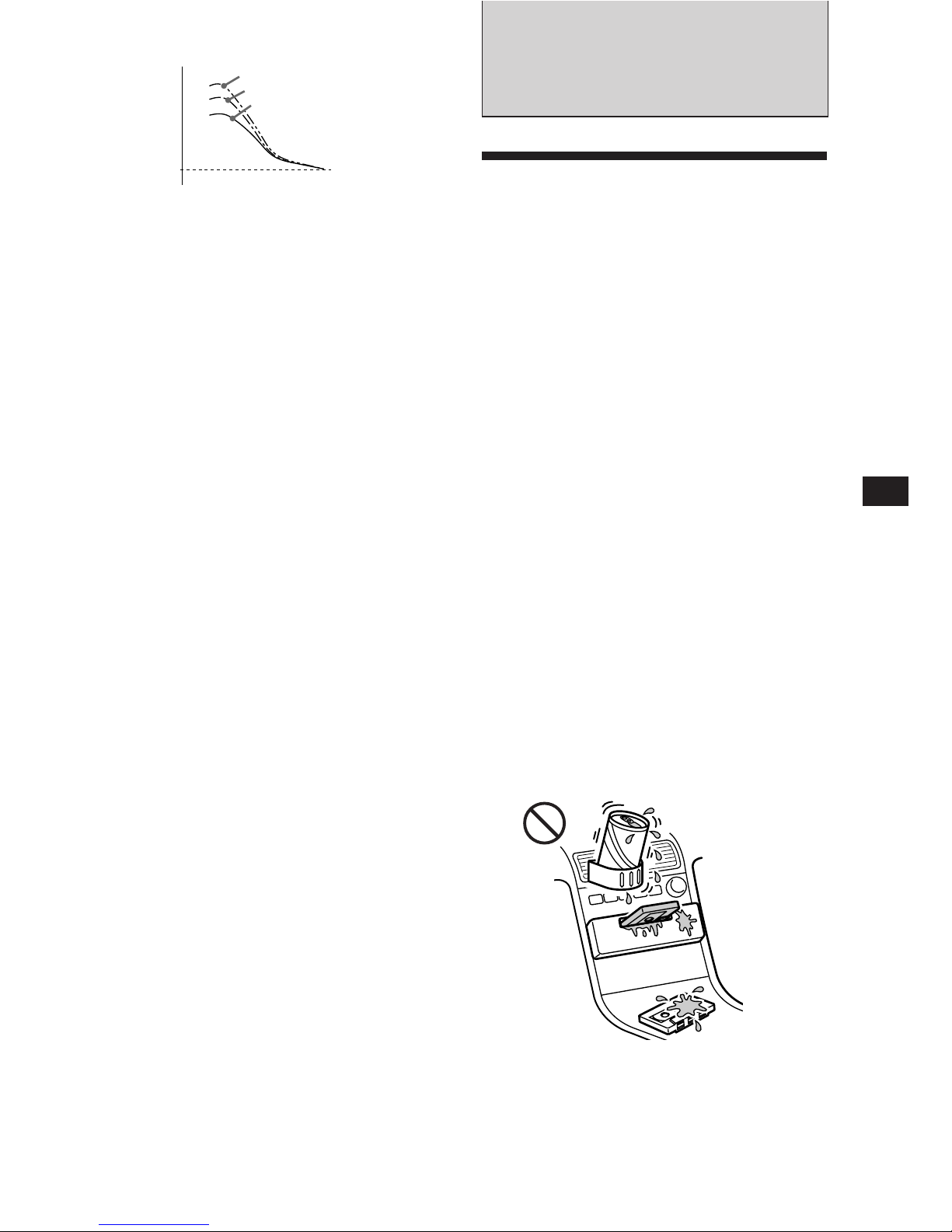

To maintain high quality sound

If you have drink holders near your audio

equipment, be careful not to splash juice or

other soft drinks onto the car audio. Sugary

residues on this unit or cassette tapes may

contaminate the playback heads, reduce the

sound quality, or prevent sound reproduction

altogether.

Cassette cleaning kits cannot remove sugar

from the tape heads.

Adjusting the bass curve

Turn the D-BASS control to adjust the

bass level (1, 2 or 3).

“D-BASS” appears in the display.

To cancel, turn the control to the OFF position.

Muting the beep tone

Press (6) while pressing (SEL).

To obtain the beep tone again, press these

buttons again.

Analog D-BASS

Level

Frequency (Hz)

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Radio/Other Functions/Additional Information

Notes on Cassettes

Cassette care

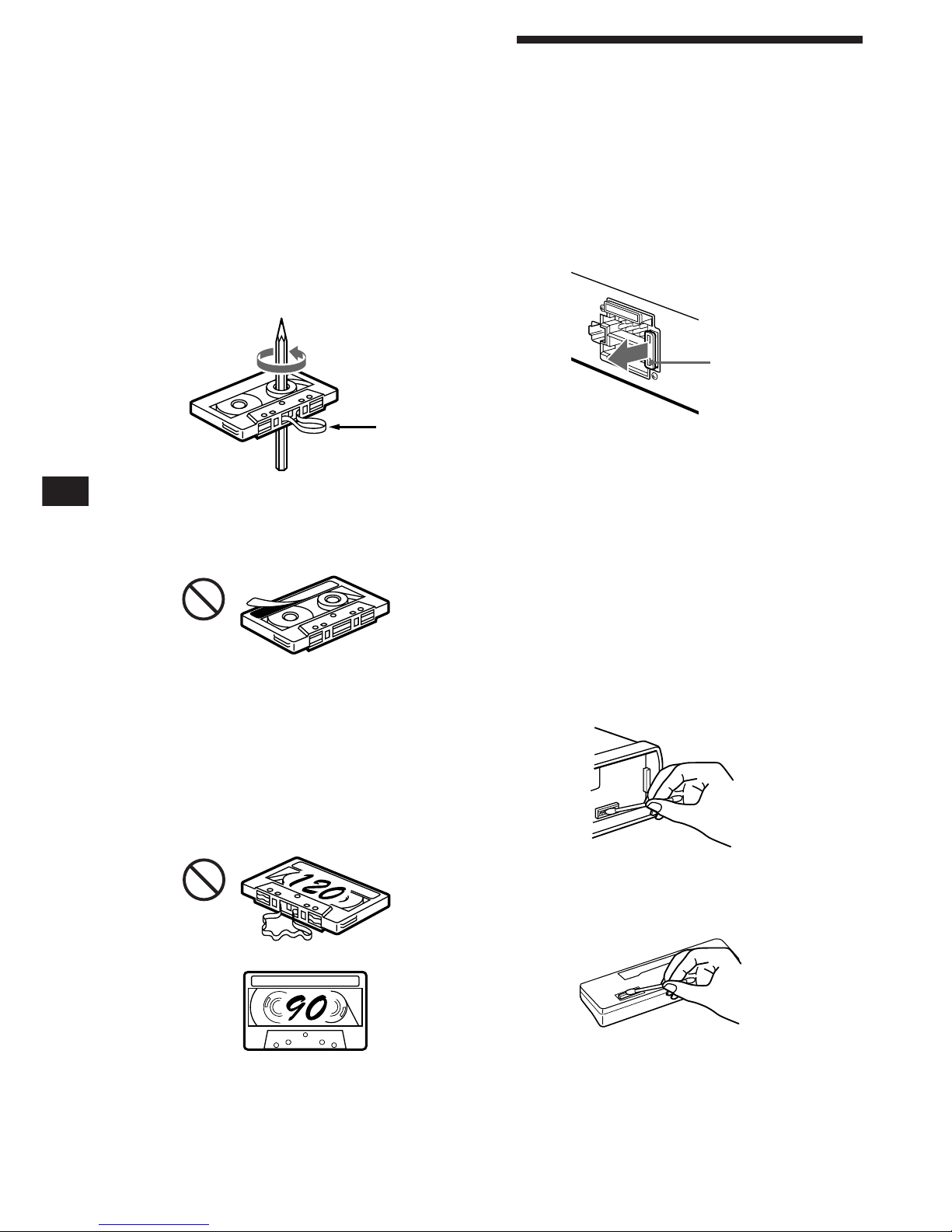

•Do not touch the tape surface of a cassette, as

any dirt or dust will contaminate the heads.

•Keep cassettes ataryway from equipment

with built-in magnets such as speakers and

amplifiers, as erasure or distortion on the

recorded tape could occur.

•Do not expose cassettes to direct sunlight,

extremely cold temperatures or moisture.

•Slack in the tape may cause the tape to be

caught in the machine. Before you insert the

tape, use a pencil or similar object to turn the

reel and take up any slack.

•Distorted cassettes and loose labels can cause

problems when inserting or ejecting tapes.

Remove or replace loose labels.

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is

not recommended except for long continuous

play. The tapes used for these cassettes are

very thin and tend to be stretched easily.

Frequent playing and stopping of these tapes

may cause them to be pulled into the cassette

deck mechanism.

Slack

Maintenance

Fuse Replacement

When replacing the fuse, be sure to use one

matching the amperage rating stated on the

fuse. If the fuse blows, check the power

connection and replace the fuse. If the fuse

blows again after replacement, there may be an

internal malfunction. In such a case, consult

your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating

exceeding the one supplied with the unit as

this could damage the unit.

Cleaning the Connectors

The unit may not function properly if the

connectors between the unit and the front

panel are not clean. In order to prevent this,

open the front panel by pressing (RELEASE),

then detach it and clean the connectors with a

cotton swab dipped in alcohol. Do not apply

too much force. Otherwise, the connectors may

be damaged.

Fuse (10 A)

Main unit

Back of the front panel

Autres manuels pour XR-3750

Table des matières

Langues :

Autres manuels Sony Récepteur de voiture

Sony

Sony XAV-601BT Manuel utilisateur

Sony

Sony CDX-GT55IP Guide produit

Sony

Sony CDX-L380X Manuel utilisateur

Sony

Sony HCD-VR50 Manuel utilisateur

Sony

Sony CDX-GT560S Manuel utilisateur

Sony

Sony CDX-636 - Compact Disc Changer System Manuel utilisateur

Sony

Sony XR-C5100 Guide produit

Sony

Sony CDX-65 Primary Manuel de référence

Sony

Sony CDX-GT440U - Fm/am Compact Disc Player Guide produit

Sony

Sony XR-5800R Manuel utilisateur

Sony

Sony CDX-L450 Manuel utilisateur

Sony

Sony Honda XR-H594WG Manuel utilisateur

Sony

Sony XR-A55 - Fm/am Cassette Car Stereo Manuel utilisateur

Sony

Sony WX-VX55S Manuel utilisateur

Sony

Sony CDX-4800X Manuel utilisateur

Sony

Sony XDP-MU110 Manuel utilisateur

Sony

Sony CDX-CA400 - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-M8800 - Fm/am Compact Disc Player Guide produit

Sony

Sony XR-C5109R Manuel utilisateur

Sony

Sony CDX-CA720X - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony AVD-C700ES - 5 Dvd Changer/receiver Manuel utilisateur

Sony

Sony CDX-2500R Manuel utilisateur

Sony

Sony XR-L240 Manuel utilisateur

Sony

Sony CDX-V7800X Guide produit

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur

Philips

Philips CEM5000 Manuel utilisateur
