Welcome !

Thank you for purchasing the Sony MiniDisc

Player. This unit lets you enjoy a variety of

features as well as a supplied rotary

commander and an optional wireless remote.

In addition to the MD playback and radio

operations, you can expand your system by

connecting an optional CD/MD unit*1.

When you operate this unit or a connected

optional CD unit with the CD TEXT function,

the CD TEXT information will appear in the

display when you play a CD TEXT disc*2.

*1You can also connect an MD changer, a CD

changer, an MD player, or a CD player.

*2A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name,

and track names. This information is recorded

on the disc.

Table of Contents

This Unit Only With Optional Equipment

Notes on MDs .......................................................... 4

Location of controls ................................................. 5

Getting Started

Resetting the unit ................................................ 7

Detaching the front panel .................................. 7

Preparing the rotary commander ..................... 8

Setting the clock .................................................. 8

MD Player

Listening to an MD ............................................. 9

Playing an MD in various modes ................... 10

Radio

Memorising stations automatically

— Best Tuning Memory (BTM) ................. 11

Memorising only the desired stations ............ 11

Receiving the memorised stations .................. 11

Storing the station names

—Station Memo ........................................... 12

Locating a station by name

— List-up ...................................................... 13

Other Functions

Using the rotary commander .......................... 14

Adjusting the sound characteristics ............... 15

Attenuating the sound ..................................... 15

Changing the sound and display settings ..... 16

Boosting the bass sound

— D-bass ....................................................... 16

CD/MD Unit

Playing a CD or MD ......................................... 17

Playing tracks repeatedly

— Repeat Play .............................................. 18

Playing tracks in random order

— Shuffle Play .............................................. 18

Labelling a CD

— Disc Memo ............................................... 19

Locating a disc by name

— List-up ...................................................... 20

Selecting specific tracks for playback

— Bank .......................................................... 20

Additional Information

Precautions ......................................................... 21

Maintenance....................................................... 22

Dismounting the unit ....................................... 22

Specifications ..................................................... 23

Troubleshooting guide ..................................... 24

Notes on mounting labels

Be sure to mount labels on cartridges correctly,

as failing to do so may cause an MD to become

stuck in the unit.

•Mount the label in a suitable position.

•Remove old labels before putting new ones

on.

•Replace labels that are beginning to peel

away from the MD.

Cleaning

Wipe the surface of the MD cartridge from

time to time with a soft dry cloth.

Notes on MDs

Since an MD itself is housed in a cartridge, free

from accidental contact with your fingers and

dust etc., it can withstand a certain degree of

the rough handling. However, dirt or dust on

the surface of the cartridge or a warped

cartridge may cause a malfunction quality,

observe the following.

Never touch the surface of the MD itself by

deliberately opening the shutter on the

cartridge.

Do not expose the MD to direct sunlight or

heat sources such as hot air-ducts. Do not leave

it in a car parked in the direct sunlight where

there can a considerable rise in temperature.

Make sure that it is not left on the dashboard

or rear tray of a car etc. where the temperature

can also be excessive.

Location of controls

Refer to the pages for details.

1SEEK/AMS (seek/Automatic Music

Sensor/manual search) control

10, 11, 12, 18, 20

2MODE (band/unit select) button

11, 17, 19

36(eject) button (located on the front

side of the unit behind the front panel)

4SOURCE (source select) button

9, 11, 17, 19

5Dial (volume/subwoofer volume/bass/

treble/left-right/rear-front control)

8, 12, 13, 15, 19

6SOUND button 15

7Display window

8DSPL (display mode change) button

9, 12, 13, 17, 19

9OPEN button 7, 9, 22

!º LIST button

Station Memo 12, 13

Disc Memo 19

List-up 13, 20

!¡ Reset button (located on the front side

of the unit behind the front panel) 7

!™ OFF button 7, 9

!£ SHIFT button

SET UP 8, 10, 16, 18

PLAY MODE 11, 12, 20, 21

REP 10, 18

SHUF 10, 18

!¢ Frequency select switch (located on the

bottom of the unit)

See “Frequency select switch” in the

Installation/Connections manual.

!∞ During radio reception:

Number buttons 11

During CD/MD playback:

Direct disc selection buttons 18

!§ Receptor for the optional wireless

remote

!¶ D-BASS control 16

SOUND

MODE

SOURCE

OFF

MDX-C7970

OPEN

LISTDSPL

OFF

123

10234567891

SEEK/AMS

SHIFT

D - BASS

Optional wireless

remote (RM-X47)

The corresponding buttons of the

wireless remote control the same

functions as those on this unit.

1OFF button

2SEEK/AMS button

3(–) (+) buttons

4ATT button

5SOUND/SEL button

6DSPL button

7PRESET/DISC button

You cannot perform manual search or manual

tuning with the wireless remote.

8SOURCE button

9MODE/DIR button

OFF

SOURCE

DIR

SEL

–

REW

SOUND

–

ATT DSPL

SEEK

AMS

PRESET

DISC

MODE

Location of controls

Reset button

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Remove the front panel and press the reset

button with a pointed object, such as a

ballpoint pen.

Note

Pressing the reset button will erase the clock

setting and some memorised functions.

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

1Press (OFF).

2Press (OPEN), then slide the front panel

to the right side, and pull out the left

side of the front panel.

Notes

• Be sure not to drop the panel when detaching it

from the unit.

•If you detach the panel while the unit is still

turned on, the power will turn off automatically

to prevent the speakers from being damaged.

•When carrying the front panel with you, use the

supplied front panel case.

Attaching the front panel

Place the hole ain the front panel onto the

spindle bon the unit as illustrated, then push

the left side in.

Notes

• Be sure not to attach the front panel upside

down.

•Do not press the front panel too hard against the

unit when attaching it.

•Do not press too hard or put excessive pressure

on the display window of the front panel.

•Do not expose the front panel to direct sunlight

or heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight or

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the ignition key switch to the OFF

position without removing the front panel, the

caution alarm will beep for a few seconds.

Setting the clock

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

1Press (SHIFT), then press (3) (SET UP)

repeatedly until “Clock” appears.

1Press (5) (n).

The hour indication flashes.

2Set the hour.

3Press (5) (n).

The minute indication flashes.

4Set the minute.

2Press (SHIFT).

The clock starts.

3Press (SHIFT).

After the clock setting is complete, the

display returns to normal playback mode.

to go forward

to go backward

to go forward

to go backward

SOUND

LIST

MODE

SOUND

LIST

MODE

Preparing the rotary

commander

When you mount the rotary commander,

attach the label in the illustration below.

Changing the display item

Each time you press (DSPL), the item changes

as follows:

Track number/

Elapsed playback time

Disc name*1

Track name*2

Clock

*1If there is no prerecorded title for a disc “NO

D.Name” will appear on the display.

*2If a track title is not prerecorded, “NO T.Name”

will be displayed.

After you select the desired item, the display

will automatically change to the Motion

Display mode after a few seconds.

In the Motion Display mode, all the above

items are scrolled in the display one by one in

order.

Tip

The Motion Display mode can be turned off. (See

“Changing the sound and display settings” on

page 16.)

Automatically scrolling a disc name

— Auto Scroll

If the disc name or track name on an MD

exceeds 10 characters and the Auto Scroll

function is on, information automatically

scrolls across the display as follows:

• The disc name appears when the disc has

changed (if the disc name is selected).

• The track name appears when the track has

changed (if the track name is selected).

• The disc or track name appears depending on

the setting when you press (SOURCE) to select

an MD.

If you press (DSPL) to change the display

item, the disc or track name of the MD is

scrolled automatically whether you set the

function on or off.

continue to next page n

Track number

MD Player

Listening to an MD

1Press (OPEN) and insert the MD.

2Close the front panel.

Playback starts automatically.

If an MD is already inserted, press (SOURCE)

repeatedly until “MD” appears.

The title of the MD*and the track title will be

displayed on the display window, then the

playing time will appear.

*Only if these titles are prerecorded on the MD.

Tip

If the name of the MD is too long, you can scroll it

across the display window by pressing (SHIFT),

then (2) (N) while the disc name or track name is

displayed.

When the last track on the MD is

over

The track number indication will return to “1,”

and the playback will restart from the first

track of the MD.

To Press

Stop playback (OFF)

Eject the MD (OPEN) then 6

Labelled side up

Elapsed playing timeMD indication

OFF

SHIFT

2345678

Playing an MD in various

modes

You can play MDs in various modes:

•Repeat (Repeat Play) repeats the current

track.

•Shuf (Shuffle Play) plays all the tracks in

random order.

Playing tracks repeatedly

— Repeat Play

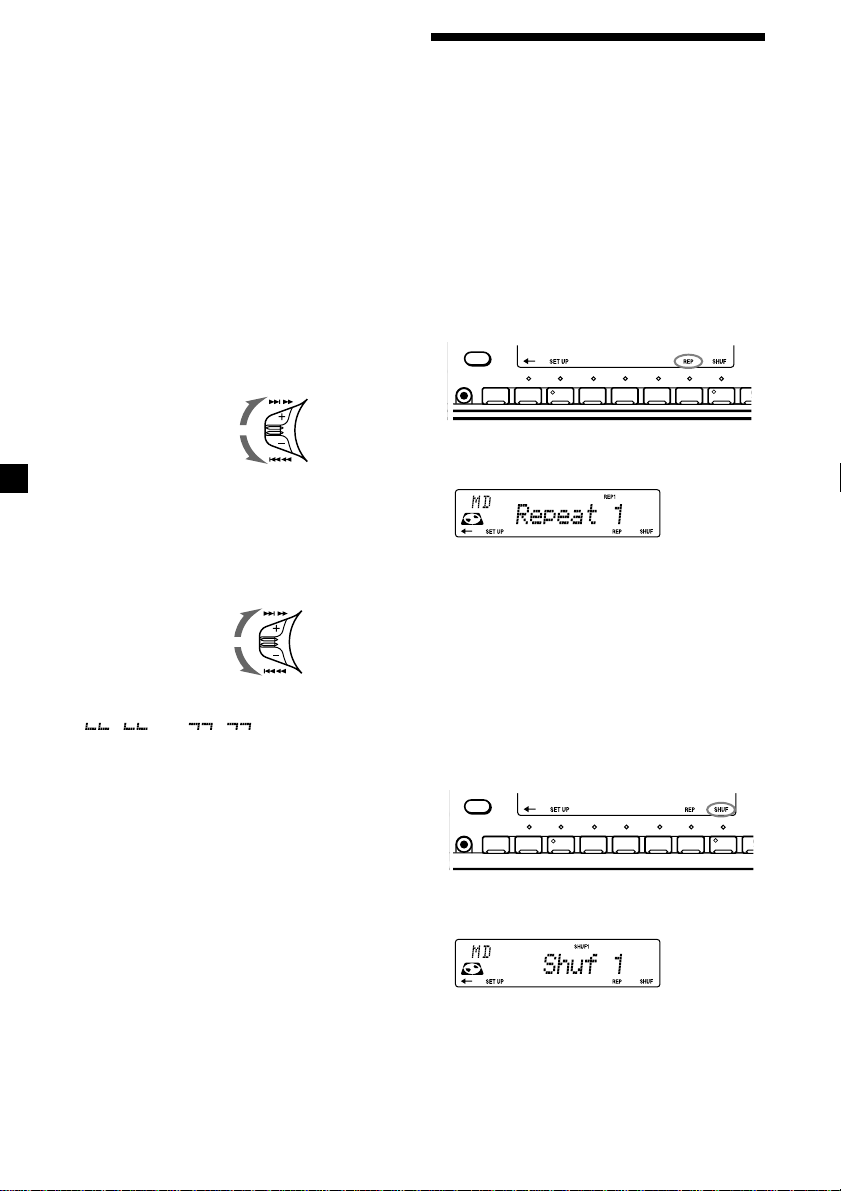

1During playback, press (SHIFT).

Each time you press (SHIFT), only the

items you can select light up.

2Press (7) (REP) repeatedly until “Repeat

1” appears.

Repeat Play starts.

3Press (SHIFT).

To return to normal playback mode, select

“Repeat off” in step 2 above.

Playing tracks in random order

— Shuffle Play

1During playback, press (SHIFT).

Each time you press (SHIFT), only the

items you can select light up.

2Press (8) (SHUF) repeatedly until

“Shuf 1” appears.

Shuffle Play starts.

3Press (SHIFT).

To return to normal playback mode, select

“Shuf off” in step 2 above.

1During playback, press (SHIFT).

2Press (3) (SET UP) repeatedly until

“A.Scrl” appears.

3Press (5) (n) to select “A.Scrl on.”

4Press (SHIFT).

To cancel Auto Scroll, select “A.Scrl off” in

step 3 above.

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS

control up or down and release for each

track you want to skip.

Locating a specific point in a track

— Manual Search

During playback, push the SEEK/AMS

control up or down and hold. Release

when you have found the desired point.

Note

If “ ” or “ ” appears in the

display, that means you have reached the

beginning or the end of the disc and you cannot

go any further.

To locate preceding

tracks

To locate succeeding

tracks

SEEK/AMS

To search backward

To search forward

SEEK/AMS

OFF

SHIFT

2345678

Autres manuels pour MDX-C7970

Table des matières

Langues :

Autres manuels Sony Récepteur de voiture

Sony

Sony CDX-4000X - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony XR-C5080R Manuel utilisateur

Sony

Sony XR-C430RDS Guide produit

Sony

Sony XR-C7500RX Manuel utilisateur

Sony

Sony CDX-GT54UIW - Cd Receiver Mp3/wma/aac Player Manuel utilisateur

Sony

Sony CDXGT430U - CD Receiver Head Unit Manuel utilisateur

Sony

Sony Xplod CDX-GT40W Manuel utilisateur

Sony

Sony CDX-HS70MW - Marine Stereo Manuel utilisateur

Sony

Sony EXCD-31 Manuel utilisateur

Sony

Sony CDX-C5850R Guide produit

Sony

Sony CDX-GT110 Guide produit

Sony

Sony CDX-GT71W - Fm/am Compact Disc Player Guide produit

Sony

Sony CDX-L450 Manuel utilisateur

Sony

Sony MEX-DV900 Mode d’emploi

Sony

Sony XR-4750RDS Manuel utilisateur

Sony

Sony XR-CA320A Manuel utilisateur

Sony

Sony CDX-GT54UIW - Cd Receiver Mp3/wma/aac Player Manuel utilisateur

Sony

Sony CDX-C6850 Manuel utilisateur

Sony

Sony CDX-M850MP (XT-XM1) Manuel utilisateur

Sony

Sony CDX GT11W - Radio / CD Player Manuel utilisateur

Sony

Sony EXCD-206 Manuel utilisateur

Sony

Sony CDX-V7800X Manuel utilisateur

Sony

Sony XR-C5100 Guide de démarrage rapide

Sony

Sony CDX-GT650UI - Fm/am Compact Disc Player Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur

Philips

Philips CEM5000 Manuel utilisateur
