FM/AM

Compact Disc

Player

Precautions

•If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

•If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

•If your car is equipped with a power aerial, it

will extend automatically while the unit is

operating.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

Moisture Condensation

On a rainy day or in a very damp area,

moisture may condense on the lenses inside

the unit. Should this occur, the unit will not

operate properly. In such a case, remove the

disc and wait for about an hour until the

moisture has evaporated.

To maintain high quality sound

If you have drink holders near your audio

equipment, be careful not to splash juice or

other soft drinks onto the unit and CD. Sugary

residues on the unit or CD may contaminate

the lenses inside the unit, reduce the sound

quality, or prevent sound reproduction

altogether.

Welcome !

Thank you for purchasing the Sony Compact

Disc Player. This unit lets you enjoy a variety

of features using the following controller

accessories:

Optional accessories

Rotary commander RM-X4S

Card remote commander RM-X91

In addition to the CD playback and radio

operations, you can expand your system by

connecting optional CD/MD units*1.

When you operate this unit or a connected

optional CD unit with the CD TEXT function,

the CD TEXT information will appear in the

display when you play a CD TEXT disc*2.

*1You can connect MD changers, CD changers, MD

players, or CD players.

*2A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name

and track names.

This information is recorded on the disc.

Notes on CDs

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface.

Do not stick paper or tape on the disc.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in temperature

inside the car.

Before playing, clean the discs with an optional

cleaning cloth. Wipe each disc from the center

out.

Do not use solvents such as benzine, thinner,

commercially available cleaners, or antistatic

spray intended for analog discs.

Notes on discs

If you use the discs explained below, the sticky

residue can cause the CD to stop spinning and

may cause malfunction or ruin your discs.

Do not use second-hand or rental CDs that

have a sticky residue on the surface (for

example, from peeled-off stickers or from ink,

or glue leaking from under the stickers).

There are paste residue.

Ink is sticky.

Do not use rental CDs with old labels that are

beginning to peel off.

Stickers that are

beginning to peel away,

leaving a sticky residue.

Do not use your CDs with labels or stickers

attached.

Labels are attached.

Notes on CD-R discs

•You can play CD-Rs (recordable CDs) on this

unit. However depending on the conditions

of the recording equipment or the CD-R disc

itself, some CD-Rs cannot be played on this

unit.

•You cannot play a CD-R that is not finalized

(Finalization is necessary for a recorded CD-

R disc to be played on the audio CD player).

•You cannot play CD-RWs (rewritable CDs)

on this player.

When you play 8 cm CDs

Use the optional Sony compact disc single

adaptor (CSA-8) to protect the CD player from

damage.

Table of Contents

Location of controls ............................................. 5

Getting Started

Resetting the unit ................................................. 7

Detaching the front panel ................................... 7

Turning the unit on/off ....................................... 8

How to use the menu .......................................... 8

Setting the clock ................................................... 8

CD Player

CD/MD Unit (optional)

Listening to a CD ................................................. 9

Playing tracks repeatedly

— Repeat Play ............................................... 11

Playing tracks in random order

— Shuffle Play ............................................... 11

Labelling a CD

— Disc Memo*.............................................. 12

Locating a disc by name

— List-up* ..................................................... 13

Selecting specific tracks for playback

— Bank*......................................................... 14

*Functions available with optional CD/MD unit

Radio

Memorising stations automatically

— Best Tuning Memory (BTM)................... 15

Memorising only the desired stations............. 15

Receiving the memorised stations ................... 16

Storing the station names

— Station Memo ........................................... 17

Locating a station by name

— List-up ....................................................... 18

Other Functions

Labelling the rotary commander ..................... 18

Using the rotary commander ........................... 19

Adjusting the sound characteristics ................ 20

Attenuating the sound ...................................... 20

Changing the sound and display settings ...... 21

Boosting the bass sound

— D-bass ........................................................ 21

Additional Information

Maintenance........................................................ 22

Dismounting the unit ........................................ 23

Specifications ...................................................... 24

Troubleshooting guide ...................................... 25

Location of controls

1Volume control dial

2MENU button 8, 10, 12, 13, 14, 15, 16,

17, 21

Z(eject) button (located on the front

side of the unit behind the front panel)

4DISC/PRST +/– (cursor up/down) buttons

8, 10, 12, 13, 14, 15, 16, 17, 21

During CD/MD playback:

Disc change 11, 13

During radio reception:

Preset stations select 16, 18

5DSPL (display mode change) button

9, 10, 12, 17

6LIST button 12, 17

List-up 13, 18

7SOURCE (TUNER/CD/MD) button

8, 9, 10, 13, 15, 16

8Display window

9OPEN button 7, 9, 22

q; D-BASS button 21

qa SOUND button 20

qs Reset button (located on the front side

of the unit behind the front panel) 7

qd OFF button*7, 8, 9

qf SEEK/AMS –/+ (cursor left/right) buttons

8, 10, 12, 14, 16, 17, 20, 21

Automatic Music Sensor 10, 14

Manual Search 10

Seek 15, 16

qg Frequency select switch (located on the

bottom of the unit)

The AM (FM) tuning interval is factory-set

to the 10 k (200 k) position. Make sure that

the 9 k (50 k) position is selected.

qh MODE button

During CD or MD playback:

CD/MD unit select 9, 13

During radio reception:

BAND select 15, 16

qj ENTER button 8, 10, 12, 13, 14, 15, 16,

17, 18, 21

qk Receptor for the card remote

commander

ql Number buttons

During radio reception:

Preset number select 15, 16

During CD/MD playback:

(1) REP 11

(2) SHUF 11

*Warning when installing in a car

without ACC (accessory) position on

the ignition key switch

Be sure to press (OFF) on the unit for

two seconds to turn off the clock display

after turning off the engine.

When you press (OFF) only momentarily,

the clock display does not turn off and this

causes battery wear.

CDX-C6800X

–

LIST

DSPL

OFF

ENTER

SOUND

1 2 3 4 56

SOURCE

SEEK/AMS

REP SHUF

OPEN

D-BASS

MODE

Refer to the pages listed for details.

Location of controls

Card remote commander RM-X91 (optional)

Replacing the lithium battery

When the battery becomes weak, the range of

the card remote commander becomes shorter.

Replace the battery with a new CR2025 lithium

battery.

Notes on lithium battery

•Keep the lithium battery out of the reach of

children. Should the battery be swallowed,

immediately consult a doctor.

•Wipe the battery with a dry cloth to assure a

good contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic

tweezers, otherwise a short-circuit may

occur.

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

The corresponding buttons of the card

remote commander control the same

functions as those on this unit.

1OFF button

2MENU button

3SOURCE button

4SEEK/AMS buttons

5SOUND button

6DSPL button

7ATT button

8LIST button

9DISC/PRST buttons

q; ENTER button

qa MODE button

qs VOL buttons

Note

A unit turned off by pressing (OFF) for two

seconds cannot be operated with the card remote

commander unless (SOURCE) on the unit is

pressed or a disc is inserted to activate the unit

first.

OFF

SEEK SEEK

OPEN/CLOSE

MENU LIST

SOUND

ENTER

DISC

SOURCE

DSPL MODE

VOLATT

+ side up

Attaching the front panel

Place the hole Ain the front panel onto the

spindle Bon the unit as illustrated, then push

the left side in.

Notes

• Be careful not to attach the front panel upside

down.

•Do not press the front panel too hard against the

unit when attaching it.

•Do not press too hard or put excessive pressure

on the display window of the front panel.

•Do not expose the front panel to direct sunlight

or heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight or

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the ignition key switch to the OFF

position without removing the front panel, the

caution alarm will beep for a few seconds.

If you connect an optional power amplifier and

do not use the built-in amplifier, the beep

sound will be deactivated.

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Remove the front panel and press the reset

button with a pointed object, such as a ball-

point pen.

Reset button

Note

Pressing the reset button will erase the clock

setting and some memorised functions.

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

1Press (OFF).

2Press (OPEN), then slide the front panel

to the right side, and pull out the left

side of the front panel.

Notes

• Do not put anything on the inner surface of the

front panel.

• Be sure not to drop the panel when detaching it

from the unit.

•If you detach the panel while the unit is still

turned on, the power will turn off automatically

to prevent the speakers from being damaged.

•When carrying the front panel with you, use the

supplied front panel case.

Turning the unit on/off

Turning on the unit

Press (SOURCE) or insert a CD in the unit. For

details on operation, refer to page 9 (CD/MD)

and page 15 (radio).

Turning off the unit

Press (OFF) to stop CD/MD playback or FM/

AM reception (the key illumination and

display remain on).

Press (OFF) for two seconds to completely

turn the unit off.

Note

If your car has no ACC position on the ignition key

switch, be sure to turn the unit off by pressing

(OFF) for two seconds to avoid car battery wear.

How to use the menu

This unit is operated by selecting items from a

menu.

To select, first enter the menu mode and

choose up/down ((+)/(–) of (DISC/PRST)), or

choose left/right ((–)/(+) of (SEEK/AMS)).

(DISC/PRST)

SOURCE

(SEEK/AMS)

SOURCE

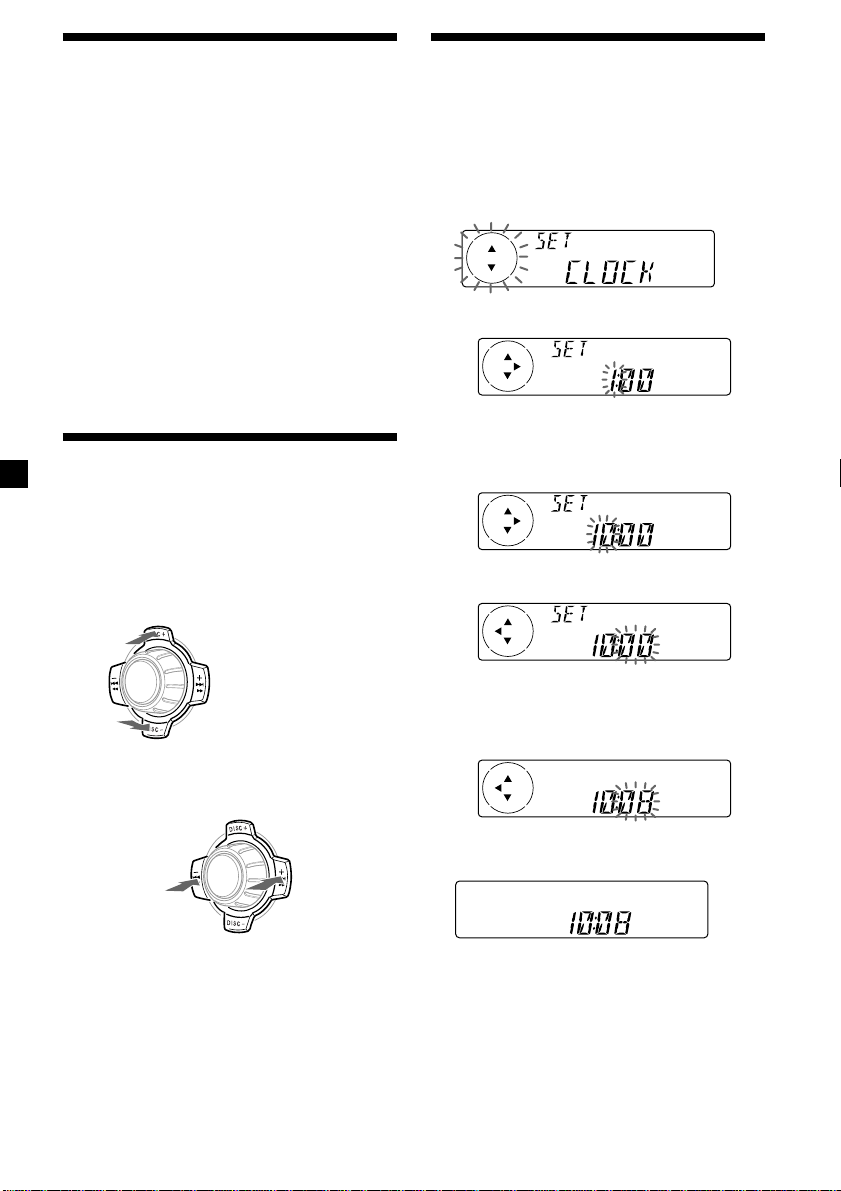

Setting the clock

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

1Press (MENU), then press either side of

(DISC/PRST) repeatedly until “CLOCK”

appears.

1Press (ENTER).

The hour indication flashes.

2Press either side of (DISC/PRST) to set

the hour.

3Press the (+) side of (SEEK/AMS).

The minute indication flashes.

4Press either side of (DISC/PRST) to set

the minute.

2Press (ENTER).

The clock starts.

After the clock setting is completed, the

display returns to normal play mode.

Note

In the initial setting, the clock indication appears

while the unit is turned off.

When the D.INFO mode is set to ON, the time is

always displayed (page 21).

(+): to select upwards

(–): to select downwards

(+): to select

rightwards

(–): to select

leftwards

CD Player

CD/MD Unit (optional)

In addition to playing a CD with this unit

alone, you can also control external CD/MD

units.

If you connect an optional CD unit with the

CD TEXT function, the CD TEXT information

will appear in the display when you play a CD

TEXT disc.

Listening to a CD

(with this unit only)

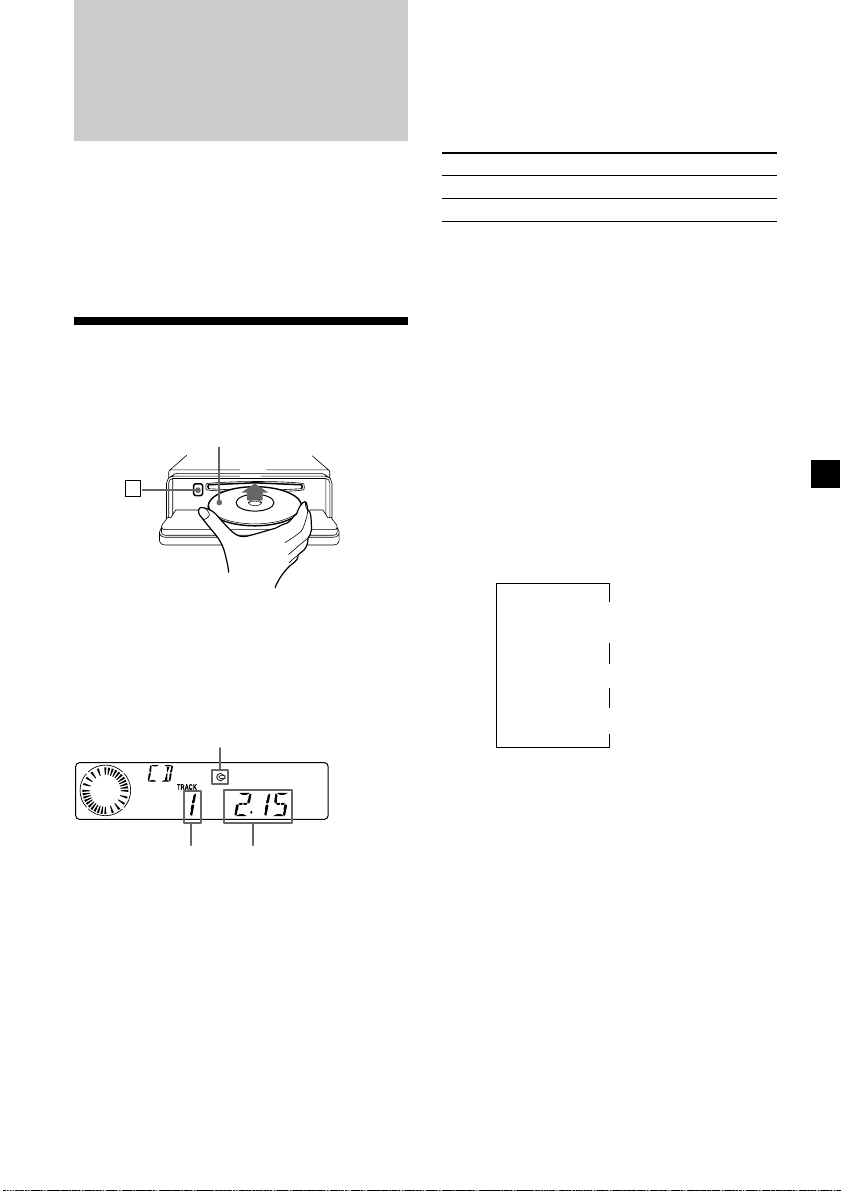

1Press (OPEN) and insert the CD.

Labelled side up

2Close the front panel.

Playback starts automatically.

If a CD is already inserted, press (SOURCE)

repeatedly until “CD” appears to start

playback.

CD indication

Elapsed playing timeTrack number

When the last track on the CD is

over

The track number indication returns to “1,”

and playback restarts from the first track of the

CD.

To Press

Stop playback (OFF)

Eject the CD (OPEN) then Z

Playing a CD or MD

(with an optional CD/MD unit)

1Press (SOURCE) repeatedly to select

“CD” or “MD.”

2Press (MODE) until the desired unit

appears.

CD/MD playback starts.

All the discs in the current CD/MD unit is

played from the top.

Changing the display item

Each time you press (DSPL) during MD, CD,

or CD TEXT disc playback, the item changes as

follows:

Disc number*1/Track number/

Elapsed playback time

Disc name*2/Artist name*3

Track name*4

*1While an optional CD/MD unit is connected.

*2If you have not labelled the CD or CD TEXT disc

(“Labelling a CD” on page 12), or if there is no

disc name prerecorded on the MD, “DISC” and

“NO NAME” appear in the display.

*3If you play a CD TEXT disc, the artist name

appears in the display after the disc name. (Only

for CD TEXT discs with the artist name.)

*4If the track name of a CD TEXT disc or MD is not

prerecorded, “TRACK” and “NO NAME” appear

in the display.

After you select the desired item, the display

will automatically change to the Motion

Display mode after a few seconds.

In the Motion Display mode, all the items are

scrolled in the display one by one in order.

Note

If you use personalised labels, they will always take

priority over the original CD TEXT information

when such information is displayed.

Tip

The Motion Display mode can be turned off. (See

“Changing the sound and display settings” on

page 20.)

Automatically scrolling a disc name

— Auto Scroll

If the disc name, artist name, or track name on

an MD or a CD TEXT disc exceeds 8 characters

and the Auto Scroll function is on, information

automatically scrolls across the display as

follows:

• The disc name appears when the disc has

changed (if the disc name is selected as the

display item).

• The track name appears when the track has

changed (if the track name is selected as the

display item).

• The disc or track name appears depending on

the setting when you press (SOURCE) to select

an MD or CD TEXT disc.

If you press (DSPL) to change the display

item, the disc or track name of the MD or CD

TEXT disc is scrolled automatically whether

you set the function on or off.

1During playback, press (MENU).

2Press either side of (DISC/PRST)

repeatedly until “A.SCRL-OFF” appears.

3Press the (+) side of (SEEK/AMS) to select

“A.SCRL-ON.”

4Press (ENTER).

To cancel Auto Scroll, select “A.SCRL-OFF” in

step 3.

Note

For some CD TEXT discs with very many characters,

the following cases may happen:

— Some of the characters are not displayed.

— Auto Scroll does not work.

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of

(SEEK/AMS) momentarily for each track

you want to skip.

SOURCE

Locating a specific point in a track

— Manual Search

During playback, press and hold either

side of (SEEK/AMS). Release when you

have found the desired point.

SOURCE

Note

If “ ” or “ ” appears in the

display, you have reached the beginning or the

end of the disc and you cannot go any further.

To locate

preceding

tracks

To locate

succeeding

tracks

To search

forward

To search

backward

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Récepteur de voiture

Sony

Sony XR-2800 Manuel utilisateur

Sony

Sony CDX-GT575UE Manuel utilisateur

Sony

Sony WX-4500X Installation/Connections Guide produit

Sony

Sony CDX-GT71W - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony Xplod CDX-MP40 Manuel utilisateur

Sony

Sony CDX-MP50 Manuel utilisateur

Sony

Sony XR-CA420 Manuel utilisateur

Sony

Sony XR-CA330 Installation/Connection Manuel utilisateur

Sony

Sony HCD-541 Primary Manuel utilisateur

Sony

Sony CDXM60UI - Marine CD Receiver MP3/WMA/AAC... Manuel utilisateur

Sony

Sony XR-5880R Manuel utilisateur

Sony

Sony DSX-S300BTX Guide produit

Sony

Sony XR-1100 Manuel utilisateur

Sony

Sony XAV-60 - 6.1 Inch Avc Manuel utilisateur

Sony

Sony CDX-GT260MP Manuel utilisateur

Sony

Sony Xplod CDX-CA810X Guide produit

Sony

Sony XR-4950X Manuel utilisateur

Sony

Sony XR-C7200 - Fm/am Cassette Car Stereo Manuel utilisateur

Sony

Sony CDX-525RF - Compact Disc Changer System Guide produit

Sony

Sony CDX-CA710X Addendum to Manuel utilisateur

Sony

Sony CDX-GT740UI Guide produit

Sony

Sony CDX-GT111 Manuel utilisateur

Sony

Sony XR-C6103SP Manuel utilisateur

Sony

Sony CDX-GT970US Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur

Philips

Philips CEM5000 Manuel utilisateur
