Welcome !

Thank you for purchasing the Sony Compact

Disc Player. This unit lets you enjoy a variety

of features. You can use a supplied card

remote commander (RM-X49) (CDX-6500

only).

Table of Contents

Location of controls ................................................. 4

Getting Started

Resetting the unit ................................................ 6

Detaching the front panel .................................. 6

Setting the clock .................................................. 7

CD Player

Listening to a CD ................................................ 7

Playing a CD in various modes ........................ 8

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM) ................... 8

Memorizing only the desired stations ............. 9

Receiving the memorized stations.................... 9

Other Functions

Adjusting the sound characteristics ............... 10

Turning on the clock display

— POWER SELECT function ..................... 10

Changing the sound and beep tone ............... 10

Additional Information

Precautions ......................................................... 11

Maintenance....................................................... 12

Dismounting the unit ....................................... 12

Specifications ..................................................... 13

Troubleshooting guide ..................................... 14

Location of controls

Refer to the pages for details.

1SEEK/AMS (seek/Automatic Music

Sensor/manual search) control 8, 9

2MODE (band select) button 8, 9

3SOURCE (source select) button 7, 8, 9

4Dial (volume/bass/treble/left-right/

front-rear control) 7, 10

5SOUND button 7, 10

6Display window

7Receptor for the supplied card remote

commander (CDX-6500 only)

8SENS/BTM (sensitivity adjust/Best

Tuning Memory) button 8, 9

96(eject) button 7

0DSPL (display mode change/time set)

button 7, 9

!¡ RELEASE (front panel release) button

6, 12

!™ Reset button (located on the front side

of the unit behind the front panel) 6

!£ OFF button 6, 7, 10

!¢ Frequency Select switch (located on the

bottom of the unit)

See “Frequency Select Switch” in the

Installation/Connections manual.

!∞ During radio reception:

Number buttons 9

During CD playback:

(1) REPEAT button 8

(2) SHUF button 8

!§ D-BASS control 10

When the positions of switch !¢ have been

changed, be sure to press the reset button after

connecting power.

The illustration of the front panel in this

manual is of the CDX-6500.

RELEASE

REPEAT

SEEK/AMS

SOUND

OFF

123456

MODE

SHUF

SOURCE

SENS DSPL

D - BASS

BTM

OFF

123

CDX-6500/4500

Card remote commander RM-X49 (CDX-6500 only)

Replacing the lithium battery

When the battery becomes weak, the range of

the card remote commander becomes shorter.

Replace the battery with a new CR2025 lithium

battery.

Notes on lithium battery

•Keep the lithium battery out of the reach of

children. Should the battery be swallowed,

immediately consult a doctor.

•Wipe the battery with a dry cloth to assure a

good contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic

tweezers, otherwise a short-circuit may

occur.

WARNING

The battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

The corresponding buttons of the card

remote commander control the same

functions as those on this unit.

1OFF button

2SOUND button

3DSPL button

4VOL button

5PRST/DISC button

6ATT button

7SOURCE button

8MODE button

9SEEK/AMS button

When the POWER SELECT function is set to on, the unit cannot be operated with the card

remote commander unless (SOURCE) on the unit is pressed or a cassette is inserted to activate

the unit first.

+ side up

SEEK

AMS

PRST

DISC

VOL

DSPL

MODE

REW

SOURCE

OFF

SOUND

ATT

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Remove the front panel and press the reset

button with a pointed object, such as a

ballpoint pen.

Notes

•Pressing the reset button will erase the clock

setting and some memorized programme and

memory functions.

•When you connect the power supply cord to the

unit or reset the unit, wait for about 10 seconds

before you insert a disc. If you insert a disc within

these 10 seconds, the unit will not be reset, and

you will have to press the reset button again.

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

1Press (OFF).

2Press (RELEASE), then slide the front

panel a little to the left, and pull it off

towards you.

Reset button

Notes

• Be sure not to drop the panel when detaching it

from the unit.

•If you detach the panel while the unit is still

turned on, the power will turn off automatically

to prevent the speakers from being damaged.

•When carrying the front panel with you, use the

supplied front panel case.

Attaching the front panel

Attach part aof the front panel to part bof

the unit as illustrated, and push the left side

into position until it clicks.

Notes

• Be sure not to attach the front panel upside

down.

•Do not press the front panel too hard against the

unit when attaching it.

•Do not press too hard or put excessive pressure

on the display window of the front panel.

•Do not expose the front panel to direct sunlight

or heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight or

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the ignition key switch to the OFF

position without removing the front panel, the

caution alarm will beep for a few seconds.

If you connect an optional power amplifier and

do not use the built-in amplifier, the beep

sound will be deactivated.

(OFF)

(RELEASE)

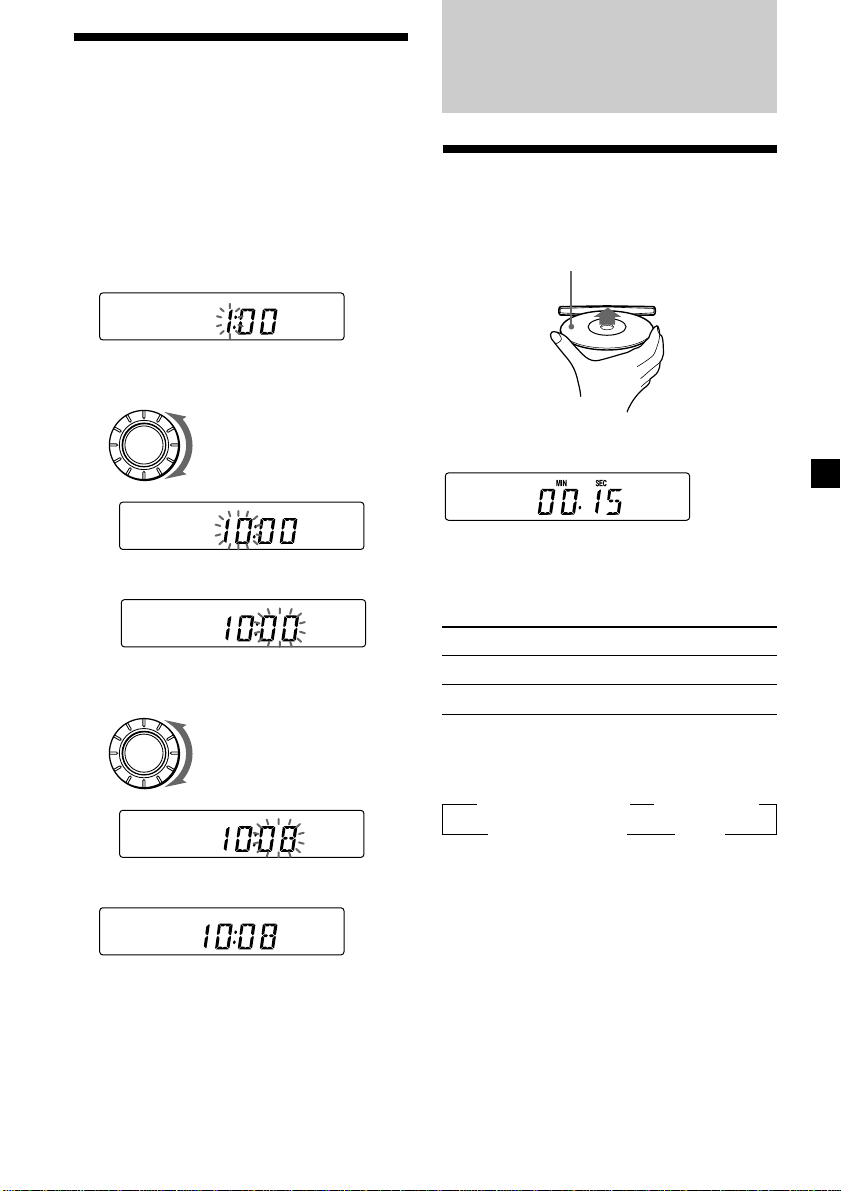

Setting the clock

The clock has a 12-hour digital indication.

Example: To set the clock to 10:08

1Press (DSPL) during operation.

If the POWER SELECT function is set to

“ON,” go to step 2. If it is set to “OFF,” set

to “ON” (page 10).

2Press (DSPL) for two seconds.

The hour indication flashes.

1Set the hour.

2Press (SOUND).

The minute indication flashes.

3Set the minute.

3Press (DSPL).

The clock starts.

Note

If the car has no accessory position on the ignition

key switch, the clock cannot be set unless the

power is turned on. Set the clock after you have

turned on the radio, or started CD playback.

Label side up

Elapsed playing time

To go forward

To go backward

To go forward

To go backward

CD Player

Listening to a CD

Insert the CD.

Playback starts automatically.

If a CD is already inserted, press (SOURCE)

repeatedly until “CD” appears.

Note

To play back an 8 cm CD, use the optional Sony

compact disc single adapter (CSA-8).

To Press

Stop playback 6or (OFF)

Eject the CD 6

Changing the display item

Each time you press (DSPL) during CD

playback, the item changes as follows:

zElapsed playing time zTrack number

MOTION DISPLAY*ZClock Z

*All the above items are scrolled in the display

one by one in order.

SOURCE

”FM I ” FM II ” FM III ” AM

To search forward

To search backward

Radio

Memorizing stations

automatically

— Best Tuning Memory (BTM)

This unit selects the stations with the strongest

signals and memorizes them in the order of

their frequencies. You can store up to 6 stations

on each band (FM I, FM II, FM III, and AM).

Caution

When tuning in stations while driving, use

Best Tuning Memory to prevent accidents.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the mode

changes as follows:

CD ˜TUNER

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the band

changes as follows:

3Press (SENS/BTM) for two seconds.

The unit stores stations in the order of their

frequencies on the number buttons.

A beep sounds when the setting is stored.

Notes

• The unit does not store stations with weak

signals. If only a few stations can be received,

some number buttons will retain their former

setting.

• When a number is indicated in the display, the

unit starts storing stations from the one currently

displayed.

• If a CD is not in the unit, only the tuner band

appears even if you press (SOURCE).

Locating a specific point in a track

— Manual Search

During playback, push the SEEK/AMS

control up or down and hold.

Release when you have found the

desired point.

Note

If “ ” or “ ” appears in the

display, you have reached the beginning or the

end of the disc and you cannot go any further.

Playing a CD in various

modes

Playing tracks repeatedly

— Repeat Play

Press (1) during playback.

“REP” appears in the display.

When the current track is over, it will play

again from the beginning.

To cancel this mode, press again.

Playing tracks in random order

— Shuffle Play

Press (2) during playback.

“SHUF” appears in the display.

To cancel this mode, press again.

To locate succeeding

tracks

To locate preceding

tracks

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS

control up or down and release for each

track you want to skip.

SEEK/AMS

Memorizing only the

desired stations

You can store up to 6 stations on each band (a

total of 18 for FM I, FM II, and FM III, and 6 for

AM) in the order of your choice.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Push the SEEK/AMS control up or down

to tune in the station that you want to

store on the number button.

4Press and hold the desired number

button ((1) to (6)) until “MEM” appears.

The number button indication appears in

the display.

Note

If you try to store another station on the same

number button, the previously stored station will

be erased.

Receiving the memorized

stations

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press the number button ((1) to (6)) on

which the desired station is stored.

If you cannot tune in a preset

station

Push and release the SEEK/AMS control

up or down to search for the station

(automatic tuning).

Scanning stops when the unit receives a

station. Push the SEEK/AMS control up or

down repeatedly until the desired station is

received.

Note

If the automatic tuning stops too frequently, press

(SENS/BTM) repeatedly until “LCL” (local seek

mode) is displayed. Only the stations with

relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want

to listen to push the SEEK/AMS control up or down

and hold until the desired frequency appears

(manual tuning).

If FM stereo reception is poor

— Monaural Mode

Press (SENS/BTM) repeatedly until

“MONO” appears.

The sound improves, but becomes

monaural (“ST” disappears).

To return to the normal mode, press again

until “MONO” disappears.

Changing the display item

Each time you press (DSPL), the items changes

as follows:

zFrequency zClock

MOTION DISPLAY*Z

*All the above items are scrolled in the display

one by one in order.

Level

Frequency (Hz)

Changing the sound and

beep tone

Boosting the bass sound — D-bass

You can enjoy a clear and powerful bass

sound.

The D-bass function boosts the low frequency

signal with a sharper curve than conventional

bass boost.

You can hear the bass line more clearly even

while the vocal remains the same volume. You

can emphasize and adjust the bass sound

easily with the D-BASS control. This is similar

in effect to an optional subwoofer system.

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Adjusting the bass curve

Turn the D-BASS control to adjust the

bass level (1, 2, or 3).

“D-BASS” appears in the display.

To cancel, turn the control to OFF.

Note

If the bass sound becomes distorted, adjust the

D-BASS control or volume.

Cancel the beep sound

Press (6) while pressing (SOUND).

To obtain the beep sound again, press these

buttons again.

Note

If you connect an optional power amplifier and do

not use the built-in amplifier, the beep sound will

be disabled.

Other Functions

Adjusting the sound

characteristics

You can adjust the bass, treble, balance, and

fader. You can store the bass and treble levels.

1Select the item you want to adjust by

pressing (SOUND) repeatedly.

BAS (bass) nTRE (treble) nBAL (left-

right) nFAD (front-rear) nVOL (volume)

2Adjust the selected item by rotating the

dial.

Adjust within three seconds after selecting

the item. (After three seconds, the dial

function reverts to volume control.)

Turning on the clock

display — POWER SELECT function

Only for cars with an accessory position on the

ignition key switch

To turn the Power Select function ON

Press (OFF) while pressing (SOUND).

The Power Select function ties the clock

display power to the accessory position on

the ignition key switch.

To avoid battery wear, the clock is not

displayed while the unit is initializing.

Note

You cannot operate this function with the

supplied card remote commander (CDX-6500 only).

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Récepteur de voiture

Sony

Sony CDX-FW570 - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-GT572 Manuel utilisateur

Sony

Sony HCD-EX6 Manuel utilisateur

Sony

Sony CDX-M8815X - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-GT110 Manuel utilisateur

Sony

Sony CDX-C480 - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony MEX-BT4100P Manuel utilisateur

Sony

Sony XR-CA440X Guide produit

Sony

Sony MEX-BT3100P Manuel utilisateur

Sony

Sony ST-S222ES Manuel utilisateur

Sony

Sony CDX-C7000X - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-CA720X - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-GT350MP - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDXGT430U - CD Receiver Head Unit Manuel utilisateur

Sony

Sony Xplod CDX-GT430IP Guide produit

Sony

Sony CDX-GT500EE Manuel utilisateur

Sony

Sony CXS-GT07HP - Fm/am Compact Disc Player Guide produit

Sony

Sony CDX-GT22W - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-GT270MP Manuel utilisateur

Sony

Sony CDX-F5500 (XT-XM1) Manuel utilisateur

Sony

Sony CDX-GT43IPW - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-3900R Manuel utilisateur

Sony

Sony MEX-BT3700U Manuel utilisateur

Sony

Sony XR-C307 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur

Philips

Philips CEM5000 Manuel utilisateur
