Sony CDX-2180 Manuel utilisateur
Operating Instructions
3-861-727-31 (1)
1998 by Sony Corporation
FM/AM
Compact Disc
Player
CDX-2180
For installation and connections, see the supplied installation/connections
manual.
EN
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. CDX-2180␣ ␣ Serial No.
2
EN
Welcome !
Thank you for purchasing the Sony Compact
Disc Player. This unit lets you enjoy a variety
of features.
Warning
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
3
EN
Table of Contents
Location of controls ................................................. 4
Getting Started
Resetting the unit ................................................ 5
Setting the clock .................................................. 5
CD Player
Listening to a CD ................................................ 6
Playing a CD in various modes ........................ 6
Radio
Memorizing stations automatically
— Best Tuning Memory (BTM) ................... 7
Memorizing only the desired stations ............. 7
Receiving the memorized stations.................... 7
Other Functions
Adjusting the sound characteristics ................. 8
Changing the sound and beep tone ................. 8
Turning on the clock display
— POWER SELECT function ....................... 9
Additional Information
Precautions ........................................................... 9
Maintenance ....................................................... 10
Dismounting the unit ....................................... 11
Specifications ..................................................... 12
Troubleshooting guide ..................................... 13
4
EN
Location of controls
Refer to the pages for details.
1SEEK/AMS (seek/Automatic Music
Sensor/manual search) control 6, 7, 8
2MODE (band select) button 7
3SOURCE (source select) button 6, 7
4Dial (volume/bass/treble/left-right/
front-rear control) 5, 8
5SOUND button 5, 8, 9
6Display window
7DSPL (display mode change/time set)
button 5, 6, 8
86(eject) button 6
9BTM/SENS (Best Tuning Memory/
sensitivity adjust) button 7, 8
!º Reset button (located on the front side
of the unit hidden by the front panel) 5
!¡ OFF button 5, 6, 9
!™ During radio reception:
Number buttons 7
During CD playback:
(1) REPEAT button 6
(2) SHUF button 6
!£ D-BASS dial 9
REPEAT
SEEK/AMS
SOUND
OFF
DSPL SENS
123456
D - BASS
OFF
123
MODE
SHUF
BTM
SOURCE
5
EN
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Press the reset button with a pointed object,
such as a ball-point pen.
Notes
•Pressing the reset button will erase all the
memorized program and memory functions.
•When you connect the power supply cord to the
unit or reset the unit, wait for about 10 seconds
before you insert a disc. Do not insert a disc
within these 10 seconds, otherwise, the unit will
not be reset, and you will have to press the reset
button again.
Reset button
Setting the clock
The clock has a 12-hour digital indication.
Example: Set the clock to 10:08
1Press (OFF) or (DSPL) during operation.
If the POWER SELECT function is set to
“ON”, press (OFF). If it is set to “OFF”,
press (DSPL).
2Press (DSPL) for two seconds.
The hour digit flashes.
1Set the hour digits.
2Press (SOUND) momentarily.
The minute digits flash.
3Set the minute digits.
3Press (DSPL) momentarily.
The clock is activated.
Note
If the car has no accessory position on the ignition
key switch, the clock cannot be set unless the
power is turn on. Set the clock after you have
turned on the radio, or started CD playback.
To go forward
To go back
SOURCE
To go forward
To go back
SOURCE
100
1000
1000
1008
Getting Started
1008
6
EN
SEEK/AMS
To search forward
To search backward
Labelled side up
Elapsed playing time
To locate succeeding
tracks
To locate preceding
tracks
SEEK/AMS
CD Player
Listening to a CD
Simply insert the CD.
Playback starts automatically.
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears.
Note
To play back an 8 cm (3 in.) CD, use the optional
Sony compact disc single adapter (CSA-8).
To Press
Stop playback 6or (OFF)
Eject the CD 6
Changing the displayed items
Each time you press (DSPL), the item changes
as follows:
zElapsed playing time zTrack number
Time Z
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, push the SEEK/AMS
control up or down momentarily.
Locating a specific point in a track
— Manual Search
During playback, push the SEEK/AMS
control up or down for about two
seconds. Release when you have found
the desired point.
Note
If “ ” or “ ” appears in the
display, you have reached the beginning or the
end of the disc and you cannot go any further.
Playing a CD in various
modes
Playing tracks repeatedly
— Repeat Play
Press (1) during playback.
“REP” appears in the display.
When the currently played track is over, it will
be played again from the beginning.
To cancel this mode, press again.
Playing tracks in random order
— Shuffle Play
Press (2) during playback.
“SHUF” appears in the display.
All tracks on the CD are played in random
order.
To cancel this mode, press again.
0215
MIN SEC
7
EN
Radio
Memorizing stations
automatically
— Best Tuning Memory (BTM)
This function selects from the currently
received band the stations with the strongest
signals and memorizes them in order of their
frequency.
PREVENTING ACCIDENTS!
When tuning in while driving, use the
automatic tuning instead of manual tuning.
1Press (SOURCE) repeatedly to select the
tuner.
Each time you press (SOURCE), the mode
changes as follows:
CD ˜TUNER
2Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the mode
changes as follows:
3Press (BTM/SENS) for two seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
Notes
• The unit does not store stations with weak
signals. If only a few stations are received, some
number buttons remain empty.
• When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.
• If a CD is not in the unit, only the tuner band
appears even if you press (SOURCE).
Memorizing only the
desired stations
You can store up to 6 stations on each band (18
for FM I, FM II and FM III, 6 for AM) in the
order of your choice.
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band.
3Push the SEEK/AMS control up or down
to tune in the station that you want to
store on the number button.
4Press the desired number button ((1) to
(6)) for two seconds until “MEM”
appears.
The number button indication appears in
the display.
Note
If you try to store another station on the same
number button, the previously stored station will
be erased.
Receiving the memorized
stations
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band (FM I, FM II, FM III or AM).
3Press the number button ((1) to (6))
momentarily where the desired station is
stored.
”FM I ” FM II ” FM III ” AM
CD Player/Radio
8
EN
Other Functions
Adjusting the sound
characteristics
You can adjust bass, treble, balance and fader.
Each source can store the bass and treble level
independently.
1Select the item you want to adjust by
pressing (SOUND) repeatedly.
VOL (volume) nBAS (bass) nTRE (treble)
nBAL (left-right) nFAD (front-rear)
2Adjust the selected item by rotating the
dial.
Adjust within three seconds after selecting
the item. (After three seconds, the dial
functions as volume control.)
Changing the sound and
beep tone
Boosting the bass sound — D.bass
You can enjoy clear and powerful bass sound.
The D-bass function boosts the low frequency
signal with a sharper curve than conventional
bass boost.
You can hear the bass line more clearly even if
the vocal sound is the same volume. You can
emphasize and adjust the bass sound easily
with the D-bass control. This effect is similar to
the one you get when you use an optional
subwoofer system.
Moreover, the Digital D-bass*function creates
even sharper and more powerful bass sound
than Analog D-bass.
*Digital D-bass is available during CD playback.
If you cannot tune in a preset
station
Push the SEEK/AMS control up or down
momentarily to search for the station
(automatic tuning).
Scanning stops when the unit receives a
station. Push the SEEK/AMS control up or
down repeatedly until the desired station is
received.
Note
If the automatic tuning stops too frequently, press
(BTM/SENS) momentarily until “LCL” appears in
the display (local seek mode). Only the stations
with relatively strong signals will be tuned in.
Tip
If you know the frequency of the station you want
to listen to, push the SEEK/AMS control up or
down for two seconds until the desired frequency
appears (manual tuning).
If FM stereo reception is poor
— Monaural Mode
Press (BTM/SENS) momentarily until
“MONO” appears.
The sound improves, but becomes
monaural (“ST” disappears).
To go back to the normal mode, press again
until “MONO” disappears.
Changing the displayed items
Each time you press (DSPL), the items
alternate between the frequency and time.
9
EN
Digital D-BASS Analog D-BASS
Level
Level
0dB
D-BASS 3
D-BASS 2
D-BASS 1
0dB
D-BASS 3
D-BASS 2
D-BASS 1
Frequency (Hz)Frequency (Hz)
Radio/Other Functions/Additional Information
Adjusting the bass curve
Turn the D-BASS dial to adjust the bass
level (1, 2 or 3).
“D-BASS” appears in the display.
During CD playback, “DIGITAL D-BASS”
appears in the display.
To cancel, turn the dial to the OFF position.
Note
If the bass sound becomes distorted, adjust the D-
bass dial or volume control.
Attenuating the beep tone
Press (6) while pressing (SOUND).
To obtain the beep tone again, press these
buttons again.
Note
If you connect an optional power amplifier and do
not use the built-in amplifier, the beep tone will
be disabled.
Turning on the clock
display — POWER SELECT function
Only for cars with an accessory position on the
ignition key switch
To turn the Power Select function ON
Press (OFF) while pressing (SOUND).
The Power Select function ties the clock
display power to the accessory position on
the ignition key switch.
To avoid battery wear, the clock is not
displayed while the unit is initializing.
Additional
Information
Precautions
• If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
• If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
• If no sound comes from the speakers of a
two-speaker system, set the fader control to
the center position.
•If your car is equipped with a power
antenna, note that it will extend
automatically while the unit is operating.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
Notes on handling CDs
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge. To keep the disc
clean, do not touch the surface.
Do not stick paper or tape on the labeled
surface.
continue to next page n
10
EN
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
that matches the amperage described on the
fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse
blows again after replacement, there may be an
internal malfunction. In such a case, consult
your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Fuse (10 A)
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in the
temperature inside the car.
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the center
out.
Do not use solvents such as benzine, thinner,
commercially available cleaners or antistatic
spray intended for analog discs.
Note on moisture condensation
On a rainy day or in a very damp area,
moisture may condense on the lenses inside
the CD player. Should this occur, the unit will
not operate properly. In this case, remove the
disc and wait for about an hour until the
moisture evaporates.
When you play 8 cm (3 in.) CDs
Use the optional Sony compact disc single
adapter (CSA-8) to protect the CD player from
being damaged.
Autres manuels pour CDX-2180
1
Table des matières
Autres manuels Sony Récepteur de voiture
Sony
Sony CDX-GT760 Manuel utilisateur
Sony
Sony XR-C440RDS Manuel utilisateur
Sony
Sony MEX-BT3800U - Bluetooth Audio System Manuel utilisateur
Sony
Sony MEXBT2600 - Bluetooth CD Receiver Manuel utilisateur
Sony
Sony CDX-4250 - Fm/am Compact Disc Changer System Manuel utilisateur
Sony
Sony CDX-M850MP (XT-XM1) Manuel utilisateur
Sony
Sony MEX-R5 - Multi Disc Player Manuel utilisateur
Sony
Sony CDX-MP30 Manuel utilisateur
Sony

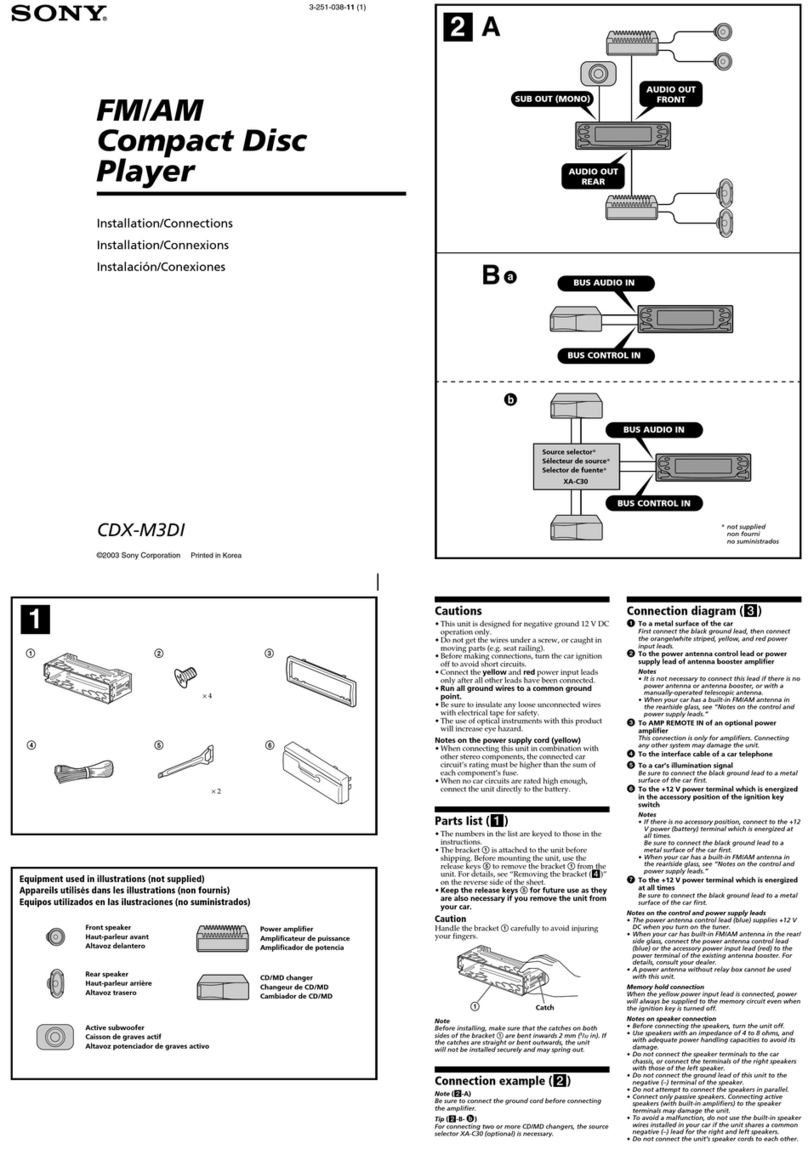

Sony CDX-M3DI (XT-XM1) Manuel utilisateur
Sony
Sony XR-CA320A Manuel utilisateur
Sony
Sony Model CDX-L280 Manuel utilisateur
Sony
Sony GT620U - CDX Radio / CD Guide produit
Sony
Sony CDX-M610 (XT-XM1) Manuel utilisateur
Sony
Sony MEX-BT3000P Guide produit
Sony
Sony CDX-MP80 Guide produit
Sony
Sony Xplod CDX-GT250MP Manuel utilisateur
Sony
Sony CDX-CA600 Manuel utilisateur
Sony
Sony XR-C6100R Manuel utilisateur
Sony
Sony HCD-NEZ30 - Cd Deck Receiver Component Manuel utilisateur
Sony
Sony CDX-C570R Manuel utilisateur
