NXCAM® Super 35mm Sensor Camcorder

A New World of High Quality Video Production Convenience with

the NXCAM Super 35mm Motion Picture Camcorder

Sony's range of NXCAM® models now includes the NEX-FS100U interchangeable lens camcorder featuring

a Super 35mm sensor. Developed speciﬁ cally for shooting motion pictures, this high sensitivity, large format

sensor is capable of producing footage with shallow depth of ﬁ eld similar to that of a ﬁ lm camera for a new

level of expression.

For even more creative ﬂ exibility, the NEX-FS100U also enables extended continuous recording and

simultaneous recording of HD video footage for instant backup with an HXR-FMU128 Flash Memory Unit. These

and other valuable features make this compact, high performance camera ideal for producing everything

from low budget commercials, music videos and documentaries to wedding videos.

INTRODUCT ION

NXCAM Super 35mm Motion Picture Camcorder Providing

Creative Expression in High Quality Video Production

"Exmor" Super35 CMOS Sensor for Shooting Motion Pictures

Equipped with a large CMOS sensor equivalent in size to Super 35mm ﬁlm, like that

used in the PMW-F3, the NEX-FS100U enables shooting with similar creative depth of

ﬁeld as ﬁlm cameras.

The sensor also features an optimum number of effective pixels for shooting HD

moving images. At a high 60fps in all-pixel scan mode, this allows images to

be captured with less color aliasing, jaggedness and rolling shutter than DSLR

cameras, while providing the sensitivity to shoot at a minimum illumination of

0.28lux*1

. Another advantage of Exmor® technology is minimal noise when shooting

low-light scenes.

* 1 When using a ﬁxed shutter speed of 1/30, auto gain and an iris setting of F1.4

The SEL18200 lens supplied with the NEX-FS100UK enables shooting in illumination as low as 1.5lux when

using a ﬁxed shutter speed of 1/30, auto gain and auto iris

SENSOR

"Exmor" Super35 CMOS Sensor

Gross pixels Approx. 3,530,000 pixels

Effective pixels of moving pictures in 16:9 Approx. 3,370,000 pixels

Effective pixels of moving pictures in 4:3 Approx. 2,530,000 pixels NEX-FS100U

NEX-FS100U

Four Thirds Camcorder

Full Frame DSLR Camera

Depth of Field

Sensitivity

Simulated images

Super 35 (16:9) Four Thirds (4:3)

2/3”

1/2”

23.6 mm

13.3 mm 9.6 mm

11.0 mm

8.8 mm

17.3 mm

6.4 mm

4.8 mm

7.9 mm

6.6 mm

E-Mount Interchangeable Lens System

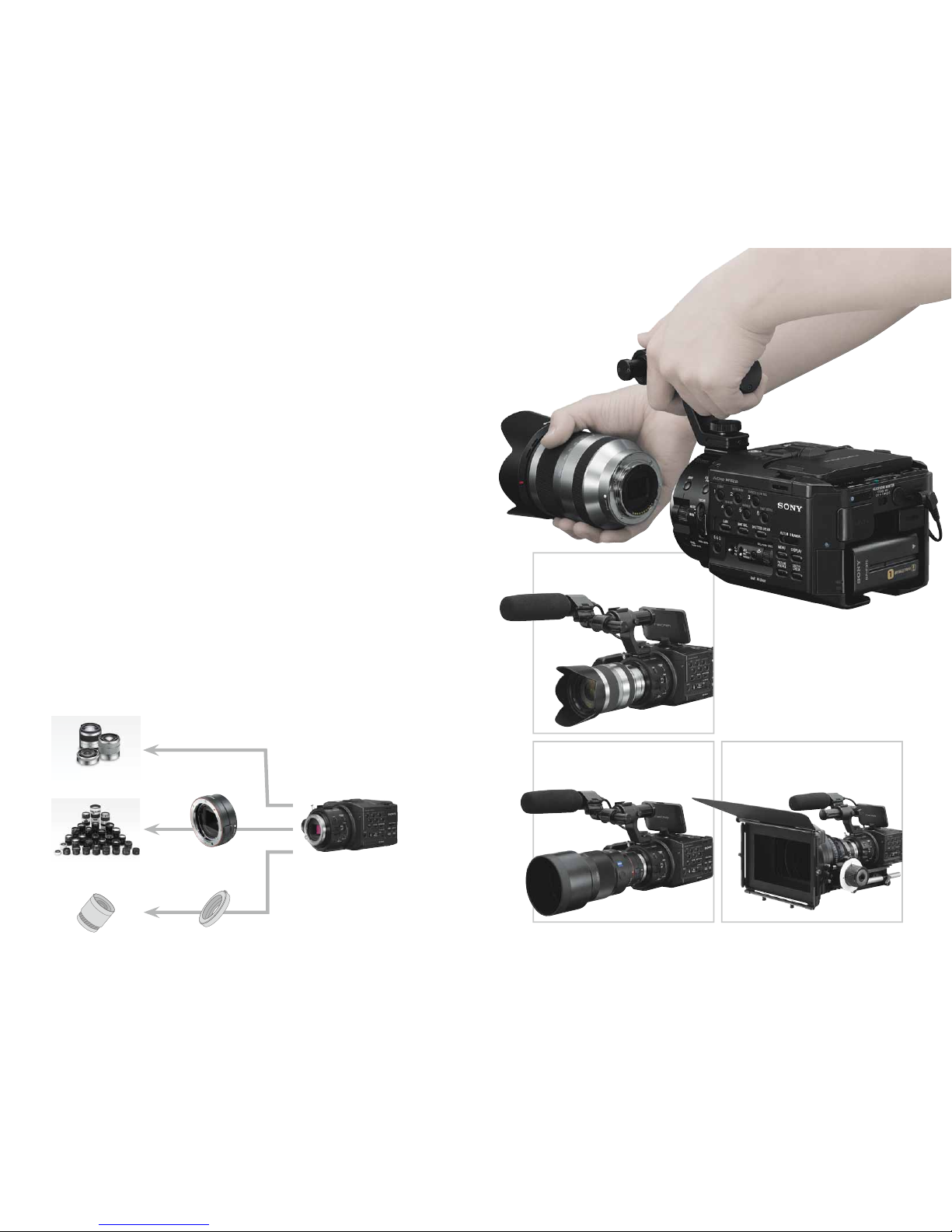

The NEX-FS100U features the E-mount Interchangeable lens system.

Sony's E-mount interchangeable lenses let you enjoy a level of creative freedom

unimaginable with camcorders of the past. All feature precision-crafted optics

with aspherical glass elements for compact high performance, and circular iris

mechanisms for smooth background defocusing. The NEX-FS100UK comes with the

SEL18200(E 18–200mm F3.5–6.3 OSS) lens which boasts 11x zoom power, a quiet AF

motor for cleaner sound recording, and Optical Steady Shot® image stabilization with

an advanced Active mode that lets you take steady handheld shots while walking

around — even without a bulky stabilization rig. An ultracompact SEL16F28 wide-angle

lens and SEL1855 3x zoom lens are also available.

Thanks to the E-mount's short 18mm ﬂ ange-back distance, using a mount adaptor

allows shooting with a wide range of existing lenses. For example, with the optional

LA-EA1 mount adaptor you can take advantage of the abundant A-mount lenses.

In addition to Sony, there are four major lens manufacturers that will be producing

compatible native E-mount lenses (available Summer 2011).

INTERCHANGEABLE LENSES

E-mount lens on

the NEX-FS100U

Cine-style lens with

a third party adaptor

A-mount lens with

the LA-EA1 adaptor

LA-EA1 mount

adaptor

Third party adaptor

Other lenses

A-mount lenses

E-mount lenses

NEX-FS100U

New Design Concept Providing the Flexibility for a Variety of Shooting Styles

Featuring a compact, lightweight body with detachable grip, top handle, and viewﬁ nder,

the NEX-FS100U is ideal for a wide range of shooting situations.

During hand-held shooting, the angle of the grip can be changed as desired,

and start and stop recording with a button on the grip. Secondary record buttons

are also available at two locations, at the top and in front of the camera body.

There are 1/4-inch and 3/8-inch screw holes

on both the handle and the bottom of the

camera body for mounting various peripheral

devices, plus three 1/4-inch holes on the top of

the camera body. In addition, there is a tape

measure hook and a focal plane marker for

indicating the image sensor position.

MODULAR DESIGN

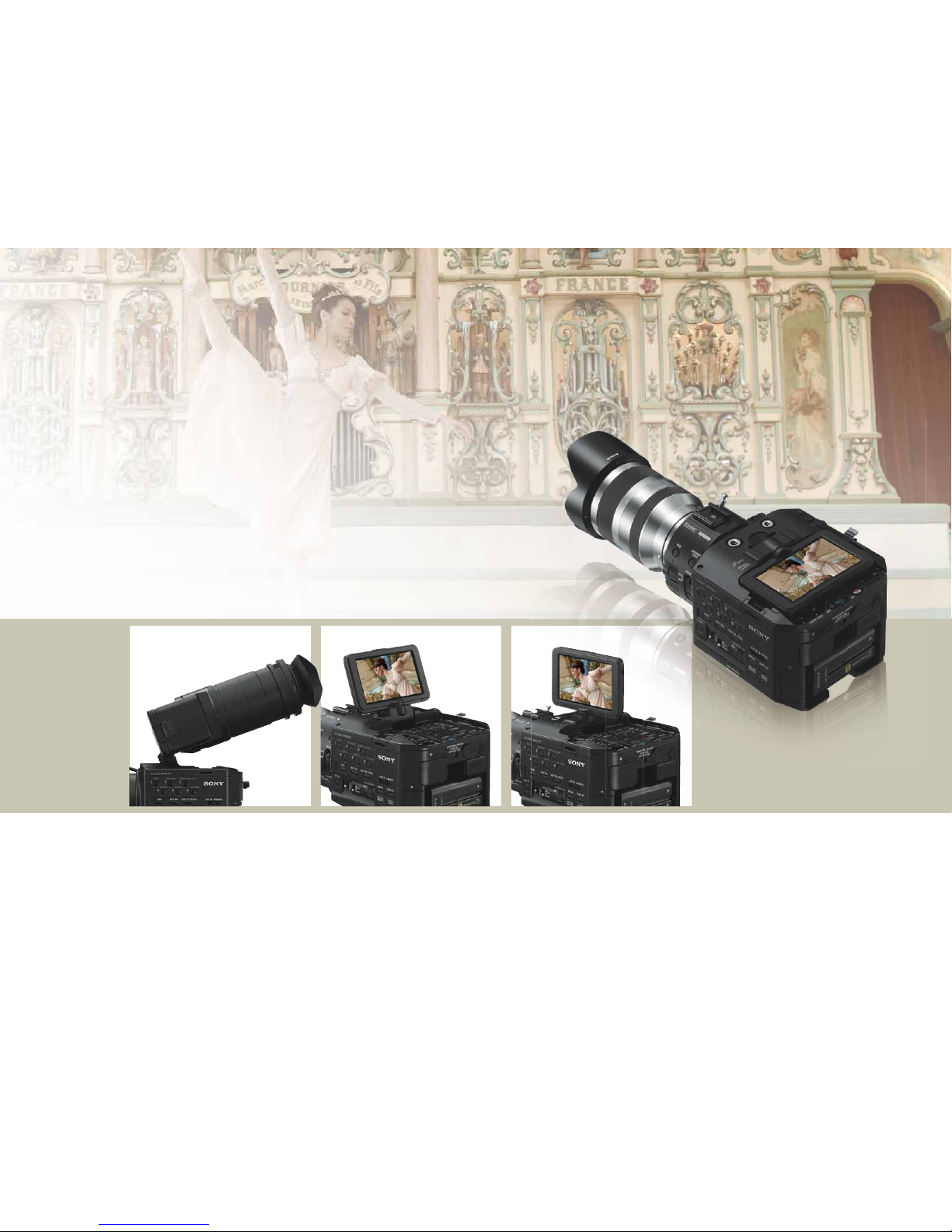

Located on the optical axis, the 3.5-inch-type XtraFine™ LCD panel enables easier and more intuitive

framing, especially during hand-held shooting. And the LCD panel can be rotated for stress-free

operation when shooting low-angle scenes and digital signage footage. For easier and more precise

focusing in daylight, the viewﬁ nder comes with a detachable 1.2x magniﬁ er.

1920x1080P Slow and Quick Motion

Recording images at a different frame rate from that used for playback provides

the extra versatility of slow and quick motion shooting. Furthermore, the NEX-FS100U

enables Full HD (1920×1080) progressive slow and quick motion. Frame rates are

selectable from 60fps, 30fps, 15fps, 8fps, 4fps, 2fps and 1fps. So, for example, when

recording at 1080/24p, if the frame rate is set to 60fps, images are recorded in

2.5 times slow motion. This means you can create impressive slow motion scenes

without the need for troublesome editing.

Note: Slow and quick motion shooting is only available in HD progressive mode.

Simultaneous slow and quick motion recording to a memory card and flash

memory unit (optional HXR-FMU128) is not available.

CR E AT ION

60p

Capture

2.5 times slow

24p

Format Recording/

Playback

1sec 1sec 1sec

123 222324

2 3

31 2 431 2 431 2 431 2 431 2 431 2 4

22 23 24 25 26 27 46 47 48 49 59 60 1 2 3

2 3 585960

4p Capture

24 times quick

24 Format Rec./

Playback

1sec 1sec 1sec 1sec 1sec 1sec

1 2 3 1 2 358 59 60 58 59 60

Slow Motion Mechanism

Hybrid Recording

Recording to the directly mountable optional HXR-FMU128 Flash Memory unit allows

continuous recording for over 10 hours without changing the recording medium.

Simultaneous recording using memory card and HXR-FMU128 is also possible for secure

backup when shooting footage that can't be reshot.

Note: HD and SD footage cannot be recorded separately on different recording media.

SAFETY & LONG RECORDING

Approximate Recording Times*

Compatible Memory Cards Type

HD MOVIE

SD MOVIE

AVC HD 28M (PS) AVC HD 24M (FX) AVC HD 17M (FH) AVC HD 9M (HQ) AVC HD 5M (LP)

Linear

PCM 2ch

1GB Memory Card 4 min 4 min 6 min 10 min 15 min

2GB Memory Card 8 min 10 min 10 min 20 min 35 min

4GB Memory Card 15 min 20 min 25 min 45 min 70 min

8GB Memory Card 35 min 40 min 55 min 90 min 145 min

16GB Memory Card 70 min 80 min 110 min 185 min 295 min

32GB Memory Card 145 min 170 min 225 min 375 min 590 min

HXR-FMU128 (128GB) [Optional] 600 min 700 min 940 min 1560 min 2460 min

Dolby

Digital 2ch

1GB Memory Card 4 min 5 min 7 min 10 min 20 min

2GB Memory Card 9 min 10 min 10 min 25 min 45 min

4GB Memory Card 15 min 20 min 30 min 50 min 90 min

8GB Memory Card 35 min 40 min 60 min 105 min 190 min

16GB Memory Card 75 min 90 min 120 min 215 min 380 min

32GB Memory Card 150 min 180 min 245 min 440 min 770 min

HXR-FMU128 (128GB) [Optional] 640 min 750 min 1030 min 1830 min 3200 min

SD 9M (HQ)

Dolby

Digital 2ch

1GB Memory Card 10 min

2GB Memory Card 25 min

4GB Memory Card 55 min

8GB Memory Card 110 min

16GB Memory Card 225 min

32GB Memory Card 460 min

HXR-FMU128 (128GB) [Optional] 1910 min

*For more information please refer to the speciﬁ cation

sheet on the back of this brochure.

* Recording time varies based on recording conditions.

Memory Stick

PRO DuoTM

SD/SDHC/

SDXC

Memory

Card

NXCAM® Recording Format

Like other NXCAM® series cameras, the new NEX-FS100U uses the highly efﬁcient

AVCHD recording format to capture with excellent image ﬁdelity. Better still, it's ready

to shoot with an incredible maximum frame rate of 1920x1080/60p (28Mbps).

Standard Deﬁnition with DVD format (MPEG-2 PS) recording is also possible.

HDMI 1.4 Output with Embedded Time code for 4:2:2 or R.G.B. Uncompressed

Signal Output

When shooting, the NEX-FS100U provides HDMI 4:2:2 or R.G.B. uncompressed output

with an embedded SMPTE Time code and embedded 2-3 pull-down markers for

recording on external disc recorders.

Note: Embedding 2-3 pull-down markers enables material originally recorded at 24p

and converted to 60i to be recognized once more as 24p in the HDMI output signal.

WORKFLOW

[HDMI/ Output resolution

HD/SD COMPONENT] HDMI OUT COMPONENT OUT VIDEO OUT

setting

1080p/480i 1080p 1080p 480i

720p/480i 720p 720p 480i

HD 1080i/480i 1080i 1080i 480i

480p 480p 480p 480i

480i 480i 480i 480i

1080p/480i 480i 480i 480i

720p/480i 480i 480i 480i

SD 1080i/480i 480i 480i 480i

480p 480p 480p 480i

480i 480i 480i 480i

RECORDING/PLAYBACK

RECORDING

FORMAT

Formats: HD: AVCHD/SD: MPEG2 PS (NTSC DVD Format)

Frame rate: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p

1280x720/59.94p, 720x480/59.94i

MPEG2-SD AVCHD

Audio: LPCM/AC3 (2ch) (AC3 only for MPEG2-SD)

(28Mbps)

(24Mbps)

(17Mbps)

(9Mbps)

(5Mbps)

(9Mbp)

1920x1080/59.94p ○

1920x1080/59.94i ○ ○

1920x1080/29.97p ○ ○

1920x1080/23.98p ○ ○

1440x1080/59.94i ○ ○

1280x720/59.94p ○ ○

720x480/59.94i ○

AVCHD MPEG2-SD

RECORDING FORMAT

Formats:

Frame rate:

Audio:

HD: AVCHD/SD: MPEG2 PS (NTSC DVD Format)

1920x1080/59.94p, 59.94i, 29.97p, 23.98p

1280x720/59.94p, 720x480/59.94i

LPCM/AC3 (2ch) (AC3 only for MPEG2-SD)

(9Mbp)

(28Mbps)

(24Mbps)

(17Mbps)

(9Mbps)

(5Mbps)

1920x1080/59.94p

1920x1080/59.94i

1920x1080/29.97p

1920x1080/23.98p

1440x1080/59.94i

1280x720/59.94p

720x480/59.94i
