SERVICE MANUAL

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

SERVICE NOTE (Check the following note before the service.)

Revision History

Published by Sony Techno Create Corporation

Sony Corporation

983454111.pdf

Ver. 1.0 2010.11

Digital HD Video Camera Recorder

The components identified by mark

0or dotted line with mark 0are

critical for safety.

Replace only with part number

specified.

Les composants identifiés par une

marque 0sont critiques pour la

sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

9-834-541-11

US Model

Canadian Model

AEP Model

E Model

Chinese Model

Japanese Model

Ver. Date History Contents S.M. Rev.

issued

1.0 2010.11 Official Release — —

2010K08-1

HXR-MC1500C/MC1500P/MC2000E/

MC2000J/MC2000N/MC2000U

– ENGLISH –

1-1. POWER SUPPLY DURING REPAIRS

1-2. PRECAUTION ON REPLACING THE VC-614 BOARD

1-3. PRECAUTION ON REPLACING THE MS-452 BOARD

1-4. SELF-DIAGNOSIS FUNCTION

1-5. METHOD OF COPING WITH SHIFT LENS ERROR

‒JAPANESE‒

1-1. 修理時の電源供給について

1-2. VC-614基板交換時の注意

1-3. MS-452基板交換時の注意

1-4. 自己診断機能

1-5. シフトレンズエラーの対処方法

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-1

2. REPAIR PARTS LIST

Follow the disassembly in the numerical order given.

IDENTIFYING PARTS

Link ACCESSORIES ASSEMBLY

(ENGLISH)

NOTE:

• -XX, -X mean standardized parts, so they may have some differences from the original

one.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not sup-

plied.

• Due to standardization, replacements in the parts list may be different from the parts

specified in the diagrams or the components used on the set.

• CAPACITORS:

uF: μF

• COILS

uH: μH

• RESISTORS

All resistors are in ohms.

METAL: metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F: nonflammable

• SEMICONDUCTORS

In each case, u: μ, for example:

uA...: μA... , uPA... , μPA... ,

uPB... , μPB... , μPC... , μPC... ,

uPD..., μPD...

(JAPANESE)

【使用上の注意】

• ここに記載されている部品は,補修用部品であるため,回路図及びセットに付いてい

る部品と異なる場合があります。

• -XX,-Xは標準化部品のため,セットに付いている部品と異なる場合があります。

• *印の部品は常備在庫しておりません。

• コンデンサの単位でuFはμFを示します。

• 抵抗の単位Ωは省略してあります。

 金被：金属被膜抵抗。

 サンキン：酸化金属被膜抵抗。

• インダクタの単位でuHはμHを示します。

• 半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれμA...,μPA...,μPB...,

μPC...,μPD...を示します。

The components identified by mark 0

or dotted line with mark 0are critical for

safety.

Replace only with part number specified.

Les composants identifiés par une marque

0sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

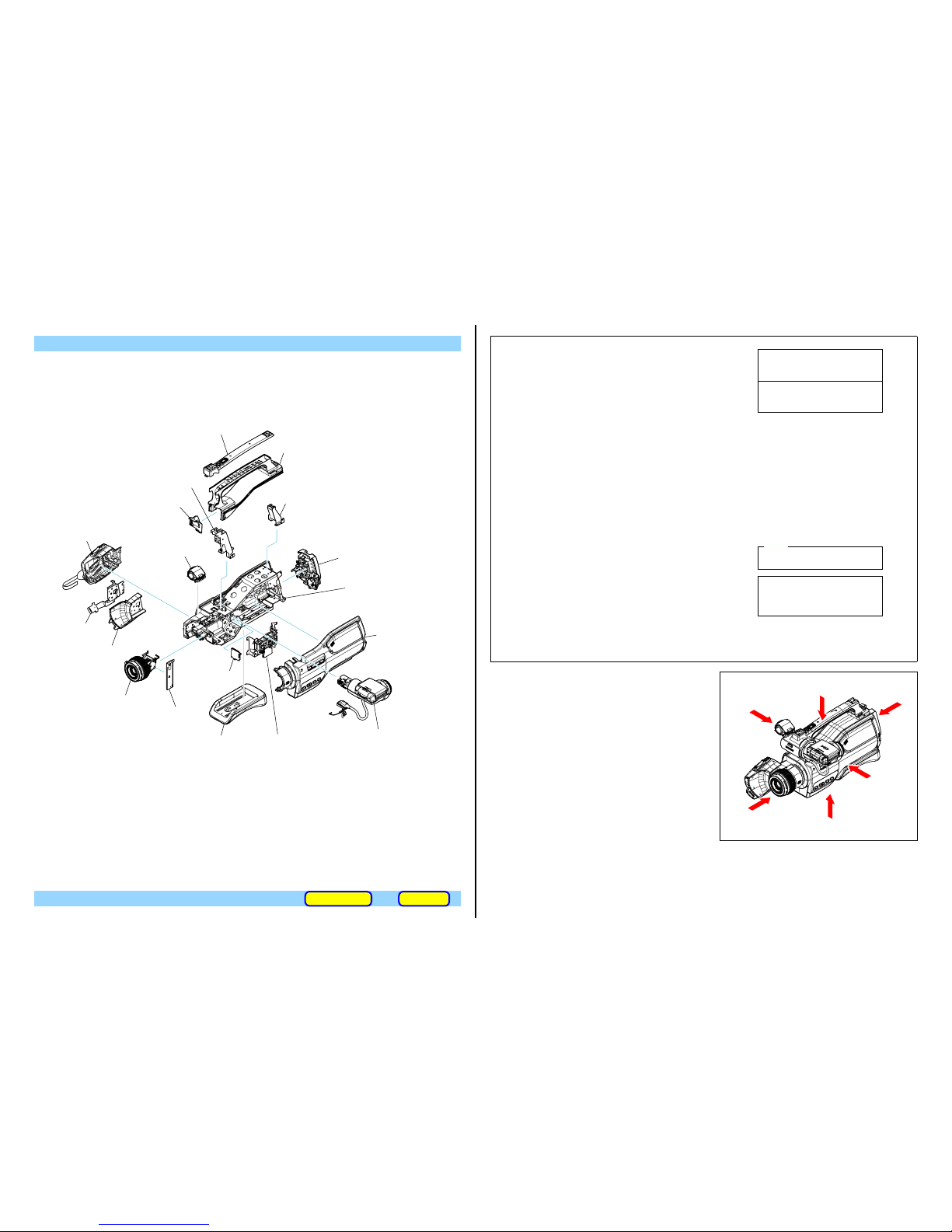

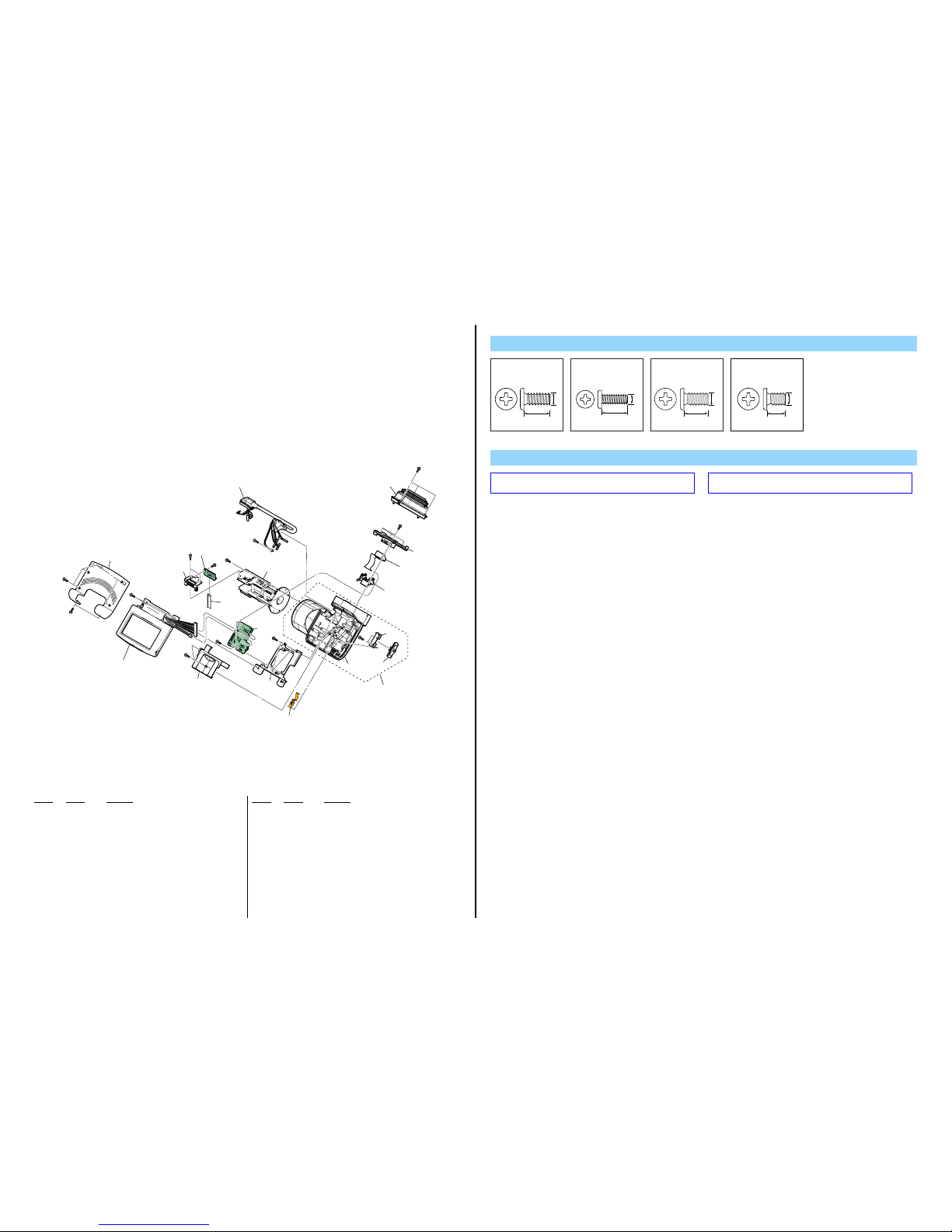

• Color Indication of Appearance Parts

Example:

(SILVER) : Cabinet’s Color

(Silver) : Parts Color

qj MS-452 Board

2Grip Belt Bracket (F)

4Shoulder Pad Assy

qf Handle Plate (A)

qd Handle Plate (C)

qs Handle Assy

6Frame (R)

3Grip Base

5Cabinet (R) Section

[Disassembly]

[Exploded View]

• MO-028 Board

• SP-053 Board

qh VC Block Section

[Disassembly]

[Exploded View]

• IF-171 Board

• MM-097 Board

• US-017 Board

• VC-614 Board

• FP-1149 Flexible Board

• FP-1176 Flexible Board

• FP-1180 Flexible Board

• FP-1214 Flexible Board

• FP-1296 Flexible Board

qk Cabinet (L) Section

[Disassembly]

[Exploded View]

• JS-037 Board

• JK-398 Board

qg Battery Panel Section

[Disassembly]

[Exploded View]

• BA-012 Board

• DC-114 Board

• HP-158 Board

q; Handle Cover Assy

• FP-793 Flexible Board

qa Handle Lower Cover

• MC-201 Board

1Grip Section

[Disassembly]

[Exploded View]

• NS-023 Board

7Lens Section

[Disassembly]

[Exploded View]

• CM-114 Board

• EC-004 Board

• LD-269 Board

• FP-1294 Flexible Board

• FP-1295 Flexible Board

9View Finder/

LCD Panel Section

[Disassembly]

[Exploded View]

• BH-002 Board

• HI-079 Board

• RE-042 Board

• PD-427 Board

• FP-1293 Flexible Board

8Microphone Holder

(93000) Assy

View Position

Right View

Left View

Front View

Bottom View

Top View

Back View

• Abbreviation

CH : Chinese model

CND : Canadian model

J : Japanese model

図面番号で部品を指定するときは基板名

又はブロックを併せて指定してください。

お願い

• 外装部品色表示

例：

 (SILVER) ：セットの色を表す。

 (Silver) ：部品の色を表す。

0印の部品，または0印付の点線で囲ま

れた部品は，安全性を維持するために，

重要な部品です。

従って交換時は，必ず指定の部品を使用

してください。

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-2

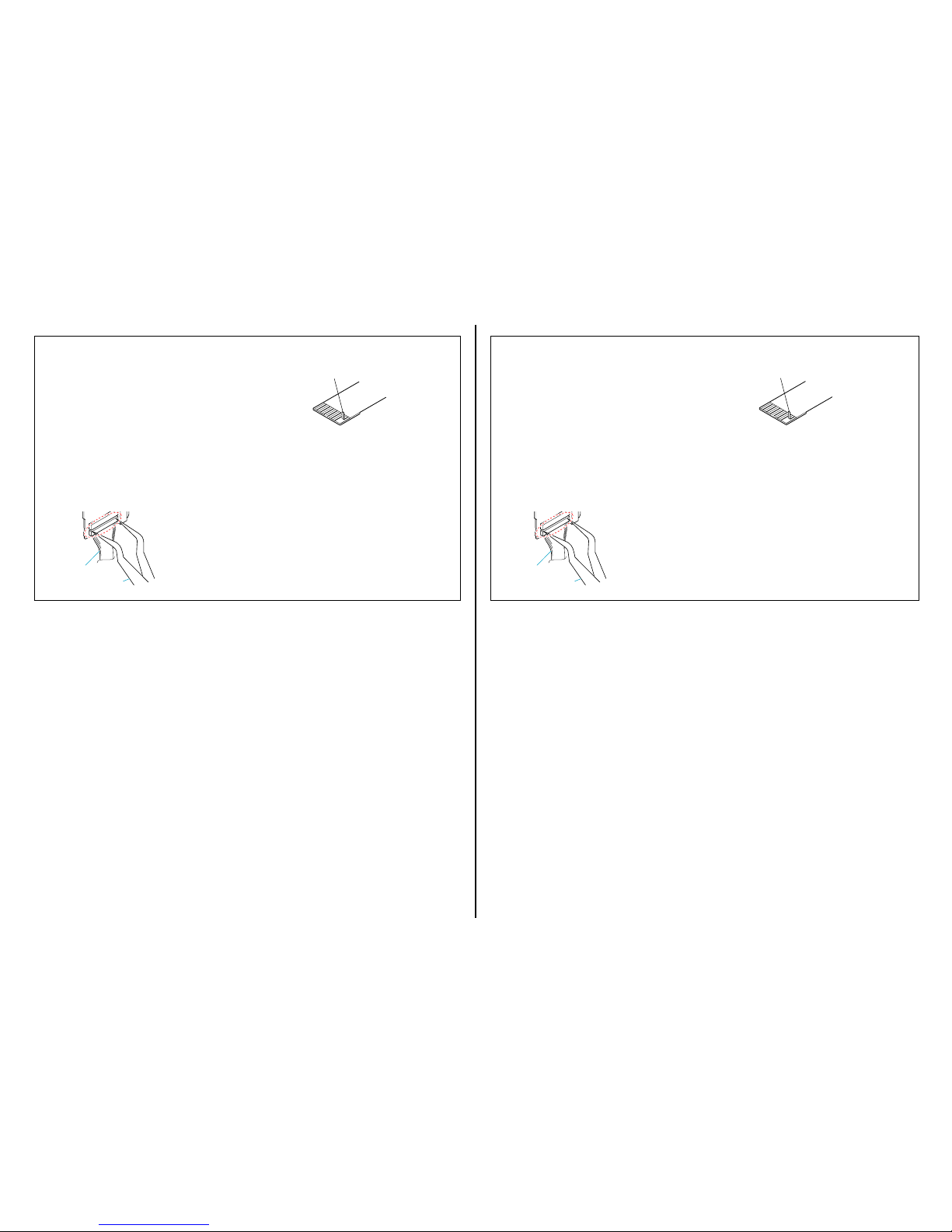

NOTE FOR REPAIR

• Make sure that the flat cable and flexible board are not cracked of

bent at the terminal.

Do not insert the cable insufficiently nor crookedly.

• When remove a connector, don’t pull at wire of connector. It is possible

that a wire is snapped.

• When installing a connector, don’t press down at wire of connector.

It is possible that a wire is snapped.

• Do not apply excessive load to the gilded flexible board.

Cut and remove the part of gilt

which comes off at the point.

(Be careful or some

pieces of gilt may be left inside)

NOTE FOR DISCONNECTING THE HARNESS (COAXIAL CABLE)

When disconnecting the harness (COAX IAL CABL E ), do not pull the

harness part but pull off the connector body with tweezers etc.

Harness

(coaxial cable)

Tweezers etc.

– JAPANESE –

– ENGLISH –

修理時の注意

• フラットケーブルおよびフレキシブル基板の端子面に欠け，折れ等

がないことを確認する。

 また，コネクタへの接続は，差し込み不足や斜め差しにならないよ

うに注意する。

• コネクタを取り外す時に，線材部（極細）を持って引っ張ると断線す

る恐れがありますので，絶対に線材部（極細）を持って引っ張らない

でください。

• 線材部（極細）を押さえながらコネクタを差し込むと，線材部（極細）

が断線する恐れがありますので，絶対に線材部（極細）には負担をか

けないでください。

• 金メッキされているフレキシブル基板には，強い負担をかけないで

ください。

వ┵ߩ೸߇ࠇߚࡔ࠶ࠠㇱߪࠞ࠶࠻ߒߡ

㒰෰ߒߡߊߛߐ޿ޕ

㧔ࡔ࠶ࠠ⎕ ߇ࠦࡀࠢ࠲ౝߦᱷߞߡ޿ࠆ

႐ว߽޽ࠆߩߢᵈᗧߒߡߊߛߐ޿㧕

ハーネス（同軸ケーブル）の交換について

ハーネス(同軸ケーブル)を引き抜く際は、ハーネス部を引かず、

ピンセット等でコネクタ部を引いてください。

ࡇࡦ࠮࠶࠻╬

ࡂ࡯ࡀࠬ

หゲࠤ࡯ࡉ࡞

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-3

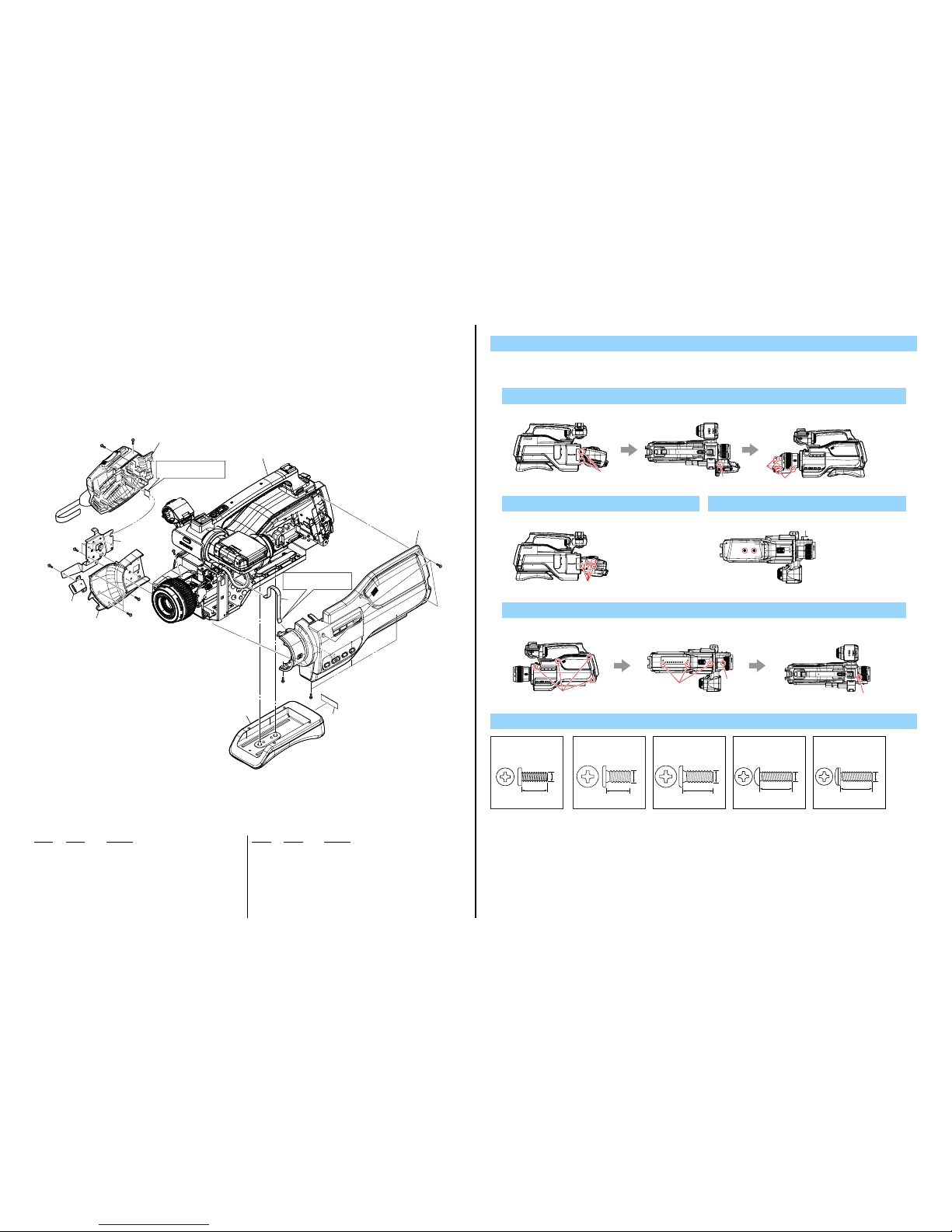

2-1. EXPLODED VIEWS

2-1-1. OVERALL SECTION-1

Ref. No. Part No. Description Ref. No. Part No. Description

1 3-284-044-01 BASE, GRIP

*2 3-284-047-01 BRACKET (F), GRIP BELT

3 3-284-046-01 FRAME, GRIP

4 1-834-808-11 CABLE, FLEXIBLE FLAT (FFC-337)

5 X-2187-984-1 PAD ASSY, SHOULDER

6 4-263-650-11 SHEET (JAPAN)

(MC2000E/MC2000J/MC2000N/MC2000U)

6 4-263-650-21 SHEET (JAPAN) (MC1500C/MC1500P)

#37 3-080-206-31 SCREW, TAPPING, P2

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2

#100 3-080-203-51 SREW (M2), LOCK ACE, P2

#103 7-685-794-09 SCREW +PTT 2.6X10 (S)

#104 7-682-548-09 SCREW +B 3X8

1. Remove to numerical order (1to 5) in the left figure.

DISASSEMBLY

1#100 X 3 →#37 X 4

Screw

#37

#100

#104

#100

#103

#49

#37

1Grip Section

(See Page 2-4)

5Cabinet (R) Section

(See Page 2-5)

Overall Section-2

(See Page 2-6)

456

Be careful not to be break

the flexible flat cable.

Be careful not to be break

the flexible flat cable.

2#103 X 4

Top View Right ViewLeft View

#100 #37

#100

Left View

#103

Right View Bottom View Top View

#104

#49 #100

#100

5#104 X 4 →#49 X 3 →#100 X 2

4Two Screws (including Shoulder Pad Assy)

Bottom View

#37: M2.0 X 6.0 (Tapping)

(Black)

3-080-206-31

6.0

2.0

#49: M2.0 X 4.0

(Black)

2-630-005-31

4.0

2.0

#100: M2.0 X 6.0

(Black)

3-080-203-51

6.0

2.0

#103: M2.6 X 10.0

(Silver)

7-685-794-09

10.0

2.6

#104: M3.0 X 8.0

(Black)

7-682-548-09

8.0

3.0

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-4

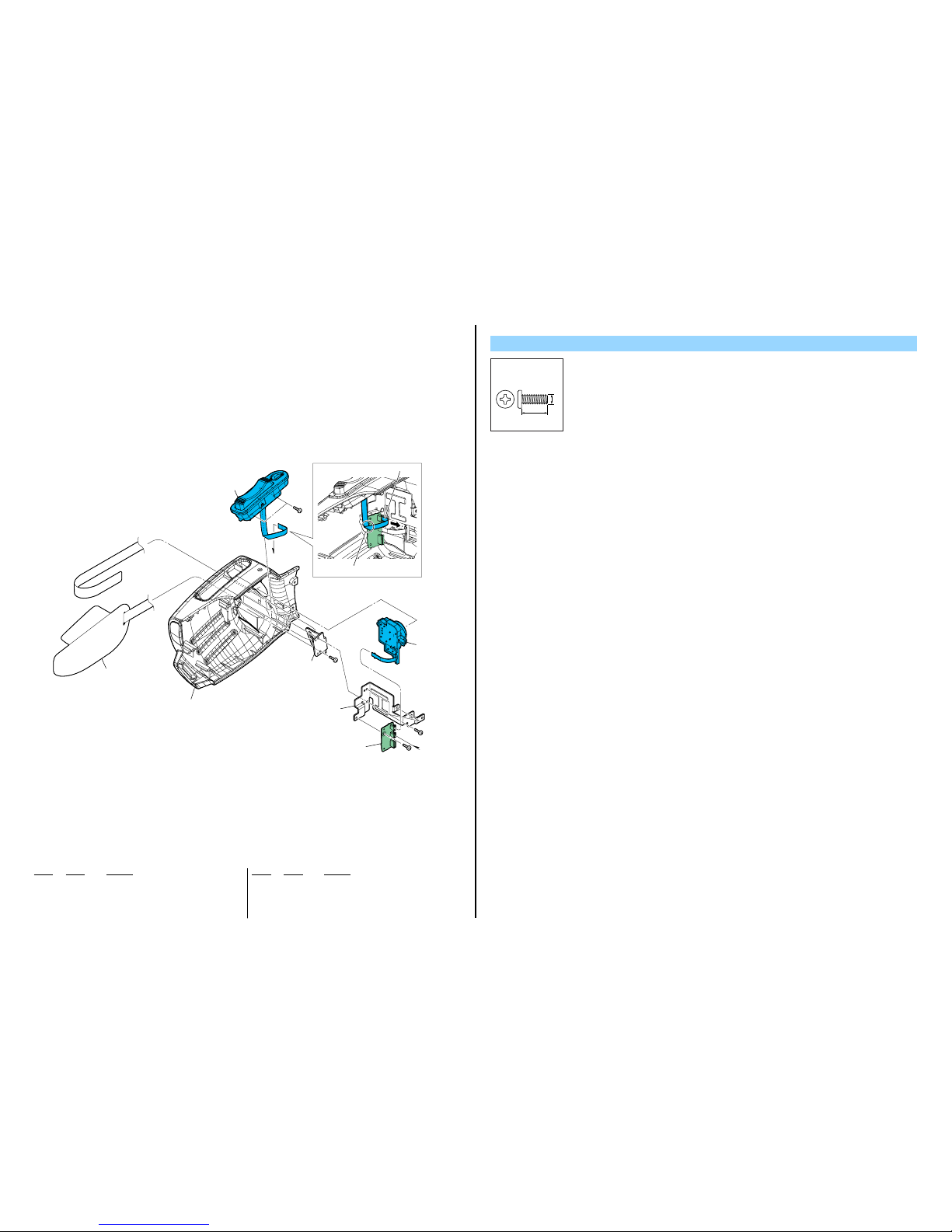

2-1-2. GRIP SECTION

Ref. No. Part No. Description Ref. No. Part No. Description

51 4-263-758-01 CABINET, GRIP

52 3-289-560-01 BELT, GRIP

53 1-480-479-11 SWITCH BLOCK, CONTROL (ZM90500)

*54 4-263-759-01 BRACKET (B), GRIP BELT

55 1-487-447-11 SWITCH BLOCK, CONTROL (PS94000)

*56 4-263-760-01 PLATE, SS RETAINER

57 A-1799-382-A NS-023 BOARD, COMPLETE

#37 3-080-206-31 SCREW, TAPPING, P2

Screw

#37

Flexible board

Fold

#37: M2.0 X 6.0 (Tapping)

(Black)

3-080-206-31

6.0

2.0

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-5

2-1-3. CABINET (R) SECTION

ns : not supplied

Ref. No. Part No. Description Ref. No. Part No. Description

101 3-283-972-01 RING, ORNAMENTAL

102 X-2560-614-1 CABINET (R) ASSY (925)

*103 3-283-971-01 BRACKET (UPPER), LR

*104 3-283-969-01 BRACKET, CHASSIS

105 1-834-807-11 CABLE, FLEXIBLE FLAT (FFC-336)

106 A-1799-370-A SP-053 BOARD, COMPLETE

107 A-1799-371-A MO-028 BOARD, COMPLETE

SP901 1-858-324-41 SPEAKER (1.6CM)

#37 3-080-206-31 SCREW, TAPPING, P2

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2

#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2

Screw

#49

#37

SP901

Reinforced plate side

#105

MO-028

#37

101

102

103

104

105 106

107

#37: M2.0 X 6.0 (Tapping)

(Black)

3-080-206-31

6.0

2.0

#49: M2.0 X 4.0

(Black)

2-630-005-31

4.0

2.0

#105: M2.0 X 4.0

(Red)

2-891-494-31

4.0

2.0

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-6

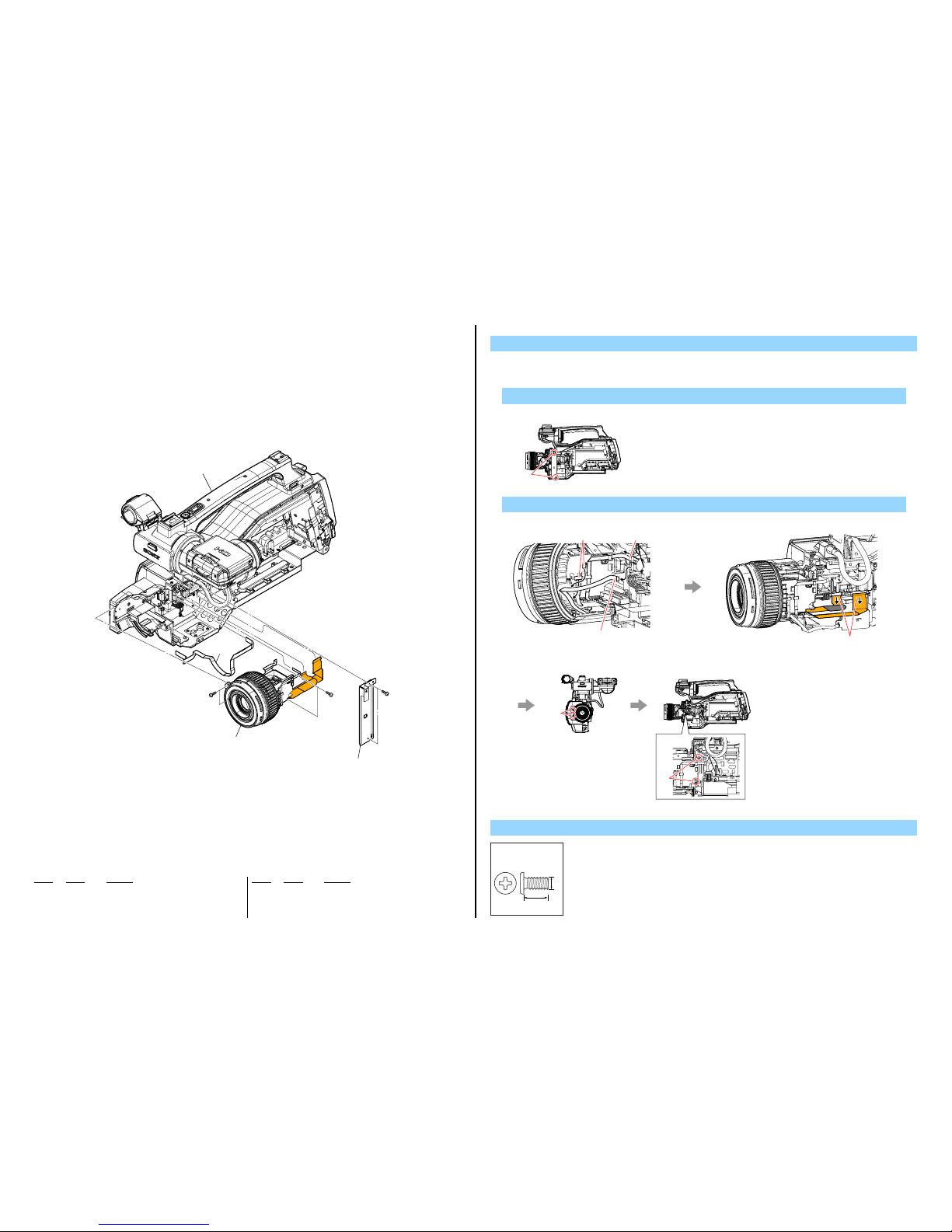

2-1-4. OVERALL SECTION-2

Ref. No. Part No. Description Ref. No. Part No. Description

151 1-883-562-11 CABLE, FLEXIBLE FLAT (FFC-240)

*152 3-284-037-01 FRAME (R)

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2

#49

#49 #49

Handle (Tally) Section

(See Page 2-8)

2Lens Section

(See Page 2-7)

1152

151

1. Remove to numerical order (1to 2) in the left figure.

DISASSEMBLY

1#49 X 2

Screw

Right View

#49

Right View

Right View Right View

Front View

#49

Libs

Flexible flat cable Flexible boards

Flexible flat cable

#49

2Flexible flat cables →Flexible boards →#49 X 4

#49: M2.0 X 4.0

(Black)

2-630-005-31

4.0

2.0

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-7

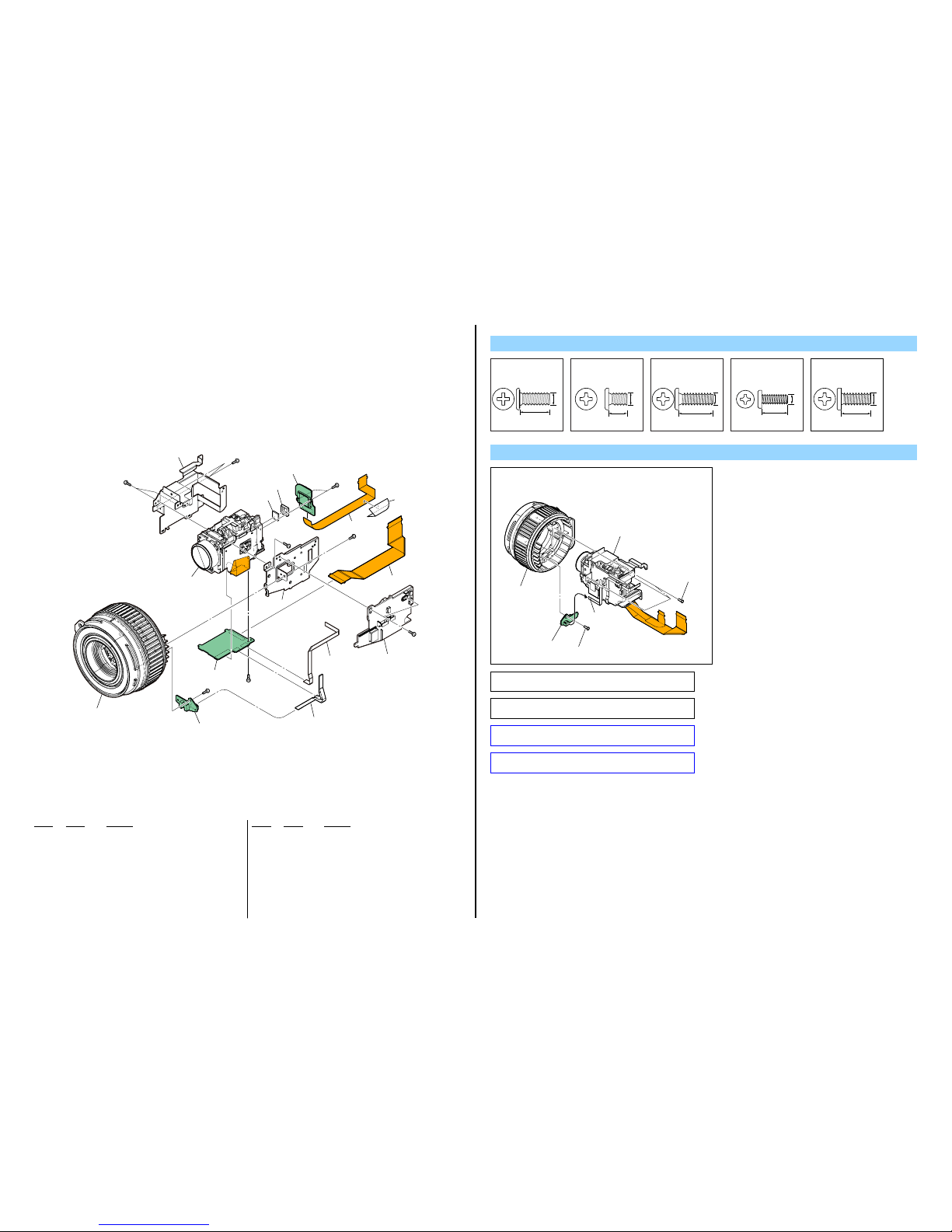

2-1-5. LENS SECTION

Ref. No. Part No. Description Ref. No. Part No. Description

201 X-2560-631-1 PANEL ASSY, F (Note 1)

202 A-1799-373-A EC-004 BOARD, COMPLETE

203 A-1799-372-A LD-269 BOARD, COMPLETE

204 1-834-810-11 CABLE, FLEXIBLE FLAT (FFC-339) (Note 3)

205 1-883-563-11 CABLE, FLEXIBLE FLAT (FFC-241) (Note 3)

206 4-263-977-01 CLAMP, FLEXIBLE (Note 3)

207 1-883-559-11 FP-1294 FLEXIBLE BOARD

208 1-883-560-11 FP-1295 FLEXIBLE BOARD

209 4-263-976-01 FRAME (R (230)), LENS

210 A-1767-897-A CM-114 BOARD, COMPLETE (Note 2)

211 3-216-044-01 RUBBER (1270), SEAL

212 1-856-066-11 OPTICAL FILTERBLOCK (OFB-03-51)

213 A-1733-588-A LSV-1400A (SERVICE) (Note 3)

214 4-263-975-01 FRAME (L (230)), LENS

215 4-263-664-01 SHEET (CM), SHIELD

#2 2-635-562-31 SCREW (M1.7)

#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2

#12 3-080-204-21 SCREW, TAPPING, P2

#37 3-080-206-31 SCREW, TAPPING, P2

#172 2-178-410-01 TITE (UB TITE) 1.4

Screw

Note

Note 2: Be sure to read "Precautions for Replacement of Imager"

on page 6-1 of LEVEL 3 when changing the imager.

#37

#172

#37

#12

#37

201

(Note 1) 202

203

204

(Note 3)

205

(Note 3)

206

(Note 3)

207

208

215

210

(Note 2)

209

LD-269

211

212

213

(Note 3)

214

Note 3: Refer to "Assembly-2: Installation Cautions of Flexible board

and Flexible flat cables of the Lens block".

Note 2:

イメージャの交換時は6-1ページの“イメージャ交換時の注

意”を必ずお読みください。

Note 3:

“Assembly-2:InstallationCautionsofFlexibleboardand

FlexibleflatcablesoftheLensblock”を参照してください。

#2: M1.7 X 4.0

(Black)

2-635-562-31

4.0

1.7

#3: M1.7 X 2.5

(Red)

2-660-401-01

2.5

1.7

#12: M1.7 X 5.0 (Tapping)

(Black)

3-080-204-21

1.7

5.0

#37: M2.0 X 6.0 (Tapping)

(Black)

3-080-206-31

6.0

2.0

#172: M1.4 X 4.0 (Tapping)

(Black)

2-178-410-01

1.4

4.0

REMOVING METHODE OF F PANEL ASSY

Note 1:

Three

Screws

Lens block

F panel assy

Screw

Flexible flat cable

EC-004 Board

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-8

251 1-481-788-11 CORE, FERRITE

252 3-283-989-01 BASE, RING

253 X-2187-977-1 CABINETASSY, TALLY (FRONT)

254 X-2342-570-1 HOLDER (93000) ASSY,MICROPHONE

255 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER

Ref. No. Part No. DescriptionRef. No. Part No. Description

256 4-119-861-01 RUBBER (93000), HOLDER

257 3-284-081-11 SHEET, RUBBER ADHESIVE

258 3-284-080-01 RUBBER, MICROPHONE

259 3-284-621-11 CUSHION, MICROPHONE HOLDER

#23 3-080-204-11 SCREW, TAPPING, P2

#37 3-080-206-31 SCREW, TAPPING, P2

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2

#53 3-080-206-21 SCREW, TAPPING, P2

#102 7-621-284-30 SCREW +P 2.6X8

2-1-6. HANDLE (TALLY) SECTION

ns : not supplied

252

2View Finder Section

(See Page 2-9)

(Note)

Handle (Cover) Section

(See Page 2-11)

#37

#102

#23

#49

1254

257

258

257

258

259

256

#53

255

253

251

1. Remove to numerical order (1to 2) in the left figure.

DISASSEMBLY

1#102 X 2

Screw

Top View

#102

Right View Front View

Right View

Rotate

Slide

Left ViewRight View

#49

#23

#37

#23

Harnesses

5Harnesses →#37 X 1 →#49 X 2 →#23 X 4 →Tally (Front) Cabinet Assy (2) →#49 X 4

Note

Note: Refer to "Assembly-1: Installation Cautions of the View

finder section".

Note:

“Assembly-1:InstallationCautions oftheViewfinder

section”を参照してください。

#23: M1.7 X 4.0 (Tapping)

(Black)

3-080-204-11

4.0

1.7

#37: M2.0 X 6.0 (Tapping)

(Black)

3-080-206-31

6.0

2.0

#49: M2.0 X 4.0

(Black)

2-630-005-31

4.0

2.0

#53: M2.0 X 5.0 (Tapping)

(Black)

3-080-206-21

5.0

2.0

#102: M2.6 X 8.0

(Black)

7-621-284-30

8.0

2.6

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U

2-9

301 X-2187-981-1 CABINET (UPPER) ASSY, VF

302 3-284-016-01 COVER, HINGE (LOWER) (Note)

303 A-1799-374-A FP-1293 BOARD, COMPLETE

*304 3-284-017-01 FRAME, VF

305 A-1799-376-A BH-002 BOARD, COMPLETE

*306 3-284-015-01 FRAME, HI

307 A-1799-375-A HI-079 BOARD, COMPLETE

308 X-2187-979-1 HINGE ASSY, VF

309 1-965-791-11 HARNESS (BI-001) (Note)

310 X-2560-630-1 ADJUSTMENT ASSY, VISIBILITY

Ref. No. Part No. DescriptionRef. No. Part No. Description

311 4-263-788-01 CABINET, INNER

*312 4-178-033-01 VF RETAINER

313 X-2560-616-1 LOWER ASSY, VF CABINET

*314 3-283-991-01 KNOB, ON/OFF

*315 3-283-992-01 RETAINER, ON/OFF KNOB

316 1-834-802-11 CABLE, FLEXIBLE FLAT (FFC-329)

LCD902 1-811-013-11 LCD MODULE (FL0906)

#23 3-080-204-11 SCREW, TAPPING, P2

#37 3-080-206-31 SCREW, TAPPING, P2

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2

#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2

2-1-7. VIEW FINDER SECTION

ns : not supplied

Screw

Note

Note: Refer to "Assembly-3: Installation Cautions of Harnesses

(coaxial cable/BI-001/RS-112)".

#37

LCD902

310

313

312

311

308

309

(Note)

#49 #37

#105

#23

314

315

301

302

(Note)

306

307

316

LCD P

anel Section

(See Page 2-10)

#49

#37

#105

303

304

305

#37

Note:

“Assembly-3:InstallationCautionsof Harnesses(coaxial

cable/BI-001/RS-112)”を参照してください。

#23: M1.7 X 4.0 (Tapping)

(Black)

3-080-204-11

4.0

1.7

#37: M2.0 X 6.0 (Tapping)

(Black)

3-080-206-31

6.0

2.0

#49: M2.0 X 4.0

(Black)

2-630-005-31

4.0

2.0

#105: M2.0 X 4.0

(Red)

2-891-494-31

4.0

2.0

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony caméscope

Sony

Sony PXW-X200 Manuel utilisateur

Sony

Sony BVP-E30 series Manuel utilisateur

Sony

Sony Handycam DCR-HC44E Manuel utilisateur

Sony

Sony HDR-CX360V Manuel utilisateur

Sony

Sony PXW-Z450KC Manuel utilisateur

Sony

Sony DVCAM DSR-PD150P Manuel utilisateur

Sony

Sony DCR-PC1000 Manuel utilisateur

Sony

Sony Handycam CCD-FX228 Manuel utilisateur

Sony

Sony PXW-X320 Manuel utilisateur

Sony

Sony XDCAM EX PMW-EX3 Manuel utilisateur

Sony

Sony HDR-TG5 Manuel utilisateur

Sony

Sony Hi8 Handycam Vision CCD-TRV107 Manuel utilisateur

Sony

Sony HDR-CX220 Manuel utilisateur

Sony

Sony CCD-TRV15 Manuel utilisateur

Sony

Sony HXR-NX70U Manuel utilisateur

Sony

Sony FS700 Manuel utilisateur

Sony

Sony HDW-800P Manuel utilisateur

Sony

Sony DSR-570WS Manuel utilisateur

Sony

Sony PMWF3L/RGB Manuel du propriétaire

Sony

Sony DCR-DVD200 - Dvd Handycam Camcorder Manuel utilisateur

Sony

Sony HVR-HD1000E Manuel utilisateur

Sony

Sony CVX-V3 Manuel utilisateur

Sony

Sony Handycam DCR-PC53E Manuel utilisateur

Sony

Sony Handycam CCD-TR517 Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

JVC

JVC GR-SXM68AC Guide de démarrage rapide

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

JVC

JVC AA-V15EG Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sharp

Sharp ViewcamZ VL-Z8H Manuel utilisateur

Philips

Philips M620/21 Manuel utilisateur
