Revision History

Sony EMCS Co.

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

SERVICE MANUAL

Link

SERVICE NOTE

DISASSEMBLY

MODEL INFORMATION TABLE

SPECIFICATIONS

SCHEMATIC DIAGRAMS

FRAME SCHEMATIC DIAGRAMS

BLOCK DIAGRAMS

ADJUSTMENTS

INSTRUCTION MANUAL

REPAIR PARTS LIST

PRINTED WIRING BOARDS

Link

Ver. 1.1 2008.02

2008B0500-1

Published by Kohda TEC9-852-265-12

US Model

Canadian Model

AEP Model

E Model

Chinese Model

Japanese Model

The components identified by

mark 0or dotted line with

mark 0are critical for safety.

Replace only with part num-

ber specified.

Les composants identifiés par une

marque 0sont critiques pour la

sécurité.

Ne les remplacer que par une pièce

portant le numéro spécifié.

Photo: HVR-Z7U

DIGITAL HD VIDEO CAMERA RECORDER

N MECHANISM (MDX-N231)

RMT-831

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

• Addition of “60i/50i SEL” Menu

Revised-1

Replace the previously issued

SERVICE MANUAL 9-852-265-11

with this manual.

NOTE

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

TO (2/2)

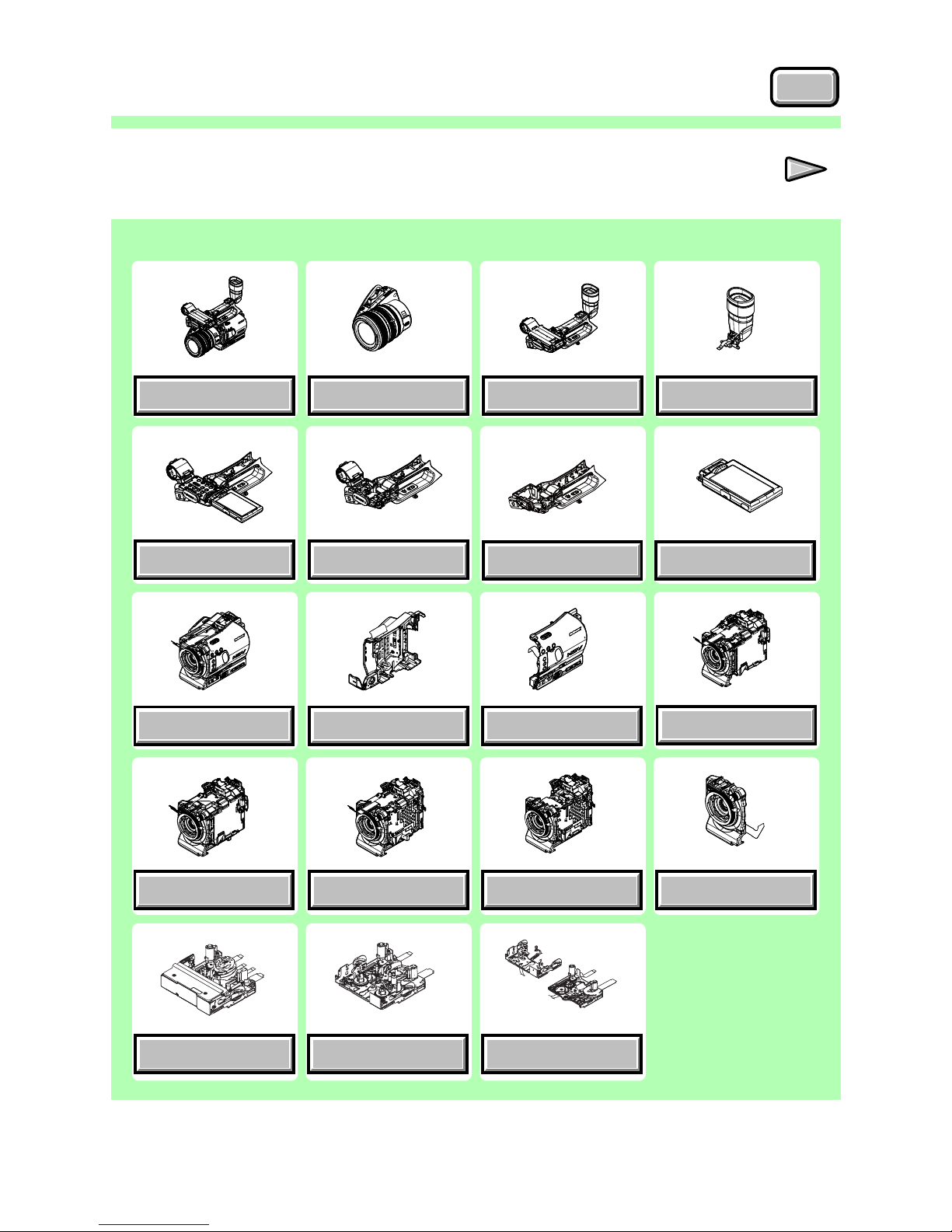

5. REPAIR PARTS LIST (1/2)

NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.

OVERALL SECTION-1

LENS SECTION HANDLE SECTION-1 EVF SECTION

HANDLE SECTION-2

HANDLE SECTION-3 HANDLE SECTION-4

LCD SECTION

ABCD

EF HG

OVERALL SECTION-2

CABINET (L) SECTION

CABINET (R) SECTION

MD/JACK SECTION

MAIN BOARD SECTION

MS/ENG SECTION

BT PANEL SECTION

LENS MOUNT SECTION

MECHANISM DECK

SECTION

LS/MECHANICHAL CHASSIS

BLOCK ASSEMBLY-1

LS/MECHANICHAL CHASSIS

BLOCK ASSEMBLY-2

Link

Link EXPLODED VIEWS

EXPLODED VIEWS

NOTE

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

TO (1/2)

5. REPAIR PARTS LIST (2/2)

NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.

Link

Link ELECTRICAL PARTS LIST

ELECTRICAL PARTS LIST

ACCESSORIES

EE-010 BOARD

EE-009 BOARD

BB-010 BOARD

FP-032 FLEXIBLE BOARD

FP-031 FLEXIBLE BOARD

FP-486 FLEXIBLE BOARD

FP-645 FLEXIBLE BOARD

FP-228 FLEXIBLE BOARD

FP-756 FLEXIBLE BOARD

FP-757 FLEXIBLE BOARD

GG-005 BOARD

FP-759 FLEXIBLE BOARD

GY-005 BOARD

KK-032 BOARD

HH-008 BOARD

OO-006 BOARD

LL-014 BOARD

NN-005 BOARD

LG-005 BOARD

II-005 BOARD

JJ-005 BOARD

WW-005 BOARD

RR-005 BOARD

SS-182 BOARD

TT-007 BOARD

UU-005 BOARD

PP-005 BOARD

YY-005 BOARD

ZZ-005 BOARD

XX-016 BOARD

5. REPAIR PARTS LIST

5-1

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

(ENGLISH)

NOTE:

•-XX, -X mean standardized parts, so they may have some differences from

the original one.

•Items marked “*” are not stocked since they are seldom required for routine

service. Some delay should be anticipated when ordering these items.

•The mechanical parts with no reference number in the exploded views are not

supplied.

•Due to standardization, replacements in the parts list may be different from

the parts specified in the diagrams or the components used on the set.

•CAPACITORS:

uF: µF

•COILS

uH: µH

•RESISTORS

All resistors are in ohms.

METAL: metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F: nonflammable

•SEMICONDUCTORS

In each case, u: µ, for example:

uA...: µA... , uPA... , µPA... ,

uPB... , µPB... , uPC... , µPC... ,

uPD..., µPD...

When indicating parts by reference number,

please include the board name.

(JAPANESE)

The components identified by mark 0or

dotted line with mark 0are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque

0sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

【使用上の注意】

•ここに記載されている部品は,補修用部品であるため,回路図及び

セットに付いている部品と異なる場合があります。

•-XX,-Xは標準化部品のため,セットに付いている部品と異なる場合

があります。

•*印の部品は常備在庫しておりません。

•コンデンサの単位でuFはμFを示します。

•抵抗の単位Ωは省略してあります。

金被：金属被膜抵抗。

サンキン：酸化金属被膜抵抗。

•インダクタの単位でuHはμHを示します。

•半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれμ

A...,μPA...,μPB...,μPC...,μPD...を示します。

0印の部品，または0印付の点線で囲まれた部品は，

安全性を維持するために，重要な部品です。

従って交換時は，必ず指定の部品を使用してください。

図面番号で部品を指定するときは基板名又はブロック

を併せて指定してください。

お願い

•Color Indication of Appearance Parts

Example:

(SILVER) : Cabinet’s Color

(Silver) : Parts Color

•外装部品色表示

例：

(SILVER):セットの色を表す。

(Silver) :部品の色を表す。

•Abbreviation

AR : Argentine model

AUS:Australian model

BR : Brazilian model

CH : Chinese model

CND : Canadian model

EE : East European model

HK : Hong Kong model

J:Japanese model

JE : Tourist model

KR : Korea model

NE : North European model

5-2

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

DISASSEMBLY

HARDWARE LIST

Ref. No. Part No. Description Ref. No. Part No. Description

13-288-534-01 CABINET (FRONT), HANDLE

2X-2188-603-1 CABINET (REAR) ASSY, HANDLE

33-288-398-01 CABINET (TOP)

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)

#119 7-627-556-58 SCREW +P 2.6X5 (Black)

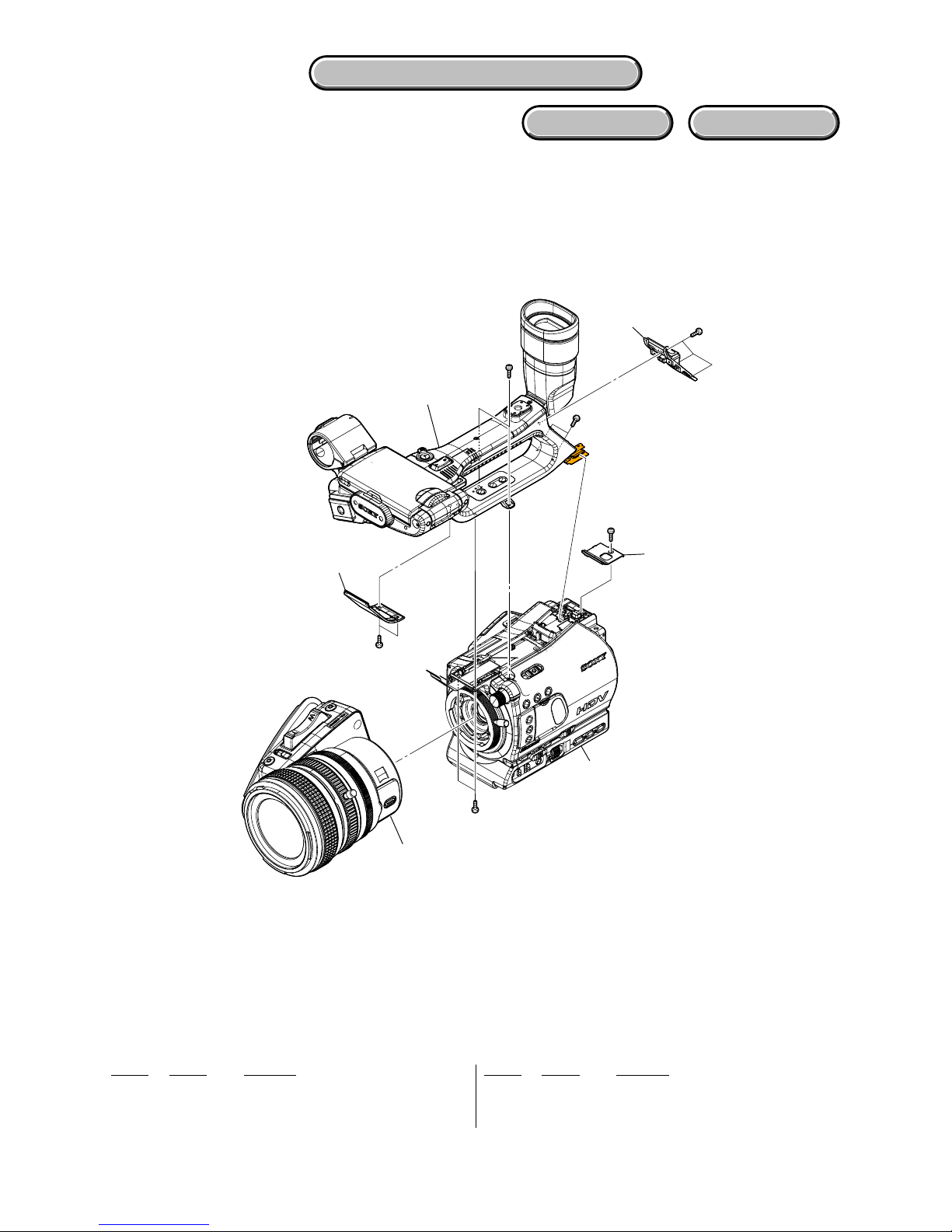

5-1-1. OVERALL SECTION-1

5-1. EXPLODED VIEWS

#49

#119

Overall Section-2

(See Page 5-10)

Lens Section

(See Page 5-3)

Handle Section-1

(See Page 5-4)

5-3

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

HARDWARE LIST

Ref. No. Part No. Description Ref. No. Part No. Description

51 3-288-599-01 COVER, GRIP

52 A-1486-850-A LG-005 BOARD, COMPLETE

53 3-288-595-01 FOOT, GRIP

54 3-288-596-01 BELT, GRIP

55 1-480-300-11 SWITCH BLOCK, CONTROL (LZ92000)

56 1-834-246-11 FLEXIBLE FLAT CABLE (FFC-118)

57 A-1510-484-A GY-005 BOARD, COMPLETE (SERVICE)

*58 3-288-600-01 HOLDER, GYRO PC BOARD

59 X-2188-617-1 CABINET ASSY, GRIP

60 A-1539-025-A LENS COMPLETE ASSY (SERVICE)

61 3-292-214-01 LEVER, ZOOM

*62 3-299-763-01 CUSHION (LN)

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)

#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)

#122 7-682-547-09 SCREW +B 3X6 (Black)

#123 7-682-561-09 SCREW +B 4X8 (Black)

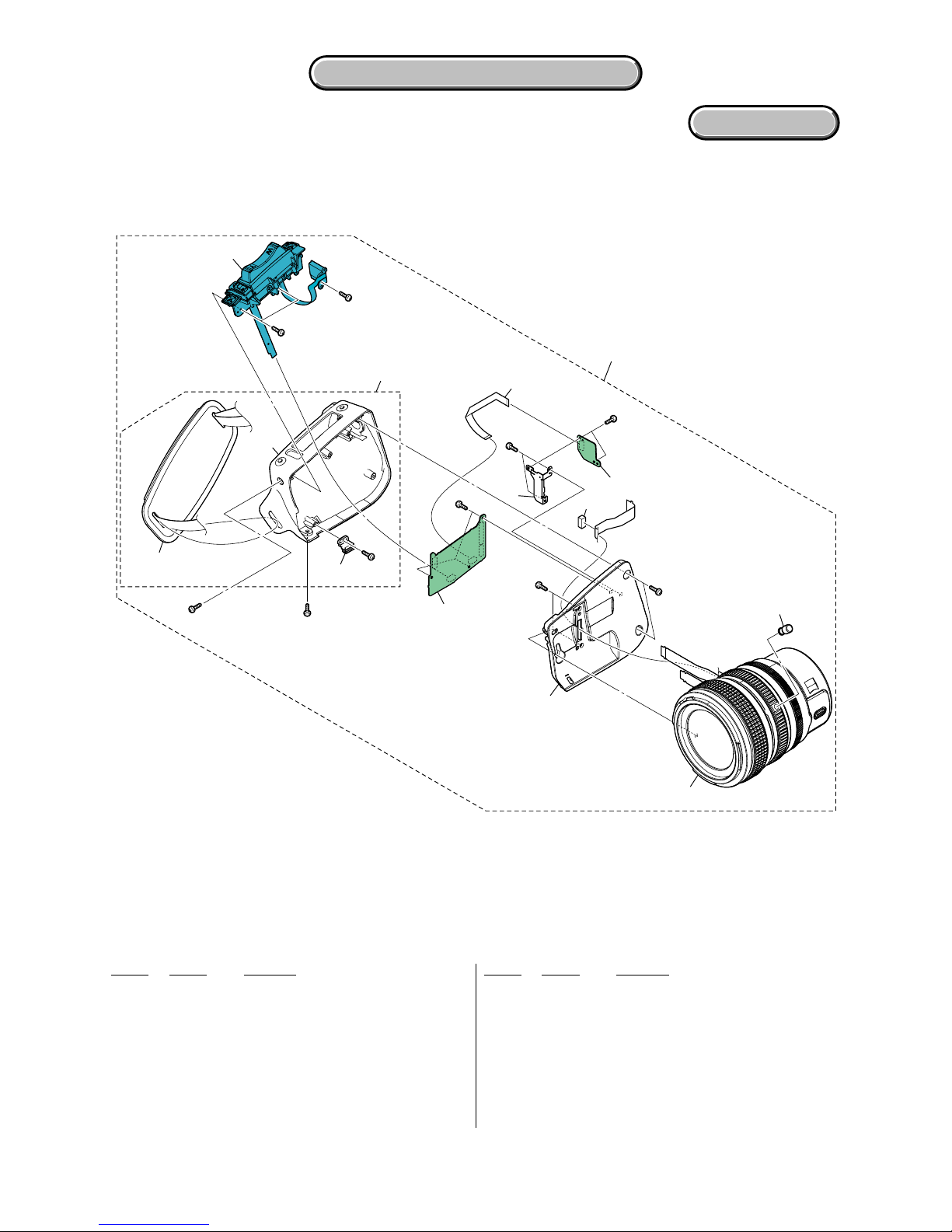

5-1-2. LENS SECTION

ns: not supplied

#49

#122 #122

#123 #122

#49

#50

59 56

58 57

5-4

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

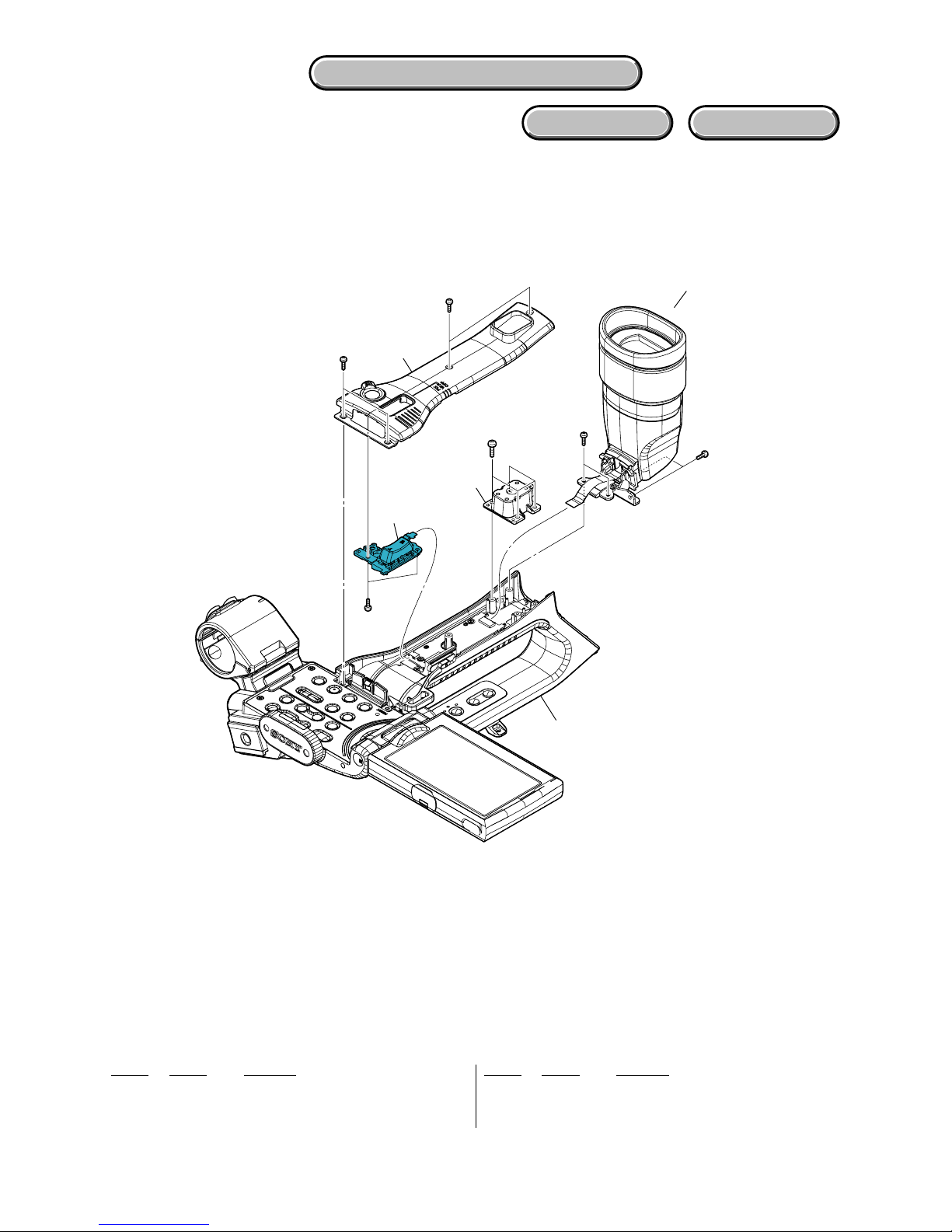

5-1-3. HANDLE SECTION-1

DISASSEMBLY

HARDWARE LIST

Ref. No. Part No. Description Ref. No. Part No. Description

101 1-480-298-11 SWITCH BLOCK, CONTROL (GZ92000)

102 X-2188-601-1 CABINET (UPPER) ASSY, HANDLE

103 3-288-538-01 SHOE, REAR (COLD)

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)

#53 3-080-206-21 SCREW, TAPPING, P2 (Black)

#49

#49 #49

#49

#53

102

101

103

Handle Section-2

(See Page 5-6)

EVF Section

(See Page 5-5

)

5-5

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

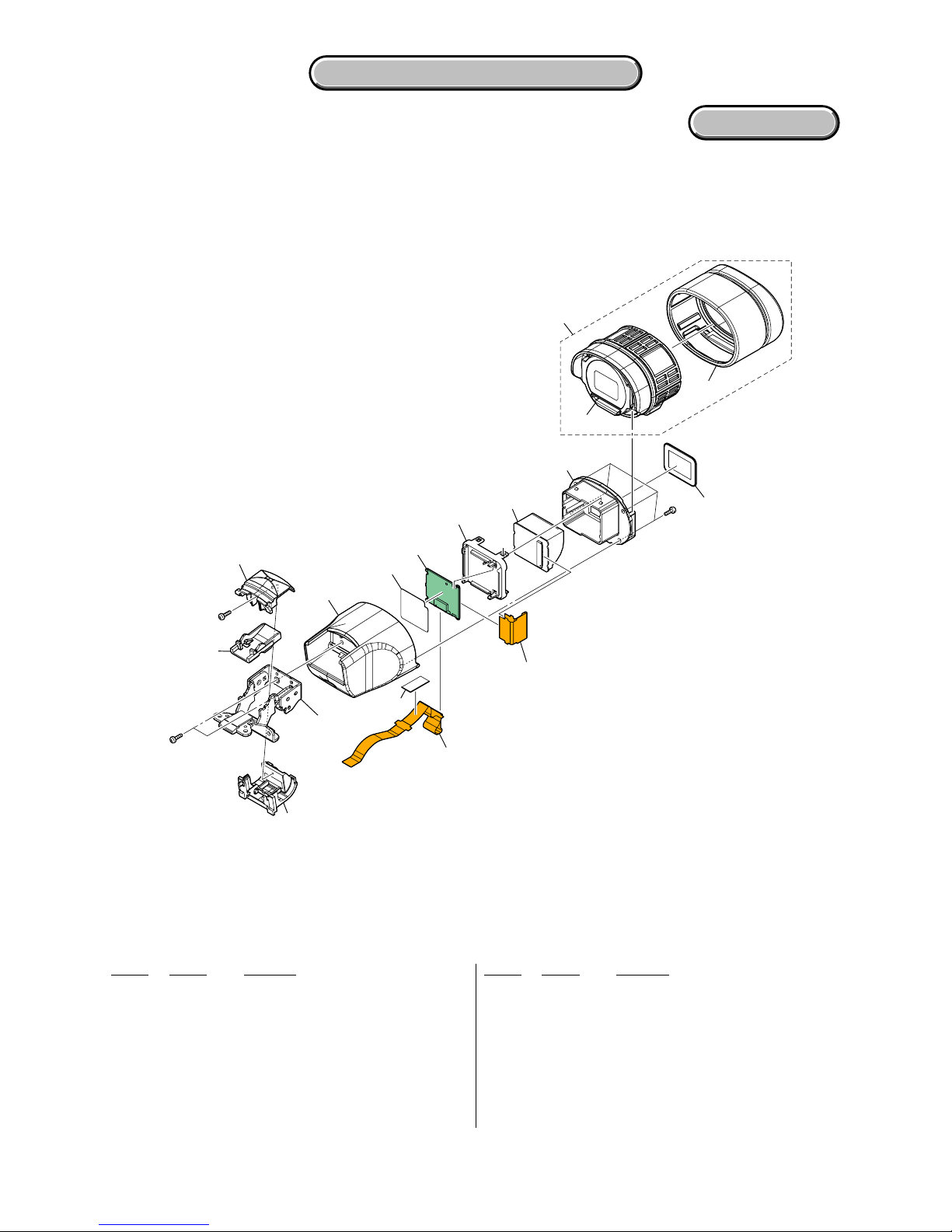

5-1-4. EVF SECTION

ns: not supplied

HARDWARE LIST

Ref. No. Part No. Description Ref. No. Part No. Description

151 1-873-732-11 FP-775 FLEXIBLE BOARD

152 3-288-588-01 CABINET (LOWER), VF HINGE

153 X-2188-615-1 TILT ASSY, VF

154 3-291-247-02 TAPE (VF)

155 3-288-587-01 CABINET (UPPER), VF HINGE

156 X-2188-614-1 CABINET ASSY, VF

157 A-1486-837-A UU-005 BOARD, COMPLETE

158 3-288-586-01 LID, PANEL

159 3-288-585-01 CASE, PANEL

160 X-2188-616-1 FINDER ASSY

161 3-288-590-01 EYE CUP

162 3-288-591-01 SHEET, VF PROTECTION

163 1-873-733-11 FP-776 FLEXIBLE BOARD

*164 3-299-948-01 SHEET (UU)

LCD902 1-802-560-11 LCD MODULE

#53 3-080-206-21 SCREW, TAPPING, P2 (Black)

#53

152

153 154

155

156

157

164

158

LCD902

159

162

160

161

163

151

5-6

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

5-1-5. HANDLE SECTION-2

ns: not supplied

HARDWARE LIST

DISASSEMBLY

•Refer to page 5-1 for mark 0.

Ref. No. Part No. Description Ref. No. Part No. Description

201 X-2188-604-1 CABINET (HORIZONTAL) ASSY

202 1-834-244-11 FLEXIBLE FLAT CABLE (FFC-116)

203 X-2188-605-1 PANEL ASSY, CONTROL

204 A-1486-841-A BB-010 BOARD, COMPLETE

*205 3-288-540-01 COVER (BB)

206 1-834-245-11 FLEXIBLE FLAT CABLE (FFC-117)

207 A-1486-840-A ZZ-005 BOARD, COMPLETE

0*BH7001 1-756-615-51 HOLDER, BATTERY (Note)

0BT7001 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)

#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)

#53 3-080-206-21 SCREW, TAPPING, P2 (Black)

#119 7-627-556-58 SCREW +P 2.6X5 (Black)

Note: ZZ-005基板のリチウム電池（BT7001）を交換する場合はバッテリホ

ルダ（BH7001）も同時に新品に交換してください。（一度使用した

バッテリホルダは再使用できません。）

部品取り付けの際は，先にバッテリホルダを取り付けてからリチウ

ム電池を装着してください。

Note: Replace the battery holder (BH7001) together when replacing the lithium

battery (BT7001) on the ZZ-005 board. (The battery holder removed

once cannot be used again.)

When mounting these parts, mount new battery holder first and attach

new lithium battery next.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

注意

電池の交換は，正しく行わないと破裂する恐れがあり

ます。電池を交換する場合には必ず同じ型名の電池

又は同等品と交換してください。

#53 #49

#53

#50

#119

#49

201

BH7001

(Note)

BT7001

(Note)

202

206

207

205

204

203

BB-010

ZZ-005

LCD Section

(See Page 5-9)

Handle Section-3

(See Page 5-7)

: BT7001 (BATTERY, STORAGE, LITHIUM

)

Board on the mount position.

(See page 4-77)

5-7

5. REPAIR PARTS LIST

HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

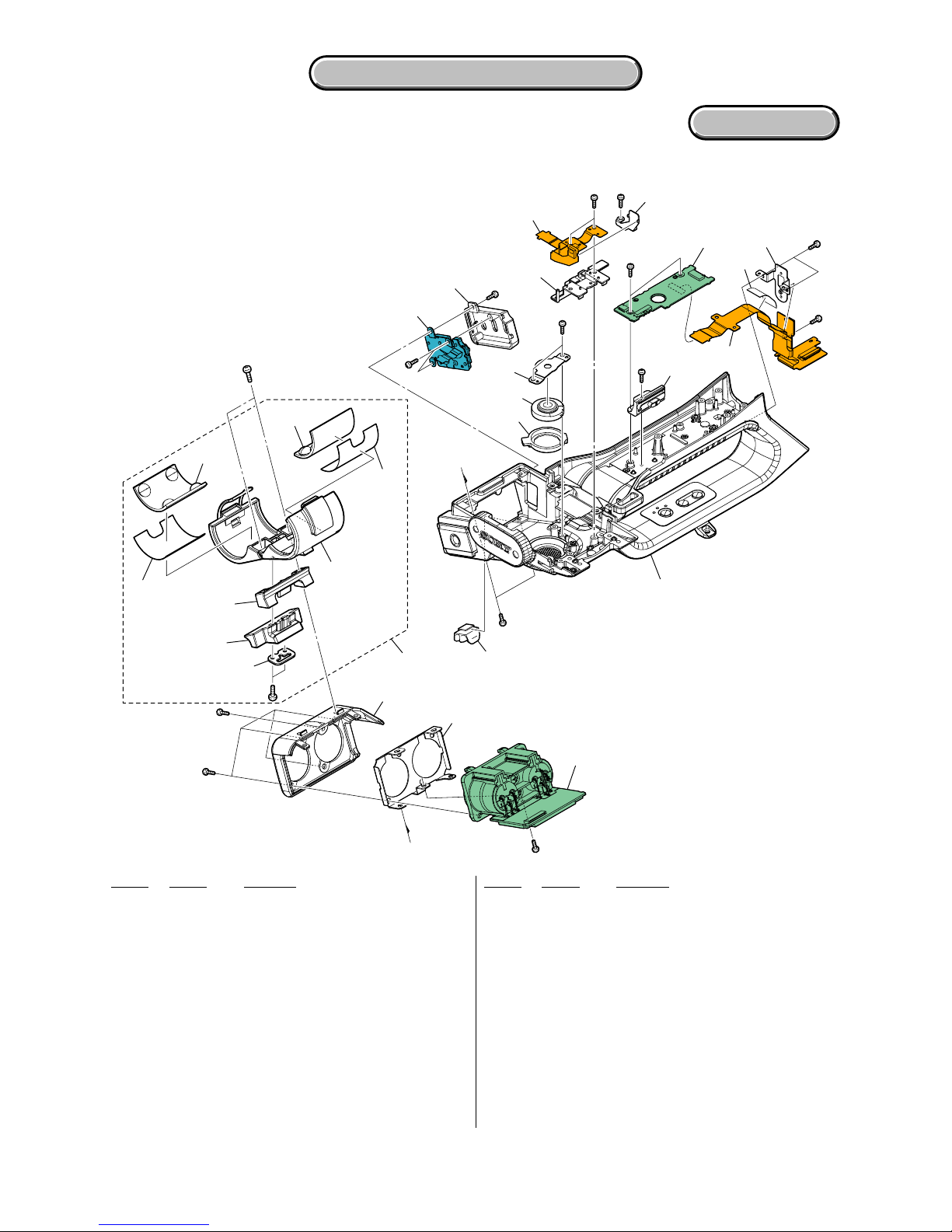

5-1-6. HANDLE SECTION-3

ns: not supplied

HARDWARE LIST

Ref. No. Part No. Description Ref. No. Part No. Description

251 A-1486-835-A XX-016 BOARD, COMPLETE

*252 3-288-536-01 FLAME, XL

253 3-288-535-01 CABINET, XL

254 3-284-074-01 RUBBER, MICROPHONE HOLDER

255 3-284-081-01 SHEET, RUBBER ADHESIVE

256 3-284-080-01 RUBBER, MICROPHONE

257 X-2187-986-1 HOLDER ASSY, MICROPHONE

258 2-892-095-01 CLAMP, CABLE

259 1-480-299-11 SWITCH BLOCK, CONTROL (AS92000)

260 3-288-541-01 CABINET, AS

261 2-178-550-01 HOLDER, SPEAKER

262 X-2188-608-1 RETAINER ASSY, SPEAKER

*263 3-288-539-01 HOLDER, FLEXIBLE

264 A-1486-854-A FP-759 FLEXIBLE BOARD, COMPLETE

265 X-2188-609-1 FIXED (759) ASSY

266 A-1486-844-A GG-005 BOARD, COMPLETE

267 X-2188-599-1 KNOB ASSY, ZOOM SELECTION

268 A-1486-853-A FP-757 FLEXIBLE BOARD, COMPLETE

*269 3-288-537-01 PLATE, REAR TALLY FIXED

*270 3-398-545-01 SHEET (VF), SHIELD

271 3-284-075-01 COVER, MICROPHONE HOLDER RUBBER

SP901 1-825-968-11 LOUDSPEAKER (1.8CM)

#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)

#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)

#53 3-080-206-21 SCREW, TAPPING, P2 (Black)

#119 7-627-556-58 SCREW +P 2.6X5 (Black)

Handle Section-4

(See Page 5-8)

257 258

255

256

254

#119

#53

251

252

253

259

260

264

265

263

266 269

270

268

267

262

261

271

#49

#119

#49

#50

#49

#53

#49

#50

#50 #50

SP901

Autres manuels pour HVR-Z7J

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony caméscope

Sony

Sony DVCAM DSR-PD150 Manuel utilisateur

Sony

Sony Handycam DCR-HC1000E Manuel utilisateur

Sony

Sony Handycam DCR-SR15E Manuel utilisateur

Sony

Sony HDR-CX220 Manuel utilisateur

Sony

Sony FCBEH6500 Manuel utilisateur

Sony

Sony Handycam Vision CCD-TRV300E Manuel utilisateur

Sony

Sony FDR-X1000V Guide de l'utilisateur

Sony

Sony DVD608 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

Sony

Sony XDCAM EX PMW-EX3 Manuel utilisateur

Sony

Sony HXR-MC1 Brochure Manuel utilisateur

Sony

Sony HDW-650 Manuel utilisateur

Sony

Sony HXR-MC1 Brochure Manuel utilisateur

Sony

Sony Handycam Vision CCD-TRV66E Manuel utilisateur

Sony

Sony DCR-TRV50 - Digital Handycam Camcorder Manuel utilisateur

Sony

Sony Power HADFX HDC-P1 Manuel utilisateur

Sony

Sony Handycam DCR-SR62 Manuel utilisateur

Sony

Sony D8 Digital Handycam DCR-TRV210E Manuel utilisateur

Sony

Sony DCR-HC32 - Handycam Camcorder - 20 x Optical... Manuel utilisateur

Sony

Sony Handycam Vision DCR-TRV9 Manuel utilisateur

Sony

Sony PXW-Z190 Manuel utilisateur

Sony

Sony Handycam DCR-HC46 Manuel utilisateur

Sony

Sony Handycam Vision CCD-TRV107E Manuel utilisateur

Sony

Sony DCR-SX41 Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

JVC

JVC GR-SXM68AC Guide de démarrage rapide

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

JVC

JVC AA-V15EG Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sharp

Sharp ViewcamZ VL-Z8H Manuel utilisateur

Philips

Philips M620/21 Manuel utilisateur
