DSR-PD100A/PD100AP

RMT-811

US Model

Canadian Model

DSR-PD100A

AEP Model

DSR-PD100AP

SERVICE MANUAL

DIGITAL CAMCORDER

MICROFILM

C MECHANISM

Differences Manual

• DSR-PD100A/PD100AP is based on DSR-PD100/PD100P.

• This Service Manual daceribed only the difference from DSR-PD100/PD100P

(US/Canadian/AEP Model) Service Manual (9-974-114-11) and Supplement-1

(9-974-114-81).

DSR-PD100A (NTSC)

DSR-PD100AP (PAL)

• Main Difference

• XLR adaptor S102 is changed.

(ATT SWITCH →LEVEL SWITCH)

•Table for Differences of Completed Board

MA-333 Board

XL-2 Board

DSR-PD100/PD100P

A-7073-734-A

A-7073-738-A

DSR-PD100A/PD100AP

A-7074-072-A

A-7074-073-A

ATT

LEVEL

STD

GAIN

Ver 1.0 1999.07

— 2 —

6. REPAIR PARTS LIST

6-1. EXPLODED VIEWS

6-1. ELECTRICAL PARTS LIST

Page DSR-PD100/PD100P DSR-PD100A/PD100AP

Ref. No. Part No. Description

420 A-7073-734-A MA-333 (D) BOARD, COMPLETE

503 X-3949-116-1 BOX (UPPER) ASSY, TERMINAL

511 A-7073-738-A XL-2 MOUNT

517 A-7094-044-A XLR BLOCK ASSY

6-11

Ref. No. Part No. Description

420 A-7074-072-A MA-333 (A) BOARD, COMPLETE

503 X-3949-882-1 BOX (UPPER) ASSY, TERMINAL

511 A-7074-073-A XL-2 (A) MOUNT

517 A-7094-606-A XLR BLOCK ASSY

6-9

Page DSR-PD100/PD100P DSR-PD100A/PD100AP

Ref. No. Part No. Description

A-7073-734-A MA-333 (D) BOARD, COMPLETE

**************************************

< CAPACITOR >

C7301 1-162-966-11 CERAMIC (CHIP) 0.0022uF 10% 50V

C7305 1-162-970-11 CERAMIC (CHIP) 0.01uF 10% 25V

C7310 1-162-968-11 CERAMIC (CHIP) 0.0047uF 10% 50V

____ __________ ___________

D7305 8-719-420-41 DIODE MA8082-TX

< FERRITE BEAD >

____ __________ ___________

< RESISTOR >

R7302 1-500-444-11 FERRITE 0uH

R7311 1-216-839-11 METAL CHIP 33K 5% 1/16W

R7312 1-216-836-11 METAL CHIP 18K 5% 1/16W

R7354 1-216-845-11 METAL CHIP 100K 5% 1/16W

A-7073-738-A XL-2 BOARD, COMPLETE

*********************************

< DIODE >

D107 8-719-420-14 DIODE MA8082-TX

D108 8-719-420-14 DIODE MA8082-TX

6-19

Ref. No. Part No. Description

A-7074-072-A MA-333 (A) BOARD, COMPLETE

**************************************

< CAPACITOR >

C7301 1-164-174-11 CERAMIC (CHIP) 8200PF 10% 25V

C7305 1-107-826-11 CERAMIC (CHIP) 0.1uF 10% 16V

C7310 DELETE

C7358 1-107-826-11 CERAMIC (CHIP) 0.1uF 10% 50V

< DIODE >

D7305 8-719-037-03 DIODE MA8082(K8).SO

< FERRITE BEAD >

FB732 1-500-444-11 FERRITE 0uH

< RESISTOR >

R7302 DELETE

R7311 1-216-864-11 METAL CHIP 0 5% 1/16W

R7312 1-216-841-11 METAL CHIP 47K 5% 1/16W

R7354 1-216-842-11 METAL CHIP 56K 5% 1/16W

A-7074-073-A XL-2 (A) BOARD, COMPLETE

************************************

< DIODE >

D107 8-719-073-03 DIODE MA8082 (K8).SO

D108 8-719-073-03 DIODE MA8082 (K8).SO

6-18

6-35

http://getMANUAL.com

DSR-PD100A/PD100AP

[Page 4-5]

FRAME SCHEMATIC DIAGRAM-2

DSR-PD100/PD100P DSR-PD100A/PD100AP

(LOCATION: J-1) (LOCATION: J-1)

— 3 —

Page DSR-PD100/PD100P DSR-PD100A/PD100AP

Ref. No. Part No. Description

< RESISTOR >

R123 1-216-296-91 SHORT 0

____ __________ __________________

< SWITCH >

S102 1-570-711-11 SWITCH, SLIDE (ATT ON/OFF)

ACCESSORIES

************

A-7094-002-A PC CARD ADAPTOR (MSAC-PC1)

(WITH CASE)

Fig A 1-959-249-11 CORD, CONNECTION

(FOR KEYBOARD, WITH ADAPTOR)

Fig B 1-959-250-11 PC CARD/PARALLEL PORT ADAPTOR

(MSAC-PC1)

3-865-078-11 MANUAL, INSTRUCTION (ENGLISH)

(PD100/PD100P)

3-865-078-21 MANUAL, INSTRUCTION (FRENCH)

(PD100/PD100P)

3-865-078-31 MANUAL, INSTRUCTION (GERMAN)

(PD100)

3-865-078-41 MANUAL, INSTRUCTION (ITALIAN)

(PD100P)

Ref. No. Part No. Description

< RESISTOR >

R123 1-218-833-11 METAL CHIP 270 0.5% 1/16W

R124 1-211-987-11 METAL CHIP 56 0.5% 1/16W

< SWITCH >

S102 1-762-217-21 SWITCH, SLIDE (LEVEL (ATT, STD, GAIN))

ACCESSORIES

************

A-7094-593-A PC CARD ADAPTOR (MSAC-PC2)

(WITH CASE)

Fig A Delete

Fig B Delete

3-867-703-11 MANUAL, INSTRUCTION (ENGLISH)

(PD100A/PD100AP)

3-867-703-21 MANUAL, INSTRUCTION (FRENCH)

(PD100A/PD100AP)

3-867-703-31 MANUAL, INSTRUCTION (GERMAN)

(PD100AP)

3-867-703-41 MANUAL, INSTRUCTION (ITALIAN)

(PD100AP)

6-36E

ATT

LEVEL

STD

GAIN

PC card/parallel port adaptor

Fig B

Power cord (With adaptor connector)

Fig A

[Page 4-97]

PRINTED WIRING BOARD

MA-333 (STEREO MIC AMP) PRINTEDWIRING BOARD

— Ref. No. MA-333 Board; 10,000 Series —

MA-333 BOARD

C7300 A-1

C7301 D-3

C7302 A-2

C7305 A-2

C7306 A-2

C7307 A-3

C7308 A-2

C7309 A-3

C7310 A-2

C7312 A-3

C7313 A-2

C7314 A-3

C7315 A-2

C7316 A-3

C7317 A-1

C7318 A-2

C7319 A-3

C7320 A-3

C7321 A-1

C7322 B-1

C7323 B-1

C7324 A-1

C7325 B-3

C7326 B-3

C7327 D-1

C7328 B-2

C7329 B-1

C7330 B-1

C7331 B-3

C7332 B-3

C7333 B-3

C7338 B-2

C7339 B-3

C7340 B-2

C7341 B-3

C7342 B-3

C7343 B-2

C7344 C-1

C7345 C-3

C7346 C-3

C7347 B-3

C7348 C-2

C7350 B-2

C7351 D-2

C7352 D-3

C7353 C-2

C7354 D-3

C7355 D-2

C7356 C-3

C7357 D-3

C7358 A-3

CN7300 E-1

CN7301 E-3

CN7302 E-2

CN7303 E-3

CN7304 D-1

CN7305 D-1

D7300 A-1

D7304 E-2

D7305 E-2

FB730 A-3

FB731 A-3

FB732 A-3

IC7301 B-2

IC7302 D-2

IC7303 D-2

Q7300 D-1

Q7301 B-1

Q7302 B-1

Q7303 B-1

Q7304 D-3

R7303 A-1

R7304 A-1

R7305 E-2

R7306 E-2

R7309 A-2

R7310 A-2

R7311 E-2

R7312 E-2

R7313 A-1

R7314 A-3

R7315 A-1

R7316 A-3

R7317 A-1

R7318 B-3

R7319 B-2

R7320 B-1

R7321 B-2

R7322 B-3

R7323 C-1

R7324 B-1

R7326 B-3

R7327 B-3

R7328 B-1

R7329 D-1

R7331 B-3

R7332 B-3

R7335 B-1

R7337 B-1

R7339 B-1

R7342 B-2

R7343 B-2

R7344 C-2

R7345 C-2

R7346 C-2

R7347 B-2

R7348 C-2

R7350 D-2

R7351 D-3

R7352 D-3

R7353 D-2

R7354 D-3

R7355 D-2

R7356 D-3

R7357 D-3

R7358 D-2

R7359 D-3

R7360 D-2

R7361 E-2

R7362 E-1

R7363 D-3

R7364 A-3

For printed wiring boards

There are few cases that the part printed on this

diagram isn’t mounted in this model.

STEREO MIC AMP

MA-333

SIRCS RECEIVER

RI-10

— 4 —

DSR-PD100A/PD100AP

— 5 — — 6 —

[Page 4-99]

SCHEMATIC DIAGRAM

STEREO MIC AMP

MA-333

SIRCS RECEIVER

RI-10

[ ]: Page No. shown in [ ] indicates the page to refer on the original Service

Manual DSR-PD10/PD100P.

DSR-PD100A/PD100AP

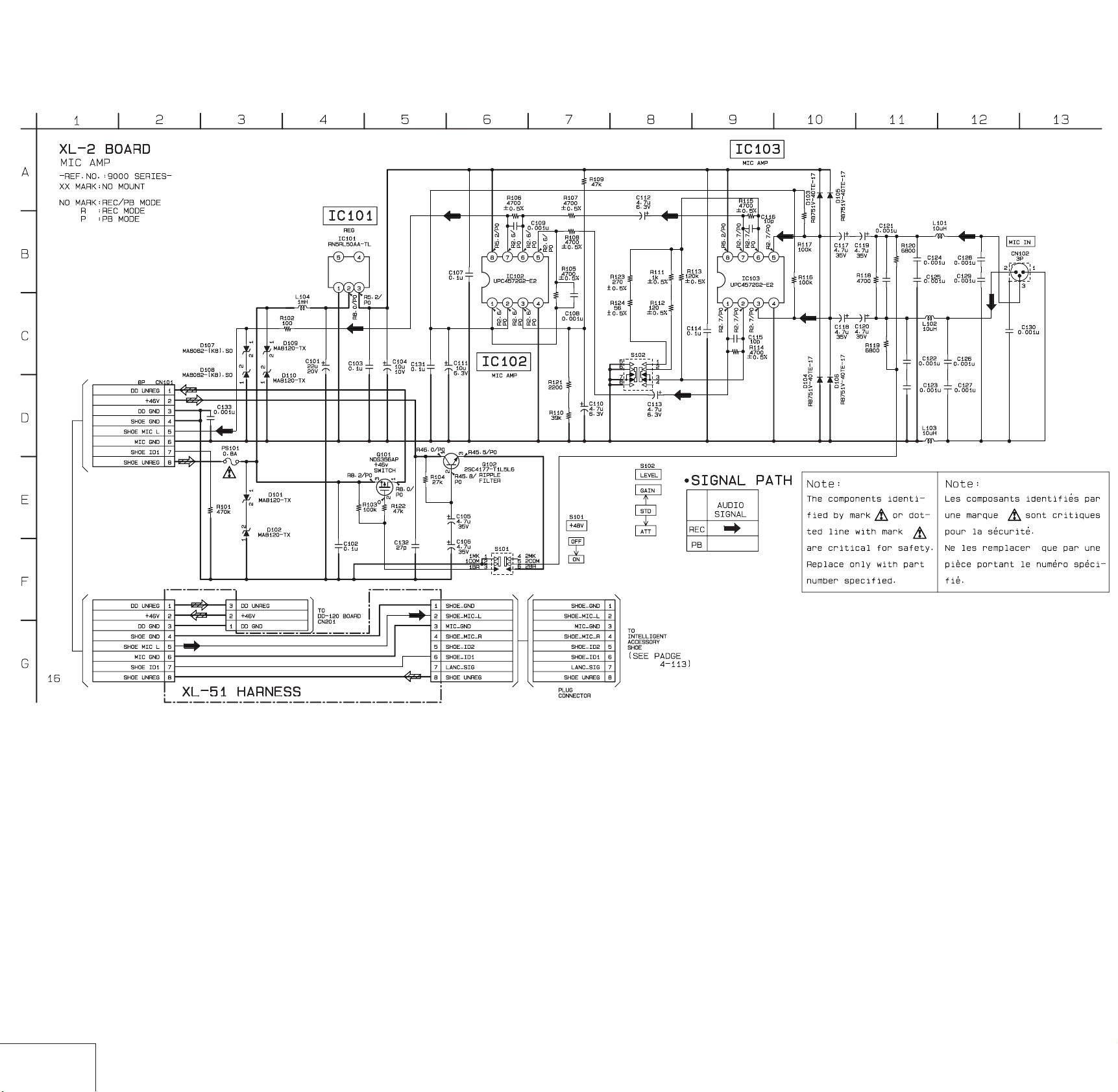

[Page 4-132]

SCHEMATIC DIAGRAM

— 8 — — 9 —

MIC AMP

XL-2

DSR-PD100A/PD100AP

— 10 —

Sony Corporation

PersonalVIDEO Products Company 99G1611-1

Published by Safety & Service Engineering Dept.

9-974-179-11

[Page 4-131]

PRINTEDWIRING BOARD

XL-2 (MIC AMP) PRINTEDWIRING BOARD

— Ref. No. XL-2 Board; 9,000 Series —

XL-2 BOARD

C101 E-2

C102 E-4

C103 D-2

C104 E-2

C105 E-2

C106 E-3

C107 A-5

C108 A-5

C109 A-5

C110 B-5

C111 B-5

C112 E-4

C113 D-4

C114 A-4

C115 B-4

C116 A-4

C117 E-4

C118 D-4

C119 A-4

C120 B-4

C121 B-4

C122 D-3

C123 D-3

C124 D-3

C125 D-3

C126 D-3

C127 D-3

C128 E-3

C129 E-3

C130 E-3

C131 B-5

C132 E-1

C133 E-4

CN101 A-4

CN102 A-2

D101 E-4

D102 E-4

D103 E-4

D104 E-4

D105 D-4

D106 D-4

D107 A-5

D108 A-5

D109 A-3

D110 A-3

IC101 E-2

IC102 A-5

IC103 B-4

L101 E-3

L102 D-3

L103 E-3

L104 E-2

PS101 E-3

Q101 E-4

Q102 E-1

R101 A-3

R102 A-5

R103 E-4

R104 E-1

R105 A-5

R106 A-5

R107 E-4

R108 D-4

R109 B-5

R110 B-5

R111 B-4

R112 B-4

R113 B-4

R114 B-4

R115 A-4

R116 D-4

R117 E-4

R118 B-4

R119 B-3

R120 A-3

R121 B-5

R122 E-4

R123 B-4

R124 B-4

S101 D-2

S102 D-4

For printed wiring boards

There are few cases that the part printed on this

diagram isn’t mounted in this model.

http://getMANUAL.com
