BATTERY CHARGER

BC-L120

OPERATION MANUAL [English/French/German]

1st Edition (Revised 2)

English

WARNING

To prevent fire or shock

hazard, do not expose the

unit to rain or moisture.

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

personnel only.

WARNING

THIS APPARATUS MUST BE

EARTHED.

Save these instructions. This manual

contains important safety and

operating instructions.

For the customers in the USA

This equipment has been tested and

found to comply with the limits for a

Class A digital device, pursuant to

Part 15 of the FCC Rules. These

limits are designed to provide

reasonable protection against harmful

interference when the equipment is

operated in a commercial

environment. This equipment

generates, uses, and can radiate radio

frequency energy and, if not installed

and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a

residential area is likely to cause

harmful interference in which case the

user will be required to correct the

interference at his own expense.

You are cautioned that any changes or

modifications not expressly approved

in this manual could void your

authority to operate this equipment.

The shielded interface cable

recommended in this manual must be

used with this equipment in order to

comply with the limits for a digital

device pursuant to Subpart B of Part

15 of FCC Rules.

1(EN)

Table of Contents

Overview.................................................................... 2(EN)

Features...................................................................2(EN)

Charging System.....................................................3(EN)

Precautions ............................................................... 5(EN)

Location and Function of Parts............................... 6(EN)

Connecting Battery Packs/Supplying DC Power... 9(EN)

Connecting a battery pack ......................................9(EN)

Charging ...............................................................10(EN)

Supplying power to an external device.................11(EN)

Specifications ......................................................... 12(EN)

English

Overview

2(EN)

Overview

The BC-L120 Battery Charger can be used to simultaneously

charge up to four BP-L40A/L60A/L90A Lithium-ion Battery

Packs, or to supply DC power to an external device.

Features

Simultaneous connection of up to four battery packs

The BC-L120 can connect and charge up to four battery packs

at the same time. These battery packs may be either the BP-

L40A, the BP-L60A, the BP-L90A, or any mix of the three.

Quick charging

The BC-L120 features a new system that charges up to four

battery packs quickly and efficiently.

For details, see “Charging system” on page 3(EN).

Compact and lightweight

The BC-L120 is compact, lightweight, and easy to carry.

Diagnostics function

The BC-L120 checks each connected battery pack for

abnormalities. An indicator flashes red for any battery pack

that cannot be charged normally.

Charging progress indicators

Indicators light up to show three different charging levels: less

than 80% capacity, 80% capacity, and greater than 80%

capacity.

Skip function for fully charged batteries

If a fully charged battery pack is attached to the BC-L120,

nothing happens to the battery pack and the indicators show the

charging of the pack is complete.

Supply of up to 100 W of DC power

The BC-L120 can supply up to 100 watts of DC power to an

external device connected through an optional DC connecting

cable.

3(EN)

Cooling fan

An internal cooling fan turns on whenever the BC-L120 is

charging a battery pack or supplying power to an external

device.

• This unit is designed for charging Sony lithium-ion battery

packs (BP-L40A/L60A/L90A).

• The DC-L1 (NP-1B adaptor) and DC-L90 (BP-90A

adaptor) cannot be used to charge nickel-cadmium battery

packs.

Charging system

The BC-L120 uses a new system that first charges each

connected battery pack to 80% capacity, in sequence. It then

simultaneously charges all battery packs to 100% capacity. In

this way, it achieves more efficient and faster charging than

conventional systems in which each battery is charged to 100%

capacity before the next battery is charged. Details about the

new system and the charging times are given below.

Conventional charging systems (charging of four BP-

L60A units)

Charging level

Charging

battery pack

1 (150

minutes)

Charging

battery pack

2 (150

minutes)

Charging

battery pack

3 (150

minutes)

Charging

battery pack

4 (150

minutes)

Charge

time

Each battery pack is charged to 100% capacity

in sequence.

Total 600

minutes

Overview

4(EN)

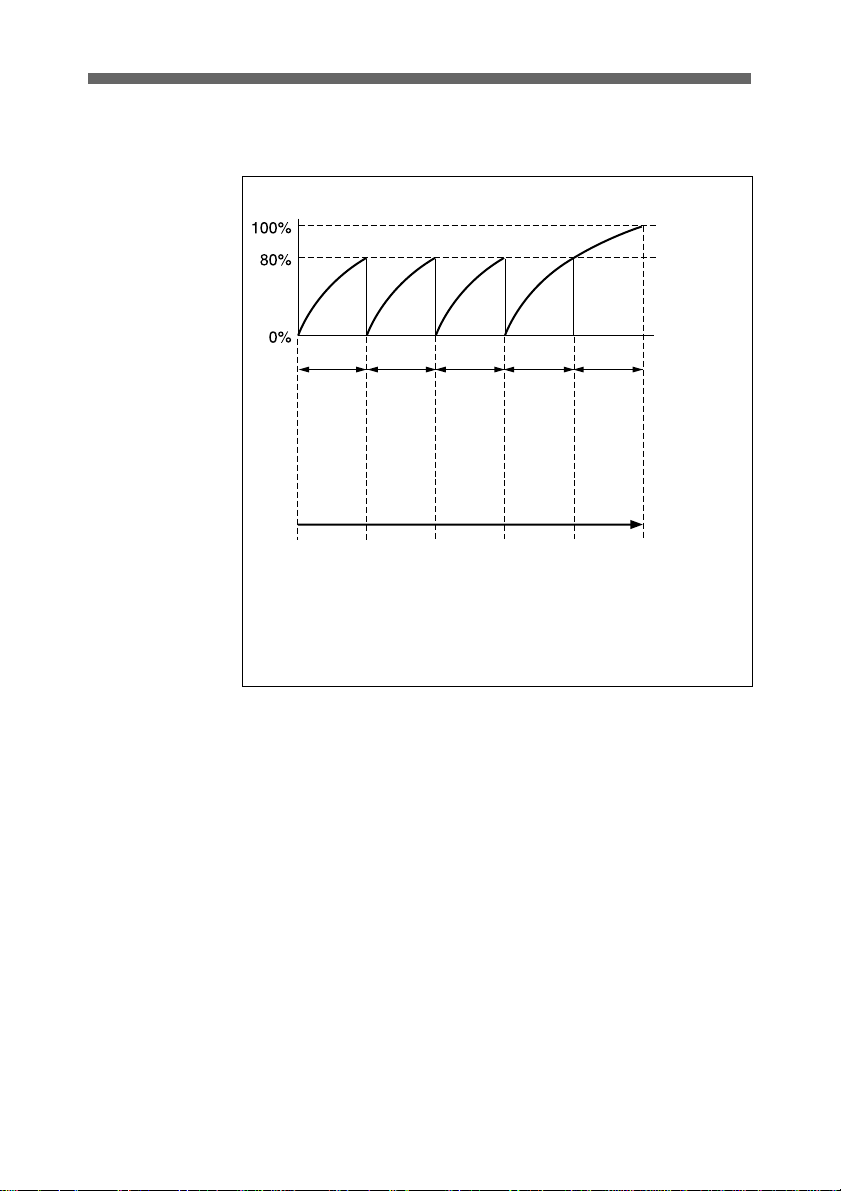

Charging level

New charging system (charging four BP-L60A units)

Charg

ing

battery

pack 1

(80

minutes)

Charg

ing

battery

pack 2

(80

minutes)

Charg

ing

battery

pack 3

(80

minutes)

Charg

ing

battery

pack 4

(80

minutes)

Charging

battery

packs 1

to 4 at the

same

time (80

minutes)

Charge

time

Total 400

minutes

After the BC-L120 has charged one battery pack to 80%

capacity, it moves on to the next battery pack. When the last

battery pack is 80% charged, the BC-L120 begins

simultaneously charging all battery packs until they reach

100% capacity. In this way, battery packs are charged more

quickly than in previous systems.

5(EN)

Precautions

On the battery charger

• Use the BC-L120 in an operating environment of 0°C to 40°C

(32°F to 104°F). Since charging is difficult at low

temperatures, we recommend that battery packs be charged

between 20°C and 30°C (68°F and 86°F).

• Avoid using or storing the BC-L120 in dusty places or places

with corrosive gases.

• Avoid using or storing the BC-L120 in places exposed to

direct sunlight.

• Do not cover the ventilation holes.

On battery packs

• Even when fully charged, battery packs gradually lose their

charge naturally. Use the battery packs as soon as possible

after charging.

• Carry and store battery packs by installing them in your

equipment or by repacking them using the original packing

material.

• To prolong the life of battery packs, store them in a cool place

(about 20°C (68°F)), and charge in a place with an ambient

temperature between 10°C and 30°C (50°F and 86°F).

• When temperatures are 10°C (50°F) or lower, the

performance of a battery pack suffers and the usable time of a

battery pack becomes shorter. To get the longest usable time,

warm the battery packs to room temperature (about 20°C

(68°F)) before use.

• Carrying a spare battery pack is recommended.

Lithium-ion battery packs are free from memory effect.

There is no need to discharge them fully before recharging.

If the usable time of a battery pack becomes very short, it is

time to replace it with a new one.

Location and Function of Parts

6(EN)

Location and Function of Parts

Front and top panel

1POWER switch and

indicator 2Battery pack attachment sections (1 to 4)

and charge indicators

Battery pack

release button

3DC OUT connector

Rear panel

4AC IN connector

5Plug holder receptacle

7(EN)

1POWER switch and indicator

Turns the power on or off. When the

unit is turned on, the indicator lights

up and the charging of battery packs

or the supply of DC power to an

external device becomes possible.

2Battery pack connection sections

(1 to 4) and charging indicators

These connect BP-L40A/L60A/L90A

lithium-ion battery packs. To

disconnect a battery pack, press the

release button and pull the battery

pack upward.

The charging indicators show the

charging progress or results by

flashing or lighting red, orange or

green, as follows.

Indicator status

Left

Center Right

Meaning

(O)

Supply of DC power

to an external

device

(G) Charging in

progress (0% to

80% capacity)

(G) Charging wait

(charged to 80%

capacity; another

battery pack is being

charged). This

status arises only

when more than one

battery pack is

connected.

(G) (G) Charging in

progress (charged

to 81% capacity or

more)

(G) (G) End of charging

Indicator status Meaning

Left

Center Right

(R) One of the following

conditions exists.

• An incompatible

battery pack has

been connected.

• Before the start of

charging, the

output voltage of

the charger was

different from the

specified voltage.

• After the start of

charging, the

battery voltage did

not rise to the

charging voltage

within a specified

period.

• After the start of

charging, the

battery connector

voltage has

exceeded the

specified voltage.

• After the start of

charging, the

battery connector

voltage has

dropped below the

initial value.

• A charging current

other than that

corresponding to

the connected

battery pack was

detected during

charging.

If any of the above

conditions occur, try

recharging the

battery pack two or

three more times. If

the condition

persists, the battery

pack is probably

defective and should

be replaced.

: Off

: Flashing

: On

O: Orange

G: Green

R: Red

Location and Function of Parts

8(EN)

3DC OUT (DC power supply)

connector (XLR, 4-pins, male)

Supplies power to an external device

through an optional DC connecting

cable. Pin 4 is the plus connector and

pin 1 the minus.

Note

The BC-L120 cannot charge a battery

pack at the same time it supplies DC

power to an external device. If you

begin using the unit to supply power

to an external device while charging a

battery pack, the charging stops.

4AC IN (AC power input)

connector

Used to connect the charger to an AC

outlet through the supplied AC power

cord.

5Plug holder receptacle

The supplied plug holder secures the

supplied AC power cord so that it will

not come loose from the charger.

Plug holder (supplied)

To remove the plug holder

receptacle

Table des matières

Langues :

Autres manuels Sony Chargeur de batteries

Sony

Sony BC-TRP Manuel utilisateur

Sony

Sony WCH10 Manuel utilisateur

Sony

Sony BCR-NWU1 Manuel utilisateur

Sony

Sony AC-V900 Manuel utilisateur

Sony

Sony PEGA-CC5 Manuel utilisateur

Sony

Sony DC-VQ800 Manuel utilisateur

Sony

Sony CDX-505RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony DK30 Manuel utilisateur

Sony

Sony AC-VQV10 Manuel utilisateur

Sony

Sony CDX-444RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony CP-F10L Manuel utilisateur

Sony

Sony PlayStation DualSense CFI-ZDS1 Manuel utilisateur

Sony

Sony AC AC SQ950D Manuel utilisateur

Sony

Sony AC AC SQ950D Manuel utilisateur

Sony

Sony BC-CSQ Manuel utilisateur

Sony

Sony BC-L100 Manuel utilisateur

Sony

Sony BC-TRN Manuel utilisateur

Sony

Sony BCR-NWU5 Marketing Manuel utilisateur

Sony

Sony BC M150 Manuel utilisateur

Sony

Sony PS4 DUALSHOCK 4 Manuel utilisateur

Sony

Sony BC-U2 Manuel utilisateur

Sony

Sony BC-1WD Manuel utilisateur

Sony

Sony DC-VQ800 Manuel utilisateur

Sony

Sony ActiForceAC-VQV10 Manuel utilisateur

Manuels Chargeur de batteries populaires d'autres marques

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuel utilisateur

Enelion

Enelion Vertica Manuel utilisateur

RCA

RCA CHU6 Manuel utilisateur

ANSMANN

ANSMANN ALCT 6/24-10 Manuel utilisateur

Hitachi

Hitachi UC 18YRSL Guide de dépannage

Olympus

Olympus B-20 LPC Manuel utilisateur

Exibel

Exibel ZH1708143 Manuel utilisateur

Lenmar

Lenmar Mach 1 Manuel utilisateur

CTEK

CTEK MXS 5.0 Manuel utilisateur

ABB

ABB HT842379 Manuel utilisateur

Nitecore

Nitecore Superb Charger SC4 Manuel utilisateur

Renogy

Renogy RBC2125DS-21W Manuel utilisateur

Braun

Braun BWC02M Manuel utilisateur

CTEK

CTEK MXS 3.6 Manuel utilisateur

Black & Decker

Black & Decker BDV090 Manuel utilisateur

Trinity

Trinity DPD Manuel utilisateur

Hulkman

Hulkman Sigma 1 Manuel utilisateur

IKEA

IKEA koppla Manuel utilisateur
