SERVICE MANUAL
AEP Model
UK Model
TA-F3000ES
E Model
Chinese Model
TA-F3000
TA-F3000/F3000ES
SPECIFICATIONS
Photo: TA-F3000
INTEGRATED STEREO AMPLIFIER
MICROFILM
— 2 —
TABLE OF CONTENTS
1. GENERAL .......................................................................... 3
2. ELECTRICAL ADJUSTMENTS .................................. 4
3. DIAGRAMS
3-1. Circuit Boards Location ........................................................ 4

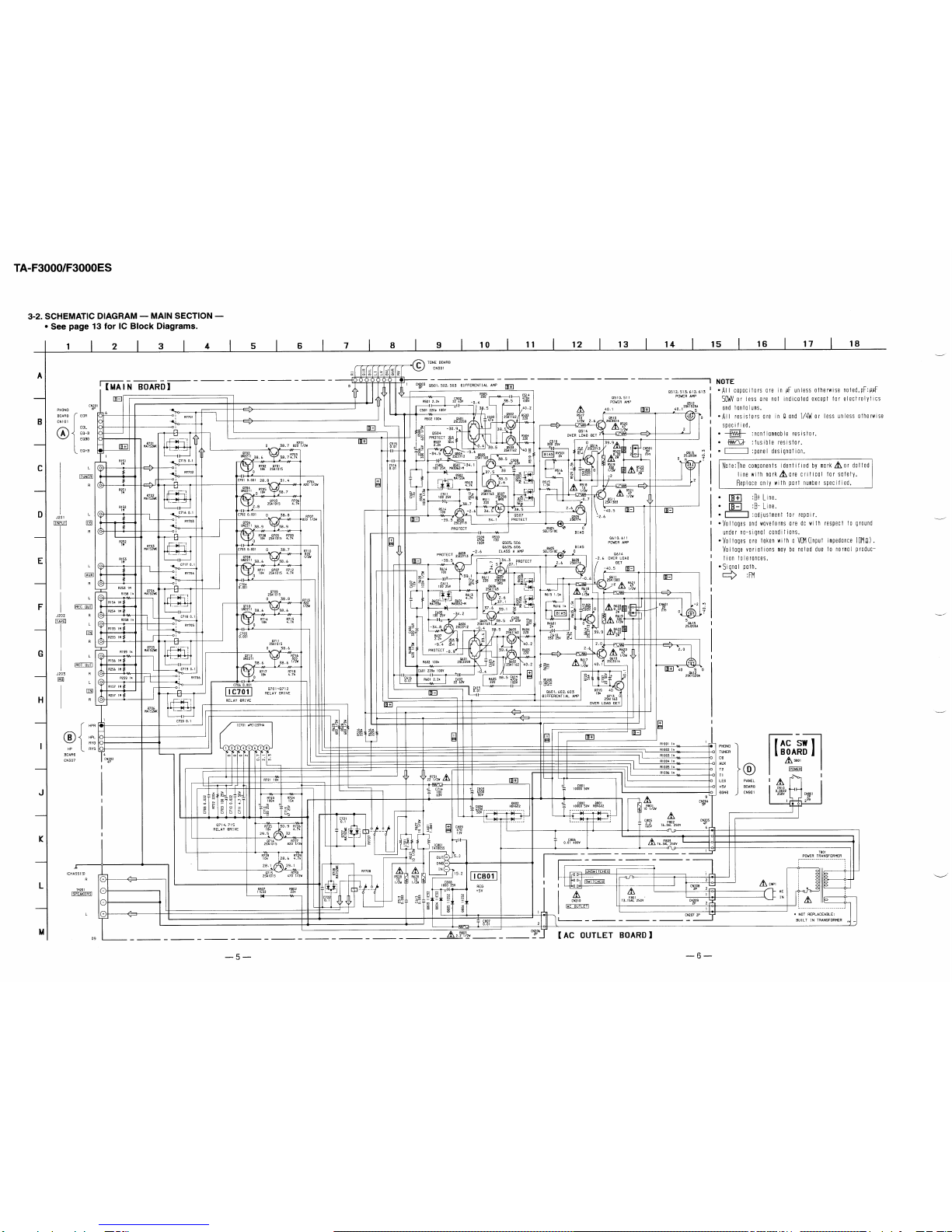

3-2. Schematic Diagram — Main Section — .............................. 5
3-3. Printed Wiring Board — Main Section —............................ 7
3-4. Schematic Diagram — Panel Section — ..............................9

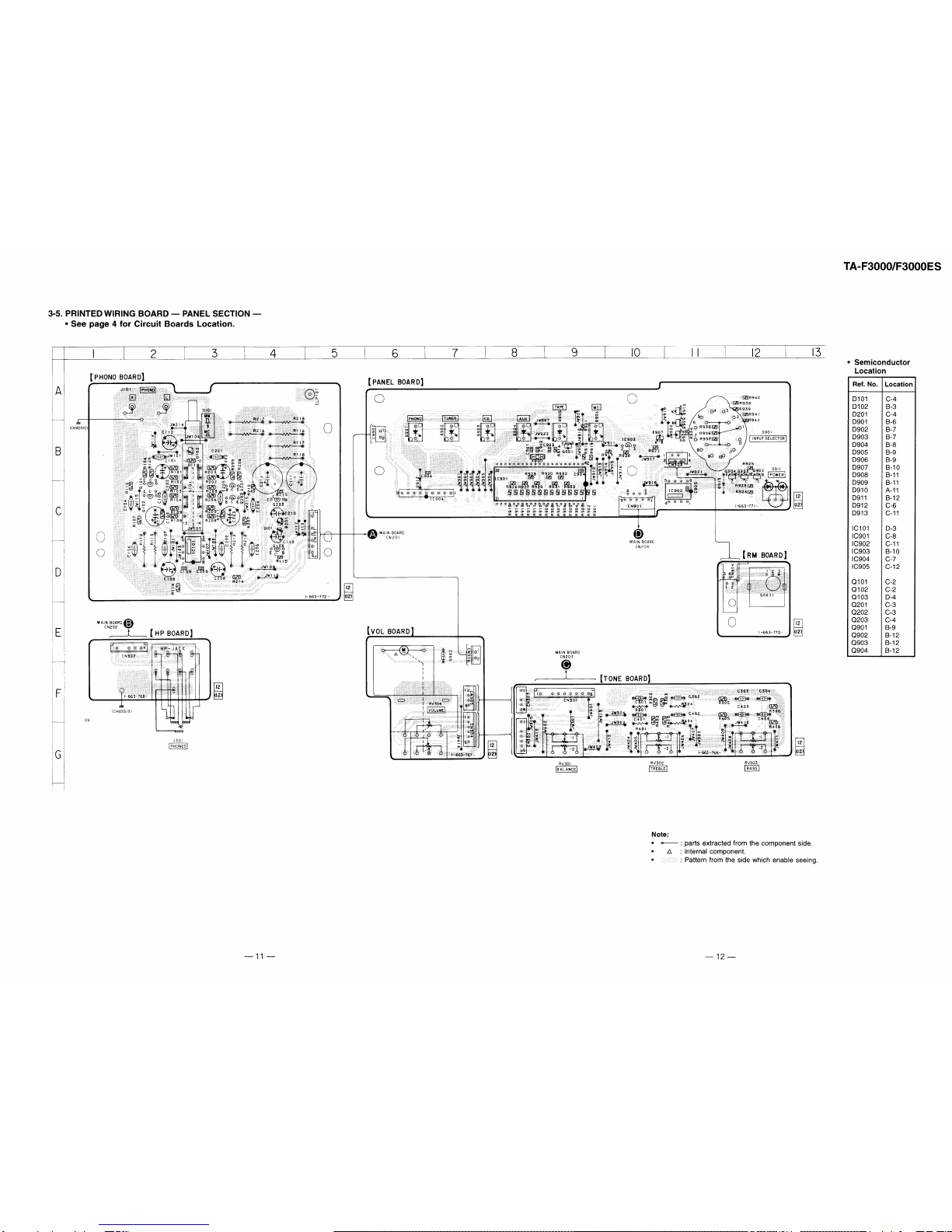

3-5. Printed Wiring Board — Panel Section — ......................... 11
3-6. IC Block Diagrams ............................................................. 13
3-7. IC Pin Function ................................................................... 14
4. EXPLODED VIEWS
4-1. Front Panel Section ............................................................. 15
4-2. Chassis Section ................................................................... 16
5. ELECTRICAL PARTS LIST ........................................ 17
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE
WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
— 3 — — 4 —
SECTION 2
ELECTRICAL ADJUSTMENTS
Bias Adjustment
1. Rotate the semi-fixed resistors (RV501, RV601) for bias
adjustment to the MIN side fully (counterclockwise direc-
tion).
2. Connect a digital voltmeter to CN501 (TP) and CN601
(TP).
1P : ’side, 2P : ‘side
3. Turn ON the power button, and adjust RV501 and RV601
sothatthedigital voltmeterdisplay becomes22 mV± 2mV
within 5 seconds.
4. After the adjustment, turn OFF the power button.
SECTION 3
DIAGRAMS
3-1. CIRCUIT BOARDS LOCATION
PHONO board
HP board
AC SW board
RM board
AC OUTLET board
VOL board
PANEL board
MAIN board
TONE board
Adjustment Location
[MAIN BOARD] (Component side)
1
2
CN601 (TP)
CN501 (TP)
1
2
RV501
RV601
C801
C802
Bias Adjustment
Digital volt meter
Digital volt meter
SECTION 1
GENERAL This section is extracted from
instruction manual.
— 13 — — 14 —
3-6. IC BLOCK DIAGRAMS
• Main section
IC701 µPC1237HA
1 2 3 4 5 6 7 8
OVER LOAD DET
F/F
OFFSET DET
LATCH/
AUTORESET
V
CC
ON
MUTE
AC OFF
DET
V
CC
• Panel section
IC902 X24C01
IC904 BA6208
8
VCC
7
TEST INPUT
6
SCL
5
SDA
1
NC
2
NC
3
NC
4
VSS
START
STOP
LOGIC
CONTROL
LOGIC
START CYCLE H.V. GENERATION
TIMING
& CONTROL
E PROM
32 x 32
2
32
XDEC
INC
LOAD
5
R/W
PIN
2
8D
OUT
CK
32
WORD
ADDRESS
COUNTER
YDEC
D
OUT
ACK
DATA REGISTER
1 2 3 4 5 6 7 89
NC
OUTPUT 2
Vcc
GND
NC
INPUT 2
INPUT 1
NC
MOTOR
DRIVE
MOTOR
DRIVE
REG
SWITCH
SWITCH
OUTPUT1
Clock
Data
Down
Up
CD input relay signal output
Mute Control signal output when switching (Mute: H)
AUX input relay signal output
Connected to ground
TAPE input relay signal output
MD input relay signal output
Relativity position detection signal of rotary switch
(One of them terminal: L, the other terminal: H)
Function LED drive signal (ON: L)
Ground
Not used
Function LED drive signal (ON: L)
Not used
Test terminal (Not used)
Oscillation signal 8MHz
Reset signal (Reset: L)
Cancellation of hold mode signal (Start: H)
TUNER input relay signal output
PHONO input relay signal output
SIRCS signal (Active: L)
Not used
Power supply (+5V)
Pin No. Pin Name I/O Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25 to 29
30
31
32
33
34
35
36
37
38 to 41
42
RCL
RDT
VDW
VUP
CD
MUT
AUX
T3
T2
T1
0
1
2
3
4
5
PHONO
TUNER
CD
AUX
GND
T2
T1
TEST
XIN
XOUT
RESET
HOLD
TUNER
PHONO
SIRCS
+5V
O
I/O
O
O
O
O
O
I
O
O
I
I
I
I
I
I
O
O
O
O
–
–
O
O
–
I
I
O
I
I
O
O
I
–
–
3-7. IC PIN FUNCTION
• IC901TMP47C200BN-H371 (INPUT CONTROL, LED DRIVE)
Serial data of EEPROM (X24C01)
VR motor control signal (Active: H, Stop: L-L, Brake: H-H)
— 15 —
SECTION 4
EXPLODEDVIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by mark !
or dotted line with mark !are critical
for safety.
Replace only with part number
specified.
4-1. FRONT PANEL SECTION
Supplied
withRV304
Supplied
with J301
16
1
#2
11
10
#2
#1
19
12 13
9
not supplied
8
#1
#4
6
1
not supplied
#1
not supplied
14
#2
15
17
#1
#1
1
18
#4
1
2
Supplied
with RV301,
RV302,RV303
Supplied
with S901
3
4
5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-988-742-11 SCREW (M3X8), HEXAGON SOCKET
2 4-986-728-01 KNOB (VOL)
3 4-986-729-01 KNOB (TONE)
4 4-986-728-11 KNOB (VOL)
5 X-4947-788-1 PANEL SUB ASSY, FRONT (F3000)
5 X-4948-711-1 PANEL SUB ASSY, FRONT (F3000ES)
*6 4-986-734-01 LENS, LED
8 X-4947-759-1 BUTTON ASSY, POWER
*9 1-663-769-11 AC SW BOARD
*10 4-989-314-01 TUBE (LED)
*11 A-4392-951-A PANEL BOARD, COMPLETE
12 1-777-740-11 WIRE (FLAT TYPE) (4 CORE)
13 1-777-739-11 WIRE (FLAT TYPE) (9 CORE)
*14 1-663-770-11 RM BOARD
*15 1-663-766-11 TONE BOARD
*16 4-986-716-01 CASE
*17 1-663-767-11 VOL BOARD
*18 1-663-768-11 HP BOARD
19 3-846-312-01 SPACER
— 16 —
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
*51 4-935-964-21 WASHER
*52 A-4392-944-A MAIN BOARD, COMPLETE
53 X-4948-228-1 SCREW ASSY
*54 4-923-873-01 BRACKET, CORD STOPPER
*55 3-703-244-00 BUSHING (2104), CORD
56 3-704-515-41 SCREW (BV/RING)
57 4-947-010-01 SCREW, FEEDER FIXED
58 1-506-113-00 SHORT PLUG
*59 4-990-696-01 PANEL, BACK (F3000)
*59 4-990-696-11 PANEL, BACK (F3000ES)
60 4-970-145-01 ESCUTCHEON (P)
61 4-970-146-01 BUTTON
*62 A-4392-950-A PHONO BOARD, COMPLETE
*63 4-986-722-01 PLATE, BOTTOM
64 X-4947-892-1 FOOT ASSY
*65 4-988-215-01 INSULATOR
66 3-831-441-XX CUSHION, SPEAKER
67 3-531-576-11 RIVET
68 4-992-453-01 INSULATOR
*69 1-666-040-11 AC OUTLET BOARD
!CNP1 1-558-568-21 CORD, POWER
!T801 1-431-369-11 TRANSFORMER, POWER
The components identified by mark !
or dotted line with mark !are critical
for safety.
Replace only with part number speci-
fied.

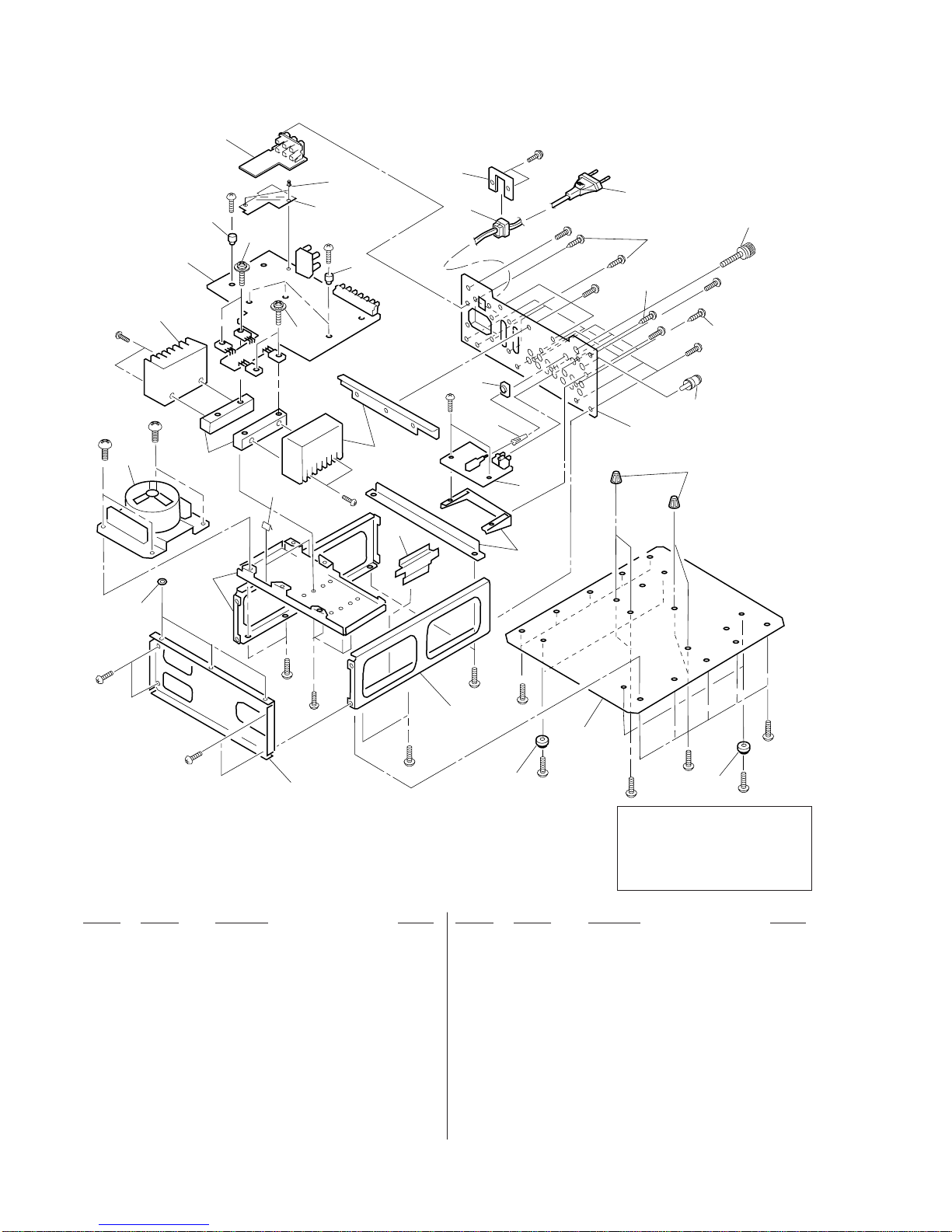

4-2. CHASSIS SECTION
68
#6
69
67
not supplied
53
52
53
not
supplied
#6
not
supplied
#3
#5 #2
60
61
55
54
#4
#4
#4 #4
56
#4 #4
58
56
56 57
not supplied
51
66
#3
62
#4
#8
#7
#7
64
63
#8
64
#4
not supplied
#4
#4
not supplied
65
#9
#4
#4
#4
not supplied
#5
T801 not supplied not supplied not supplied
59
CNP1
