Sony LocationFree LF-B20 Manuel utilisateur

Sony LF-B20 3-215-275-11(1)

3-215-275-11(1)

Quick Start Guide

LocationFree Base Station LF-B20

For more details about this product, refer to the Operating

Instructions installed on the supplied CD-ROM.

Sony LF-B20 3-215-275-11(1)

AT/BE/CH/DE/DK/ES/FI/GB/IE/

IT/LU/NL/NO/PT/SE

English

Hereby, Sony Corporation declares that this LF-B20 is in compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/

Français

Par la présente Sony Corporation déclare que l’appareil LF-B20 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la

directive 1999/5/CE. Pour toute information complémentaire, veuillez consulter l’URL suivante :

http://www.compliance.sony.de/

Deutsch

Hiermit erklärt Sony Corporation dass sich diese LF-B20 in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten

Vorschriften der Richtlinie 1999/5/EG befindet. Weitere Informationen erhältlich unter: http://www.compliance.sony.de/

Español

Por medio de la presente Sony Corporation declara que el LF-B20 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o

exigibles de la Directiva 1999/5/CE. Para mayor información, por favor consulte la siguiente URL:

http://www.compliance.sony.de/

Nederlands

Hierbij verklaart Sony Corporation dat het toestel LF-B20 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn

1999/5/EG. Nadere informatie kunt u vinden op: http://www.compliance.sony.de/

Svenska

Härmed intygar Sony Corporation att denna LF-B20 står i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser

som framgår av direktiv 1999/5/EG. För ytterligare information gå in på följande hemsida:

http://www.compliance.sony.de/

Sony LF-B20 3-215-275-11(1)

Italiano

Con la presente Sony Corporation dichiara che questo LF-B20 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla

direttiva 1999/5/CE. Per ulteriori dettagli, si prega di consultare il seguente URL: http://www.compliance.sony.de/

Português

Sony Corporation declara que este LF-B20 está conforme com os requisitos essenciais e outras provisões da Directiva 1999/5/CE. Para mais

informações, por favor consulte a seguinte URL: http://www.compliance.sony.de/

Suomi

Sony Corporation vakuuttaa täten että LF-B20-tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden

ehtojen mukainen. Halutessasi lisätietoja, käy osoitteessa: http://www.compliance.sony.de/

Dansk

Undertegnede Sony Corporation erklærer herved, at følgende udstyr LF-B20 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/

EF. For yderligere information gå ind på følgende hjemmeside: http://www.compliance.sony.de/

Norsk

Sony Corporation erklærer herved at utstyret LF-B20 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. Hvis du

vil har mer informasjon skal du gå til denne URL-adresse: http://www.compliance.sony.de/

In some of the countries listed above, Sony may not currently sell this product, even though such countries appear on the package and in the

operating instructions as countries of intended use.

This device is approved for the country or region of intended use. Using this device with the affixed approval label removed may be punishable by law.

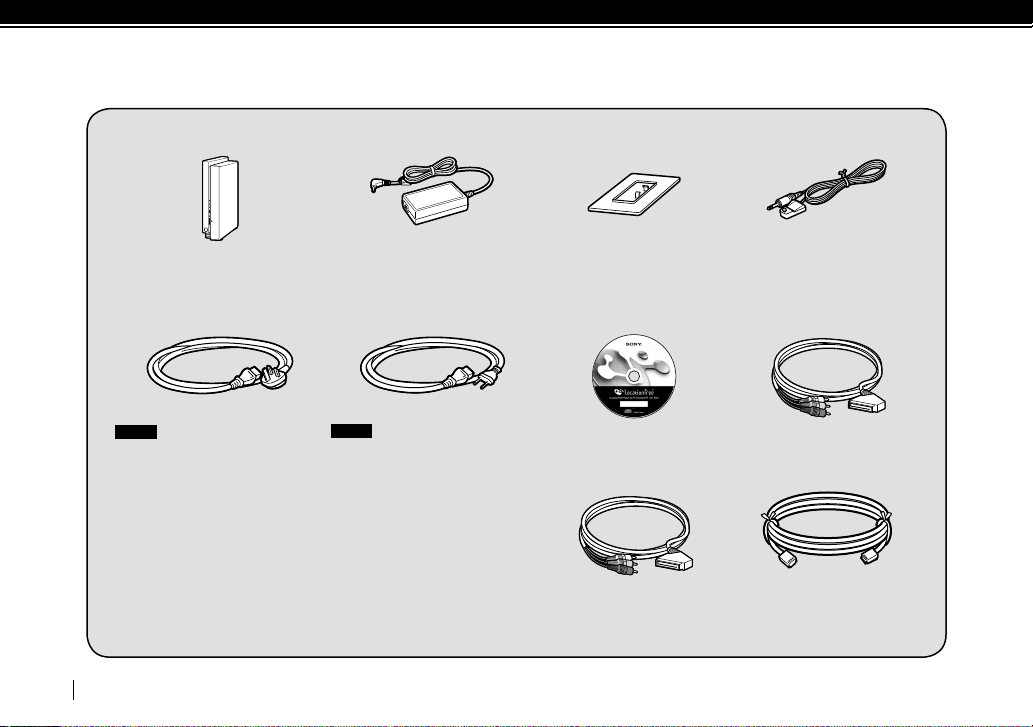

LF-B20 LocationFree Base Station AC-LX1B AC adapter LocationFree Base Station stand IR Blaster

Mains lead (Type BF) Mains lead (Type C-6) LFA-PC20 LocationFree Player

software with Operating

Instructions and a serial key for

LocationFree Player software

Scart to A/V cable

(labeled with a yellow label)

(for INPUT only)

Notes

Use this mains lead if you use the unit

in the United Kingdom.

This mains lead may not be supplied

depending on the country.

Notes

Use this mains lead if you use the unit

outside the United Kingdom.

This mains lead may not be supplied

depending on the country.

A/V to Scart cable

(labeled with a blue label)

(for OUTPUT only)

LAN cable

Quick Start Guide (this guide)

Important Notice

EUROPEAN GUARANTEE INFORMATION DOCUMENT

Sony LF-B20 3-215-275-11(1)

Package Contents

Sony LF-B20 3-215-275-11(1)

Table of Contents

Package Contents....................................................................................... 4

Base Station Setup .....................................................................................6

Device Registration..................................................................................34

Troubleshooting .......................................................................................35

Sony LF-B20 3-215-275-11(1)

LocationFree

Base Station LF-B20

Router

Do you have

- The Base Station and the router in a same room?

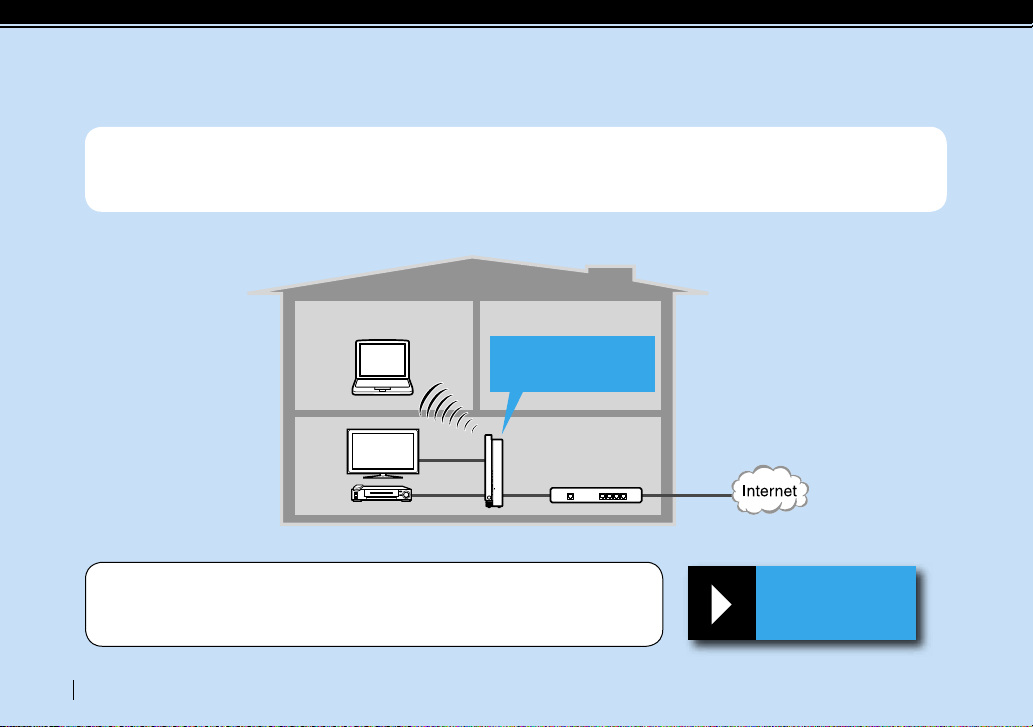

Wirelessly connect a client (e.g. PC, PSP) directly with the Base Station.

The Base Station and the router are connected with a LAN cable.

The Base Station is used only in your home without a router (no Internet connection).

How would you like to set up the Base Station in your home?

TYPE A

Jump TYPE A on Page 8

Video

Living room

Sony LF-B20 3-215-275-11(1)

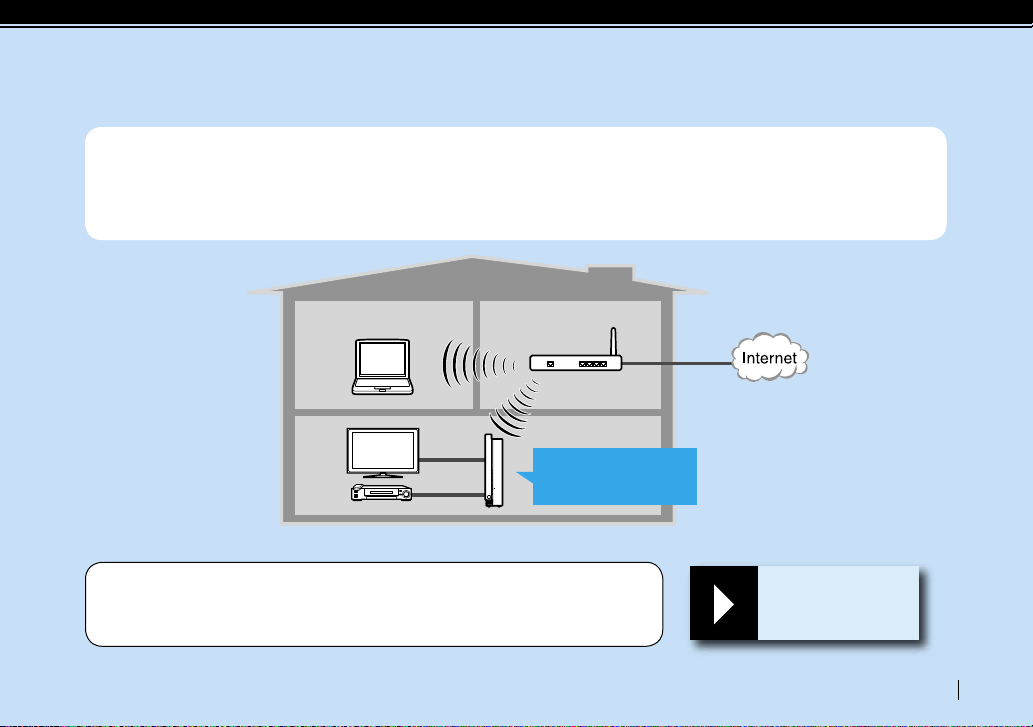

Wirelessly connect a client (e.g. PC, PSP) with the Base Station via the wireless router.

The Base Station and the wireless router are also connected wirelessly.

Do you have

- The Base Station and the router in different rooms?

- A wireless router ?

LocationFree

Base Station LF-B20

Wireless router

TYPE B

Video

Living room

Jump TYPE B on Page 20

CLIENTAP WLAN

Sony LF-B20 3-215-275-11(1)

TYPE ASet up the LocationFree Base Station

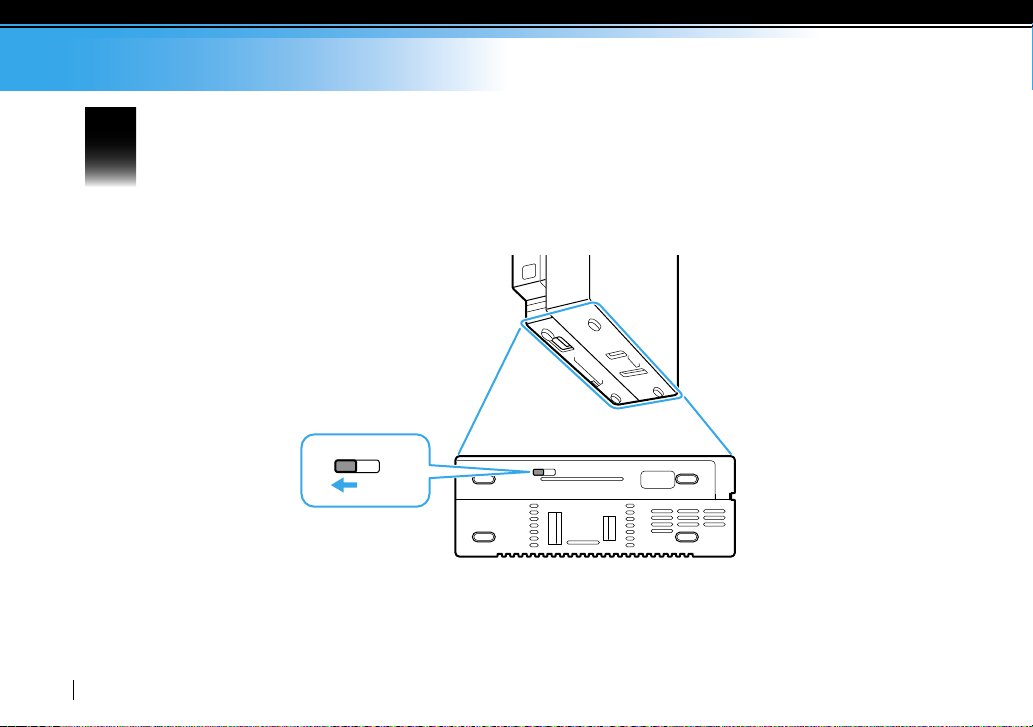

Make sure that the switch on the bottom of the Base Station is set to the Access Point

(AP) mode.

The bottom of the Base Station

Sony LF-B20 3-215-275-11(1)

Holes

Claws

Stand

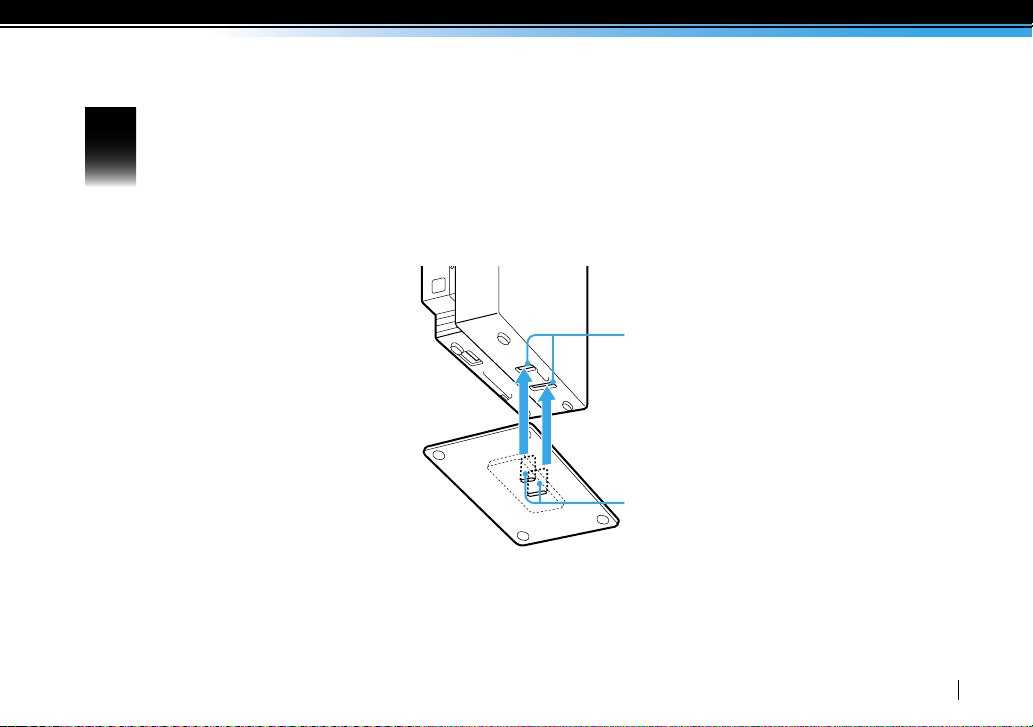

Attach the stand.

Sony LF-B20 3-215-275-11(1)

TYPE A

IR BLASTER

LAN

S VIDEO

IN 1

INOUT

VIDEO

AUDIO

VIDEO

AUDIO

VIDEO

DC IN 12V

AUDIO

IN 2

OUT

IN 1

VIDEO

AUDIO

VIDEO

AUDIO

OUT

IR BLASTER

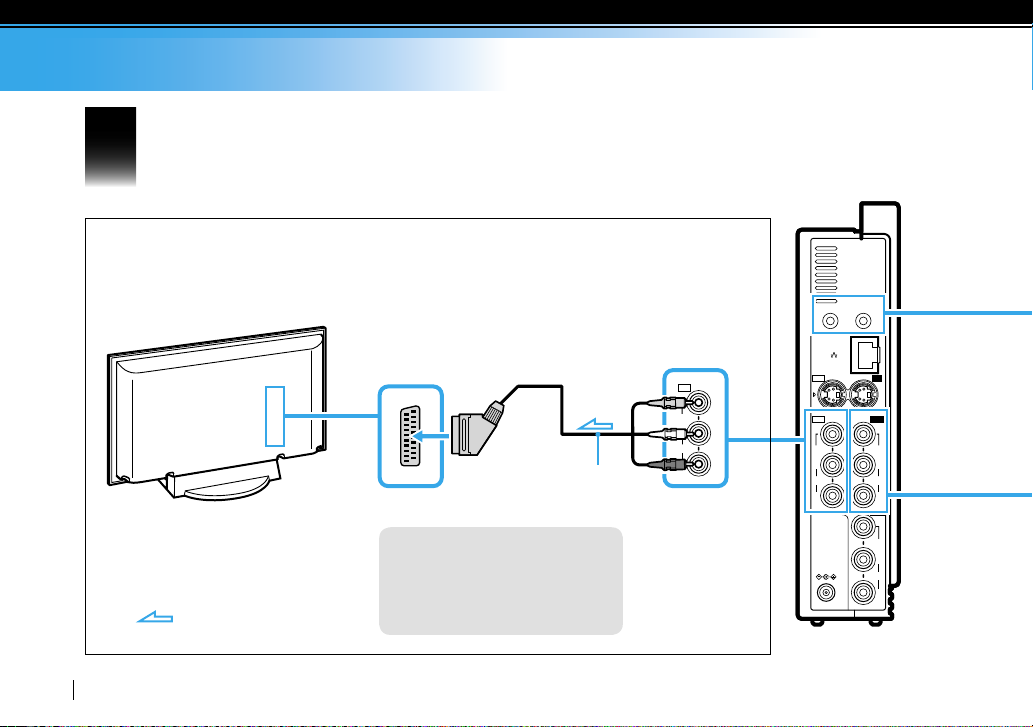

Connect your TV to the Base Station (refer to the illustration below).

Connect to your TV using VIDEO OUT if your video device has a single VIDEO OUT.

Video Input

TV, etc. Video Output

(Video signal from

Video Input 1 will

be emitted)

Rear of the

Base Station

Connect video devices (PVR, DVD and STB) to the Base Station.

: Audio/video signal flow

A/V to Scart cable

(blue label; supplied)

Tip

You can also use S-video cables

(not supplied) to connect audio/

video devices to the Base Station.
