Sony Ericsson M608c Manuel utilisateur
This is the Internet version of the quick guide. ©Print only for private use.
M608c
Quick Guide
This is the Internet version of the quick guide. ©Print only for private use.
SIM card and battery
4
12
3
1. Remove the battery cover.
2. Insert the SIM card under the SIM ejector,
with the contacts facing down.
3. Insert the battery with the label side up
and the connectors facing each other.
4. Slide the battery cover back into place.
5. Connect the charger, with the symbol on
the charger plug facing upwards.
6. During charging the infrared port indicator
is on.
7. Wait about 2.5 hours for the battery to be
fully charged.
8. Remove the charger from the phone by
tilting the plug upwards.
This is the Internet version of the quick guide. ©Print only for private use.
Getting started
To turn on the phone
1. Press and hold the
On/Off button until
you hear the
welcome sound.
2. Select Phone on, or
Flight mode where
the use of mobile
phones is
prohibited.
3. Enter the PIN code provided with the
SIM card if the Enter PIN dialog appears.
The first time you use your phone, a setup
wizard will help you to enter the basic settings.
To make a call
Using the keyboard, enter the phone number
and press OK, or select Call on the screen.
You can also make a call from Contacts .
Navigation
To navigate menus and select items, use the
Jog Dial and the Back button or tap the screen
with your fingertips or the stylus.
Jog Dial
Rotate the Jog Dial
to scroll lists up and
down, adjust sound
volume or move
through a
multimedia
message. Press the
Jog Dial inwards to
select a highlighted
item.
Back button
The Back button is located on the left side
of the phone, next to the Jog Dial. You can use
this button when you, for example, want to
back from one menu to another. A long press
on the Back button locks the keyboard.
Stylus
Use the stylus to operate the touch-sensitive
screen.
Keyboard
Your phone has a full
alphanumerical
keyboard, with dual
functionality keys.
Most of the keys have
two characters
located on the lower
part of the key – press the left or right side of
Up
Inwards
Down
Back
button
This is the Internet version of the quick guide. ©Print only for private use.
the key to type these characters. In text fields
you get access to the characters or symbols at
the top of the key, for example the numbers 1-
9, by pressing the key first.
Activity menu
The Activity menu is displayed whenever you
switch on your phone. It is the starting point
for performing a variety of tasks and for
accessing applications via the Main menu .
Activity menu overview
A. Today’s
information.
Check your
unread email,
missed calls,
tasks and
upcoming
appointments.
B. Shortcuts bar.
C. Touch options
bar, including
the More
menu and
various commands.
The Activity menu offers you an overview of
the day’s events and tasks (A). You can
personalize this overview and select, for
example, which headings to show. To explore
the options available, select Preferences in the
More menu.
The Activity menu also includes shortcuts to
common applications (B). You can change
these predefined shortcuts to quickly reach
your most frequently used applications and
links. Using the Jog Dial, navigate to the
shortcut you want to change and select
Replace in the More menu.
Multitasking
Your phone allows you to multitask. For
example, while making a phone call you can
browse the Internet for the latest financial
news. You can have several applications open
at the same time, and you can simply switch
between them using Task manager. Leaving an
application via Task manager, rather than
closing it, lets you return to the same view
when you later switch back to the application.
To open Task manager, tap in the upper
right-hand corner of the screen. Below the
divider, the last five used applications are
listed. If you want to start a new application
from here, select Main menu.
ALT
Today!
Email (15)
Calendar (2)
Tasks (9)
Inbox (0)
Recently missed calls
Calls Select More
A
B
C
This is the Internet version of the quick guide. ©Print only for private use.
Email and push email
Your phone is designed to be a true mobile
email device. Create, send and receive email
messages and invite people to meetings in the
same convenient way as if you were using
your computer at your office or at home.
With a push email application in your phone,
email messages received in your ordinary
mailbox are automatically forwarded to your
phone. Some push email applications also
keep your Calendar fully updated, without any
need for additional synchronization. Constant
access to your company’s global address book
is another push email benefit. Please consult
your email service provider for further details.
Downloading settings
Settings for Internet/WAP browsing, email
and MMS may be downloaded from your
network operator, or from Sony Ericsson. In
the first place, contact your network operator.
To download settings from Sony Ericsson
On your computer, browse to
www.sonyericsson.com/cn and follow the
instructions on the screen.
Synchronizing
Using Bluetooth™ wireless technology, an
infrared connection or the supplied USB cable
you can synchronize your phone contacts,
appointments, tasks and notes with the
corresponding information in your computer.
The necessary software can be found on the
PC Suite CD delivered with your phone.
For more information on synchronization,
please see the User Guide, or the Web Guide at
www.sonyericsson.com/cn.
Memory Stick Micro
A Memory Stick
Micro™ (M2™)
provides extra
storage space,
suitable for pictures,
music, applications
and documents.
Your phone comes
with a Memory Stick
in place. If you want to remove it, open the
cover and press the edge of the Memory Stick
inwards. To re-insert the Memory Stick, press
it into the slot, contacts facing down, until it
snaps into place.
6
This is the Internet version of the quick guide. ©Print only for private use.

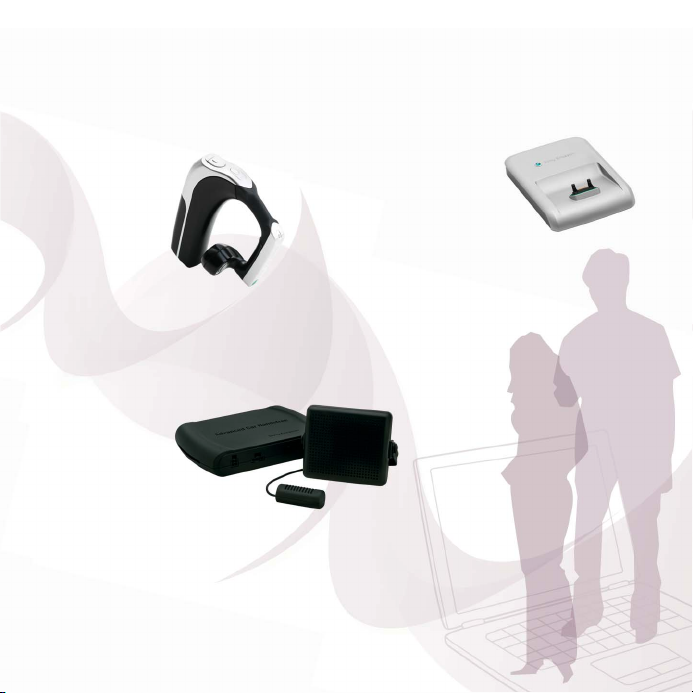

Added dimensions –
Accessories from Sony Ericsson
Desk Stand CDS-60
Advanced Car Handsfree HCA-60
Bluetooth™Headset
HBH-GV435
Clear sound with
lasting comfort
Your phone’s best
assistant: connect
a USB cable,
charger and
portable handsfree
Excellent stereo
sound for voice
and music in the
car
Note: For a complete list of available accessories for your M608c, go to www.sonyericsson.com/cn.
Not all accessories are available in all markets. For details, please contact your local
Sony Ericsson Call Centre.
7
This is the Internet version of the quick guide. ©Print only for private use.
And if you register at
www.sonyericsson.com/register,
you get an exclusive offer.
Don’t miss out. Go there now.
Congratulations on your purchase of the Sony
Ericsson M608. Enjoy effective email and
touchscreen high speed Internet on the go. In addition
to pre-installed multimedia content, you have more
waiting for you at www.sonyericsson.com/cn/fun.
Check also out Sony Ericsson Application shop at
www.sonyericsson.com/applicationshop to get the
maximal usage of your M608.
This is the Internet version of the quick guide. ©Print only for private use.
Transferring contacts
from a SIM card
If you have an old SIM card with valuable
contacts information, you can easily transfer
this information to your new phone.
To copy from SIM to Contacts
1. Select Contacts.
2. In the More menu, select View folder >
SIM to open the SIM card.
3. Mark the entries that you want to copy.
4. In the More menu, select Copy to
Contacts.
Try and Buy applications
The Try and Buy applications in your phone
represent a wide variety of business and
entertainment applications. In some countries/regions,
they maybe have been pre-stored on the supplied
Memory Stick, where you also find information on
how to buy the applications.
For additional software, visit the Sony
Ericsson Application Shop at
www.sonyericsson.com/applicationshop.
EN/LZT 162 018 R1A
For copyright, trademark and legal information, please see the User Guide.
All illustrations are for illustration only and may not accurately depict the actual phone.
