Sonova Phonak Roger NeckLoop Manuel utilisateur

Roger NeckLoop is a Roger device that upgrades

an amplification system to intelligent dynamic behavior.

This guide is aimed at technicians.

Connect to the mains Connect to Roger microphones

See Roger NeckLoop quick setup guide

Installation Instructions

Roger NeckLoop for

Dynamic SoundField

max.

10 cm

• The distance between the Roger NeckLoop and the room’s

existing amplifier system should be as short as possible.

• The power supply for the Roger NeckLoop and the power

supply for the amplifier can be fed from the same mains.

• Do not place the Roger NeckLoop in a metallic cabinet

(shielding effect could occur).

Placement

• Switch Off the amplifier and the Roger NeckLoop.

• Connect the Roger NeckLoop audio output with the

microphone input of the amplifier. Use

professional-grade audio cables.

• Switch On the amplifier and the Roger NeckLoop.

Connecting the wirings

The correct microphone gain setting is crucial to avoid

acoustical feedback.

• Reduce the input gain of the amplification system

• Position the microphone correctly and switch On

Roger NeckLoop

• Increase the Roger NeckLoop’s volume up to maximum

by pressing the volume button

• Increase the input gain of the amplification system

until acoustical feedback occurs

• Reduce the gain of the amplification system until

the feedback disappears

• Walk around the room and check that every position

is free of feedback

• Reset the Roger NeckLoop’s volume to the middle or

to the newly desired volume by pressing the volume button

Please note: the microphone gain of the classroom

amplification system cannot be accidentally changed.

The volume in the classroom will be set with the Roger

microphone.

Setting the microphone gain

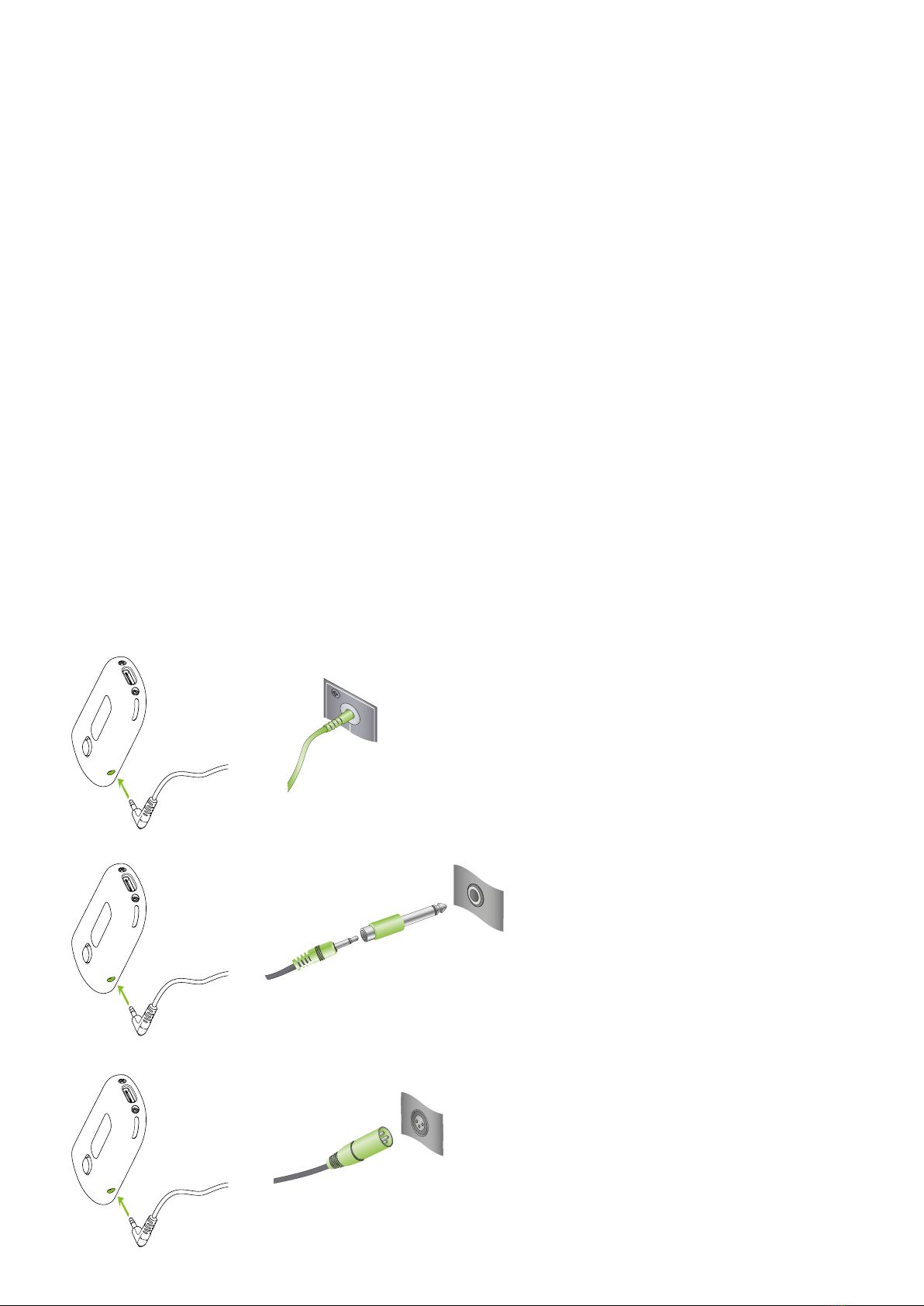

Connection to amplification system

INPUT

3.5 mm Jack cable

-> XLR jack cable

Mic input = 3.5 mm jack

Mic input = 6.3 mm <-> ¼ inch jack

Mic input = XLR

3.5 mm <–> 6.3 mm Jack adapter

Connection to computer (recording) and amplification system

Y-jack splitter

Caution: such connections may cause hum.

Mic input = 3.5 mm jack

Mic input = 3.5 mm

Connection to CAT 855 Lightspeed

A Sonova brand

Connect the the cable adaptor 1 × 3.5 mm, 2 × RCA from the Roger NeckLoop output

and CD/DVD input of the CAT 885 amplifier.

Set the microphone gain

Connect the Roger microphone with the Roger NeckLoop.

Increase the Roger NeckLoop’s volume up to maximum by pressing the volume button.

Turn the volume knob of the CD/DVD input clockwise as far as it will go.

In case of acoustical feedback, decrease the volume of the CAT 855 amplifier incrementally,

until you can walk throughout the room without any acoustical feedback.

Reset the volume level of the Roger NeckLoop’s volume to the middle or to the newly

desired volume by pressing the volume button.
