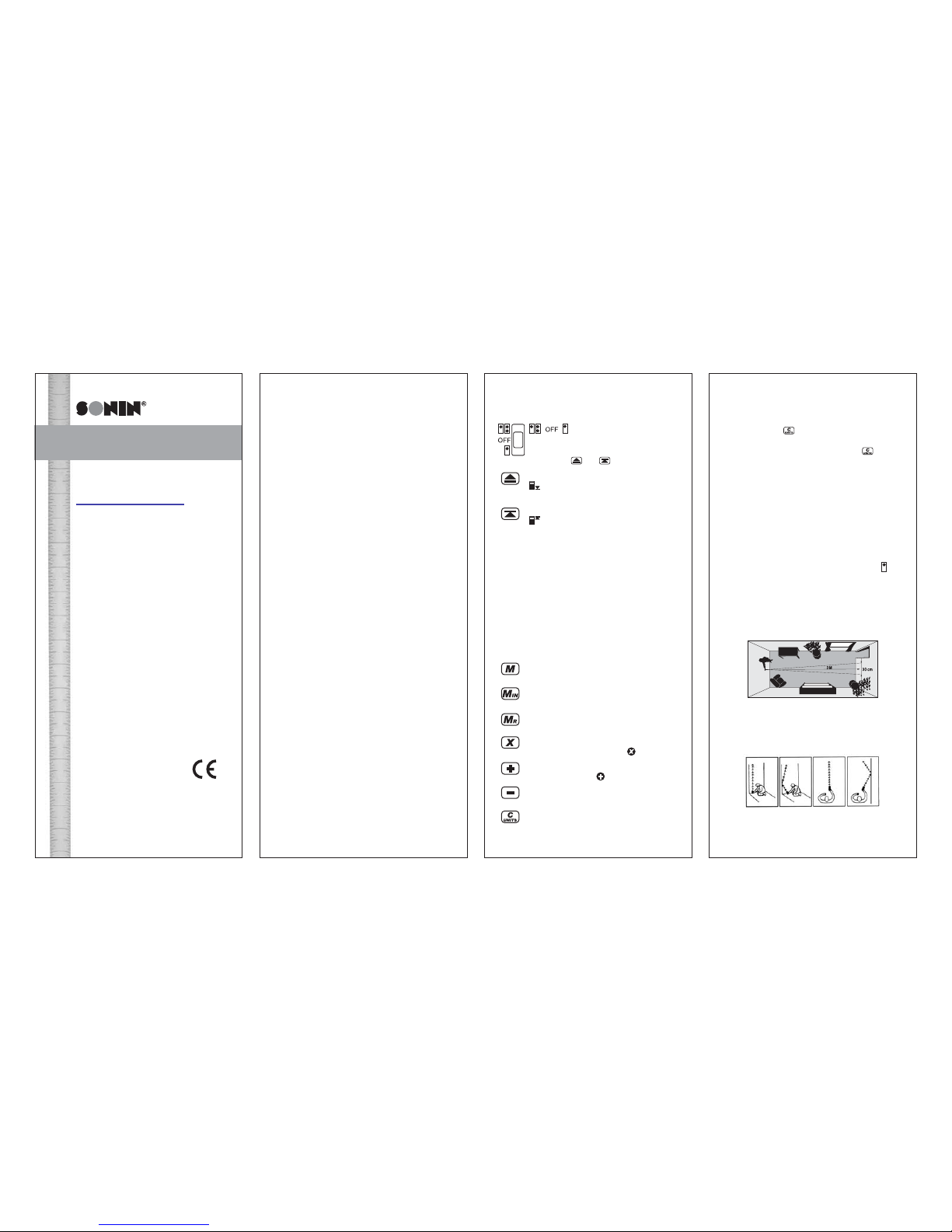

Sonin COMBO PRO Manuel utilisateur

Multi-Measure ®

Combo Pro

Multi-Measure ®

Combo Pro

Electronic Distance

Measuring Tool

Pocket Reference Guide

#10300

PLEASE READ THIS FIRST:

Your choice of the SONIN COMBO PRO shows

you are a professional who demands quality and

value from your tools Please take a few minutes

to read this manual Your SONIN COMBO PRO

has many easy-to-use features that will make your

measuring tasks faster and easier once you

understand them

The SONIN COMBO PRO is actually two measur-

ing tools in one It can take measurements by

bouncing sound waves off flat hard surfaces such

as walls or ceilings from 1 ft 6 ins (46cm) up to

60 ft (18m) in the SINGLE UNIT MODE or

from 3 ft (1 m) up to 250 ft (75m) by sending

infrared light signals to the Target (included) and

receiving sound waves back from the Target in

DUAL UNIT MODE

Use the SINGLE UNIT MODE primarily for

indoor measurements or whenever you are

measuring to a suitable, hard, flat surface, less

than 60 ft (18m) away

Use the DUAL UNIT MODE when you need

to measure distances greater than 60 ft (18m),

when there is no suitable surface to bounce the

signal off of, or when there are obstacles partially

blocking the measuring path [ If you can see the

Target (and it is within range), the COMBO PRO

can take a measurement ]

- 1 - - 2 -

KEYS AND THEIR FUN TIONS:

Determines whether the unit

is operating in Single Unit or Dual

Unit mode The Receiver will not turn on

until either or is pressed

Measures from bottom of unit 

icon will appear in the lower right

corner of the display

Measures from top of unit 

icon will appear in the lower right

corner of the display

Using either button: Press and HOLD to track

measurements - for continuous readings while

moving Fastest way to measure but no reading

validation Useful for locating correct surfaces

when there are obstacles in the way

Press and RELEASE to validate measurement only

when unit is held absolutely still Most accurate

mode Useful in environments when obtaining a

stable reading can be difficult Validates all

measurement before displaying Filters out noise

from machinery and other sources

Turns on Memory Cycles through memory

registers

Stores data displayed into blinking memory

registers

Recalls memory from blinking memory

registers

Multiplies measurements for area and

volume Stores and recalls memory

Adds linear distances, areas and volumes

Stores and recalls memory

Subtracts linear distances, areas and

volumes

lear/ onvert/Off Button. Press and

immediately release to clear display Press

- 3 -

and hold for two seconds to change display

units Press twice to turn unit off

Press and Hold key for more than 2 seconds

to change display units The display will cycle

between m, ft:in, ft:ft and yd Release key to

select desired mode

GETTING STARTED

TAKING MEASUREMENTS

SINGLE UNIT MODE:

1) Install a fresh 9V alkaline battery in rear of

unit Push contacts firmly in place

2) Select SINGLE UNIT MODE by sliding

the switch on the side of the unit to the

position

3) Aim cone at a hard, flat, unobstructed surface

such as a wall or mirror

4) Make certain you have a clear path to the

surface (wall) (See FIG 1 )

5) Hold Receiver perpendicular to the surface

(See FIG 2 )

FIG. 1 - The sound waves emitted from this unit

spread 1 ft (30 cm) for every 10 ft (3m) measured.

YES NO YES NO

(FIG. 2)

- 4 -

6) Press or until a consistent measure-

ment appears (about 2 seconds) The unit will

continue to take and display rapid measure-

ments as long as the button is held Release

button to freeze the measurement

Press and release or to validate

measurement

NOTE: When a measurement is taken in single

unit mode, the icon will appear in the

upper left hand of the LCD

7) Your unit is factory preset to display metric To

set your display to desired mode (m, ft:in,ft:ft

or yds) Press and hold button until desired

mode displays, then release

NOTE: Unit will now default to your preset

mode even after unit is turned off

HELPFUL MEASURING HINTS

FOR SINGLE UNIT MODE

MEASURING:

1) Measurements cannot be taken through glass

or off of soft or padded surfaces

2) The SONIN COMBO PROs range and ability

to measure in tight spaces can be increased

Stand in the middle of the distance to be

measured and add measurements taken in

opposite directions

3) When measuring in confined spaces (hallways),

try to measure down the center line and midway

between the floor and ceiling

4) To find a specific distance from a wall, walk

toward or away from the wall while holding

down or

5) When the surface being measured to has pro-

trusions and recesses, you can determine

where the beam is hitting Move sideways

parallel to the target surface, while holding

- 5 -

down the measure button You will see the

distance increase for recesses and decrease

for protrusions

6) Be sure the surface you are measuring to is

hard, flat and uniform Some surfaces such as

stucco or clapboard may scatter signals

7) When using tracking mode, the unit may lock

on to a stronger (usually closer) measurement

If this happens, release the measure button

and try again

8) REMEMBER:

Measures from bottom of unit

Measures from top of unit

TAKING A MEASUREMENT IN

DUAL UNIT MODE:

1) Install a fresh 9V alkaline battery in rear of

Receiver and Target Push contacts firmly

in place

2) Select DUAL UNIT MODE by sliding the

switch on the side of the Receiver to the

position

3) Move the switch on the side of the Target to

the ON position Light on front of Target will

blinking slowly indicating target is on

4) Place the Target at one end of the distance

to be measured

NOTE: The measurement will be taken to the

back of the Target

5) Walk with the Receiver to the other end of

the distance to be measured and aim the

Receiver directly at the face of the Target

Aiming at an angle to the face of the Target

will decrease the maximum distance the

COMBO PRO can measure

6) Make certain you have a clear path to the

Target

- 6 -

7) Press or until a consistent measure-

ment appears (about 5 seconds) The unit will

continue to take and display rapid measure-

ments as long as the button is held Release

the button to freeze the measurement

Press and release or to validate

measurement

NOTE: When a measurement is taken in Dual

Unit Mode, the icon will appear in the

upper left hand of the LCD

8) Your unit is factory preset to display metric To

set your display to desired mode (m, ft:in,

ft:ft or yds) Press and hold button until

desired mode displays, then release

NOTE: Unit will now default to your preset

mode even after unit is turned off

HELPFUL HINTS FOR DUAL UNIT

MODE MEASURING:

1) Make certain there is a clear line of sight

between the Receiver and the Target

2) Use validate mode when taking measurements

near traffic, construction or other noise sources

3) The Target is not affected by noise If there

are loud noise sources such as machinery,

traffic, etc , arrange the measurement so the

Receiver is furthest from the noise source

4) Use DUAL UNIT MODE Operation

even for short measurements [under 60 ft

(18m)] if there are obstacles in the path of the

measurement SINGLE UNIT MODE

Operation requires a path 1 ft (30 cm) wide

for each 10 ft (3m) of measured distance

For example, at 60 ft (18m), SINGLE UNIT

MODE Operation requires a path 6 ft

(1 8m) wide and high DUAL UNIT MODE

Operation only requires that the Receiver is

- 7 -

able to see the Target

5) If the wind is gusting, make certain you use

validate mode for measurements See the

section on ENVIRONMENTAL ONDI-

TIONS

6) When measuring distances beyond the

maximum range (see section on ENVIRON-

MENTAL ONDITIONS) break the measure-

ment into 2 or more measurements and use

the ADD function to sum them

REMEMBER:

Your COMBO PRO will automatically power

down and lose all measurements 7 minutes

after the last key press

READING THE DISPLAY:

The SONIN COMBO PRO can display

measurements in 4 modes

To change the display units or convert a displayed

value from one set of units to another, press and

hold The displayed value will change with

the units Release when the desired units are

displayed If you release before the reading

changes units, the display will clear and the reading

will be erased unless first stored (see MEMORIES)

Battery Low

Indicator

Bottom & Top

Measuring Icon

Units / Sq / Cu

Icon

Single / Dual

Unit Mode Icon

Memories

Si Digits & Fraction

Data Display Line

Multiply & Add

Memory Register

- 8 -

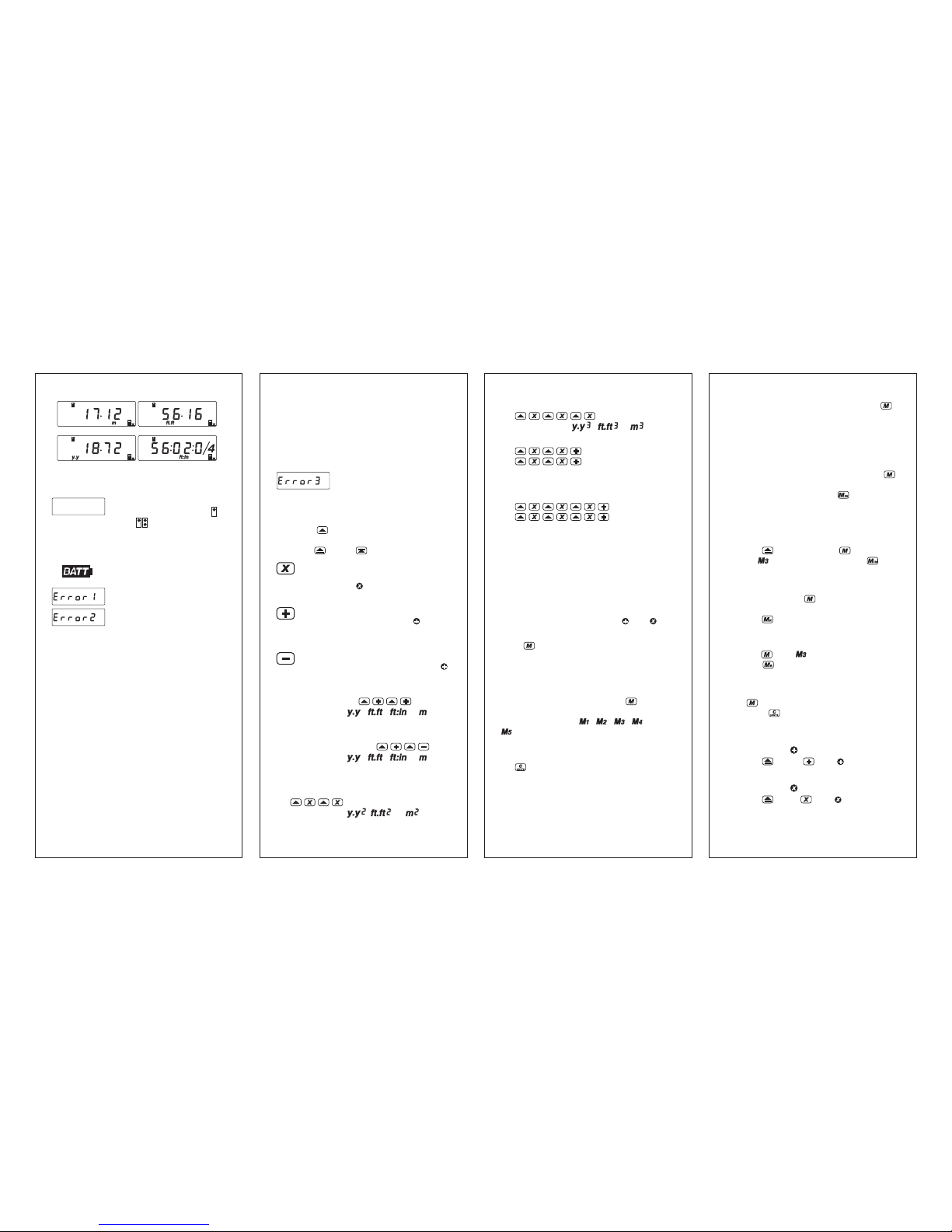

1) If the unit is unable to take a "good" measur-

ement the display will show one of the following:

BLANK S REEN Make certain

the Receiver switch is in the

or the position

Check/replace battery If unit

still doesn't work, call your

SONIN Dealer

When the BATT symbol appears

on the display, replace the battery

Out of Range or No Return

Signal

No Valid Reading

Possible causes for Error 1 and Error 2 include:

a) Measurement out of range [1 5 to 60 ft

(0 46 to 18 2 m) without Target, 3 to 250

ft (1 m to 75 m) with Target]

b) Unit is not perpendicular to the surface or

Target (See Fig 2 )

c) Surface is not hard and flat

d) Interference from nearby noise sources Try to

position the Receiver as far from the noise

source as possible or turn off the machinery

causing the noise (see section on ENVIRON-

MENTAL ONDITIONS)

e) Receiver or Target was moved during the

measurement The distance between the two

units must not be change during the reading

f) Excessive wind

- 9 -

g) Target is not turned on

h) The Target is being triggered by an infrared

light signal other than the Receiver If direct

sunlight is "blinding" the Target, exchange

the position of the Receiver and the Target

so the light is coming from behind the Target

Math error - square or cube

result overflow

OMPUTATION FUN TIONS:

To make the computations in the descriptions

below, the button symbol indicates taking an

actual measurement (length, width or height) with

either the or the button

Multiplying: The unit multiplies linear

measurements to compute areas and

volumes The symbol will appear in

the upper left corner of the display

Adding: The unit adds linear measure-

ments, areas or volumes The symbol

will appear in the upper left corner of

display

Subtracting: The unit subtracts linear

meaurements, areas or volumes The

symbol will appear in upper left corner of

display

Adding distances:

(Display shows , , or )

(Continue until you are done adding

distances )

Subtracting distances:

(Display shows , , or )

(Continue until you are done subtracting

distances )

Multiplying to compute areas:

(Display shows , or )

3) To Exit Memory, continuously press the

key until Memory Registers no longer appear

on the LCD, NOTE: the unit will automatically

exit memory mode when you clear the memory,

store to memory or recall the memory

To Store Memory:

Take a measurement Press and release the

key until you reach the desired memory register

Then, while blinking, press the key once to

store the displayed reading The memory icon will

now turn off to indicate that it has data stored to

that register and back to the measuring mode

Example: To store in M3

Press once, and press 4 times -

(the icon will blink) then press

Your measurement will be stored in M3

To Recall Memory:

Press and release the key until you reach the

desired memory register Then, while blinking,

press the key This will recall the data stored

in that memory register

Example: To recall from M3

Press until is blinking While blinking

press key Memory stored in M3 will

display on LCD

To lear All Stored Memory :

Press key until all 5 Memory icons are blinking

Then press key All memory stored will be

erased and your unit will automatically go back

to measuring mode

To store in :

Press , then (the symbol will

appear in the upper left corner of the display)

To store in :

Press , then (the symbol will

appear in the upper left corner of the display)

- 11 -- 10 -

Multiplying to compute volumes:

(Display shows , or )

To add areas:

(Display shows total area)

(Continue until you are done adding areas )

To add Volumes:

(Display shows total volume)

(Continue until you are done adding volumes )

Note: The SONIN COMBO PRO can only add

like units of measure

MEMORIES:

Your SONIN COMBO PRO has SEVEN Memories

5 Memory Registers - M1, M2, M3, M4 and M5

and two calculation memories in and

To Access M1 - M5 Memory Registers:

Press Key Once to Turn On Memory If any

memory is already stored, the icon will appear

on the LCD showing where there is stored data,

otherwise it remains blank indicating all memory

registers are empty

Continue to press and release the key to

access the memory registers The icons will blink

when accessible (i e , , , and/or

blinking)

NOTE:

1) When M1 - M5 icons are blinking and the

key is pressed, it will clear the memory

in that register

2) If you plan to store a new measurement, you

must first take the measurement before entering

into memory

meter decimal feet

yard foot:inch

SPE IFI ATIONS:

Range Without Target:

Min: 1 5 ft (0 46m)

Max: 60 ft (18 2 m)

Actual: Will vary depending on environmental

conditions

Range With Target:

Min: 3 ft (0 91m)

Max: 250 ft (76 2 m)

Actual: Will vary depending on environmental

conditions

Accuracy:

Single Unit Mode: 99 5% ± 1/4 in (± 1 cm)

Dual Unit Mode: 99 5% ± 1/2 in (± 1 cm)

These accuracies are possible when

environmental conditions are as follows:

Temperature: 32 to 86°F (0 to 30°C)

Relative Humidity: 30 to 70%

Altitude: -328 ft to +328 ft (-0 1 to +0 1 km)

Wind Speed: Still Air

EXAMPLES: SINGLE UNIT MODE

At 15 ft (4 57 m) your reading will be within

1 1/4 ins (3 cm) At 60 ft (18 2 m) your reading

will be within 3 3/4 inches (10 cm)

EXAMPLES: DUAL UNIT MODE

At 15 ft (4 57 m) your reading will be within

1 1/2 ins (3 cm), At 60 ft (18 2 m) your reading

will be within 4 inches (10 cm)

Resolution:

1/4 in (0 01 m, 0 01 ft or 0 01 yd)

Ultrasonic Frequency:

40 kHz without Target,

25 kHz with Target

- 14 - - 15 -

Battery:

9 volt (alkaline recommended)

urrent onsumption:

8 - 13 mA

(Approximately 50 hours continuous

use with a new 9 volt alkaline battery)

Operating Temperature:

32 to 100°F (0 to 38°C)

Auto Shut-off:

Approximately 7 minutes after last key press

Size:

Receiver: 5 7/8 x 2 7/8 x 1 3/4 inches

(147 x 75 x 45 mm)

Target: 4 3/4 x 3 x 1 1/16 inches

(121 x 75 x 27 mm)

Weight:

Receiver: 6 2 oz (175 g) without battery

Target: 4 0 oz (115 g) without battery

- 12 -

NOTES:

1) Turning the unit off will erase both memories

2) If memory is empty (no symbol in upper

left corner of display) a measurement can be

stored by pressing button

3) If memory is empty (no symbol in upper

left corner of display) a measurement can be

stored by pressing button

4) Subsequent measurements can be added to

or subtracted from measurement in by

pressing or button, respectively The

resulting value (sum or difference) is displayed

5) Subsequent measurements can be multiplied

by the stored value (measurement or area) in

by pressing button The resulting

value (area or volume) is displayed

6) Other operations such as computing the area

formed by the sum of two distances multiplied

by a third distance are also possible

For example:

7) The SONIN COMBO PRO can only add like

units of measure If contains a distance

and the display shows an area, pressing the

button will cause the area to be stored

in and the previously stored distance to

be lost

TO RETRIEVE A STORED VALUE

IN AND

1) Clear the display by pressing and immediately

releasing the button

2) Once you have cleared the display, press the

or button to retrieve the reading

stored in that memory

- 13 -

TEMPERATURE OMPENSATION:

Because temperature affects the speed of sound,

the SONIN COMBO PRO has automatic tempera-

ture compensation for greater accuracy In order

to make the most of this feature, wait 1 minute for

each 1°F (2 minutes for each 1°C) of temperature

difference between cool and warm locations

DISPLAYING TEMPERATURE TO IMPROVE

A URA Y: Since temperature affects accuracy,

the SONIN COMBO PRO is most accurate when

its internal temperature matches the air temperature

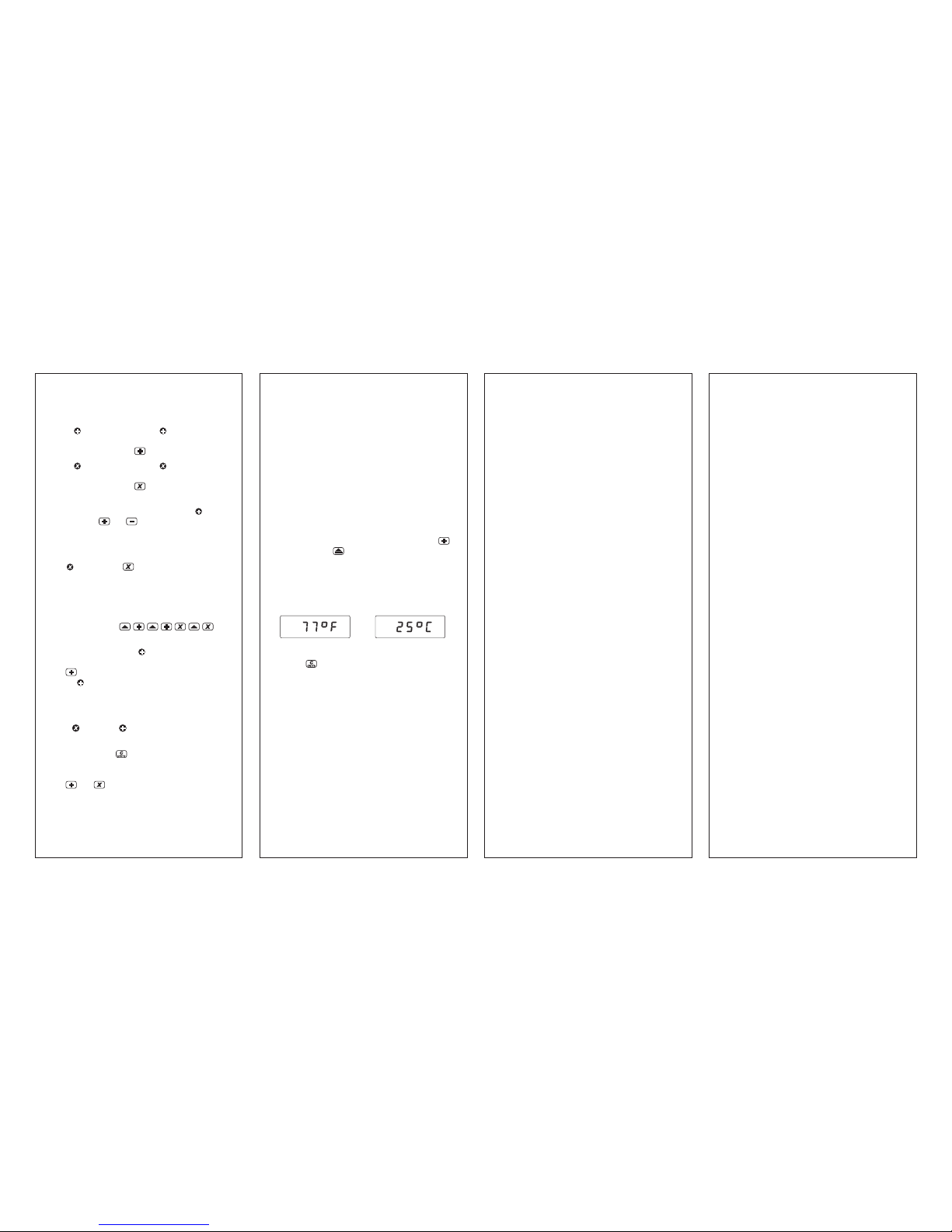

To display temperature: press and hold

key, then press key, the internal temperature

will appear on the display immediately (in °C when

m display units are selected or in °F if selected

display units are ft:in, ft:ft, yds)

For Example:

To go back to measurement mode, press and

release key or press the measure key directly

HINT: To speed equalization of the SONIN

COMBO PROs internal temperature versus air

temperature, wave the unit back and forth in the

air to circulate room temperature air through the

unit For additional information, see "Temperature"

in the section on Environmental onditions

LOW BATTERY INDI ATOR:

Replace the battery when the BATT symbol appears

on the LCD

Table des matières

Autres manuels Sonin Instrument analytique

Sonin

Sonin RANGE FINDER II Manuel utilisateur

Manuels Instrument analytique populaires d'autres marques

Cocraft

Cocraft NLT04 Manuel utilisateur

M&C

M&C GENTWO PMA1000 Manuel utilisateur

MICRO-EPSILON

MICRO-EPSILON optoncdt 1700 Manuel utilisateur

CONDTROL

CONDTROL XP4 PRO Manuel utilisateur

Extech Instruments

Extech Instruments BR200 Manuel utilisateur

Dewetron

Dewetron DEWE-30-16 Manuel du produit

EXTOL PREMIUM

EXTOL PREMIUM 8820043 Instructions d'installation et d'utilisation

RIDGID

RIDGID SeeSnake Compact Manuel utilisateur

Teledyne

Teledyne 3000PA Manuel utilisateur

YDLIDAR

YDLIDAR TIA Manuel utilisateur

Olympus

Olympus IPLEX FX Series Manuel utilisateur

Bosch

Bosch GLM 50 C Professional Manuel utilisateur

Reflecta

Reflecta DigiEndoscope Manuel utilisateur

Chinavision

Chinavision CVACZ-G696 Instructions de montage

Fuji Electric

Fuji Electric ZKMA Manuel utilisateur

Teledyne

Teledyne 3300TA Manuel utilisateur

VOLTCRAFT

VOLTCRAFT IC-100HD Manuel utilisateur

RIDGID

RIDGID micro CA-25 Manuel utilisateur
