Sonim XP3plus Manuel utilisateur
XP3plus
Quick Start
Guide
Getting
started with
your new
XP3plus.
Inbox Components
Sonim XP3plus ............... x1
Battery ....................... x1
Battery Cover ................. x1
Wall Charger .................. x1
USB-C Cable.................. x1
Screwdriver ................... x1
Quick Start Guide ............. x1
/01
© 2023 by Sonim Technologies, Inc. All rights reserved.
/02
1. Earpiece
2. Notification Bar
3. Primary Display
4. Dynamic Keys
5. Speakerphone
6. Answer/Accept Call
7. Voicemail (Press and Hold)
8. Lock Keypad (Press and Hold)
9. Primary Microphone
10. Back/Clear Key
11. End/Reject/Power On & Off (Press and Hold)
12. Navigation
13. Select
14. Text Input Mode
15. Loudspeaker
16. Lanyard
17. 3.5mm SecureAudio Connector
18. USB-C Charging Port
19. Emergency Button
20. Camera (camera model only)
21. Air Pressure Sensor
22. Flashlight
23. Second Microphone
24. Secondary Display
25. Dynamic/Programmable Key
26. Call Log Button
27. PTT Button
28. Volume Up/Down
29. Battery Cover
30. Memory Card Slot
31. SIM Card Slot
32. Battery Cover Screw
33. Charging Pins
/03
1
4
5
6
7
8
9
2
3
10
11
13
12
14
15
/04
19
24
16
17
18
23
22
25
26
20
21
/05
31
28
33
30
27
32
29
/06
How to insert
a new SIM card
Step 1
Use the included screwdriver to unfasten the
battery door screw on the back of the phone.
Step 2
Remove battery door and battery.
Step 3
Slide the SIM door to the left and open the SIM
card tray, insert the SIM card. Close the SIM door
by sliding the door to the right until you hear a click
to lock it in place.
How to insert the battery
Step 1
Insert the battery flush into the cavity such that
the four metallic contacts at the top of the battery
are aligned with the metallic contacts within the
battery compartment.
/07
Step 2
Close the battery cover by turning the screw
in a clockwise direction using the screwdriver
provided. Please ensure you do not over-tighten
the screw.
Initial Phone Set-up
Insert the SIM card into your device. Then, insert
the battery and screw the battery cover closed.
Fully charge your battery (for about 2 hours). Once
fully charged, press and hold Power On / Off key
to turn power On. After the phone successfully
registers with the network, the name of the service
provider is displayed in the Navigation Bar.
When powering the phone On for the first time,
follow the instructions shown on the screen.
After the initial set-up is complete, the Home
Screen is displayed.
Make a call
Use the keypad or select a Contact.
Select the Phone button to enable call.
Set-up Wi-Fi
From Home Screen, select App tray:
Settings > Wi-Fi > On > choose network >
enter password > Connect

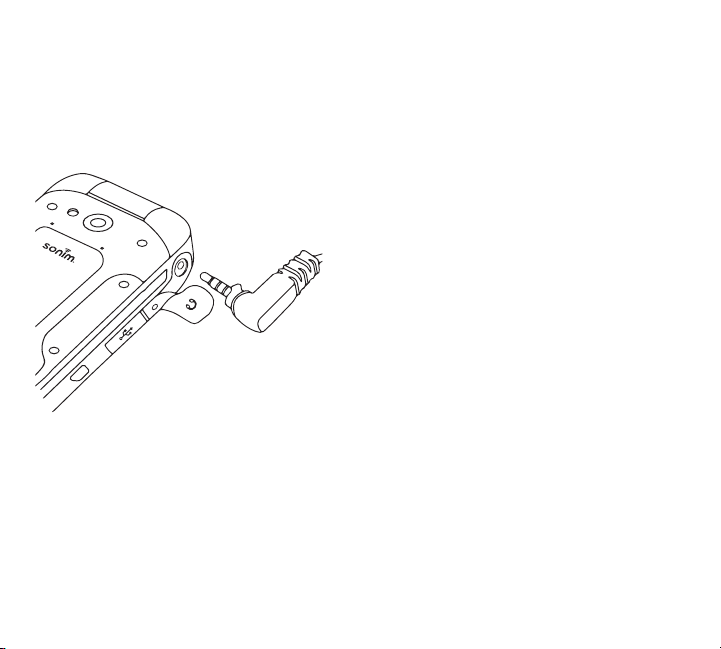

Using your
Sonim SecureAudio
3.5mm Connector
Provides a secure-connection and power for
ultra-reliable, ultra-loud and ultra-clear mission
critical audio products.
Visit sonimtech.com for a broad portfolio of
Sonim certified accessories, including remote
speaker microphones, headsets, holsters,
multi-bay chargers, vehicle kits, and more.
Accessories sold separately.
/08 /09
SonimWare
Get the most out of your XP3plus by utilizing
SonimWare’s software tools, apps and utilities
designed to improve productivity. Register your
company at sonimcloud.com to get started.
Battery
The battery in your phone is not fully charged.
We recommend charging the phone for 2 hours
before use.
Warranty
Sonim Technologies provides a 3-Year
comprehensive warranty on the phone, and a
1-Year warranty on the battery. Please register
within 30 days of purchase at www.sonimtech.
com/register to receive product information and
updates. For more information related to the
warranty, please contact your service provider.
Support
Web: sonimtech.com
Email: [email protected]
Phone: 1-833-697-6646
Monday – Friday (24 hours a day)
Saturday & Sunday (9am-6pm, ET)
Download a User Guide: from sonimtech.com
or call 1-833-MY-SONIM (1-833-697-6646)
For phone activation support,
please contact your carrier.
