Sonance SB46-55 Manuel utilisateur

For Mounting Option 2: Table Top or Mounting Option 3: Key Hole Wall Mount (not attached to display) and slim

display application, see detailed installation manual at: www.sonance.com/home-theater/soundbar/soundbar

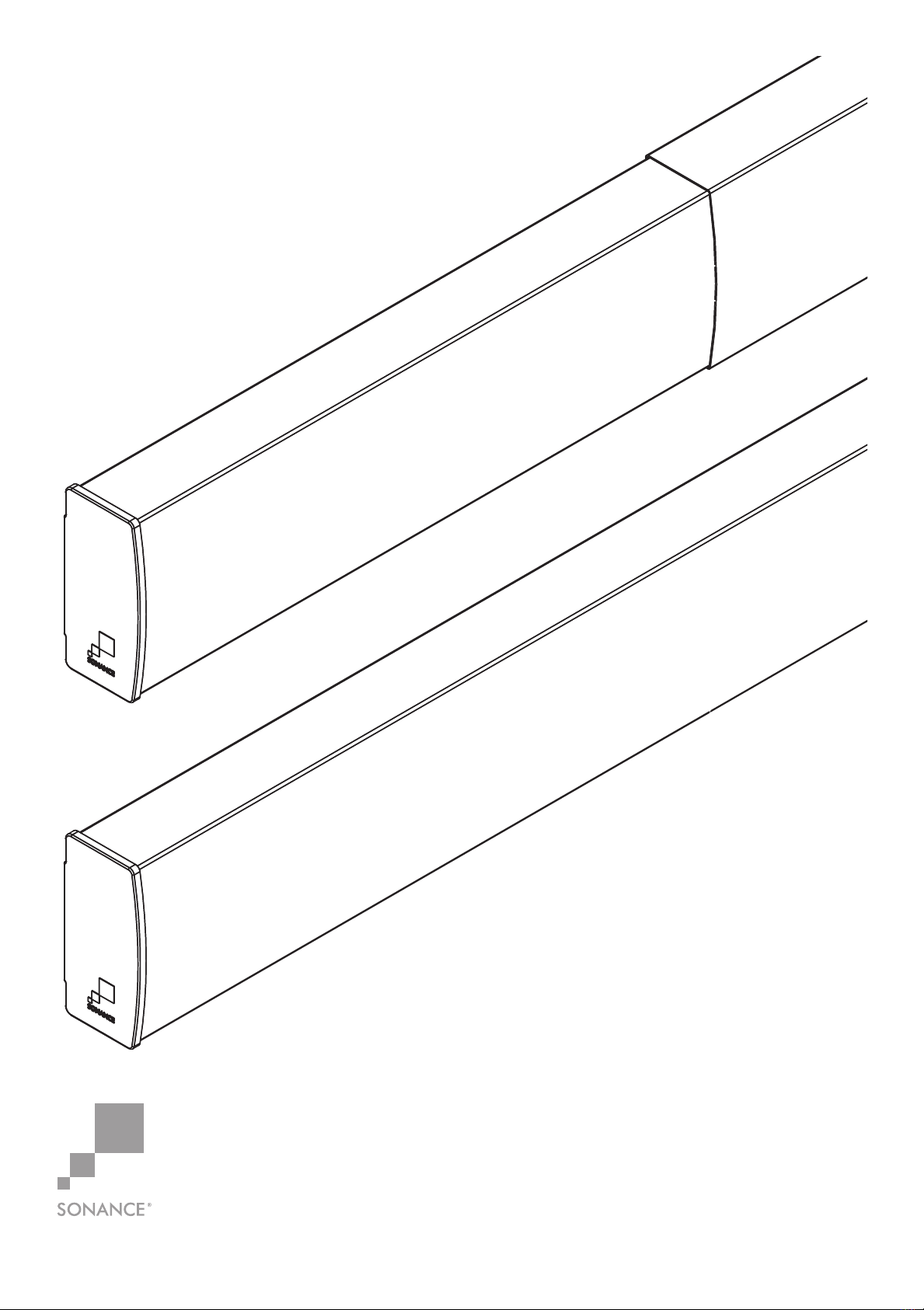

(1) Soundbar

(1) Quickstart Guide

(2) Display attachment rails(2) Flat Soundbar connectors

(2) Recessed Soundbar connectors (1) Key hole wall mount template

(2) Key hole

wall mounts

(2) Display spacers (2) Black opaque strips

Box Contents

Mounting

Option 1:

Bracket

Wall Mount

Flat Connector Recessed Connector

Mounting

Option 2:

Table Top

Mounting

Option 3:

Key Hole

Wall Mount

Hardware Pack

A. (4) M8 10mm screws for

display attachment rails

B. (4) M8 14mm screws for

flat Soundbar connector

C. (4) M8 23mm short screws for

recessed Soundbar connector

D. (4) M8 38mm long screws for

recessed Soundbar connector

E. (4) M6 25mm screws

F. (4) M8 25mm screws

G. (8) M8 nuts

H. (8) M6 washers

I. (8) M8 washers

J. (4) Rubber feet

A. x 4

D. x 4

G. x 8

B. x 4

E. x 4

H. x 8 I. x 8

J. x 4

C. x 4

F. x 4

QUICKSTART GUIDE - BRACKET WALL MOUNT

Sonance Soundbar Models: SB46-55 | SB46-65 | SB46-75 | SB46-85

Adjustable Width Soundbar Models: SB46 L | SB46 M

SONANCE SOUNDBAR

P. 1

(Included with adjustable

width soundbars only)

Verify wall mount will

support combined weight

of display and Soundbar.

SB46 M (24 lbs.) Suitable for displays

50”- 65” (1270mm to 1651mm)

SB46 L (29 lbs.) Suitable for displays

70”- 80” (1778mm to 2032mm)

SB46-55 (28 lbs.) Suitable for 55” displays

Height: 5 9/32” (134mm)

Depth: 2 9/16” (65mm)

Width: 48 5/16” (1227mm)

SB46-65 (30 lbs.) Suitable for 65” displays

Height: 5 9/32” (134mm)

Depth: 2 9/16” (65mm)

Width: 56 15/16” (1445mm)

SB46-75 (33 lbs.) Suitable for 75” displays

Height: 5 9/32” (134mm)

Depth: 2 9/16” (65mm)

Width: 66” (1676mm)

SB46-85 (35 lbs.) Suitable for 85” displays

Height: 5 9/32” (134mm)

Depth: 2 9/16” (65mm)

Width: 75 1/4” (1911mm)

Finished view.

Cover open area with black opaque

strip & cut to size. This will prevent

any light from passing through grille.

Complete wiring to Soundbar &

display. If possible, leave enough

wire out of the wall to allow for

connection prior to mounting to

wall bracket.

Position Soundbar as close

to display as possible. Firmly

fasten (B) screws & (I) washers

to connect Soundbar to the

Soundbar connectors.

Install display mount to wall per

manufacturer’s instructions.

Choose & attach the correct

Soundbar connector with (A)

screws. The flat Soundbar

connector will align with 2 5/8”

(65mm) deep displays.

Option B: Lay display & Soundbar

on same surface (without display

spacers). Be careful to not scratch

front of display.

2 5/8” Deep Display

Place attachment rails on display

& Soundbar making sure that

holes and rails are aligned.

Display mount arms not

provided by Sonance B

Opaque Strip

P. 2

QUICKSTART GUIDE - BRACKET WALL MOUNT

Sonance Soundbar Models: SB46-55 | SB46-65 | SB46-75 | SB46-85

Adjustable Width Soundbar Models: SB46 L | SB46 M

SONANCE SOUNDBAR

4B 5

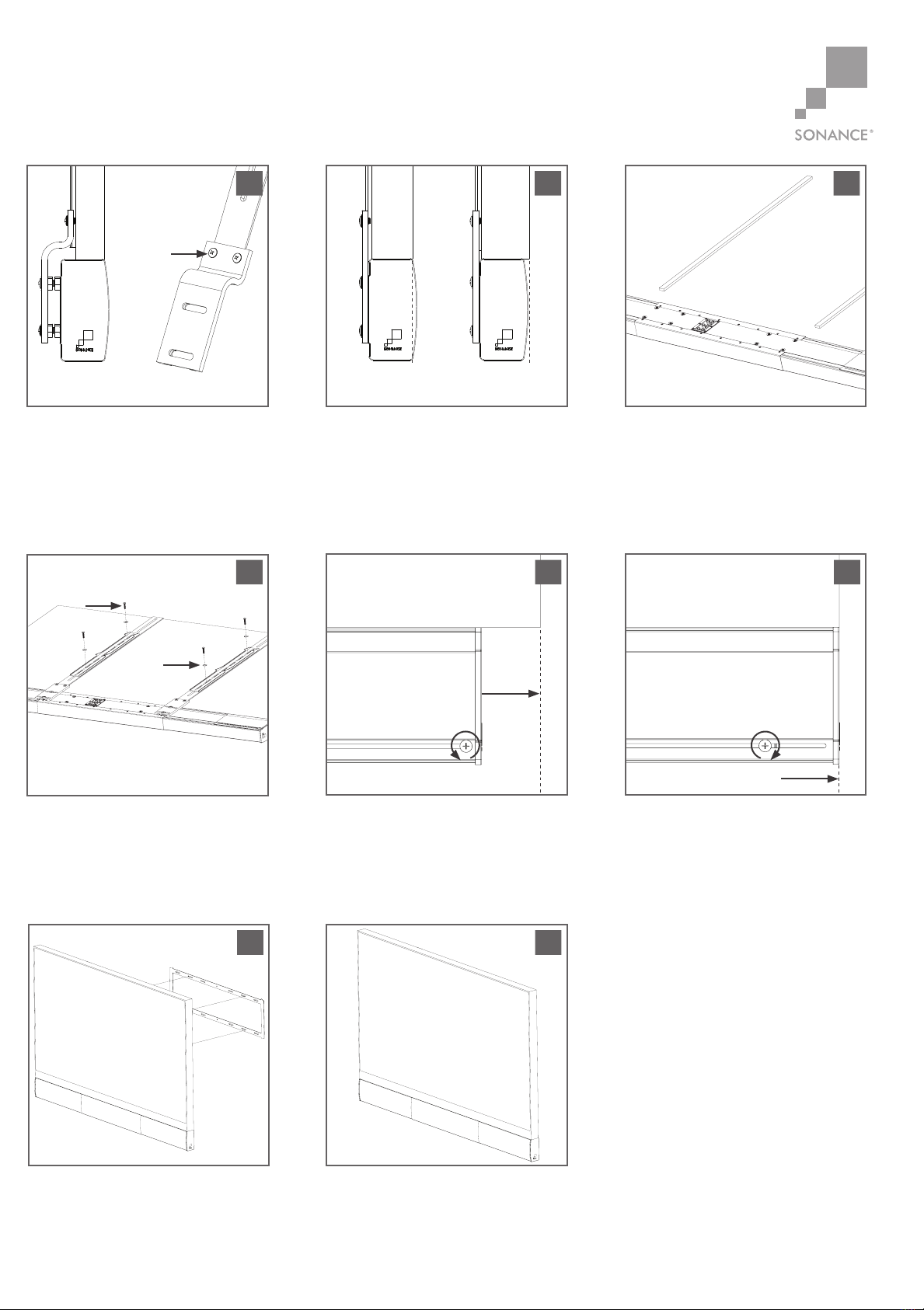

Install display wall bracket using

spacers & screws supplied with

display mount or (E)/(F) screws &

(H)/(I) washers. Hardware will vary.

It is recommended to keep spacers

provided with display.

Carefully mount display & Soundbar

to wall bracket. NOTE: When lifting,

be careful not to place too much

pressure on, or twist, the Soundbar.

This could bend the bracket.

Soundbar installation is now

complete & ready for audio

system calibration.

Slide grille to edge of display &

tighten screw. No tool required.

Loosen screw to allow for

adjustment of Soundbar grille.

No tool required.

The recessed Soundbar connector

will align with displays from

1 7/32” - 2 3/32” (31.74mm -

53mm) deep. Use (C) or (D)

screws and (G) nuts.

Alignment options for Soundbar:

A) Top edge of Soundbar aligned

with front of display. B) Front radius

of Soundbar aligned with front

of display.

Option A: Use included 8mm display

spacers. This creates the offset needed

for bottom of display to align with top

of Soundbar. Carefully place display

on top of spacers. Be careful not to

scratch front of display. Skip step 4B.

For detailed

installation manual visit:

www.sonance.com/home-theater/

soundbar/soundbar

Option A Option B

1 7/32” - 2 3/32” Deep Display

P. 3

E/F

H/I

3 4A

Sonance is a registered trademark of Dana Innovations.

Due to continuous product improvement, all features and specifications are subject to change without notice.

For the latest Sonance product specification information, visit our website: www.sonance.com

SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA

(949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777

www.sonance.com

33-5917 01.08.19

P. 4

QUICKSTART GUIDE - BRACKET WALL MOUNT

Sonance Soundbar Models: SB46-55 | SB46-65 | SB46-75 | SB46-85

Adjustable Width Soundbar Models: SB46 L | SB46 M

SONANCE SOUNDBAR
