PROGRAMMING GUIDE

DIGITAL MOTOR INTERFACE (DMI)

I. OVERVIEW ----------------------------------------------------------- 3

SYSTEM REQUIREMENTS

CONNECTIONS & INDICATORS

MOTOR ADAPTOR CABLE

II. INSTALLATION --------------------------------------------------------4

MOUNTING

POWER

WIRING TO SYSTEM FOR OPERATION

III. SET UP ---------------------------------------------------------------6

ADD BLIND DEVICE TO PROJECT

INDENTIFY DEVICE

SET BLIND DEVICE PROPERTIES

APPENDIX ---------------------------------------------------------------9

A. AVAILABLE COMMANDS & ACTIONS

TABLE OF CONTENTS

VERSION 1.0 | JUNE 2022 | Prepared by PROJECT SERVICES

CONTROL4TO DIGITAL MOTOR INTERFACE (DMI)

PROGRAMMING GUIDE

2of 10

Power Input

Input port for 24V DC

power from power supply

I. OVERVIEW

SDN Motor limits must be set prior to installing Digital Motor Interface

NOTE: Refer to the respective motor instructions on how to set the limits

All connections must be properly made according to the wiring diagrams on the product instructions

Fully commissioned Control4 system

Control4 Composer Software OS 2.9.0 or higher

Somfy Control4 to Digital Motor Interface driver

The Control4 to Digital Motor Interface (DMI) receives and sends bi-directional commands and feedback

connected between Somfy wired SDN RS485 motors and a Control4 Zigbee system as a wireless end node.

It receives Control4 Zigbee transmissions and converts them to motor control commands for Somfy’s line of

line voltage (AC) and low voltage (DC) SDN RS485 motors.

SYSTEM REQUIREMENTS

CONNECTIONS & INDICATORS

MOTOR ADAPTOR CABLE

When installing the Digital Motor Interface (DMI) with DC motors, the Data & Power Adaptor Cable (Ref # 9027112, sold separately) is required

for proper installation. Using the DMI with AC SDN RS485 motors requires the Somfy Grey Motor Data Cables (sold separately).

3of 10

Power Output

Output port for 24V DC

power to motor

SDN Port

Connect to motor or

Data & Power Cable

Push Button

Leaving the Zigbee

network, restart identify

& manual operation

LED BEHAVIOR:

(LEFT)

OFF

NO POWER TO DEVICE

GREEN

POWER TO DEVICE

LED BEHAVIOR:

(RIGHT)

ORANGE >GREEN (Solid>Flashing)

SDN MOTOR ACTIVITY

GREEN (Flashing)

NO MOTOR FEEDBACK

ORANGE (Flashing)

INCLUSION MODE

ORANGE (Solid)

CONNECTED TO ZIGBEE NETWORK

Control4 Digital Motor

Interface Connection

Connect to SDN Port on the

Digital Motor Interface

Power Supply

Connection

Connect to the power

supply to provide power

Digital Motor

Connection

Connect to SDN RS485

Digital Motor Cable(s)

Each DMI is limited to one SDN RS485 motor connection

During power-up, the RIGHT

LED will flash indicating the

firmware version.

Refer to product instructions for

more detail.

LINE VOLTAGE POWER SUPPLY OPTIONS

AC RS485 TUBULAR MOTORS GLYDEA ULTRA WITH RS485 MODULE

DMI is powered by the motor using Grey Motor Data Cable DMI is powered by the low voltage power supply

options below (Requires cable #9014794 for power input)

LOW VOLTAGE POWER SUPPLY OPTIONS

TRANSFORMER OPTION

24V DC 1.67A Wall Mount Power Supply #1822209

POWER DISTRIBUTION ENCLOSURE KITS

Max. distance of 150ft. with 16 AWG wire

5 Motor #1870196 10 Motor #1870192 15 Motor #1870197 20 Motor #1870198

II. INSTALLATION

MOUNTING

4of 10

This device is powered by a line voltage AC SDN RS485 motor or a 24V DC power supply.

The Control4 to Digital Motor Interface utilizes mounting tabs with screw holes for installation.

There is a single RJ45 port on the DMI which provides the connection to the SDN motor or adaptor cable.

The DMI is powered by a line voltage SDN RS485 motor using a Grey Motor Data Cable or low voltage power

supplies including a plug-in transformer or power distribution enclosure kit.

ELECTRICAL SPECIFICATION

Voltage Input Requires regulated 24V DC or AC SDN Motor power output

Voltage Output Regulated 24V DC, passed through from the Input Voltage

Power Connectors 2 pin JST, 2 mm pitch (Same for input & output)

Power Consumption 50mA @ 24V DC

POWER

5of 10

WIRING TO SYSTEM FOR OPERATION

WITH AC RS485 MOTOR WITH GLYDEA ULTRA MOTOR

WITH DC RS485 MOTOR

NOTE: Irismo™35 (Mini DC) is not supported

III. SET UP

ADD BLIND DEVICE TO PROJECT

6of 10

Prior to Control4 programming, confirm that the DMI Push Button properly operates the individually connected SDN motor.

Reference the Somfy Control4 to Digital Motor Interface driver details located in the device Documentation tab.

A Somfy Control4 to Digital Motor Interface driver is required for each DMI installed.

1) In the Composer System Design view Project tree, SELECT a Room in which a device is to be added

2) In the Items pane, SELECT the “Search” tab

3) In the Manufacturer dropdown list, SELECT “Somfy”

4) SELECT the “Somfy Control4 to Digital Motor Interface” certified driver

5) DOUBLE-or RIGHT-CLICK the driver to “Add to Project”

6) RENAME the device to the associated location or name of blind

IDENTIFY DEVICE

7of 10

Reference the Somfy Control4 to Digital Motor Interface driver details located in the device Documentation tab.

A Somfy Control4 to Digital Motor Interface driver is required for each DMI installed.

1) The Control4 to DMI is automatically in Identify mode upon power up. For systems with multiple units, it is

recommended to power up and identify the units one at a time.

2) In the Composer Connections view Network tab, SELECT “Zigbee Network”

3) In the Zigbee Network Connections Device list, SELECT the DMI to be identified

4) SELECT “Identify”

5) PRESS & HOLD the Push Button on the DMI for seven seconds

6) Once the Address field populates the node address, SELECT “Close”

7) CONFIRM the device Status displays “Online”

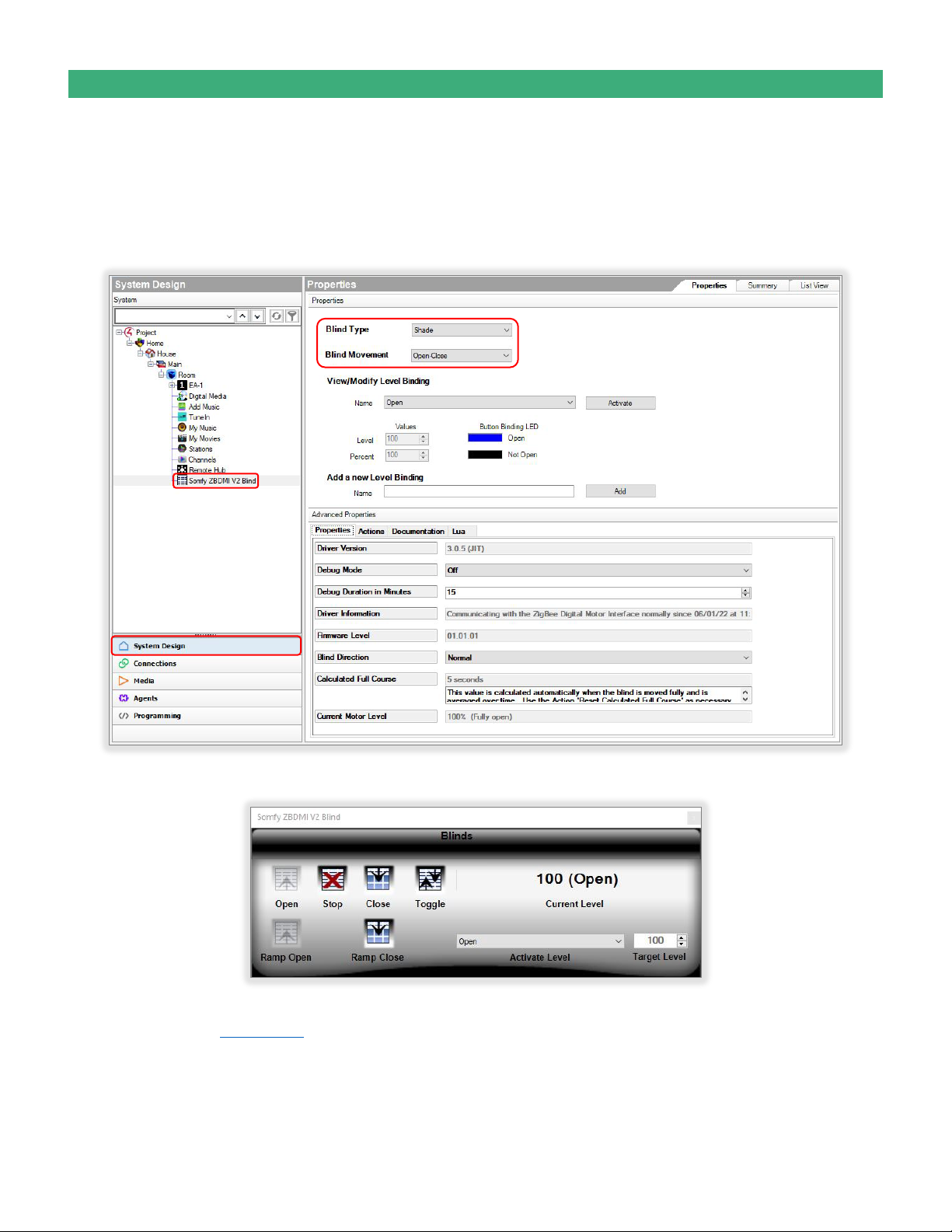

SET BLIND DEVICE PROPERTIES

8of 10

Reference the Somfy Control4 to Digital Motor Interface driver details located in the device Documentation tab.

1) In the Composer System Design view, Project tree, SELECT the DMI to be setup

2) In the Properties tab, SELECT the appropriate Blind Type for the product in the dropdown

3) SELECT the appropriate Blind Movement for the product in the dropdown

4) DOUBLE-CLICK the DMI to test each button operation

If the SDN motor operates in the opposite direction, SELECT “Reversed” in the Blind Direction dropdown.

See Appendix A of this guide for a list of Digital Motor Interface available commands and actions.

In the View/Modify Level Binding, set Control4 keypad button properties and connect the driver button links in Control & AV Connections.

When complete, Refresh Navigators.

[APPENDIX A] AVAILABLE COMMANDS & ACTIONS

FIRMWARE UPDATE

APPENDIX

9of 10

DIGITAL MOTOR INTERFACE COMMANDS

Close Moves blind to the fully closed position

Open Moves blind to the fully open position

Stop Stops blind when moving

Toggle Sequence controls blind close-stop-open

Target Level Moves blind to a percent openness (0-100)

SOMFY® is the leading global manufacturer of strong, quiet motors with electronic and app

controls for interior window coverings and exterior solar protections. Over 270 million users

worldwide enjoy the more than 170 million motors produced by Somfy. During the past 50 years,

Somfy engineers have designed products for both the commercial and residential markets to

motorize window coverings such as interior shades, wood blinds, draperies, awnings, rolling

shutters, exterior solar screens and projection screens. Somfy motorization systems are easily

integrated with security, HVAC and lighting systems providing total home or building automation.

FOR QUESTIONS OR ASSISTANCE PLEASE CONTACT TECHNICAL SUPPORT:

(800) 22-SOMFY (76639)

technicalsuppor[email protected]om

SOMFY SYSTEMS INC

SOMFY NORTH AMERICAN HEADQUARTERS

121 Herrod Blvd.

Dayton, NJ 08810

P: (609) 395-1300

F: (609) 395-1776

FLORIDA

1200 SW 35th Ave.

Boynton Beach, FL 33426

F: (561) 995-7502

CALIFORNIA

15301 Barranca Parkway

Irvine, CA 92618-2201

F: (949) 727-3775

SOMFY ULC

SOMFY Canada Division

6411 Edwards Blvd

Mississauga, ON L5T 2P7

P: (905) 564-6446

F: (905) 238-1491

www.somfypro.com

PS-PG14

V 1.0 10 of 10
