Slim io Receiver Screen + Plug EN

ORIGINAL INSTRUCTIONS

These instructions apply to all versions of the Slim io Receiver Screen + Plug, which are available in

the current catalogue.

CONTENTS

GENERAL

Safety instructions

Danger

Indicates a danger which may result in immediate death or serious injury.

Warning

Indicates a danger which may result in death or serious injury.

Precaution

Indicates a danger which may result in minor or moderate injury.

Attention

Indicates a danger which may result in damage to or destruction of the product.

Non contractual images.

1. Introduction 22

1.1. Scope of application 22

1.2. Liability 22

2. Installation 23

2.1. Installation recommendations 23

2.2. Fitting the Slim io Receiver Screen + Plug 23

3. Wiring 23

4. Commissioning 24

4.1. Identifying setting steps already

completed 24

4.2. Pre-programming the Somfy io local

control point 25

4.3. Checking the motor's direction of rotation 25

4.4. Setting the time of functioning 25

4.5. Programming the first Somfy io local

control point 26

5. Operation and maintenance 26

5.1. Up and Down buttons 26

5.2. STOP function 26

5.3. Favourite position (my) 26

5.4. Adding/deleting Somfy io control points

and io sensors 27

5.5. Replacing a lost or broken io-

homecontrol® Somfy control point 27

6. Tips and recommendations 27

6.1. Questions on the Slim io Receiver Screen

+ Plug 27

6.2. Restoring the original configuration 28

7. Technical data 29

EN Slim io Receiver Screen + Plug

1. INTRODUCTION

1.1. SCOPE OF APPLICATION

The Slim io Receiver Screen + Plug is a receiver equipped with io homecontrol® Radio Technology.

It is used to control all types of external vertical blinds with standard motors supplied with 230V

(please contact your dealer for further information). The Slim io Receiver Screen + Plug is used to

open and close external vertical blinds.

Its small size enables it to be discretely installed near the product it is controlling through a direct

supply cable connection.

The Slim io Receiver Screen + Plug can be used as:

• individual control - one Slim io Receiver Screen + Plug io is controlled by one control point,

• multiple control - one Slim io Receiver Screen + Plug is controlled by several control points,

• group control - several Slim io Receiver Screen + Plug are controlled by a single control point.

The Slim io Receiver Screen + Plug can be controlled either by one control point or by an automatic

control device.

1.2. LIABILITY

Before installing and using the receiver, please read these instructions carefully. In addition to the

instructions provided in this guide, please also comply with the instructions set out in the enclosed

Safety instructions document.

The receiver must be installed by a home motorisation and automation professional, in accordance

with Somfy’s instructions and the applicable regulations in the country of installation.

Any operation of the receiver outside the scope of application described above is prohibited. Such

operation shall exclude Somfy from all liability and invalidate the Somfy warranty, as will any failure

to comply with the instructions given herein and in the enclosed Safety instructions document.

After installing the receiver, the installer must inform his customers of the operating and

maintenance conditions for the receiver and must pass the operating and maintenance

instructions on to them, as well as the enclosed Safety instructions document. Any After-Sales

Service operation on the receiver requires intervention by a home motorisation and automation

professional.

Should any doubt arise during installation of the receiver or for additional information, consult a

Somfy contact or visit www.somfy.com.

Slim io Receiver Screen + Plug EN

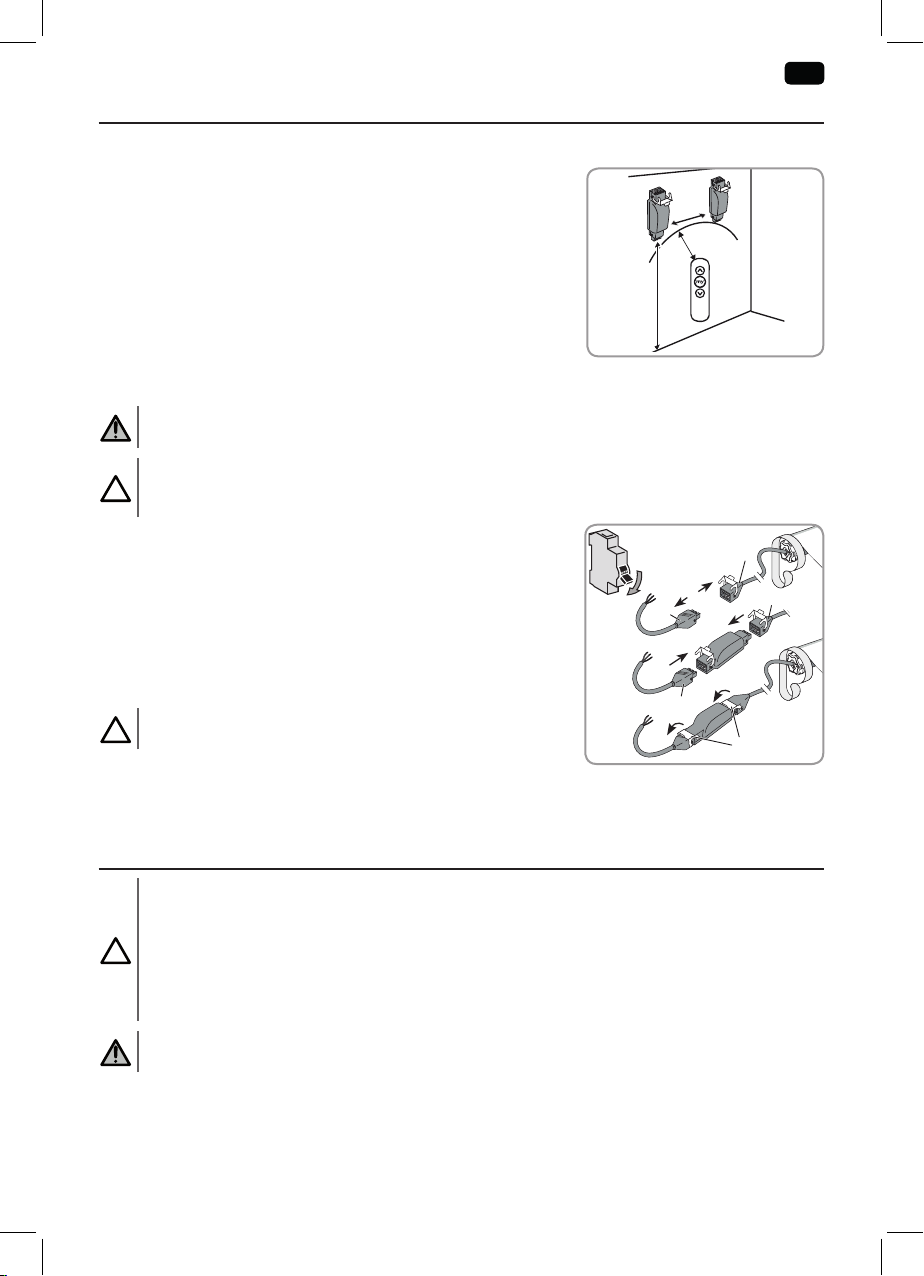

2. INSTALLATION

2.1. INSTALLATION RECOMMENDATIONS

• Minimum distance (X) between a Slim io Receiver

Screen + Plug and the ground:

X = 150cm

• Minimum distance (Y) between a Slim io Receiver

Screen + Plug and a radio control point:

Y = 30cm

• Minimum distance (Z) between two Slim io Receiver

Screen + Plug units:

Z = 20cm

2.2. FITTING THE SLIM IO RECEIVER SCREEN + PLUG

Warning

Comply with current standards and legislation when installing.

Attention

The Slim io Receiver Screen + Plug must be installed, protected from rain and in clement

weather conditions, out of sight and out of the reach of children.

1) Turn off the power supply.

2) Disconnect the motor cable quick connection (A) from the

power supply cable quick connection (B).

3) Connect the Slim io Receiver Screen + Plug between the motor

cable (A) and the power supply cable (B).

• Motor = motor side (A)

• Supply 230V = power supply side (B)

4) Lock the securing hooks (C).

Attention

Ensure that the two quick connections are engaged correctly.

5) Place the Slim io Receiver Screen + Plug in the awning bracket

to conceal it.

6) Fit the Slim io Receiver Screen + Plug (using rilsan cables for example).

3. WIRING

Attention

• Cables routed through a metal internal wall must be protected and insulated by sleeving or

sheathing.

• Secure the cables to prevent any contact with moving parts.

• If the receiver is used outdoors and if the power supply cable is of the H05-VVF type, run the

cable in a UV-resistant duct, e.g. trunking.

• Leave the receiver power supply cable accessible: it must be easily replaceable.

Warning

Always make a loop in the power supply cable to prevent water from entering the receiver.

OFF

EN Slim io Receiver Screen + Plug

To ensure that the radio signal is transmitted correctly, it is necessary to pull the Slim io Receiver

Screen + Plug supply cable out of the motorised product by at least 30cm.

4. COMMISSIONING

This guide only describes commissioning using a Somfy io local control.

For commissioning using any other io control point, refer to the corresponding guide.

Prerequisite: The end limits of the motor are already set.

4.1. IDENTIFYING SETTING STEPS ALREADY COMPLETED

Only one motor should be powered at a time.

Switch on and follow procedure 4.1.1 or 4.1.2, depending on the

reaction of the motorised product.

4.1.1. The motorised product moves brieﬂy

The linear travel is set and no Somfy control points have been

programmed.

Go to § 4.5.

4.1.2. The motorised product does not move

Press the Up or Down button and follow procedure 4.1.2.1 or

4.1.2.2, depending on the reaction of the motorised product.

4.1.2.1. The motorised product still does not move

The linear travel is not set and the Somfy control point has not been

programmed.

Go to § 4.2.

4.1.2.2. The motorised product raises or lowers completely by pressing and holding the

Up or Down button

The linear travel is set and the Somfy control point has been

programmed.

Go to § 5.

Ø ≥ 0.75 mm²

1231

1 Blue Neutral

2 Black Live

3 - -

Green/yellow Earth

1 Blue Neutral

2 Black Up

3Brown Down

Green/yellow Earth

4.5

4.1.2.1 /

4.1.2.2

4.2

Slim io Receiver Screen + Plug EN

4.2. PREPROGRAMMING THE SOMFY IO LOCAL CONTROL POINT

• Press the Up and Down buttons simultaneously.

The motorised product moves briefly.

The Somfy local io control point is pre-programmed to the

motor.

4.3. CHECKING THE MOTOR'S DIRECTION OF ROTATION

1) Press the Up button on the control point:

• If the motorised product raises, the direction of rotation is

correct.

• If the motorised product lowers, the direction of rotation is

incorrect:

- Press the "my" button on the control point until the

motorised product moves. The direction of rotation is

modified.

2) Press the Up button on the control point to check the direction

of rotation.

4.4. SETTING THE TIME OF FUNCTIONING

4.4.1. Automatic mode

This mode is not advised when the receiver is used with Nina,

Tahoma, or Connexoon.

1) Check the rotation direction of the motor (see § 4.3).

2) Press the Up and Down buttons simultaneously for at least

5 seconds.

3) Press the "my" button for at least 2 seconds.

The motorised product moves briefly and

Time of functioning T(f) = 4min.

4) Go to § 4.5.

4.4.2. Manual mode

The time of functioning is measured during the setting.

This mode is used in order to have better precision when the receiver is used with Nina, Tahoma, or

Connexoon.

Attention

The motor must be previously set.

1) Check the rotation direction of the motor (see § 4.3).

2) Press the Up and Down buttons simultaneously for at least

5 seconds.

The motorised product moves briefly and the manual mode is

activated.

3) Press and hold the Up button and let the motorised product

reach its up end limit.

4) Briefly press the Up and Down buttons simultaneously.

The motor goes downward and calculates its Time of

functioning T(f).

2 s

5 s

2 s

5 s

EN Slim io Receiver Screen + Plug

5) When the motor arrives at its down end limit, press the "my"

button for at least 2 seconds.

The motorised product moves briefly.

Time of functioning = T(f) (Max = 4min).

6) Go to § 4.5.

4.5. PROGRAMMING THE FIRST SOMFY IO LOCAL CONTROL POINT

4.5.1. Using a pre-programmed Somfy io local control point

• Briefly press the PROG button on this control point.

The motorised product moves briefly.

The control point is programmed.

4.5.2. Aer a power cut

1) Press the Up and Down buttons simultaneously on the new

control point until the motorised product moves.

2) Briefly press the PROG button on this control point.

The motorised product moves briefly.

The control point is programmed.

5. OPERATION AND MAINTENANCE

5.1. UP AND DOWN BUTTONS

Breifly press the Up or Down button to raise or lower the motorised

product fully.

5.2. STOP FUNCTION

The motorised product is moving.

• Briefly press the "my" button on the control point.

The motorised product stops automatically.

5.3. FAVOURITE POSITION MY

Besides the upper and lower positions, an intermediate position known as the "favourite position

(my)" may be programmed in the receiver.

5.3.1. Setting the favourite position (my)

1) Place the motorised product in the requested favourite position

(my).

2) Press the "my" button on the control button until the motorised

product moves.

The favourite position (my) has been programmed.

5.3.2. Using the favourite position (my)

• Briefly press the "my" button.

The motorised product starts to move, then stops. The

position of the motorised product then complies with the

favourite (my) position programmed.

2 s

or my

Slim io Receiver Screen + Plug EN

5.3.3. Modifying the favourite position (my)

1) Place the motorised product in the required new favourite

position (my).

2) Press the "my" button on the control button until the motorised

product moves.

The new favourite position (my) has been programmed.

5.3.4. Deleting the favourite position (my)

1) Briefly press the "my" button.

The motorised product will start to move and stop in the

favourite position (my).

2) Press the "my" button on the control button until the motorised

product moves.

The favourite position (my) has been deleted.

5.4. ADDING/DELETING SOMFY IO CONTROL POINTS AND IO SENSORS

Refer to the corresponding guide.

5.5. REPLACING A LOST OR BROKEN IOHOMECONTROL® SOMFY CONTROL

POINT

To replace a lost or broken io-homecontrol® control point, consult a home motorisation and

automation professional.

6. TIPS AND RECOMMENDATIONS

6.1. QUESTIONS ON THE SLIM IO RECEIVER SCREEN + PLUG

Observations Possible causes Solutions

The motorised

product does not

operate.

The wiring is incorrect. Check the wiring of the the Slim io

Receiver Screen + Plug and modify it

if necessary.

The motor is in heat protection

mode. Wait until the motor cools down.

The Somfy io control point battery

is low. Check whether the battery is weak

and replace it if necessary.

The control point is not compatible. Check for compatibility and replace

the control point if necessary.

The Somfy io control point used

has not been programmed into the

receiver.

Use a programmed control point or

program this control point.

The motorised

product stops too

soon or too late.

The end limits have been incorrectly

set. Readjust the end limits.

The "my" position is

not working. The "my" position is deleted. Program the "my" position.

I can't delete the

"my" position with

my Easy Sun io

control point.

Your control point is too old (IndexE

or older). Delete the "my" position with

another paired control point.

or my

EN Slim io Receiver Screen + Plug

Observations Possible causes Solutions

I have a wind

sensor and the

motorised product

rises to the upper

end limit every

hour.

The sensor is paired/set. There is radio interference or the

sensor is out of reach. Position the

the Slim io Receiver Screen + Plug

outside the head rail.

The battery of the Somfy io wind

sensor is weak. Check whether the battery is weak

and replace it if necessary.

Despite the

presence of a wind

sensor, when

it is windy, the

motorised product

does not reach the

upper position.

The sensor is not paired/set. Refer to the corresponding guide to

pair/set the sensor.

I don't think the

position between

the end limits is

accurate.

The linear travel setting is incorrect. Reset the linear travel.

The motor is close to the thermal

limit. Wait until the motor cools down.

6.2. RESTORING THE ORIGINAL CONFIGURATION

Attention

Only switch off power (double cutout) for the motorised product to be reset.

This reset deletes all programmed control points, sensors, linear travel and resets the

motorised product’s favourite (my) position.

1) Position the motorised product at its half-way position.

2) Cut the power supply for 2seconds.

3) Switch the power supply back on for 5 to 15seconds.

4) Cut the power supply for 2seconds.

5) Switch the power supply back on.

The motorised product moves for a few seconds.

OFF

2 s

15 s

5 s

OFF

2 s

Table des matières

Autres manuels SOMFY Récepteur

SOMFY

SOMFY SLIM io receiver Instructions d'utilisation

SOMFY

SOMFY inteo LIGHTING indoor RTS Manuel utilisateur

SOMFY

SOMFY Rollixo Smart io Manuel utilisateur

SOMFY

SOMFY ROLLIXO io Manuel utilisateur

SOMFY

SOMFY 1 822 097 Manuel utilisateur

SOMFY

SOMFY Lighting Receiver io Instructions de montage

SOMFY

SOMFY SLIM IO RECEIVER PERGOLA+PLUG Manuel utilisateur

SOMFY

SOMFY 1810872 Manuel utilisateur

SOMFY

SOMFY Soliris Manuel utilisateur

SOMFY

SOMFY IZYMO ON-OFF RECEIVER io Manuel utilisateur

SOMFY

SOMFY INTEO EOLIS RECEIVER RTS 2 Manuel utilisateur

SOMFY

SOMFY Smoove UNO io Mode d'emploi

SOMFY

SOMFY ROLLIXO io Manuel utilisateur

SOMFY

SOMFY DC RTS RECEIVER Manuel utilisateur

SOMFY

SOMFY inteo RTS 25 DC Manuel utilisateur

SOMFY

SOMFY PLATINE RTS Manuel utilisateur

SOMFY

SOMFY Variation io Instructions de montage

SOMFY

SOMFY Axroll Manuel utilisateur

SOMFY

SOMFY Lighting Slim Receiver RTS Manuel utilisateur

SOMFY

SOMFY White LED Receiver io Manuel utilisateur

SOMFY

SOMFY Heating Mod/Var Receiver RTS Manuel utilisateur

SOMFY

SOMFY Lighting receiver Instructions de montage

SOMFY

SOMFY INTEO LIGHTING outdoor RTS Manuel utilisateur

SOMFY

SOMFY animeo KNX EnOcean 1860229 Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
