Digital Electricity™ is a Limited Power Source which allows to utilize standard 18AWG 2-Conductor Cable without
conduit while confirming to the National Electric Code standards for building installations. When the Transmitter and
Digital Electricity™ Power Panel for SDN with Receiver are pair together the Digital Electricity™ system is formed.
A fully loaded Transmitter provides 8 channels of Digital Electricity™ up to 600W per channel, total 3000W per unit.
Each of the 8 connected Receivers will provide up to 3A at a nominal output voltage of 336V DC per unit.
The Digital Electricity™ Transmitter and Receiver are listed products certified to safety and EMC standards by
Nationally Recognized Test Laboratories (NRTLs). If a person or foreign conductor comes in contact with the wiring,
power is disconnected, preventing fire, equipment damage and personal injury.

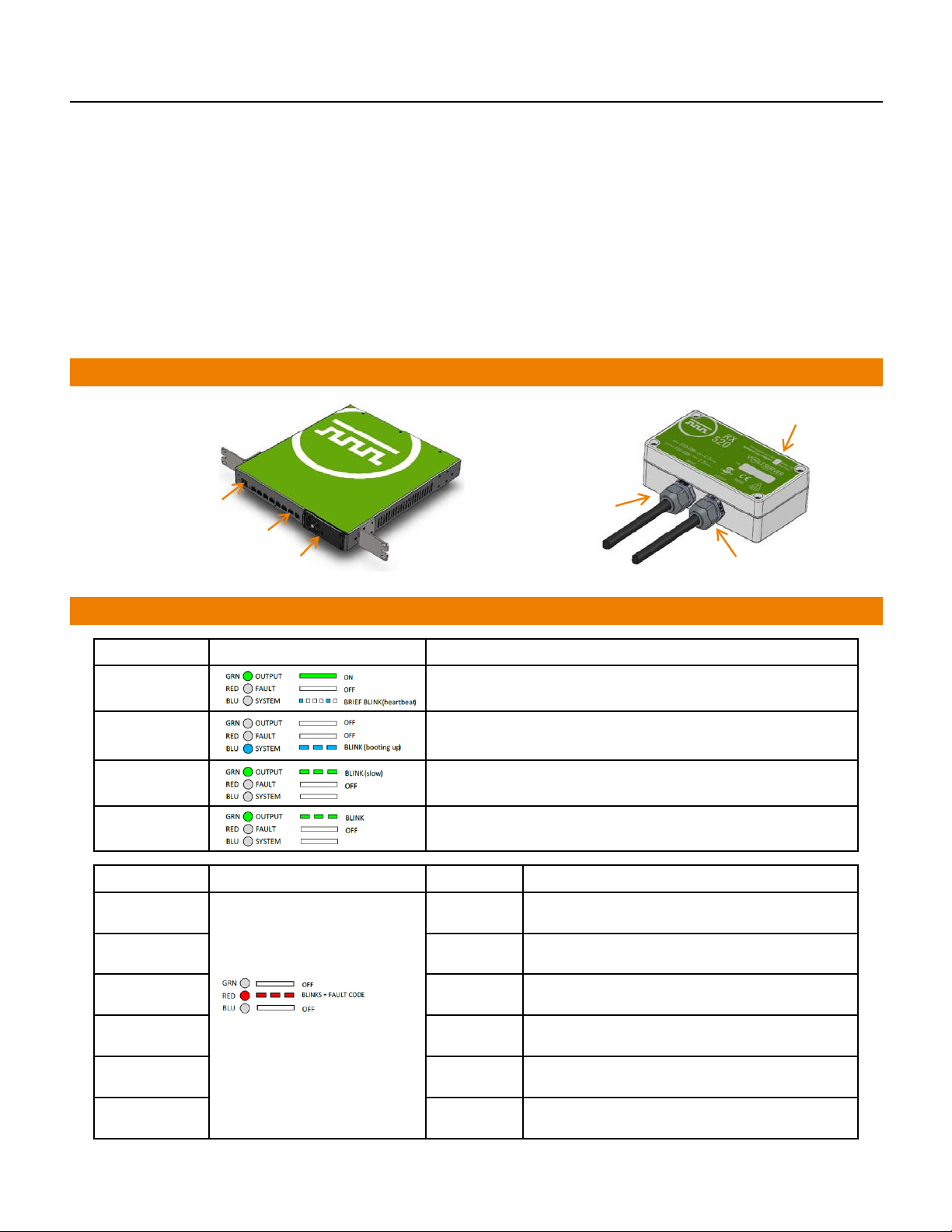

I. OVERVIEW

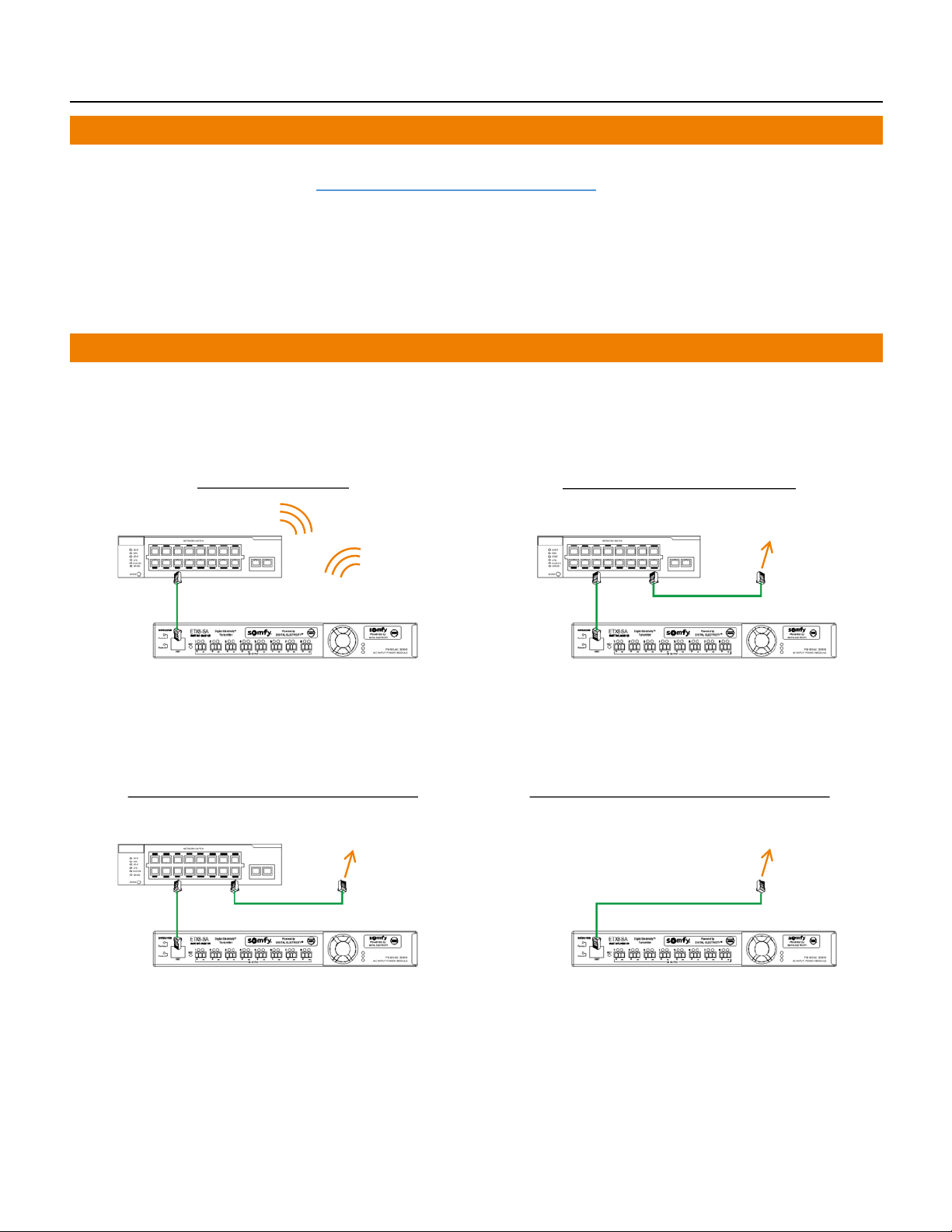

CONNECTIONS
LEDs
3of 15
DE Outputs
LED
NORMAL STATES LED PATTERN NOTE
Normal Operation Normal operation
Boot-Up Start-up sequence occurs when power is first applied to the receiver
Pre-Charge DE Part of normal set-up sequence
Pre-Charge Load Part of normal set-up sequence
FAULTS LED PATTERN FAULT CODE TROUBLESHOOTING
Load Connection 2 Blinks Connection problem between Receiver Output and load
Check Receiver Output polarity; Check connections to load
Overload 3 Blinks Load Current too high
Reduce load; Check wiring
Transmitter 4 Blinks Transmitter power issue
Check Transmitter card(s); Check wiring from Transmitter
Temperature 5 Blinks Receiver over temperature
Reduce ambient temp. surrounding Receiver; Reduce load
Short Circuit 6 Blinks Short circuit detected between Receiver and load
Check wiring; Check load for short circuit or ground fault
Internal Failure 8 Blinks Internal hardware failure
Contact Voltserver
*included with Digital Electricity™ Power Panel for SDN #1870628
LEDs

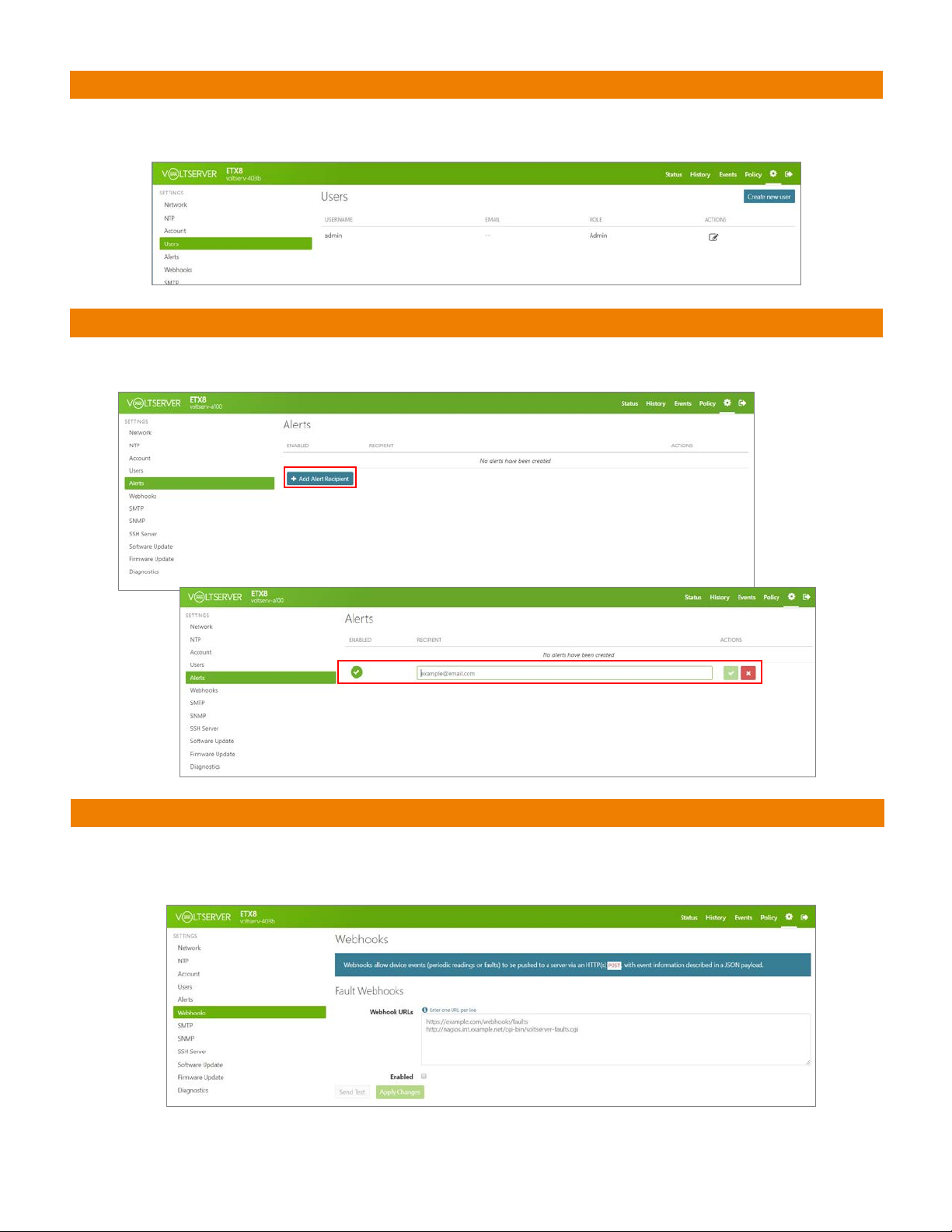

Management Port Power Input
Power Output
Digital Electricity™
Transmitter
Digital Electricity™
Receiver
