Smoove Uno io

1 Connect the motor using an setting cable

2 Check the rotation direction

3 Change the rotation direction

4 Put the application in the middle

Put the application in the middle

RTS

OK 4



Not OK 3

Swap the black and the brown wires

RTS

230V AC

RTS

Determine the rotation direction (the motor must be set)

Smoove Uno io



ground wire

neutral wire

ground wire

neutral wire

Smoove Uno io

Connect the motor on the control

Overview of the control

230V AC

Motor

LED

PROG

Down

Auto/Manu Stop/my

Smoove Uno io

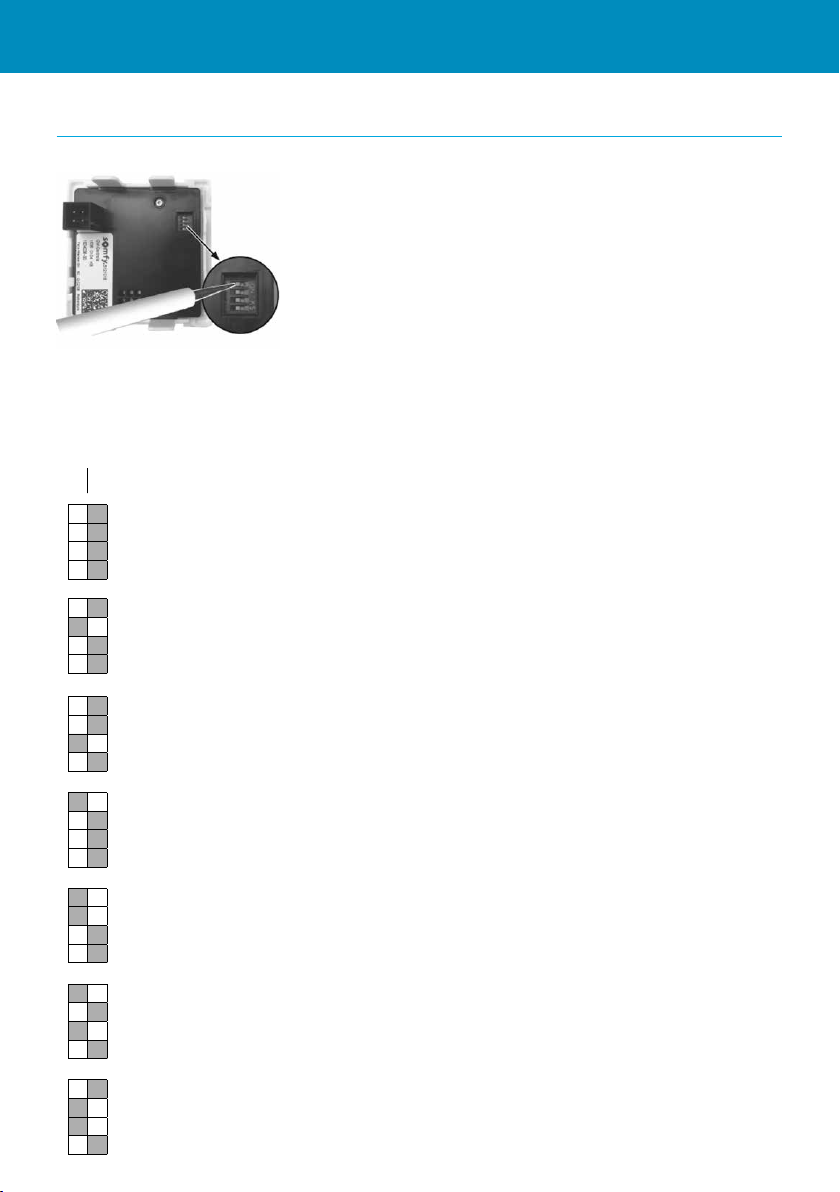

Settings of the DIP switches

Backside of the

Smoove Uno io

Setting of the application on the Smoove Uno io

Rolling shutter

Factory setting

All OFF

Screens

No. 2 = ON

Roller blind

No. 3 = ON

External venetian blind

No. 1 - ON

Awning

No. 1 and

No. 2 = ON

Curtain

No. 1 and

No. 3 = ON

Window

No. 2 and

No. 3 = ON

ONOFF

Smoove Uno io

Programming

Use the UP button to move the

application in the upper end limit

Press again brieﬂy on the UP and

DOWN buttons, the application goes to

his down end limit

Press > 5 s simultaneous on the

UP and DOWN buttons till a short

movement of the application

When the down end limit is

reached, press immediately on

the MY (stop) button

Press the PROG

button until the LED

lights up green

Follow the instructions

on the screen

...short movement

of the application

Transmitters

without feedback

Transmitters with

feedback

1 Set the running time

(The end limits of the motor must be set upfront)

2 Program or delete the transmitter

This procedure can only be carried out within 30 s of the appliance being switched on or aer inserted

the electronic module into the Smoove Uno io

5 s

➞

Brieﬂy press the PROG button

until...

<1 s

Back of the

Smoove

Back of the Situo

Nina io

Smoove Uno io

Press and hold the

PROG button for more

than 7 s

Aer 2s, the LED

lights green up

permanently

Short up and down

movement

Aer a further 5s,

the LED ﬂashes

3 Product back in the orginal conﬁguration

(This procedure can only be carried out within 30 s of the appliance being switched on or aer inserted

the electronic module into the Smoove Uno io)

7 s

All conﬁgurations

and all saved io

equipments are

removed from his

memory

Position the product in the required position

Position the product in the MY position

Press short on the MY button

to stop the product

Press on the MY

button until...

Press again on the MY button

for at least 5 s till a short

movement

The My position

is saved

...a short up and down

movement of the product.

The MY position

is deleted

4a Save the MY position

4b Remove the MY position

5 s

Smoove Uno io

Press the DOWN button until the

down end limit is reached with the

slats closed to the exterior

5 Set the rotation angle for external venetian blinds

Press simultaneous

and at least 5 s on

the UP and DOWN

buttons

The blind performs

a short up and down

movement

Press the MY button, the blind performs

a short up and down movement

Press brieﬂy but repeatedly on

the UP button to turn the slats

from the closed to fully open

position

Ones the maximum position

has been reached, press

simultaneous on the UP and MY

buttons until a short up and down

movement of the blind

>5 s

OR OR
