Situo®5 Variation RTS

Wall Mounting the Situo 5 Variation

Introduction

Part Number:

1811612

The Situo 5 Variation RTS provides 5 channels for precise individual

and group incremental control of motorized window coverings.

• Peel • Adhere • Hang

A. Wall mounting recess

B. Up/Open button

C. STOP/”my” button

D. Tilt/Scroll Wheel

E. Down/Close button

F. Channel indicator lights

G. Channel selector

Using the included Mounting Bracket:

• Peel the protective ﬁlm from the adhesive on the back

of the wall mounting bracket.

• Adhere the wall mounting bracket to a ﬂat, clean,

and dry surface (press ﬁrmly).

• Hang the Situo 5 Variation on the wall mounting bracket.

• Optional: Can also be screwed/anchored to wall.

H. Programming (PROG)

button on back

Battery Replacement

• Slide to remove rear panel from remote control.

• Insert new CR2430 battery as speciﬁed.

• Replace rear panel on remote control.

Battery

compartment

located on back.

Adding/Deleting a Situo 5 Variation RTS

To add or delete from a window covering:

Using the control already associated with the window covering:

• Press and hold the PROG button (H) until

the window covering brieﬂy moves up and down.

On the Situo 5 Variation RTS to be added or deleted:

• Select the appropriate channel (G).

• Brieﬂy press the PROG button (H), the window covering

brieﬂy moves up and down and the Situo 5 Variation RTS is

added or deleted.

Programming a Replacement remote:

Using the programming button on the drive head:

• Press and hold the drive head programming button until

the motorized product brieﬂy moves up and down.

• Brieﬂy press the PROG button (H) on the control

to add or delete. Green LED blinks 5 times.

You now have control over the window covering with replacement remote

CR2430

Continued On Next Page

This product is intended for indoor use only.

Please keep out of reach of children. Avoid

damaging product by dropping or using undo

force. Do not expose product to open ﬂame,

heat, or moisture.

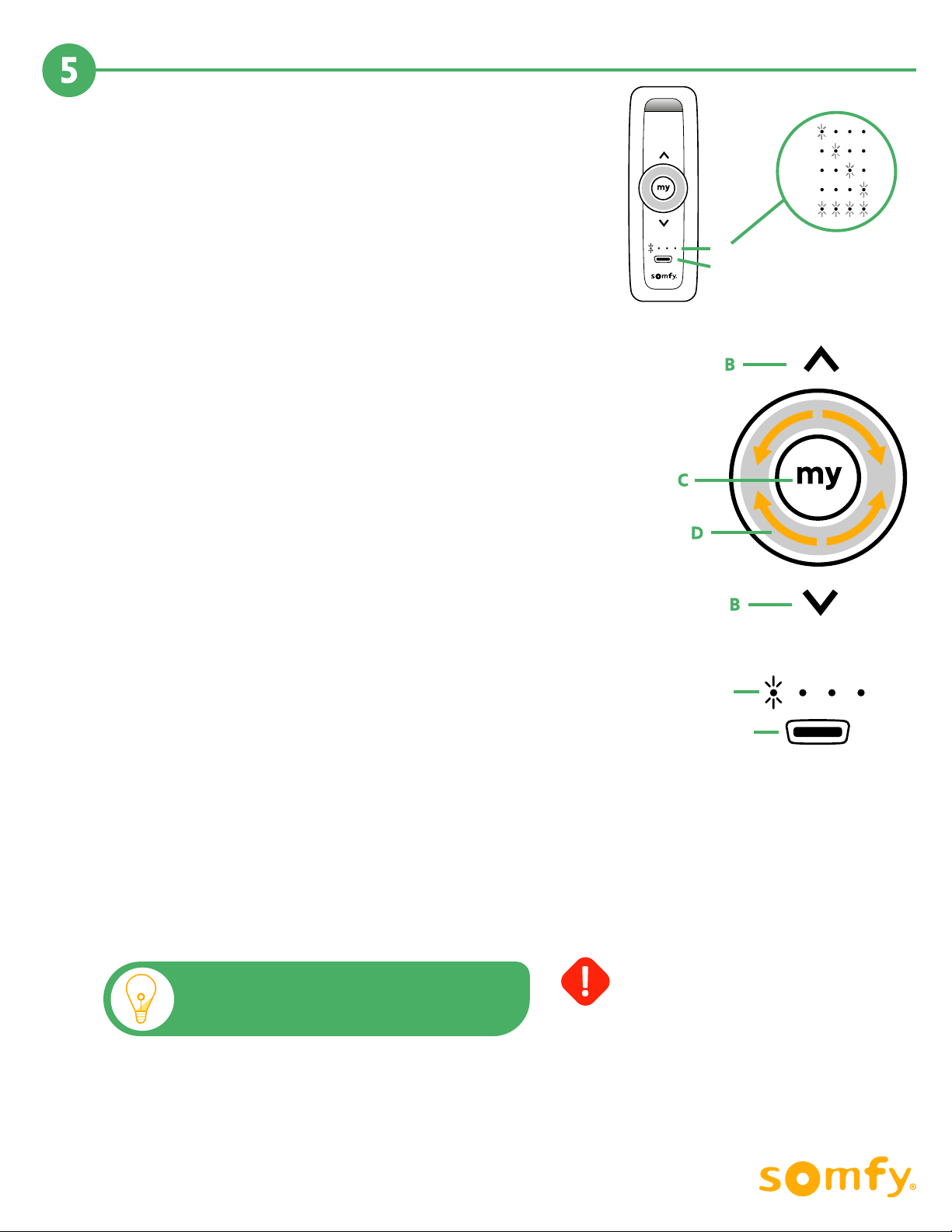

Operation

Channel Selector (G)

Before operating the Situo 5 Variation RTS, ensure the correct channel

has been selected.

• Brieﬂy press the channel selector button (G) to choose the

correct channel.

• The selection indicator lights (F) correspond to channels

1 through 4.

• Channel 5 is selected when all indicator lights are on.

Arrow Buttons (B)

Depending on the type of window covering to be operated:

• Up/Open

• Down/Close

Stop button/“my” (C)

• Press the “my” button to stop the window covering action.

• If the window covering action has been stopped, press either

UP or DOWN button on transmitter to activate in the desired

direction OR press “my” button to activate motorized window

covering to the pre-programmed “my” position.

Setting, modifying, or deleting the favorite preset

position “my”. (C)

• Place the window covering in the desired position then press

and hold “my” button for approximately 5 seconds to set the

favorite position.

• To delete the favorite preset position, place the window covering

in the established favorite position “my” and press and hold “my” button

for approximately 5 seconds.

How to Operate "my" Position. (C)

• The window covering will return to this position whenever you press “my” in the future.

• If the window covering is currently in motion, press the “my” button twice

– once to stop it and once again to return it to the “my” position.

Tilt/Scroll Wheel (D)

• Used to adjust the slats on blinds and varying light and heat levels.

• Scrolling one notch at-a-time will open or close the slats accordingly.

AS WITH ANY PRODUCT INVOLVING ELECTRICAL POWER, CAUTION MUST BE USED AT ALL TIMES.

PLEASE CAREFULLY READ AND FOLLOW ALL OF THE INSTRUCTIONS.

This device is FCC certiﬁed and complies with part 15 of the FCC rules.

RTS compatibility: RTS transmitters are capable of operating any RTS motor.

Note: Visit https://store.somfysystems.com/ to

purchase an additional or replacement product.
