SOLIUR LinkCam A6 Manuel utilisateur
LinkCam A6
User Manual
Version 1.0.0 Model NO.A6
User Manual
PAGE: 1
Contents
1.
2.
3.
4. FAQ
5.
Products & Packing list
Set up Camera
Set up App
Safe Battery Handling and Usage
3.1.Down loading APP
3.2.Add Device
3.3.Add Online Device
User Manual
PAGE: 2

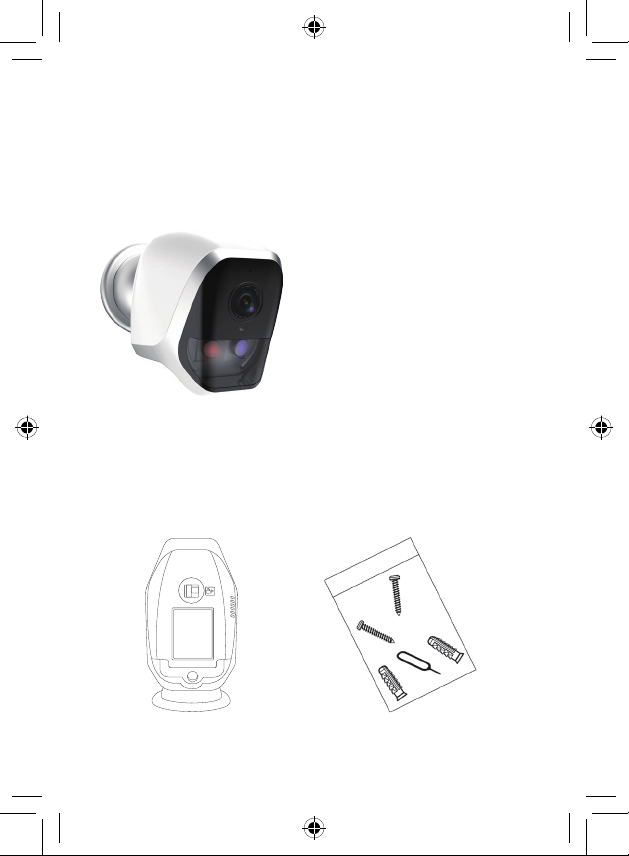

1: Products & Packing list
1.1, Product picture ：
1.2, Packing list:
1* linkcam A6 1*screw kit
User Manual
PAGE: 3

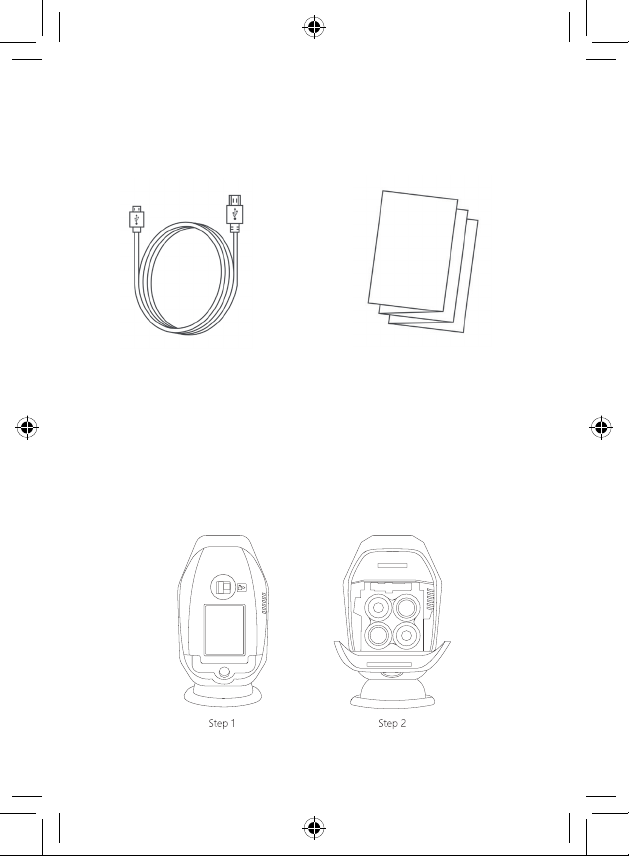

1* 2m micro USB cable 1 * user manual
2. Set up Camera.
2.1, Unscrew the screws at the bottom of LinkCam, and open the
battery compartment.
2.2, Insert four AA batteries into the battery compartment as
following picture. Pay careful attention to the orientation of the
batteries when you insert them.
User Manual
PAGE: 4

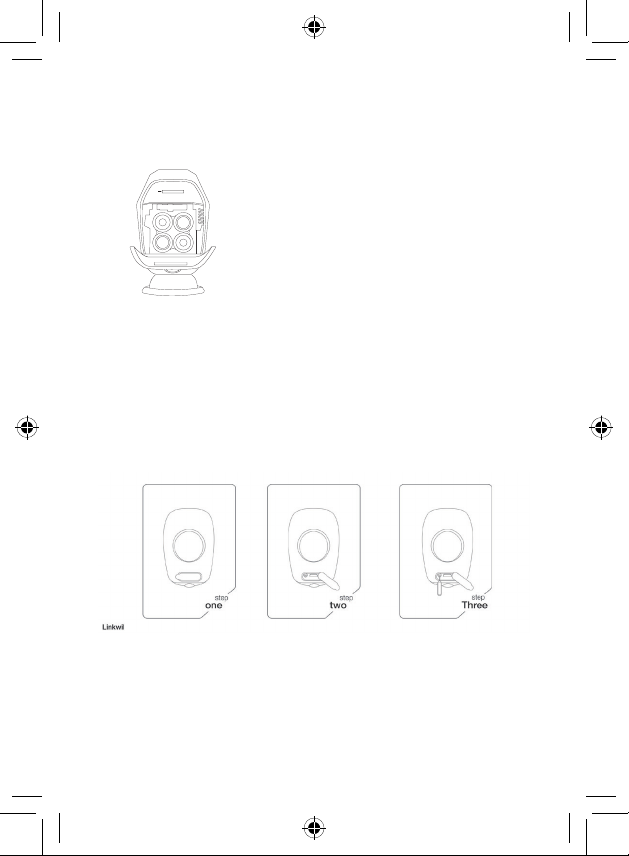

2.3, Insert TF card to TF card slot ( as picture ), the TF card can
be bought by yourself and it supports max to 128GB.
2.4 , Close the battery door with screws.
2.5, For reset the device, follow below steps, then you will listen
a sound and see the indicator blinks red rapidly. That means
reset successfully.
TF
User Manual
PAGE: 5

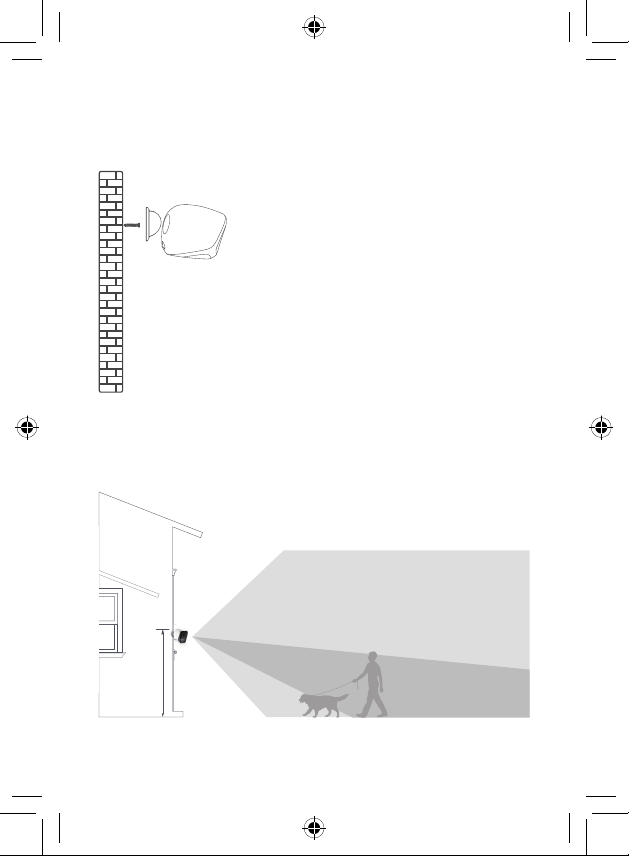

2.6 Please fix the magnet bracket on wall with screws like
following pictures
The height should
be 2.1meters from
groud
2.7 Notes for installation.
1. The height should be 2.1meters from groud.
2. The camera slopes down 15 degrees.
User Manual
PAGE: 6
3. Set up App.
3.1.Download APP and install it into your smart phone with
following three ways.
3.1.1, You can download the app named WeHome from App
store and Google play freely.
3.1.2, You can find the support from the website : www.linkwil.
com.

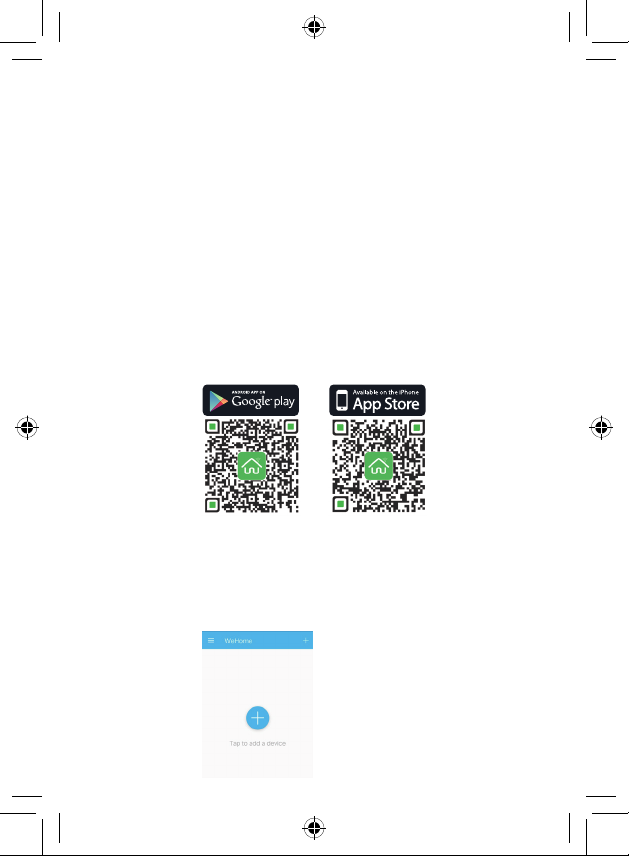

3.1.3, You can scan following QR Code to install the app
WeHome to your smart phone.
3.2. Add Device.
3.2.1 , Make sure your smart phone is connected to your local
office 2.4 G wifi well firstly ,then click the App what is installed in
your phone , then you will see following screenshot:
User Manual
PAGE: 7

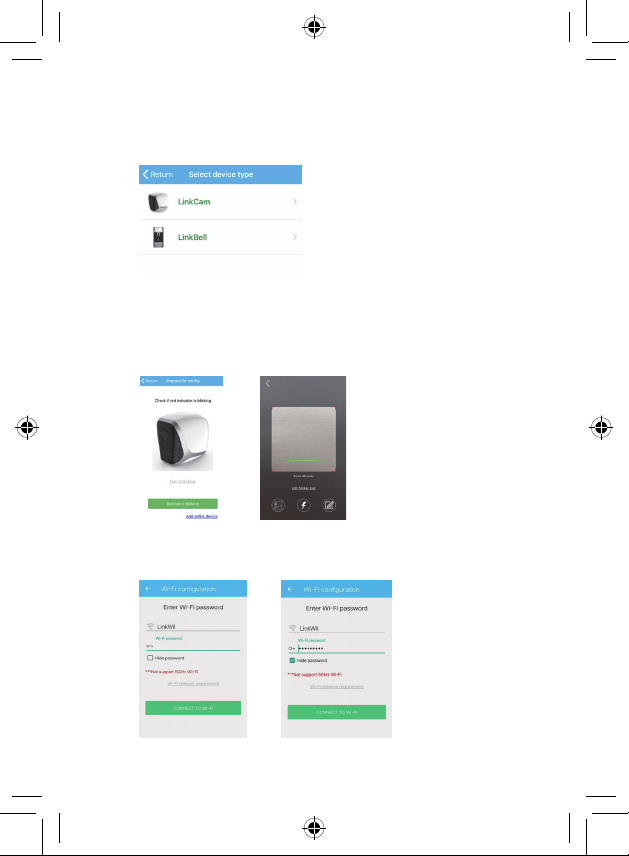

3.2.2 , Click above “Add Device”, then you will see above
screenshot:
3.2.3, Click “LinkCam” ,and chose “Red led is blinking”,you
can get one scan QR Code screen , the QR Code you can get
from bottom of device , or ask your supplier.
3.2.4 ,Enter your local office wifi password as following screen-
shots:
==>
User Manual
PAGE: 8

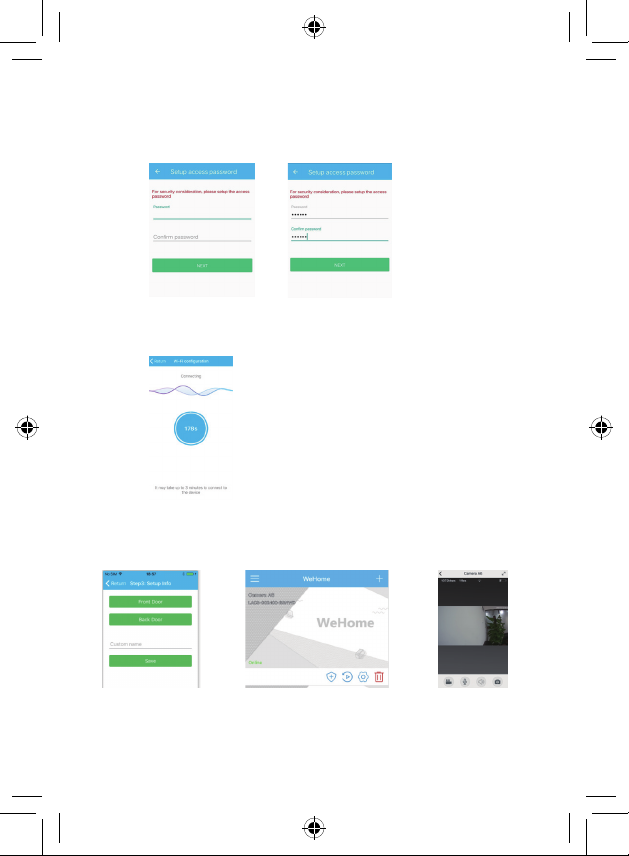

3.2.5 , After click above CONNECT TO WI-FI, then set up access
password what you want for LinkCam,
==>
3.2.6 , Next step , waiting for 3 minutes for configuration. ( as
picture)--Please make sure your phone in max volume.
3.2.7 , After the 180 seconds , custom name for the camera to
confirm a successful configuration.
==> ==> Finished.
