Solid HDS2-1740 Manuel utilisateur

SS601BM

ENGLISH USER MANUAL

USER MANUAL

HD DIGITAL SET-TOP BOX

HDS2-1740

High Definition Digital Satellite Recorder

Personal Video Recorder

DIGITAL

CONTENTS

SAFETY PRECAUTION...................................................................................4

ENVIRONMENT PROTECTION.......................................................................5

FRONT PANEL................................................................................................6

REAR PANEL ..................................................................................................6

DEVICES CONNECTION.................................................................................7

REMOTE CONTROL .......................................................................................8

1. BASIC OPERATIONS............................................................................9

1.1 TURN ON STB.........................................................................................9

1.2 POWER...................................................................................................9

1.3 CHANNEL UP/CHANNEL DOWN .................................................................9

1.4 VOLUME UP/VOLUME DOWN- ...................................................................9

1.5 NUMBER .................................................................................................9

1.6 MUTE......................................................................................................9

1.7 PAUSE....................................................................................................9

1.8 RECALL...................................................................................................9

1.9 FAVORITE................................................................................................9

1.10 AUDIO.....................................................................................................9

1.11 INFORMATION ......................................................................................10

1.12 EPG...................................................................................................10

1.13 TV/RADIO .........................................................................................10

1.14 CHANNEL LIST.....................................................................................10

1.15 PAGE UP/PAGE DOWN.........................................................................11

1.16 TELETEXT ...........................................................................................11

1.17 SUBTITLE .........................................................................................11

1.18 FIND ...................................................................................................11

1.19 ZOOM ...................................................................................................12

1.20 MENU .................................................................................................12

1.21 EXIT......................................................................................................12

1.22 OK.......................................................................................................12

2. MAIN MENU.........................................................................................14

2.1.1 CHANNEL.............................................................................................14

2.1.2 INSTALLATION ......................................................................................15

2.1.3 SYSTEM SETUP ....................................................................................18

2.1.4 USB....................................................................................................20

3. UPGRADE............................................................................................21

4. STORAGE MANAGE ...........................................................................21

5. EPG......................................................................................................21

6. NETWORK SETTING...........................................................................22

7. ADV TIMER..........................................................................................22

8. RADIO ..................................................................................................23

9. PHOTO.................................................................................................23

10. MUSIC ..................................................................................................23

11. MOVIE..................................................................................................24

12. NET APP ..............................................................................................25

13. YOUTUBE............................................................................................26

14. GAME...................................................................................................26

15. TOOL....................................................................................................26

16. SPECIFICATIONS................................................................................27

SAFETY PRECAUTION

CAUTION:

The lightning flash with

arrowhead symbol, within an

equilateral triangle, is intended

to alert the user to "dangerous

voltage" and to prevent from a

risk of electric shock.

Warning:

To reduce the risk of electric

shock, don't open the cabinet.

Refer servicing to qualified

personnel only.

The exclamation point within an

equilateral triangle is intended to

alert the user to important

operating and maintenance

(servicing).

WARNING: Do not usethis STB where contact with / or immersion in water is a possibility. Do not use

near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc.

WARNING: Do not put the candle or lamp stand on the cabinet; otherwise, there is the danger of fire.

WARNING: The unit should be connected to a power supply only of the type described in the operating

instructions or as marked on the unit. If you are not sure of the type of power supply (for example, 120

or 230 V) to your home, consult your local dealer or local power company.

WARNING: This product installs diodes. Do not open the cabinet or touch any parts in the inner

mechanism. Consult your local dealer for technical service if the opening is required.

Note: To ensure proper use of this product, please read this User manual carefully and retain

for further reference.

Unit Cleaning: After the unit power is turned off, you can clean the cabinet, panel and remote control

with a soft cloth lightly moistened with a mild detergent solution.

Attachments: Never add any attachments and/or equipment without the manufacturer consent; as

such additions may result in the risk of fire, electric shock, or other personal injury.

Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating.

Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa, or other

similar surface, nor should it be placed over a radiator or heat register.

Power-Cord Protection: Place the power-supply cord out of the way, where it will not be walked on.

Please take special attentions to cords at plugs, convenience receptacles, and the point where they

exit from the unit.

Object and Liquid Entry: Never put objects of any kind into this STB through openings, as they may

touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill

any liquid on the STB.

Note: Moisture may be formed on the lens In the following conditions:

when the unit is suddenly moved from a cold environment or an air-condition room to a warm

place.

immediately after a heater has been turned on.

in a steamy or very humid room.

If the moisture forms inside the unit, it may not operate properly. To correct this problem, turn on the

power and wait about two hours for the moisture to evaporate.

Parts Replacement: When the unit parts need to be replaced, user should make sure the service

technician use the replacement parts specified by the manufacturer or having the same characteristics

as the original part. Unauthorized replacement may put the unit In the risk of fire, electric shock or other

hazards.

Safety Check: After all the maintenances and repairs are done, user is required to request the service

technician to conduct the overall safety check to ensure the machine is In the proper condition.

Environment protection

Attention!

Your product is marked with this symbol. It means that the used electrical and electronic products should

not be mixed with general household waste. There is a separate collection system for these products.

DECLARATION OF CONFORMITY

The manufacturer herewith declares the conformity of that product with the following

directives and standards:

Front Panel

Rear Panel

NOTICE: The pictures are for references only; please make the object as the

standard.

Devices Connection

As shown, connect the interfaces on the television with the corresponding interfaces

on the product (such as connect the product with TV sets through the HDMI cable),

then after the power is connected, turn on the switch and you can use the product.

Remote control

This is the remote control of the product. Please note that he picture is for references

only, please make the object as the standard.

1．POWER: To switch ON/OFF the receiver power supply.

2．MUTE: To mute or restore the sound.

3．RED, GREEN, YELLOW, BULE KEYS: Multi-function keys

in menu mode.

4．PREV: To change into the previous play.

5．NEXT: To change into the next play.

6．PLAY/PAUSE: to pause and play the file when you press play /

pause key.

7．STOP: To stop the current play or to stop the current record.

8．USB: The shortcut key to the USB menu.

9．FIND: Enter into a menu to search the channel you want.

10．TXT: To open txt page on the channel, this has information of txt.

11．ZOOM: To magnify a certain area on the images

12．RECORD: To make record of play.

13．MENU: Display the main menu or return to the previous one.

14．INFO: The shortcut key to the information menu.

15．OK: To carry out the selection and enter into chosen menu.

16．CH Up/Down: To turn the next or previous channel and to move

the highlight bar for selecting options to upward or downward on

the menu.

17．VOL Left/Right: To adjust the sound volume up or down and to

move the highlight bar for selecting options to right or left on the

menu.

18．FAV: The shortcut key to favorite menu.

19．EXIT: To exit from the menu or pop-up window or cancel the

present running functions.

20．VOL +/-: To adjust the sound volume up or down

21．PAGE +/-: To move up the cursor to the next or previous page in

the menu or channel list.

22．EPG: The shortcut key to the EPG menu.

23．AUDIO: To elects the audio mode among Left / Right / Stereo /

Mono.

24．NUMBER KEYPAD: To select TV/Radio channel and enter to

programming parameters by the numeric keys and to input the

character by the alphabetical keys.

25．TV/RADIO: To switch between TV and RADIO.

26．RECALL: To return to the previously viewed channel.

1. Basic Operations

1.1 Turn on STB

First, press the Power to turn on the unit.

When the STB is first used, there will play the first channel from the default Channel List. If the STB is

not first used, STB will play the same channel as last time before turning off.

1.2 Power

1. Press [Power] Key can enter the Standby state

2. In Standby state, press [Power] Key again can call back the unit and go on play the previous

channel

3. User can also disconnect the device’s main power to end the Standby state.

1.3 Channel Up/Channel Down

In full screen, press [CH Up/Dn] to change channel.

1.4 Volume Up/Volume Down-

In full screen, press [Vol +/-] to adjust volume.

1.5 Number

In full screen, use number key and press [OK] on the Remote Control Unit to change channel.

1.6 Mute

1. Press [MUTE] key to mute the sound and the screen will show up mute OSD.

2. Press [MUTE] key again to restore sound.

1.7 Pause

By pressing [Pause] key once, the picture and sound will be paused and then, by pressing [PAUSE]

key again, you can continue to watch.

1.8 Recall

Press [RECALL] key will directly switch to the previous channel that you played before current

channel.

1.9 Favorite

1. In full screen, press [FAV] key, it will display a window of “Favorite Group”on the left of the screen.

2. In the window of “Favorite”, you can move highlight by press [Ch Up/Dn] key and press [OK] key to

select favorite group.

3. You also can press [VOL +/-] keys to select different “Favorite Group”.

4. Press [Exit] key to exit the current window.

1.10 Audio

1 In full screen, press [AUDIO] key to open the “Audio”window on the screen.

2 You can modify the audio track by pressing [Ch Up/Dn] key and modify the audio mode by

pressing [VOL +/-] key among Left / Right / Stereo / Mono.

1.11 Information

In full screen, press [INFO] key can open information screen, in the window shows the parameters of

current channel.

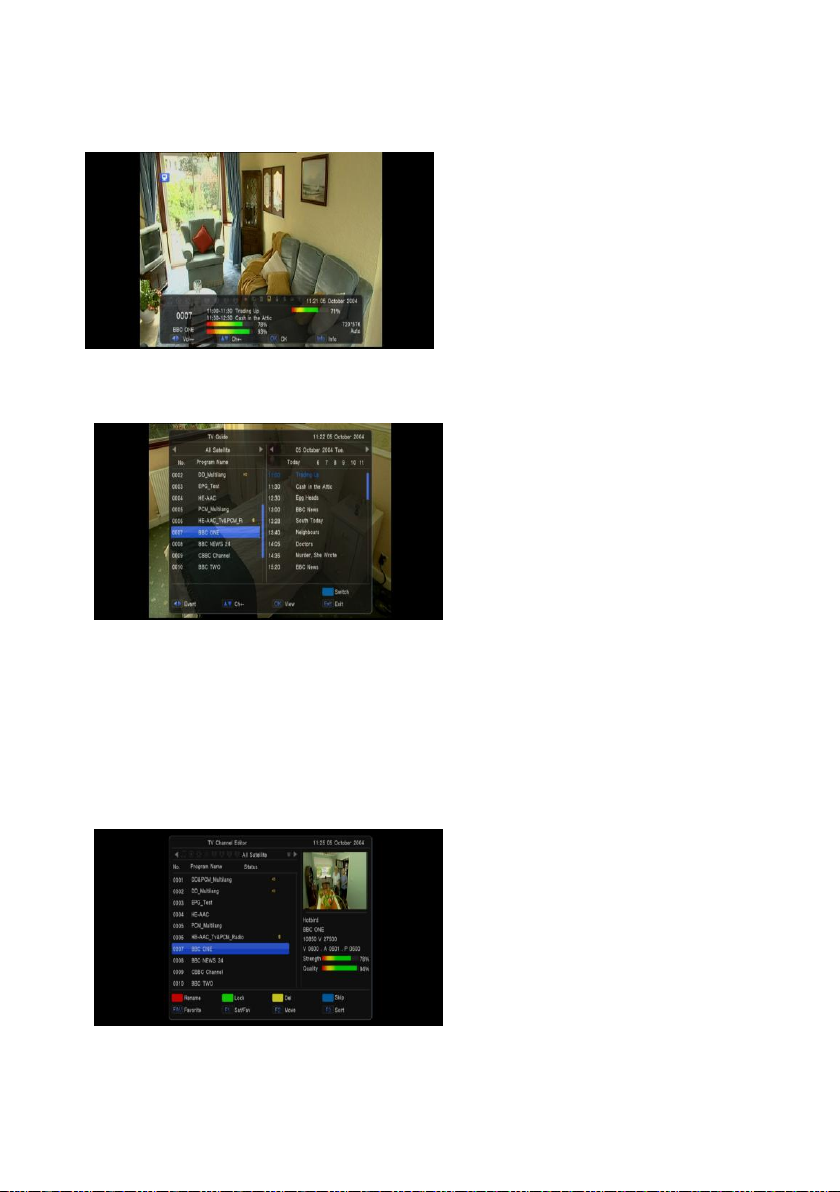

1.12 EPG 1 The STB has an Electronic Program

Guide (EPG) to help you navigate

channels through all the possible viewing

options. The EPG supplies information

such as channel listings and starting and

ending times for all available channels.

2 Press [EPG] key to display EPG screen.

3 Press [OK] key in each item can see

more detail information and press [Exit]

key to cancel

4 Press [Vol +/-] to select “back/current

time/last program or last day/next day”.

Press [Ch Up/Dn] key to channel change.

5 Press [Green] key in EPG menu can open timer menu. Yo can save a timer as you want.

6 In EPG menu, press [Exit] to close EPG screen.

1.13 TV/RADIO

In TV mode, pressing [TV/RADIO] key can switch to Radio mode. In Radio mode, press [TV/RADIO]

key to switch to TV mode.

1.14 Channel List 1 In full screen, press [OK] key or

[CH.LIST] can enter “Channel List”.

2 Press [Vol +/-] key to change satellite.

3 Press [Ch Up/Dn] key to move highlight

and press [OK] key to play the

highlighted channel.

4 Press [Page +/-] key to page up and

page down.

5 Press [Exit] key to exit the channel list.

Table des matières

Manuels Décodeur populaires d'autres marques

VBrick

VBrick 8000-0188 Manuel utilisateur

Kogan

Kogan KGNPVR500VAA Manuel utilisateur

Asus

Asus O!PLAY MEDIA PRO Manuel utilisateur

Samsung

Samsung ICU 100 Manuel utilisateur

VECTORMAX

VECTORMAX A12E Manuel utilisateur

DStv

DStv Explora Manuel utilisateur

Ace Digital TV

Ace Digital TV ADB 3800 Manuel utilisateur

Cisco

Cisco 4398DVB Manuel utilisateur

Polaroid

Polaroid KHA-01651B Manuel utilisateur

Samsung

Samsung GX-SM530CF Manuel utilisateur

BT Business Total Broadband Manuel utilisateur

Megasat

Megasat HD 720 plus Manuel utilisateur

Sungale

Sungale STB608 Manuel utilisateur

Amino

Amino Amigo 7X Manuel utilisateur

Geniatech

Geniatech ATV225 Manuel utilisateur

Android

Android Androidminibox mx2 se Manuel utilisateur

Hama

Hama Internet TV Box Manuel utilisateur

Ariva

Ariva T650i Manuel utilisateur
